SpringBoot利用ELK实现日志收集

ELK是Elasticsearch、Logstash、Kibana他们三个组合起来可以搭建日志系统，本文主要记录使

用ELK收集SoringBoot应用产生的日志

Elasticsearch、Logstash、Kibana作用

• Elasticsearch:存储日志信息

• Logstash: 日志收集，springboot利用Logstash把日志发送个Logstash，然后Logstash将日志传递

给Elasticsearch。

• Kibana:通过web端对日志进行可视化操作

对Elasticsearch安装

• 下载Elasticsearch镜像

  docker pull Elasticsearch:7.6.2

• 修改虚拟内存地址，否则可能出现内存过小无法启动

  sysctl -w vm.max_map_count=262144

• 启动Elasticsearch服务:

  docker run -p 9200:9200 -p 9300:9300 --name elasticsearch \ -e "discovery.type=single-node" \ -e "cluster.name=elasticsearch" \ -v /mydata/elasticsearch/plugins:/usr/share/elasticsearch/plugins \ -v /mydata/elasticsearch/data:/usr/share/elasticsearch/data \ -d elasticsearch:7.6.2

• 启动时/usr/share/elasticsearch会出现没有访问权限，需要修改/mydata/elasticsearch/data/权

  限,然后重新启动elasticsearch

  chmod 777 /mydata/elasticsearch/data/

• 安装IKAnalyzer中文分词器,并重新启动:

  docker exec -it elasticsearch /bin/bash #此命令需要在容器中运行 elasticsearch-plugin install https://github.com/medcl/elasticsearch-analysis- ik/releases/download/v7.6.2/elasticsearch-analysis-ik-7.6.2.zip docker restart elasticsearch

注:离线安装elasticsearch中插件

• 1.下载elasticsearch-analysis-ik-7.6.2.zip

  https://github.com/medcl/elasticsearch-analysis- ik/releases/download/v7.6.2/elasticsearch-analysis-ik-7.6.2.zip

• 2.上传到linux

• 3.上传的linux复制到elasticsearch容器中

  docker cp elasticsearch-analysis-ik-7.6.2.zip elasticsearch:/

• 4.安装插件

  docker exec -it elasticsearch /bin/bash elasticsearch-plugin install file:elasticsearch-analysis-ik-7.6.2.zip docker restart elasticsearch

• 如果防火墙没有关闭

  firewall-cmd --zone=public --add-port=9200/tcp --permanent firewall-cmd --reload

安装Logstash的Docker镜像

• 1.下载Logstash镜像

  docker pull logstash:7.6.2

• 2.添加Logstash配置文件logstash.conf

  input {  tcp {    mode => "server"    host => "0.0.0.0"    port => 4560    codec => json_lines    type => "manage"  }  tcp {    mode => "server"    host => "0.0.0.0"    port => 4561    codec => json_lines    type => "star"  }  tcp {    mode => "server"    host => "0.0.0.0"    port => 4562    codec => json_lines    type => "love"  }}filter{  if [type] == "record" {    mutate {      remove_field => "port"      remove_field => "host"      remove_field => "@version"    }    json {      source => "message"      remove_field => ["message"]    }  }}output {  elasticsearch {    hosts => "es:9200"    index => "leinfty-%{type}-%{+YYYY.MM.dd}"  }}

• 3.创建/mydata/logstash，将logstash.conf拷贝到该目录

  mkdir /mydata/logstash

• 4.启动logstash

  docker run --name logstash -p 4560:4560 -p 4561:4561 -p 4562:4562 \--link elasticsearch:es \-v /mydata/logstash/logstash.conf:/usr/share/logstash/pipeline/logstash.conf \-d logstash:7.6.2

Kibana安装

• 1.下载Kibana镜像

  docker pull kibana:7.6.2

• 2.启动Kibana

  docker run --name kibana -p 5601:5601 \--link elasticsearch:es \-e "elasticsearch.hosts=http://es:9200" \-d kibana:7.6.2

• 3.如果防火墙没有关闭

  firewall-cmd --zone=public --add-port=5601/tcp --permanent firewall-cmd --reload

• 4.将kibana变为中文

  docker exec -it kibana bash cd config vi kibana.yml

• 5.在kibana.yml中添加

  il8n.locale:"zh-CN"

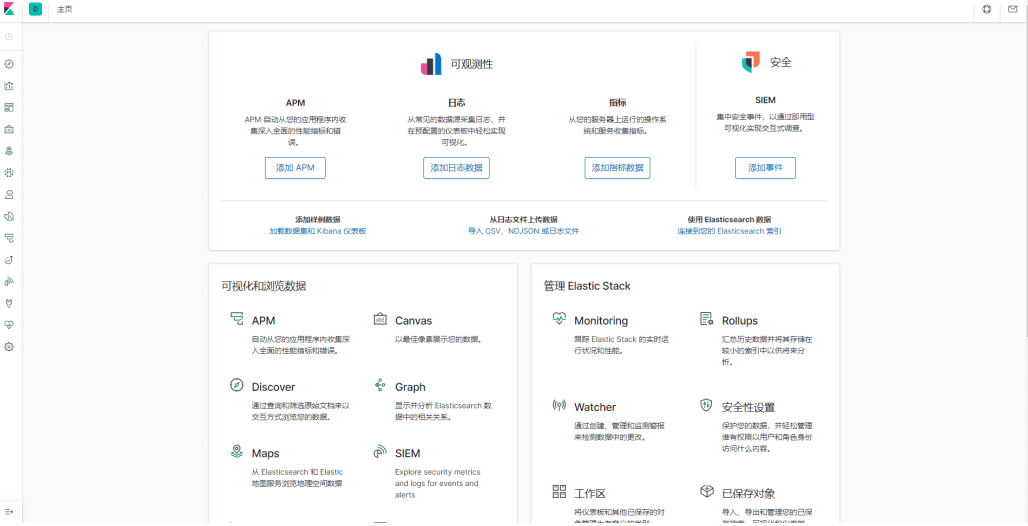

• 6.访问http://xxxx:5601进行测试

SpringBoot集成Logstash

添加Logstash依赖

 <dependency>     <groupId>net.logstash.logback</groupId>     <artifactId>logstash-logback-encoder</artifactId>    <version>5.3</version> </dependency>

添加配置文件logback-spring.xml，使得logbach日志输入到logstash

<configuration>    <include resource="org/springframework/boot/logging/logback/defaults.xml"/>    <include resource="org/springframework/boot/logging/logback/console-appender.xml"/>        <property name="APP_NAME" value="leinfty-love"/>        <property name="LOG_FILE_PATH" value="${LOG_FILE:-${LOG_PATH:-${LOG_TEMP:-${java.io.tmpdir:-/tmp}}}/logs}"/>    <contextName>${APP_NAME}</contextName>        <appender name="FILE" class="ch.qos.logback.core.rolling.RollingFileAppender"> <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">     <fileNamePattern>${LOG_FILE_PATH}/${APP_NAME}-%d{yyyy-MM-dd}.log</fileNamePattern>     <maxHistory>30</maxHistory> </rollingPolicy> <encoder>     <pattern>${FILE_LOG_PATTERN}</pattern> </encoder>    </appender>        <appender name="LOGSTASH" class="net.logstash.logback.appender.LogstashTcpSocketAppender">  <destination>ip:4562</destination> <encoder charset="UTF-8" class="net.logstash.logback.encoder.LogstashEncoder"/>    </appender>    <root level="INFO"> <appender-ref ref="CONSOLE"/> <appender-ref ref="FILE"/> <appender-ref ref="LOGSTASH"/>    </root></configuration>

在application.yml中添加配置进行测试

logging:     file:  path: /var/logs     level:  root: info     config: classpath:logback-spring.xml

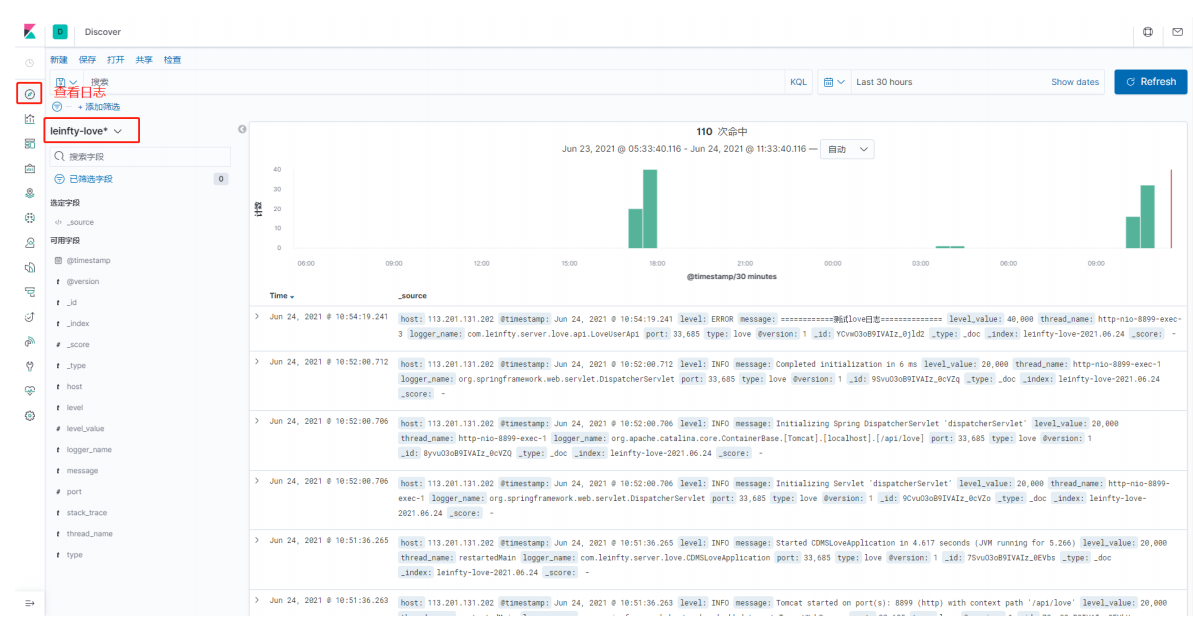

查看收集的日志

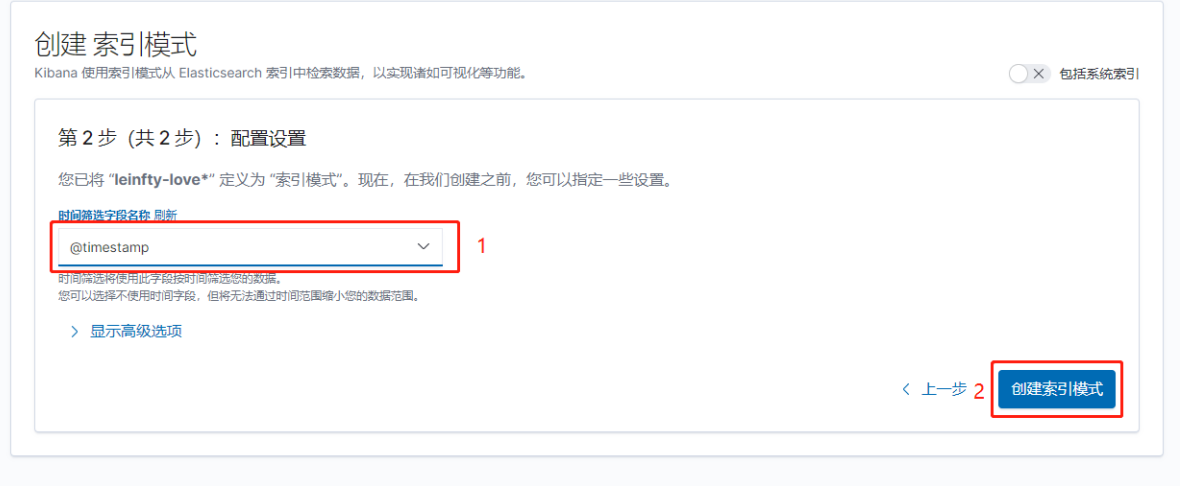

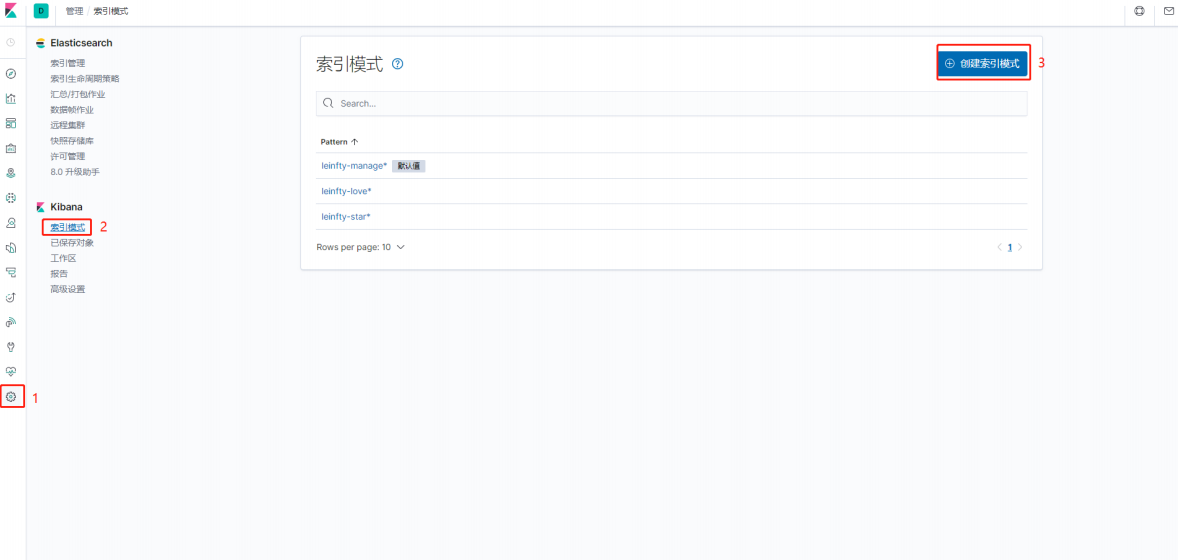

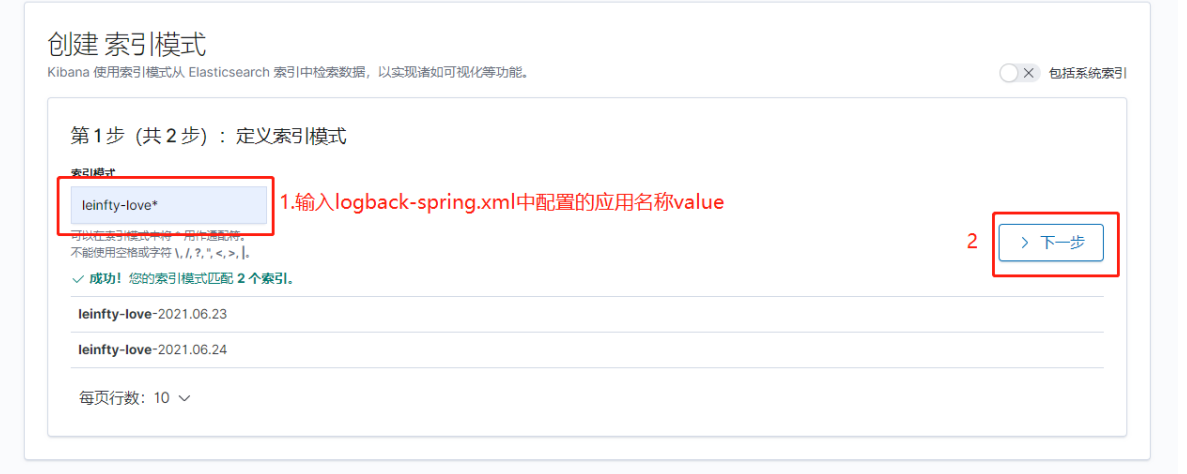

• 1.创建索引

权限控制

• 进入es容器

  docker exec -it elasticsearch bash

• 修改配置

  vi config/elasticsearch.yml

• 启用安全配置

  xpack.security.enabled: truexpack.license.self_generated.type: basicxpack.security.transport.ssl.enabled: true

• 重启es容器

  exitdocker restart elasticsearch

• 设置密码

  docker exec -it elasticsearch bash

  bin/elasticsearch-setup-passwords interactive

  按提示填入各类应用的密码

• 进入kibana容器

  docker exec -it kibana bash

• 配置kibana连接elastic的设置

  vi config/kibana.yml

  elasticsearch.username: "elastic"elasticsearch.password: "xxx"

• 重启kibana容器

  docker restart kibana

• 配置logstash连接elastic的设置

  vi /mydata/logstash/logstash.conf

  output {  elasticsearch {    hosts => "es:9200"    user => "elastic"    password => "xxx"    index => "leinfty-%{type}-%{+YYYY.MM.dd}"  }}

• 重启logstash

  docker restart logstash

• 验证账号登录
