Docker iptables数据包过滤流向分析
Docker iptables数据包过滤流向分析
iptables log
# 事先关闭firewalld[root@boy ~]# cat log.sh #!/bin/bashfunction insert(){##### ebtablesebtables -t broute -I BROUTING --log --log-prefix 'ctc/ebtable/broute-BROUTING' --log-level debugebtables -t nat -I PREROUTING --log --log-prefix 'ctc/ebtable/nat-PREROUTE' --log-level debugebtables -t nat -I OUTPUT --log --log-prefix 'ctc/ebtable/nat-OUTPUT' --log-level debugebtables -t nat -I POSTROUTING --log --log-prefix 'ctc/ebtable/nat-POSTROUTE' --log-level debugebtables -t filter -I INPUT --log --log-prefix 'ctc/ebtable/filter-input' --log-level debugebtables -t filter -I OUTPUT --log --log-prefix 'ctc/ebtable/filter-output' --log-level debugebtables -t filter -I FORWARD --log --log-prefix 'ctc/ebtable/filter-forward' --log-level debug#### iptablesiptables -t raw -I PREROUTING -p icmp -j LOG --log-prefix 'iptable/raw-PREROUTE' --log-level debug iptables -t mangle -I PREROUTING -p icmp -j LOG --log-prefix 'iptable/mangle-PREROUTE' --log-level debug iptables -t nat -I PREROUTING -p icmp -j LOG --log-prefix 'iptable/nat-PREROUTE' --log-level debug iptables -t mangle -I FORWARD -p icmp -j LOG --log-prefix 'iptable/mangle-FORWARD' --log-level debug iptables -t filter -I FORWARD -p icmp -j LOG --log-prefix 'iptable/filter-FORWARD' --log-level debug iptables -t mangle -I INPUT -p icmp -j LOG --log-prefix 'iptable/mangle-INPUT' --log-level debug iptables -t filter -I INPUT -p icmp -j LOG --log-prefix 'iptable/filter-INPUT' --log-level debug iptables -t raw -I OUTPUT -p icmp -j LOG --log-prefix 'iptable/raw-OUTPUT' --log-level debug iptables -t mangle -I OUTPUT -p icmp -j LOG --log-prefix 'iptable/mangle-OUTPUT' --log-level debug iptables -t nat -I OUTPUT -p icmp -j LOG --log-prefix 'iptable/nat-OUTPUT' --log-level debug iptables -t filter -I OUTPUT -p icmp -j LOG --log-prefix 'iptable/filter-OUTPUT' --log-level debug iptables -t mangle -I POSTROUTING -p icmp -j LOG --log-prefix 'iptable/mangle-POSTROUTE' --log-level debug iptables -t nat -I POSTROUTING -p icmp -j LOG --log-prefix 'iptable/nat-POSTROUTE' --log-level debug}function delete(){#### ebtables ebtables -t broute -D BROUTING --log --log-prefix 'ctc/ebtable/broute-BROUTING' --log-level debug ebtables -t nat -D PREROUTING --log --log-prefix 'ctc/ebtable/nat-PREROUTE' --log-level debug ebtables -t nat -D OUTPUT --log --log-prefix 'ctc/ebtable/nat-OUTPUT' --log-level debug ebtables -t nat -D POSTROUTING --log --log-prefix 'ctc/ebtable/nat-POSTROUTE' --log-level debug ebtables -t filter -D INPUT --log --log-prefix 'ctc/ebtable/filter-input' --log-level debug ebtables -t filter -D OUTPUT --log --log-prefix 'ctc/ebtable/filter-output' --log-level debug ebtables -t filter -D FORWARD --log --log-prefix 'ctc/ebtable/filter-forward' --log-level debug#### iptablesiptables -t raw -D PREROUTING -p icmp -j LOG --log-prefix 'iptable/raw-PREROUTE' --log-level debug iptables -t mangle -D PREROUTING -p icmp -j LOG --log-prefix 'iptable/mangle-PREROUTE' --log-level debug iptables -t nat -D PREROUTING -p icmp -j LOG --log-prefix 'iptable/nat-PREROUTE' --log-level debug iptables -t mangle -D FORWARD -p icmp -j LOG --log-prefix 'iptable/mangle-FORWARD' --log-level debug iptables -t filter -D FORWARD -p icmp -j LOG --log-prefix 'iptable/filter-FORWARD' --log-level debug iptables -t mangle -D INPUT -p icmp -j LOG --log-prefix 'iptable/mangle-INPUT' --log-level debug iptables -t filter -D INPUT -p icmp -j LOG --log-prefix 'iptable/filter-INPUT' --log-level debug iptables -t raw -D OUTPUT -p icmp -j LOG --log-prefix 'iptable/raw-OUTPUT' --log-level debug iptables -t mangle -D OUTPUT -p icmp -j LOG --log-prefix 'iptable/mangle-OUTPUT' --log-level debug iptables -t nat -D OUTPUT -p icmp -j LOG --log-prefix 'iptable/nat-OUTPUT' --log-level debug iptables -t filter -D OUTPUT -p icmp -j LOG --log-prefix 'iptable/filter-OUTPUT' --log-level debug iptables -t mangle -D POSTROUTING -p icmp -j LOG --log-prefix 'iptable/mangle-POSTROUTE' --log-level debug iptables -t nat -D POSTROUTING -p icmp -j LOG --log-prefix 'iptable/nat-POSTROUTE' --log-level debug}case $1 in"insert")insert;;"delete")delete;;*)exit 1;;esac# 运行脚本bash log.sh insertContainer to Container
# 启动container1[root@boy ~]# docker run -it busybox sh/ # ip addr1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue qlen 1000 link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00 inet 127.0.0.1/8 scope host lovalid_lft forever preferred_lft forever4: eth0@if5: <BROADCAST,MULTICAST,UP,LOWER_UP,M-DOWN> mtu 1500 qdisc noqueue link/ether 02:42:ac:11:00:02 brd ff:ff:ff:ff:ff:ff inet 172.17.0.2/16 brd 172.17.255.255 scope global eth0valid_lft forever preferred_lft forever # 启动container2[root@boy ~]# docker run -it busybox sh/ # ip addr1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue qlen 1000 link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00 inet 127.0.0.1/8 scope host lovalid_lft forever preferred_lft forever6: eth0@if7: <BROADCAST,MULTICAST,UP,LOWER_UP,M-DOWN> mtu 1500 qdisc noqueue link/ether 02:42:ac:11:00:03 brd ff:ff:ff:ff:ff:ff inet 172.17.0.3/16 brd 172.17.255.255 scope global eth0valid_lft forever preferred_lft forever# container1 ping container2 一次（提前ping了一次，并将ARP相关信息清除了）/ # ping -c1 172.17.0.3PING 172.17.0.3 (172.17.0.3): 56 data bytes64 bytes from 172.17.0.3: seq=0 ttl=64 time=0.173 ms--- 172.17.0.3 ping statistics ---1 packets transmitted, 1 packets received, 0% packet lossround-trip min/avg/max = 0.173/0.173/0.173 ms# 查看MAC信息[root@boy ~]# ip link show1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN mode DEFAULT group default qlen 1000 link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:002: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP mode DEFAULT group default qlen 1000 link/ether 00:0c:29:ec:1c:2d brd ff:ff:ff:ff:ff:ff3: docker0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP mode DEFAULT group default link/ether 02:42:ff:e7:b5:d2 brd ff:ff:ff:ff:ff:ff5: veth694b3b7@if4: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master docker0 state UP mode DEFAULT group default link/ether ae:fa:af:36:61:5f brd ff:ff:ff:ff:ff:ff link-netnsid 07: veth8f77b15@if6: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master docker0 state UP mode DEFAULT group default link/ether 1e:05:0c:18:ae:26 brd ff:ff:ff:ff:ff:ff link-netnsid 1[root@boy ~]# bridge fdb01:00:5e:00:00:01 dev ens33 self permanent33:33:00:00:00:01 dev ens33 self permanent33:33:ff:b4:91:65 dev ens33 self permanent33:33:00:00:00:01 dev docker0 self permanent01:00:5e:00:00:01 dev docker0 self permanent33:33:ff:e7:b5:d2 dev docker0 self permanent02:42:ff:e7:b5:d2 dev docker0 vlan 1 master docker0 permanent02:42:ff:e7:b5:d2 dev docker0 master docker0 permanentae:fa:af:36:61:5f dev veth694b3b7 master docker0 permanent02:42:ac:11:00:02 dev veth694b3b7 master docker0 ae:fa:af:36:61:5f dev veth694b3b7 vlan 1 master docker0 permanent33:33:00:00:00:01 dev veth694b3b7 self permanent01:00:5e:00:00:01 dev veth694b3b7 self permanent33:33:ff:36:61:5f dev veth694b3b7 self permanent1e:05:0c:18:ae:26 dev veth8f77b15 vlan 1 master docker0 permanent1e:05:0c:18:ae:26 dev veth8f77b15 master docker0 permanent02:42:ac:11:00:03 dev veth8f77b15 master docker0 33:33:00:00:00:01 dev veth8f77b15 self permanent01:00:5e:00:00:01 dev veth8f77b15 self permanent33:33:ff:18:ae:26 dev veth8f77b15 self permanent[root@boy ~]# brctl showbridge namebridge idSTP enabledinterfacesdocker08000.0242ffe7b5d2noveth694b3b7veth8f77b15[root@boy ~]# brctl showmacs docker0port nomac addris local?ageing timer 102:42:ac:11:00:02no 229.76 202:42:ac:11:00:03no 229.76 21e:05:0c:18:ae:26yes 0.00 21e:05:0c:18:ae:26yes 0.00 1ae:fa:af:36:61:5fyes 0.00 1ae:fa:af:36:61:5fyes 0.00 # 查看路由表[root@boy ~]# route -nKernel IP routing tableDestination Gateway Genmask Flags Metric Ref Use Iface0.0.0.0 192.168.0.2 0.0.0.0 UG 100 0 0 ens33172.17.0.0 0.0.0.0 255.255.0.0 U 0 0 0 docker0192.168.0.0 0.0.0.0 255.255.255.0 U 100 0 0 ens33# 查看过滤信息[root@boy ~]# dmesg ####################################### ICMP REQUEST ################################################ MAC dest 已事先通过ARP学习到，此时container1将流量发送到本机网卡对端的veth（连在Docker0上），然后触发过滤[ 3281.370286] ctc/ebtable/broute-BROUTING IN=veth694b3b7 OUT= MAC source = 02:42:ac:11:00:02 MAC dest = 02:42:ac:11:00:03 proto = 0x0800[ 3281.370290] ctc/ebtable/nat-PREROUTE IN=veth694b3b7 OUT= MAC source = 02:42:ac:11:00:02 MAC dest = 02:42:ac:11:00:03 proto = 0x0800# /proc/sys/net/bridge/bridge-nf-call-iptables 由于这个值为1，ebtables虽然是二层，但是会自己主动调iptables，此时container1将数据包转发给Docker0后，在iptables过滤中认为这个数据包是由Docker0进来的，由于还未进行routing，此时不知道数据包要转发到何处[ 3281.370297] iptable/raw-PREROUTEIN=docker0 OUT= PHYSIN=veth694b3b7 MAC=02:42:ac:11:00:03:02:42:ac:11:00:02:08:00 SRC=172.17.0.2 DST=172.17.0.3 LEN=84 TOS=0x00 PREC=0x00 TTL=64 ID=11201 DF PROTO=ICMP TYPE=8 CODE=0 ID=11 SEQ=0 [ 3281.370302] iptable/mangle-PREROUTEIN=docker0 OUT= PHYSIN=veth694b3b7 MAC=02:42:ac:11:00:03:02:42:ac:11:00:02:08:00 SRC=172.17.0.2 DST=172.17.0.3 LEN=84 TOS=0x00 PREC=0x00 TTL=64 ID=11201 DF PROTO=ICMP TYPE=8 CODE=0 ID=11 SEQ=0 [ 3281.370305] iptable/nat-PREROUTEIN=docker0 OUT= PHYSIN=veth694b3b7 MAC=02:42:ac:11:00:03:02:42:ac:11:00:02:08:00 SRC=172.17.0.2 DST=172.17.0.3 LEN=84 TOS=0x00 PREC=0x00 TTL=64 ID=11201 DF PROTO=ICMP TYPE=8 CODE=0 ID=11 SEQ=0 # 二层进行forward，转发给container2[ 3281.370312] ctc/ebtable/filter-forward IN=veth694b3b7 OUT=veth8f77b15 MAC source = 02:42:ac:11:00:02 MAC dest = 02:42:ac:11:00:03 proto = 0x0800# 在iptables中，这里认为IN OUT都是Docker0，需注意，PHYSIN=container1 PHYSIOUT=container2[ 3281.370315] iptable/mangle-FORWARDIN=docker0 OUT=docker0 PHYSIN=veth694b3b7 PHYSOUT=veth8f77b15 MAC=02:42:ac:11:00:03:02:42:ac:11:00:02:08:00 SRC=172.17.0.2 DST=172.17.0.3 LEN=84 TOS=0x00 PREC=0x00 TTL=64 ID=11201 DF PROTO=ICMP TYPE=8 CODE=0 ID=11 SEQ=0 [ 3281.370318] iptable/filter-FORWARDIN=docker0 OUT=docker0 PHYSIN=veth694b3b7 PHYSOUT=veth8f77b15 MAC=02:42:ac:11:00:03:02:42:ac:11:00:02:08:00 SRC=172.17.0.2 DST=172.17.0.3 LEN=84 TOS=0x00 PREC=0x00 TTL=64 ID=11201 DF PROTO=ICMP TYPE=8 CODE=0 ID=11 SEQ=0# 在ebtables POSTROUTING时，将IN删除了[ 3281.370320] ctc/ebtable/nat-POSTROUTE IN= OUT=veth8f77b15 MAC source = 02:42:ac:11:00:02 MAC dest = 02:42:ac:11:00:03 proto = 0x0800# 在iptables POSTROUTING时，将IN删除了[ 3281.370322] iptable/mangle-POSTROUTEIN= OUT=docker0 PHYSIN=veth694b3b7 PHYSOUT=veth8f77b15 SRC=172.17.0.2 DST=172.17.0.3 LEN=84 TOS=0x00 PREC=0x00 TTL=64 ID=11201 DF PROTO=ICMP TYPE=8 CODE=0 ID=11 SEQ=0 [ 3281.370324] iptable/nat-POSTROUTEIN= OUT=docker0 PHYSIN=veth694b3b7 PHYSOUT=veth8f77b15 SRC=172.17.0.2 DST=172.17.0.3 LEN=84 TOS=0x00 PREC=0x00 TTL=64 ID=11201 DF PROTO=ICMP TYPE=8 CODE=0 ID=11 SEQ=0 ########################################## ICMP REPLY ################################################# REPLY过程和REQUEST过程几乎一样[ 3281.370348] ctc/ebtable/broute-BROUTING IN=veth8f77b15 OUT= MAC source = 02:42:ac:11:00:03 MAC dest = 02:42:ac:11:00:02 proto = 0x0800[ 3281.370349] ctc/ebtable/nat-PREROUTE IN=veth8f77b15 OUT= MAC source = 02:42:ac:11:00:03 MAC dest = 02:42:ac:11:00:02 proto = 0x0800[ 3281.370352] iptable/raw-PREROUTEIN=docker0 OUT= PHYSIN=veth8f77b15 MAC=02:42:ac:11:00:02:02:42:ac:11:00:03:08:00 SRC=172.17.0.3 DST=172.17.0.2 LEN=84 TOS=0x00 PREC=0x00 TTL=64 ID=43632 PROTO=ICMP TYPE=0 CODE=0 ID=11 SEQ=0 [ 3281.370355] iptable/mangle-PREROUTEIN=docker0 OUT= PHYSIN=veth8f77b15 MAC=02:42:ac:11:00:02:02:42:ac:11:00:03:08:00 SRC=172.17.0.3 DST=172.17.0.2 LEN=84 TOS=0x00 PREC=0x00 TTL=64 ID=43632 PROTO=ICMP TYPE=0 CODE=0 ID=11 SEQ=0 #### 由于NAT PREROUTING在request时参与过滤了，系统留有缓存，此时数据并不会来这过滤，而是根据缓存进行DNAT转换(如果有的话)[ 3281.370357] ctc/ebtable/filter-forward IN=veth8f77b15 OUT=veth694b3b7 MAC source = 02:42:ac:11:00:03 MAC dest = 02:42:ac:11:00:02 proto = 0x0800[ 3281.370359] iptable/mangle-FORWARDIN=docker0 OUT=docker0 PHYSIN=veth8f77b15 PHYSOUT=veth694b3b7 MAC=02:42:ac:11:00:02:02:42:ac:11:00:03:08:00 SRC=172.17.0.3 DST=172.17.0.2 LEN=84 TOS=0x00 PREC=0x00 TTL=64 ID=43632 PROTO=ICMP TYPE=0 CODE=0 ID=11 SEQ=0 [ 3281.370362] iptable/filter-FORWARDIN=docker0 OUT=docker0 PHYSIN=veth8f77b15 PHYSOUT=veth694b3b7 MAC=02:42:ac:11:00:02:02:42:ac:11:00:03:08:00 SRC=172.17.0.3 DST=172.17.0.2 LEN=84 TOS=0x00 PREC=0x00 TTL=64 ID=43632 PROTO=ICMP TYPE=0 CODE=0 ID=11 SEQ=0 ### 由于NAT POSTROUTING在request时参与过滤了，系统留有缓存，此时数据并不会来这过滤，而是根据缓存进行SNAT转换(如果有的话)[ 3281.370363] ctc/ebtable/nat-POSTROUTE IN= OUT=veth694b3b7 MAC source = 02:42:ac:11:00:03 MAC dest = 02:42:ac:11:00:02 proto = 0x0800[ 3281.370365] iptable/mangle-POSTROUTEIN= OUT=docker0 PHYSIN=veth8f77b15 PHYSOUT=veth694b3b7 SRC=172.17.0.3 DST=172.17.0.2 LEN=84 TOS=0x00 PREC=0x00 TTL=64 ID=43632 PROTO=ICMP TYPE=0 CODE=0 ID=11 SEQ=0 # 注：在FORWARD时，iptables中的规则IN OUT都是Docker0PING REQUEST流量流向图

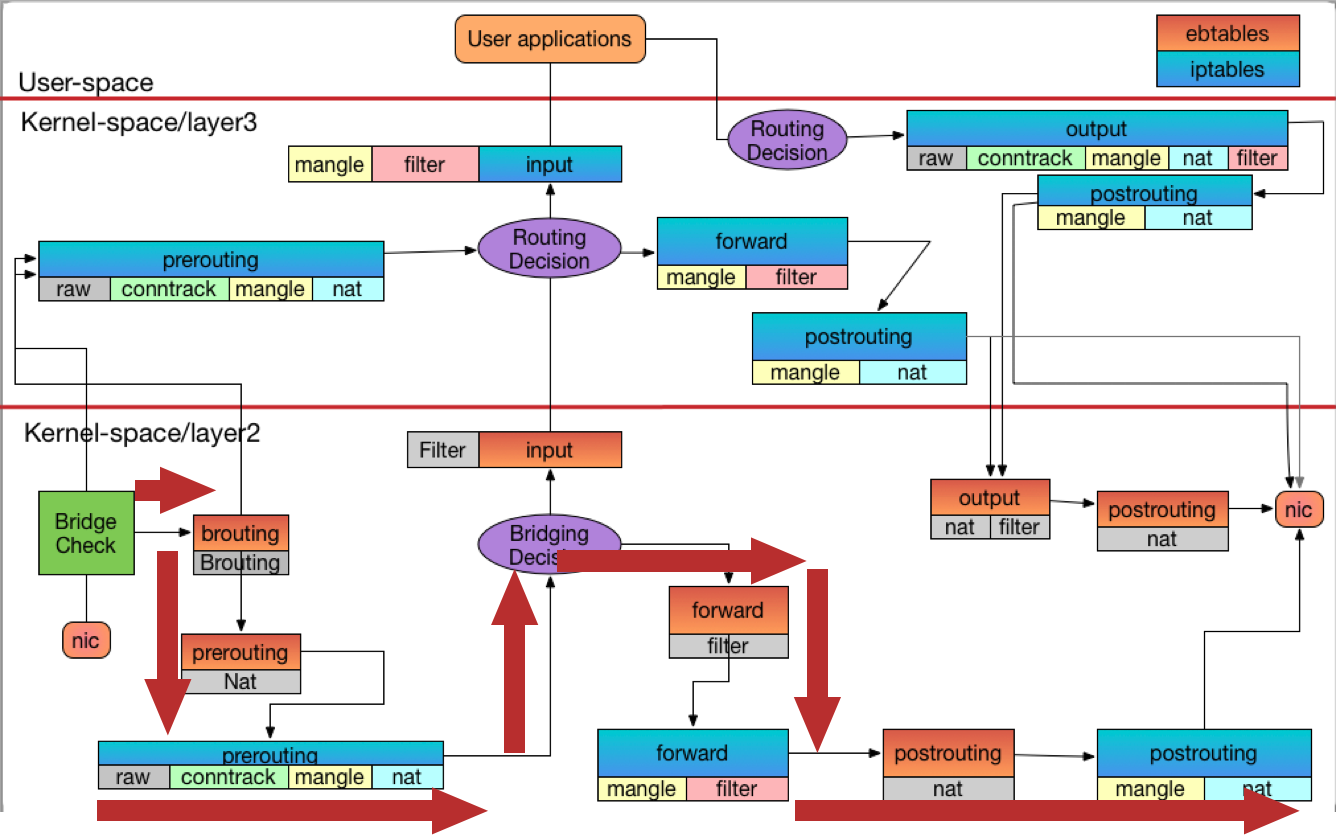

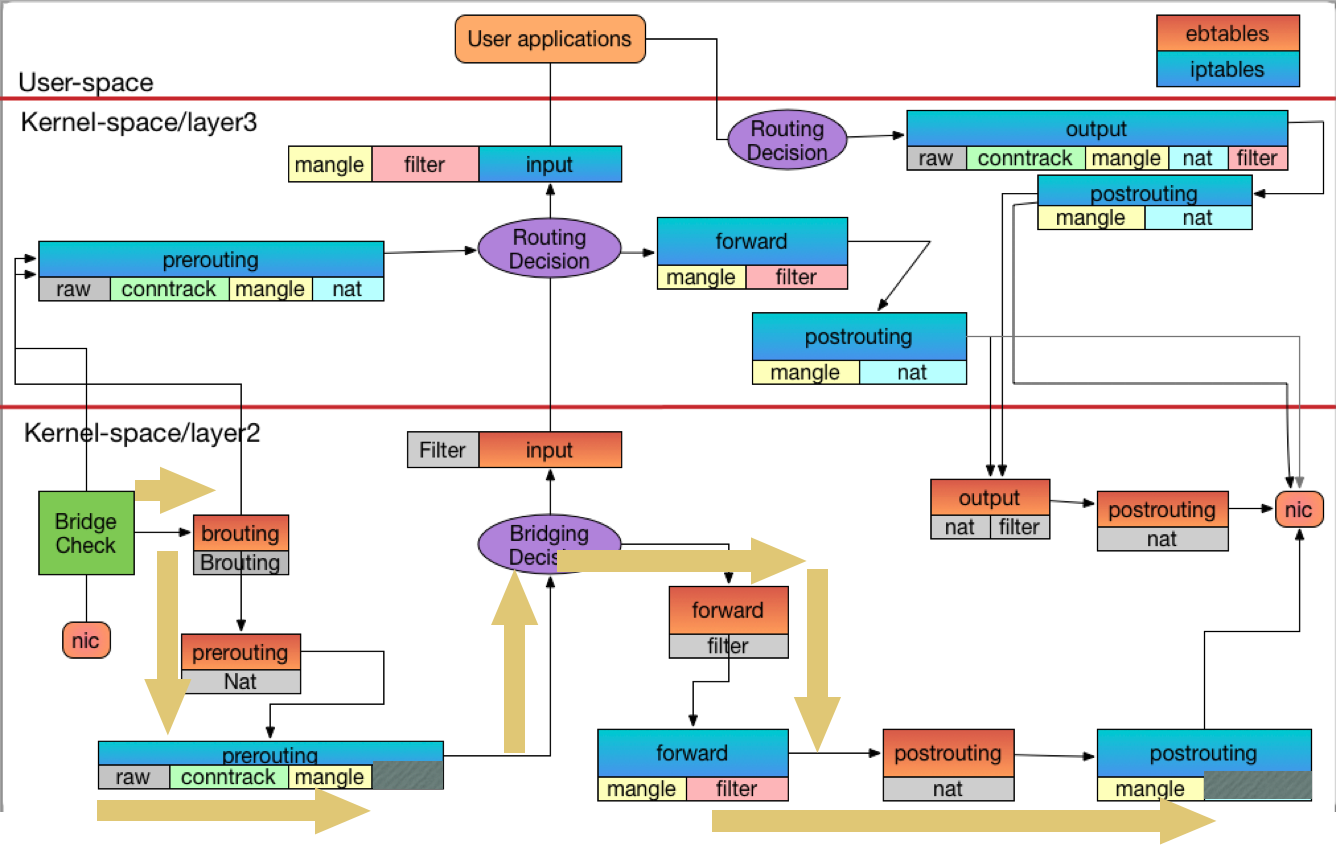

PING REPLY流量流向图
- 回来的封包不会进到NAT TABLE，主要是这些封包被 Conntion Track(Conntrack) 给处理过了，接下来都不会进入NAT处理
- ebtables内会偷偷呼叫iptables来进行处理，这部分是个动态开关，可以透过/proc/sys/net/bridge/bridge-nf-call-iptables来告诉kernel不要呼叫iptables

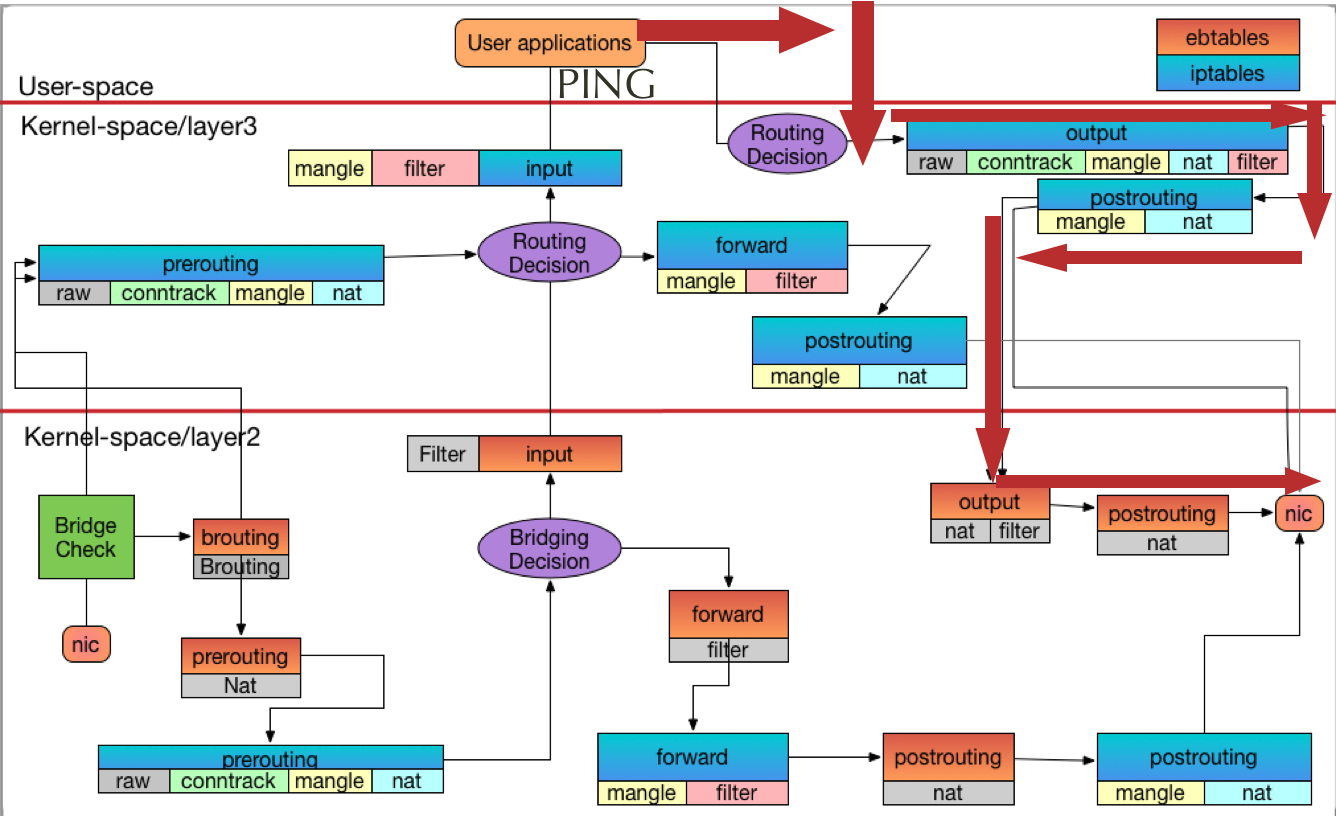

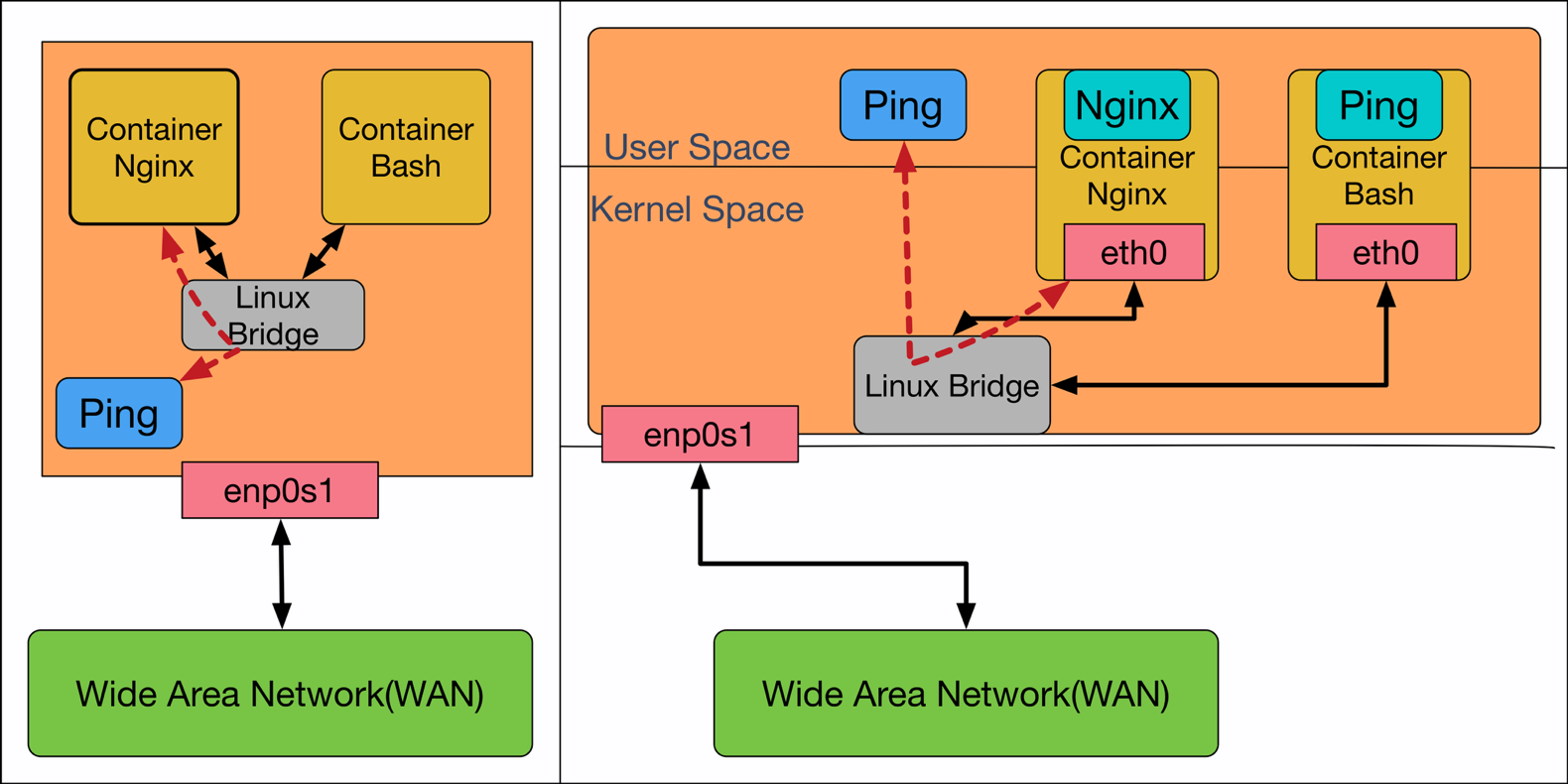

Host to Container
# 启动container1[root@boy ~]# docker run -it busybox sh/ # ip addr1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue qlen 1000 link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00 inet 127.0.0.1/8 scope host lovalid_lft forever preferred_lft forever8: eth0@if9: <BROADCAST,MULTICAST,UP,LOWER_UP,M-DOWN> mtu 1500 qdisc noqueue link/ether 02:42:ac:11:00:02 brd ff:ff:ff:ff:ff:ff inet 172.17.0.2/16 brd 172.17.255.255 scope global eth0valid_lft forever preferred_lft forever # host ping container 一次（提前ping一次，并将ARP相关信息清除了）[root@boy ~]# ping -c1 172.17.0.2PING 172.17.0.2 (172.17.0.2) 56(84) bytes of data.64 bytes from 172.17.0.2: icmp_seq=1 ttl=64 time=0.103 ms--- 172.17.0.2 ping statistics ---1 packets transmitted, 1 received, 0% packet loss, time 0msrtt min/avg/max/mdev = 0.103/0.103/0.103/0.000 ms# 查看MAC信息[root@boy ~]# ip link show1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN mode DEFAULT group default qlen 1000 link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:002: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP mode DEFAULT group default qlen 1000 link/ether 00:0c:29:ec:1c:2d brd ff:ff:ff:ff:ff:ff3: docker0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP mode DEFAULT group default link/ether 02:42:ff:e7:b5:d2 brd ff:ff:ff:ff:ff:ff9: vethe9baedc@if8: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master docker0 state UP mode DEFAULT group default link/ether 3e:94:a0:26:91:fa brd ff:ff:ff:ff:ff:ff link-netnsid 0[root@boy ~]# bridge fdb01:00:5e:00:00:01 dev ens33 self permanent33:33:00:00:00:01 dev ens33 self permanent33:33:ff:b4:91:65 dev ens33 self permanent33:33:00:00:00:01 dev docker0 self permanent01:00:5e:00:00:01 dev docker0 self permanent33:33:ff:e7:b5:d2 dev docker0 self permanent02:42:ff:e7:b5:d2 dev docker0 vlan 1 master docker0 permanent02:42:ff:e7:b5:d2 dev docker0 master docker0 permanent02:42:ac:11:00:02 dev vethe9baedc master docker0 3e:94:a0:26:91:fa dev vethe9baedc vlan 1 master docker0 permanent3e:94:a0:26:91:fa dev vethe9baedc master docker0 permanent33:33:00:00:00:01 dev vethe9baedc self permanent01:00:5e:00:00:01 dev vethe9baedc self permanent33:33:ff:26:91:fa dev vethe9baedc self permanent[root@boy ~]# brctl showbridge namebridge idSTP enabledinterfacesdocker08000.0242ffe7b5d2novethe9baedc[root@boy ~]# brctl showmacs docker0port nomac addris local?ageing timer 102:42:ac:11:00:02no 91.99 13e:94:a0:26:91:fayes 0.00 13e:94:a0:26:91:fayes 0.00# 查看路由表[root@boy ~]# route -nKernel IP routing tableDestination Gateway Genmask Flags Metric Ref Use Iface0.0.0.0 192.168.0.2 0.0.0.0 UG 100 0 0 ens33172.17.0.0 0.0.0.0 255.255.0.0 U 0 0 0 docker0192.168.0.0 0.0.0.0 255.255.255.0 U 100 0 0 ens33################################# ICMP REQUEST ######################################################## 根据路由表，可以知道该数据包需要从docke0转发出去,内部构造的流量并没有设置IN=xx[ 6717.619904] iptable/raw-OUTPUTIN= OUT=docker0 SRC=172.17.0.1 DST=172.17.0.2 LEN=84 TOS=0x00 PREC=0x00 TTL=64 ID=23020 DF PROTO=ICMP TYPE=8 CODE=0 ID=2413 SEQ=1 [ 6717.619914] iptable/mangle-OUTPUTIN= OUT=docker0 SRC=172.17.0.1 DST=172.17.0.2 LEN=84 TOS=0x00 PREC=0x00 TTL=64 ID=23020 DF PROTO=ICMP TYPE=8 CODE=0 ID=2413 SEQ=1 [ 6717.619917] iptable/nat-OUTPUTIN= OUT=docker0 SRC=172.17.0.1 DST=172.17.0.2 LEN=84 TOS=0x00 PREC=0x00 TTL=64 ID=23020 DF PROTO=ICMP TYPE=8 CODE=0 ID=2413 SEQ=1 [ 6717.619920] iptable/filter-OUTPUTIN= OUT=docker0 SRC=172.17.0.1 DST=172.17.0.2 LEN=84 TOS=0x00 PREC=0x00 TTL=64 ID=23020 DF PROTO=ICMP TYPE=8 CODE=0 ID=2413 SEQ=1 # 这个可以做SNAT，如果有需要的话[ 6717.619922] iptable/mangle-POSTROUTEIN= OUT=docker0 SRC=172.17.0.1 DST=172.17.0.2 LEN=84 TOS=0x00 PREC=0x00 TTL=64 ID=23020 DF PROTO=ICMP TYPE=8 CODE=0 ID=2413 SEQ=1 [ 6717.619924] iptable/nat-POSTROUTEIN= OUT=docker0 SRC=172.17.0.1 DST=172.17.0.2 LEN=84 TOS=0x00 PREC=0x00 TTL=64 ID=23020 DF PROTO=ICMP TYPE=8 CODE=0 ID=2413 SEQ=1 [ 6717.619954] ctc/ebtable/nat-OUTPUT IN= OUT=vethe9baedc MAC source = 02:42:ff:e7:b5:d2 MAC dest = 02:42:ac:11:00:02 proto = 0x0800[ 6717.619957] ctc/ebtable/filter-output IN= OUT=vethe9baedc MAC source = 02:42:ff:e7:b5:d2 MAC dest = 02:42:ac:11:00:02 proto = 0x0800[ 6717.619958] ctc/ebtable/nat-POSTROUTE IN= OUT=vethe9baedc MAC source = 02:42:ff:e7:b5:d2 MAC dest = 02:42:ac:11:00:02 proto = 0x0800################################## ICMP REPLAY #######################################################[ 6717.619996] ctc/ebtable/broute-BROUTING IN=vethe9baedc OUT= MAC source = 02:42:ac:11:00:02 MAC dest = 02:42:ff:e7:b5:d2 proto = 0x0800# MAC dest 02:42:ff:e7:b5:d2，为本机地址（容器的MAC由于NAMESPACE隔离，对于物理机来说是不可见的），所以不会进行FORWARD,所以OUT会为空[ 6717.619998] ctc/ebtable/nat-PREROUTE IN=vethe9baedc OUT= MAC source = 02:42:ac:11:00:02 MAC dest = 02:42:ff:e7:b5:d2 proto = 0x0800[ 6717.620002] iptable/raw-PREROUTEIN=docker0 OUT= PHYSIN=vethe9baedc MAC=02:42:ff:e7:b5:d2:02:42:ac:11:00:02:08:00 SRC=172.17.0.2 DST=172.17.0.1 LEN=84 TOS=0x00 PREC=0x00 TTL=64 ID=46632 PROTO=ICMP TYPE=0 CODE=0 ID=2413 SEQ=1 # 由于DST 172.17.0.1 为本机IP，故而不会进行FORWARD[ 6717.620005] iptable/mangle-PREROUTEIN=docker0 OUT= PHYSIN=vethe9baedc MAC=02:42:ff:e7:b5:d2:02:42:ac:11:00:02:08:00 SRC=172.17.0.2 DST=172.17.0.1 LEN=84 TOS=0x00 PREC=0x00 TTL=64 ID=46632 PROTO=ICMP TYPE=0 CODE=0 ID=2413 SEQ=1 # 由于DST 172.17.0.1为本机地址，此时不会进行FORWARD，即不会被转发出去，所以OUT为空[ 6717.620007] ctc/ebtable/filter-input IN=vethe9baedc OUT= MAC source = 02:42:ac:11:00:02 MAC dest = 02:42:ff:e7:b5:d2 proto = 0x0800[ 6717.620011] iptable/mangle-INPUTIN=docker0 OUT= PHYSIN=vethe9baedc MAC=02:42:ff:e7:b5:d2:02:42:ac:11:00:02:08:00 SRC=172.17.0.2 DST=172.17.0.1 LEN=84 TOS=0x00 PREC=0x00 TTL=64 ID=46632 PROTO=ICMP TYPE=0 CODE=0 ID=2413 SEQ=1 [ 6717.620014] iptable/filter-INPUTIN=docker0 OUT= PHYSIN=vethe9baedc MAC=02:42:ff:e7:b5:d2:02:42:ac:11:00:02:08:00 SRC=172.17.0.2 DST=172.17.0.1 LEN=84 TOS=0x00 PREC=0x00 TTL=64 ID=46632 PROTO=ICMP TYPE=0 CODE=0 ID=2413 SEQ=1 PING REQUEST流量流向图

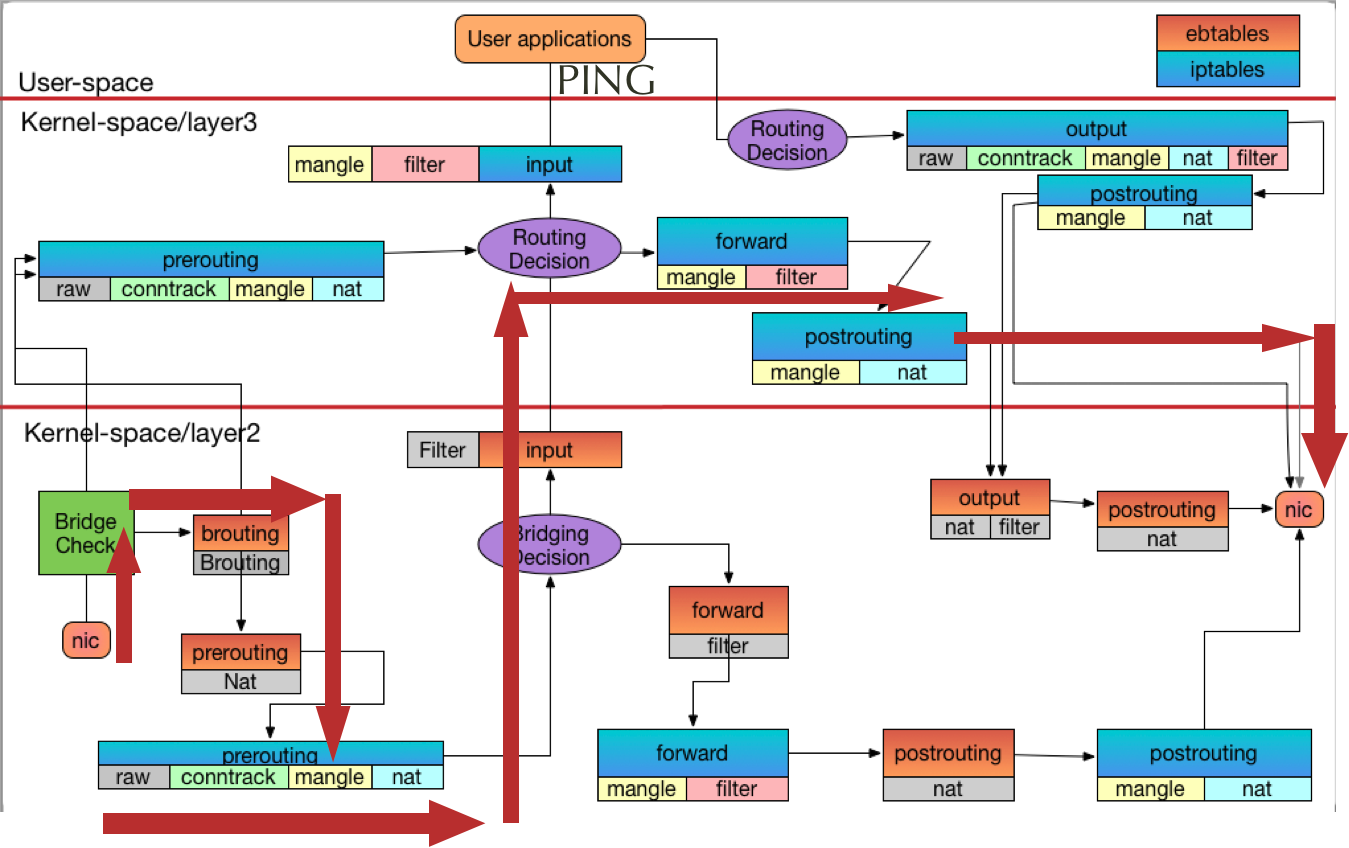

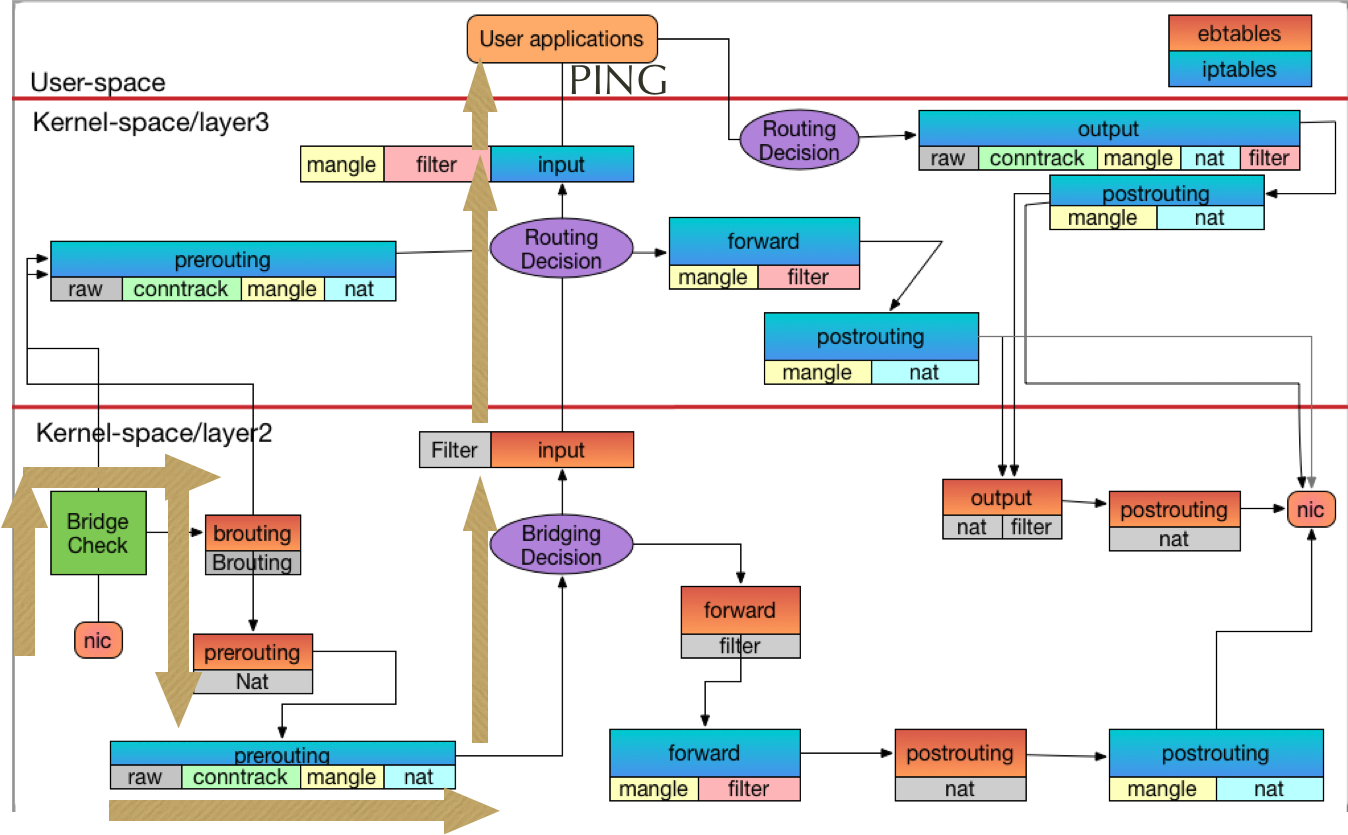

PING REPLY流量流向图
Container to WAN
# 启动container1[root@boy ~]# docker run -it busybox:1.28 sh/ # ping -c1 114.114.114.114PING 114.114.114.114 (114.114.114.114): 56 data bytes64 bytes from 114.114.114.114: seq=0 ttl=127 time=26.485 ms--- 114.114.114.114 ping statistics ---1 packets transmitted, 1 packets received, 0% packet lossround-trip min/avg/max = 26.485/26.485/26.485 ms# 查看MAC信息[root@boy ~]# ip link show1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN mode DEFAULT group default qlen 1000 link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:002: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP mode DEFAULT group default qlen 1000 link/ether 00:0c:29:ec:1c:2d brd ff:ff:ff:ff:ff:ff3: docker0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP mode DEFAULT group default link/ether 02:42:ff:e7:b5:d2 brd ff:ff:ff:ff:ff:ff17: veth67de56d@if16: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master docker0 state UP mode DEFAULT group default link/ether ba:97:f0:e8:ea:0b brd ff:ff:ff:ff:ff:ff link-netnsid 0[root@boy ~]# bridge fdb01:00:5e:00:00:01 dev ens33 self permanent33:33:00:00:00:01 dev ens33 self permanent33:33:ff:b4:91:65 dev ens33 self permanent33:33:00:00:00:01 dev docker0 self permanent01:00:5e:00:00:01 dev docker0 self permanent33:33:ff:e7:b5:d2 dev docker0 self permanent02:42:ff:e7:b5:d2 dev docker0 vlan 1 master docker0 permanent02:42:ff:e7:b5:d2 dev docker0 master docker0 permanentba:97:f0:e8:ea:0b dev veth67de56d vlan 1 master docker0 permanent02:42:ac:11:00:02 dev veth67de56d master docker0 ba:97:f0:e8:ea:0b dev veth67de56d master docker0 permanent33:33:00:00:00:01 dev veth67de56d self permanent01:00:5e:00:00:01 dev veth67de56d self permanent33:33:ff:e8:ea:0b dev veth67de56d self permanent[root@boy ~]# brctl showbridge namebridge idSTP enabledinterfacesdocker08000.0242ffe7b5d2noveth67de56d[root@boy ~]# brctl showmacs docker0port nomac addris local?ageing timer 102:42:ac:11:00:02no 75.02 1ba:97:f0:e8:ea:0byes 0.00 1ba:97:f0:e8:ea:0byes 0.00# 查看路由表[root@boy ~]# route -nKernel IP routing tableDestination Gateway Genmask Flags Metric Ref Use Iface0.0.0.0 192.168.0.2 0.0.0.0 UG 100 0 0 ens33172.17.0.0 0.0.0.0 255.255.0.0 U 0 0 0 docker0192.168.0.0 0.0.0.0 255.255.255.0 U 100 0 0 ens33###################################### ICMP REQUEST ###################################################[ 8712.864782] ctc/ebtable/broute-BROUTING IN=veth67de56d OUT= MAC source = 02:42:ac:11:00:02 MAC dest = 02:42:ff:e7:b5:d2 proto = 0x0800[ 8712.864787] ctc/ebtable/nat-PREROUTE IN=veth67de56d OUT= MAC source = 02:42:ac:11:00:02 MAC dest = 02:42:ff:e7:b5:d2 proto = 0x0800[ 8712.864815] iptable/raw-PREROUTEIN=docker0 OUT= PHYSIN=veth67de56d MAC=02:42:ff:e7:b5:d2:02:42:ac:11:00:02:08:00 SRC=172.17.0.2 DST=114.114.114.114 LEN=84 TOS=0x00 PREC=0x00 TTL=64 ID=58746 DF PROTO=ICMP TYPE=8 CODE=0 ID=2048 SEQ=0 [ 8712.864822] iptable/mangle-PREROUTEIN=docker0 OUT= PHYSIN=veth67de56d MAC=02:42:ff:e7:b5:d2:02:42:ac:11:00:02:08:00 SRC=172.17.0.2 DST=114.114.114.114 LEN=84 TOS=0x00 PREC=0x00 TTL=64 ID=58746 DF PROTO=ICMP TYPE=8 CODE=0 ID=2048 SEQ=0 [ 8712.864826] iptable/nat-PREROUTEIN=docker0 OUT= PHYSIN=veth67de56d MAC=02:42:ff:e7:b5:d2:02:42:ac:11:00:02:08:00 SRC=172.17.0.2 DST=114.114.114.114 LEN=84 TOS=0x00 PREC=0x00 TTL=64 ID=58746 DF PROTO=ICMP TYPE=8 CODE=0 ID=2048 SEQ=0 # 由于ping的网段不属于contaienr网段，它默认会将数据包发送给gateway: Docker0，此时目的MAC需要填写网关的MAC[ 8712.864833] ctc/ebtable/filter-input IN=veth67de56d OUT= MAC source = 02:42:ac:11:00:02 MAC dest = 02:42:ff:e7:b5:d2 proto = 0x0800# 由于114.114.114.114和192.168.0.10不在同一个网段，需要转发给网关，即需要从ens33出去[ 8712.864842] iptable/mangle-FORWARDIN=docker0 OUT=ens33 PHYSIN=veth67de56d MAC=02:42:ff:e7:b5:d2:02:42:ac:11:00:02:08:00 SRC=172.17.0.2 DST=114.114.114.114 LEN=84 TOS=0x00 PREC=0x00 TTL=63 ID=58746 DF PROTO=ICMP TYPE=8 CODE=0 ID=2048 SEQ=0 # 在出去的时候把IN去掉了,此时还有一个MASQUERADE（根据OUT自动将SRC修改为其IP），将SRC源地址修改为：192.168.0.10[ 8712.864845] iptable/mangle-POSTROUTEIN= OUT=ens33 PHYSIN=veth67de56d SRC=172.17.0.2 DST=114.114.114.114 LEN=84 TOS=0x00 PREC=0x00 TTL=63 ID=58746 DF PROTO=ICMP TYPE=8 CODE=0 ID=2048 SEQ=0 ######################################### ICMP REPLY ##################################################### 由于是ens33收到的包，不是bridge收到的包，前面不会进行ebtables过滤[ 8712.913251] iptable/raw-PREROUTEIN=ens33 OUT= MAC=00:0c:29:ec:1c:2d:00:50:56:f7:bd:36:08:00 SRC=114.114.114.114 DST=192.168.0.10 LEN=84 TOS=0x00 PREC=0x00 TTL=128 ID=62292 PROTO=ICMP TYPE=0 CODE=0 ID=2048 SEQ=0 [ 8712.913286] iptable/mangle-PREROUTEIN=ens33 OUT= MAC=00:0c:29:ec:1c:2d:00:50:56:f7:bd:36:08:00 SRC=114.114.114.114 DST=192.168.0.10 LEN=84 TOS=0x00 PREC=0x00 TTL=128 ID=62292 PROTO=ICMP TYPE=0 CODE=0 ID=2048 SEQ=0 # 个人理解：这里由于conntrack导致不会经过NAT PREROUTING过滤，之前是由于MASQUERADE将源地址从172.17.0.2->192.168.0.10,现在这一次连接需要将目的IP从192.168.0.10 -> 172.17.0.2,根据路由表可知，需要转发给Docker0[ 8712.913303] iptable/mangle-FORWARDIN=ens33 OUT=docker0 MAC=00:0c:29:ec:1c:2d:00:50:56:f7:bd:36:08:00 SRC=114.114.114.114 DST=172.17.0.2 LEN=84 TOS=0x00 PREC=0x00 TTL=127 ID=62292 PROTO=ICMP TYPE=0 CODE=0 ID=2048 SEQ=0 [ 8712.913313] iptable/mangle-POSTROUTEIN= OUT=docker0 SRC=114.114.114.114 DST=172.17.0.2 LEN=84 TOS=0x00 PREC=0x00 TTL=127 ID=62292 PROTO=ICMP TYPE=0 CODE=0 ID=2048 SEQ=0 [ 8712.913352] ctc/ebtable/nat-OUTPUT IN= OUT=veth67de56d MAC source = 02:42:ff:e7:b5:d2 MAC dest = 02:42:ac:11:00:02 proto = 0x0800[ 8712.913358] ctc/ebtable/filter-output IN= OUT=veth67de56d MAC source = 02:42:ff:e7:b5:d2 MAC dest = 02:42:ac:11:00:02 proto = 0x0800[ 8712.913361] ctc/ebtable/nat-POSTROUTE IN= OUT=veth67de56d MAC source = 02:42:ff:e7:b5:d2 MAC dest = 02:42:ac:11:00:02 proto = 0x0800PING REQUEST流量流向图

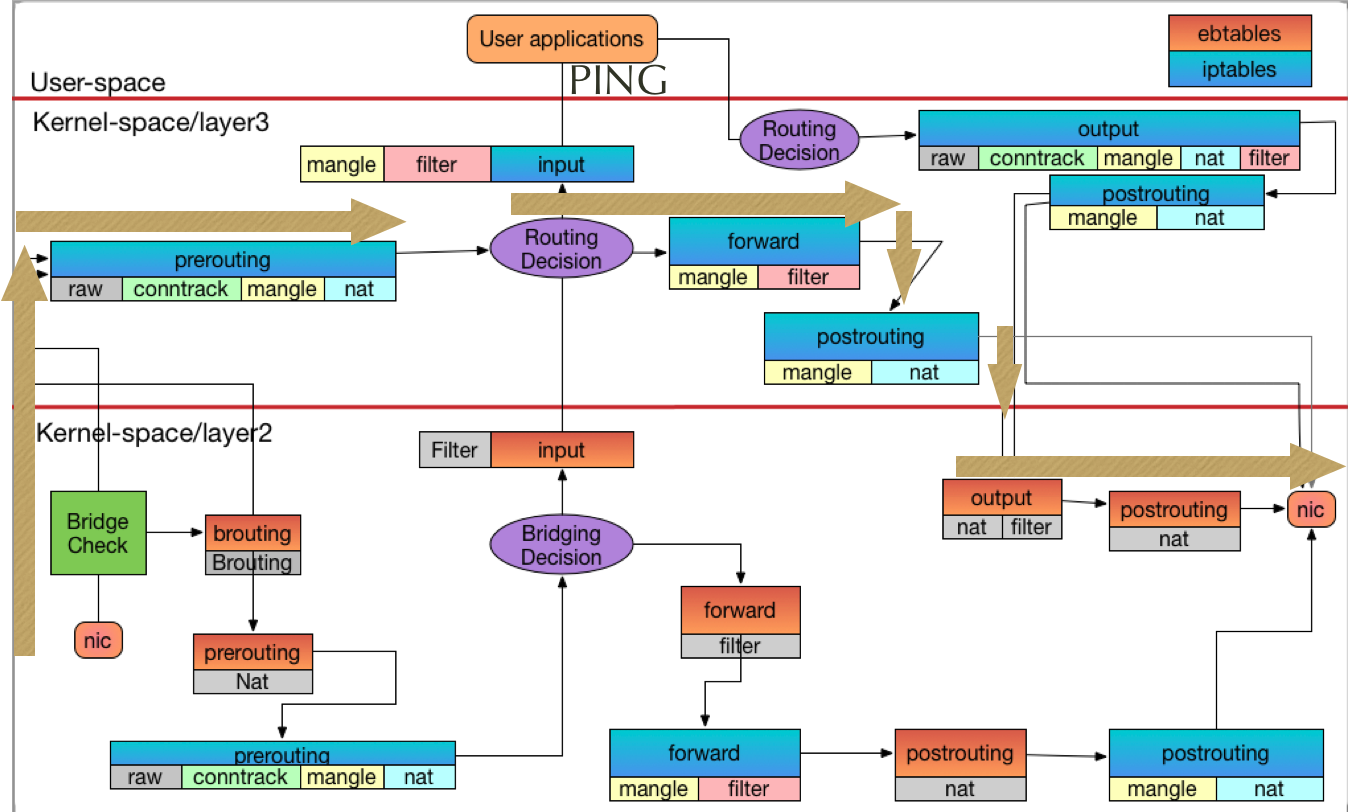

PING REPLY流量流向图
