1、卷积神经网络在图片识别上的应用

（1）局部性：对一张照片而言，需要检测图片中的局部特征来决定图片的类别

（2）相同性：可以用同样的模式去检测不同照片的相同特征，只不过这些特征处于图片中不同的位置，但是特征检测所做的操作是不变的

（3）不变性：对于一张大图片，如果我们进行下采样，图片的性质基本保持不变

2、全连接神经网络处理大尺寸图像的缺点：

（1）首先将图像展开为向量会丢失空间信息；

（2）其次参数过多效率低下，训练困难；

（3）同时大量的参数也很快会导致网络过拟合。

3、卷积神经网络

主要由这几类层构成：输入层、卷积层，ReLU层、池化（Pooling）层和全连接层

（1）卷积层的作用：做特征提取

 只需要定义移动的步长，我们就可以遍历图像中的所有点，比如定义步长为1，遍历过程如下图所示

上述过程是基于无填充的情况，在有填充的情况下，对于图像边缘的点，会用0填充，示意如下

遍历所有点从而得到一张新的图，这样的图称之为特征图，示例如下

所以卷积层是用来做特征提取的。

（2）池化层作用：（下采样计数）

去除特征图中的冗余信息，降低特征图的维度，减少网络中参数的数量，有效控制过拟合

参考博文：卷积神经网络（CNN）详解 - 知乎

卷积和池化简单介绍_BEIERMODE666的博客-CSDN博客_池化索引

4、卷积神经网络实现手写数字识别

（1）CNN

import torchimport torch.nn as nnimport torch.nn.functional as Fimport torch.optim as optimfrom torchvision import datasets, transformsimport torchvisionfrom torch.autograd import Variablefrom torch.utils.data import DataLoaderimport cv2# 数据集加载train_dataset = datasets.MNIST(    root='./num/',    train=True,    transform=transforms.ToTensor(),    download=True)test_dataset = datasets.MNIST(    root='./num/',    train=False,    transform=transforms.ToTensor(),    download=True)batch_size = 64train_loader = torch.utils.data.DataLoader(    dataset=train_dataset,    batch_size=batch_size,    shuffle=True)test_loader = torch.utils.data.DataLoader(    dataset=test_dataset,    batch_size=batch_size,    shuffle=True)# 单批次数据预览# 实现单张图片可视化images, labels = next(iter(train_loader))img = torchvision.utils.make_grid(images)img = img.numpy().transpose(1, 2, 0)std = [0.5, 0.5, 0.5]mean = [0.5, 0.5, 0.5]img = img * std + meanprint(labels)cv2.imshow('win', img)key_pressed = cv2.waitKey(0)# 神经网络模块class CNN(nn.Module):    def __init__(self): super(CNN, self).__init__() self.layer1 = nn.Sequential(     nn.Conv2d(1, 16, kernel_size=3),     nn.BatchNorm2d(16),     nn.ReLU(inplace=True) ) self.layer2 = nn.Sequential(     nn.Conv2d(16, 32, kernel_size=3),     nn.BatchNorm2d(32),     nn.ReLU(inplace=True),     nn.MaxPool2d(kernel_size=2, stride=2) ) self.layer3 = nn.Sequential(     nn.Conv2d(32, 64, kernel_size=3),     nn.BatchNorm2d(64),     nn.ReLU(inplace=True) ) self.layer4 = nn.Sequential(     nn.Conv2d(64, 128, kernel_size=3),     nn.BatchNorm2d(128),     nn.ReLU(inplace=True),     nn.MaxPool2d(kernel_size=2, stride=2) ) self.fc = nn.Sequential(     nn.Linear(128 * 4 * 4, 1024),     nn.ReLU(inplace=True),     nn.Linear(1024, 128),     nn.ReLU(inplace=True),     nn.Linear(128, 10) )    def forward(self, x): x = self.layer1(x) x = self.layer2(x) x = self.layer3(x) x = self.layer4(x) x = x.view(x.size(0), -1) x = self.fc(x) return x# 训练模型if torch.cuda.is_available():    device = 'cuda'else:    device = "cpu"net = CNN().to(device)criterion = nn.CrossEntropyLoss()optimizer = optim.Adam(params=net.parameters(), lr=1e-3)epoch = 1if __name__ == '__main__':    arr_loss = []    for epoch in range(epoch): sum_loss = 0.0 for i, data in enumerate(train_loader):     inputs, labels = data     inputs, labels = Variable(inputs).to(device), Variable(labels).to(device)     optimizer.zero_grad()  # 将梯度归零     outputs = net(inputs)  # 将数据传入网络进行前向运算     loss = criterion(outputs, labels)  # 得到损失函数     loss.backward()  # 反向传播     optimizer.step()  # 通过梯度做一步参数更新     # print(loss)     sum_loss += loss.item()     if i % 100 == 99:  arr_loss.append(sum_loss)  print('[%d,%d] loss:%.03f' % (epoch + 1, i + 1, sum_loss / 100))  sum_loss = 0.0    x = [1,2,3,4,5,6,7,8,9]    y = arr_loss    plt.plot(x, y)    plt.show()    net.eval()  # 将模型变换为测试模式    correct = 0    total = 0    for data_test in test_loader: images, labels = data_test images, labels = Variable(images).to(device), Variable(labels).to(device) output_test = net(images) _, predicted = torch.max(output_test, 1) total += labels.size(0) correct += (predicted == labels).sum()    print("correct1: ", correct)    print("Test acc: {0}".format(correct.item() /     len(test_dataset)))

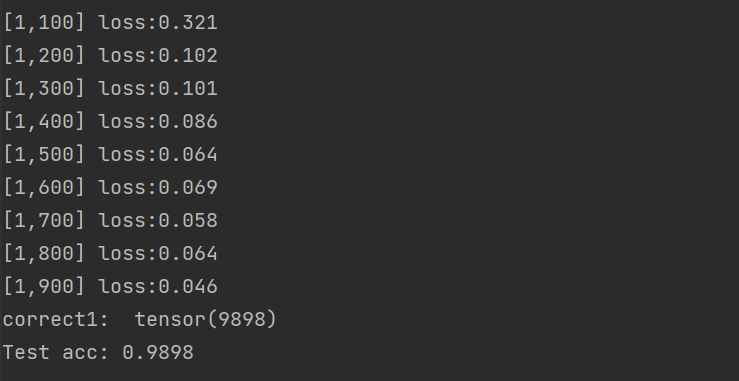

准确率98.98%

（2）LeNet

class LeNet(nn.Module):    def __init__(self): super(LeNet, self).__init__() self.layer1 = nn.Sequential(     nn.Conv2d(1, 6, 3, padding=1),     nn.MaxPool2d(2, 2) ) self.layer2 = nn.Sequential(     nn.Conv2d(6, 16, 5),     nn.MaxPool2d(2, 2) ) self.layer3 = nn.Sequential(     nn.Linear(400, 120),     nn.Linear(120, 84),     nn.Linear(84, 10) )    def forward(self, x): x = self.layer1(x) x = self.layer2(x) x = x.view(x.size(0), -1) x = self.layer3(x) return x

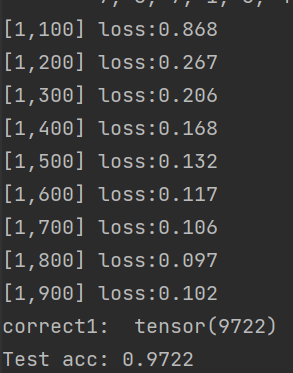

准确率：97.22%

（3）AlexNet

class AlexNet(nn.Module):    def __init__(self): super(AlexNet, self).__init__() self.layer1 = nn.Sequential(  # 输入1*28*28     nn.Conv2d(1, 32, kernel_size=3, padding=1),  # 32*28*28     ######################################################     # in_channels:输入数据深度     # out_channels：输出数据深度     # kernel_size：卷积核大小，也可以表示为（3,2）     # stride： 滑动步长     # padding： 是否零填充     ######################################################     # nn.ReLU(inplace=True),     nn.MaxPool2d(kernel_size=2, stride=2),  # 32*14*14     nn.Conv2d(32, 64, kernel_size=3, padding=1),  # 64*14*14     # nn.ReLU(inplace=True),     nn.MaxPool2d(kernel_size=2, stride=2),  # 64*7*7     nn.Conv2d(64, 128, kernel_size=3, padding=1),  # 128*7*7     # nn.ReLU(inplace=True),     nn.Conv2d(128, 256, kernel_size=3, padding=1),  # 256*7*7     # nn.ReLU(inplace=True),     nn.Conv2d(256, 256, kernel_size=3, padding=1),  # 257*7*7     # nn.ReLU(inplace=True),     nn.MaxPool2d(kernel_size=3, stride=2)  # 256*3*3 ) self.layer2 = nn.Sequential(     nn.Dropout(),     nn.Linear(256 * 3 * 3, 1024),     nn.ReLU(inplace=True),     nn.Dropout(),     nn.Linear(1024, 512),     nn.ReLU(inplace=True),     nn.Linear(512, 10) )    def forward(self, x): x = self.layer1(x) x = x.view(x.size(0), 256 * 3 * 3) x = self.layer2(x) return x

准确率：98.25%

（4）VGG

class VGG(nn.Module):    def __init__(self): super(VGG, self).__init__() self.layer1 = nn.Sequential(  # 输入1*28*28     nn.Conv2d(1, 32, kernel_size=3, padding=1),  # 32*28*28     nn.ReLU(inplace=True),     nn.Conv2d(32, 32, kernel_size=3, padding=1),  # 32*28*28     nn.ReLU(True),     nn.MaxPool2d(kernel_size=2, stride=2),  # 32*14*14     nn.Conv2d(32, 64, kernel_size=3, padding=1),  # 64*14*14     nn.ReLU(True),     nn.Conv2d(64, 64, kernel_size=3, padding=1),  # 64*14*14     nn.ReLU(True),     nn.MaxPool2d(kernel_size=2, stride=2),  # 64*7*7     nn.Conv2d(64, 128, kernel_size=3, padding=1),  # 128*7*7     nn.ReLU(True),     nn.Conv2d(128, 128, kernel_size=3, padding=1),  # 128*7*7     nn.ReLU(True),     nn.Conv2d(128, 256, kernel_size=3, padding=1),  # 256*7*7     nn.ReLU(True),     nn.MaxPool2d(kernel_size=3, stride=2),  # 256*3*3      ) self.layer2 = nn.Sequential(     nn.Linear(256 * 3 * 3, 1024),     nn.ReLU(True),     nn.Dropout(),     nn.Linear(1024, 1024),     nn.ReLU(True),     nn.Dropout(),     nn.Linear(1024, 10) )    def forward(self, x): x = self.layer1(x) x = x.view(x.size(0), 256 * 3 * 3) x = self.layer2(x) return x

准确率98.52%

（5）GoogLeNet

class InceptionA(torch.nn.Module):    def __init__(self,in_channels): super(InceptionA,self).__init__() self.branch1x1 = torch.nn.Conv2d(in_channels,16,kernel_size=1)  self.branch5x5_1 = torch.nn.Conv2d(in_channels,16,kernel_size=1) self.branch5x5_2 = torch.nn.Conv2d(16,24,kernel_size=5,padding=2)  self.branch3x3_1 = torch.nn.Conv2d(in_channels,16,kernel_size=1) self.branch3x3_2 = torch.nn.Conv2d(16,24,kernel_size=3,padding=1) self.branch3x3_3 = torch.nn.Conv2d(24,24,kernel_size=3,padding=1)  # self.branch_pool_1 = torch.nn.functional.avg_pool2d(in_channels,kernel_size=3,stride=1,padding=1) self.branch_pool_2 = torch.nn.Conv2d(in_channels,24,kernel_size=1)     def forward(self,x): branch1x1 = self.branch1x1(x) branch5x5_1 = self.branch5x5_1(x) branch5x5_2= self.branch5x5_2(branch5x5_1)  branch3x3_1 = self.branch3x3_1(x) branch3x3_2 = self.branch3x3_2(branch3x3_1) branch3x3_3 = self.branch3x3_3(branch3x3_2)   branch_pool_1 = F.avg_pool2d(x, kernel_size=3, stride=1, padding=1) branch_pool_2 = self.branch_pool_2(branch_pool_1)  outputs = torch.cat([branch1x1,branch5x5_2,branch3x3_3,branch_pool_2],dim=1)  return outputs  class Net(torch.nn.Module):    def __init__(self): super(Net,self).__init__() self.conv1 = torch.nn.Conv2d(1,10,kernel_size=5) self.conv2 = torch.nn.Conv2d(88,20,kernel_size=5)   self.incep1 = InceptionA(in_channels=10) self.incel2 = InceptionA(in_channels=20)  self.mp = torch.nn.MaxPool2d(2) self.fc = torch.nn.Linear(1408,10)     def forward(self,x): batch_size = x.size(0) x = F.relu(self.mp(self.conv1(x)))#1 =》10 x = self.incep1(x) #10 => 88 x = F.relu(self.mp(self.conv2(x))) x = self.incel2(x) x = x.view(batch_size,-1) x = self.fc(x) return x

 准确率：97.35%
