kafka源码分析-consumer的分区策略

• 1、AbstractPartitionAssignor
• 2、RangeAssignor
• 3、RoundRobinAssignor
• 4、StickyAssignor策略

本文源码是kafka 2.0.1

1、AbstractPartitionAssignor

consumer有三种分区策略，分别是RangeAssignor、RoundRobinAssignor和StickyAssignor，这三个策略都继承了AbstractPartitionAssignor，实现了其assign方法。该方法有两个参数：

• partitionsPerTopic-每个topic的分区数量
• subscriptions-每个 consumerId 与其所订阅的 topic 列表的关系，可以理解成每个consumer可能被分配到的topic

/* Perform the group assignment given the partition counts and member subscriptions* @param partitionsPerTopic The number of partitions for each subscribed topic. Topics not in metadata will be excluded*      from this map.* @param subscriptions Map from the memberId to their respective topic subscription* @return Map from each member to the list of partitions assigned to them.*/public abstract Map<String, List<TopicPartition>> assign(Map<String, Integer> partitionsPerTopic,Map<String, Subscription> subscriptions);

2、RangeAssignor

先看代码实现

public class RangeAssignor extends AbstractPartitionAssignor {     @Override    public String name() { return "range";    }     private Map<String, List<String>> consumersPerTopic(Map<String, Subscription> consumerMetadata) { Map<String, List<String>> res = new HashMap<>(); for (Map.Entry<String, Subscription> subscriptionEntry : consumerMetadata.entrySet()) {     String consumerId = subscriptionEntry.getKey();     for (String topic : subscriptionEntry.getValue().topics())  put(res, topic, consumerId); } return res;    }     // partitionsPerTopic-每个topic的分区数量    // subscriptions-每个 consumerId 与其所订阅的 topic 列表的关系    @Override    public Map<String, List<TopicPartition>> assign(Map<String, Integer> partitionsPerTopic,   Map<String, Subscription> subscriptions) { // 将subscriptions转换成key为topic，value为consumerId的map Map<String, List<String>> consumersPerTopic = consumersPerTopic(subscriptions);  // 存储rebalace方案的数据结构 Map<String, List<TopicPartition>> assignment = new HashMap<>(); for (String memberId : subscriptions.keySet())     assignment.put(memberId, new ArrayList<TopicPartition>());   // 遍历consumersPerTopic for (Map.Entry<String, List<String>> topicEntry : consumersPerTopic.entrySet()) {     String topic = topicEntry.getKey();     // 和这个topic相关的consumer列表     List<String> consumersForTopic = topicEntry.getValue();     // 该topic的分区数     Integer numPartitionsForTopic = partitionsPerTopic.get(topic);     if (numPartitionsForTopic == null)  continue;      Collections.sort(consumersForTopic);      // 取商     int numPartitionsPerConsumer = numPartitionsForTopic / consumersForTopic.size();     // 取余数     int consumersWithExtraPartition = numPartitionsForTopic % consumersForTopic.size(); // 【以下关键分配步骤】     // 生成TopicPartition列表     List<TopicPartition> partitions = AbstractPartitionAssignor.partitions(topic, numPartitionsForTopic);    for (int i = 0, n = consumersForTopic.size(); i < n; i++) {  // 本consumer分配到的初始位置  int start = numPartitionsPerConsumer * i + Math.min(i, consumersWithExtraPartition);  // 长度  int length = numPartitionsPerConsumer + (i + 1 > consumersWithExtraPartition ? 0 : 1);  // 当consumersWithExtraPartition 不是0时，优先给前面的consumer多分配一个partition，能整除部分各consumer均分  assignment.get(consumersForTopic.get(i)).addAll(partitions.subList(start, start + length));     } } return assignment;    } }

重点关注源码的【关键分配步骤】，该步骤是将所有topic的分区平均分配给每个consumer，对于不能平均分配的分配给前consumersWithExtraPartition个consumer，也就是前consumersWithExtraPartition个consumer分配到的分区数会比后面的多一个。
【例1】
假设有一个topic有7个partition，有三个consumer都订阅了该topic，那么通过RangeAssignor的分配方案为：

• consumer0：start=0，length=3，分配到的partition为：p0、p1、p2
• consumer1：start=3，length=2，分配到的partition为：p3、p4
• consumer2：start=5，length=2，分配到的partition为：p5、p6

【例2】
在看一个多topic分配的例子，假设consumer0订阅了topic0、topic1、topic2，consumer1订阅了topic0、topic1，consumer2订阅了topic2，topic0、topic1、topic2分别有3、2、1个partition，那么分配的结果是：

可以看到分配结果并不均匀，甚至有consumer闲置。

3、RoundRobinAssignor

先看源码

public class RoundRobinAssignor extends AbstractPartitionAssignor {     @Override    public Map<String, List<TopicPartition>> assign(Map<String, Integer> partitionsPerTopic,   Map<String, Subscription> subscriptions) { // 存储数据结构 Map<String, List<TopicPartition>> assignment = new HashMap<>(); for (String memberId : subscriptions.keySet())     assignment.put(memberId, new ArrayList<TopicPartition>()); // 【关键分配步骤】 // 将consumer排序并生成环状迭代器 CircularIterator<String> assigner = new CircularIterator<>(Utils.sorted(subscriptions.keySet())); // 遍历所有的partition for (TopicPartition partition : allPartitionsSorted(partitionsPerTopic, subscriptions)) {     final String topic = partition.topic();     // 找到订阅这个partition对应topic的消费者     while (!subscriptions.get(assigner.peek()).topics().contains(topic))  // 返回迭代器当前位置的元素，并将迭代器计数+1  assigner.next();     // 将partition分配给消费者     assignment.get(assigner.next()).add(partition); } return assignment;    }     // 获取所有的partition，并且同一个topic的partition是相连的    public List<TopicPartition> allPartitionsSorted(Map<String, Integer> partitionsPerTopic,   Map<String, Subscription> subscriptions) { SortedSet<String> topics = new TreeSet<>(); for (Subscription subscription : subscriptions.values())     topics.addAll(subscription.topics());  List<TopicPartition> allPartitions = new ArrayList<>(); for (String topic : topics) {     Integer numPartitionsForTopic = partitionsPerTopic.get(topic);     if (numPartitionsForTopic != null)  allPartitions.addAll(AbstractPartitionAssignor.partitions(topic, numPartitionsForTopic)); } return allPartitions;    }     @Override    public String name() { return "roundrobin";    } }

重点关注【关键分配步骤】它的分配规则是遍历所有的topic-partition，对每个consumer以环状的形式进行分配，从当前位置往后找到第一个可以分配的consumer，将当前partition分配给找到的consumer，并将位置+1，继续下一个partition的分配。
看2中的【例2】使用RoundRobinAssignor的分配方案

可以看到相比于RangeAssignor分配更加均匀，但是这种方式并不能完全解决平均分配的问题，看一下下面的例子
【例3】
假设consumer0订阅了topic0、topic1、topic2，consumer1订阅了topic0、topic1，consumer2订阅了topic2，topic0、topic1、topic2分别有4、3、2个partition，那么分配的结果是：

可以看到将t2p1分配给consumer2的话，分配结果更加平均。

4、StickyAssignor策略

sticky-粘性的，非常形象的名字，StickyAssignor从0.11版本才开始引入的，主要有两个目的

• 目的1：分区的分配要尽可能均匀
• 目的2：分区的分配要尽可能与上次分配的保持相同

目的1和目的2冲突时，目的1优于目的2。

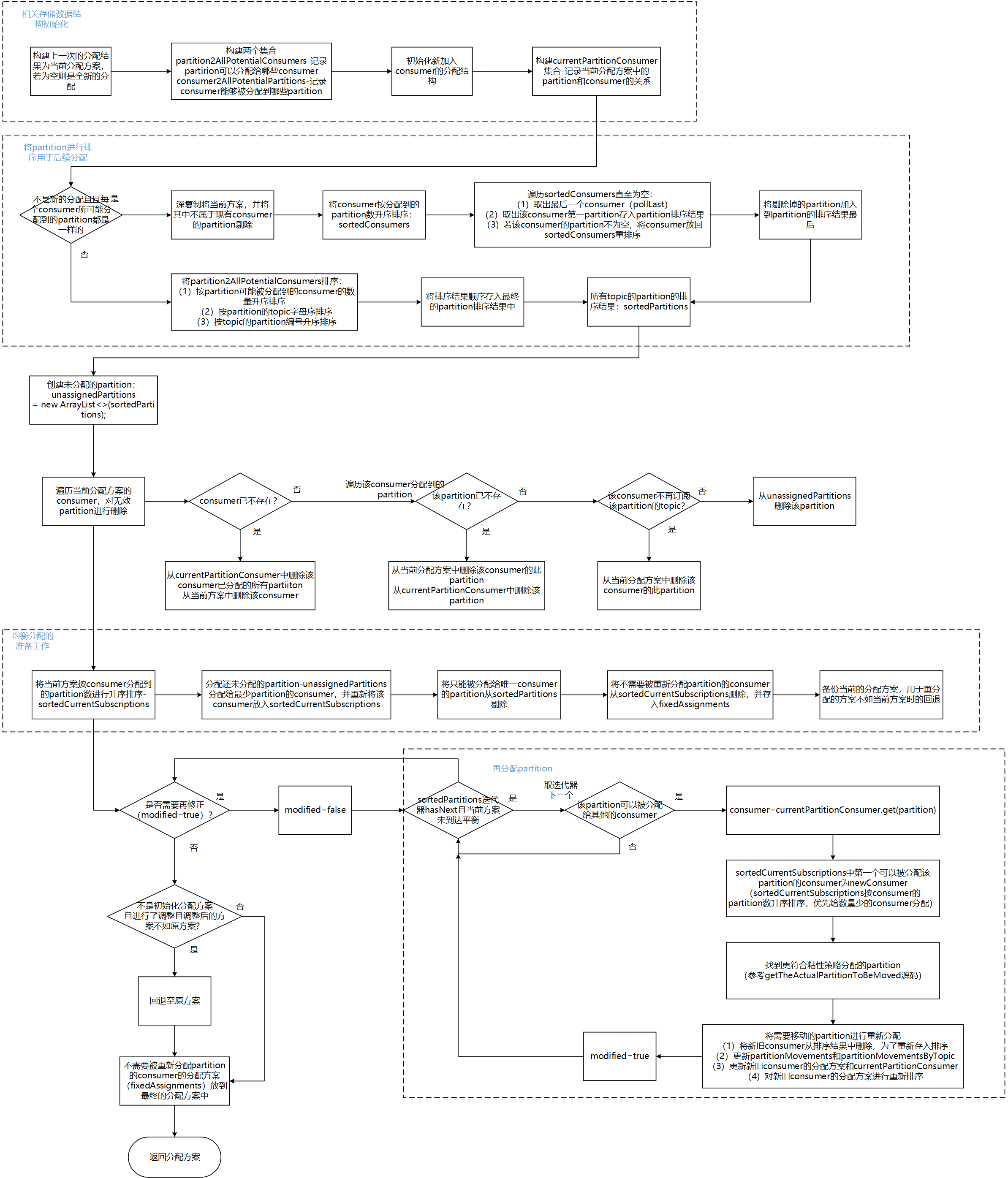

StickyAssignor的代码较多，先看下面的流程图

以3中的【例3】为例来看一下StickyAssignor策略的分配结果

相比于RoundRobinAssignor，分配结果达到均衡。假设新加入了consumer3，其订阅了topic0，那么再看一下再均衡的过程：
（1）所有partition的排序结果：t0p0、t0p1、t0p2、t0p3、t1p0、t1p1、t1p1、t2p0、t2p1
（2）初始的consumer排序：consumer3、consumer2、consumer1、consumer0
（3）开始再均衡，显然t0p0是可以再分配的，重新分配后的结果及consuemr顺序是：

继续处理t0p1，显然也可以再分配，由consumer1调整到consumer3

（4）完成再分配过程，返回结果
流程图中省略了很多细节，相关内容可见下面源码分析：

public class StickyAssignor extends AbstractPartitionAssignor {    private static final Logger log = LoggerFactory.getLogger(StickyAssignor.class);     // these schemas are used for preserving consumer's previously assigned partitions    // list and sending it as user data to the leader during a rebalance    private static final String TOPIC_PARTITIONS_KEY_NAME = "previous_assignment";    private static final String TOPIC_KEY_NAME = "topic";    private static final String PARTITIONS_KEY_NAME = "partitions";    private static final Schema TOPIC_ASSIGNMENT = new Schema(     new Field(TOPIC_KEY_NAME, Type.STRING),     new Field(PARTITIONS_KEY_NAME, new ArrayOf(Type.INT32)));    private static final Schema STICKY_ASSIGNOR_USER_DATA = new Schema(     new Field(TOPIC_PARTITIONS_KEY_NAME, new ArrayOf(TOPIC_ASSIGNMENT)));     private List<TopicPartition> memberAssignment = null;    private PartitionMovements partitionMovements;     public Map<String, List<TopicPartition>> assign(Map<String, Integer> partitionsPerTopic,   Map<String, Subscription> subscriptions) { Map<String, List<TopicPartition>> currentAssignment = new HashMap<>(); partitionMovements = new PartitionMovements();  // 先构建出当前的分配状态：currentAssignment // 这个方法里用的userData是自定义信息，但是是怎么用的？？ prepopulateCurrentAssignments(subscriptions, currentAssignment); // 判断是否是全新的分配,true-是 boolean isFreshAssignment = currentAssignment.isEmpty();  // 记录partirion可以分配给哪些consumer final Map<TopicPartition, List<String>> partition2AllPotentialConsumers = new HashMap<>(); // 记录consumer能够被分配到哪些partition final Map<String, List<TopicPartition>> consumer2AllPotentialPartitions = new HashMap<>();  // 初始化partition2AllPotentialConsumers，value是空List for (Entry<String, Integer> entry: partitionsPerTopic.entrySet()) {     for (int i = 0; i < entry.getValue(); ++i)  partition2AllPotentialConsumers.put(new TopicPartition(entry.getKey(), i), new ArrayList<String>()); }  // 遍历subscriptions for (Entry<String, Subscription> entry: subscriptions.entrySet()) {     String consumer = entry.getKey();     // 初始化consumer2AllPotentialPartitions的每个consumer     consumer2AllPotentialPartitions.put(consumer, new ArrayList<TopicPartition>());     for (String topic: entry.getValue().topics()) {  for (int i = 0; i < partitionsPerTopic.get(topic); ++i) {      TopicPartition topicPartition = new TopicPartition(topic, i);      // 将这个consumer订阅的topic的所有partition存入consumer2AllPotentialPartitions      consumer2AllPotentialPartitions.get(consumer).add(topicPartition);      // 将这个topic的所有partition都记录上consumer      partition2AllPotentialConsumers.get(topicPartition).add(consumer);  }     }      // 当前consumer的分配方案不存在     if (!currentAssignment.containsKey(consumer))  // 初始化当前consumer的分配存储结构  currentAssignment.put(consumer, new ArrayList<TopicPartition>()); } // 以上完成partition2AllPotentialConsumers和consumer2AllPotentialPartitions的初始化  // 记录当前分配方案中的partition和consumer的关系 Map<TopicPartition, String> currentPartitionConsumer = new HashMap<>(); for (Map.Entry<String, List<TopicPartition>> entry: currentAssignment.entrySet())     for (TopicPartition topicPartition: entry.getValue())  currentPartitionConsumer.put(topicPartition, entry.getKey());   // 对有效分区进行排序，以便它们在潜在的重新分配阶段以适当的顺序进行处理，从而使消费者之间的分区移动最小（因此尊重最大粘性） // 详细解析见下面sortPartitions的源码 List<TopicPartition> sortedPartitions = sortPartitions(  currentAssignment, isFreshAssignment, partition2AllPotentialConsumers, consumer2AllPotentialPartitions);  // 将排序后的partition存到unassignedPartitions List<TopicPartition> unassignedPartitions = new ArrayList<>(sortedPartitions);   // 遍历当前的分配方案，进行删除处理 for (Iterator<Map.Entry<String, List<TopicPartition>>> it = currentAssignment.entrySet().iterator(); it.hasNext();) {     Map.Entry<String, List<TopicPartition>> entry = it.next();     if (!subscriptions.containsKey(entry.getKey())) {  // 之前的consumer不在存在，删除该consumer订阅的所有partition，并从当前分配方案中删除该consumer  for (TopicPartition topicPartition: entry.getValue())      currentPartitionConsumer.remove(topicPartition);  it.remove();     } else {  // otherwise (the consumer still exists)  for (Iterator<TopicPartition> partitionIter = entry.getValue().iterator(); partitionIter.hasNext();) {      TopicPartition partition = partitionIter.next();      if (!partition2AllPotentialConsumers.containsKey(partition)) {   // 这个partition不再存在，从当前分配方案删除partiton，并从currentPartitionConsumer删除partition   partitionIter.remove();   currentPartitionConsumer.remove(partition);      } else if (!subscriptions.get(entry.getKey()).topics().contains(partition.topic())) {   // 该consumer不再订阅该partition对应的topic，从当前分配方案删除partiton   partitionIter.remove();      } else   // 该partition已经被分配过，从未分配的partition中删除partition   unassignedPartitions.remove(partition);  }     } } // at this point we have preserved all valid topic partition to consumer assignments and removed // all invalid topic partitions and invalid consumers. Now we need to assign unassignedPartitions // to consumers so that the topic partition assignments are as balanced as possible.  // 根据已经分配给消费者的主题分区的数量，对消费者进行升序排序 TreeSet<String> sortedCurrentSubscriptions = new TreeSet<>(new SubscriptionComparator(currentAssignment)); sortedCurrentSubscriptions.addAll(currentAssignment.keySet());  balance(currentAssignment, sortedPartitions, unassignedPartitions, sortedCurrentSubscriptions,  consumer2AllPotentialPartitions, partition2AllPotentialConsumers, currentPartitionConsumer); return currentAssignment;    }  // 省略一些方法}

/ * Sort valid partitions so they are processed in the potential reassignment phase in the proper order * that causes minimal partition movement among consumers (hence honoring maximal stickiness) * * @param currentAssignment the calculated assignment so far * @param isFreshAssignment whether this is a new assignment, or a reassignment of an existing one * @param partition2AllPotentialConsumers a mapping of partitions to their potential consumers * @param consumer2AllPotentialPartitions a mapping of consumers to potential partitions they can consumer from * @return sorted list of valid partitions */private List<TopicPartition> sortPartitions(Map<String, List<TopicPartition>> currentAssignment,  boolean isFreshAssignment,  Map<TopicPartition, List<String>> partition2AllPotentialConsumers,  Map<String, List<TopicPartition>> consumer2AllPotentialPartitions) {    List<TopicPartition> sortedPartitions = new ArrayList<>();     if (!isFreshAssignment && areSubscriptionsIdentical(partition2AllPotentialConsumers, consumer2AllPotentialPartitions)) { // 如果不是新的分配，且每个consumer所可能分配到的partition都是一样的  // 复制一份当前的分配方案 Map<String, List<TopicPartition>> assignments = deepCopy(currentAssignment); // 将不属于当前consumer的partition从当前分配方案中删除 for (Entry<String, List<TopicPartition>> entry: assignments.entrySet()) {     List<TopicPartition> toRemove = new ArrayList<>();     for (TopicPartition partition: entry.getValue())  if (!partition2AllPotentialConsumers.keySet().contains(partition))      toRemove.add(partition);     for (TopicPartition partition: toRemove)  entry.getValue().remove(partition); } // SubscriptionComparator是根据两个key对应value的长度进行比较，长度相同根据key进行字符串排序 TreeSet<String> sortedConsumers = new TreeSet<>(new SubscriptionComparator(assignments)); sortedConsumers.addAll(assignments.keySet());  // 将partition进行排序，是按consumer的顺序倒序取出，也就是分配到更多partition的consumer while (!sortedConsumers.isEmpty()) {     String consumer = sortedConsumers.pollLast();     List<TopicPartition> remainingPartitions = assignments.get(consumer);     if (!remainingPartitions.isEmpty()) {  sortedPartitions.add(remainingPartitions.remove(0));  sortedConsumers.add(consumer);     } }  // 将不属于consumer的partition放入到排序结果中 for (TopicPartition partition: partition2AllPotentialConsumers.keySet()) {     if (!sortedPartitions.contains(partition))  sortedPartitions.add(partition); }     } else { // PartitionComparator是根据两个key对应value的长度进行比较，如果长度相同则根据key进行字符串排序，在相同就根据topic的partition数排序 TreeSet<TopicPartition> sortedAllPartitions = new TreeSet<>(new PartitionComparator(partition2AllPotentialConsumers)); sortedAllPartitions.addAll(partition2AllPotentialConsumers.keySet());  // 顺序取出partition进行排序，越少可以被consumer分配到的partition越在前面 while (!sortedAllPartitions.isEmpty())     sortedPartitions.add(sortedAllPartitions.pollFirst());    }     return sortedPartitions;}

/ * Balance the current assignment using the data structures created in the assign(...) method above. */private void balance(Map<String, List<TopicPartition>> currentAssignment,List<TopicPartition> sortedPartitions,List<TopicPartition> unassignedPartitions,TreeSet<String> sortedCurrentSubscriptions,Map<String, List<TopicPartition>> consumer2AllPotentialPartitions,Map<TopicPartition, List<String>> partition2AllPotentialConsumers,Map<TopicPartition, String> currentPartitionConsumer) {    // 是否是初始化分配，如果最大数量partition的consumer所分配到的partition都是空的，则是新的分配    boolean initializing = currentAssignment.get(sortedCurrentSubscriptions.last()).isEmpty();    boolean reassignmentPerformed = false;     // 分配还未分配的partition    // 分配给最少partition的consumer，并重新将该consumer放入sortedCurrentSubscriptions,为了重新将consumer排序    for (TopicPartition partition: unassignedPartitions) { // skip if there is no potential consumer for the partition if (partition2AllPotentialConsumers.get(partition).isEmpty())     continue;  assignPartition(partition, sortedCurrentSubscriptions, currentAssignment,   consumer2AllPotentialPartitions, currentPartitionConsumer);    }     // fixedPartitions记录只能被分配给唯一consumer的partition，并将这部分partition从sortedPartitions中移除    // 到目前为止所有的所有的partition已经被分配了，剔除掉不可能被重新分配的partition    // fixedPartitions在后面并没有什么用途，单纯的中间变量    Set<TopicPartition> fixedPartitions = new HashSet<>();    for (TopicPartition partition: partition2AllPotentialConsumers.keySet()) if (!canParticipateInReassignment(partition, partition2AllPotentialConsumers))     fixedPartitions.add(partition);    sortedPartitions.removeAll(fixedPartitions);     // 将已经分配结束的consumer从sortedCurrentSubscriptions删除，并将其对应的partition存入fixedAssignments    Map<String, List<TopicPartition>> fixedAssignments = new HashMap<>();    for (String consumer: consumer2AllPotentialPartitions.keySet()) // canParticipateInReassignment:consumer是否可以被重新分配,true-可以 // 1、没满：满即所有可能分配给这个consumer的partition已全部分配给该consumer，返回true // 2、满了，但是该consumer的partition有任一partition可以被分配给多个consumer，返回true if (!canParticipateInReassignment(consumer, currentAssignment,consumer2AllPotentialPartitions, partition2AllPotentialConsumers)) {     sortedCurrentSubscriptions.remove(consumer);     fixedAssignments.put(consumer, currentAssignment.remove(consumer)); }     // create a deep copy of the current assignment so we can revert to it if we do not get a more balanced assignment later    // 备份    Map<String, List<TopicPartition>> preBalanceAssignment = deepCopy(currentAssignment);    Map<TopicPartition, String> preBalancePartitionConsumers = new HashMap<>(currentPartitionConsumer);  // reassignmentPerformed-true,意味着被重新分配过    reassignmentPerformed = performReassignments(sortedPartitions, currentAssignment, sortedCurrentSubscriptions,     consumer2AllPotentialPartitions, partition2AllPotentialConsumers, currentPartitionConsumer);     // getBalanceScore-计算平衡分数，分数越小越好，分数是正的    // 如何计算：遍历所有consumer的partition数和其他consumer的partition数相减的绝对值累加，已经遍历过的consumer要删除（即后面的partition计算时不会在用到前面已处理过的consumer）    if (!initializing && reassignmentPerformed && getBalanceScore(currentAssignment) >= getBalanceScore(preBalanceAssignment)) { // 重新分配的方案不好，重置回原来的方案 deepCopy(preBalanceAssignment, currentAssignment); currentPartitionConsumer.clear(); currentPartitionConsumer.putAll(preBalancePartitionConsumers);    }     // 将前面不需要重新分配的consumer重新放到当前分配方案和排序中    for (Entry<String, List<TopicPartition>> entry: fixedAssignments.entrySet()) { String consumer = entry.getKey(); currentAssignment.put(consumer, entry.getValue()); sortedCurrentSubscriptions.add(consumer);    }     fixedAssignments.clear();}

private boolean performReassignments(List<TopicPartition> reassignablePartitions,  Map<String, List<TopicPartition>> currentAssignment,  TreeSet<String> sortedCurrentSubscriptions,  Map<String, List<TopicPartition>> consumer2AllPotentialPartitions,  Map<TopicPartition, List<String>> partition2AllPotentialConsumers,  Map<TopicPartition, String> currentPartitionConsumer) {    boolean reassignmentPerformed = false;    boolean modified;     // repeat reassignment until no partition can be moved to improve the balance    do { modified = false; // reassign all reassignable partitions (starting from the partition with least potential consumers and if needed) // until the full list is processed or a balance is achieved // 重新分配所有可重新分配的分区（从潜在使用者最少的分区开始，如果需要），或者达到平衡 Iterator<TopicPartition> partitionIterator = reassignablePartitions.iterator();  // isBalanced-判断当前方案已经平衡 // 1、当前分配方案分配到最少partition的consumer的数量大于等于最多的数量-1，返回ture // 2、数量比较少的consumer，没有其他consumer的partition有可能分配给该consumer，返回true while (partitionIterator.hasNext() && !isBalanced(currentAssignment, sortedCurrentSubscriptions, consumer2AllPotentialPartitions)) {     TopicPartition partition = partitionIterator.next();      // the partition must have at least two consumers     if (partition2AllPotentialConsumers.get(partition).size() <= 1)  log.error("Expected more than one potential consumer for partition '" + partition + "'");      // the partition must have a current consumer     String consumer = currentPartitionConsumer.get(partition);     if (consumer == null)  log.error("Expected partition '" + partition + "' to be assigned to a consumer");      // check if a better-suited consumer exist for the partition; if so, reassign it     for (String otherConsumer: partition2AllPotentialConsumers.get(partition)) {  if (currentAssignment.get(consumer).size() > currentAssignment.get(otherConsumer).size() + 1) {      // 参照下面源码解析      reassignPartition(partition, currentAssignment, sortedCurrentSubscriptions, currentPartitionConsumer, consumer2AllPotentialPartitions);      reassignmentPerformed = true;      modified = true;      break;  }     } }    } while (modified);     return reassignmentPerformed;}

private void reassignPartition(TopicPartition partition,   Map<String, List<TopicPartition>> currentAssignment,   TreeSet<String> sortedCurrentSubscriptions,   Map<TopicPartition, String> currentPartitionConsumer,   Map<String, List<TopicPartition>> consumer2AllPotentialPartitions) {    String consumer = currentPartitionConsumer.get(partition);     // sortedCurrentSubscriptions是按consumer已分配的partition数量升序，所以找到第一可以分配到该partition的consumer就是新的可分配consumer    String newConsumer = null;    for (String anotherConsumer: sortedCurrentSubscriptions) { if (consumer2AllPotentialPartitions.get(anotherConsumer).contains(partition)) {     newConsumer = anotherConsumer;     break; }    }     assert newConsumer != null;     // 找到准确的需要被重新分配的partition，为了粘性分配，详情参考下面getTheActualPartitionToBeMoved源码    TopicPartition partitionToBeMoved = partitionMovements.getTheActualPartitionToBeMoved(partition, consumer, newConsumer);    // 将需要移动的partition进行重新分配    // 1、将新旧consumer从排序结果中删除，为了重新存入排序    // 2、更新partitionMovements和partitionMovementsByTopic    // 3、更新新旧consumer的分配方案和currentPartitionConsumer    // 4、对新旧consumer的分配结果重新排序    processPartitionMovement(partitionToBeMoved, newConsumer, currentAssignment, sortedCurrentSubscriptions, currentPartitionConsumer);     return;}

// partitionMovementsByTopic-存储partition上一次的调整关系（由srcConsumer调整到destConsumer）// partitionMovementsForThisTopic-存储topic维度下ConsumerPair（新旧consumer）调整的partitionprivate TopicPartition getTheActualPartitionToBeMoved(TopicPartition partition, String oldConsumer, String newConsumer) { String topic = partition.topic(); // 该topic的所有partition从未被调整过，直接返回该partition if (!partitionMovementsByTopic.containsKey(topic))     return partition;  // 该partition被调整过 if (partitionMovements.containsKey(partition)) {     // this partition has previously moved     // 这次调整的旧consumer一定是上次调整的新consumer     assert oldConsumer.equals(partitionMovements.get(partition).dstMemberId);     // 旧consumer赋值为上次调整的旧consumer     // 这是为了下面更大限度保证粘性，比如partiiton0上次调整是A->C,这次是C->B，但是存在一个partiiton1是从B调整到A的，     // 经过这个赋值，将会用partition1代替partition0进行调整，这样B趋于平衡，A趋于不平衡，这样下次调整就有可能将A调整到C的partiiton调整会A     // 这个设计比较绕     oldConsumer = partitionMovements.get(partition).srcMemberId; }  Map<ConsumerPair, Set<TopicPartition>> partitionMovementsForThisTopic = partitionMovementsByTopic.get(topic); // 新旧consumer的“反consumer对” ConsumerPair reversePair = new ConsumerPair(newConsumer, oldConsumer); // 不存在“反consumer对”，直接返回该partition if (!partitionMovementsForThisTopic.containsKey(reversePair))     return partition; // 返回该“反consumer对”之前调整的一个partition，为了满足StickyAssignor的目的2，尽可能保证分配和上次相同 // 举个例子，比如这次要将partition0从consumerA调整到consumerB，但是在这之前曾将partition1从consumerB调整到consumerA，那么需要用partiiton1代替partiiton0 // 这时候partiion0和partition1都是属于consumerA的，调整partiion0和partition1都可以使分配方案趋于平衡，但是调整partition1更符合粘性策略 return partitionMovementsForThisTopic.get(reversePair).iterator().next();    }

本文主要对kafka的三种分区策略进行源码分析，RangeAssignor、RoundRobinAssignor都不能保证完全的均衡分配，StickyAssignor虽然实现复杂，但是相比于其他两种分配策略，均衡效果更好，而且可以减少不必要的分区调整。
