目录

• 成绩系统的总体设计
• • 学生成绩管理系统的详细设计
  • 后端实现
  • 部分效果图展示
  • 源码

成绩系统的总体设计

（1）成绩系统环境要求
1.搭建java开发环境并配置JDK、安装Intellij IDEA、Navicat、mysql等工具。
2.搭建本地服务器tomcat和web后台网站，用于连接网络和前后端数据交互。
（2）成绩系统功能及模块图
学生成绩管理系统具体前端实现和功能为：
一、前端：1.HTML主页面：显示系统背景、显示系统增删改查的各个功能按键。2.登录页面：输入账号密码进入系统；同时也可注册账号。
二、后端：1.逻辑层：实体层、dao层、service层、用户类实现后端基本功能；web层中包含servlet技术，用于向前端发送请求；测试类通过引入junit.jar包进行单元测试。2.数据库：存储学生个人信息和成绩信息，管理员账号与密码。
3.severlet：接受前端传入数据，与数据库中数据作匹配，实现前端功能。

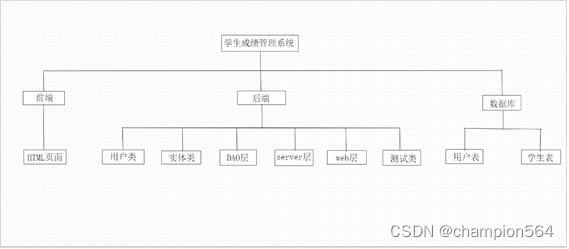

成绩管理系统整体的功能结构图如图2-1所示：

图2-1 窗口化图形界面

学生成绩管理系统的详细设计

（1）成绩管理系统总体功能展示如图2-2所示：

图2-2 总体功能展示图

后端实现

我主要负责设计实体类、dao层、service层、测试类的实现以及数据库的创建和连接，代码如下：
（1）实体类

package indi.huishi.pojo;public class Student {private String no;private String name;private Float score;private Integer className;public String getNo() {return no;}public void setNo(String no) {this.no = no;}public String getName() {return name;}public void setName(String name) {this.name = name;}public Float getScore() {return score;}public void setScore(Float score) {this.score = score;}public Integer getClassName() {return className;}public void setClassName(Integer className) {this.className = className;}public Student(String no, String name, Float score, Integer className) {this.no = no;this.name = name;this.score = score;this.className = className;}public Student() {}@Overridepublic String toString() {return "Student{" +"no='" + no + '\'' +", name='" + name + '\'' +", score=" + score +", className=" + className +'}';}}package indi.huishi.pojo;public class User {    private Integer id;    private String username;    private String password;    private String email;    public Integer getId() { return id;    }    public void setId(Integer id) { this.id = id;    }    public String getUsername() { return username;    }    public void setUsername(String username) { this.username = username;    }    public String getPassword() { return password;    }    public void setPassword(String password) { this.password = password;    }    public String getEmail() { return email;    }    public void setEmail(String email) { this.email = email;    }    @Override    public String toString() { return "User{" +  "id=" + id +  ", username='" + username + '\'' +  ", password='" + password + '\'' +  ", email='" + email + '\'' +  '}';    }    public User(Integer id, String username, String password, String email) { this.id = id; this.username = username; this.password = password; this.email = email;    }    public User() {    }}

（2）Dao层

package indi.huishi.dao;import indi.huishi.pojo.Student;import java.util.List;import java.util.Map;/** * 学生成绩管理系统 数据访问层 */public interface StudentDao {   int addStu(Student student);    int updateStu(Student student);    int deleteStu(String no);    Student queryByName(String name);    Student queryByNo(String no);    List<Student> sort();    List<Map<String,Object>> statistics();}package indi.huishi.dao;import indi.huishi.pojo.User;/** * 用户注册+登录 */public interface UserDao {    public User queryUserByUsername(String username);    public User queryUserByUsernameAndPassword(String username, String password);    public int saveUser(User user);}

（3）Service层

package indi.huishi.service;import indi.huishi.pojo.Student;import java.util.List;import java.util.Map;public interface StudentService {    public int add(Student student);    public int update(Student student);    public int delete(String no);    public Student queryNo(String no);    public Student queryName(String name);    public List<Student> sort();    public List<Map<String,Object>> statistics();}package indi.huishi.service;import indi.huishi.pojo.User;//业务public interface UserService {    /**     * 注册用户     *     * @param user     */    public void registerUser(User user);    /**     * 登录     * @param user     * @return     */    public User login(User user);    /**     * 用户名是否已经存在     * @param username     * @return     */    public boolean existsUsername(String username);}

（4）测试类

package indi.huishi.test;import indi.huishi.utils.JdbcUtils;import org.junit.Test;import java.sql.Connection;public class JdbcUtilsTest {    @Test    public void testJdbc() throws Exception { for(int i=0; i<20; i++){     Connection connection = JdbcUtils.getConnection();     System.out.println(connection);     JdbcUtils.close(connection); } System.out.println("开始");    }}package indi.huishi.test;import indi.huishi.dao.StudentDao;import indi.huishi.dao.impl.StudentDaoImpl;import indi.huishi.pojo.Student;import org.junit.Test;import java.util.List;import java.util.Map;import static java.lang.System.out;public class StudentDaoTest {    StudentDao studentDao = new StudentDaoImpl();    @Test    public void test(){ Student  student  =   newStudent("101","zxy",Float.parseFloat("88"),190611); int res = studentDao.addStu(student); out.println(res);    }    @Test    public void testStatistics(){ List<Map<String,Object>> statistics = studentDao.statistics(); out.println(statistics);    }}package indi.huishi.test;import indi.huishi.dao.UserDao;import indi.huishi.dao.impl.UserDaoImpl;import indi.huishi.pojo.User;import org.junit.Test;public class UserDaoTest {    UserDao userDao = new UserDaoImpl();    @Test    public void queryUserByUsername(){ User user = userDao.queryUserByUsername("hyh"); System.out.println(user.toString()); if(user==null){     System.out.println("用户名不存在"); }else{     System.out.println("用户名已经存在"); }    }    @Test    public void queryUserByUsernameAndPassword(){ User user = userDao.queryUserByUsernameAndPassword("hyh","123"); System.out.println(user.toString()); if(user==null){     System.out.println("用户名密码不正确"); }else{     System.out.println("查询成功"); }    }    @Test    public void saveUser(){ //新建一个用户的信息，保存到数据库中 User user = new User(4,"indi/huishi","1230","1230"); int result = userDao.saveUser(user); System.out.println(result==1?"添加成功":"添加失败");    }}package indi.huishi.test;import indi.huishi.pojo.User;import indi.huishi.service.UserService;import indi.huishi.service.impl.UserServiceImpl;import org.junit.Test;public class UserServiceTest {    UserService userService = new UserServiceImpl();    @Test    public void registerUser(){// userService.registerUser(new User(null,"lwt","123456","lwt123456@qq.com")); userService.registerUser(new User(2, "lwt","123456","1234"));    }    @Test    public void login(){ User user1 = userService.login(new User(2,"lwt","123456","1234")); System.out.println(user1.toString());    }}

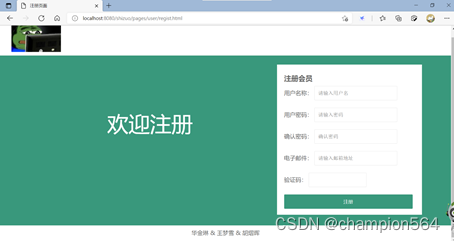

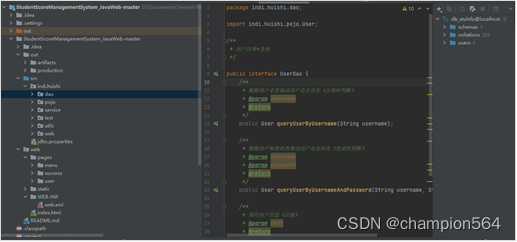

部分效果图展示

源码

链接：https://pan.baidu.com/s/18yJygTEMutRBHvxslL8VsA
提取码：sxk9
