在Neptune上搭建并部署http服务器

网友: 文档中心 2022-06-02 16:08:30

本文首发于51cto【查看原文链接】
转载：本人

注：本文只进行功能介绍与代码实现，具体原理见设计文档（点此跳转）

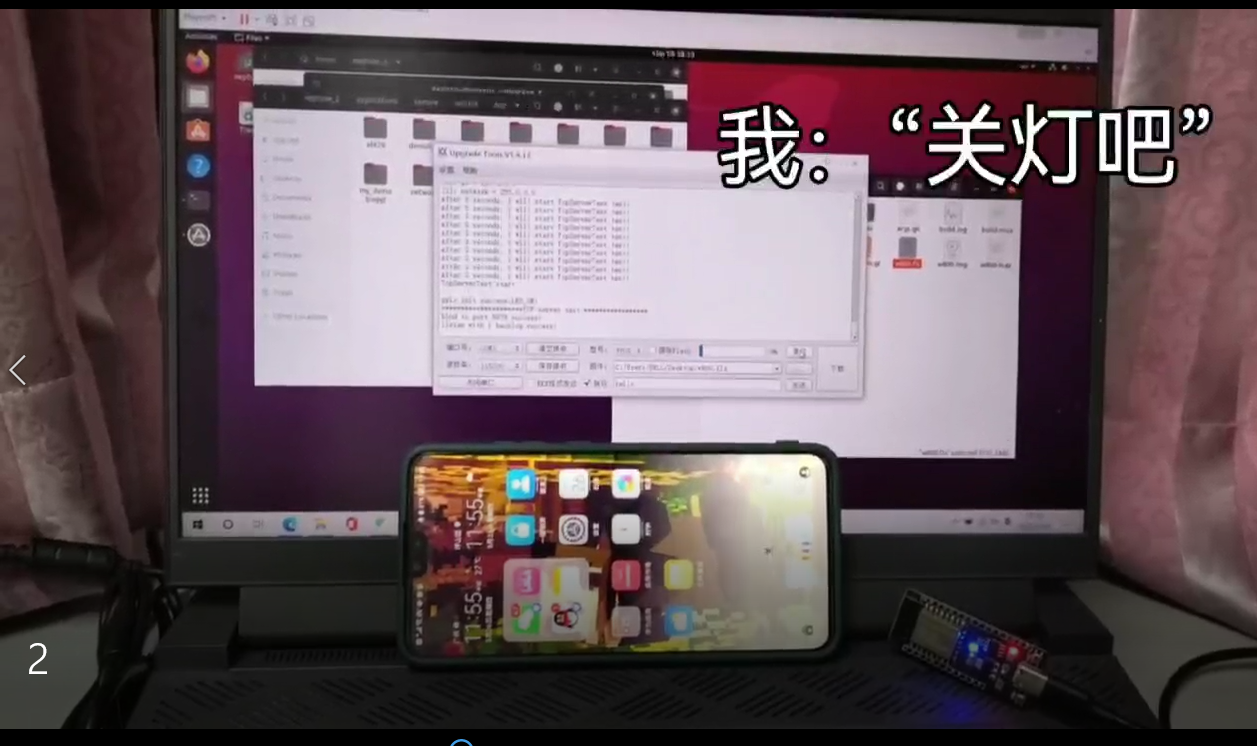

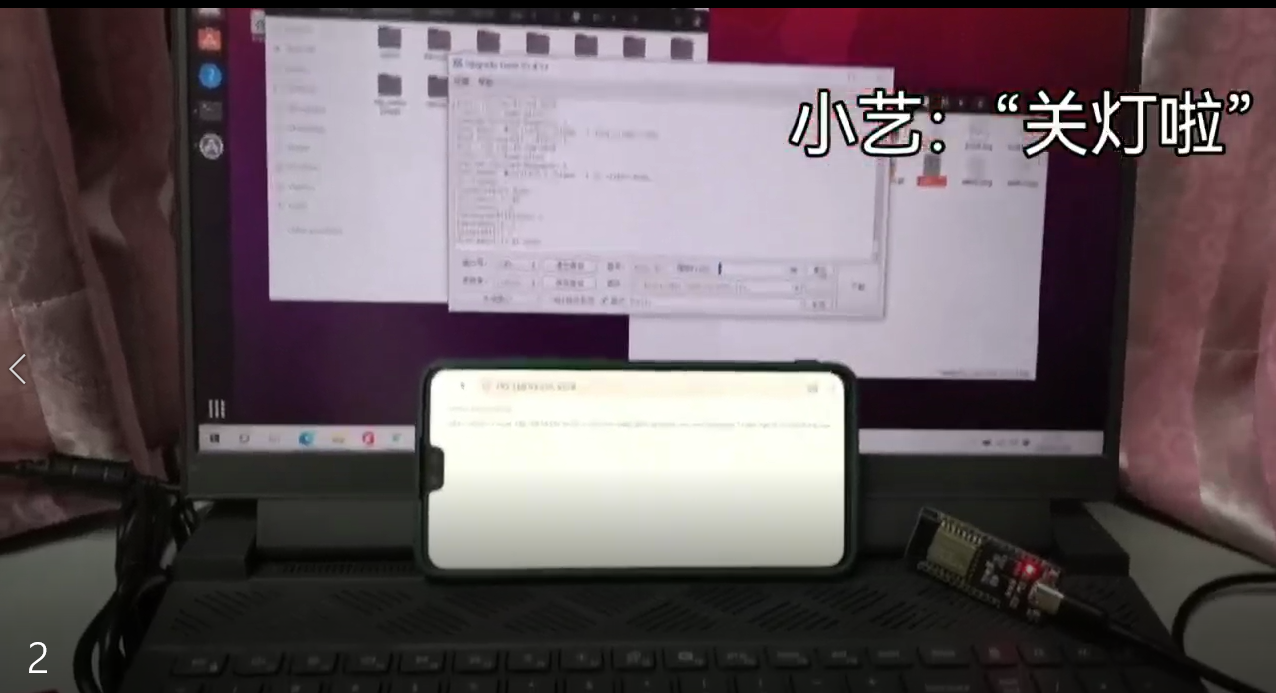

效果演示

在Neptune上搭建并部署http服务器
在Neptune上搭建并部署http服务器

实现了语音操控开、关灯

实现方法简介

我们知道浏览器是http的客户端,目的是连接远程的http服务器,然后服务器返回浏览器数据.浏览器接收数据解析数据之后展现出来.我们看到的外在表现就是,浏览器访问一个url,然后就得到相应的web页面.

所以我们需要在Neptune上部署一个http服务器。
为了实现tcp通信，这里使用socket库搭建，代码如下：
文件见附件（可直接编译，由于某些原因智能在ohos1.1版本下运行，后续会更新ohos3.x版本）

代码实现

tcp_service_demo1

#include #include #include #include "net_demo_common.h"#include "net_common.h"#include "cmsis_os2.h"#include "ohos_init.h"#include "wifiiot_gpio.h"#include "wifiiot_gpio_ex.h"#include "wifiiot_gpio_w800.h"#define LED_TASK_STACK_SIZE 1024#define LED_TASK_PRIO 25static void my_demo(){    printf("\n\n\nhello!\n\n\n\n");    GpioInit();    GpioSetDir(WIFI_IOT_GPIO_PB_08, WIFI_IOT_GPIO_DIR_OUTPUT);// output is 0 PB08 control led    GpioSetDir(WIFI_IOT_GPIO_PB_09, WIFI_IOT_GPIO_DIR_INPUT);// input is PB09 IoSetPull(WIFI_IOT_GPIO_PB_09, WIFI_IOT_GPIO_ATTR_PULLHIGH);    GpioRegisterIsrFunc(WIFI_IOT_GPIO_PB_09, WIFI_IOT_INT_TYPE_EDGE,   WIFI_IOT_GPIO_EDGE_FALL_LEVEL_LOW, NULL, NULL);    GpioSetOutputVal(WIFI_IOT_GPIO_PB_08, WIFI_IOT_GPIO_VALUE0);    printf("\n\ndone\n\n\n\n");}static char request[128] = "";void TcpServerTest(unsigned short port){    printf("*TCP server test *\n");    int retval = 0;    int backlog = 1;    int sockfd = socket(AF_INET, SOCK_STREAM, 0); // TCP socket    int connfd = -1;    struct sockaddr_in clientAddr = {0};    socklen_t clientAddrLen = sizeof(clientAddr);    struct sockaddr_in serverAddr = {0};    serverAddr.sin_family = AF_INET;    serverAddr.sin_port = htons(port);  // 端口号，从主机字节序转为网络字节序    serverAddr.sin_addr.s_addr = htonl(INADDR_ANY); // 允许任意主机接入， 0.0.0.0    retval = bind(sockfd, (struct sockaddr *)&serverAddr, sizeof(serverAddr)); // 绑定端口    if (retval < 0) { printf("bind failed, %ld!\r\n", retval); goto do_cleanup;    }    printf("bind to port %d success!\r\n", port);    retval = listen(sockfd, backlog); // 开始监听    if (retval < 0) { printf("listen failed!\r\n"); goto do_cleanup;    }    printf("listen with %d backlog success!\r\n", backlog);    // 接受客户端连接，成功会返回一个表示连接的 socket ， clientAddr 参数将会携带客户端主机和端口信息 ；失败返回 -1    // 此后的 收、发 都在 表示连接的 socket 上进行；之后 sockfd 依然可以继续接受其他客户端的连接，    //  UNIX系统上经典的并发模型是“每个连接一个进程”——创建子进程处理连接，父进程继续接受其他客户端的连接    //  鸿蒙liteos-a内核之上，可以使用UNIX的“每个连接一个进程”的并发模型    //     liteos-m内核之上，可以使用“每个连接一个线程”的并发模型    connfd = accept(sockfd, (struct sockaddr *)&clientAddr, &clientAddrLen);    if (connfd < 0) { printf("accept failed, %d, %d\r\n", connfd, errno); goto do_cleanup;    }    printf("accept success, connfd = %d!\r\n", connfd);    printf("client addr info: host = %s, port = %d\r\n", inet_ntoa(clientAddr.sin_addr), ntohs(clientAddr.sin_port));     my_demo();    //send http pages      const char buffer[9162]="HTTP/1.1 200 OK\r\nDate: Fri, 22 May 2009 06:07:21 GMT\r\nContent-Type: text/html; charset=UTF-8\r\n\r\n<body style="text-align:center;font-size: larger;">
Hello Openharmony!
<div style="background-color:green ;height: 20%;color:white;">开灯
<div style="background-color:red ;height: 20%;">关灯
"; send(connfd,buffer,sizeof(buffer),0); // 后续 收、发 都在 表示连接的 socket 上进行； retval = recv(connfd, request, sizeof(request), 0); if (retval < 0) { printf("recv request failed, %ld!\r\n", retval); goto do_disconnect; } printf("recv request{%s} from client done!\r\n", request); retval = send(connfd, request, strlen(request), 0); if (retval <= 0) { printf("send response failed, %ld!\r\n", retval); goto do_disconnect; } printf("send response{%s} to client done!\r\n", request);do_disconnect: osDelay(500); close(connfd); osDelay(500);; // for debugdo_cleanup: printf("do_cleanup...\r\n"); close(sockfd);}SERVER_TEST_DEMO(TcpServerTest);

要让开发板连接网络，需要在 net_params.h里修改配网参数

#ifndef NET_PARAMS_H#define NET_PARAMS_H#define PARAM_HOTSPOT_SSID "FsrLab"  // your AP SSID#define PARAM_HOTSPOT_PSK  "12345678"  // your AP PSK#define PARAM_HOTSPOT_TYPE WIFI_SEC_TYPE_PSK // defined in wifi_device_config.h#define PARAM_SERVER_ADDR "192.168.0.113" // your PC IP address#define PARAM_SERVER_PORT 5678//设置端口号#endif  // NET_PARAMS_H

修改my_demo/Build.gn

static_library("demo") {    sources = ["tcp_service_test.c"    ]    include_dirs = [ "//utils/native/lite/include", "//kernel/liteos_m/components/cmsis/2.0", "//foundation/communication/interfaces/kits/wifi_lite/wifiservice",  "//base/iot_hardware/interfaces/kits/wifiiot_lite",    ]    if (board_name == "w800" || board_name == "hi3861v100") { sources += ["wifi_connecter.c", "net_demo_ohos.c"]    }    if (board_name == "w800") { include_dirs += [     "//vendor/winnermicro/w800/src/network/lwip2.0.3/include/",     "//vendor/winnermicro/w800/include/arch/xt804/csi_core",     "//vendor/winnermicro/w800/include/arch/xt804",     "//vendor/winnermicro/w800/include/platform",     "//vendor/winnermicro/w800/include/os",     "//vendor/winnermicro/w800/include/net",     "//vendor/winnermicro/w800/include/app",     "//vendor/winnermicro/w800/include/wifi",     "//vendor/winnermicro/w800/include", ]    }}

修改build.gn:

import("//build/lite/config/component/lite_component.gni")lite_component("app") {    features = [ "my_demo:demo",    ]}
