《从面试题来看源码》-LinkedBlockingQueue 源码分析
源码基于open-jdk 11
关联文档:有哪些并发队列?及ConcurrentLinkedQueue 源码分析
有界阻塞队列,使用单向链表实现,通过ReentrantLock实现线程安全,阻塞通过Condition实现,出队和入队各一把锁,不存在互相竞争 ,一种经典的生产和消费模式场景
内部类
Node
节点对象
static class Node<E> { //值 E item; /** * 表示有效的后续节点 * null 表示最后一个节点 */ Node<E> next; Node(E x) { item = x; }}
Itr
迭代器
private class Itr implements Iterator<E> { private Node<E> next; //保存下一个节点 private E nextItem; // 保存下一个节点的item值 private Node<E> lastRet;//最近返回的项目节点 private Node<E> ancestor;//remove()中用于断开连接 Itr() { //获取写锁和取锁,takeLock 和 putLock fullyLock(); try { //从头节点开始,如果头节点的下一个节点存在 //为什么不直接用head呢?因为head最开始是指向一个哨兵节点,item=next=null if ((next = head.next) != null) //就将下一个节点的item值保存 nextItem = next.item; } finally { //释放写锁和取锁 fullyUnlock(); } } //通过next判断是否有下一个节点 public boolean hasNext() { return next != null; } //获取下一个节点 public E next() { Node<E> p; if ((p = next) == null) throw new NoSuchElementException(); //p = next != null,将节点保存在lastRet中 lastRet = p; E x = nextItem; //获取写锁和取锁 fullyLock(); try { E e = null; //获取有效的节点,直到节点的item值不为null for (p = p.next; p != null && (e = p.item) == null; ) //获取下一个节点 p = succ(p); next = p; nextItem = e; } finally { //释放锁 fullyUnlock(); } return x; } //循环对队列中的元素应用指定操作 public void forEachRemaining(Consumer<? super E> action) { Objects.requireNonNull(action); Node<E> p; if ((p = next) == null) return; lastRet = p; next = null; final int batchSize = 64; Object[] es = null; int n, len = 1; do { //获取写锁和读锁 fullyLock(); try { //这是时候进行初始化,获取数组长度,创建数组 if (es == null) { p = p.next; for (Node<E> q = p; q != null; q = succ(q)) if (q.item != null && ++len == batchSize)break; es = new Object[len]; es[0] = nextItem; nextItem = null; n = 1; } else n = 0; //开始循环赋值 for (; p != null && n < len; p = succ(p)) if ((es[n] = p.item) != null) { lastRet = p; n++; } } finally { //释放锁 fullyUnlock(); } //循环执行指定操作 for (int i = 0; i < n; i++) { @SuppressWarnings("unchecked") E e = (E) es[i]; action.accept(e); } } while (n > 0 && p != null); } public void remove() { Node<E> p = lastRet; if (p == null) throw new IllegalStateException(); lastRet = null; fullyLock(); try { if (p.item != null) { //第一次的时候从头部开始 if (ancestor == null) ancestor = head; //查找当前节点p的上一个节点,findPred通过循环比较的方式 ancestor = findPred(p, ancestor); //断开连接 unlink(p, ancestor); } } finally { //释放锁 fullyUnlock(); } }}
LBQSpliterator
可拆分迭代器
private final class LBQSpliterator implements Spliterator<E> { static final int MAX_BATCH = 1 << 25; //处理数组最大长度 Node<E> current; // 当前节点,初始化前为null int batch; // 拆分处理的大小 boolean exhausted; // true表示没有更多的节点 long est = size(); // 预估大小,size()获取的大小,并不准确 LBQSpliterator() {} public long estimateSize() { return est; } //分割队列 public Spliterator<E> trySplit() { Node<E> h; //下面的表达式true,表示还有元素 if (!exhausted && ((h = current) != null || (h = head.next) != null) && h.next != null) { //获取批量处理的最小值,每次执行trySplit,batch都+1 int n = batch = Math.min(batch + 1, MAX_BATCH); Object[] a = new Object[n]; int i = 0; Node<E> p = current; //获取读锁和写锁 fullyLock(); try { if (p != null || (p = head.next) != null) //循环赋值到数组a,直到n个元素 for (; p != null && i < n; p = succ(p)) if ((a[i] = p.item) != null)i++; } finally { fullyUnlock(); } //表示没有元素 if ((current = p) == null) { est = 0L; exhausted = true; } else if ((est -= i) < 0L) //迭代器大小-已拆分的长度 < 0,将est赋值为0,防止发生负数 est = 0L; if (i > 0) //创建Spliterator,指定迭代器的特性 return Spliterators.spliterator (a, 0, i, (Spliterator.ORDERED | Spliterator.NONNULL | Spliterator.CONCURRENT)); } return null; } //获取有效节点,并执行指定函数 public boolean tryAdvance(Consumer<? super E> action) { Objects.requireNonNull(action); //有元素才继续执行 if (!exhausted) { E e = null; //获取写锁和读锁 fullyLock(); try { Node<E> p; //当前节点p不为null执行,如果为null获取头节点下一个节点,直到获取不为null的节点 if ((p = current) != null || (p = head.next) != null) do { e = p.item; p = succ(p); } while (e == null && p != null);//获取一个节点值不为null的节点 //这种情况说明,已经没有可获取的节点了 if ((current = p) == null) exhausted = true; } finally { //释放锁 fullyUnlock(); } if (e != null) { //应用函数 action.accept(e); return true; } } return false; } //循环执行指定函数 public void forEachRemaining(Consumer<? super E> action) { Objects.requireNonNull(action); if (!exhausted) { exhausted = true; Node<E> p = current; current = null; //执行循环的方法 forEachFrom(action, p); } } public int characteristics() { return (Spliterator.ORDERED | Spliterator.NONNULL | Spliterator.CONCURRENT); }}
属性
/**队列大小,最大为Integer.MAX_VALUE */private final int capacity;/**队列当前节点数量*/private final AtomicInteger count = new AtomicInteger();/** * 头部节点 * 不变性: head.item == null */transient Node<E> head;/** * 尾部节点 * 不变变性: last.next == null*/private transient Node<E> last;/**take,poll等要获取的锁*/private final ReentrantLock takeLock = new ReentrantLock();/**当队列为空时,出队操作的线程会阻塞放入该队列中等待*/private final Condition notEmpty = takeLock.newCondition();/**put,offer等要获取的锁*/private final ReentrantLock putLock = new ReentrantLock();/**当队列满时,入队操作的线程会放入该队列中等待*/private final Condition notFull = putLock.newCondition();
构造函数
//无参构造函数,长度默认为最大长度public LinkedBlockingQueue() { this(Integer.MAX_VALUE);}//提供容量参数public LinkedBlockingQueue(int capacity) { if (capacity <= 0) throw new IllegalArgumentException(); this.capacity = capacity; //构造一个哨兵节点 last = head = new Node<E>(null);}//从给定的集合中创建队列public LinkedBlockingQueue(Collection<? extends E> c) { //首先创建一个默认队列 this(Integer.MAX_VALUE); //获取写锁 final ReentrantLock putLock = this.putLock; putLock.lock(); //虽然不会发生竞争,但保证可见性是必要的 try { int n = 0; for (E e : c) { if (e == null) throw new NullPointerException(); if (n == capacity) throw new IllegalStateException("Queue full"); //入队,将元素加入队列末尾 enqueue(new Node<E>(e)); ++n; } //设置节点数量 count.set(n); } finally { //释放写锁 putLock.unlock(); }}
size、remainingCapacity
//获取队列长度public int size() { return count.get();}//队列剩余容量public int remainingCapacity() { return capacity - count.get();}
put
在尾部插入指定元素
public void put(E e) throws InterruptedException { if (e == null) throw new NullPointerException(); final int c; final Node<E> node = new Node<E>(e); //获取写锁对象 final ReentrantLock putLock = this.putLock; //获取队列当前数量 final AtomicInteger count = this.count; //加锁 putLock.lockInterruptibly(); try { //如果队列数量 已经达到队列的最大容量,则将该线程放入等待队列 while (count.get() == capacity) { notFull.await(); } //队列未满,插入队列 enqueue(node); //队列数量+1,返回原来的队列数量 c = count.getAndIncrement(); if (c + 1 < capacity) //说明队列未满,唤醒原来阻塞等待插入的线程 notFull.signal(); } finally { //释放写锁 putLock.unlock(); } //c == 0 说明第一次插入 if (c == 0) //唤醒原来阻塞等待出队的线程 signalNotEmpty();}
offer
在队列的尾部插入元素,该方法提供超时版本,非一直阻塞
//插队元素,超时版本public boolean offer(E e, long timeout, TimeUnit unit) throws InterruptedException {//插入元素不能为null if (e == null) throw new NullPointerException(); //将时间转换为纳秒 long nanos = unit.toNanos(timeout); final int c; //写锁 final ReentrantLock putLock = this.putLock; //队列数量 final AtomicInteger count = this.count; //加锁,可以被中断 putLock.lockInterruptibly(); try { //如果队列满了 while (count.get() == capacity) { if (nanos <= 0L) return false; //将该线程阻塞等待指定时间 nanos = notFull.awaitNanos(nanos); } //入队 enqueue(new Node<E>(e)); c = count.getAndIncrement(); //表示没满,唤醒原来入队阻塞等待的线程 if (c + 1 < capacity) notFull.signal(); } finally { //释放锁 putLock.unlock(); } if (c == 0) //至少有一个元素,队列不为空,唤醒原来出队阻塞的线程 signalNotEmpty(); return true;}//入队,不带超时public boolean offer(E e) { if (e == null) throw new NullPointerException(); final AtomicInteger count = this.count; //队列满了,不等待,直接返回false if (count.get() == capacity) return false; final int c; final Node<E> node = new Node<E>(e); final ReentrantLock putLock = this.putLock; putLock.lock(); try { //再次检查是否已满 if (count.get() == capacity) return false; //入队 enqueue(node); c = count.getAndIncrement(); //为true说明队列未满,还可以继续插入 if (c + 1 < capacity) //唤醒原来阻塞等待的入队线程 notFull.signal(); } finally { putLock.unlock(); } if (c == 0) signalNotEmpty(); return true;}
take
取元素,阻塞版本,直到有元素为止
public E take() throws InterruptedException { final E x; final int c; final AtomicInteger count = this.count; final ReentrantLock takeLock = this.takeLock; takeLock.lockInterruptibly(); try { //没有元素,将线程放入出队列表中 while (count.get() == 0) { notEmpty.await(); } //出队 x = dequeue(); //队列数量减一,返回原队列数量 c = count.getAndDecrement(); //为true 说明队列还有元素,唤醒之前阻塞的出队线程 if (c > 1) notEmpty.signal(); } finally { takeLock.unlock(); } //为true说明之前队列是满的,现在已经至少有一个空闲位置了 if (c == capacity) //唤醒之前阻塞的入队线程 signalNotFull(); return x;}
poll、peek
pool 弹出元素,不阻塞线程,或者阻塞有超时时间
peek 只获取队列的头部元素,不阻塞线程
//弹出元素的超时版本public E poll(long timeout, TimeUnit unit) throws InterruptedException { final E x; final int c; long nanos = unit.toNanos(timeout); final AtomicInteger count = this.count; final ReentrantLock takeLock = this.takeLock; //可以被中断 takeLock.lockInterruptibly(); try { //为true说明队列是空的 while (count.get() == 0) { if (nanos <= 0L) return null; //阻塞等待nanos,直到超时 nanos = notEmpty.awaitNanos(nanos); } //出队 x = dequeue(); //队列数量减一,返回原来的数量 c = count.getAndDecrement(); //为true说明队列还有元素 if (c > 1) //唤醒原来阻塞出队的线程 notEmpty.signal(); } finally { takeLock.unlock(); } //为true,说明现在已经有空闲的位置 if (c == capacity) //唤醒原来阻塞的入队线程 signalNotFull(); return x;}//弹出元素public E poll() { final AtomicInteger count = this.count; //队列为空,直接返回null if (count.get() == 0) return null; final E x; final int c; final ReentrantLock takeLock = this.takeLock; takeLock.lock(); try { //再次检查队列是否为空 if (count.get() == 0) return null; //出队 x = dequeue(); c = count.getAndDecrement(); if (c > 1) notEmpty.signal(); } finally { takeLock.unlock(); } if (c == capacity) signalNotFull(); return x;}
//获取头部元素public E peek() { final AtomicInteger count = this.count; //队列是否为空 if (count.get() == 0) return null; final ReentrantLock takeLock = this.takeLock; takeLock.lock(); try { //队列不为空,返回头部元素,head.next,因为还有一个item=null的哨兵节点,比如poll形成的 return (count.get() > 0) ? head.next.item : null; } finally { takeLock.unlock(); }}
enqueue
//链接到末尾节点private void enqueue(Node<E> node) { // assert putLock.isHeldByCurrentThread(); // assert last.next == null; last = last.next = node;}
dequeue
//出队,head元素的item始终等于nullprivate E dequeue() { Node<E> h = head; //① Node<E> first = h.next; //② //变为自引用,等GC回收 h.next = h; //③ head = first; //④ E x = first.item; //⑤ first.item = null; //⑥ return x;}
remove
//删除指定元素public boolean remove(Object o) { if (o == null) return false; //写锁,读锁都加锁 fullyLock(); try { for (Node<E> pred = head, p = pred.next; p != null; pred = p, p = p.next) { //通过equlas比较元素是否相同 if (o.equals(p.item)) { //断开连接 unlink(p, pred); return true; } } return false; } finally { fullyUnlock(); }}
contains
//循环判断判断队列是否包含指定元素public boolean contains(Object o) { if (o == null) return false; fullyLock(); try { for (Node<E> p = head.next; p != null; p = p.next) if (o.equals(p.item)) return true; return false; } finally { fullyUnlock(); }}
toArray
将队列输出为数组
public Object[] toArray() { fullyLock(); try { int size = count.get(); Object[] a = new Object[size]; int k = 0; for (Node<E> p = head.next; p != null; p = p.next) a[k++] = p.item; return a; } finally { fullyUnlock(); }}//将队列输出到指定类型的数组public <T> T[] toArray(T[] a) { fullyLock(); try { int size = count.get(); //如果给定的数组长度小于当前队列的长度,需要扩容 //这里的做法是,通过反射生成一个新的数组 if (a.length < size) a = (T[])java.lang.reflect.Array.newInstance (a.getClass().getComponentType(), size); int k = 0; for (Node<E> p = head.next; p != null; p = p.next) a[k++] = (T)p.item; if (a.length > k) a[k] = null; return a; } finally { fullyUnlock(); }}
clear
将队列中的元素清除
public void clear() { fullyLock(); try { for (Node<E> p, h = head; (p = h.next) != null; h = p) { h.next = h; p.item = null; } head = last; //为true说明之前队列是满的,有可能已经有入队线程阻塞,需要唤醒 if (count.getAndSet(0) == capacity) notFull.signal(); } finally { fullyUnlock(); }}
toString
输出字符串,这里使用了Helpers类,来输出字符串,与Java8不同。
Helpers类用于并发包输出字符串,该类只在输出数组的时候获取锁,而不是在toString中获取锁
public String toString() { // return Helpers.collectionToString(this);}
drainTo
从队列获取指定数量的元素并发送到指定集合,删除队列中原有元素
public int drainTo(Collection<? super E> c) { return drainTo(c, Integer.MAX_VALUE);}public int drainTo(Collection<? super E> c, int maxElements) { Objects.requireNonNull(c); if (c == this) throw new IllegalArgumentException(); if (maxElements <= 0) return 0; boolean signalNotFull = false; final ReentrantLock takeLock = this.takeLock; takeLock.lock(); try { //防止超过范围 int n = Math.min(maxElements, count.get()); // count.get provides visibility to first n Nodes Node<E> h = head; int i = 0; try { while (i < n) { Node<E> p = h.next; c.add(p.item); //将p节点转换为哨兵节点 p.item = null; //将h节点置为自引用,等待GC回收 h.next = h; //将p节点做为头节点,继续下次循环 h = p; ++i; } return n; } finally { // Restore invariants even if c.add() threw if (i > 0) { // assert h.item == null; head = h; //如果之前队列是满的,并且已经发送了一部分元素,那么需要唤醒之前阻塞的入队线程 signalNotFull = (count.getAndAdd(-i) == capacity); } } } finally { takeLock.unlock(); if (signalNotFull) //唤醒阻塞的入队线程 signalNotFull(); }}
succ
获取下一个节点
Node<E> succ(Node<E> p) { //先比较p.next节点是否指向自己p,如果true,则从头节点开始 //如果false返回p.next //这种写法是不是很巧妙,能够少定义变量,代码也变简洁 if (p == (p = p.next)) p = head.next; return p;}
iterator
获取迭代器
public Iterator<E> iterator() { return new Itr();}
spliterator
获取可拆分迭代器
public Spliterator<E> spliterator() { return new LBQSpliterator();}
forEach
循环执行指定函数
public void forEach(Consumer<? super E> action) { Objects.requireNonNull(action); forEachFrom(action, null);}
forEachFrom
void forEachFrom(Consumer<? super E> action, Node<E> p) { // Extract batches of elements while holding the lock; then // run the action on the elements while not final int batchSize = 64;// max number of elements per batch Object[] es = null; // container for batch of elements int n, len = 0; do { fullyLock(); try { if (es == null) { if (p == null) p = head.next; //先获取所需数组的长度,并创建数组 for (Node<E> q = p; q != null; q = succ(q)) if (q.item != null && ++len == batchSize) break; es = new Object[len]; } //将队列节点的值赋值给数组 for (n = 0; p != null && n < len; p = succ(p)) if ((es[n] = p.item) != null) n++; } finally { //释放锁 fullyUnlock(); } //给每个元素执行指定函数 for (int i = 0; i < n; i++) { @SuppressWarnings("unchecked") E e = (E) es[i]; action.accept(e); } } while (n > 0 && p != null); //这里有必要用循环吗?}
removeIf
根据提供的过滤函数,从队列中移除元素
public boolean removeIf(Predicate<? super E> filter) { Objects.requireNonNull(filter); return bulkRemove(filter);}
removeAll
从队列中移除包含在指定集合中的元素
public boolean removeAll(Collection<?> c) { Objects.requireNonNull(c); return bulkRemove(e -> c.contains(e));}
retainAll
从队列中移除不包含在指定集合中的元素,也就是队列中只包含集合中有的元素
public boolean retainAll(Collection<?> c) { Objects.requireNonNull(c); return bulkRemove(e -> !c.contains(e));}
fullyLock、fullyUnlock
/** * 先获取写锁,在获取读锁 */void fullyLock() { putLock.lock(); takeLock.lock();}/** * 以加锁反方向,释放锁,先释放读锁,再释放写锁 */void fullyUnlock() { takeLock.unlock(); putLock.unlock();}
findPred
查找当前节点的上一个节点
Node<E> findPred(Node<E> p, Node<E> ancestor) { //如果ancestor为空,从头节点开始 if (ancestor.item == null) ancestor = head; //直到找到与当前节点p相同,返回上一个节点 for (Node<E> q; (q = ancestor.next) != p; ) ancestor = q; return ancestor;}
signalNotEmpty
//唤醒原来阻塞等待出队的线程,该方法在put/offer中调用private void signalNotEmpty() { final ReentrantLock takeLock = this.takeLock; takeLock.lock(); try { notEmpty.signal(); } finally { takeLock.unlock(); }}
signalNotFull
//唤醒原来阻塞等待入队的线程private void signalNotFull() { final ReentrantLock putLock = this.putLock; putLock.lock(); try { notFull.signal(); } finally { putLock.unlock(); }}
bulkRemove
根据指定的过滤函数元素
private boolean bulkRemove(Predicate<? super E> filter) { boolean removed = false; Node<E> p = null, ancestor = head; Node<E>[] nodes = null; int n, len = 0; do { // 1. 加锁,并创建长度为64的节点数组 fullyLock(); try { if (nodes == null) { // first batch; initialize p = head.next; for (Node<E> q = p; q != null; q = succ(q)) if (q.item != null && ++len == 64) break; nodes = (Node<E>[]) new Node<?>[len]; } //赋值节点到数组 for (n = 0; p != null && n < len; p = succ(p)) nodes[n++] = p; } finally { fullyUnlock(); } // 2. 在不加锁的情况下,执行过滤函数 long deathRow = 0L;// "bitset" of size 64 for (int i = 0; i < n; i++) { final E e; if ((e = nodes[i].item) != null && filter.test(e)) deathRow |= 1L << i; } // 3. 加锁,移除元素 if (deathRow != 0) { fullyLock(); try { for (int i = 0; i < n; i++) { final Node<E> q; if ((deathRow & (1L << i)) != 0L && (q = nodes[i]).item != null) { ancestor = findPred(q, ancestor); unlink(q, ancestor); removed = true; } nodes[i] = null; // help GC } } finally { fullyUnlock(); } } } while (n > 0 && p != null); return removed;}
writeObject、readObject
writeObject 将队列元素输出到指定的输出流
readObject 从指定的输入流中读取插入队列
private void writeObject(java.io.ObjectOutputStream s) throws java.io.IOException { fullyLock(); try { // Write out any hidden stuff, plus capacity s.defaultWriteObject(); // Write out all elements in the proper order. for (Node<E> p = head.next; p != null; p = p.next) s.writeObject(p.item); // Use trailing null as sentinel s.writeObject(null); } finally { fullyUnlock(); }}private void readObject(java.io.ObjectInputStream s) throws java.io.IOException, ClassNotFoundException { // Read in capacity, and any hidden stuff s.defaultReadObject(); count.set(0); last = head = new Node<E>(null); // Read in all elements and place in queue for (;;) { @SuppressWarnings("unchecked") E item = (E)s.readObject(); if (item == null) break; add(item); }}
unlink
断开连接
//p为当前节点,pred为上一个节点void unlink(Node<E> p, Node<E> pred) { p.item = null; // 将当前节点p的下一个节点赋值给上一个节点pred的next上 pred.next = p.next; //如果当前节点为最后一个节点 if (last == p) //将上一个节点赋值给last,因为当前节点将被删除 last = pred; //count获取数量,并减一 //判断之前是否是满的,因为删除了一个后,有空闲,唤醒原来在notFull阻塞的线程 if (count.getAndDecrement() == capacity) notFull.signal();}
默认线程池阻塞队列为什么用LinkedBlockingQueue
不管是Executors提供的几种线程池,还是Spring提供的线程池,你会发现阻塞队列用的都是LinkedBlockingQueue,而不是用的ArrayBlockingQueue。
源码基于Java8
LinkedBlockingQueue
使用单链表实现,提供3种构造函数
- LinkedBlockingQueue() 无参构造函数,链表长度为Integer.MAX_VALUE
- LinkedBlockingQueue(int capacity) 指定capacity长度
- LinkedBlockingQueue(Collection c) 不指定长度,即默认长度为Integer.MAX_VALUE,提供初始化元素

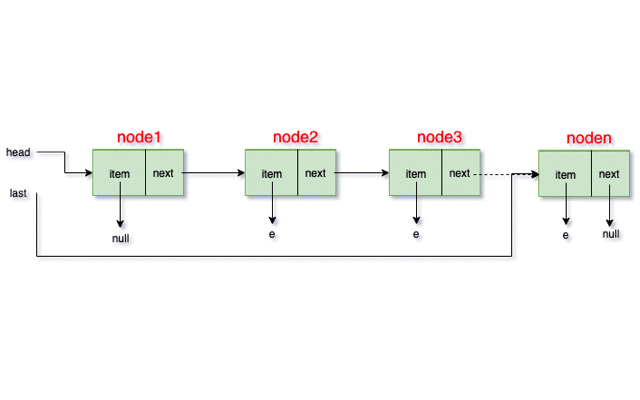

链表节点由Node对象组成,每个Node有item变量用于存储元素,next变量指向下一个节点
执行put的时候,将元素放到链表尾部节点;take的时候从头部取元素
两种操作分别有一个锁putLock, takeLock,互不影响,可以同时进行
/** Lock held by take, poll, etc */private final ReentrantLock takeLock = new ReentrantLock();/** Lock held by take, poll, etc */private final ReentrantLock takeLock = new ReentrantLock();//put public void put(E e) throws InterruptedException { if (e == null) throw new NullPointerException(); int c = -1; Node<E> node = new Node<E>(e); final ReentrantLock putLock = this.putLock; //... }//takepublic E take() throws InterruptedException { E x; int c = -1; final AtomicInteger count = this.count; final ReentrantLock takeLock = this.takeLock; takeLock.lockInterruptibly(); //...}
ArrayBlockingQueue
使用数组实现,3种构造函数
- ArrayBlockingQueue(int capacity) 指定长度
- ArrayBlockingQueue(int capacity, boolean fair) 指定长度,及指定是否使用FIFO顺序进出队列
- ArrayBlockingQueue(int capacity, boolean fair, Collection c) 指定长度,进行队列顺序,初始元素
从构造函数看出,ArrayBlockingQueue必须指定初始化长度,如果线程池使用该队列,指定长度大了浪费内存,长度小队列并发性不高,在数组满的时候,put操作只能阻塞等待,或者返回false
ArrayBlockingQueue 只定义了一个Lock,put和take使用同一锁,不能同时进行
/** Main lock guarding all access */ final ReentrantLock lock;
总结
- LinkedBlockingQueue 无须指定长度,放入和取出元素使用不同的锁,互不影响,效率高,通用性强
- ArrayBlockingQueue 必须指定长度,大了浪费内存,小了性能不高,使用同一把锁,效率低
