ArkTS的Grid与GridItem(网格容器与网格容器中单项内容容器)
目录
- 说些废话
- 环境
- 代码

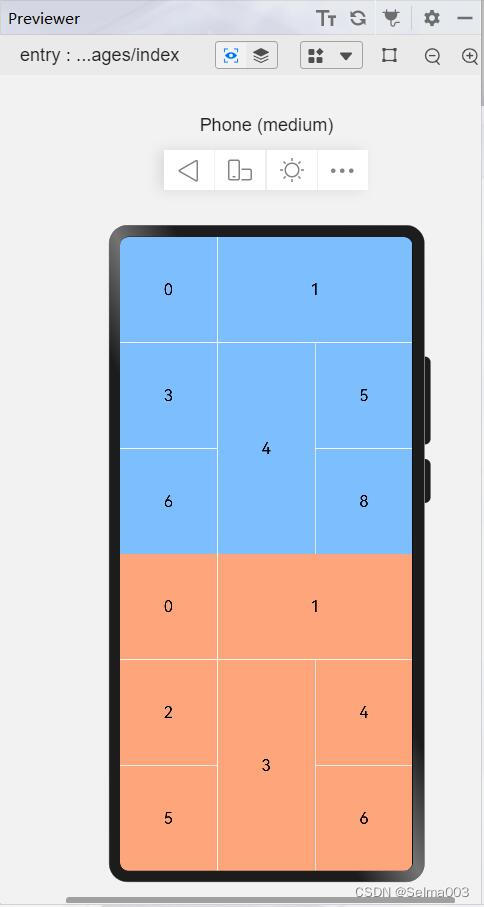

- 展示
说些废话
官方文档:容器组件-Grid(基于ArkTS的声明式开发范式)
没有安装到真机上,直接用预览器看的。创建的是API为8的华为鸿蒙工程。
环境
DevEco Studio 3.1 Canary1
SDK 8
我看的《API参考》更新时间为2022-12-16 17:46
代码
@Entry@Componentstruct Index { @State columns: number[] = [0, 1, 2, 3, 4, 5, 6, 7, 8] build() { Row() { Column() { //不使用循环 Grid(){ //Grid的子组件只能为GridItem //0 GridItem(){ Text(this.columns[0] + '').fontSize(20) } .backgroundColor('#ff7cbeff') .size({ width:'100%', height:'100%' }) //1 GridItem(){ Text(this.columns[1] + '').fontSize(20) } .backgroundColor('#ff7cbeff') .columnStart(1) .columnEnd(2) .size({ width:'100%', height:'100%' }) //2// GridItem(){// Text(this.columns[2] + '')//.fontSize(20)// }// .backgroundColor('#ff7cbeff')// .size({// width:'100%',// height:'100%'// }) //3 GridItem(){ Text(this.columns[3] + '').fontSize(20) } .backgroundColor('#ff7cbeff') .size({ width:'100%', height:'100%' }) //4 GridItem(){ Text(this.columns[4] + '').fontSize(20) } .backgroundColor('#ff7cbeff') .rowStart(1) .rowEnd(2) .size({ width:'100%', height:'100%' }) //5 GridItem(){ Text(this.columns[5] + '').fontSize(20) } .backgroundColor('#ff7cbeff') .size({ width:'100%', height:'100%' }) //6 GridItem(){ Text(this.columns[6] + '').fontSize(20) } .backgroundColor('#ff7cbeff') .size({ width:'100%', height:'100%' }) //7// GridItem(){// Text(this.columns[7] + '')//.fontSize(20)// }// .backgroundColor('#ff7cbeff')// .size({// width:'100%',// height:'100%'// }) //8 GridItem(){ Text(this.columns[8] + '').fontSize(20) } .backgroundColor('#ff7cbeff') .size({ width:'100%', height:'100%' }) } //设置Grid为3列,并且均分 .columnsTemplate("1fr 1fr 1fr") //设置3行,并且均分 .rowsTemplate("1fr 1fr 1fr") //设置列间距为1vp .columnsGap(1) //设置行间距为1vp .rowsGap(1) .size({ width:'100%', height:'50%' }) //使用循环 Grid(){ //虽然循环的是9个,但是因为合并之后页面上只有7个组件,所以其实是循环到7就行了, //多循环了摆在哪里我也不知道,反正用if把合并这个空位GridItem不创建就是空的,无语。 ForEach(this.columns, (item, index) => { //使用ForEach语法循环创建GridItem组件 GridItem(){Text('' + this.columns[index]) .fontSize(20) } .columnStart(index == 1 ? 1 : 0) .columnEnd(index == 1 ? 2 : 0) //原本这个位置应该是和4合并,也因为实际展示的是7个,前面二合一了而此处变成3了。。。 .rowStart(index == 3 ? 1 : 0) .rowEnd(index == 3 ? 2 : 0) .backgroundColor('#ffffa57c') .size({width:'100%',height:'100%' }) }) } //设置Grid为3列,并且均分 .columnsTemplate("1fr 1fr 1fr") //设置3行,并且均分 .rowsTemplate("1fr 1fr 1fr") //设置列间距为1vp .columnsGap(1) //设置行间距为1vp .rowsGap(1) .size({ width:'100%', height:'50%' }) } .width('100%') } .height('100%') }}
