分享前后端实现唤起微信扫一扫小demo

文档中心

一、前置准备工作

1、注册微信公众平台账户，个人可以注册订阅号就可以。

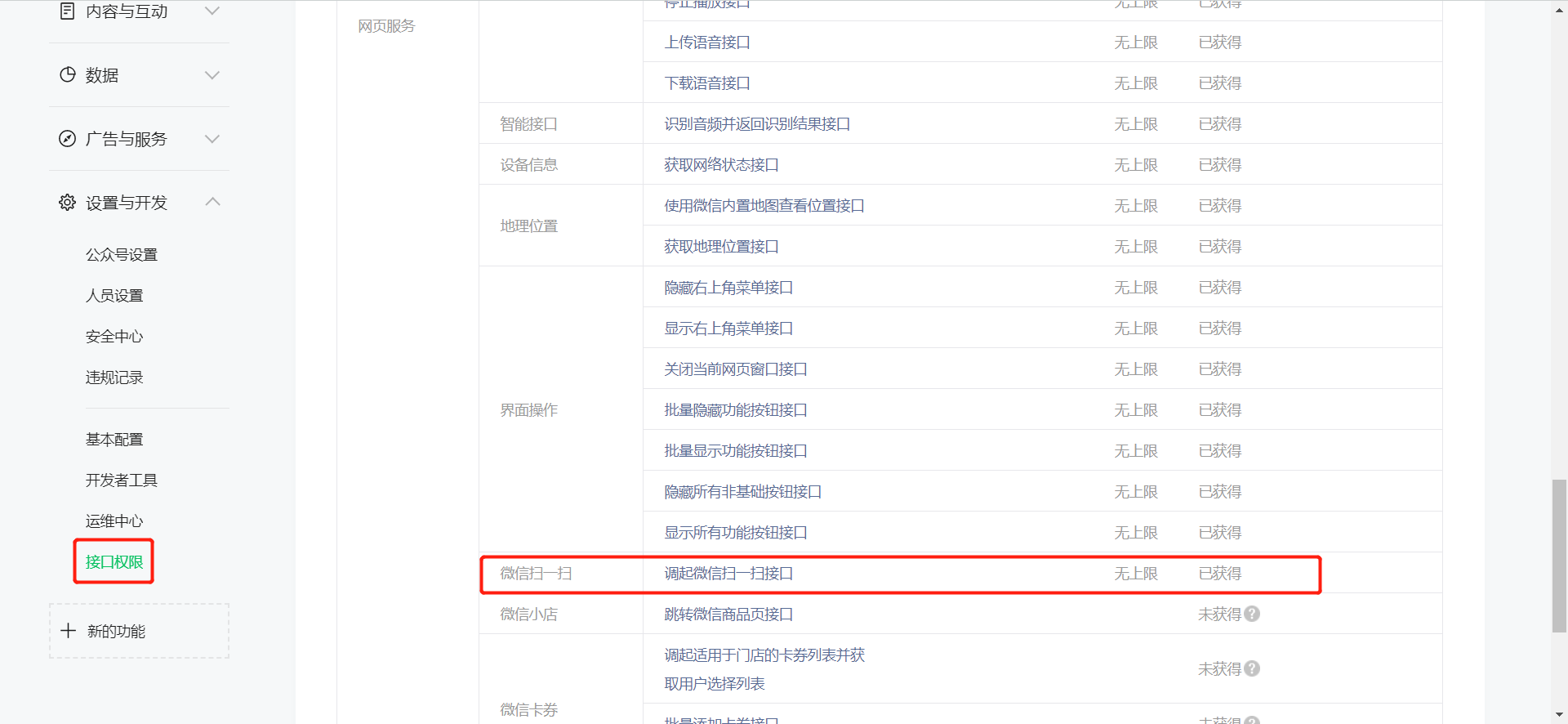

2、查看接口权限是否已开通调起微信扫一扫权限：

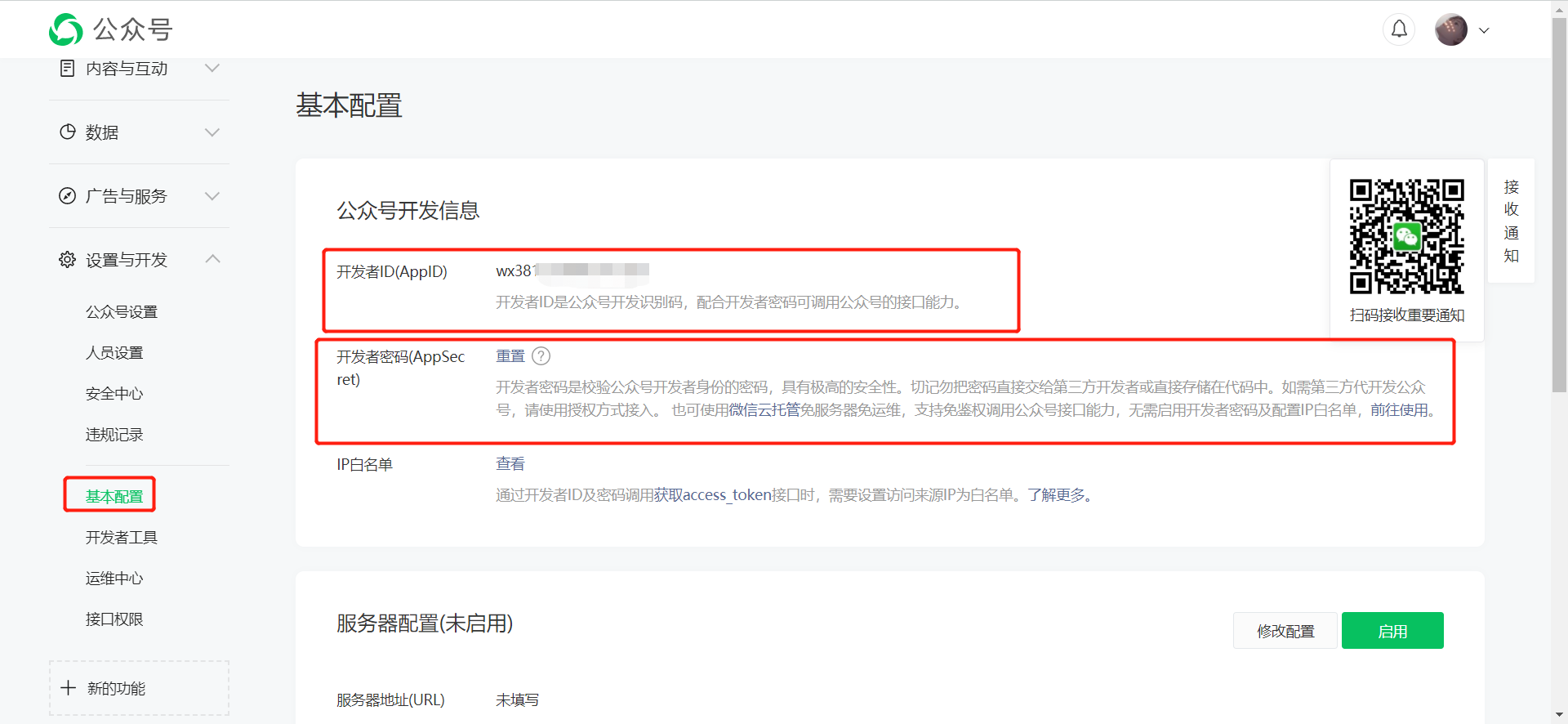

3、获取appId和secret参数信息

注意：初次注册的公众号，secret没有开通，需要开通获取，获取之后微信公众平台是不会保存secret的，所以需要生成之后，找个地方保存起来；如果后期忘记了，也可以选择重置，重新获取secret。

4、域名准备

4.1、首先需要提供一个可供外网访问的已备案的域名，并且需要支持https协议的，有条件的小伙伴可以选择使用花生壳，支持内网穿透，也支持https服务，但是需要花钱开通，自我感觉还是比较方便的。

4.2、页面我是通过nginx进行访问，所以需要在自己的电脑上下载安装个nginx，并启动，后续花生壳的https协议配置需要；

4.3、花生壳注册地址：花生壳-免费内网穿透软件|端口映射工具|DNS免费动态域名解析_花生壳,内网也能用-贝锐花生壳官网

4.4、由于域名需要支持https协议，所以需要开通花生壳的https服务，价格比较划算一年不到100，开通步骤如下：

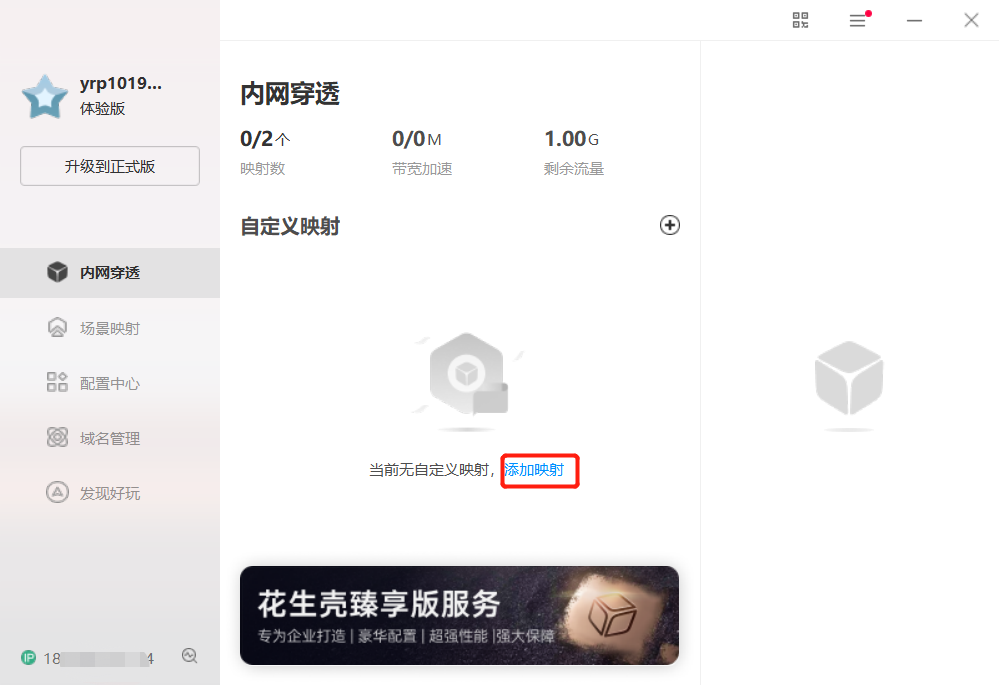

4.4.1、去官网下载花生壳客户端，并安装，登录之前注册的账号，界面如下：

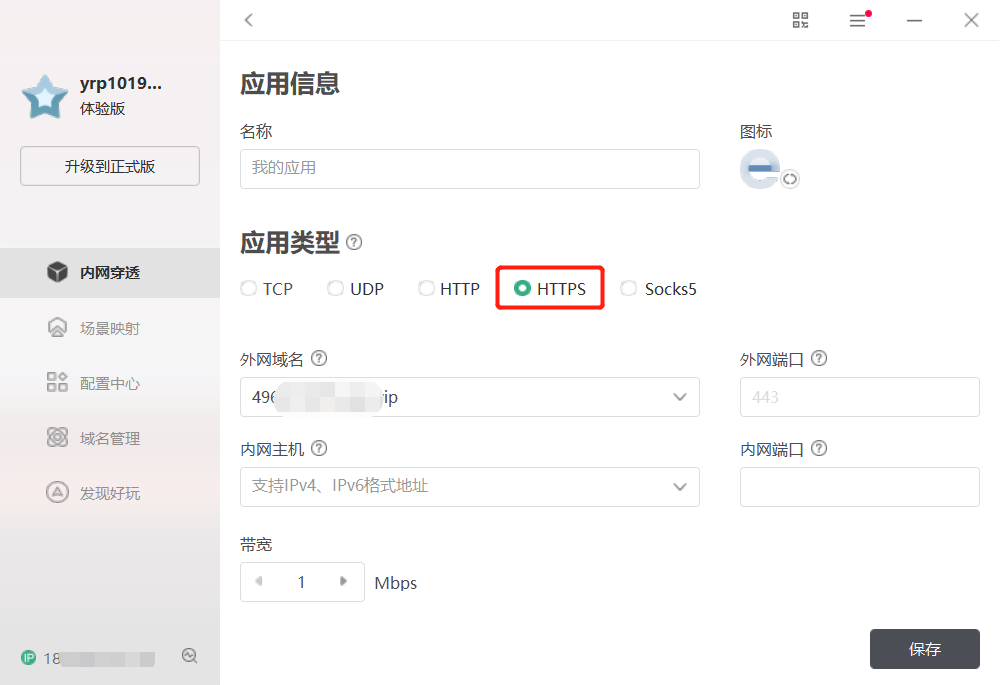

4.4.2、由于初次注册的账户没有配置过映射，所以通过点击上图所示的添加映射，然后选择https协议，由于没有开通https服务，所以需要升级开通，按照步骤填写信息并支付即可开通https服务，步骤如下：

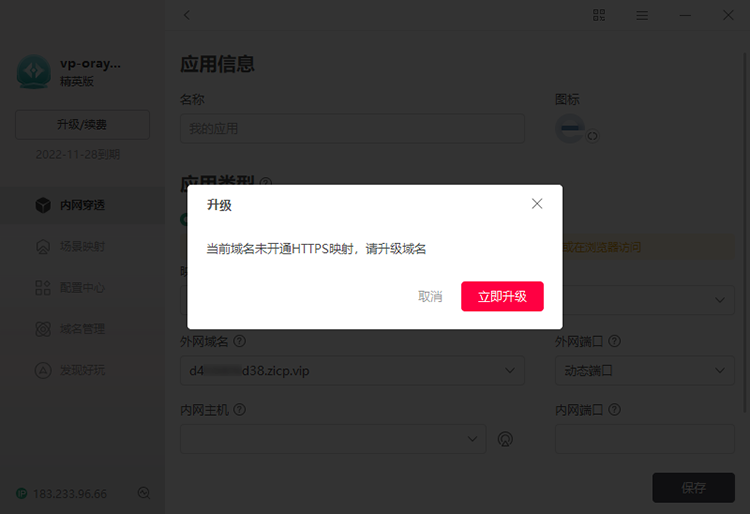

由于我已经开通了，所以上图所示的是已开通后的页面，如果未开通，点击https协议的时候，就会弹出如下所示的弹窗。

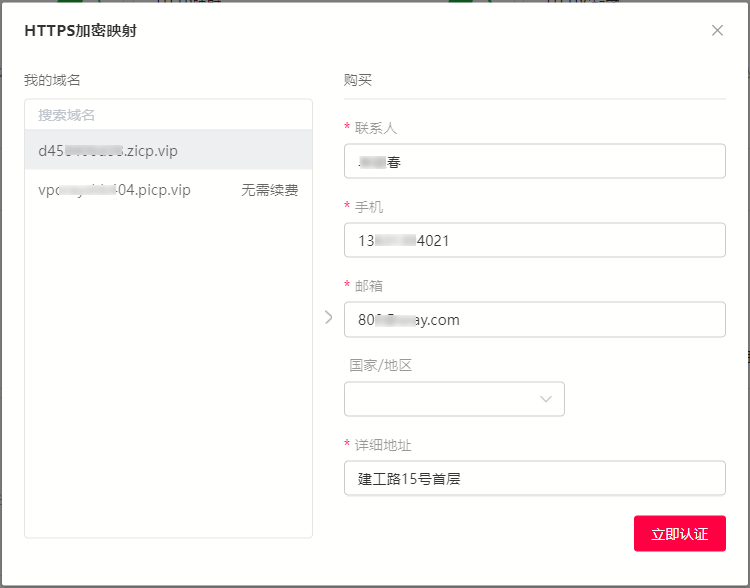

需要填写一些个人的基本信息，联系人可以不写正式姓名，地址随便填写就行。

4.4.3、开通之后就可以配置https协议进行内网穿透了。

5、花生壳域名配置（已有备案域名此步骤可以跳过）

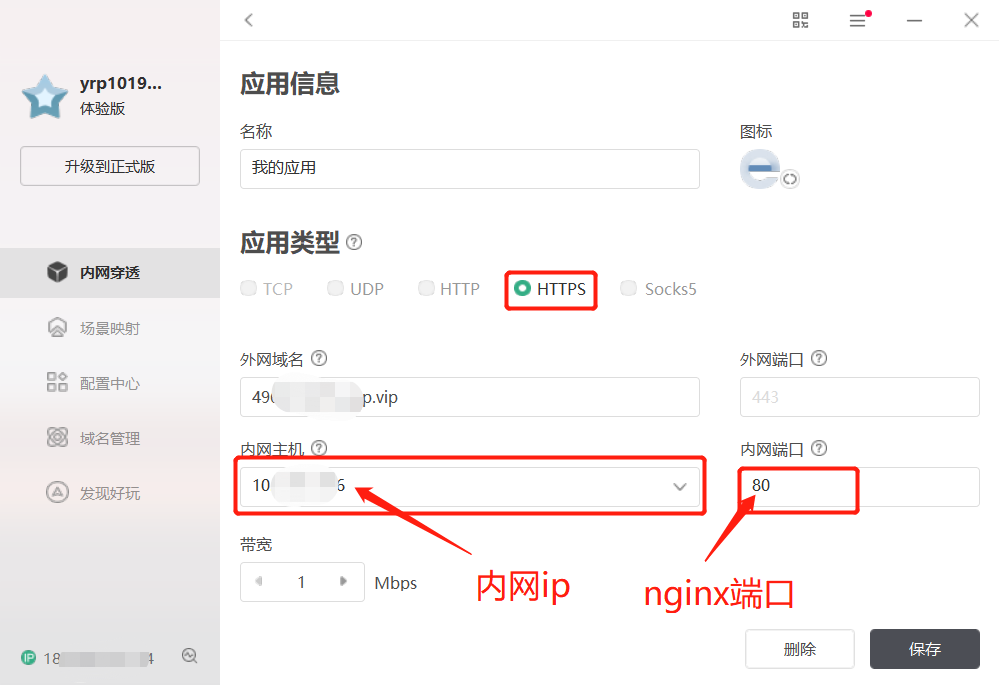

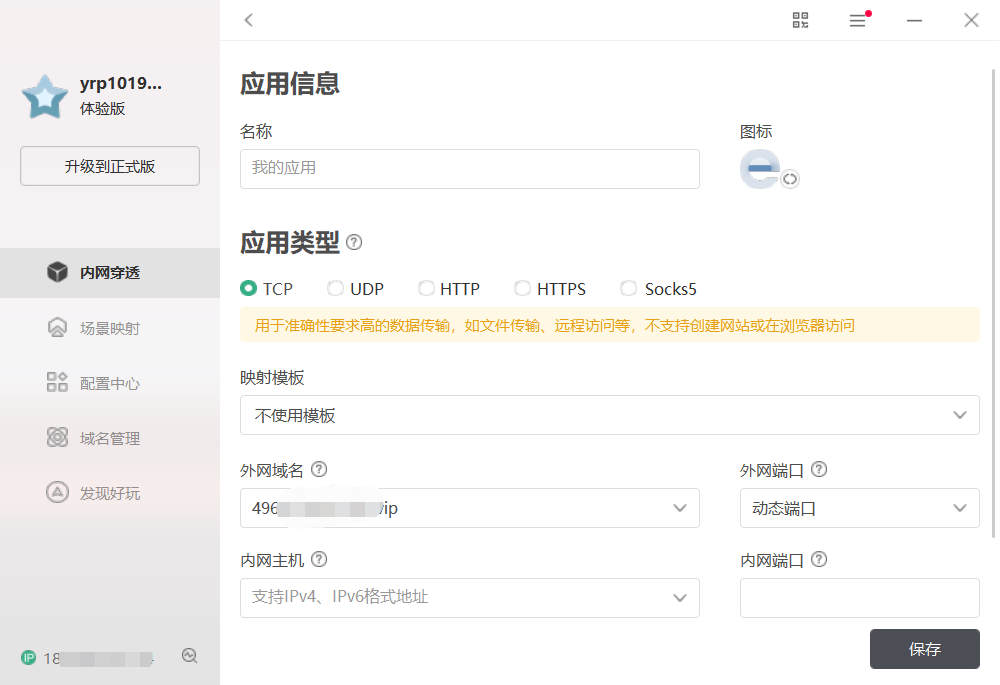

5.1、登录花生壳客户端，添加映射；

端口号选择80，是因为想使用nginx来访问页面，所以域名配置的内网端口号是和nginx一样的，填写好后，保存即可；

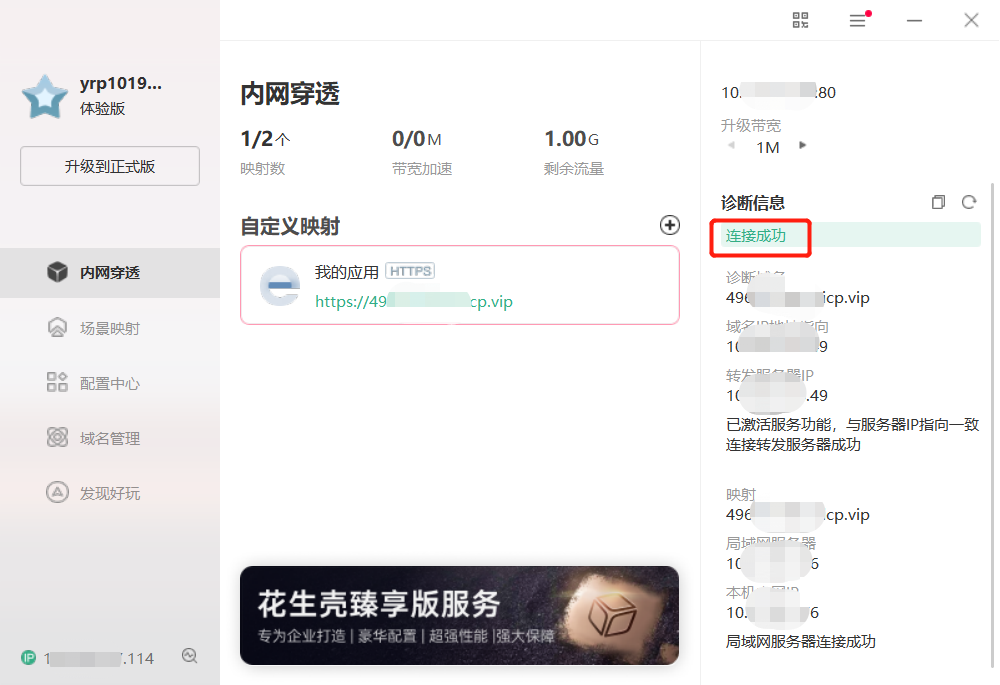

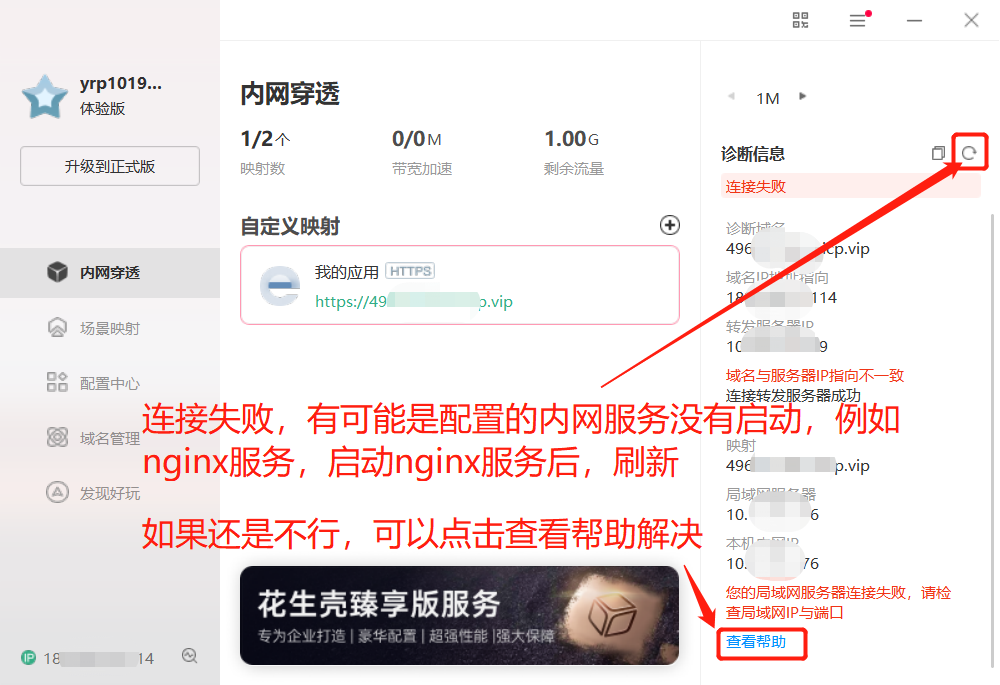

注意：域名配置成功之后，如图所示即代表域名可以正常访问了，配置之前如果想用nginx的话，记得先启动nginx，如果没有启动会造成连接失败的情况，如下图所示：

6、在微信公众平台配置安全域名

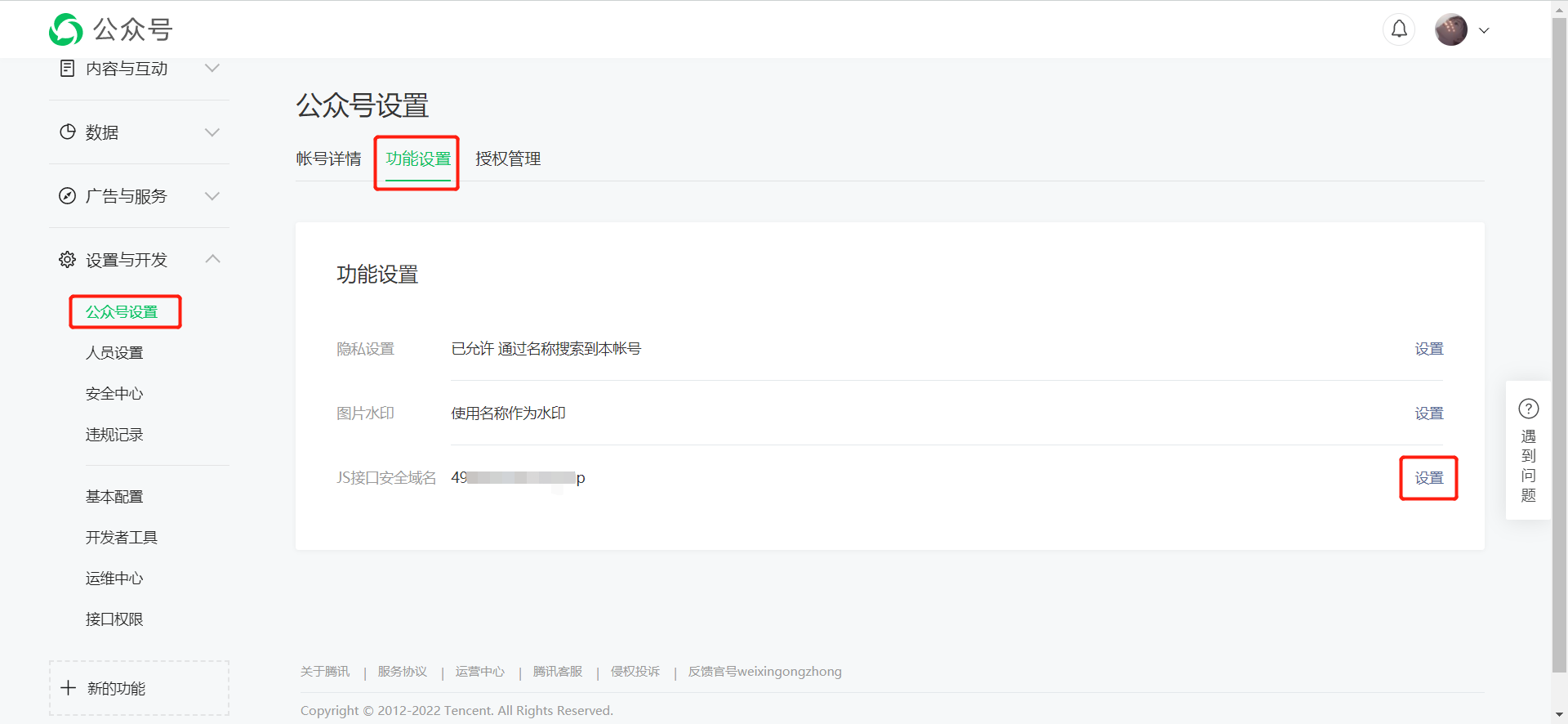

6.1、获取域名之后，需要将该域名配置到微信公众平台，配置位置如下图所示：

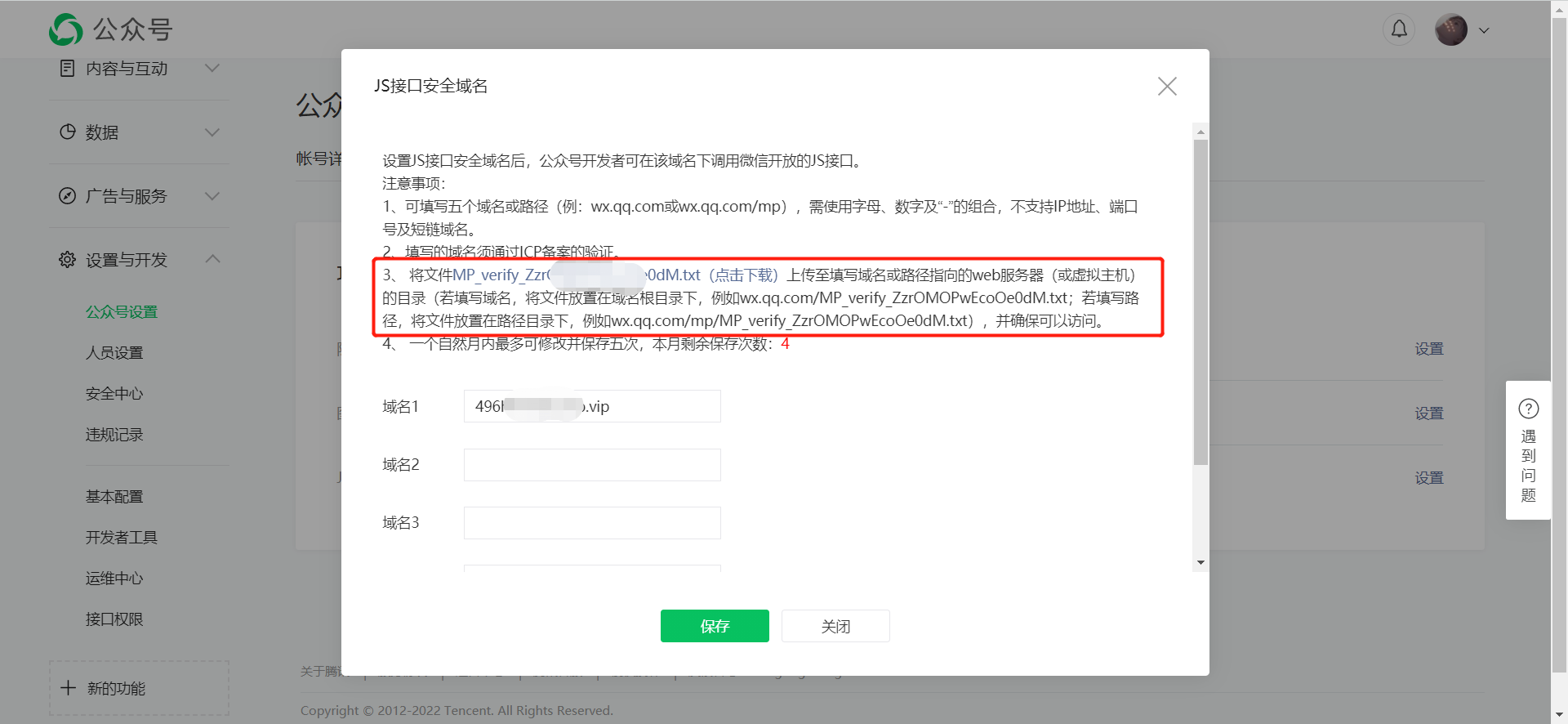

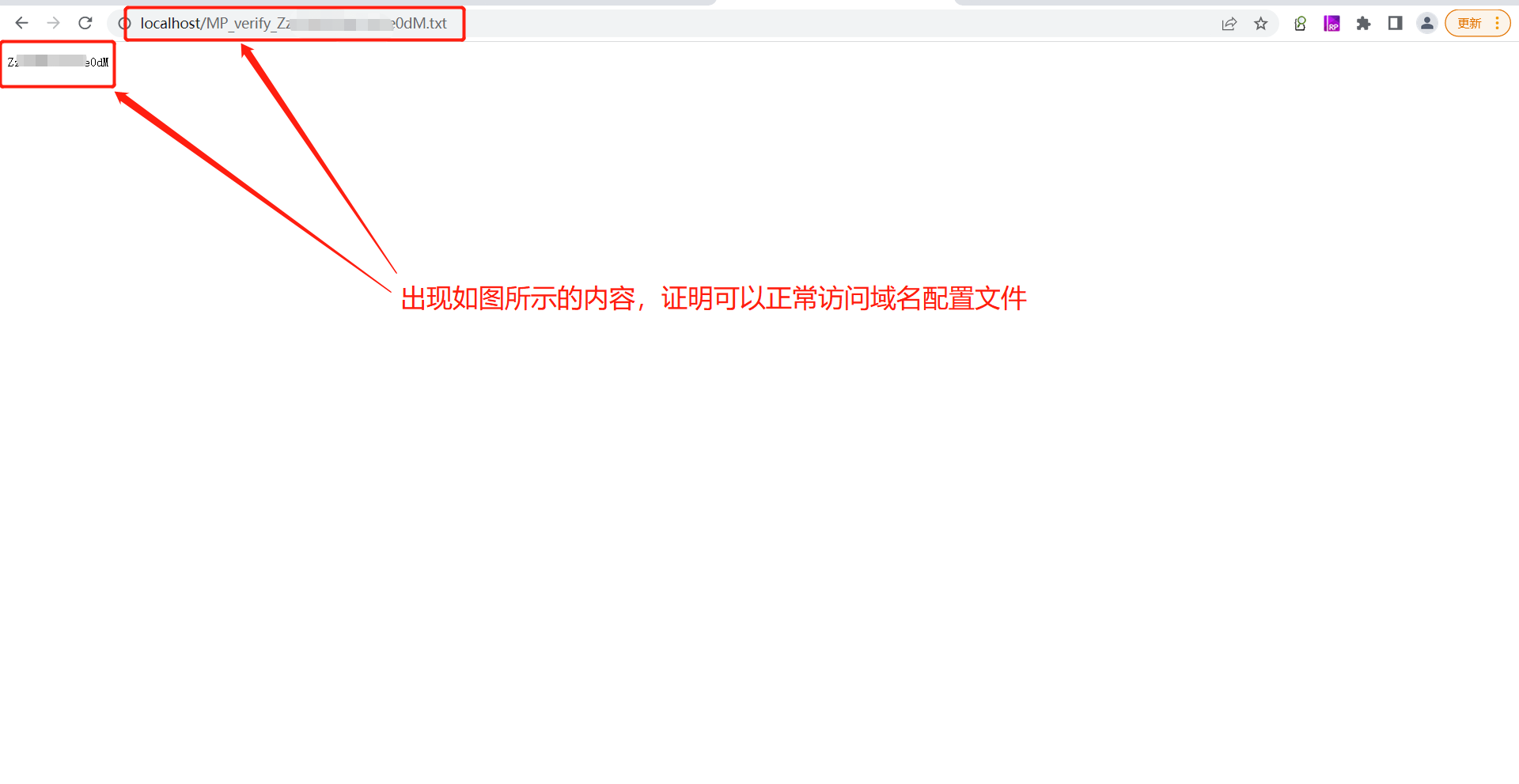

注意：这块儿有个需要注意的地方，配置安全域名的时候，需要将一个文件下载下来，并放到域名所绑定的服务器中，并且支持通过域名可以访问该文件，如：域名/文件名称.txt如果能看到内容，证明可以正常访问；然后就可以将需要使用的域名填写在输入框中，并点击保存，如果没有如上操作的话，是无法保存的。

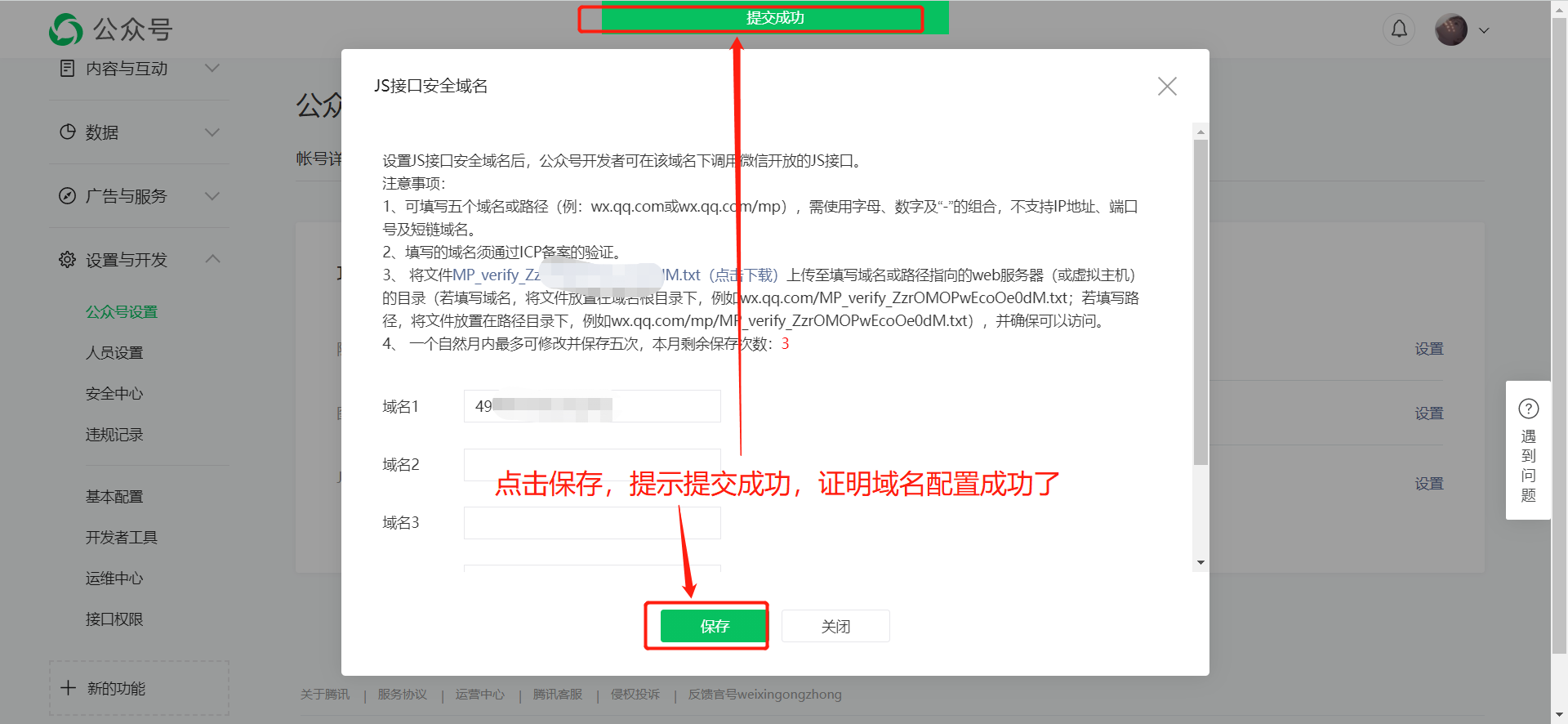

6.2、因为前面说将页面放到nginx下，通过nginx访问页面，所以我放到了nginx下面，需要启动nginx，并且花生壳的https协议也配置好了，文件也放好了，微信公众平台的安全域名才能配置成功，如图所示：

此时就可以点击保存

7、在公众平台配置IP白名单

7.1、这个由于不知道外网访问的IP是多少，所以需要后续开发的时候去配置，可在文章末尾查看获取外网IP方式；

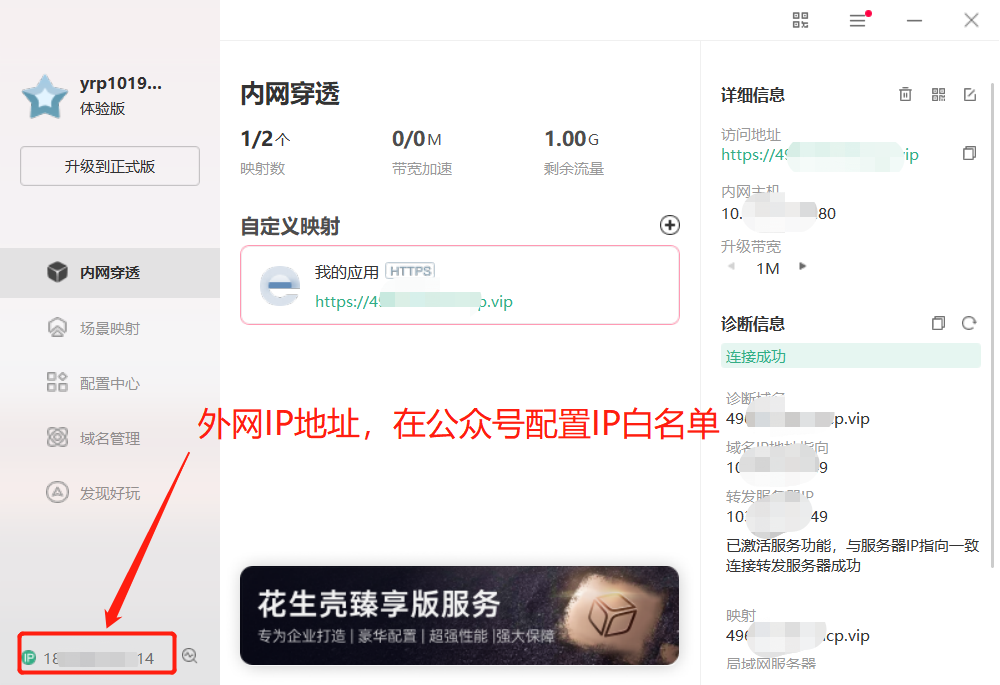

7.2、如果使用花生壳的小伙伴，可以在这个位置查看外网IP地址，如下图所示：

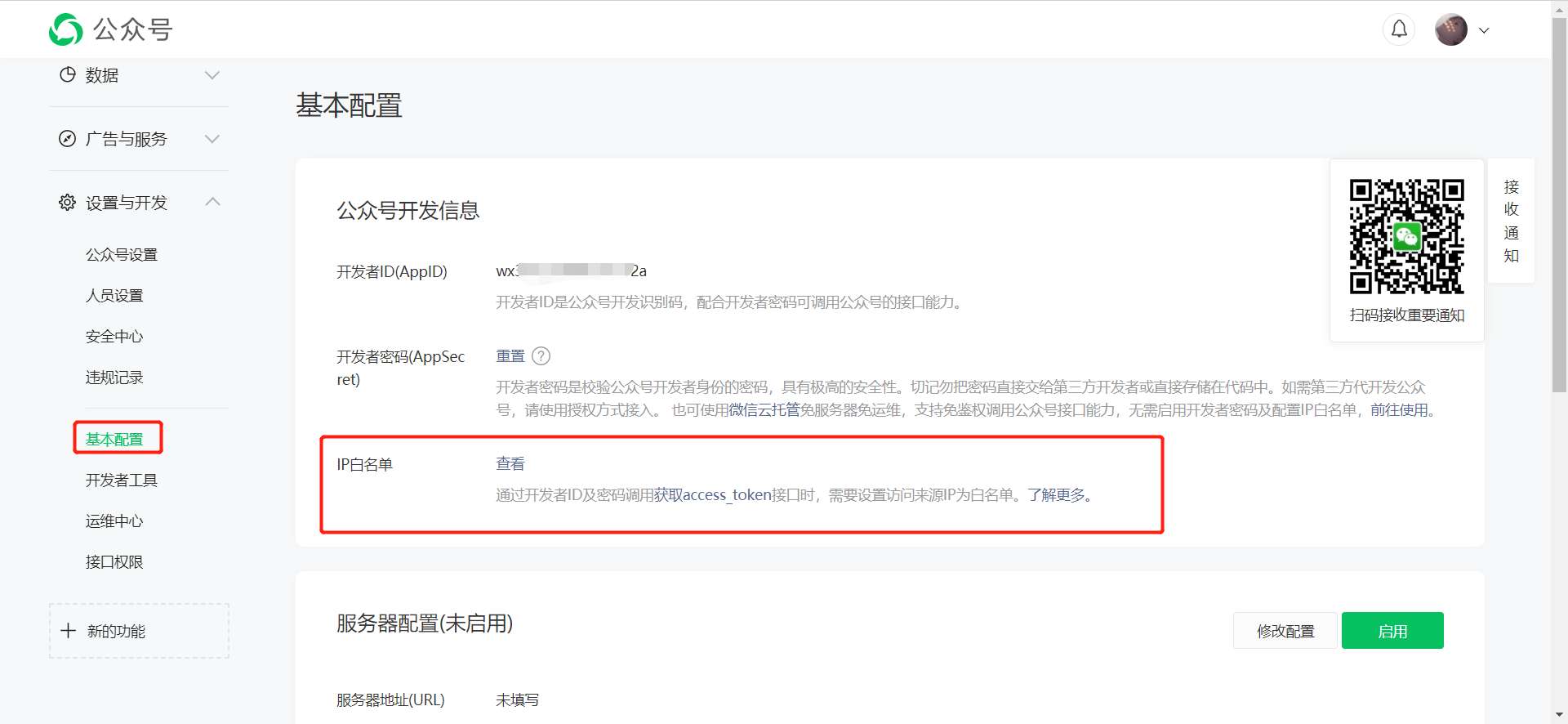

公众号配置IP白名单：

IP填写完毕之后，点击确认修改即可；

做好上面以上的步骤，就可以进行代码开发了。

二、应用场景

1、可以在开发的微信小程序上进行扫一扫的商品核销、扫码获取物流信息等等应用场景。

三、代码实现

1、前端页面

        Title            微信扫一扫
    //$(function() {function saoyisao() {//需要把当前页面的url地址传到后台，生成签名信息时需要使用到var tokenUrl= "https://域名/wechatScan.html";alert(location.href.split('#')[0]);//获取签名的后台接口var _getWechatSignUrl = '/wechat/getWechatScan';var param = {pagePath:tokenUrl}//获取签名$.ajax({url:_getWechatSignUrl,type:"post",data:JSON.stringify(param),contentType:"application/json",dataType:"json",success:function(res){console.log(res);var result = res.data;//获得签名之后传入配置中进行配置wxConfig(result.appId,result.timestamp,result.nonceStr,result.signature);}})} function wxConfig(_appId,_timestamp, _nonceStr, _signature) {     console.log('获取数据：' + _timestamp +'\n' + _nonceStr +'\n' + _signature);     wx.config({  debug:true,// 开启调试模式,调用的所有api的返回值会在客户端alert出来，若要查看传入的参数，可以在pc端打开，参数信息会通过log打出，仅在pc端时才会打印。  appId: _appId,// 必填，公众号的唯一标识  timestamp: _timestamp,// 必填，生成签名的时间戳  nonceStr: _nonceStr,// 必填，生成签名的随机串  signature: _signature,// 必填，签名，见附录1  jsApiList: ['checkJsApi','scanQRCode']  // 必填，需要使用的JS接口列表，所有JS接口列表见附录2     }); } $("#scanQRCode").click(function(event){     wx.scanQRCode({  desc: 'scanQRCode desc',  needResult : 1, // 默认为0，扫描结果由微信处理，1则直接返回扫描结果，  scanType : [ "qrCode", "barCode" ], // 可以指定扫二维码还是一维码，默认二者都有  success : function(res) {      console.log("调用扫描成功",res);      var result = res.resultStr; // 当needResult 为 1 时，扫码返回的结果      $("#codeValue").val(result);//显示结果      alert("扫码结果为：" + result);  },  error:function(res){      console.log(res)  }     }); })$("#checkJsApi").click(function(event) {wx.checkJsApi({  jsApiList: ['scanQRCode'], // 需要检测的JS接口列表，所有JS接口列表见附录2,  success: function(res) {  // 以键值对的形式返回，可用的api值true，不可用为false  // 如：{"checkResult":{"chooseImage":true},"errMsg":"checkJsApi:ok"}  }});})//})

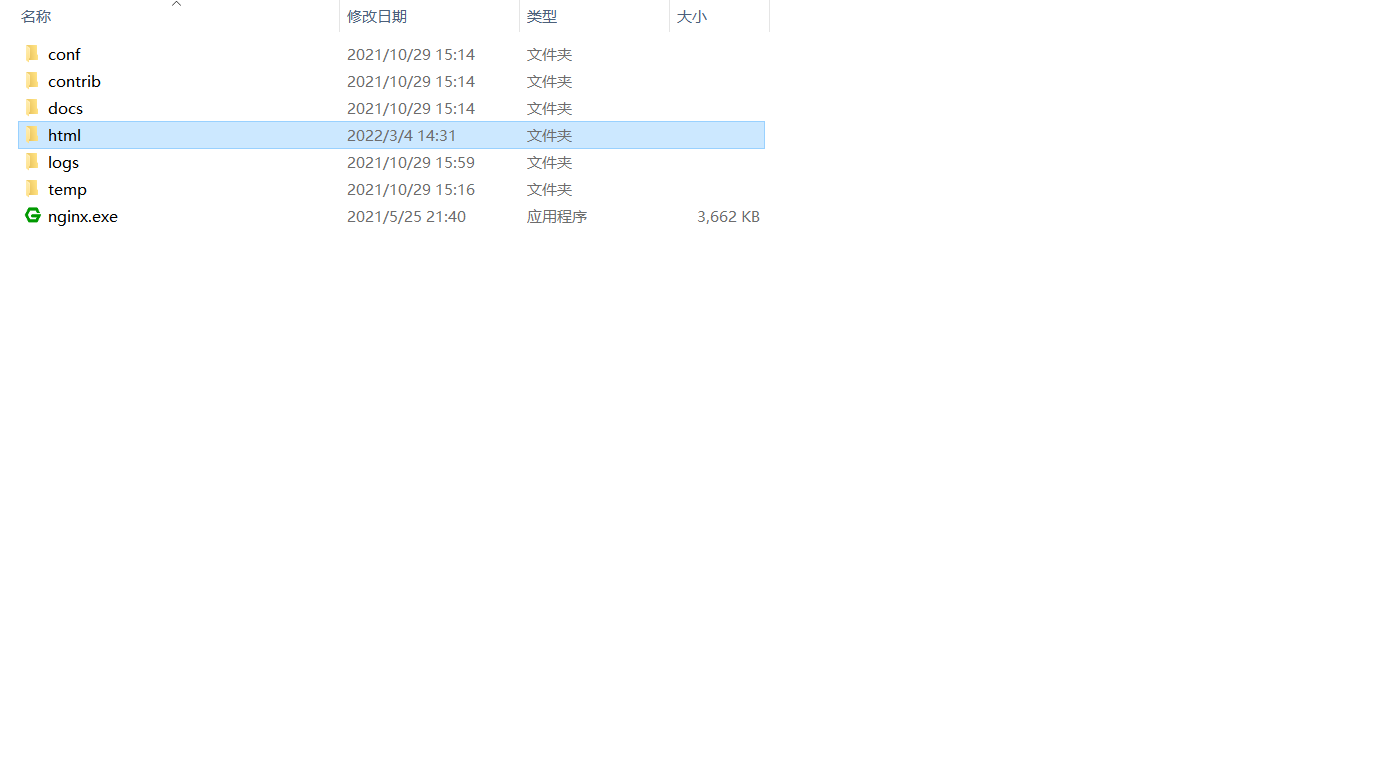

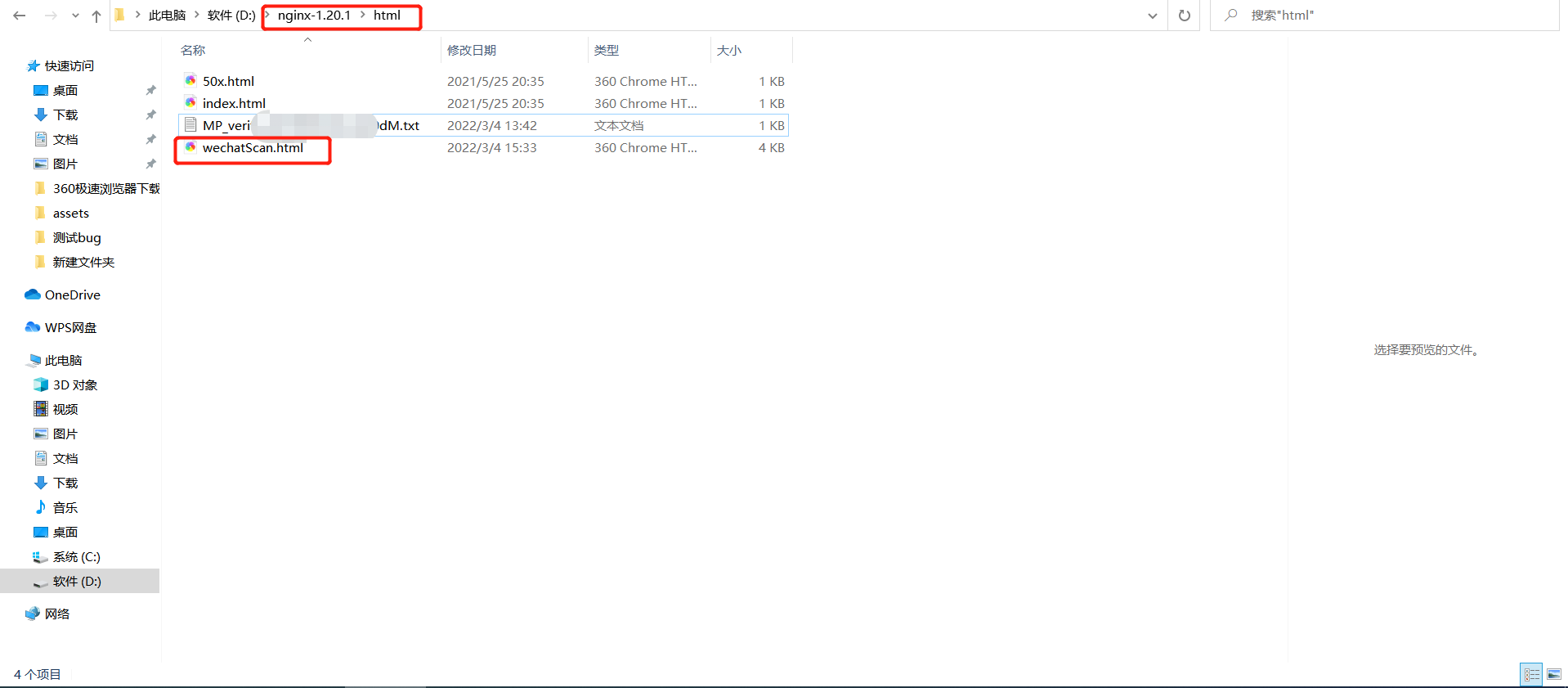

创建一个.html文件，将上面内容粘贴到新创建的html文件中，并放到nginx的html目录下：

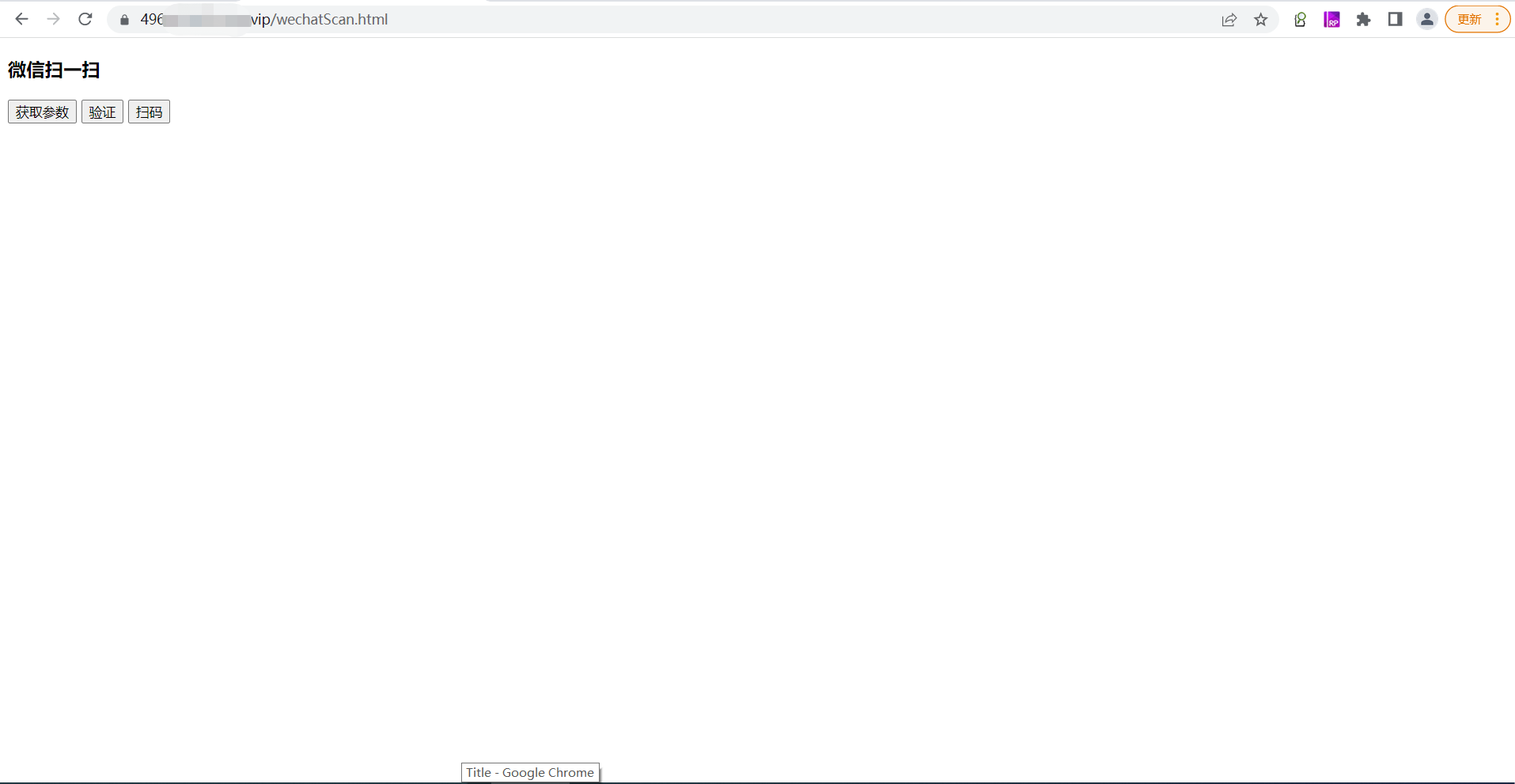

启动nginx，尝试使用花生壳的域名访问html文件，如果如下图所示，则证明可以正常访问页面：

也可以发送到手机上，在微信中打开，看是否在外网能够访问到，如果能访问，证明花生壳配置成功；

附上nginx的配置：

#user  nobody;worker_processes  1;#error_log  logs/error.log;#error_log  logs/error.log  notice;#error_log  logs/error.log  info;#pid logs/nginx.pid;events {    worker_connections  1024;}http {    includemime.types;    default_type  application/octet-stream;    #log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '    #    '$status $body_bytes_sent "$http_referer" '    #    '"$http_user_agent" "$http_x_forwarded_for"';    #access_log  logs/access.log  main;    sendfile on;    #tcp_nopush     on;    #keepalive_timeout  0;    keepalive_timeout  65;    #gzip  on;    server { listen80; server_name  localhost; #charset koi8-r; #access_log  logs/host.access.log  main; location / {     root   html;     index  wechatScan.html; } #error_page  404/404.html; # redirect server error pages to the static page /50x.html # error_page   500 502 503 504  /50x.html; location = /50x.html {     root   html; } # proxy the PHP scripts to Apache listening on 127.0.0.1:80 # #location ~ \.php$ { #    proxy_pass   http://127.0.0.1; #}location ~ /wechat/ {proxy_pass   http://127.0.0.1:8080;} # pass the PHP scripts to FastCGI server listening on 127.0.0.1:9000 # #location ~ \.php$ { #    root    html; #    fastcgi_pass   127.0.0.1:9000; #    fastcgi_index  index.php; #    fastcgi_param  SCRIPT_FILENAME  /scripts$fastcgi_script_name; #    include fastcgi_params; #} # deny access to .htaccess files, if Apache's document root # concurs with nginx's one # #location ~ /\.ht { #    deny  all; #}    }    # another virtual host using mix of IP-, name-, and port-based configuration    #    #server {    #    listen8000;    #    listensomename:8080;    #    server_name  somename  alias  another.alias;    #    location / {    # root   html;    # index  index.html index.htm;    #    }    #}    # HTTPS server    #    #server {    #    listen443 ssl;    #    server_name  localhost;    #    ssl_certificate      cert.pem;    #    ssl_certificate_key  cert.key;    #    ssl_session_cache    shared:SSL:1m;    #    ssl_session_timeout  5m;    #    ssl_ciphers  HIGH:!aNULL:!MD5;    #    ssl_prefer_server_ciphers  on;    #    location / {    # root   html;    # index  index.html index.htm;    #    }    #}}

后端接口是通过nginx代理转发实现请求的：

2、后端代码实现

首先需要用到redisson，在pom中引入相关依赖：

        redis.clientsjedis3.3.0org.redissonredisson3.11.1

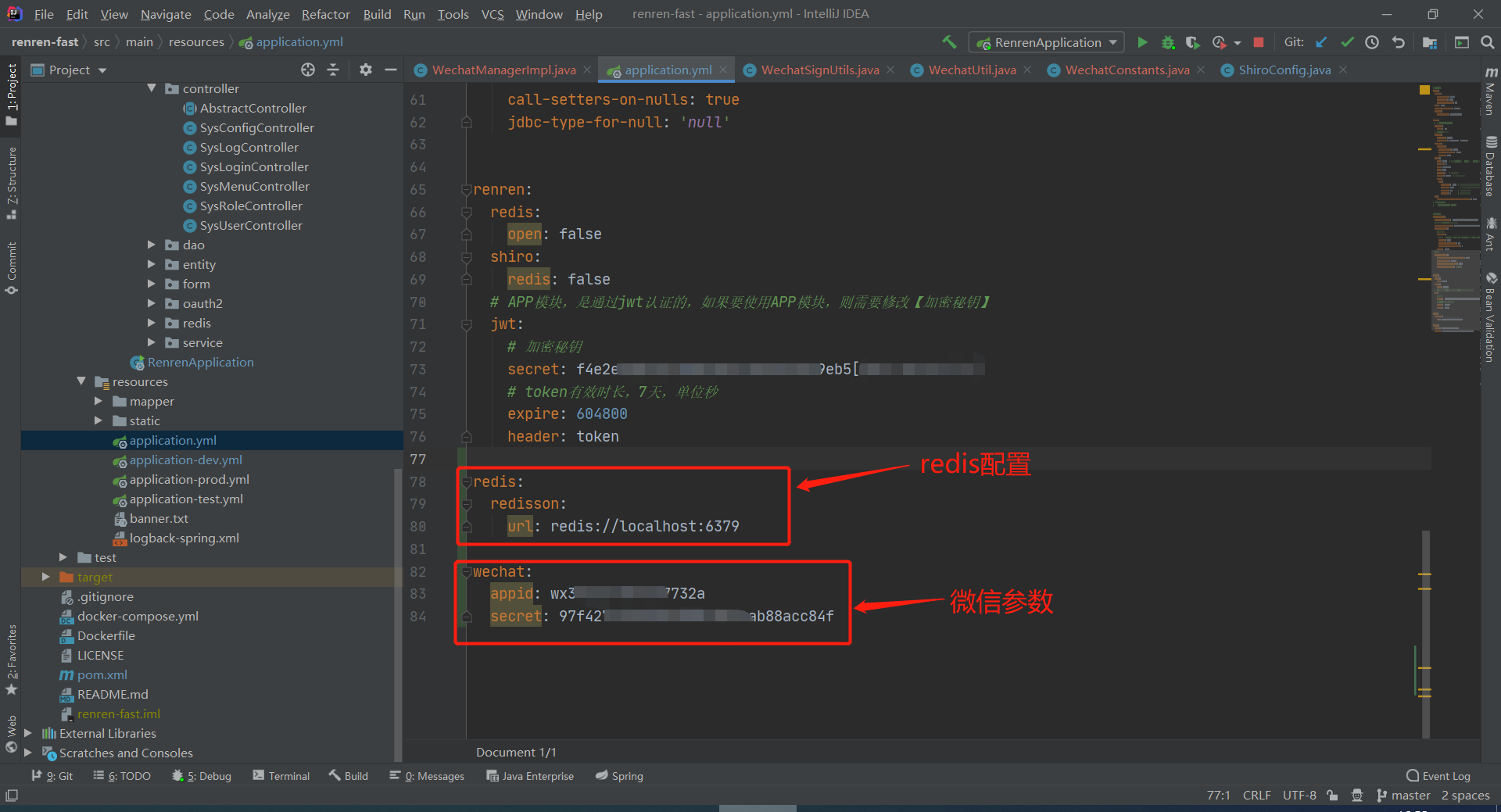

redisson服务类和配置类：

import java.util.List;import java.util.Map;import java.util.Set;import java.util.concurrent.TimeUnit;import org.redisson.api.RFuture;/ * @Author * @Date 2022/3/4 10:51 * @Description */public interface RedissonManager {    void lock(String lockKey);    void unlock(String lockKey);    void lock(String lockKey, long timeout);    void lock(String lockKey, long timeout, TimeUnit unit);    boolean tryLock(String lockKey);    boolean tryLock(String lockKey, long waitTime, long leaseTime, TimeUnit unit) throws InterruptedException;    boolean isLocked(String lockKey);    Object getString(String key);    void setString(String key, Object value, long leaseTime, TimeUnit unit);    void setString(String key, Object value);    boolean hasString(String key);    boolean deleteString(String key);    boolean deleteList(String key);    List getList(String key);    boolean addList(String key, Object value);    boolean addListEx(String key, Object value, long leaseTime, TimeUnit unit);    boolean addAllList(String key, List value);    RFuture addAsyncList(String key, List value);    boolean addAllListEx(String key, List value, long leaseTime, TimeUnit unit);    int addAfterList(String key, Object value);    int addBeforeList(String key, Object value);    boolean removeList(String key, String value);    boolean removeAllList(String key, List value);    boolean hasList(String key);    boolean deleteSet(String key);    Set getSet(String key);    boolean addSet(String key, Object value);    boolean addSetEx(String key, Object value, long leaseTime, TimeUnit unit);    boolean addAllSet(String key, Set value);    RFuture addAsyncSet(String key, Set value);    boolean addAllSetEx(String key, Set value, long leaseTime, TimeUnit unit);    boolean removeSet(String key, String value);    boolean removeAllSet(String key, Set value);    boolean hasSet(String key);    boolean deleteZSet(String key);    Set getZSet(String key);    boolean addZSet(String key, Object value);    boolean addAllZSet(String key, Set value);    boolean removeZSet(String key, String value);    boolean removeAllZSet(String key, Set value);    boolean hasZSet(String key);    void hadd(String key, String f, Object v);    void haddAllEx(String key, Map map);    void haddEx(String key, String f, Object v, long time, TimeUnit timeUnit);    void haddAllEx(String key, Map map, long time, TimeUnit timeUnit);    void haddAllAsyncEx(String key, Map map, long time, TimeUnit timeUnit);    Map getMap(String key);    void hdelete(String key, String f);    boolean checkHKey(String key, String f);    boolean checkKey(String key);    boolean checkSet(String key, int id);    String getHashV(String key, String f);    int getHashVInt(String key, String f);    Object hreplace(String key, String f, Object v);    long incr(String key, long delta);}

import java.util.List;import java.util.Map;import java.util.Set;import java.util.concurrent.TimeUnit;import org.redisson.api.RBucket;import org.redisson.api.RFuture;import org.redisson.api.RList;import org.redisson.api.RLock;import org.redisson.api.RMap;import org.redisson.api.RSet;import org.redisson.api.RSortedSet;import org.redisson.api.RedissonClient;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.stereotype.Component;/ * @Author * @Date 2022/3/4 10:57 * @Description */@Componentpublic class RedissonManagerImpl implements RedissonManager {    @Autowired    private RedissonClient redissonClient;    public RedissonManagerImpl() {    }    public void lock(String lockKey) { RLock lock = this.redissonClient.getLock(lockKey); lock.lock();    }    public void unlock(String lockKey) { RLock lock = this.redissonClient.getLock(lockKey); lock.unlock();    }    public void lock(String lockKey, long leaseTime) { RLock lock = this.redissonClient.getLock(lockKey); lock.lock(leaseTime, TimeUnit.SECONDS);    }    public void lock(String lockKey, long timeout, TimeUnit unit) { RLock lock = this.redissonClient.getLock(lockKey); lock.lock(timeout, unit);    }    public boolean tryLock(String lockKey) { RLock lock = this.redissonClient.getLock(lockKey); return lock.tryLock();    }    public boolean tryLock(String lockKey, long waitTime, long leaseTime, TimeUnit unit) throws InterruptedException { RLock lock = this.redissonClient.getLock(lockKey); return lock.tryLock(waitTime, leaseTime, unit);    }    public boolean isLocked(String lockKey) { RLock lock = this.redissonClient.getLock(lockKey); return lock.isLocked();    }    public Object getString(String key) { return this.redissonClient.getBucket(key).get();    }    public void setString(String key, Object value, long leaseTime, TimeUnit unit) { RBucket result = this.redissonClient.getBucket(key); if (!result.isExists()) {     result.set(value, leaseTime, unit); }    }    public void setString(String key, Object value) { RBucket result = this.redissonClient.getBucket(key); if (!result.isExists()) {     result.set(value); }    }    public boolean hasString(String key) { RBucket result = this.redissonClient.getBucket(key); return result.isExists();    }    public boolean deleteString(String key) { return this.redissonClient.getBucket(key).delete();    }    public boolean deleteList(String key) { return this.redissonClient.getList(key).delete();    }    public List getList(String key) { return this.redissonClient.getList(key);    }    public boolean addList(String key, Object value) { return this.redissonClient.getList(key).add(value);    }    public boolean addListEx(String key, Object value, long leaseTime, TimeUnit unit) { RList list = this.redissonClient.getList(key); list.add(value); return list.expire(leaseTime, unit);    }    public boolean addAllList(String key, List value) { return this.redissonClient.getList(key).addAll(value);    }    public RFuture addAsyncList(String key, List value) { return this.redissonClient.getList(key).addAllAsync(value);    }    public boolean addAllListEx(String key, List value, long leaseTime, TimeUnit unit) { RList list = this.redissonClient.getList(key); list.addAll(value); return list.expire(leaseTime, unit);    }    public int addAfterList(String key, Object value) { return this.redissonClient.getList(key).addAfter(key, value);    }    public int addBeforeList(String key, Object value) { return this.redissonClient.getList(key).addBefore(key, value);    }    public boolean removeList(String key, String value) { return this.redissonClient.getList(key).remove(value);    }    public boolean removeAllList(String key, List list) { return this.redissonClient.getList(key).removeAll(list);    }    public boolean hasList(String key) { RList list = this.redissonClient.getList(key); return list.isExists();    }    public boolean deleteSet(String key) { return this.redissonClient.getSet(key).delete();    }    public Set getSet(String key) { return this.redissonClient.getSet(key);    }    public boolean addSet(String key, Object value) { return this.redissonClient.getSet(key).add(value);    }    public boolean addSetEx(String key, Object value, long leaseTime, TimeUnit unit) { RSet set = this.redissonClient.getSet(key); set.add(value); return set.expire(leaseTime, unit);    }    public boolean addAllSet(String key, Set value) { return this.redissonClient.getSet(key).addAll(value);    }    public RFuture addAsyncSet(String key, Set value) { return this.redissonClient.getSet(key).addAsync(value);    }    public boolean addAllSetEx(String key, Set value, long leaseTime, TimeUnit unit) { RSet set = this.redissonClient.getSet(key); set.addAll(value); return set.expire(leaseTime, unit);    }    public boolean removeSet(String key, String value) { return this.redissonClient.getSet(key).remove(value);    }    public boolean removeAllSet(String key, Set value) { return this.redissonClient.getSet(key).removeAll(value);    }    public boolean hasSet(String key) { RSet set = this.redissonClient.getSet(key); return set.isExists();    }    public boolean deleteZSet(String key) { return this.redissonClient.getSortedSet(key).delete();    }    public Set getZSet(String key) { return this.redissonClient.getSortedSet(key);    }    public boolean addZSet(String key, Object value) { return this.redissonClient.getSortedSet(key).add(value);    }    public boolean addAllZSet(String key, Set value) { return this.redissonClient.getSortedSet(key).addAll(value);    }    public boolean removeZSet(String key, String value) { return this.redissonClient.getSortedSet(key).remove(value);    }    public boolean removeAllZSet(String key, Set value) { return this.redissonClient.getSortedSet(key).removeAll(value);    }    public boolean hasZSet(String key) { RSortedSet sortedSet = this.redissonClient.getSortedSet(key); return sortedSet.isExists();    }    public void hadd(String key, String f, Object v) { this.redissonClient.getMap(key).put(f, v);    }    public void haddAllEx(String key, Map map) { this.redissonClient.getMap(key).putAll(map);    }    public void haddEx(String key, String f, Object v, long time, TimeUnit timeUnit) { RMap map = this.redissonClient.getMap(key); map.put(f, v); map.expire(time, timeUnit);    }    public void haddAllEx(String key, Map map, long time, TimeUnit timeUnit) { RMap rmap = this.redissonClient.getMap(key); rmap.putAll(map); rmap.expire(time, timeUnit);    }    public void haddAllAsyncEx(String key, Map map, long time, TimeUnit timeUnit) { RMap rmap = this.redissonClient.getMap(key); rmap.putAllAsync(map); rmap.expire(time, timeUnit);    }    public Map getMap(String key) { return this.redissonClient.getMap(key);    }    public void hdelete(String key, String f) { this.redissonClient.getMap(key).delete();    }    public boolean checkHKey(String key, String f) { return this.redissonClient.getMap(key).containsKey(f);    }    public boolean checkKey(String key) { return this.redissonClient.getKeys().countExists(new String[]{key}) > 0L;    }    public boolean checkSet(String key, int id) { return this.redissonClient.getSet(key).contains(id);    }    public String getHashV(String key, String f) { return (String)this.redissonClient.getMap(key).get(f);    }    public int getHashVInt(String key, String f) { return (Integer)this.redissonClient.getMap(key).get(f);    }    public Object hreplace(String key, String f, Object v) { return this.redissonClient.getMap(key).replace(f, v);    }    public long incr(String key, long delta) { return this.redissonClient.getAtomicLong(key).addAndGet(delta);    }}

import org.redisson.Redisson;import org.redisson.api.RedissonClient;import org.redisson.config.Config;import org.redisson.config.SingleServerConfig;import org.springframework.beans.factory.annotation.Value;import org.springframework.context.annotation.Bean;import org.springframework.context.annotation.ComponentScan;/ * @Author * @Date 2022/3/4 11:00 * @Description */@ComponentScan( basePackages = {"io.renren.common.redission"})public class RedissonConfig {    @Value("${redis.redisson.url}")    private String url;//    @Value("${renren.redis.redisson.password}")//    private String password;    public RedissonConfig() {    }    @Bean    public RedissonClient redissonClient() { Config config = new Config(); String redisUrl = String.format(this.url);// ((SingleServerConfig)config.useSingleServer().setPingConnectionInterval(1000)).setAddress(redisUrl).setPassword(this.password); ((SingleServerConfig)config.useSingleServer().setPingConnectionInterval(1000)).setAddress(redisUrl); return Redisson.create(config);    }}

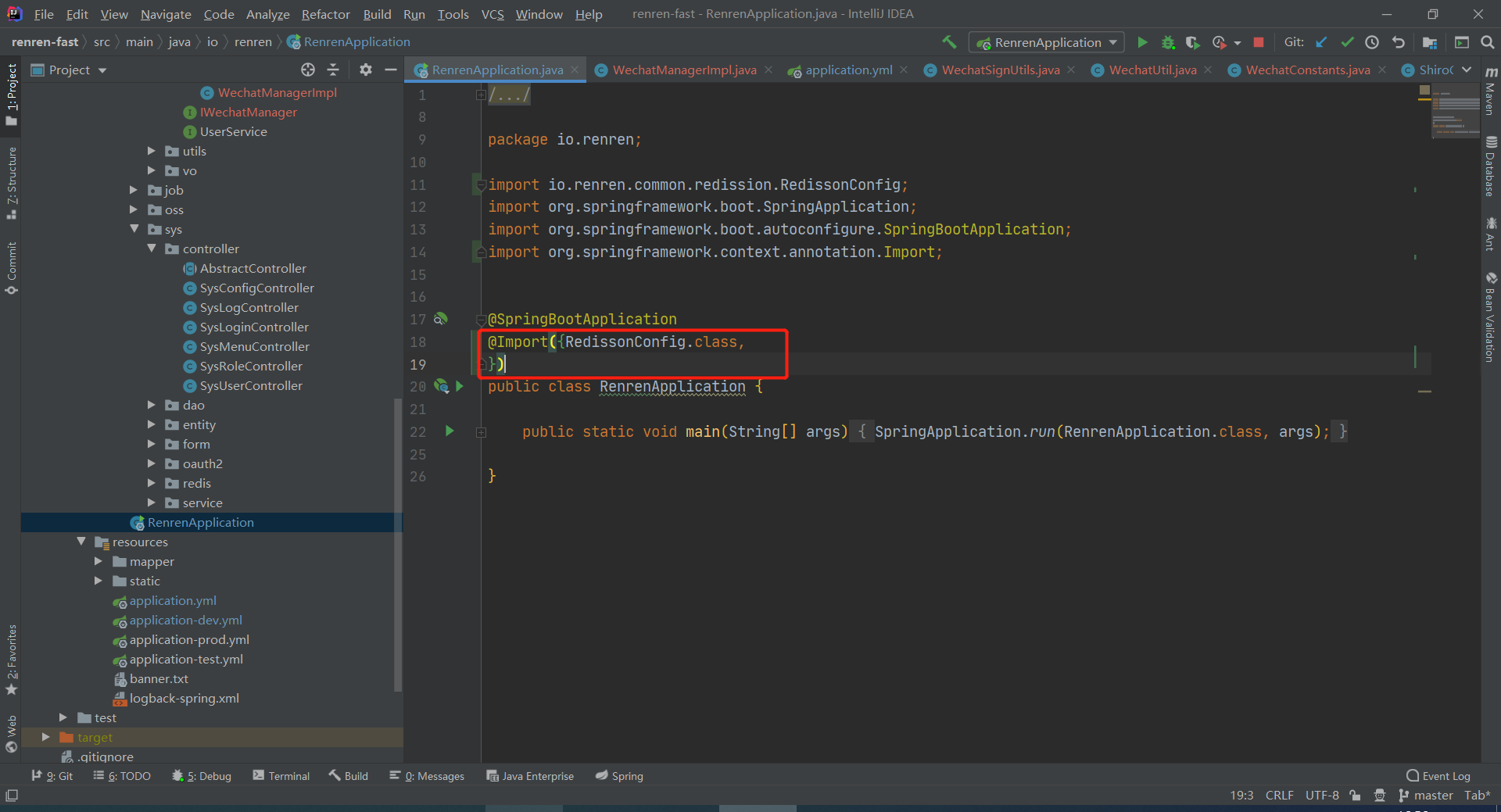

启动类引入redisson：

注意：此时配置好redisson后启动尝试启动一下代码，看是否正确配置了redisson，保证redisson正常可用；

controller控制层代码：

import io.renren.common.utils.R;import io.renren.common.constants.ErrorCodeMsg;import io.renren.modules.app.form.WechatScanQueryForm;import io.renren.modules.app.service.IWechatManager;import io.swagger.annotations.ApiOperation;import org.apache.commons.lang.StringUtils;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.web.bind.annotation.PostMapping;import org.springframework.web.bind.annotation.RequestBody;import org.springframework.web.bind.annotation.RequestMapping;import org.springframework.web.bind.annotation.RestController;/ * @Author  * @Date 2022/3/4 10:24 * @Description */@RestController@RequestMapping("/wechat")public class WechatController {    @Autowired    private IWechatManager wechatManager;    @ApiOperation(value = "获取微信扫一扫参数")    @PostMapping(value = "/getWechatScan")    public R getWechatScan(@RequestBody WechatScanQueryForm wechatScanQueryForm) { if (StringUtils.isBlank(wechatScanQueryForm.getPagePath())) {     return R.error(ErrorCodeMsg.PARAMETER_DOES_NOT_EXIST.getMsg()); } return wechatManager.wechatScan(wechatScanQueryForm);    }}

接口接收实体类：

import io.swagger.annotations.ApiModelProperty;/ * @Author * @Date 2022/3/4 10:27 * @Description */public class WechatScanQueryForm {    @ApiModelProperty(value = "扫一扫页面路径")    private String pagePath;    public String getPagePath() { return pagePath;    }    public void setPagePath(String pagePath) { this.pagePath = pagePath;    }}

接口返回vo类：

import io.swagger.annotations.ApiModelProperty;import java.io.Serializable;/ * @Author * @Date 2022/3/4 10:40 * @Description */public class WXjsapiConfigVO implements Serializable {    @ApiModelProperty(value = "必填，公众号的唯一标识")    private String appId;    @ApiModelProperty(value = "必填，生成签名的时间戳")    private String timestamp;    @ApiModelProperty(value = "必填，生成签名的随机串")    private String nonceStr;    @ApiModelProperty(value = "必填，签名，见附录1")    private String signature;    public String getAppId() { return appId;    }    public void setAppId(String appId) { this.appId = appId;    }    public String getTimestamp() { return timestamp;    }    public void setTimestamp(String timestamp) { this.timestamp = timestamp;    }    public String getNonceStr() { return nonceStr;    }    public void setNonceStr(String nonceStr) { this.nonceStr = nonceStr;    }    public String getSignature() { return signature;    }    public void setSignature(String signature) { this.signature = signature;    }}

service层代码：

import io.renren.common.utils.R;import io.renren.modules.app.form.WechatScanQueryForm;/ * @Author  * @Date 2022/3/4 10:28 * @Description */public interface IWechatManager {    R wechatScan(WechatScanQueryForm wechatScanQueryForm);}

import com.alibaba.fastjson.JSON;import com.alibaba.fastjson.JSONObject;import io.renren.common.redission.RedissonManager;import io.renren.common.utils.R;import io.renren.common.constants.ErrorCodeMsg;import io.renren.modules.app.form.WechatScanQueryForm;import io.renren.modules.app.service.IWechatManager;import io.renren.modules.app.utils.WechatSignUtils;import io.renren.modules.app.utils.WechatUtil;import io.renren.modules.app.vo.WXjsapiConfigVO;import org.slf4j.Logger;import org.slf4j.LoggerFactory;import org.springframework.beans.factory.annotation.Value;import org.springframework.stereotype.Service;import org.springframework.util.ObjectUtils;import javax.annotation.Resource;import java.util.SortedMap;import java.util.TreeMap;import java.util.concurrent.TimeUnit;/ * @Author  * @Date 2022/3/4 10:40 * @Description */@Servicepublic class WechatManagerImpl implements IWechatManager {    private static Logger logger = LoggerFactory.getLogger(WechatManagerImpl.class);    /     * 微信access_token在redis中的key     /    private static final String ACCESS_TOKEN = "travel-integration_wechat_access_token";    /     * 微信ticket在redis中的key     /    private static final String TICKET = "travel-integration_wechat_ticket";    @Value("${wechat.appid}")    private String appid;    @Value("${wechat.secret}")    private String secret;    @Resource    private RedissonManager redissonManager;    /     * @Description: 获取微信扫一扫参数     * @Author: yuxuan     * @Date: 2022/3/4 10:33     * @Param wechatScanQueryForm:     * @return: io.renren.common.utils.R     /    @Override    public R wechatScan(WechatScanQueryForm wechatScanQueryForm) { // 先判断access_token和ticket在redis中是否存在 boolean accessTokenBoo = redissonManager.checkKey(ACCESS_TOKEN); boolean ticketBoo = redissonManager.checkKey(TICKET); // 如果不存在则重新获取access_token和ticket并存储到redis中 if (!accessTokenBoo || !ticketBoo) {     // 调用生成access_token的方法     JSONObject accessToken = WechatUtil.getAccessToken(appid, secret);     if (ObjectUtils.isEmpty(accessToken) || !accessToken.containsKey("access_token")) {  logger.error("=========获取token失败，失败信息: {}", JSON.toJSONString(accessToken));  return R.error(ErrorCodeMsg.SYSTEM_ERROR.getMsg());     }     String access_token = accessToken.getString("access_token");     logger.info("=========获取access_token成功: {}", JSON.toJSONString(access_token));     redissonManager.setString(ACCESS_TOKEN, access_token, 7000, TimeUnit.SECONDS);     logger.info("=========access_token保存成功================");     // 调用生成ticket的方法，获取ticket，并保存到redis中，设置ticket的有效时间为7200秒     JSONObject ticketJsonObject = WechatUtil.getJsApiTicket(redissonManager.getString(ACCESS_TOKEN).toString());     if (ObjectUtils.isEmpty(ticketJsonObject) || !ticketJsonObject.containsKey("ticket")) {  logger.error("=========获取ticket失败，失败信息: {}", JSON.toJSONString(ticketJsonObject));  return R.error(ErrorCodeMsg.SYSTEM_ERROR.getMsg());     }     String ticket = ticketJsonObject.getString("ticket");     logger.info("=========获取ticket成功: {}", ticket);     redissonManager.setString(TICKET, ticket, 7000, TimeUnit.SECONDS);     logger.info("=========ticket保存成功================"); } SortedMap map = new TreeMap(); String noncestr = WechatSignUtils.createNonceStr(); String timestamp = WechatSignUtils.createTimestamp(); map.put("jsapi_ticket", redissonManager.getString(TICKET).toString()); map.put("noncestr", noncestr); map.put("timestamp", timestamp); map.put("url", wechatScanQueryForm.getPagePath()); // 对参数进行加密操作 String sign = WechatSignUtils.getSign(map); // 封装返回参数 WXjsapiConfigVO wXjsapiConfigVO = new WXjsapiConfigVO(); wXjsapiConfigVO.setAppId(appid); wXjsapiConfigVO.setNonceStr(noncestr); wXjsapiConfigVO.setTimestamp(timestamp); wXjsapiConfigVO.setSignature(sign); return R.ok().put("data", wXjsapiConfigVO);    }}

微信请求接口常量类：

/ * @Author * @Date 2022/3/4 10:40 * @Description */public class WechatConstants {    /     * 换取ticket的url     */    public static final String JSAPI_TICKET = "https://api.weixin.qq.com/cgi-bin/ticket/getticket";    /     * 换取token的url     */    public static final String JSAPI_TOKEN = " https://api.weixin.qq.com/cgi-bin/token";}

异常信息枚举：

import java.util.Objects;/ * @Author * @Date 2022/3/4 10:36 * @Description */public interface BaseEnum {    String getCode();    String getMsg();    default boolean equalsValue(Object value) { return Objects.equals(this.getCode(), value);    }    default boolean equals(BaseEnum baseEnum) { return Objects.equals(this.getCode(), baseEnum.getCode()) && Objects.equals(this.getMsg(), baseEnum.getMsg());    }}

/ * @Author * @Date 2022/3/4 10:40 */public enum ErrorCodeMsg implements BaseEnum {    SUCCESS("0", "成功"),    TOKEN_EXPIRE("101", "登录已过期，请重新登录"),    BAD_REQUEST("401", "非法请求"),    UNKNOWN("500", "系统繁忙，请稍后重试"),    INVALID_PARAM_ERROR("501", "参数错误"),    PARAMETER_DOES_NOT_EXIST("50100", "请求参数有误"),    RPC_CALL_ERROR("50200", "RPC调用返回有误"),    SYSTEM_ERROR("90001", "第三方调用异常")    ;    ErrorCodeMsg(String code, String msg) { this.code = code; this.msg = msg;    }    private String code;    private String msg;    @Override    public String getCode() { return code;    }    @Override    public String getMsg() { return msg;    }    public static ErrorCodeMsg valueOfByCode(String code) { for (ErrorCodeMsg item : ErrorCodeMsg.values()) {     if (item != null && item.code.equalsIgnoreCase(code)) {  return item;     } } return null;    }}

工具类：

import com.alibaba.fastjson.JSON;import com.alibaba.fastjson.JSONObject;import org.apache.commons.io.LineIterator;import org.apache.http.HttpEntity;import org.apache.http.HttpResponse;import org.apache.http.NameValuePair;import org.apache.http.client.config.RequestConfig;import org.apache.http.client.entity.UrlEncodedFormEntity;import org.apache.http.client.methods.CloseableHttpResponse;import org.apache.http.client.methods.HttpGet;import org.apache.http.client.methods.HttpPost;import org.apache.http.impl.client.CloseableHttpClient;import org.apache.http.impl.client.HttpClients;import org.apache.http.message.BasicNameValuePair;import org.apache.http.util.EntityUtils;import org.slf4j.Logger;import org.slf4j.LoggerFactory;import java.io.*;import java.net.URL;import java.net.URLConnection;import java.util.ArrayList;import java.util.Iterator;import java.util.List;import java.util.Map;/ * @Description http、https请求工具 * @Author * @Date 2022/3/4 10:40 */public class HttpClientUtils {    private static final Logger logger = LoggerFactory.getLogger(HttpClientUtils.class);    //设置超时时间    private int timeout = 30000;    private RequestConfig requestConfig;    private static final HttpClientUtils httpsRequest = new HttpClientUtils();    public HttpClientUtils() { requestConfig = RequestConfig.custom().setSocketTimeout(timeout).setConnectionRequestTimeout(timeout).build();    }    public static HttpClientUtils getHttpsRequestSingleton() { return httpsRequest;    }    /     * 发送get请求     *     * @param url     * @param params     * @return     */    public JSONObject sendGet(String url, Map params) { Iterator<Map.Entry> iter = params.entrySet().iterator(); StringBuffer urlParamsBuffer = new StringBuffer(); while (iter.hasNext()) {     Map.Entry entry = iter.next();     urlParamsBuffer.append(entry.getKey() + "=" + entry.getValue() + "&"); } String getUrl = url; if (urlParamsBuffer.length() > 0) {     urlParamsBuffer.deleteCharAt(urlParamsBuffer.length() - 1);     getUrl += '?' + urlParamsBuffer.toString(); } CloseableHttpClient httpClient = HttpClients.createDefault(); logger.info(getUrl); HttpGet httpGet; httpGet = new HttpGet(getUrl); httpGet.setConfig(requestConfig); JSONObject jsonObject = new JSONObject(); try {     HttpResponse response = httpClient.execute(httpGet);     HttpEntity entity = response.getEntity();     String responseContent = EntityUtils.toString(entity);     logger.info("&*&*&*&*&*&*&*" + responseContent + "#%^$^&*@$^#%^%$");     jsonObject = JSON.parseObject(responseContent); } catch (IOException e) {     logger.error(e.getMessage(), e); } finally { } return jsonObject;    }    /     * 发送post请求     *     * @param url     * @param params     * @return     */    public JSONObject sendPost(String url, Map params) { List nameValuePairs = new ArrayList(); Iterator<Map.Entry> iter = params.entrySet().iterator(); while (iter.hasNext()) {     Map.Entry entry = iter.next();     nameValuePairs.add(new BasicNameValuePair(entry.getKey(), entry.getValue())); } CloseableHttpClient httpClient = HttpClients.createDefault(); HttpPost httpost = new HttpPost(url); httpost.setConfig(requestConfig); JSONObject jsonObject = new JSONObject(); try {     httpost.setEntity(new UrlEncodedFormEntity(nameValuePairs, "UTF-8"));     CloseableHttpResponse response = httpClient.execute(httpost);     HttpEntity entity = response.getEntity();     String responseContent = EntityUtils.toString(entity);     jsonObject = JSON.parseObject(responseContent); } catch (UnsupportedEncodingException e) {     logger.error(e.getMessage(), e); } catch (IOException e) {     logger.error(e.getMessage(), e); } finally {     try {  httpClient.close();     } catch (IOException e) {  logger.error(e.getMessage(), e);     } } return jsonObject;    }    /     * 向指定 URL 发送POST方法的请求     *     * @param url   发送请求的 URL     * @param param 请求参数，请求参数应该是 name1=value1&name2=value2 的形式。     * @return 所代表远程资源的响应结果     */    public String sendPost(String url, String param) { PrintWriter out = null; BufferedReader in = null; String result = ""; StringBuffer strb = new StringBuffer(result); try {     URL realUrl = new URL(url);     // 打开和URL之间的连接     URLConnection conn = realUrl.openConnection();     // 设置通用的请求属性     conn.setConnectTimeout(3000);//     conn.setRequestProperty("accept", "*/*");//     conn.setRequestProperty("connection", "Keep-Alive");//     conn.setRequestProperty("user-agent",//      "Mozilla/4.0 (compatible; MSIE 6.0; Windows NT 5.1;SV1)");     conn.setRequestProperty("Content-Type", "application/json");     // 发送POST请求必须设置如下两行     conn.setDoOutput(true);     conn.setDoInput(true);     // 获取URLConnection对象对应的输出流     out = new PrintWriter(new OutputStreamWriter(conn.getOutputStream(), "utf-8"));     // 发送请求参数     out.print(param);     // flush输出流的缓冲     out.flush();     // 定义BufferedReader输入流来读取URL的响应     in = new BufferedReader(new InputStreamReader(conn.getInputStream(), "utf-8"));     String line = "";     LineIterator lineItr = new LineIterator(in);     while (lineItr.hasNext()) {  line = (String) lineItr.next();  strb.append(line);     }     return strb.toString(); } catch (Exception e) {     logger.error("发送 POST 请求出现异常！", e); } //使用finally块来关闭输出流、输入流 finally {     try {  if (out != null) {      out.close();  }  if (in != null) {      in.close();  }     } catch (IOException ex) {  logger.error("关闭post请求IO流异常", ex);     } } return result;    }    public String sendGetTets(String url, Map params) { String result = ""; BufferedReader in = null; StringBuffer strb = new StringBuffer(result); Iterator<Map.Entry> iter = params.entrySet().iterator(); String getUrl = url; StringBuffer urlParamsBuffer = new StringBuffer(); while (iter.hasNext()) {     Map.Entry entry = iter.next();     urlParamsBuffer.append(entry.getKey() + "=" + entry.getValue() + "&"); } if (urlParamsBuffer.length() > 0) {     urlParamsBuffer.deleteCharAt(urlParamsBuffer.length() - 1);     getUrl += '?' + urlParamsBuffer.toString(); } try {     URL realUrl = new URL(getUrl);     URLConnection conn = realUrl.openConnection();     //设置通道的请求属性     conn.setRequestProperty("accept", "*/*");     conn.setRequestProperty("connection", "Keep-Alive");     conn.setRequestProperty("user-agent",      "Mozilla/4.0 (compatible; MSIE 6.0; Windows NT 5.1;SV1)");     // 设置通用的请求属性     conn.setConnectTimeout(3000);     //建立实际的连接     conn.connect();     in = new BufferedReader(new InputStreamReader(conn.getInputStream(), "utf-8"));     String line = "";     LineIterator lineItr = new LineIterator(in);     while (lineItr.hasNext()) {  line = (String) lineItr.next();  strb.append(line);     } } catch (Exception e) {     logger.error(e.getMessage(), e); } finally {     try {  if (in != null) {      in.close();  }     } catch (IOException e) {  logger.error(e.getMessage(), e);     } } return strb.toString();    }}

微信加密工具类：

import org.slf4j.Logger;import org.slf4j.LoggerFactory;import org.springframework.stereotype.Component;import java.io.UnsupportedEncodingException;import java.security.MessageDigest;import java.security.NoSuchAlgorithmException;import java.util.*;/ * @Author * @Date 2022/3/4 10:40 * @Description */@Componentpublic class WechatSignUtils {    private static Logger logger = LoggerFactory.getLogger(WechatSignUtils.class);    /     * 获取签名 md5加密(微信支付必须用MD5加密) 获取支付签名     */    public static String getSign(SortedMap params) { List keys = new ArrayList(params.keySet()); Collections.sort(keys); String prestr = ""; for (int i = 0; i < keys.size(); i++) {     String key = keys.get(i);     String value = params.get(key).toString();     // 拼接时，不包括最后一个&字符     if (i == keys.size() - 1) {  prestr = prestr + key + "=" + value;     } else {  prestr = prestr + key + "=" + value + "&";     } } String signature = ""; try {     MessageDigest crypt = MessageDigest.getInstance("SHA-1");     crypt.reset();     crypt.update(prestr.getBytes("UTF-8"));     signature = byteToHex(crypt.digest()); } catch (NoSuchAlgorithmException e) {     logger.error("微信参数加密异常: {}", e.getCause()); } catch (UnsupportedEncodingException e) {     logger.error("微信参数加密异常: {}", e.getCause()); } return signature;    }    private static String byteToHex(final byte[] hash) { Formatter formatter = new Formatter(); for (byte b : hash) {     formatter.format("%02x", b); } String result = formatter.toString(); formatter.close(); return result;    }    /     * @param content     * @param charset     * @return     * @throws java.security.SignatureException     */    public static byte[] getContentBytes(String content, String charset) { if (charset == null || "".equals(charset)) {     return content.getBytes(); } try {     return content.getBytes(charset); } catch (UnsupportedEncodingException e) {     throw new RuntimeException("MD5签名过程中出现错误,指定的编码集不对,您目前指定的编码集是:" + charset); }    }    /     * @Description: 获取随机字符串     * @Author: o_yangruipan     * @Date: 2021/10/29 14:25     * @return: java.lang.String     /    public static String createNonceStr() { return UUID.randomUUID().toString();    }    /     * @Description: 获取随机时间戳     * @Author: o_yangruipan     * @Date: 2021/10/29 14:25     * @return: java.lang.String     /    public static String createTimestamp() { return Long.toString(System.currentTimeMillis() / 1000);    }}

微信请求接口封装工具类：

import com.alibaba.fastjson.JSONObject;import io.renren.common.constants.WechatConstants;import org.apache.commons.lang.StringUtils;import java.util.HashMap;import java.util.Map;/ * @Author * @Date 2022/3/4 10:40 * @Description */public class WechatUtil {    private static final HttpClientUtils httpClient = HttpClientUtils.getHttpsRequestSingleton();    /     * 获得jsapi_ticket     */    public static JSONObject getJsApiTicket(String token) { String url = WechatConstants.JSAPI_TICKET  + "?access_token=" + token  + "&type=jsapi"; String msg = httpClient.sendGetTets(url, new HashMap()); if (StringUtils.isBlank(msg)) {     return null; } JSONObject jsonObject = JSONObject.parseObject(msg); return jsonObject;    }    /     * 获取token     * @return msg     */    public static JSONObject getAccessToken(String appid, String secret) { String url = WechatConstants.JSAPI_TOKEN; Map param = new HashMap(16); param.put("grant_type", "client_credential"); param.put("appid", appid); param.put("secret", secret); String msg = httpClient.sendGetTets(url, param); if (StringUtils.isBlank(msg)) {     return null; } JSONObject jsonObject = JSONObject.parseObject(msg); return jsonObject;    }}

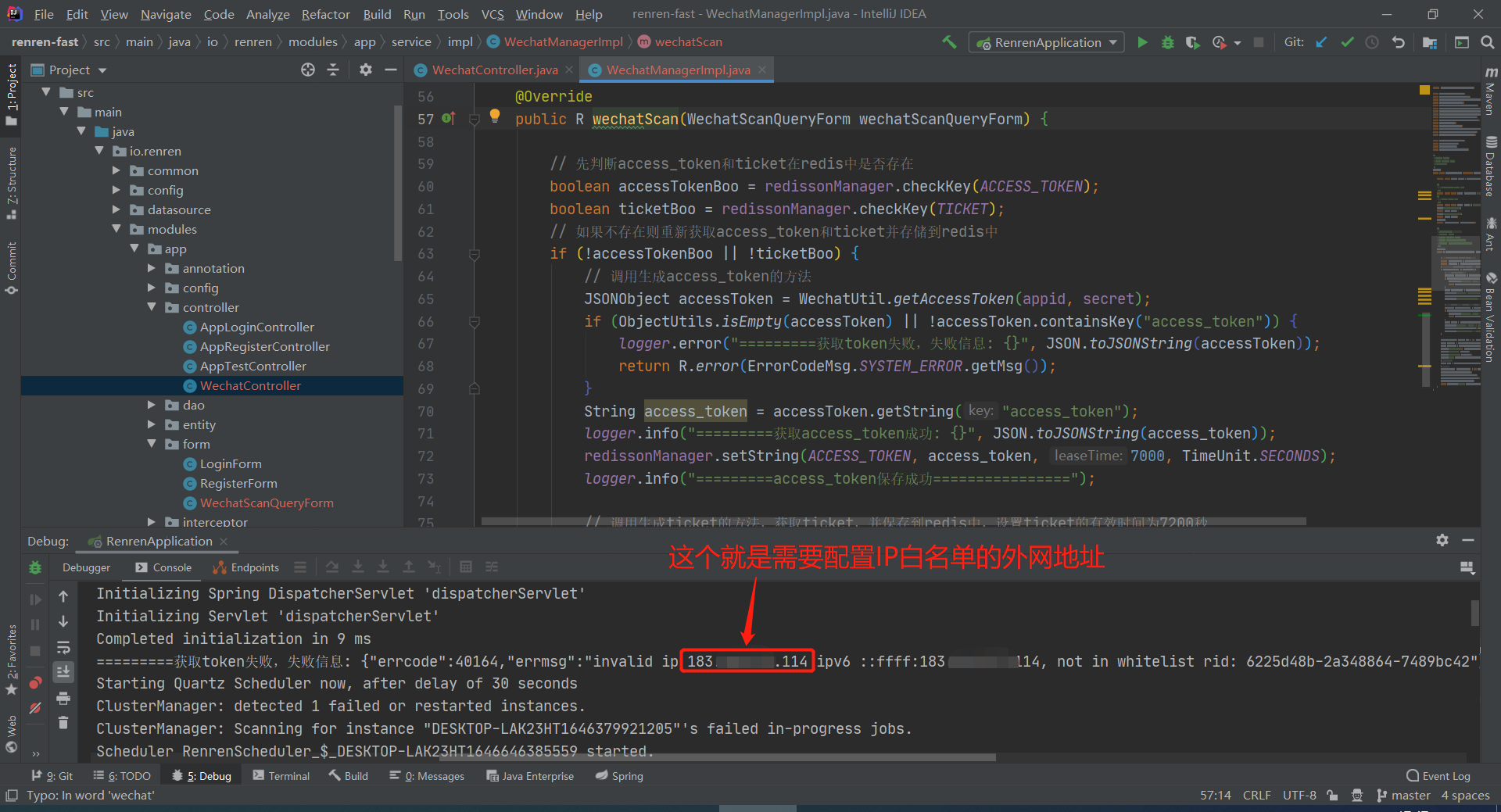

注意：前面说的配置公众号IP白名单，不知道外网IP时，通过代码调用微信接口，接口响应里会有响应的提示，如下图所示：
