记一次前后端分离项目中---关于分页查询解决的思路
记一次前后端分离项目中---关于分页查询解决的思路
- 前言
- 一、首先了解一下ElementUI``中几个属性绑定的事件
- 二、前端
-
- 2.1 find All函数
- 2.2 handleCurrentChange函数
- 2.3 handleSizeChange函数
- 三、后端
-
- 3.1 servlet层
- 3.2 service层
- 3.3 dao层
- 四、后端所用到的工具类
- 4.1 BaseDao
- 4.2 BaseServlet
- 4.3 PageUtils
- 4.4 ObjectMapperWriter
前言

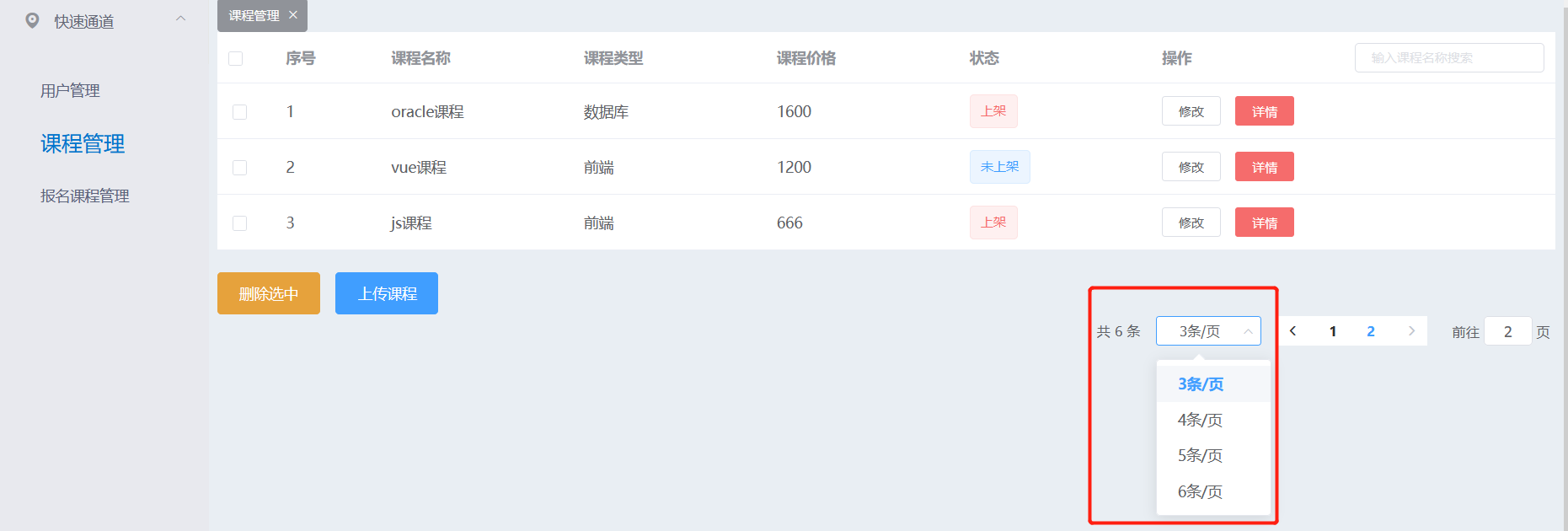

项目模块为课程管理模块,课程需要分页展示数据,并且能够根据每页展示记录数进行自动分页,接下来说说如何处理分页展示的思路

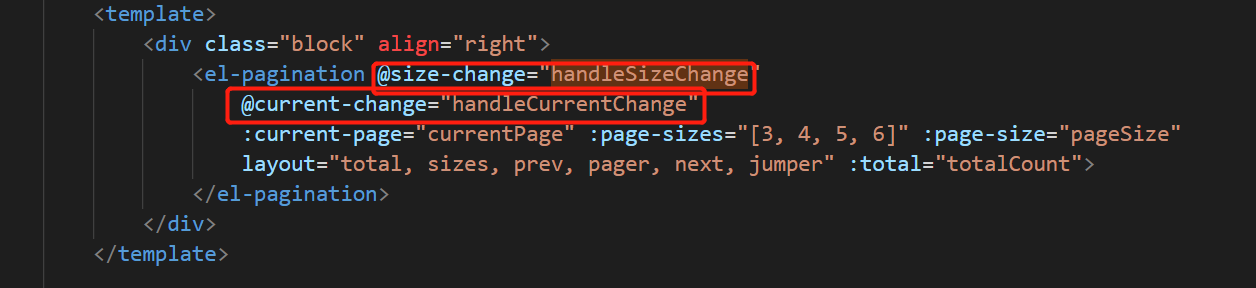

一、首先了解一下ElementUI
中几个属性绑定的事件
@size-change当页面显示数据条数发生改变触发此事件
@current-change当页码改变触发此事件
二、前端
2.1 find All函数
- 发起请求,传三个重要参数给后端(currentPage)、(pageSize)、(search)查询课程表数据
- datableDate存放的就是后端返回的一个个课程对象(对象数组)
- totalCount存放的是后端返回的数据库课程表总记录条数
代码如下:
/*课程分页查询*/findAll() {axios.post(`http://localhost/course?method=findAll`,`currentPage=${this.currentPage}&pageSize=${this.pageSize}&search=${this.search}`).then(resp=>{//console.log(resp.data.list);this.tableData = resp.data.listthis.totalCount = resp.data.total})}
2.2 handleCurrentChange函数

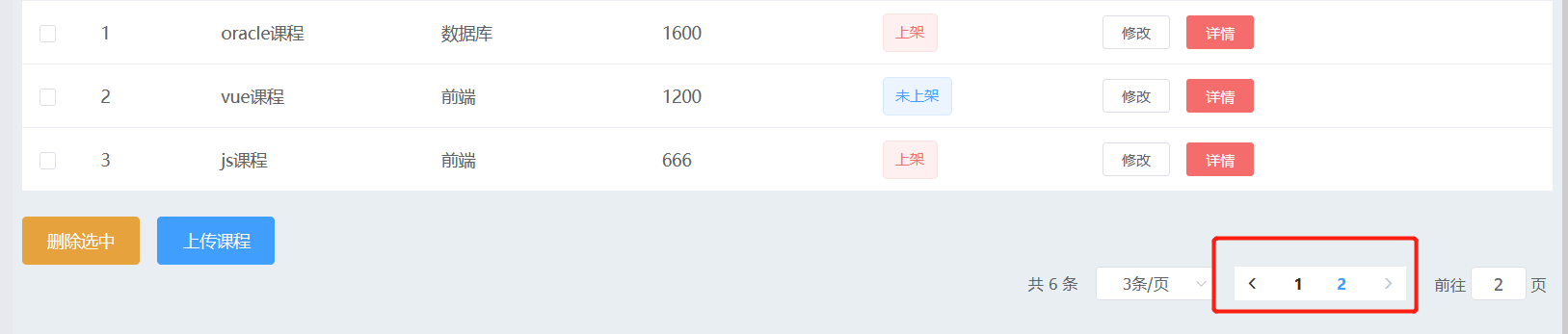

- 当页码改变触发此事件
- 点击上一页或者下一页切换每页展示数据
代码如下:
/*当页码改变触发此事件*/handleCurrentChange: function (currentPage) {this.tableData = '' this.currentPage = currentPage; this.findAll()},
2.3 handleSizeChange函数
- 当页面显示数据条数发生改变触发此事件
- 切换每页展示数据的条数
代码如下:
handleSizeChange: function (size) {this.pageSize = size; this.findAll()},
三、后端
3.1 servlet层
- 获取请求数据中的参数
- 将结果封装进集合
- 最后再利用工具将数据转换成json格式返回给前端
代码如下:
/** * 分页查询 * @param req * @param resp * @throws ServletException * @throws IOException */ protected void findAll(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException, SQLException { //获取请求数据中的参数 int currentPage =Integer.parseInt(req.getParameter("currentPage")); int pageSize =Integer.parseInt(req.getParameter("pageSize")); String search = req.getParameter("search"); //封装进集合 PageUtils<Course> courseList = courseService.findAll(currentPage,pageSize,search); //利用ObjectMapper类,将数据转换为json格式返回给前端 printWriter =resp.getWriter(); printWriter.print(ObjectMapperWriter.writer(courseList)); }
3.2 service层
- 通过当前页码 每页显示条数 搜索条件 ,将查询到的course对象集合装进数组里面
- 通过搜索条件,查询课程表总记录数
- 最后返回给servlet层
代码如下:
public class CourseServiceImpl implements CourseService { CourseDao courseDao = new CourseDaoImpl(); /** * 分页查询 * @param currentPage * @param pageSize * @param search * @return * @throws SQLException */ @Override public PageUtils<Course> findAll(int currentPage, int pageSize, String search) throws SQLException { //通过当前页码 每页显示条数 搜索条件 ,查询到的course对象集合装进数组里面 List<Course> courseList = courseDao.findAll("select * from course where courseName like ? limit ?,?", "%" + search + "%", (currentPage - 1) * pageSize, pageSize); //查course表的总记录数 int totalCount = courseDao.findCount("select count(cid) from course where courseName like ?", "%" + search + "%"); //利用分页实体类封装拿到的课程数据,并返回 PageUtils<Course> coursePageUtils = new PageUtils<>(currentPage, pageSize,totalCount, courseList); return coursePageUtils; }
3.3 dao层
- 主要负责查询数据库并返回数据给service层
代码如下:
public class CourseDaoImpl extends BaseDao implements CourseDao{ /** * 分页查询 * @param sql * @param params * @return * @throws SQLException */ @Override public List findAll(String sql, Object... params) throws SQLException { return queryForList(sql, Course.class,params); } @Override public int findCount(String sql, Object... params) throws SQLException { return queryForCount(sql,params); }}
四、后端所用到的工具类
4.1 BaseDao
public class BaseDao<T> { QueryRunner queryRunner = new QueryRunner(JdbcUtils.getDataSource()); //通用增删改 public int commonUpdate(String sql,Object...params) throws SQLException {return queryRunner.update(sql,params); } public T queryForSingle(String sql,Class clazz,Object... params) throws SQLException {return queryRunner.query(sql,new BeanHandler<T>(clazz),params); } public List<T> queryForList(String sql, Class clazz, Object... params) throws SQLException { List<T> list = queryRunner.query(sql, new BeanListHandler<T>(clazz), params); return list; } public int queryForCount(String sql,Object...params) throws SQLException {Long ll = queryRunner.query(sql,new ScalarHandler<>(),params);//select count(*) from medicine;return ll.intValue(); }}
4.2 BaseServlet
public class BaseServlet extends HttpServlet { @Override protected void service(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException { //需要知道访问的是哪个Servlet Class clazz = this.getClass(); //需要知道访问的是哪个方法 String method = req.getParameter("method"); try { Method m = clazz.getDeclaredMethod(method, HttpServletRequest.class, HttpServletResponse.class); m.setAccessible(true); m.invoke(this,req,resp); } catch (Exception e) { e.printStackTrace(); } }}
4.3 PageUtils
package utils;import java.util.List;/** * 分页工具 * 1.当前页码 由使用者决定 * 2.每页显示多少条数据 (页量) 由程序员决定 * 3.一共有几页 总页数 算出来 总页数 = 总记录数 / 页量 * 4.一共有几条数据 总记录数,数据库查询得知 * 5.当前页码的数据 */public class PageUtils<T> { private int currentPage; private int pageSize; private int pages; private int total; private List<T> list; public PageUtils(int currentPage, int pageSize, int total, List<T> list) { this.currentPage = currentPage; this.pageSize = pageSize; this.total = total; this.list = list; //求总页数 10数据 每页显示3条 4页 this.pages = this.total%this.pageSize==0 ?this.total/this.pageSize :this.total/this.pageSize+1; } public PageUtils(){ } public int getCurrentPage() { return currentPage; } public void setCurrentPage(int currentPage) { this.currentPage = currentPage; } public int getPageSize() { return pageSize; } public void setPageSize(int pageSize) { this.pageSize = pageSize; } public int getPages() { return pages; } public void setPages(int pages) { this.pages = pages; } public int getTotal() { return total; } public void setTotal(int total) { this.total = total; } public List<T> getList() { return list; } public void setList(List<T> list) { this.list = list; }}
4.4 ObjectMapperWriter
package utils;import com.fasterxml.jackson.core.JsonProcessingException;import com.fasterxml.jackson.databind.ObjectMapper;public class ObjectMapperWriter { //将对象转换成json数据格式返回给前端 public static String writer(Object object) throws JsonProcessingException { ObjectMapper objectMapper = new ObjectMapper(); return objectMapper.writeValueAsString(object); }}
