前言
面试官总喜欢问:你写过SpringBoot Starter吗?
自己动手写一个SpringBoot,难吗?真的不难,网上随便一搜,各种教程文章一大堆。
那为什么面试官还是喜欢问呢?
其实我们可以换位思考一下,候选人工作好些年了,早已经度过了复制粘贴,到复制改写年龄,应当具备封装能力,甚至定制能力。假设你没有任何亮点,这么多CRUD工程师,我为什么要选你呢?
这里不详细讲SpringBoot Starter的原理,从面试官角度来看,你能回答出SpringBoot启动加载流程、类加载原理、bean对象生成、SpringBoot IoC容器托管Bean等,基本可以过关。但更多面试官会一步一步深挖,直到你回答不出为止。所以光靠临急抱佛脚,死记硬背肯定是不行的。
本文通过项目实战方式,加深一下我们的记忆。假定一个业务场景,项目需要在application.properties/application.yml 中自定义配置变量来获取ip,用来生成不同的日志文件名称。其中random是springboot内置的,myVar是我们拓展的。
my.log.prefix=monitor_${myVar.ip}my.log.prefix=mopnitor_${myVar.yyyyMMddHHmmss}my.log.prefix=monitor _${random.int(10)}
一、本文要点
前面的文章《搭建大型分布式服务(十九)面试官:你做过Spring框架功能拓展吗?》 已经介绍如何使用SpringBoot拓展,在yml/properties配置文件自定义变量。本文将这一功能封装成SpringBoot的starter,演示SpringBoot的starter的编写过程。系列文章完整目录
- springboot 拓展
- springboot 自定义配置变量
- springboot application配置文件获取服务IP
- springboot application配置文件获取当前时间 + 格式化
- EnvironmentPostProcessor 外置配置
- logback 读取springboot配置
二、开发环境
- jdk 1.8
- maven 3.6.2
- springboot 2.4.3
- mybatis 1.3.0
- idea 2020
三、创建项目
1、创建一个基础maven工程,打包方式jar。
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>2.4.3</version> <relativePath/> </parent> <groupId>com.mmc.lesson</groupId> <artifactId>var-spring-boot-starter</artifactId> <version>0.0.1-SNAPSHOT</version> <name>var-spring-boot-starter</name> <packaging>jar</packaging> <description>Demo project for Spring Boot</description> <properties> <java.version>1.8</java.version> </properties> <dependencies> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-configuration-processor</artifactId> <optional>true</optional> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-autoconfigure</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> <scope>test</scope> </dependency> </dependencies> <build> <plugins> <plugin> <groupId>org.apache.maven.plugins</groupId> <artifactId>maven-compiler-plugin</artifactId> <configuration> <source>1.8</source> <target>1.8</target> </configuration> </plugin> <plugin> <groupId>org.apache.maven.plugins</groupId> <artifactId>maven-source-plugin</artifactId> <executions> <execution> <id>attach-sources</id> <phase>verify</phase> <goals><goal>jar-no-fork</goal> </goals> </execution> </executions> </plugin> </plugins> </build></project>
2、在resources目录下创建META-INF,新建factory文件,编写以下内容,使spring框架能感知到新增的SPI,配置如下。
org.springframework.boot.env.EnvironmentPostProcessor=\com.mmc.lesson.var.starter.MyValuePropertySourceEnvironmentPostProcessor
3、编写MyValuePropertySourceEnvironmentPostProcessor.java ,实现EnvironmentPostProcessor 、Order 接口,这样可以更高优先级在spring容器refresh前先实现我们自定义的配置的注入。
public class MyValuePropertySourceEnvironmentPostProcessor implements EnvironmentPostProcessor, Ordered { private Log logger; /** * empty. */ public MyValuePropertySourceEnvironmentPostProcessor() { logger = LogFactory.getLog(MyValuePropertySourceEnvironmentPostProcessor.class); } /** * init。 */ public MyValuePropertySourceEnvironmentPostProcessor(Log logger) { this.logger = logger; } @Override public void postProcessEnvironment(ConfigurableEnvironment environment, SpringApplication application) { MyValuePropertySource.addToEnvironment(environment, this.logger); } @Override public int getOrder() { return Ordered.HIGHEST_PRECEDENCE + 2; }}
4、编写 MyValuePropertySource.java ,定义我们在application.yml / application.properties 的变量前缀 ${myVar} 。
public class MyValuePropertySource extends PropertySource<MyLogValue> { /** * Name of the random {@link PropertySource}. */ public static final String MY_PROPERTY_SOURCE_NAME = "myVar"; private static final String PREFIX = "myVar."; private static final Log logger = LogFactory.getLog(MyValuePropertySource.class); /** * MyValuePropertySource. */ public MyValuePropertySource() { this(MY_PROPERTY_SOURCE_NAME); } /** * MyValuePropertySource. */ public MyValuePropertySource(String name) { super(name, new MyLogValue()); } /** * 增加自定义表达式到环境上下文. */ public static void addToEnvironment(ConfigurableEnvironment environment, Log logger) { MutablePropertySources sources = environment.getPropertySources(); PropertySource<?> existing = sources.get(MY_PROPERTY_SOURCE_NAME); if (existing != null) { logger.trace("RandomValuePropertySource already present"); return; } MyValuePropertySource randomSource = new MyValuePropertySource(MY_PROPERTY_SOURCE_NAME); if (sources.get(StandardEnvironment.SYSTEM_ENVIRONMENT_PROPERTY_SOURCE_NAME) != null) { sources.addAfter(StandardEnvironment.SYSTEM_ENVIRONMENT_PROPERTY_SOURCE_NAME, randomSource); } else { sources.addLast(randomSource); } logger.trace("MyValuePropertySource add to Environment"); } @Override public Object getProperty(String name) { if (!name.startsWith(PREFIX)) { return null; } logger.trace(LogMessage.format("Generating property for '%s'", name)); return getValue(name.substring(PREFIX.length())); } /** * 目前仅支持ip. */ private Object getValue(String type) { if (type.equalsIgnoreCase("ip")) { return getSource().getIp(); } return null; }}
5、编写MyLogValue.java ,实现 ${myVar.ip} 的取值逻辑。
@Datapublic class MyLogValue { /** * 获取本机Ip. */ public String getIp() { return IpUtil.getLocalIP(); }}class IpUtil { /** * 获取本机IP,只返回一个. */ static String getLocalIP() { String sIP = ""; InetAddress ip = null; try { // 如果是Windows操作系统 if (isWindowsOS()) { ip = InetAddress.getLocalHost(); // 如果是Linux操作系统 } else { boolean bFindIP = false; Enumeration<NetworkInterface> netInterfaces = NetworkInterface.getNetworkInterfaces(); while (netInterfaces.hasMoreElements()) { if (bFindIP) { break; } NetworkInterface ni = netInterfaces.nextElement(); if (ni.isLoopback() || ni.isVirtual() || !ni.isUp()) { continue; } // ----------特定情况,可以考虑用ni.getName判断 // 遍历所有ip Enumeration<InetAddress> ips = ni.getInetAddresses(); while (ips.hasMoreElements()) { ip = ips.nextElement(); if (ip.isSiteLocalAddress() && !ip.isLoopbackAddress() // 127.开头的都是lookback地址 && !ip.getHostAddress().contains(":")) {bFindIP = true;break; } } } } } catch (Exception e) { e.printStackTrace(); } if (null != ip) { sIP = ip.getHostAddress(); } return sIP; } /** * 判断是否为Windows系统. */ private static boolean isWindowsOS() { boolean isWindowsOS = false; String osName = System.getProperty("os.name"); if (osName.toLowerCase().contains("windows")) { isWindowsOS = true; } return isWindowsOS; }}

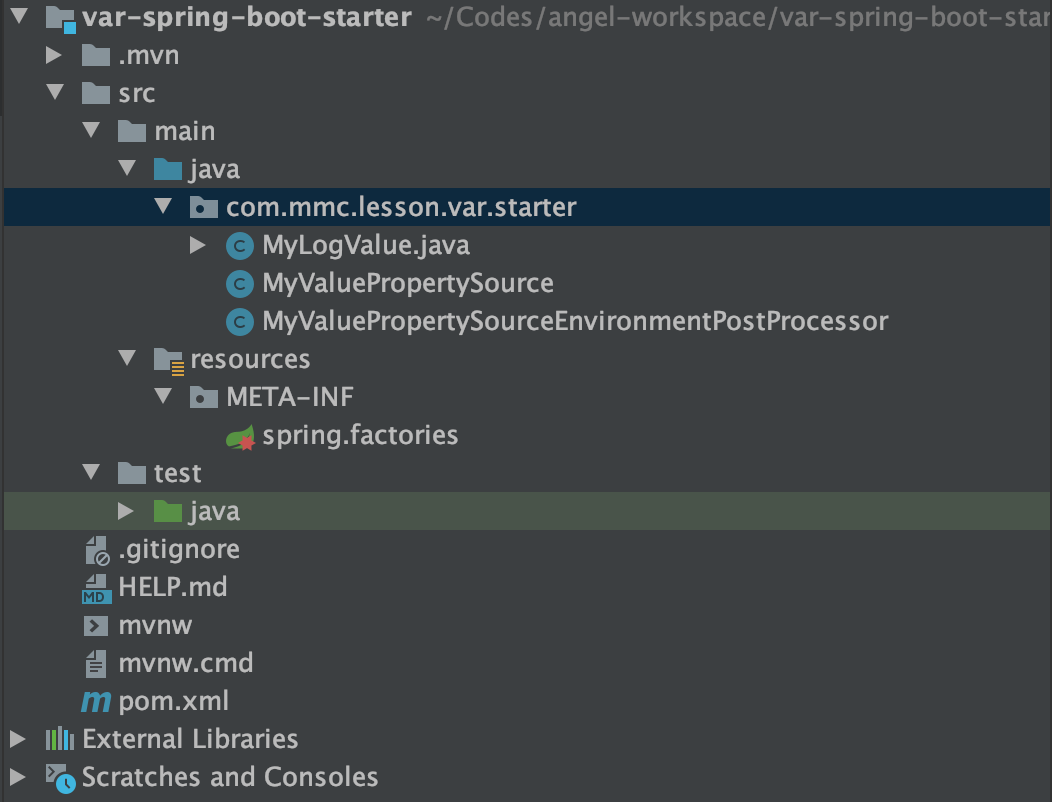

6、整体工程目录。
四、测试一下
1、修改 logback-spring.xml 配置。
<springProperty scope="context" name="log.path" source="logging.file.path"/> <springProperty scope="context" name="monitor.file.prefix" source="my.log.prefix"/> <appender name="MONITOR_FILE" class="ch.qos.logback.core.rolling.RollingFileAppender"> <file>${log.path}/${monitor.file.prefix}.log</file> <encoder> <pattern>[%d{yyyy-MM-dd HH:mm:ss.SSS}] [%thread] [%level] [%logger{50}:%L] - %msg%n </pattern> <charset>UTF-8</charset> </encoder> <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy"> <fileNamePattern>${log.path}/monitor/monitor-%d{yyyy-MM-dd}.%i.zip</fileNamePattern> <timeBasedFileNamingAndTriggeringPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedFNATP"> <maxFileSize>500MB</maxFileSize> </timeBasedFileNamingAndTriggeringPolicy> <maxHistory>7</maxHistory> <totalSizeCap>7GB</totalSizeCap> <cleanHistoryOnStart>true</cleanHistoryOnStart> </rollingPolicy> </appender>
2、重点来了,修改application.properties,增加我们自定义的变量myVar.ip。
# 日志路径logging.file.path=./logs# 日志名称前缀my.log.prefix=monitor_${myVar.ip}
3、编写测试用例。
@SpringBootTestclass EnvDemoApplicationTests { @Value("${my.log.prefix}") private String prefix; @Test void contextLoads() { System.out.println("-----------------------------"); System.out.println(prefix); }}
4、这样就可以发布到仓库了。
# 打包mvn clean install -Dmaven.test.skip=true# 发布mvn deploy -Dmaven.test.skip=true
五、小结
至此,我们就成功编写一个SpringBoot的Starter啦,本文作为下一个系列开篇起着非常重要的作用。下一篇《搭建大型分布式服务(三十一)基于JOLT实现业务型轻量级ETL工具》
