springBoot整合rabbitMQ-路由模式-发送消息服务（邮件和钉钉通知）+源码分享gitee仓库免费下载
上篇博客介绍了订阅发布模式-也是使用的这个案例。如果对rabbitMQ的订阅发布模式感兴趣可以参考 springboot整合发布订阅模式 文章
目录
- 简介
- 实操
-
- pom依赖坐标
- 生产者
-
- 代码
- 消息投递成功
- 消费者
-
- 代码
- 消息消费成功
- 效果
简介
概念
路由模式是根据具体的key精确的找到具体的队列，投递到指定的队列里。可以根据不同的条件需要。划分多个队列，然后按需投递消息到队列。
队列和交换机的三种创建方式
1，通过rabbitMQ可视化界面配置
2，通过Java配置类
3,通过Java注解
本次以Java配置类为例
实操
pom依赖坐标
<dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-amqp</artifactId> </dependency>生产者
代码
配置类
package com.example.springbootorderrabbitmqproducer.Config;import org.springframework.amqp.core.*;import org.springframework.context.annotation.Bean;import org.springframework.context.annotation.Configuration;/** * @author 康世行 * @Title: * @Package com.example.springbootorderrabbitmqproducer.Config * @Description: direct交换模式配置类 * @date 2022-01-16 20:02 */@Configurationpublic class DirecRabbittMqConfiguration { //1:声明注册direc模式的交换机 @Bean public DirectExchange directExchange(){ return new DirectExchange("direct-exchange",true,false); } //2:声明队列 /** * @Description: 发送短息队列 * @param ${tags} * @return ${return_type} * @throws * @author 康世行 * @date 2021-12-25 19:59 */ @Bean public Queue smsQueue(){ return new Queue("sms.direct.queue",true); } /** * @Description: 发送邮件消息队列 * @param ${tags} * @return ${return_type} * @throws * @author 康世行 * @date 2021-12-25 20:00 */ @Bean public Queue emailQueue(){ return new Queue("email.direct.queue",true); } //3:完成队列和交换机的绑定关系 /** * @Description: 发送短息消息队列和Direct交换机进行绑定 * @param ${tags} * @return ${return_type} * @throws * @author 康世行 * @date 2021-12-25 20:02 */ @Bean public Binding smsBinding(){ return BindingBuilder.bind(smsQueue()).to(directExchange()).with("sms"); } /** * @Description: 发送邮件消息队列和Direct交换机进行绑定 * @param ${tags} * @return ${return_type} * @throws * @author 康世行 * @date 2021-12-25 20:03 */ @Bean public Binding emailBinding(){ return BindingBuilder.bind(emailQueue()).to(directExchange()).with("email"); }}conroller
package com.example.springbootorderrabbitmqproducer.controller;import com.example.springbootorderrabbitmqproducer.service.OrderRabbitmqProducerimpl;import io.swagger.annotations.*;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.web.bind.annotation.GetMapping;import org.springframework.web.bind.annotation.PathVariable;import org.springframework.web.bind.annotation.RequestMapping;import org.springframework.web.bind.annotation.RestController;import java.util.List;/** * @author 康世行 * @Title: * @Package com.example.springbootorderrabbitmqproducer.controller * @Description: 测试日志controller * @date 2021-12-09 8:27 */@RestController@RequestMapping("/send")@Api("测试swagger接口")public class OrderRabbitmqProducerController { @Autowired OrderRabbitmqProducerimpl orderRabbitmqProducerimpl; /** * @Description: 发送订单，生产者 * @param ${tags} * @return ${return_type} * @throws * @author 康世行 * @date 2021-12-11 20:25 */ @GetMapping("/sendOrder/{DingId}/{content}/{routeKey}") @ApiOperation("发送订单") @ApiImplicitParams({ @ApiImplicitParam(name="DingId",value="接收消息的钉钉Id",dataType="String", paramType = "path",required = false), @ApiImplicitParam(name="content",value="要发送的消息",dataType="String", paramType = "path",required = false), @ApiImplicitParam(name="routeKey",value="路由key",dataType="String", paramType = "path",required = false) }) @ApiResponse(code = 400,message = "请求参数没填好") public String sendOrder(@PathVariable(value = "DingId",required = true) String DingId,@PathVariable(value = "content",required = true)String content,@PathVariable(value = "routeKey",required = true) String routeKey){ //发送订单，消息 String relust= orderRabbitmqProducerimpl.sendOrder(DingId, content,routeKey); return relust; }}service
package com.example.springbootorderrabbitmqproducer.service;import org.springframework.amqp.rabbit.core.RabbitTemplate;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.stereotype.Service;import java.util.HashMap;import java.util.Map;/** * @author 康世行 * @Title: * @Package com.example.springbootorderrabbitmqproducer.service * @Description: 发送订单业务 * @date 2021-12-11 20:27 */@Servicepublic class OrderRabbitmqProducerimpl { @Autowired RabbitTemplate rabbitTemplate; /** * @Description: 发送订单，生产者 * @param ${tags} * @return ${return_type} * @throws * @author 康世行 * @date 2021-12-11 20:29 */ public String sendOrder(String dingId,String content,String routeKey){ //组装数据 Map<String, String> stringMap=new HashMap<>(); stringMap.put("dingId",dingId); stringMap.put("content",content); //消息投递到队列 //交换机，使用路由模式交换机 String exchangeName="direct-exchange"; //路由key String routingKey=routeKey;rabbitTemplate.convertAndSend(exchangeName,routingKey,stringMap); return "消息投递成功！"; }}消息投递成功

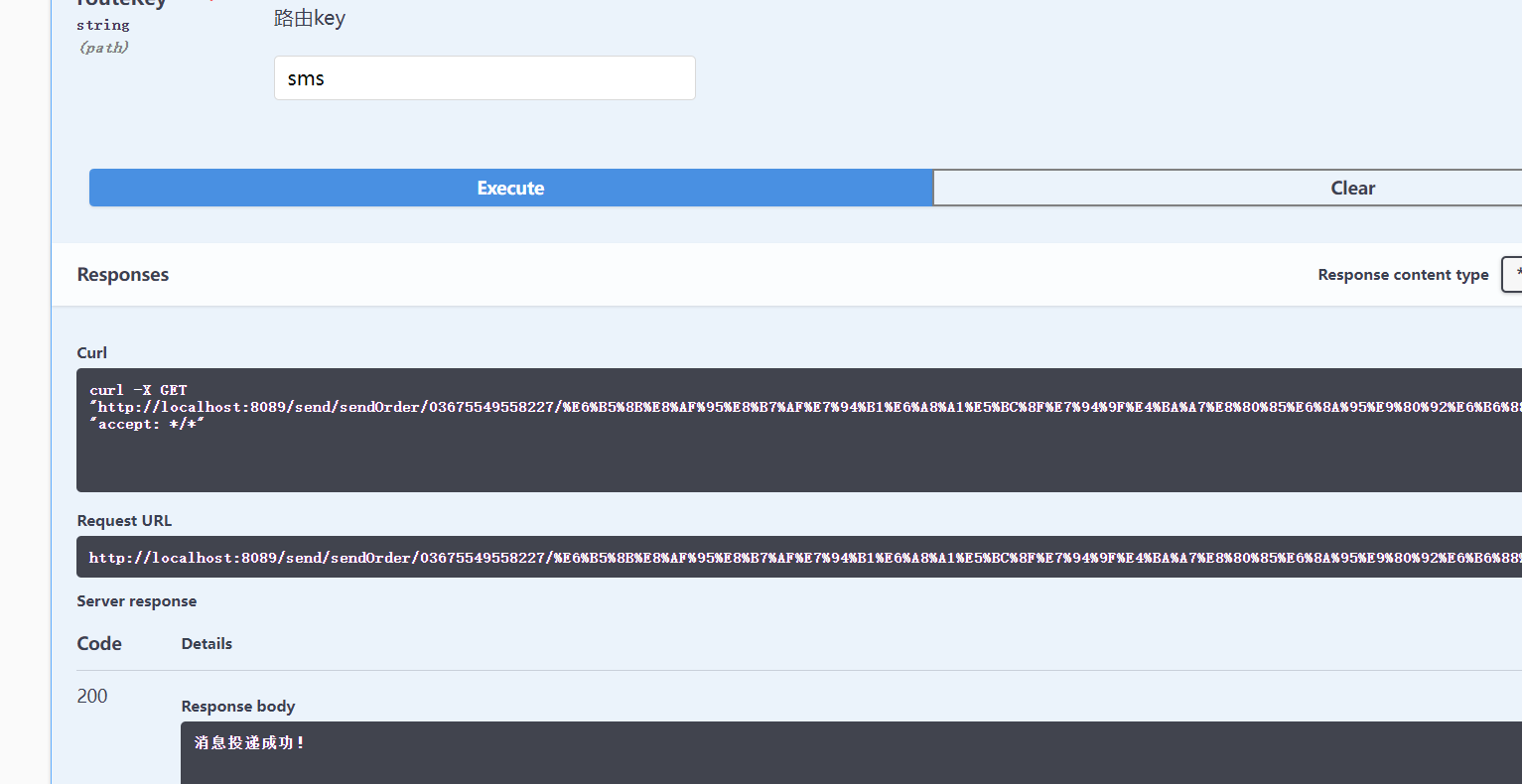

swagger地址
http://localhost:8089/swagger-ui.html#/order-rabbitmq-producer-controller/sendOrderUsingGET

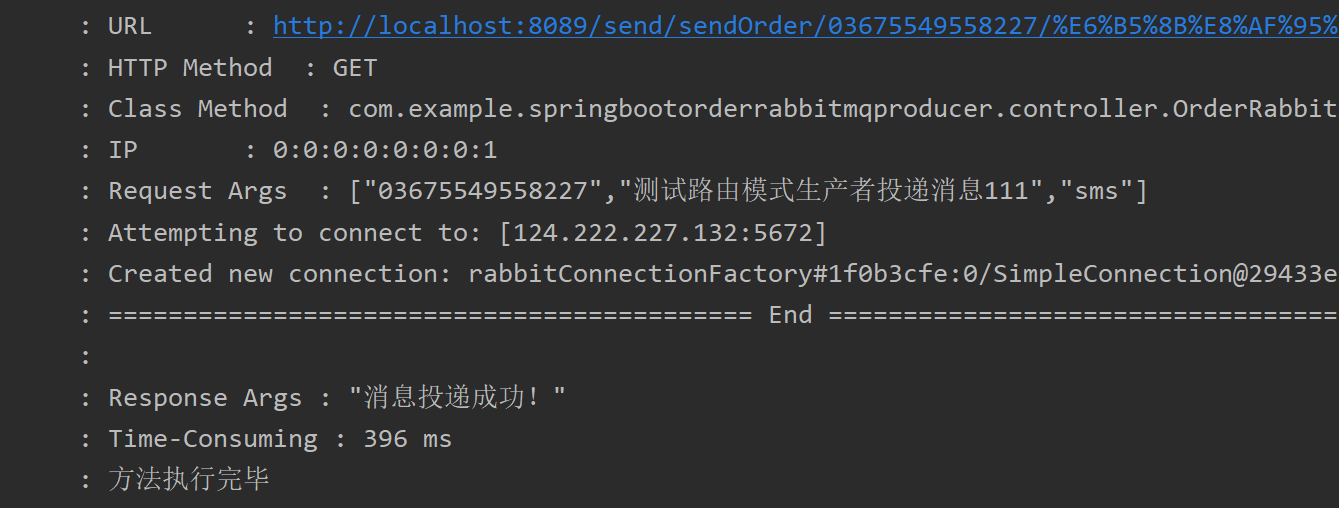

投递成功

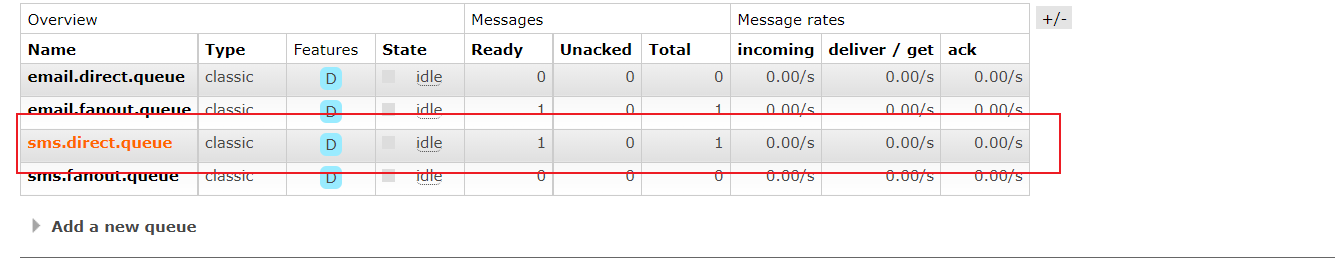

可以看到对应的sms队列里多了一条待销费的消息
消费者
代码
配置类
package com.example.springbootorderrabbitmqproducer.Config;import org.springframework.amqp.core.*;import org.springframework.context.annotation.Bean;import org.springframework.context.annotation.Configuration;/** * @author 康世行 * @Title: * @Package com.example.springbootorderrabbitmqproducer.Config * @Description: direct交换模式配置类 * @date 2022-01-16 20:02 */@Configurationpublic class DirecRabbittMqConfiguration { //1:声明注册direc模式的交换机 @Bean public DirectExchange directExchange(){ return new DirectExchange("direct-exchange",true,false); } //2:声明队列 /** * @Description: 发送短息队列 * @param ${tags} * @return ${return_type} * @throws * @author 康世行 * @date 2021-12-25 19:59 */ @Bean public Queue smsQueue(){ return new Queue("sms.direct.queue",true); } /** * @Description: 发送邮件消息队列 * @param ${tags} * @return ${return_type} * @throws * @author 康世行 * @date 2021-12-25 20:00 */ @Bean public Queue emailQueue(){ return new Queue("email.direct.queue",true); } //3:完成队列和交换机的绑定关系 /** * @Description: 发送短息消息队列和Direct交换机进行绑定 * @param ${tags} * @return ${return_type} * @throws * @author 康世行 * @date 2021-12-25 20:02 */ @Bean public Binding smsBinding(){ return BindingBuilder.bind(smsQueue()).to(directExchange()).with("sms"); } /** * @Description: 发送邮件消息队列和Direct交换机进行绑定 * @param ${tags} * @return ${return_type} * @throws * @author 康世行 * @date 2021-12-25 20:03 */ @Bean public Binding emailBinding(){ return BindingBuilder.bind(emailQueue()).to(directExchange()).with("email"); }}消费者–发送钉钉消息
package com.example.springbootorderrabbitmqconsumer.consumer;import org.springframework.amqp.core.ExchangeTypes;import org.springframework.amqp.rabbit.annotation.*;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.http.HttpEntity;import org.springframework.http.HttpHeaders;import org.springframework.http.MediaType;import org.springframework.http.ResponseEntity;import org.springframework.stereotype.Component;import org.springframework.web.client.RestTemplate;import java.util.ArrayList;import java.util.HashMap;import java.util.List;import java.util.Map;/** * @author 康世行 * @Title: * @Package com.example.springbootorderrabbitmqproducer.consumer * @Description: 订单消费者 * @date 2021-12-11 20:55 */@Component//监听指定队列@RabbitListener(queues = {"sms.direct.queue"})public class OrderRabbimqConsumerDingDing { @Autowired RestTemplate restTemplate; @RabbitHandler /** * @Description: 发送钉钉消息 * @param DingId 钉钉id ，content 要发送的内容 * @return ${return_type} * @throws * @author 康世行 * @date 2021-12-11 21:02 */ public void messagerevice(Map<String,String> maps){ //获取队列消息，发送钉钉消息 String dingId = maps.get("dingId"); String content = maps.get("content"); System.out.println("dingId"+dingId); System.out.println("内容"+content); //data体 Map<String, Object> map=new HashMap<>(); List<String> dingIdlist=new ArrayList<>(); dingIdlist.add(dingId); map.put("dingIds",dingIdlist); map.put("groupName","测试"); map.put("messageContent",content); map.put("messageTitle","测试消息队列发送钉钉消息"); map.put("messageUrl","ddd"); map.put("picUrl","ddd"); //htttp请求头，设置请求头信息 HttpHeaders headers=new HttpHeaders(); headers.setContentType(MediaType.parseMediaType("application/json")); //http请求实体，请求头设置和data存入http请求实体中 HttpEntity parms=new HttpEntity(map, headers); //发送http请求， 参数1： 接口地址，参数2 请求的数据体（data+headers） 参数3 返回值类型 ResponseEntity<String> stringResponseEntity = restTemplate.postForEntity("http://msg.dmsd.tech:8002/dingmessage/send/groupTextMsg", parms, String.class); System.out.println(stringResponseEntity); }}消费者–发送email消息
package com.example.springbootorderrabbitmqconsumer.consumer;import lombok.extern.slf4j.Slf4j;import org.springframework.amqp.core.ExchangeTypes;import org.springframework.amqp.rabbit.annotation.*;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.http.HttpEntity;import org.springframework.http.HttpHeaders;import org.springframework.http.MediaType;import org.springframework.http.ResponseEntity;import org.springframework.mail.SimpleMailMessage;import org.springframework.mail.javamail.JavaMailSender;import org.springframework.stereotype.Component;import org.springframework.web.client.RestTemplate;import java.util.*;/** * @author 康世行 * @Title: * @Package com.example.springbootorderrabbitmqproducer.consumer * @Description: email消费者 * @date 2021-12-12 9:45 */@Component@Slf4j//监听指定队列@RabbitListener(queues = {"email.direct.queue"})public class OrderRabbimqConsumerEmail { @Autowired JavaMailSender javaMailSender; @RabbitHandler /** * @Description: 发送email消息 * @param DingId 钉钉id ，content 要发送的内容 * @return ${return_type} * @throws * @author 康世行 * @date 2021-12-11 21:02 */ public void messagerevice(Map<String,String> maps){ //获取队列消息，发送 email消息 String dingId = maps.get("dingId"); String content = maps.get("content"); log.info("dingId"+dingId); log.info("内容"+content); // 设置邮件发送内容 SimpleMailMessage mailMessage = new SimpleMailMessage(); // 发件人: setFrom处必须填写自己的邮箱地址，否则会报553错误 mailMessage.setFrom("1547403415@qq.com"); // 收件人 mailMessage.setTo("18332371417@163.com"); // 抄送收件人:网易邮箱要指定抄送收件人，不然会报 554（发送内容错误） mailMessage.setCc("18332371417@163.com"); // 主题 mailMessage.setSubject("测试rabitMq发送邮费服务"); // 内容 mailMessage.setText(content); try { javaMailSender.send(mailMessage); System.out.println("发送简单文本邮件成功,主题是：" + content); } catch (Exception e) { System.out.println("-----发送简单文本邮件失败!-------" + e.toString()); e.printStackTrace(); } }}消息消费成功

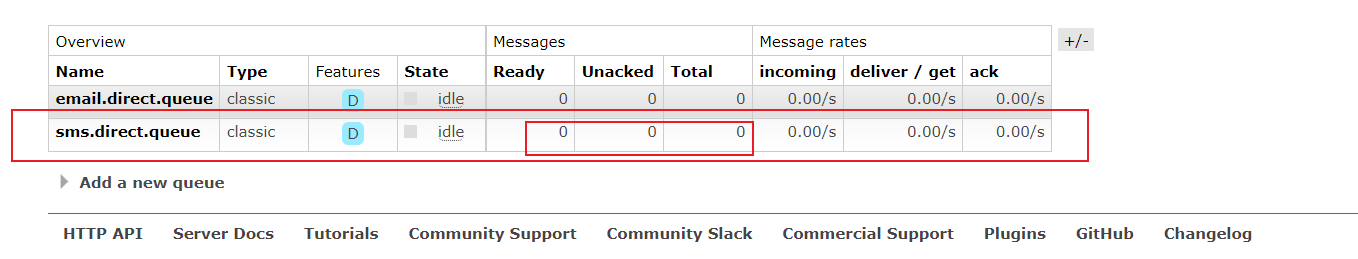

待消费的消息已经被成功消费
效果

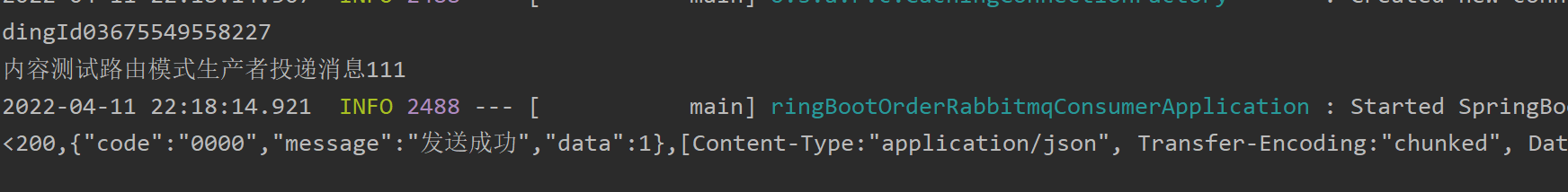

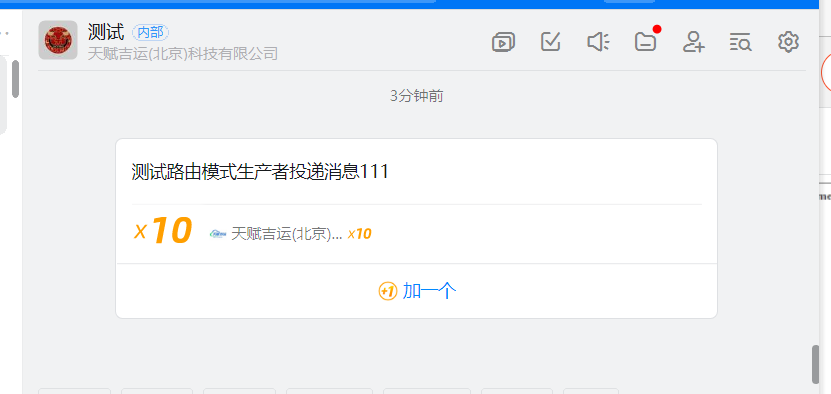

接受的钉钉消息

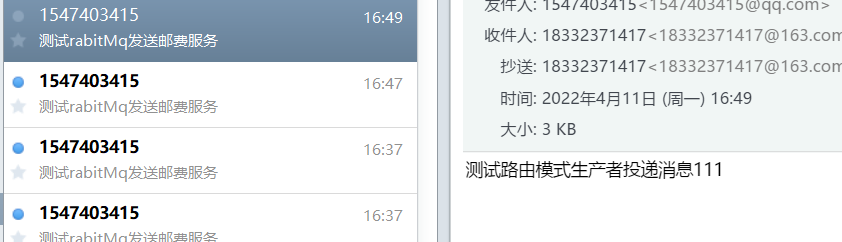

接受的邮件

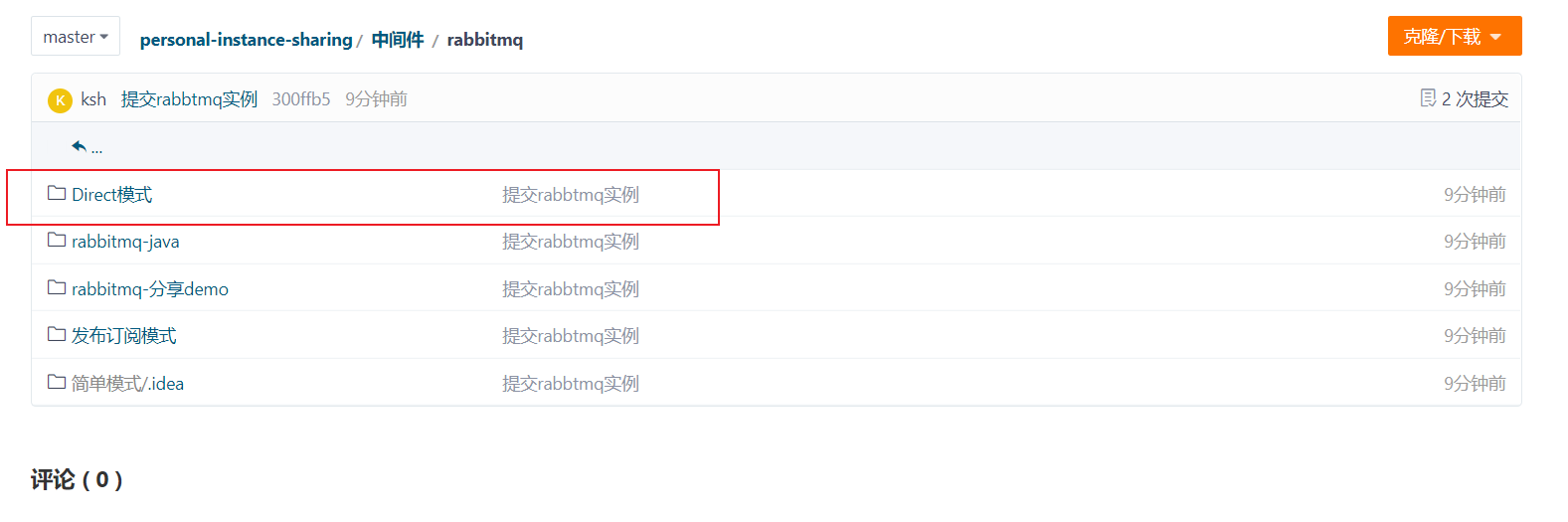

源码分享-gitee地址
rabbitMQ
