Ribbon+Hystrix(熔断降级) +@FeignClient 实现跨模块+跨服务远程调用
总目录
- 一.引入 Ribbon+Hystrix依赖 +feign依赖
- 二.yml配置Ribbon+Hystrix
- 三.启动类上添加注解
- 四.实现跨模块调用
-
-
- 1.client(gd-web模块)代码
- 2.feign(gd-web远程模块)代码
- 3.@FeignClient标签的常用属性如下:
- 4.熔断代码
- 5.server服务方代码 提供用户信息
-
- 五.测试代码
- 六.跨服务调用
一.引入 Ribbon+Hystrix依赖 +feign依赖
org.springframework.cloud spring-cloud-starter-netflix-hystrix 2.2.5.RELEASE org.springframework.cloud spring-cloud-starter-netflix-ribbon 2.2.5.RELEASE org.springframework.cloud spring-cloud-starter-openfeign 2.2.5.RELEASE
注意: Ribbon+Hystrix 依赖尽量一致 否则会报异常 自己可以试试嘻嘻!!
二.yml配置Ribbon+Hystrix
# feign远程配置# 这个gd-ae是用户模块 多模块后面打点添加gd-ae: ribbon: ## 服务提供者的地址,不是服务注册中心的地址 listOfServers: http://localhost:8088# 开启熔断feign: #Hystrix超时时间设置 原因 feign第一次调用需要懒加载并且装在bean 所以第一次比较慢 hystrix: enabled: true client: config: default: connectTimeout: 5000 #连接超时时间2秒 readTimeout: 5000 #读超时时间2秒 hystrix: command: default: #也可以针对多个服务 execution: isolation: thread: timeoutInMilliseconds: 4000 # 设置hystrix的超时时间为4000ms
注意: 1.一定要设置熔断时间 原因: feign第一次调用需要懒加载并且装在bean 所以第一次比较慢 如果不设置可能会被熔断调
2.也可以设置ribbon重复调用时间 这里没有设置
三.启动类上添加注解
@EnableFeignClients(basePackages = {"com.guodian.api"}) //basePackages = 指定的api远程模块所在包@EnableHystrix
四.实现跨模块调用

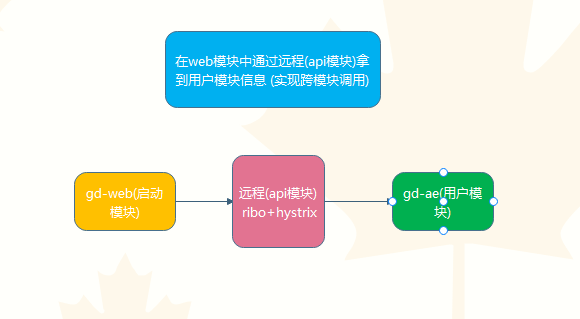

调用方client 模块gd-web

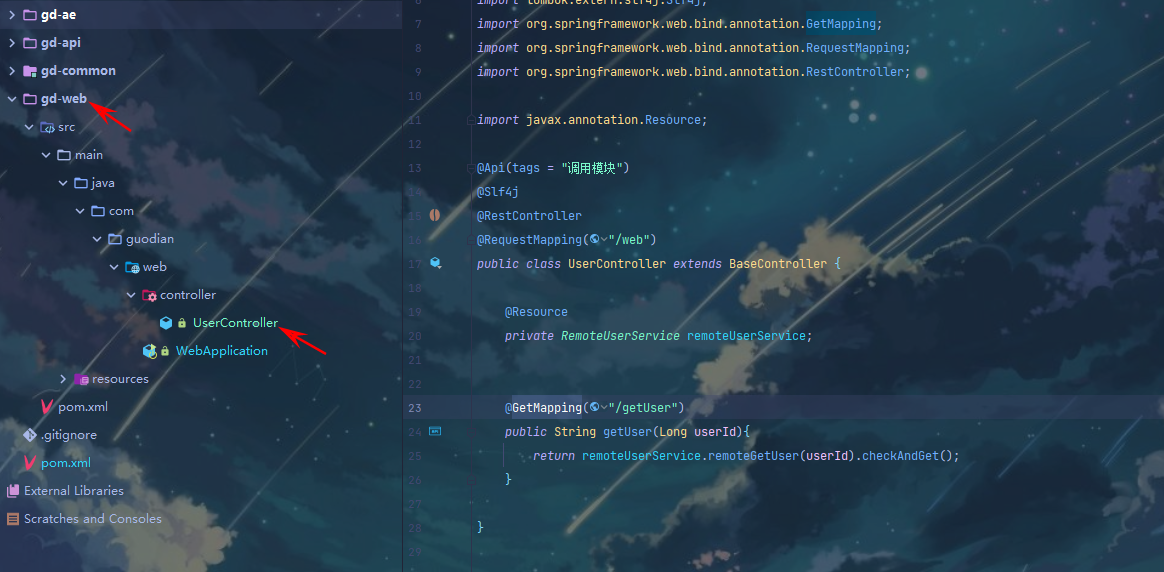

如下图
1.client(gd-web模块)代码
@Api(tags = "调用方模块")@Slf4j@RestController@RequestMapping("/web")public class UserController extends BaseController { //注入远程服务中转站Ribbon @Resource private RemoteUserService remoteUserService; @GetMapping("/getUser") public String getUser(Long userId){ return remoteUserService.remoteGetUser(userId).checkAndGt(); }}
2.feign(gd-web远程模块)代码
/** * @author: wfs * @date: 2022/3/15 15:30 * @version: 1.0 */@FeignClient(contextId = "remoteUserService",value = FeignServiceConstants.GD_AE,fallbackFactory = RemoteUserFactory.class )public interface RemoteUserService { /** * 获取用户信息 * @param userId 用户 * @return 客户 */ @GetMapping("/user/login") //这里地址必须要和 serve服务方地址相同 否则找不到 gd-ae用户模块具体的接口地址 R<String> remoteGetUser(@RequestParam("userId") Long userId); }
3.@FeignClient标签的常用属性如下:
内容 | 含义 |
---|---|
value | 当前服务名 |
name | 指定FeignClient的名称,如果项目使用了Ribbon,name属性会作为微服务的名称,用于服务发现 |
url | url一般用于调试,可以手动指定@FeignClient调用的地址 |
decode404: | 当发生http 404错误时,如果该字段位true,会调用decoder进行解码,否则抛出FeignException |
configuration | Feign配置类,可以自定义Feign的Encoder、Decoder、LogLevel、Contract |
fallback | 定义容错的处理类,当调用远程接口失败或超时时,会调用对应接口的容错逻辑,fallback指定的类必须实现@FeignClient标记的接口 |
fallbackFactory | 工厂类,用于生成fallback类示例,通过这个属性我们可以实现每个接口通用的容错逻辑,减少重复的代码 |
path | 定义当前FeignClient的统一前缀 |
4.熔断代码
/** * @author: wfs * @date: 2022/3/15 16:22 * @version: 1.0 */public class RemoteUserFactory implements FallbackFactory<RemoteUserService> { //日志打印 private static final Logger log = LoggerFactory.getLogger(RemoteUserFactory.class); @Override public RemoteUserService create(Throwable throwable) { log.info("远程WebSocket服务调用失败!{}", throwable.getMessage()); return new RemoteUserService() { @Override //熔断报错内容 public R<String> remoteGetUser(Long userId) { return R.fail("远程调用登录用户失败!!"); } }; }}
注意: 这里一定要指定路径 熔断路径 在resources下 创建 META-INF目录 再创建spring.factories文件 指定熔断类路径 否则会报异常 自己可以试试!!!

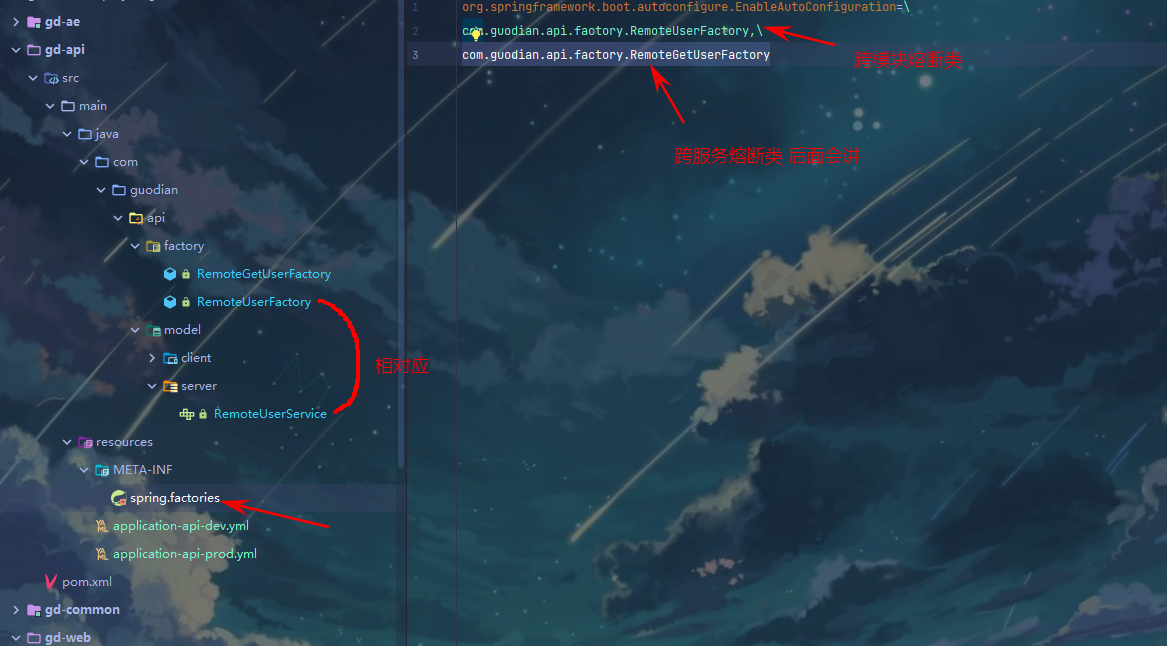

如下 api模块架构图及文件目录 可以参考
spring.factories 内容
org.springframework.boot.autoconfigure.EnableAutoConfiguration=\com.guodian.api.factory.RemoteUserFactory,\com.guodian.api.factory.RemoteGetUserFactory
5.server服务方代码 提供用户信息
@Slf4j@Api(tags = "用户模块")@RestController@RequestMapping("/user")public class AeUserController extends BaseController { @GetMapping("/login") public R<String> user(Long userId){ if (userId.equals(3L)){ return R.ok("获取用户成功!!"); } return R.fail("获取用户失败!!"); }}
五.测试代码

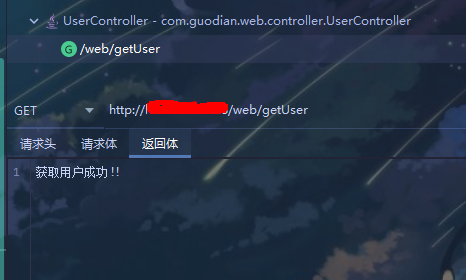

我们调用gd-web模块中 http://*******/web/getUser 接口 传值userId 为3 查看结果
OK搞定
六.跨服务调用
这里是我写的 跨服务调用—远程调用接口 点击这里!!
跨服务调用—远程调用接口
