QCA7000/QCA7005基于全志V3S Linux系统驱动移植

使用硬件：

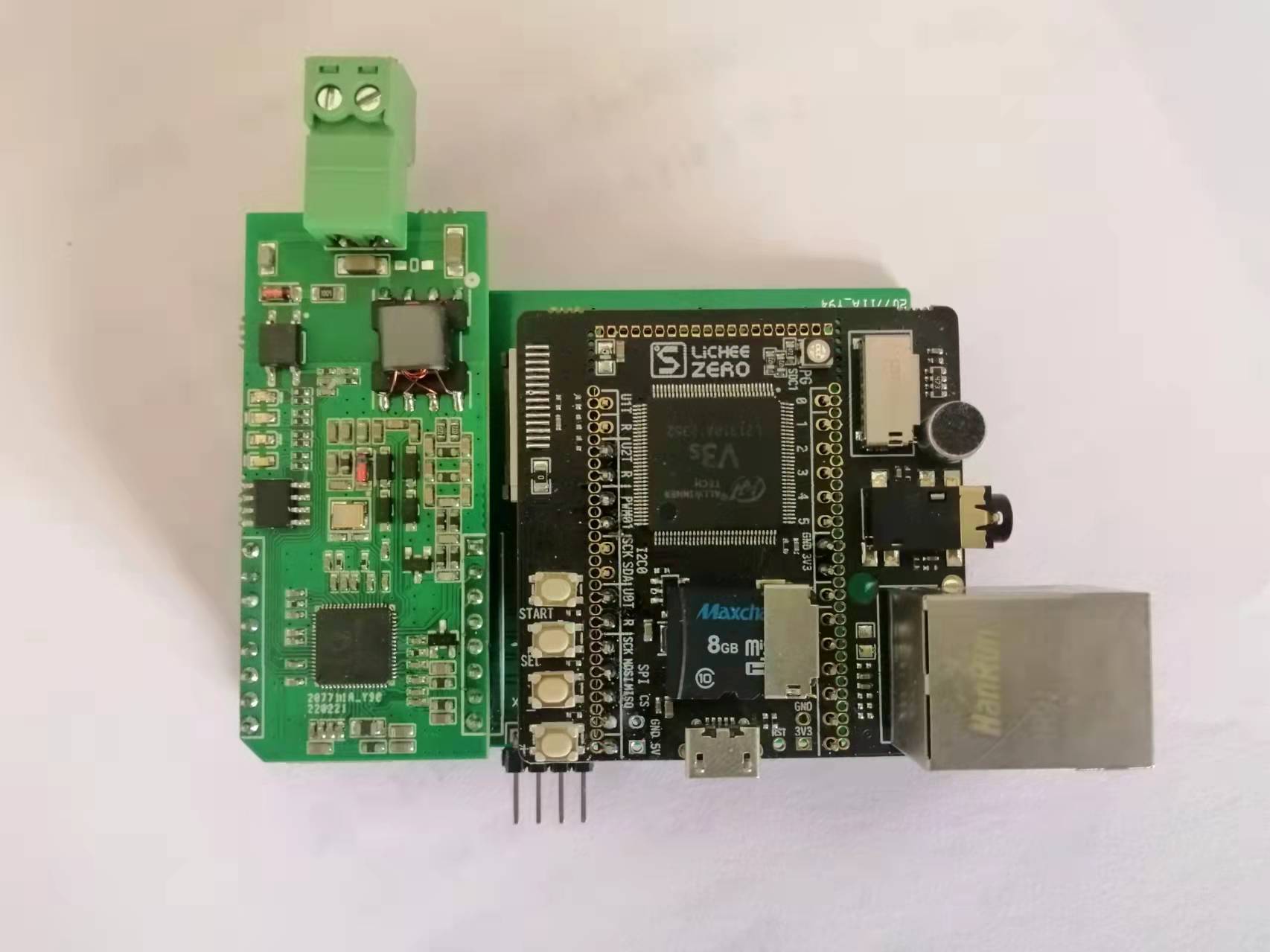

荔枝派V3S Lichee Pi Zero with Dock

QCA7000HomePlugGreen PHY模块

开发环境：

Ubuntu18.04.6 LTS

buildroot:2022.02

U-Boot :2019.10

kernel:Linux version 5.3.5

gcc version 10.3.0

部分打印信息：

[    0.773832] qcaspi spi0.0: ver=0.2.7-i, clkspeed=12000000, burst_len=5000, pluggable=0[    0.781863] qcaspi spi0.0: Using random MAC address: 86:bb:e0:d6:8a:07

查看驱动：

# dmesg | grep qca[    0.773832] qcaspi spi0.0: ver=0.2.7-i, clkspeed=12000000, burst_len=5000, pluggable=0[    0.781863] qcaspi spi0.0: Using random MAC address: 86:bb:e0:d6:8a:07[  175.109563] qcaspi spi0.0 eth0: SPI thread created

加载QCA7000HomePlugGreen PHY

# ifconfig eth0 up# [  134.406658] qcaspi spi0.0 eth0: SPI thread created

查看qca7000配置：

# plctool -i eth0 -I PIB 0-0 8836 bytes MAC 70:20:22:03:16:02 DAK 68:9F:07:4B:8B:02:75:A2:71:0B:0B:57:79:AD:16:30 (HomePlugAV) NMK B5:93:19:D7:E8:15:7B:A0:01:B0:18:66:9C:CE:E3:0D (HomePlugAV0123) NID 02:6B:CB:A5:35:4E:08 Security level 0 NET TEL_+8618212075575 MFG guibin_Zou USR PEV CCo Never MDU N/A

未完，待续。。。。
