一、写在前面

多项式回归结合响应面分析方法，可以利用响应面图直观反应复杂的三维关系，从而清晰呈现两个自变量和一个因变量之间关系的技术方法。

Frontiers | Saturated Dissolved Oxygen Concentration in in situ Fragmentation Bioleaching of Copper Sulfide Ores | Microbiology

本篇文章以该论文数据为支撑进行相关图片的绘制。

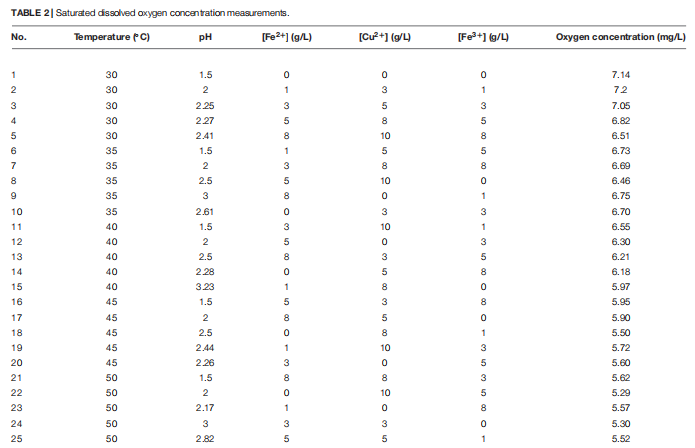

二、数据

除25组数据外，还加一组自然情况下的基准数据 ：

三、代码-多元线性回归

3.1 导入库

from mpl_toolkits.mplot3d.axes3d import Axes3Dfrom matplotlib import cmfrom pylab import *from numpy import *import matplotlib.pyplot as pltimport pandas as pdimport mathimport numpy as npimport copyplt.rcParams['axes.unicode_minus']=False  #用于解决不能显示负号的问题mpl.rcParams['font.sans-serif'] = ['SimHei']

3.2 导入数据

#26xArr = [    [1,30,6.5,0,0,0],    [1,30,1.5,0,0,0],    [1,30,2,1,3,1],    [1,30,2.25,3,5,3],    [1,30,2.27,5,8,5],    [1,30,2.41,8,10,8],    [1,35,1.5,1,5,5],    [1,35,2,3,8,8],    [1,35,2.5,5,10,0],    [1,35,3,8,0,1],    [1,35,2.61,0,3,3],    [1,40,1.5,3,10,1],    [1,40,2,5,0,3],    [1,40,2.5,8,3,5],    [1,40,2.28,0,5,8],    [1,40,3.23,1,8,0],    [1,45,1.5,5,3,8],    [1,45,2,8,5,0],    [1,45,2.5,0,8,1],    [1,45,2.44,1,10,3],    [1,45,2.26,3,0,5],    [1,50,1.5,8,8,3],    [1,50,2,0,10,5],    [1,50,2.17,1,0,8],    [1,50,3,3,3,0],    [1,50,2.82,5,5,1]]#26yArr = [7.55,7.14,7.2,7.05,6.82,6.51,6.73,6.69,6.46,6.75,6.70,6.55,6.3,6.21,6.18,5.97,5.95,5.9,5.5,5.72,5.6,5.62,5.29,5.57,5.30,5.21 ]# print(len(xArr),len(yArr))

3.3 多元线性回归模型

3.3.1 多元线性回归-OLS

这里插一点和题目不相关的东西，像这种有许多X与对应的Y的数据，可以考虑进行多元线性回归

回归代码如下：（最小二乘法）

#最小二乘法 OLSdef standRegres(xArr,yArr):    xMat = mat(xArr)    yMat = mat(yArr).T    xTx = xMat.T*xMat    if linalg.det(xTx) == 0.0: print("This matrix is singular, cannot do inverse") return    ws = xTx.I * (xMat.T*yMat)#     print(ws)    return ws

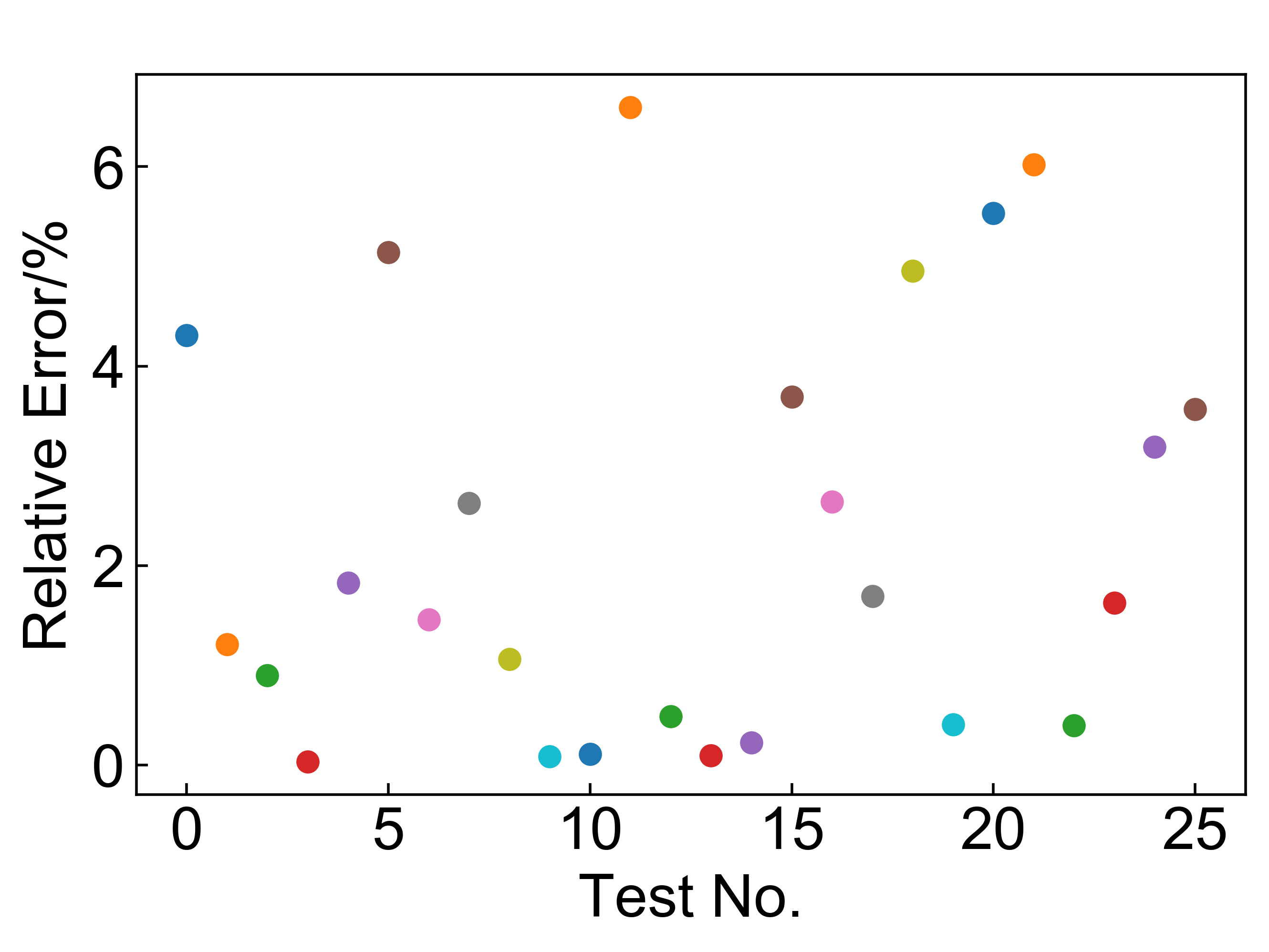

3.3.2 多元线性回归模型预测值相对误差

采用多元线性回归方程对验证每组数据相对误差：

mySum = 0sse = 0yPerList = []#采用全部数据进行训练ws = standRegres(xArr,yArr)   #ws即为方程系数print(ws) for index,x in enumerate(xArr):    yPer = float(x*ws) #yPer即为预测值    yPerList.append(yPer) mySum += abs(yPer-yArr[index])*100    sse = (yPer-yArr[index])2     error = abs(yPer-yArr[index])/yArr[index]*100#相对误差#     print(yArr[index],round(yPer,2),str(round(error,2))+"%")    plt.plot(index,error,"o")plt.title("",fontsize=13) #图片上方留白plt.rc('font',family='Arial')    #设置字体plt.rcParams['xtick.direction'] = 'in'  #刻度线朝内plt.rcParams['ytick.direction'] = 'in'plt.tick_params(labelsize=18)    #刻度大小plt.xlabel("Test No.",fontsize=18)plt.ylabel("Relative Error/%",fontsize=18)plt.savefig("线性回归模型各拟合值相对误差",dpi=500,bbox_inches = 'tight') #dpi-清晰度plt.show()print("SSE=",sse,"平均相对误差=",round(mySum/sum(yArr),2))print(corrcoef(yPerList,yArr)[0][1])

效果：

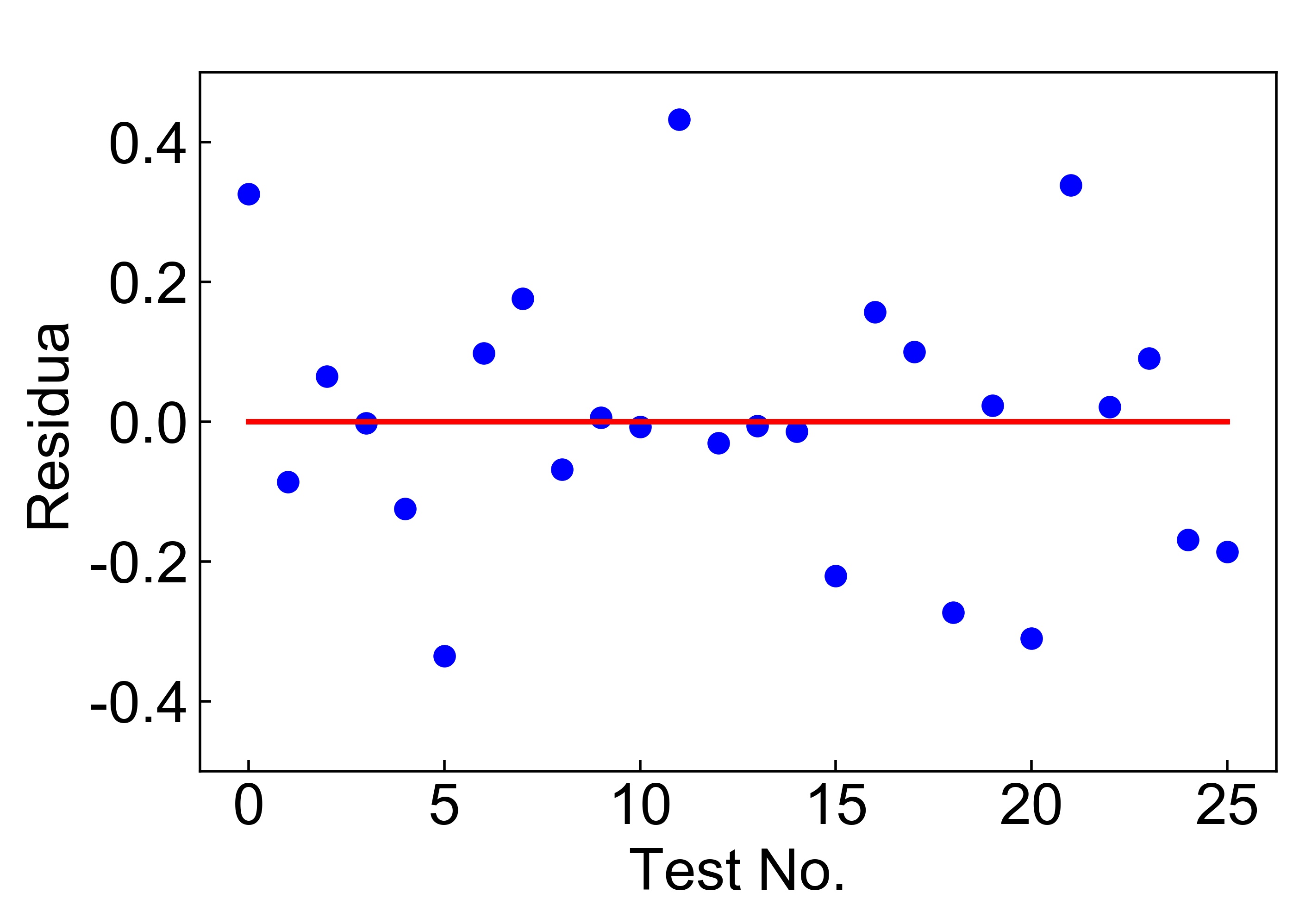

3.3.3 残差图

相关代码：

#残差图mySum = 0sse = 0yPerList = []#采用全部数据进行训练ws = standRegres(xArr,yArr)# print(ws)for index,x in enumerate(xArr):    yPer = float(x*ws)    residua = yArr[index] - yPer    plt.plot(index,residua,"bo")    x = np.linspace(0,25,100)    plt.plot(x,np.zeros(len(x)),"r")plt.title("     ",fontsize=13)plt.rcParams['xtick.direction'] = 'in'plt.rcParams['ytick.direction'] = 'in'plt.rc('font',family='Arial')plt.tick_params(labelsize=18)plt.xlabel("Test No.",fontsize=18)plt.ylabel("Residua",fontsize=18)plt.ylim((-0.5, 0.5))plt.savefig("残差图.jpg",dpi=500,bbox_inches = 'tight')plt.show()

效果：

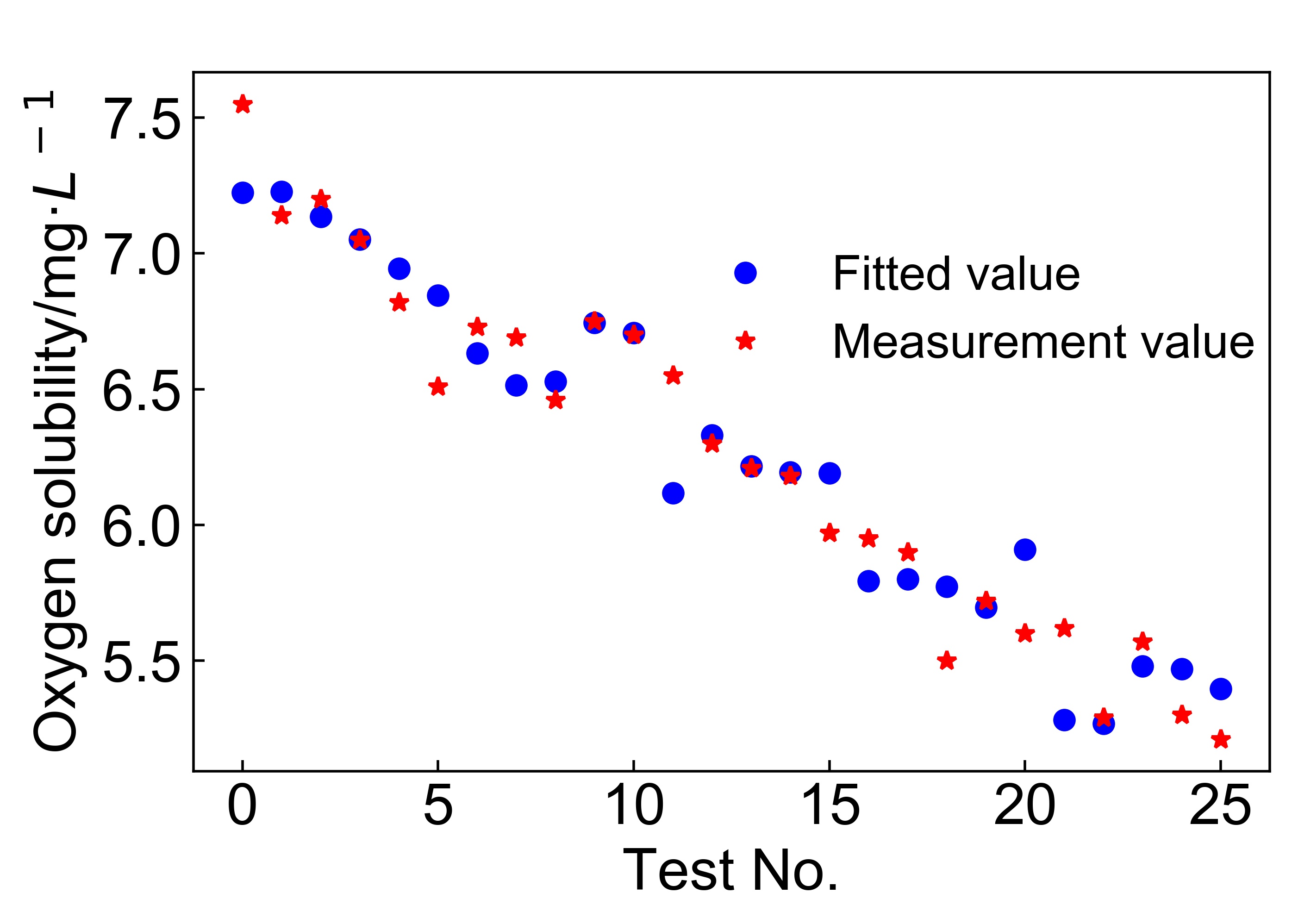

3.3.4 预测值与真实值分布图

相关代码：

#分布图mySum = 0sse = 0yPerList = []#采用全部数据进行训练ws = standRegres(xArr,yArr)# print(ws)for index,x in enumerate(xArr):    yPer = float(x*ws)    yPerList.append(yPer)plt.plot(list(range(len(xArr))),yPerList,"bo",label="Fitted value")plt.plot(list(range(len(xArr))),yArr,"r*",label="Measurement value")plt.title("  ",fontsize=13)plt.rc('font',family='Arial')plt.rcParams['xtick.direction'] = 'in'plt.rcParams['ytick.direction'] = 'in'plt.tick_params(labelsize=18)plt.legend(framealpha=0,loc=(0.45, 0.55),fontsize=15)plt.xlabel("Test No.",fontsize=18)plt.ylabel("Oxygen solubility/mg·${{L^-}^1}$",fontsize=18)plt.savefig("分布图.jpg",dpi=500,bbox_inches = 'tight')plt.show()

效果：

四、代码-响应曲面

4.1 高斯消元

相关代码：

#最小二乘法曲面拟合def fun(x):     round(x, 2)    if x >= 0: return '+'+str(x)    else: return str(x)def get_res(X, Y, Z, n):    # 求方程系数    sigma_x = 0    for i in X: sigma_x += i    sigma_y = 0    for i in Y: sigma_y += i    sigma_z = 0    for i in Z: sigma_z += i    sigma_x2 = 0    for i in X: sigma_x2 += i * i    sigma_y2 = 0    for i in Y: sigma_y2 += i * i    sigma_x3 = 0    for i in X: sigma_x3 += i * i * i    sigma_y3 = 0    for i in Y: sigma_y3 += i * i * i    sigma_x4 = 0    for i in X: sigma_x4 += i * i * i * i    sigma_y4 = 0    for i in Y: sigma_y4 += i * i * i * i    sigma_x_y = 0    for i in range(n): sigma_x_y += X[i] * Y[i]    # print(sigma_xy)    sigma_x_y2 = 0    for i in range(n): sigma_x_y2 += X[i] * Y[i] * Y[i]    sigma_x_y3 = 0    for i in range(n): sigma_x_y3 += X[i] * Y[i] * Y[i] * Y[i]    sigma_x2_y = 0    for i in range(n): sigma_x2_y += X[i] * X[i] * Y[i]    sigma_x2_y2 = 0    for i in range(n): sigma_x2_y2 += X[i] * X[i] * Y[i] * Y[i]    sigma_x3_y = 0    for i in range(n): sigma_x3_y += X[i] * X[i] * X[i] * Y[i]    sigma_z_x2 = 0    for i in range(n): sigma_z_x2 += Z[i] * X[i] * X[i]    sigma_z_y2 = 0    for i in range(n): sigma_z_y2 += Z[i] * Y[i] * Y[i]    sigma_z_x_y = 0    for i in range(n): sigma_z_x_y += Z[i] * X[i] * Y[i]    sigma_z_x = 0    for i in range(n): sigma_z_x += Z[i] * X[i]    sigma_z_y = 0    for i in range(n): sigma_z_y += Z[i] * Y[i]    # print("-----------------------")    # 给出对应方程的矩阵形式    a = np.array([[sigma_x4, sigma_x3_y, sigma_x2_y2, sigma_x3, sigma_x2_y, sigma_x2],    [sigma_x3_y, sigma_x2_y2, sigma_x_y3, sigma_x2_y, sigma_x_y2, sigma_x_y],    [sigma_x2_y2, sigma_x_y3, sigma_y4, sigma_x_y2, sigma_y3, sigma_y2],    [sigma_x3, sigma_x2_y, sigma_x_y2, sigma_x2, sigma_x_y, sigma_x],    [sigma_x2_y, sigma_x_y2, sigma_y3, sigma_x_y, sigma_y2, sigma_y],    [sigma_x2, sigma_x_y, sigma_y2, sigma_x, sigma_y, n]])    b = np.array([sigma_z_x2, sigma_z_x_y, sigma_z_y2, sigma_z_x, sigma_z_y, sigma_z])    # 高斯消元解线性方程    res = np.linalg.solve(a, b)    return reslabelName = ["Oxygen solubility/mg·${{L^-}^1}$",     "T/$^\circ$C",     "pH",     "c(${{Fe^2}^+}$)/g·${{L^-}^1}$",     "c(${{Cu^2}^+}$)/g·${{L^-}^1}$",     "c(${{Fe^3}^+}$)/g·${{L^-}^1}$",]print(labelName)

4.2 响应曲面绘制代码

绘图的核心代码在这里，感兴趣的自己研究研究吧

变量res的系数就是用4.1节的高斯消元算法生成的系数

def matching_3D(X, Y, Z,xLabelIndex,yLabelIndex,name,arg1=37,arg2=-72):    n = len(X)    res = get_res(X, Y, Z, n)    # 输出方程形式    print("z=%.6s*x^2%.6s*xy%.6s*y^2%.6s*x%.6s*y%.6s" % (    fun(res[0]), fun(res[1]), fun(res[2]), fun(res[3]), fun(res[4]), fun(res[5])))    # 画曲面图和离散点    fig = plt.figure()  # 建立一个空间    ax = fig.add_subplot(111, projection='3d')  # 3D坐标    xgrid = np.linspace(min(X),max(X),100)    ygrid = np.linspace(min(Y),max(Y),100)    x,y = np.meshgrid(xgrid,ygrid) # 给出方程    z = res[0] * x * x + res[1] * x * y + res[2] * y * y + res[3] * x + res[4] * y + res[5]    # 画出曲面    sp = ax.plot_surface(x, y, z, rstride=3, cstride=3, cmap=cm.jet)    ax.contourf(x,y,z,zdir='z',offset=5,cmap = plt.get_cmap('rainbow'))    # 画出点    ax.scatter(X, Y, Z, c='r',label="实测点",alpha=0)     plt.rc('font',family='Arial')    plt.xlabel(labelName[xLabelIndex])    plt.xticks(rotation=30,fontsize=9)    plt.ylabel(labelName[yLabelIndex])    ax.set_zlabel(labelName[0])    #     show_text(ax)#     ax.legend()    fig.colorbar(sp)    ax.view_init(elev=arg1, azim=arg2)    plt.rcParams['xtick.direction'] = 'in'    plt.rcParams['ytick.direction'] = 'in'    plt.savefig(name,dpi=500,bbox_inches = 'tight')    fig.show()

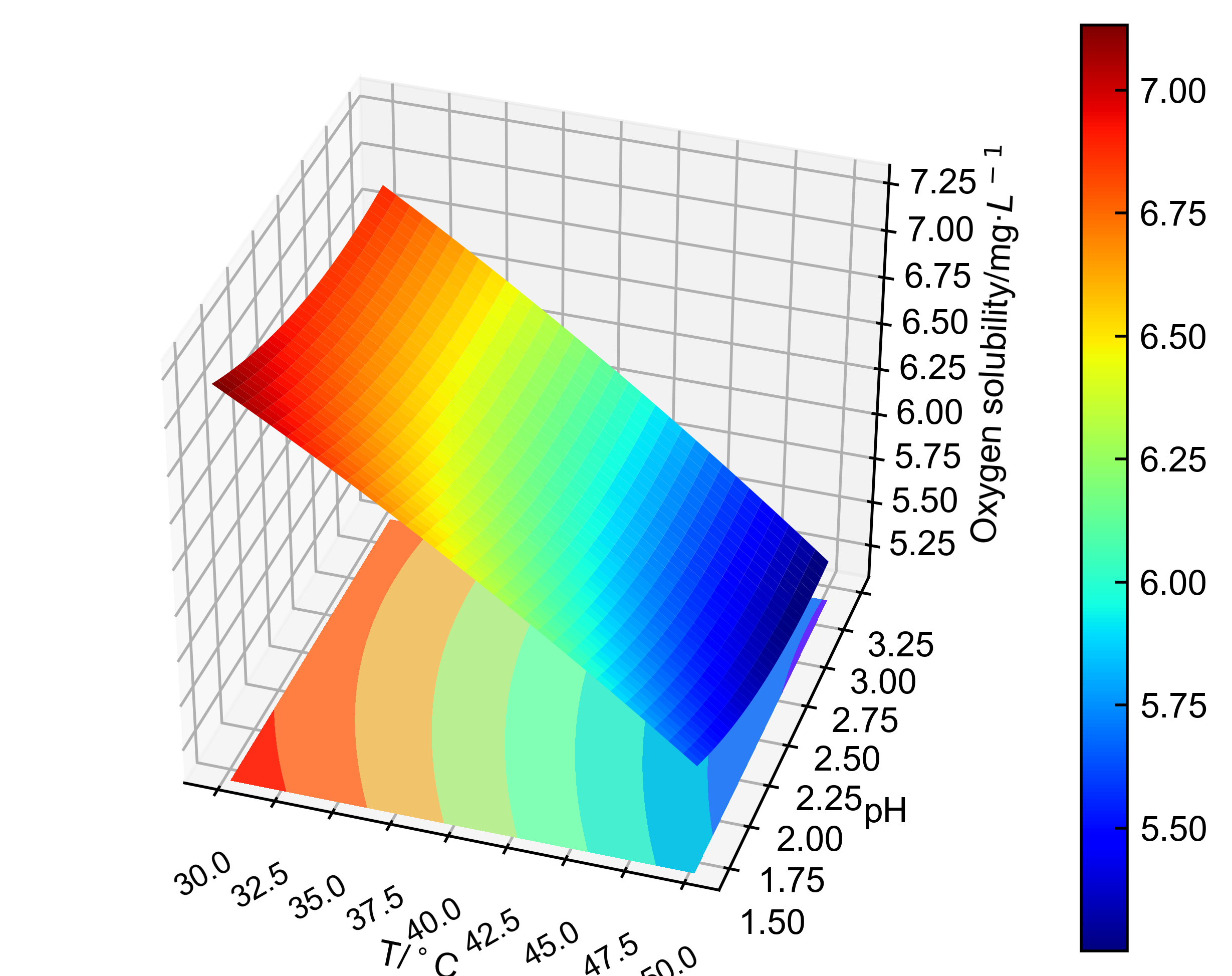

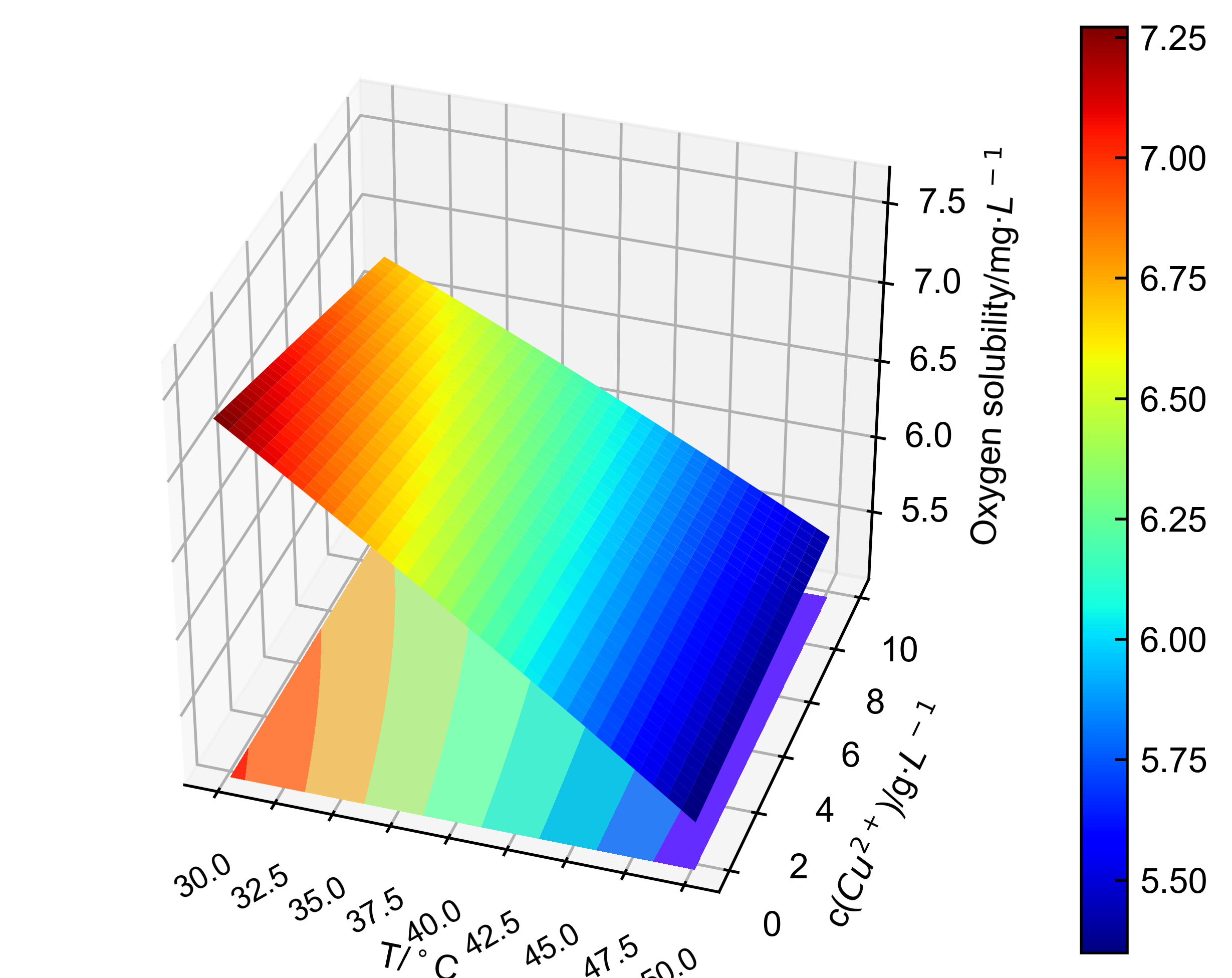

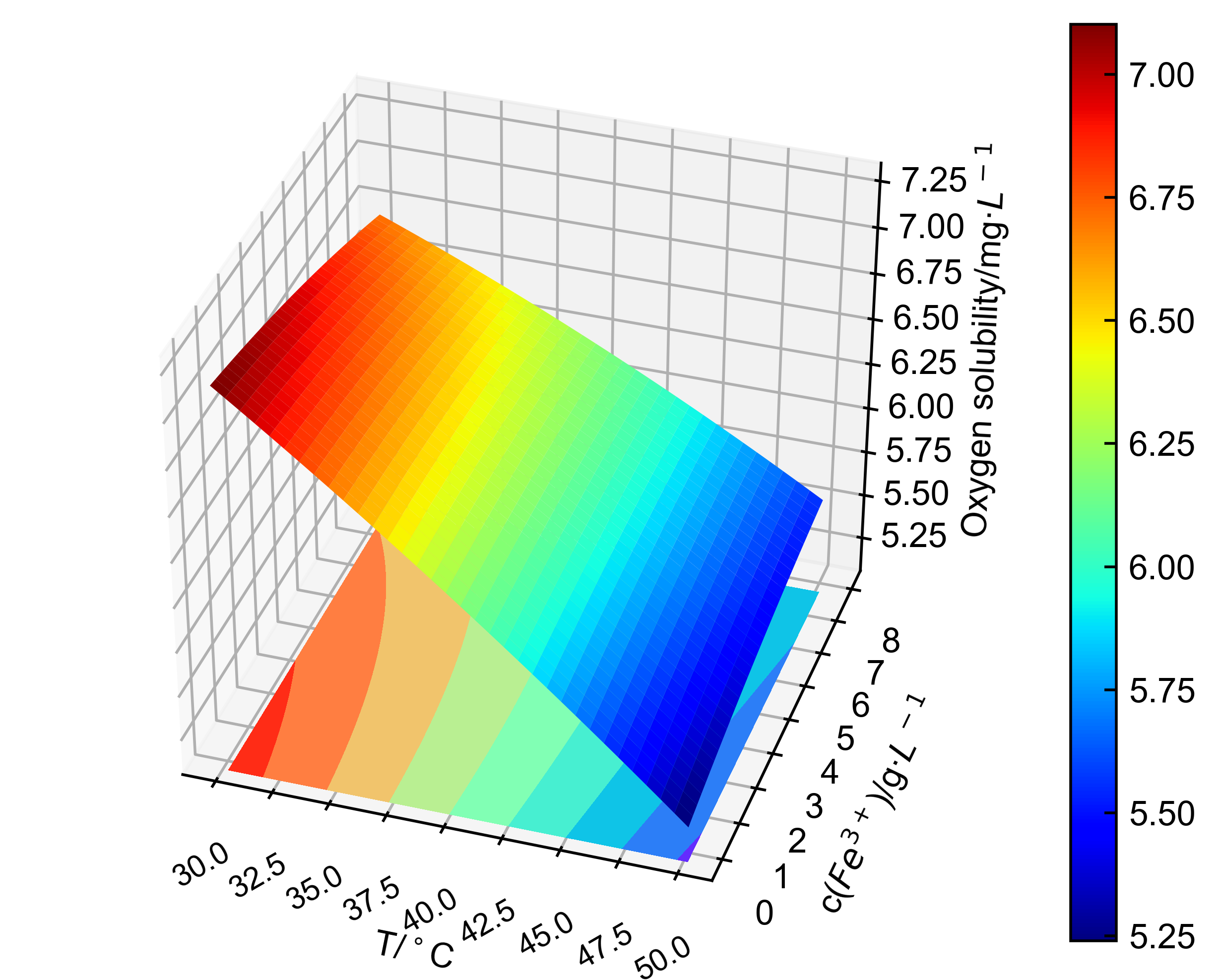

4.3 调用matching_3D绘制响应曲面

代码：

和4.2节matching_3D的参数对照看：

X与Y为自变量列表-分别为X轴与Y轴

yArr为因变量-Z轴坐标

1、4即为对应4.1节中labelName列表对应的名字 ，用于自动生成响应的坐标名称

T-cu2+即为保存的图片文件名

37，-72用于调整图片视角

%matplotlib notebookX = []Y = []for x,y in zip(xArrMat[:,1],xArrMat[:,4]):    X.append(float(x))    Y.append(float(y))matching_3D(X,Y,yArr,1,4,"T-cu2+曲面图",37,-72)

效果：
