EdgeX Foundry -- Geneva版本 -- 设备服务


day4 device-sdk-go 1.4.0

设备服务

  1. 连接设备,管理一类设备,实现与设备的直接交互。这些设备所支持的操作都必须在设备服务中用代码实现,故虽然说设备服务一般是按通信协议来分类,但并不是说只要使用此种协议的设备都可以连接,还需要将设备所支持的操作在设备服务的代码中实现;
  2. 上传设备配置文件到metadata、上传设备数据到core-data
  3. AutoEvent,设备服务中也可添加如scheduler模块的功能;
  4. 设备发现。。。todo!

源码分析

下面以device-sdk-go/example中的设备服务来分析设备服务的启动过程!

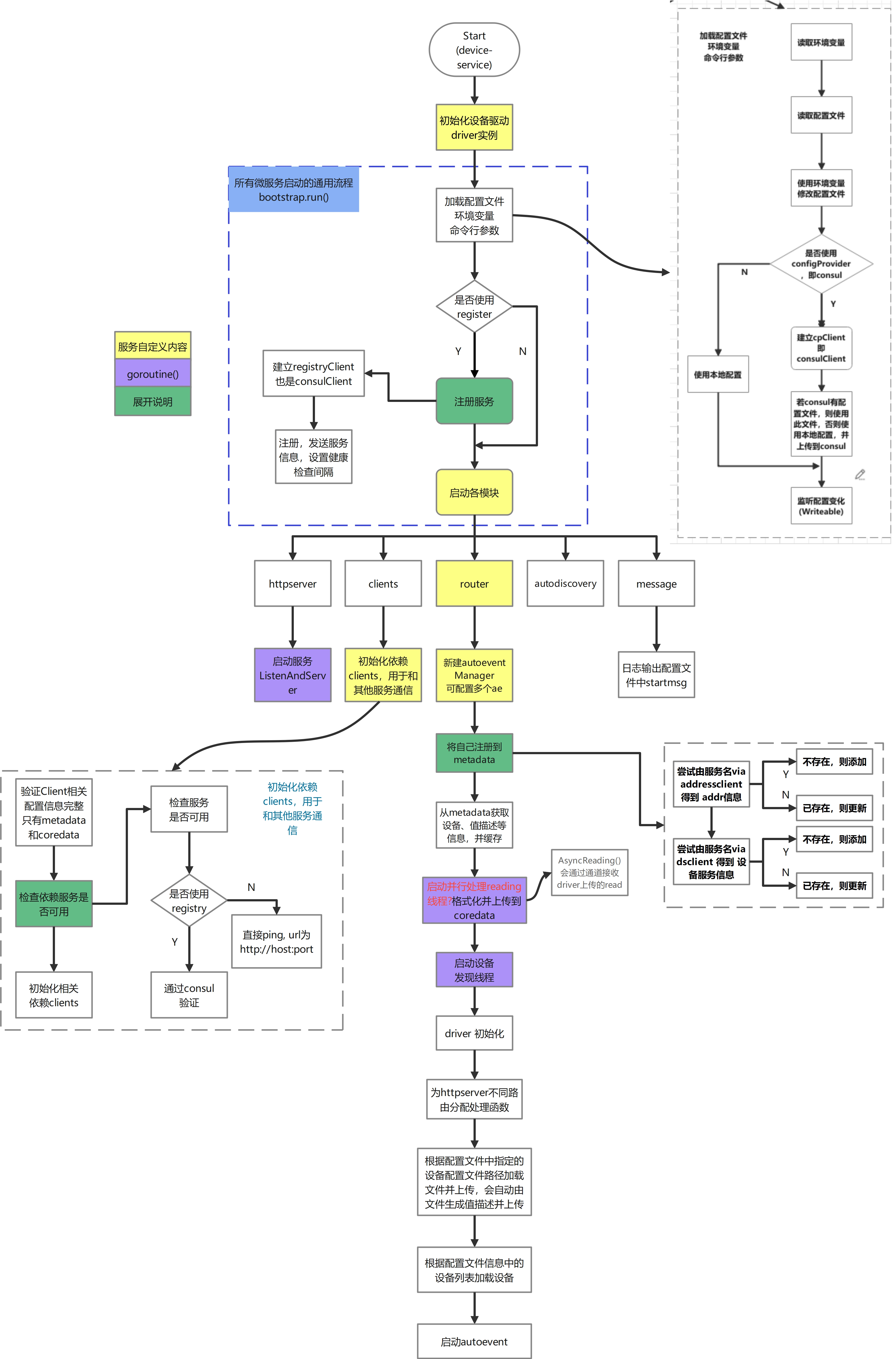

启动过程

在这里插入图片描述

依赖服务

设备服务的依赖服务有metadatacoredata两个服务,通过metadata获取相关设备信息,以及将相关信息上传到metadata;将设备上传的数据发送到coredata; 而与这两个微服务通信也是通过rest请求的方式进行,这里将不同的请求根据地址(url)分成了不同的client。如:

metadata

  • AddressableClient: host:port/api/v1/addressable
  • DeviceClient: host:port/api/v1/device
  • DeviceServiceClient: host:port/api/v1/deviceservice
  • DeviceProfileClient: host:port/api/v1/deviceprofile
  • ProvisionWatcherClient: host:port/api/v1/provisionwatcher
  • GeneralClient: host:port

coredata

  • EventClient: host:port/api/v1/event
  • ValueDescriptorClient: host:port/api/v1/valuedescriptor

coredata API说明
metadata API说明

通过ping来检测服务健康状况见下方api /v1/ping

工作流程

设备服务启动后,主要有3个协程:

  • httpserver
  • reading处理
  • autoevent
  • 设备发现

HttpServer

HttpServer 处理的事情可通过api查看,device-sdk的API列表见此。

  • /v1/callback 设备服务在初始化时会将设备的有关信息缓存到本地,若metadata中保存的信息发生了变化,如新增加了一个设备、设备信息发生了变化、某一个设备信息被删除了,metadata就会分别通过POST, PUT, DELETE方法调用此API
  • /v1/ping 用于检查此设备服务是否可用;每个服务都有这个,上面流程图中检测依赖服务是否可用时,可通过ping的方式,即用此API
  • /v1/metrics 返回服务的metrics(用于评估当前服务状态相关链接);
  • /v1/device/name/{name}/{command} 通过设备名、命令获取对应值或设置设备的资源等。

Reading处理

配置文件中有两个参数与reading处理有关,一是EnableAsyncReadings是否使用异步处理reading,二是AsyncBufferSize缓冲通道的长度。

如其他Client给设备服务的Server发送请求,以api /v1/device/name/{name}/{command}请求特定设备的特定资源值,Server 对此请求的响应是通过driver获取该设备的数据(driver的返回值是下面的 CommandValue类型)。此时的数据是比较原始的,可能是数值、字符串、binary等等,它的结构如下

// AsyncValues is the struct for sending Device readings asynchronously via ProtocolDriverstype AsyncValues struct {DeviceName    stringCommandValues []*CommandValue}// CommandValue is the struct to represent the reading value of a Get command coming// from ProtocolDrivers or the parameter of a Put command sending to ProtocolDrivers.type CommandValue struct {// DeviceResourceName is the name of Device Resource for this commandDeviceResourceName string// Origin is an int64 value which indicates the time the reading// contained in the CommandValue was read by the ProtocolDriver instance.Origin int64// Type is a ValueType value which indicates what type of// value was returned from the ProtocolDriver instance in response to // HandleCommand being called to handle a single ResourceOperation.Type ValueType// NumericValue is a byte slice with a maximum capacity of 64 bytes, used to hold // a numeric value returned by a ProtocolDriver instance. The value can be converted to// its native type by referring to the the value of ResType.NumericValue []byte// stringValue is a string value returned as a value by a ProtocolDriver instance.stringValue string// BinValue is a binary value with a maximum capacity of 16 MB,// used to hold binary values returned by a ProtocolDriver instance.BinValue []byte}

可以看到,数据的结构中有3种类型的数据,数值类型、字符串、binary,如果设备上传的资源值是数值或字符串,则使用此结构中对应的类型即可。而若资源是图片、音频等负责数据,则直接以二进制的方式存储。此结构中还有一个参数Type标明了上传的资源的类型(String, bool, binary, Uint{8,16,32,64}, Int{8,16,32,64}, float32, float64),它会用于后续对值进行转换(上面的结构中,数值是以[]byte的形式存储的,转换后就是Type标明的类型的变量。将此结果写入reading,组成Event上传到coredata )。资源值为数值、字符串以外的类型,都是以binary的形式存储的,而Type也只是说明了他是 binary类型,那如何得知此binary到底是图片还是音频等具体类型呢?这里用到了设备配置文件!获取特定资源时,需要指定资源名,而设备配置文件中,设备资源的描述中,Value下有一个参数为 mediatype=“JPG”。也就是说,只需要查找设备配置文件就可知道具体资源的媒体类型了。

  • 由driver得到的值可能有多个 CommandValue,对每一个值分别进行如下处理:
    • 若配置文件中Device.DataTransformTrue,则会对CommandValue进行Transform(String, Bool, Binary类型不处理)
    • 先转换得到对应的类型的数据value, newvalue,在按设备配置文件中的设置对newvalue进行变换(左移、缩放、掩码等等)
    • 若newvalue != value,则用newvalue 的[]byte 值替换原来的 commandValue中的NumericValue。

所以、Transform的作用就是将实际driver读取结果按设备配置文件中的配置进行偏移、缩放等变换。

然后,将CommandValue转换为reading,这里只设置参数 Name(资源名), Device(设备名), ValueType(值类型),以及

reading := common.CommandValueToReading(cv, device.Name, dr.Properties.Value.MediaType, dr.Properties.Value.FloatEncoding)if cv.Type == dsModels.Binary {reading.BinaryValue = cv.BinValuereading.MediaType = mediaType} else if cv.Type == dsModels.Float32 || cv.Type == dsModels.Float64 {reading.Value = cv.ValueToString(encoding)reading.FloatEncoding = encoding} else {reading.Value = cv.ValueToString(encoding)}// if value has a non-zero Origin, use itif cv.Origin > 0 {reading.Origin = cv.Origin} else {reading.Origin = time.Now().UnixNano()}
type Reading struct {Id     string `json:"id,omitempty" codec:"id,omitempty"`Pushed int64  `json:"pushed,omitempty" codec:"pushed,omitempty"`   // When the data was pushed out of EdgeX (0 - not pushed yet)Createdint64  `json:"created,omitempty" codec:"created,omitempty"` // When the reading was createdOrigin int64  `json:"origin,omitempty" codec:"origin,omitempty"`Modified      int64  `json:"modified,omitempty" codec:"modified,omitempty"`Device string `json:"device,omitempty" codec:"device,omitempty"`Name   string `json:"name,omitempty" codec:"name,omitempty"`Value  string `json:"value,omitempty" codec:"value,omitempty"` // Device sensor data valueValueType     string `json:"valueType,omitempty" codec:"valueType,omitempty"`FloatEncoding string `json:"floatEncoding,omitempty" codec:"floatEncoding,omitempty"`// BinaryValue binary data payload. This information is not persisted in the Database and is expected to be empty// when retrieving a Reading for the ValueType of Binary.BinaryValue []byte `json:"binaryValue,omitempty" codec:"binaryValue,omitempty"`MediaType   string `json:"mediaType,omitempty" codec:"mediaType,omitempty"`isValidated bool   // internal member used for validation check}

debug 级别的日志下,每得到一个reading,会输出reading的类型和值(非binary)

扯远了,上面说到

若配置文件中EnableAsyncReadingstrue,则会启动一个协程,用于处理从设备上收集来的数据。

  • 数据类型:

autoevent

autoevent只能读资源,并不能写。

todo1: event除了上传到coredata,会在本地缓存吗?api介绍中有说:The device service may have cached the latest event/reading for the sensor(s)

todo2: 好像核心命令给设备服务发送请求(特定设备资源)http的反馈信息中也包含了Event,也就是说处理上传给coredata,command也收到了?

todo3: ds.asynch 到底是干什么的?command微服务发送请求给设备服务后,它自己就收集数据,再上传给核心数据了,完全没用到那个asynch!

go 语言中switch语句若没有default、case也不匹配,则会直接跳过了!
