- 样例
- HQChart订单流数据结构
-
- Order
-
- Price
- Ask
- Bid
- HBar
- PriceOffset
- High
- Low
- 数据对接
-
- 全量分钟K线数据
- 全量日K数据
- 更新分钟K线数据
- 更新日K数据
- 订单流切换
- 配色
- 交流QQ群: 950092318
- HQChart代码地址
- 完整例子

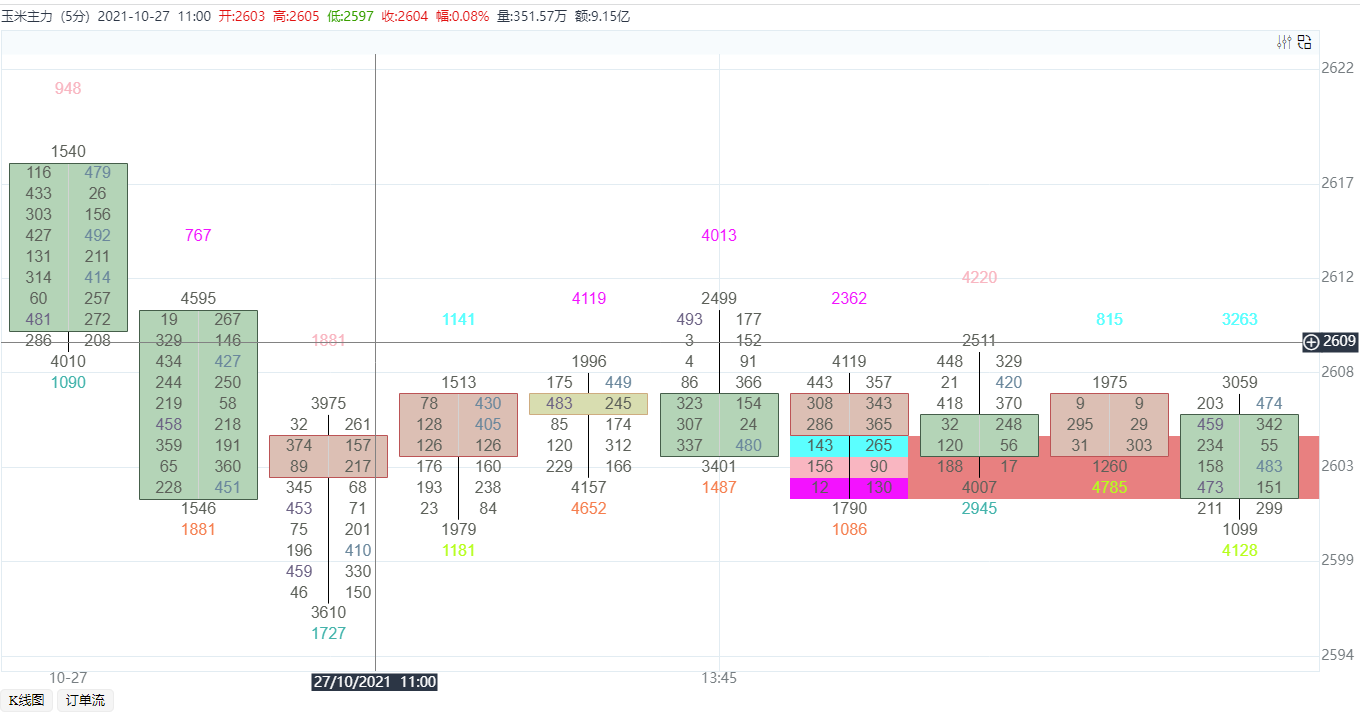

样例
https://opensource2.zealink.com/hqweb/demo/demo_orderflow.html
HQChart订单流数据结构
订单流是单独一个结构体, 1跟K线一个这样的结构体
{ PriceOffset: 每个单元的价格间距, High: [ { Price:, Value:, Text: Color ,Font:{ Weight:}}, ..... ], Low:[ { Price:, Value:, Text: Color , Font:{ Weight:}}, ..... ] , Order: //订单信息 [ { Price:, Ask:{ Color:, Value: , Text:, BG:, Font:{ Weight:} } Bid:{ Color:, Value:, Text:, BG:, Font:{ Weight:} }, HBar:{ Color:, Width, }}, ........ ] }

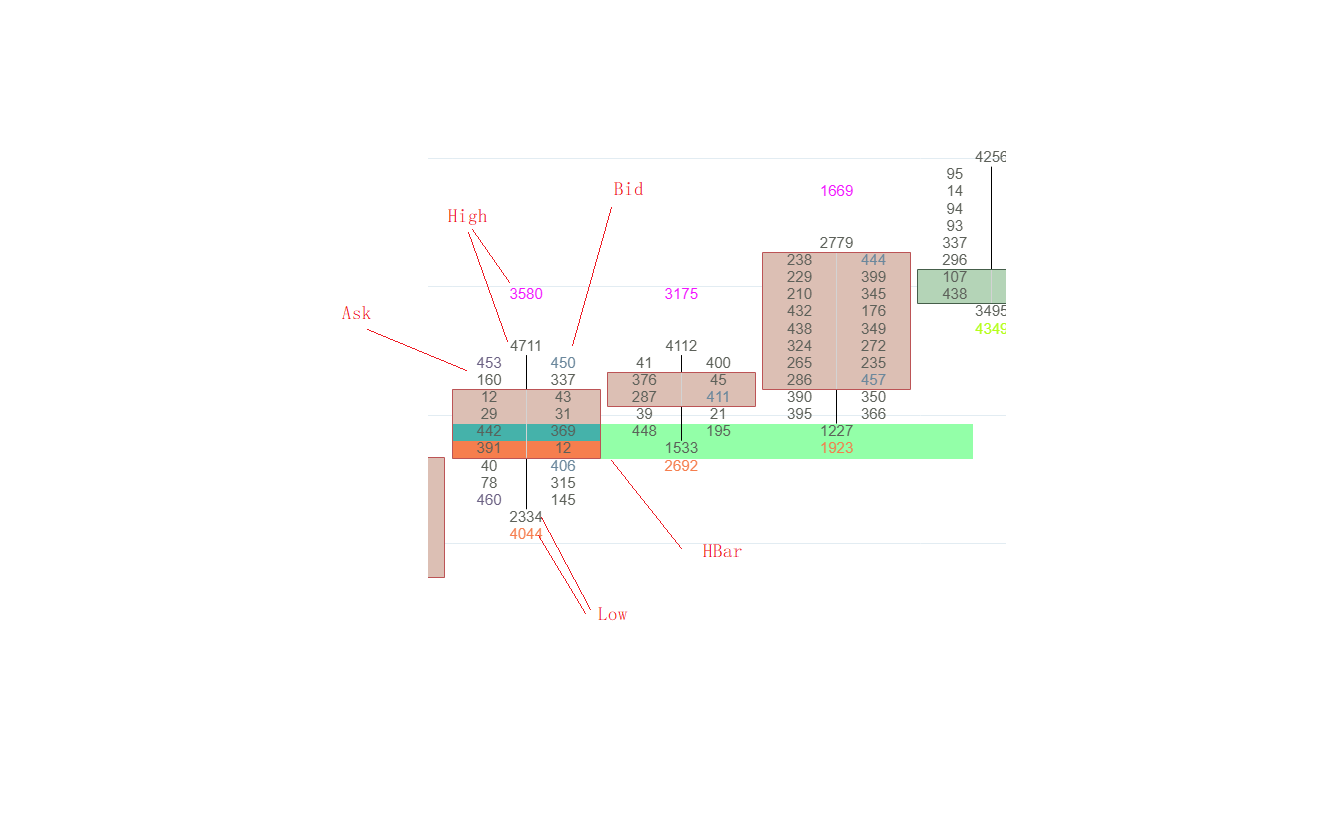

字段对应K线的位置如下
Order
订单信息, 数组, 里面存放每一个价位的买,卖的量
Price
价位
Ask
买量信息 左边
Color:文字颜色
Text: 显示的文字
Value: 买量
BG: 背景色 , 如果为空就不使用背景色
Font: 字体设置, 目前只支持设置 Weight 字体粗细
Bid
卖量的信息 右边
Color:文字颜色
Text: 显示的文字
Value: 卖量
BG: 背景色 , 如果为空就不使用背景色
Font: 字体设置, 目前只支持设置 Weight 字体粗细
HBar
横线往右画的线段
Color 线段颜色
Width 线段长度, 使用K线个数表示长度, 如果5=5个K线的长度
PriceOffset
每个订单价位的间隔
High
K线顶部位置输出信息,可以输出多组文字
Price: 输出的价位
Value 数值
Text: 显示的文字
Color:字体颜色
Font: 字体设置, 目前只支持设置 Weight 字体粗细
Low
K线底部位置输出信息,可以输出多组文字
Price: 输出的价位
Value 数值
Text: 显示的文字
Color:字体颜色
Font: 字体设置, 目前只支持设置 Weight 字体粗细
数据对接
订单流是通过K线数据协议过来的。 即下面4个协议
HQChart使用教程30-K线图如何对接第3方数据2-日K数据
HQChart使用教程30-K线图如何对接第3方数据3-1分钟K数据
HQChart使用教程30-K线图如何对接第3方数据14-轮询增量更新日K数据
HQChart使用教程30-K线图如何对接第3方数据15-轮询增量更新1分钟K线数据

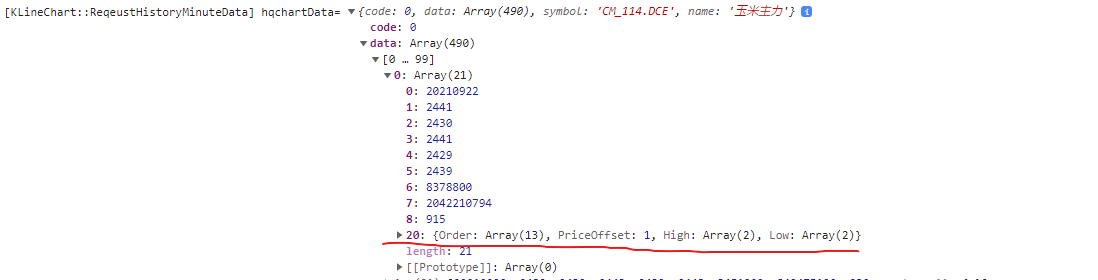

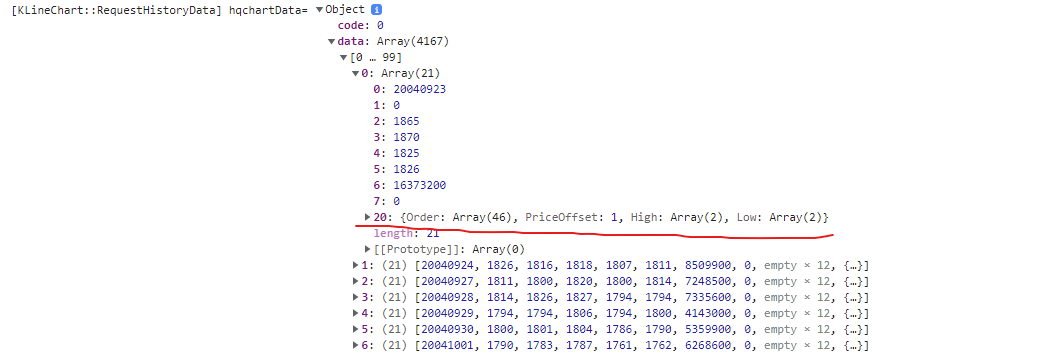

全量分钟K线数据
回调的 data.Request.Data.klineDrawType 当前k线类型, (5=订单流 0=实心K线柱子 1=收盘价线 2=美国线 3=空心K线柱子)
每个K线项第20的索引位置是保存订单流的
data:[ [… 20=订单流数据 ], …]
全量日K数据
回调的 data.Request.Data.klineDrawType 当前k线类型, (5=订单流 0=实心K线柱子 1=收盘价线 2=美国线 3=空心K线柱子)
每个K线项第20的索引位置是保存订单流的
data:[ [… 20=订单流数据 ], …]

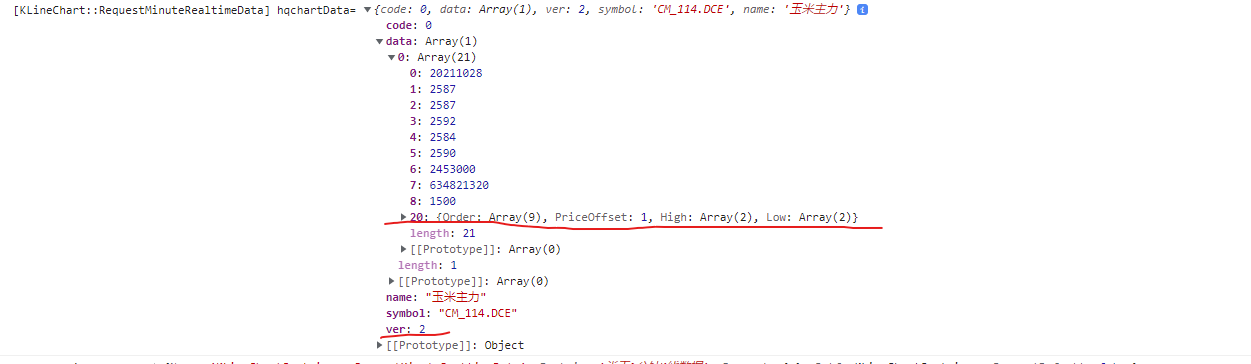

更新分钟K线数据
回调的 data.Request.Data.klineDrawType 当前k线类型, (5=订单流 0=实心K线柱子 1=收盘价线 2=美国线 3=空心K线柱子)
ver:2 数据版本为2.0的才支持
每个K线项第20的索引位置是保存订单流的
data:[ [… 20=订单流数据 ], …]

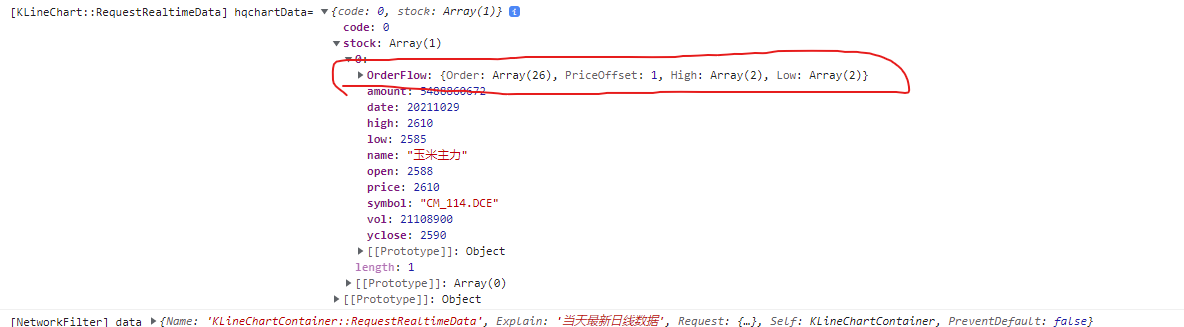

更新日K数据
回调的 data.Request.Data.klineDrawType 当前k线类型, (5=订单流 0=实心K线柱子 1=收盘价线 2=美国线 3=空心K线柱子)
stock [ { … OrderFlow:{} } ]
订单流切换
ChangeKLineDrawType(type)
切换K线类型 5=订单流 0=实心K线柱子 1=收盘价线 2=美国线 3=空心K线柱子
从其他K线类型切换到订单流, 或订单流切换到其他K线类型,都会触发数据的重新请求。
配色
如何修改配色详见教程 HQChart使用教程4- 如何自定义K线图颜色风格
一下是订单流K线配色
/// 全局配置颜色////function JSChartResource(){ ............//订单流配置 this.OrderFlow= { UpColor:{BG:'rgb(223,191,180)', Border:"rgb(196,84,86)" }, //阳线 DownColor:{ BG:"rgb(176,212,184)", Border:'rgb(66,94,74)' }, //阴线 UnchagneColor: {BG:"rgb(216,221,177)", Border:"rgb(209,172,129)"}, //平盘 Text:{ Color: "rgb(92,96,89)" , Family:'Arial', FontMaxSize:16, MaxValue:"8888" }, //文字 Line:{ UpDownColor: "rgb(0,0,0)", MiddleColor:"rgb(211,211,211)" }, //最大, 最低,中间 竖线 AlwaysShowOrderText:true, //总是显示订单流文字 }; ..........
交流QQ群: 950092318
如果还有问题可以加交流QQ群: 950092318
HQChart代码地址
地址:github.com/jones2000/HQChart
完整例子
