CGAL——孔洞填充

• 效果展示
• 代码

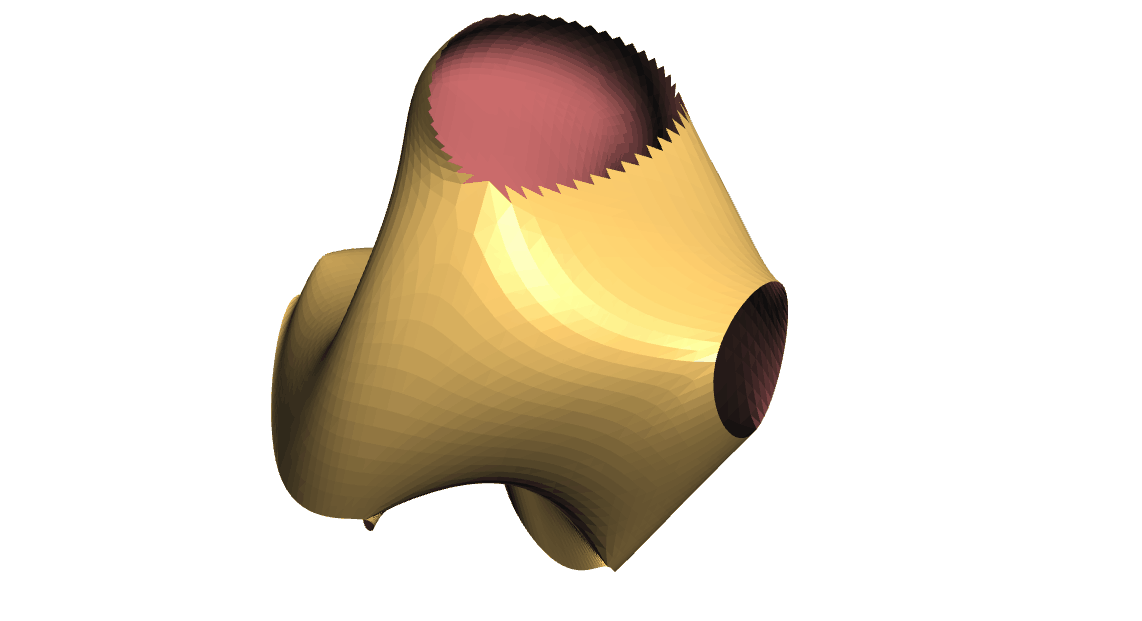

效果展示

Easy3D显示

代码

#include #include #include #include #include #include #include #include #include #include typedef CGAL::Exact_predicates_inexact_constructions_kernel Kernel;typedef Kernel::Point_3  Point;typedef CGAL::Surface_mesh<Point>      Mesh;typedef boost::graph_traits<Mesh>::vertex_descriptor vertex_descriptor;typedef boost::graph_traits<Mesh>::halfedge_descriptor      halfedge_descriptor;typedef boost::graph_traits<Mesh>::face_descriptor   face_descriptor;namespace PMP = CGAL::Polygon_mesh_processing;bool is_small_hole(halfedge_descriptor h, Mesh& mesh,    double max_hole_diam, int max_num_hole_edges){    int num_hole_edges = 0;    CGAL::Bbox_3 hole_bbox;    for (halfedge_descriptor hc : CGAL::halfedges_around_face(h, mesh))    { const Point& p = mesh.point(target(hc, mesh)); hole_bbox += p.bbox(); ++num_hole_edges; // Exit early, to avoid unnecessary traversal of large holes if (num_hole_edges > max_num_hole_edges) return false; if (hole_bbox.xmax() - hole_bbox.xmin() > max_hole_diam) return false; if (hole_bbox.ymax() - hole_bbox.ymin() > max_hole_diam) return false; if (hole_bbox.zmax() - hole_bbox.zmin() > max_hole_diam) return false;    }    return true;}// Incrementally fill the holes that are no larger than given diameter// and with no more than a given number of edges (if specified).int main(int argc, char* argv[]){    //读取网格数据    const std::string filename = (argc > 1) ? argv[1] : CGAL::data_file_path("data/mech-holes-shark.off");    Mesh mesh;    if (!PMP::IO::read_polygon_mesh(filename, mesh))    { std::cerr << "Invalid input." << std::endl; return 1;    }    // 参数设置    double max_hole_diam = (argc > 2) ? boost::lexical_cast<double>(argv[2]) : -1.0;    int max_num_hole_edges = (argc > 3) ? boost::lexical_cast<int>(argv[3]) : -1;    unsigned int nb_holes = 0;    std::vector<halfedge_descriptor> border_cycles; //孔洞填充    PMP::extract_boundary_cycles(mesh, std::back_inserter(border_cycles));    for (halfedge_descriptor h : border_cycles)    { if (max_hole_diam > 0 && max_num_hole_edges > 0 && !is_small_hole(h, mesh, max_hole_diam, max_num_hole_edges))     continue; std::vector<face_descriptor>  patch_facets; std::vector<vertex_descriptor> patch_vertices; bool success = std::get<0>(PMP::triangulate_refine_and_fair_hole(mesh, h,std::back_inserter(patch_facets),std::back_inserter(patch_vertices))); std::cout << "* Number of facets in constructed patch: " << patch_facets.size() << std::endl; std::cout << "  Number of vertices in constructed patch: " << patch_vertices.size() << std::endl; std::cout << "  Is fairing successful: " << success << std::endl; ++nb_holes;    }    std::cout << nb_holes << " 孔洞填充完毕" << std::endl;    //保存网格    CGAL::IO::write_polygon_mesh("filled_SM.off", mesh, CGAL::parameters::stream_precision(17));    return 0;}
