本人曾负责开发风扇灯产品,故将射频解码的算法和程序进行总结,以便日后学习完善,也与大家分享。射频模块与MM32的通信协议为类似于EV1527的协议,每帧发送32位数据,前20位为地址码,接着4位为相应的操作码,最后一个字节的高4位为动作码,协议最后1位为同步位,为0。下图为1527协议的编码方式。

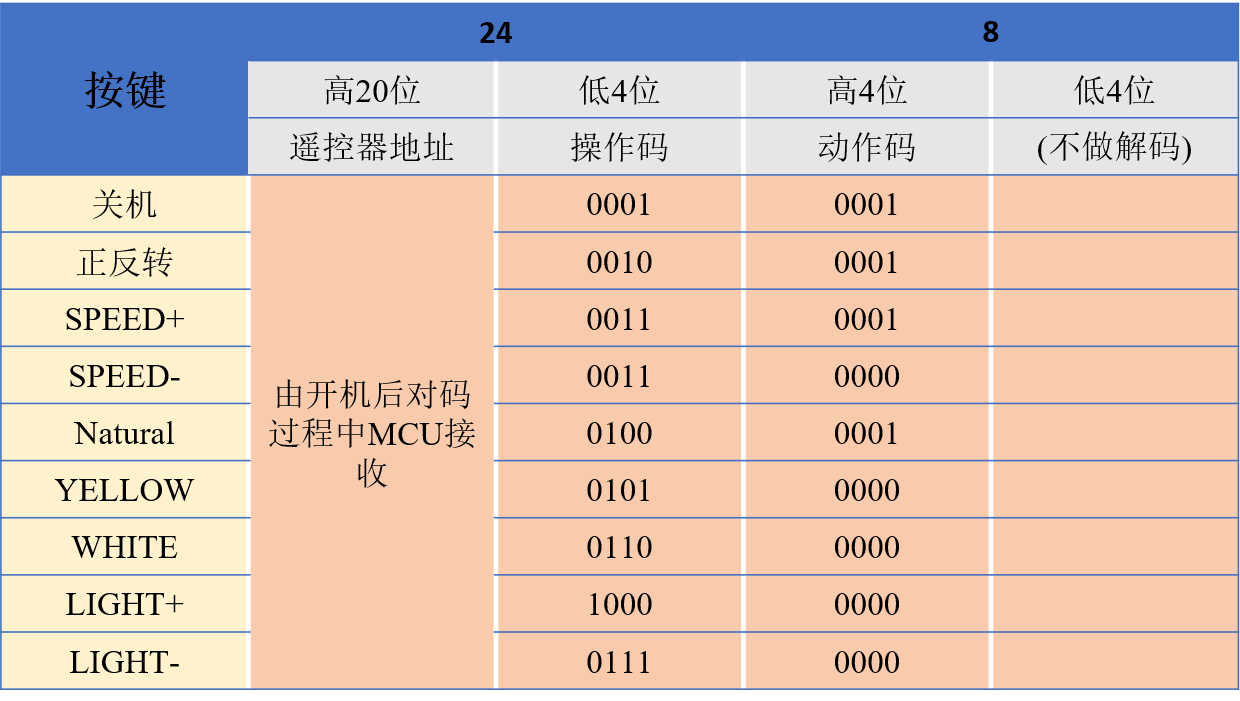

下表为定义的产品遥控码格式。产品具备冷暖灯及调光功能,风扇的正反转,以及APP的Wifi控制。
射频解码程序如下,经过检验,稳定可靠,完成产品级别的交付。
