ESP32-CAM + micropython学习笔记

×：还没做，但是存在的功能
√：已做

文章目录

• ESP32-CAM + micropython学习笔记
• • micropython
  • esp32-cam硬件配置
  • webrepl | √
  • 外置PSRAM | ×
  • SD卡 | √
  • 热点+WiFi | √
  • • 连接WiFi
    • 开启热点
  • 网络编程 | ...
  • 服务器 | √
  • 蓝牙 | √
  • 摄像头 | ×
  • 多线程 | √
  • • 创建线程
    • 线程同步
  • esp32与外设
  • • SSD1306 | √
    • SR04 | √
  • esp32与微信小程序(局域网) | √
  • 连接贝壳互联
  • • 1. 设备->用户 | 图表方式实时查看传感器数据
  • 自建模块 | √

micropython

micropython简称mpy，是python的片上版本

MicroPython是在ESP-IDF之上实现的，Espressif是ESP32开发框架。
这是一个基于FreeRTOS的系统。

(Arduino和AT也都是基于ESP-IDF的)

其库名一般会在原来python的名字前加一个u以区别，比如pip->upip

mpy的启动顺序：
_boot.py【不可见】
boot.py【由系统创建，可见，但不建议修改】
main.py【由用户创建，开机自动运行的代码放这】

固件版本：micropython1.14

固件下载地址：https://micropython.org/download/

micropython1.14文档：http://docs.micropython.org/en/v1.14/

esp32-cam硬件配置

主频支持 80 MHz、160 MHz和 240MHz。micropython默认设置160MHz。
支持蓝牙，wifi，AP，内存卡
支持ov2640，ov7260摄像头

更多相关信息查看安信可，ESP32-S模组【非乐鑫模组】

webrepl | √

repl：交互式解释器
webrepl：无线的repl

开启后可以传文件，与micropython交互

开这个的教程有很多，可以直接点这个https://www.jianshu.com/p/c2ddd4fd05be

【原版的显示有点问题，这是我改动过的版本】
链接：https://pan.baidu.com/s/1Ai7UAa8_k_KAX2-dDl4QWg
提取码：8ud1

外置PSRAM | ×

PSRAM：伪SRAM，如果要使用的话对芯片别的功能会产生一些影响

暂时不需要，略

SD卡 | √

SD卡驱动模式有两种，一是SPI，二是SD
ESP32-CAM上自带的是SD模式

SD BUS

物理层定义：
D0-D3 数据传送
CMD 进行CMD 和Respons 【工作状态】
CLK 时钟信号线了
VDD VSS 电源和地

参考：https://blog.csdn.net/zqixiao_09/article/details/51039378

使用SD卡前，需要先将SD卡格式化【直接按照默认来亦可】

加载内存卡

import machine, ossd = machine.SDCard(slot=1)  # esp32-cam使用存储卡是卡槽1os.mount(sd, "/sd")  # 安装os.listdir('/sd')   # 查看SD卡目录os.umount('/sd')     # 弹出

micropython os模块介绍
https://blog.csdn.net/gene8888/article/details/89599910

热点+WiFi | √

连接WiFi

import networkimport timeimport machinessid='RUNOOB'password='123456789'wlan=network.WLAN(network.STA_IF)wlan.active(True)wlan.connect(ssid,password)i=0led=machine.Pin(4,machine.Pin.OUT)led.value(0)while(wlan.ifconfig()[0]=='0.0.0.0' and i < 30):    i=i+1    time.sleep(0.5)    if(wlan.ifconfig()[0]=='0.0.0.0'): print('connect Wifi False!')    else: print('connect Wifi True!')# 连接成功则点亮小灯 print(wlan.ifconfig()) led.value(1) time.sleep(0.5) led.value(0)

开启热点

网络编程 | …

有空再写

服务器 | √

先安装所需的库文件

import upipupip.install('picoweb')

# 来自picoweb官方的例程## This is a picoweb example showing a centralized web page route# specification (classical Django style).#import ure as reimport picowebdef index(req, resp):    # You can construct an HTTP response completely yourself, having    # a full control of headers sent...    # HTTP响应头    yield from resp.awrite("HTTP/1.0 200 OK\r\n")    yield from resp.awrite("Content-Type: text/html\r\n")    yield from resp.awrite("\r\n")    yield from resp.awrite("I can show you a table of squares.
")    yield from resp.awrite("Or my source.")def squares(req, resp):    # Or can use a convenience function start_response() (see its source for    # extra params it takes).    # 发送后台渲染好的模板，依赖utemplate库    # 我没试成功，utemplate库出了点问题，错误OSError: [Errno 2] ENOENT    yield from picoweb.start_response(resp)    yield from app.render_template(resp, "squares.tpl", (req,))def hello(req, resp):    yield from picoweb.start_response(resp)    # Here's how you extract matched groups from a regex URI match    yield from resp.awrite("Hello " + req.url_match.group(1))# 路由表ROUTES = [    # You can specify exact URI string matches...    ("/", index),    ("/squares", squares),    ("/file", lambda req, resp: (yield from app.sendfile(resp, "example_webapp.py"))),    # ... or match using a regex, the match result available as req.url_match    # for match group extraction in your view.    (re.compile("^/iam/(.+)"), hello),]# 还可以使用这种形式@app.route("/test")def test(req, resp):    yield from picoweb.start_response(resp)    yield from resp.awrite("This is webapp #1")import ulogging as logginglogging.basicConfig(level=logging.INFO)#logging.basicConfig(level=logging.DEBUG)app = picoweb.WebApp(None, ROUTES)# debug values:# -1 disable all logging# 0 (False) normal logging: requests and errors# 1 (True) debug logging# 2 extra debug loggingapp.run(host='0.0.0.0', port=80, debug=1)

更多例子：https://github.com/pfalcon/picoweb/tree/master/examples

如果上面的例子调通比较难，试试我这个简单的

import ure as reimport picowebdef index(req, resp):    # 用来方便的生成响应头    yield from picoweb.start_response(resp)    # 网页内容    yield from resp.awrite("""
     Yes, you did it.
          """)def hello(req, resp):    yield from picoweb.start_response(resp)    yield from resp.awrite("
Hello, balbala...
")# 路由表ROUTES = [    ("/", index),    ("/hello", hello),]# 日志import ulogging as logginglogging.basicConfig(level=logging.INFO)# 启动服务器app = picoweb.WebApp(None, ROUTES)app.run(host='0.0.0.0', port=80, debug=True)

蓝牙 | √

参考文章：https://blog.csdn.net/jd3096/article/details/121945129

官方的蓝牙模块还在开发中，没那么好用，以下代码来自上面的文章【2022.01】

BLE.py

import bluetoothimport structimport timefrom micropython import const#ble常量设置，不用动_IRQ_CENTRAL_CONNECT = const(1)_IRQ_CENTRAL_DISCONNECT = const(2)_IRQ_GATTS_WRITE = const(3)_FLAG_READ = const(0x0002)_FLAG_WRITE_NO_RESPONSE = const(0x0004)_FLAG_WRITE = const(0x0008)_FLAG_NOTIFY = const(0x0010)_ADV_TYPE_FLAGS = const(0x01)_ADV_TYPE_NAME = const(0x09)_ADV_TYPE_UUID16_COMPLETE = const(0x3)_ADV_TYPE_UUID32_COMPLETE = const(0x5)_ADV_TYPE_UUID128_COMPLETE = const(0x7)_ADV_TYPE_UUID16_MORE = const(0x2)_ADV_TYPE_UUID32_MORE = const(0x4)_ADV_TYPE_UUID128_MORE = const(0x6)_ADV_TYPE_APPEARANCE = const(0x19)#服务注册部分_UART_UUID = bluetooth.UUID("6E400001-B5A3-F393-E0A9-E50E24DCCA9E")_UART_TX = (    bluetooth.UUID("6E400003-B5A3-F393-E0A9-E50E24DCCA9E"),    _FLAG_READ | _FLAG_NOTIFY,)_UART_RX = (    bluetooth.UUID("6E400002-B5A3-F393-E0A9-E50E24DCCA9E"),    _FLAG_WRITE | _FLAG_WRITE_NO_RESPONSE,)_UART_SERVICE = (    _UART_UUID,    (_UART_TX, _UART_RX),)#广播函数def advertising_payload(limited_disc=False, br_edr=False, name=None, services=None, appearance=0):    payload = bytearray()    def _append(adv_type, value): nonlocal payload payload += struct.pack("BB", len(value) + 1, adv_type) + value    _append( _ADV_TYPE_FLAGS, struct.pack("B", (0x01 if limited_disc else 0x02) + (0x18 if br_edr else 0x04)),    )    if name: _append(_ADV_TYPE_NAME, name)    if services: for uuid in services:     b = bytes(uuid)     if len(b) == 2:  _append(_ADV_TYPE_UUID16_COMPLETE, b)     elif len(b) == 4:  _append(_ADV_TYPE_UUID32_COMPLETE, b)     elif len(b) == 16:  _append(_ADV_TYPE_UUID128_COMPLETE, b)    if appearance: _append(_ADV_TYPE_APPEARANCE, struct.pack("<h", appearance))    return payload    #BLE类class BLESimplePeripheral:    def __init__(self, ble, name="esp32"):    #ble名称 self._ble = ble self._ble.active(True) self._ble.irq(self._irq) ((self._handle_tx, self._handle_rx),) = self._ble.gatts_register_services((_UART_SERVICE,)) self._connections = set() self._write_callback = None self._payload = advertising_payload(name=name) self._advertise()    def _irq(self, event, data): if event == _IRQ_CENTRAL_CONNECT:     conn_handle, _, _ = data     print("New connection", conn_handle)     self._connections.add(conn_handle)     self._advertise() elif event == _IRQ_CENTRAL_DISCONNECT:     conn_handle, _, _ = data     print("Disconnected", conn_handle)     self._connections.remove(conn_handle)     self._advertise() elif event == _IRQ_GATTS_WRITE:     conn_handle, value_handle = data     value = self._ble.gatts_read(value_handle)     if value_handle == self._handle_rx and self._write_callback:  self._write_callback(value)    def send(self, data): for conn_handle in self._connections:     self._ble.gatts_write(21, data) def notify(self, data): for conn_handle in self._connections:     self._ble.gatts_notify(conn_handle,21,data)    def is_connected(self): return len(self._connections) > 0    def _advertise(self, interval_us=500000): print("Starting advertising") self._ble.gap_advertise(interval_us, adv_data=self._payload)    def on_write(self, callback): self._write_callback = callback

BLE_demo.py 蓝牙调试程序，从机

import BLEimport bluetoothimport utime#新建ble对象b = bluetooth.BLE()#导入类p = BLE.BLESimplePeripheral(b)#查看mac地址，能正常显示mac地址就是创建广播成功aa=b.config('mac')print('mac地址为')print(aa)#接受数据函数def on_rx(v):    print(v)    print("Receive_data:", str(v))p.on_write(on_rx)while 1:    if p.is_connected(): p.notify('ble data form mpy')   #发送数据（以通知形式）    utime.sleep_ms(300)    #运行之后打开手机ble助手，连接即可，默认id：esp32，可在ble.py中更改

更多例子看：https://github.com/micropython/micropython/tree/master/examples/bluetooth
_
注：esp32只有一个天线，网上搜了一下，关于蓝牙和wifi的说法很多，有说蓝牙和WiFi可以同时打开，但会干扰的。我不清楚，但同时打开确实是没问题的，好不好用就不知道了。

摄像头 | ×

待定

摄像头arduino里有很多现成的库，实现更容易

多线程 | √

参考：_thread库介绍

创建线程

import _threaddef func(arg1:int, arg2:int)->None:print(arg1+arg2)args = (1,2)_thread.start_new_thread(func, args)# def start_new_thread(function: Callable[..., Any], args: tuple[Any, ...], kwargs: dict[str, Any] = ...) -> int: ...# func -> 线程要执行的函数# args -> 函数必要的参数，格式：(arg1, arg2, ...)# kwargs -> 使用字典来指定有名参数# func和args不能为空，当不需要参数时，让args=()# NOTE: 只有线程执行结束和遇到错误才会停下来

线程同步

只需要一个锁时

import _threadlock = _thread.allocate_lock()# 创建一个锁对象lock.acquire() # 阻塞...lock.release() # 释放

创建多个锁时

import _threadwaitflag1 = 1waitflag2 = 2lock = _thread.allocate_lock()# 创建一个锁对象lock.acquire(1) # 阻塞...lock.release(1) # 释放lock.acquire(2) # 阻塞...lock.release(2) # 释放

• 其他：设置阻塞超时，查看锁的状态，中断，查看线程内存占用

esp32与外设

SSD1306 | √

esp32的引脚本身就很少，因此oled我用的是四脚的，即I2C通信方式。
micropython自带的machine模块是包含该通信协议的，可直接调用

# 创建一个i2c对象，接线已在代码中给出i2c = machine.SoftI2C(scl = machine.Pin(16), sda = machine.Pin(0), freq = 50000)

接下来调用ssd1306模块

from ssd1306 import SSD1306_I2Coled = SSD1306_I2C(128, 64, i2c)#0.96寸有128x64个像素点oled.text("Hello World!",0,0)oled.show()

关于ssd1306库：从github上下的，稍微改进了一下，很容易看懂
https://github.com/adafruit/micropython-adafruit-ssd1306

# MicroPython SSD1306 OLED driver, I2C and SPI interfaces# 2022年2月27日import timeimport framebuf# register definitionsSET_CONTRAST = const(0x81)SET_ENTIRE_ON= const(0xa4)SET_NORM_INV = const(0xa6)SET_DISP     = const(0xae)SET_MEM_ADDR = const(0x20)SET_COL_ADDR = const(0x21)SET_PAGE_ADDR= const(0x22)SET_DISP_START_LINE = const(0x40)SET_SEG_REMAP= const(0xa0)SET_MUX_RATIO= const(0xa8)SET_COM_OUT_DIR     = const(0xc0)SET_DISP_OFFSET     = const(0xd3)SET_COM_PIN_CFG     = const(0xda)SET_DISP_CLK_DIV    = const(0xd5)SET_PRECHARGE= const(0xd9)SET_VCOM_DESEL      = const(0xdb)SET_CHARGE_PUMP     = const(0x8d)class SSD1306:    def __init__(self, width, height, external_vcc): self.width = width self.height = height self.external_vcc = external_vcc self.pages = self.height // 8 # Note the subclass must initialize self.framebuf to a framebuffer. # This is necessary because the underlying data buffer is different # between I2C and SPI implementations (I2C needs an extra byte). self.poweron() self.init_display()    def init_display(self): for cmd in (     SET_DISP | 0x00, # off     # address setting     SET_MEM_ADDR, 0x00, # horizontal     # resolution and layout     SET_DISP_START_LINE | 0x00,     SET_SEG_REMAP | 0x01, # column addr 127 mapped to SEG0     SET_MUX_RATIO, self.height - 1,     SET_COM_OUT_DIR | 0x08, # scan from COM[N] to COM0     SET_DISP_OFFSET, 0x00,     SET_COM_PIN_CFG, 0x02 if self.height == 32 else 0x12,     # timing and driving scheme     SET_DISP_CLK_DIV, 0x80,     SET_PRECHARGE, 0x22 if self.external_vcc else 0xf1,     SET_VCOM_DESEL, 0x30, # 0.83*Vcc     # display     SET_CONTRAST, 0xff, # maximum     SET_ENTIRE_ON, # output follows RAM contents     SET_NORM_INV, # not inverted     # charge pump     SET_CHARGE_PUMP, 0x10 if self.external_vcc else 0x14,     SET_DISP | 0x01): # on     self.write_cmd(cmd) self.fill(0) self.show()    def poweroff(self): self.write_cmd(SET_DISP | 0x00)    def contrast(self, contrast): self.write_cmd(SET_CONTRAST) self.write_cmd(contrast)    def invert(self, invert): # 全屏转换 # invert->bool self.write_cmd(SET_NORM_INV | (invert & 1))    def show(self): x0 = 0 x1 = self.width - 1 if self.width == 64:     # displays with width of 64 pixels are shifted by 32     x0 += 32     x1 += 32 self.write_cmd(SET_COL_ADDR) self.write_cmd(x0) self.write_cmd(x1) self.write_cmd(SET_PAGE_ADDR) self.write_cmd(0) self.write_cmd(self.pages - 1) self.write_framebuf()    def fill(self, col): # 全屏填充 self.framebuf.fill(col)    def pixel(self, x, y, col): # 设置像素点颜色 self.framebuf.pixel(x, y, col)    def scroll(self, dx, dy): # 屏幕滚动 self.framebuf.scroll(dx, dy)    def text(self, string, x, y, col=1): self.framebuf.text(string, x, y, col)    def clear_line(self, row, col=0): # 清空某一行的显示 # row -> 1-8 self.framebuf.fill_rect(0, row*8-8, 128, 8, col)class SSD1306_I2C(SSD1306):    def __init__(self, width, height, i2c, addr=0x3c, external_vcc=False): self.i2c = i2c self.addr = addr self.temp = bytearray(2) # Add an extra byte to the data buffer to hold an I2C data/command byte # to use hardware-compatible I2C transactions.  A memoryview of the # buffer is used to mask this byte from the framebuffer operations # (without a major memory hit as memoryview doesn't copy to a separate # buffer). self.buffer = bytearray(((height // 8) * width) + 1) self.buffer[0] = 0x40  # Set first byte of data buffer to Co=0, D/C=1 self.framebuf = framebuf.FrameBuffer1(memoryview(self.buffer)[1:], width, height) super().__init__(width, height, external_vcc)    def write_cmd(self, cmd): self.temp[0] = 0x80 # Co=1, D/C#=0 self.temp[1] = cmd self.i2c.writeto(self.addr, self.temp)    def write_framebuf(self): # Blast out the frame buffer using a single I2C transaction to support # hardware I2C interfaces. self.i2c.writeto(self.addr, self.buffer)    def poweron(self): passclass SSD1306_SPI(SSD1306):    def __init__(self, width, height, spi, dc, res, cs, external_vcc=False): self.rate = 10 * 1024 * 1024 dc.init(dc.OUT, value=0) res.init(res.OUT, value=0) cs.init(cs.OUT, value=1) self.spi = spi self.dc = dc self.res = res self.cs = cs self.buffer = bytearray((height // 8) * width) self.framebuf = framebuf.FrameBuffer1(self.buffer, width, height) super().__init__(width, height, external_vcc)    def write_cmd(self, cmd): self.spi.init(baudrate=self.rate, polarity=0, phase=0) self.cs.high() self.dc.low() self.cs.low() self.spi.write(bytearray([cmd])) self.cs.high()    def write_framebuf(self): self.spi.init(baudrate=self.rate, polarity=0, phase=0) self.cs.high() self.dc.high() self.cs.low() self.spi.write(self.buffer) self.cs.high()    def poweron(self): self.res.high() time.sleep_ms(1) self.res.low() time.sleep_ms(10) self.res.high()

SR04 | √

SR04超声波模块，无需第三方库

"""SR04驱动程序2022年3月2日"""from machine import Pinimport timeclass _SR04:    def __init__(self, _trig=1, _echo=3) -> None: # Pin1是TXD，Pin3是RXD self.trig = Pin(_trig, Pin.OUT) self.echo = Pin(_echo, Pin.IN)    def Measure(self, timeout_us=350): # timeout_us：检测的超时时间，亲测350us是不错的选择 self.trig.on() time.sleep_us(10)# 产生宽度10us的高电平脉冲 self.trig.off() t1 = time.ticks_us()    # 等待开始时间 t2 = t1   # 回应开始时间 while (self.echo.value() == 0) and (time.ticks_diff(t2,t1) < timeout_us):     t2 = time.ticks_us() if (self.echo.value() == 1):    # 收到回应，检测回响信号     t1 = time.ticks_us() # 高电平起始时间     t2 = t1# 高电平结束时间     while (self.echo.value() == 1):  t2 = time.ticks_us()    #检测到Echo为高电平后，计时等待Echo为低。     distance_cm = time.ticks_diff(t2,t1)* 34 / 1000 / 2     return distance_cm else: # 检测超时     return 0

esp32与微信小程序(局域网) | √

esp32与微信小程序(局域网) -1

连接贝壳互联

参考

• 贝壳物联平台通讯协议
• 贝壳物联入门

1. 设备->用户 | 图表方式实时查看传感器数据

• 此为自建模块，仅供参考【2022年3月8日】

在这个例子中，实现的是远程获取传感器参数
需要注意的三个参数：设备ID，APIKEY，接口ID

# 连接贝壳物联 Bigiot.py# 日期：2022年3月7日# NOTE:暂未提供关闭线程的办法，也就是说，sendDatas一旦调用，将一直运行下去直到出错# 只是一个demo，存在很多潜在问题import socketimport ujsonimport _threadimport timeclass bigiot:    def __init__(self, ID:str, K:str) -> None: self.host = 'www.bigiot.net' self.port = '8181'      # 该端口表示心跳连接由我方发送 self.connected=False    # 连接状态 self.ID = ID     # 设备ID self.K = K# 设备APIKEY self.maxlen = 1000      # 最大接收长度 self.thread_list = []   # 线程标识符列表 self.lock = _thread.allocate_lock() self.client = socket.socket(socket.AF_INET,socket.SOCK_STREAM) self.client.settimeout(5) self.client.connect((self.host, self.port)) if len(self.client.recv(self.maxlen))>0:     self.connected=True     self._keepOnline()  # 保持设备上线状态     def __del__(self): self.client.close()    def __str__(self) -> str: e = {'ID':self.ID, 'APIKEY':self.K, 'port':8181, 'isconnected':self.connected} return str(e)    def login(self)->bool: # 设备登陆贝壳物联 data = {     'M':"checkin",     'ID':self.ID,     'K':self.K, } rec = self.sendData(data) if rec['M']=='checkinok':     return True else:     return False    def alter(self, info:str): # 发送报警信息 data = {     "M":"alert",     "ID":self.ID,     "C":info     } rec = self.sendData(data)    def _keepOnline(self)-> None: # 发送心跳包 self.sendDatas({'M':'beat'}, 40)    def sendData(self, data:dict, re=True)-> dict: # 发送数据 data = ujson.dumps(data)+'\n' self.lock.acquire() self.client.send(data.encode()) if re:     data = ujson.loads(self.client.recv(self.maxlen))     self.lock.release()     return data else:     self.lock.release()     return {}    def RTData(self, id1:str, value1)->dict: # 发送实时数据套用这个格式 data = {     "M": "u",     "ID": self.ID,     "V": {id1:value1}     } return data     def sendDatas(self, dataSource:function or dict, period_s:float)-> None: # 定时发送数据 # NOTE: period_s最小5s，小于5会被贝壳默认为5 if type(dataSource)!=dict:     # 发送动态数据     ident = _thread.start_new_thread(self._fun,(dataSource, period_s)) else:     # 发送静态数据     ident = _thread.start_new_thread(self._dict,(dataSource, period_s)) self.thread_list.append(ident)    def _fun(self, dataSource:function, period:float)->None: while 1:     self.sendData(dataSource(), re=False)     time.sleep(period)    def _dict(self, dataSource:dict, period:float)->None: while 1:     self.sendData(dataSource, re=False)     time.sleep(period)    def threadList(self) -> dict: # 查询线程状态 pass

• Bigiot.py的调用，以超声波传感器sr04为例

Note: 切勿直接复制代码，看懂怎么用就行

from Bigiot import bigiotdev_ID = "xxx" # 设备IDAPIKEY = "xxx" # APIKEYbi = bigiot(dev_ID, APIKEY)sr_id = 'xxx' # 接口IDdef getSr04Data() -> dict: return bi.RTData(sr_id, sr.Measure(400)) # 将数据包装一下再返回if bi.connected:    if bi.login(): bi.sendDatas(getSr04Data, 5)# 持续发送数据，数据从getSr04Data中取出，间隔5s发送一次 print('login sucess')    else: print('login failed')else:    print('connect to bigiot failed')

• 实现效果

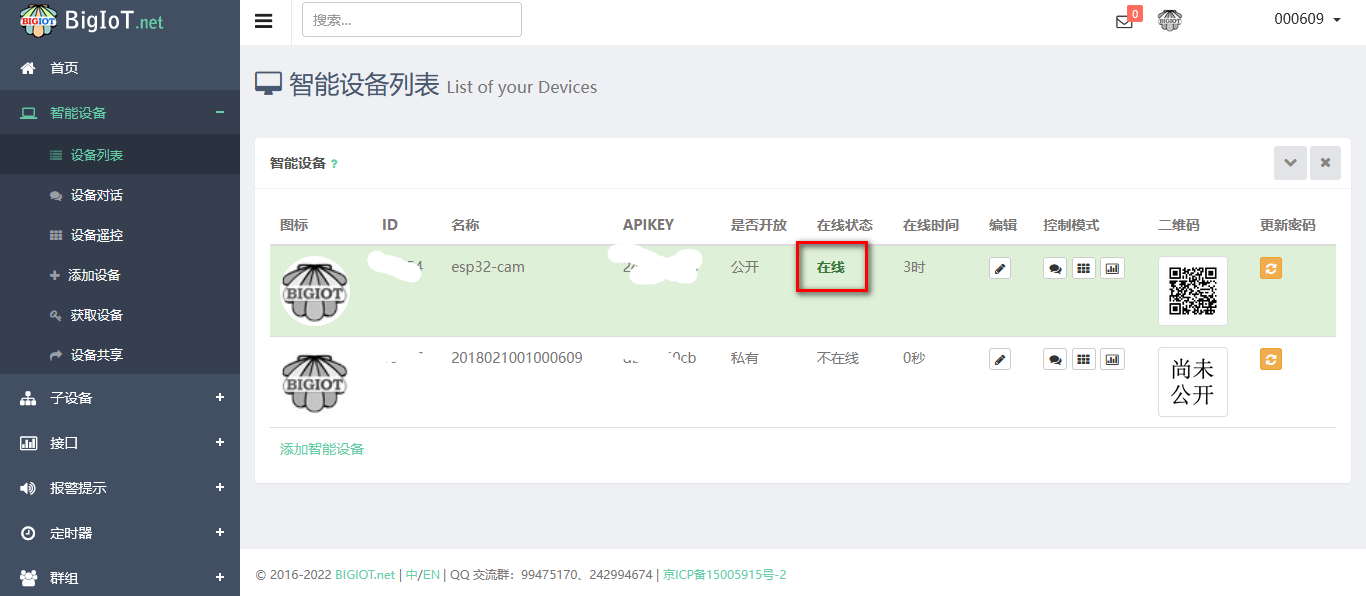

打开设备列表，可以看见设备已经在线了

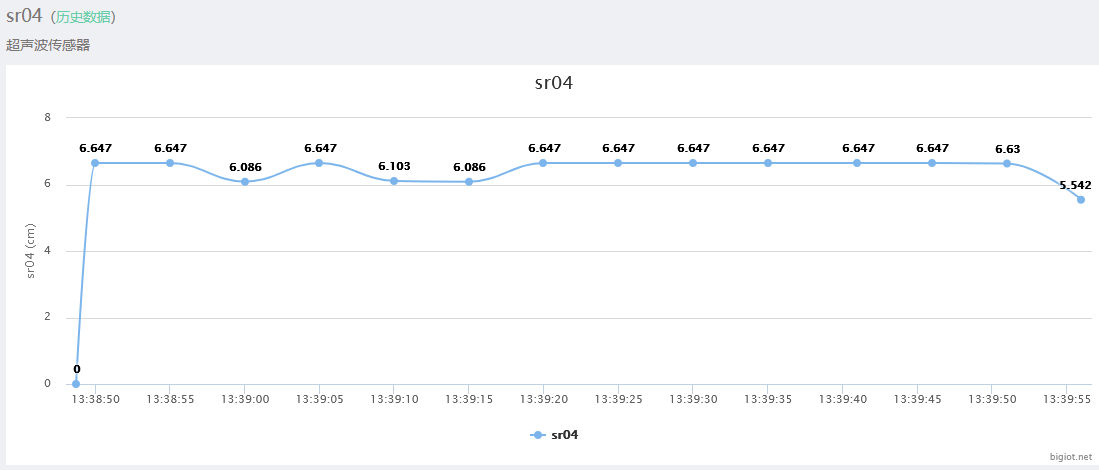

点击控制模式-图表，成功看到数据

自建模块 | √

补充一点小东西

import osimport micropythonimport machine# micropython自带的os.rmdir()只能删除空文件夹，不太方便，这补一个删除任意文件夹的def del_dir(dir_name):    for item in os.listdir(dir_name): if '.' in item:     os.remove(dir_name+'/'+item) else:     del_dir(dir_name+'/'+item)    os.rmdir(dir_name)# 查看一些系统的基本信息def sys_info(wlan=None):    print('\n') print('')    print(machine.freq())    print('\n')    print('')    if 'sd' in os.listdir('/'): print(os.statvfs('/sd'))    else: print('no SDCard!')    print('\n')    print('')    print(micropython.mem_info())    print('\n')    if wlan is not None: print('') print(wlan.ifconfig()) print('\n')
