mangopi R3--Allwinner F1C200S一步到位编译法
文章目录
- 前言
-
- 介绍
- 规格
- 芯片优缺点
- MangoPi的Buildroot一键编译
-
- 第一次编译
- 应用默认配置
- 常规编译
-
- 如果更改了 DTS 或 kenrel 构建
- 如果更改了 Uboot,则构建
- 加快构建进度
- 刷固件
- Windows下失败了,转战Linux下烧录
- Linux下烧录
-
- 使用sunxi-tools
- 安装putty
-
- 在ubuntu上找串口号
- 擦除
- 开始烧录
兜兜转转还是玩上了MangoPi-R3!因为是ARM9的芯片内核架构,所以总觉得过时了的,至少也要整个ARM-A7的架构芯片。
前言
https://mangopi.cc/f1c_mainline
https://wiki.dfrobot.com/MangoPi_R3_SKU_DFR0780
介绍
这款微型开发板专为运行 Linux 而设计。尽管机身很小,但它具有所有重要功能。板载F1C200S作为主控芯片,提供多种常用外设端口:GPIO、I2C&SPI、SDIO、Audio port(record,play), Video(RGB565 Display, touch, DVP), USB Host, OTG等. 此外,板卡内置64MB DDR和板载128MB Nand Flash,全面支持Linux生态,运行完整的Python。
目前该产品是完全开源的,用户可以根据自己的需求编译任意模块。但是,它主要面向 Python 开发人员和高级爱好者,因为它上手有点困难。
规格
芯片型号 | F1C100S | F1C200S | F1C500S | F1C600 |
---|---|---|---|---|
内存 | SIP 32MB DDR1 | 64MB DDR1 | 128MB DDR1 | 256MB DDR1 |
- QFN88封装(10x10mm)
- 板载 128MB Nand Flash
- ARM926EJ-S内核,420MHz系统时钟默认频率,可超频至700MHz及以上
- 丰富的 GPIO 引脚
- 板载 SDIO 接口,用于连接 SD 卡或 SDIO WiFi + BT 模块
- DVP摄像头接口,支持OV2640、GC0328等摄像头。
- RGB565显示接口和6线触摸接口
- 板载麦克风和功率放大器
- 低功耗
- 支持完整的Python运行
芯片优缺点
- 缺点:主频过低,内核太古老(ARM9)
- 优点:便宜,内置DDR,资料丰富(老芯片的优势)
MangoPi的Buildroot一键编译
地址:https://github.com/mangopi-sbc/buildroot-mangopi-r
安装软件包
sudo apt install rsync wget unzip build-essential git bc swig libncurses-dev libpython3-dev libssl-devsudo apt install python3-distutils
下载BSP包
git clone https://github.com/mangopi-sbc/buildroot-mangopi-r
第一次编译
注意:构建固件不需要 Root 权限。
应用默认配置
注意:应用 defconfig 会将所有 buildroot 配置重置为默认值。
通常,您只需要应用一次。
cd buildroot-mangopi-rmake widora_mangopi_r3_defconfig
常规编译
make -j16
如果更改了 DTS 或 kenrel 构建
./rebuild-kernel.sh
如果更改了 Uboot,则构建
./rebuild-uboot.sh
加快构建进度
在百度云下载离线的 dl
Buildroot 将在编译固件时下载源代码。您可以获取“dl”文件夹的可信存档以加快速度。 https://pan.baidu.com/s/1-5CiMwXMQWjZxsFhsyRC5Q?pwd=1111
.make source
没有搞清楚这里是怎么用的,现在是下载了两个包:
- buildroot-dl-20220130.zip
- buildroot-mangopi-r-master.zip
是不是把buildroot-dl-20220130.zip解压到buildroot-mangopi-r-master目录里面呢?
明白了,把buildroot-dl-20220130.zip解压出来并改名为dl,然后再把dl移动到buildroot-mangopi-r-master.zip解压出来的文件夹目录里面去就行了,编译的好快 啊。
最终编译完成了。
INFO: hdimage(sysimage-sdcard.img): adding partition 'u-boot' (in MBR) from 'u-boot-sunxi-with-spl.bin' ...INFO: hdimage(sysimage-sdcard.img): adding partition 'boot' (in MBR) from 'bootfs.vfat' ...INFO: hdimage(sysimage-sdcard.img): adding partition 'rootfs' (in MBR) from 'rootfs.ext4' ...INFO: hdimage(sysimage-sdcard.img): writing MBRboard/allwinner/generic/genimage-nor.cfg:33: no sub-section title/index for 'config'INFO: cmd: "mkdir -p "/home/liefyuan/Liefyuan/mangopi-r/buildroot-mangopi-r-master/output/build/genimage.tmp"" (stderr):INFO: cmd: "rm -rf "/home/liefyuan/Liefyuan/mangopi-r/buildroot-mangopi-r-master/output/build/genimage.tmp"/*" (stderr):INFO: cmd: "mkdir -p "/home/liefyuan/Liefyuan/mangopi-r/buildroot-mangopi-r-master/output/build/genimage.tmp"" (stderr):INFO: cmd: "cp -a "/tmp/tmp.kqghzcncg8" "/home/liefyuan/Liefyuan/mangopi-r/buildroot-mangopi-r-master/output/build/genimage.tmp/root"" (stderr):INFO: cmd: "find '/home/liefyuan/Liefyuan/mangopi-r/buildroot-mangopi-r-master/output/build/genimage.tmp/root' -depth -type d -printf '%P\0' | xargs -0 -I {} touch -r '/tmp/tmp.kqghzcncg8/{}' '/home/liefyuan/Liefyuan/mangopi-r/buildroot-mangopi-r-master/output/build/genimage.tmp/root/{}'" (stderr):INFO: cmd: "mkdir -p "/home/liefyuan/Liefyuan/mangopi-r/buildroot-mangopi-r-master/output/images"" (stderr):INFO: flash(sysimage-nor.img): writing image partition 'u-boot' (0x80000@0x0)INFO: flash(sysimage-nor.img): writing image partition 'splash' (0x80000@0x80000)INFO: flash(sysimage-nor.img): writing image partition 'kernel' (0x500000@0x100000)INFO: flash(sysimage-nor.img): writing image partition 'rom' (0xa00000@0x600000)board/allwinner/generic/genimage-nand.cfg:39: no sub-section title/index for 'config'INFO: cmd: "mkdir -p "/home/liefyuan/Liefyuan/mangopi-r/buildroot-mangopi-r-master/output/build/genimage.tmp"" (stderr):INFO: cmd: "rm -rf "/home/liefyuan/Liefyuan/mangopi-r/buildroot-mangopi-r-master/output/build/genimage.tmp"/*" (stderr):INFO: cmd: "mkdir -p "/home/liefyuan/Liefyuan/mangopi-r/buildroot-mangopi-r-master/output/build/genimage.tmp"" (stderr):INFO: cmd: "cp -a "/tmp/tmp.cjWlxAkEjg" "/home/liefyuan/Liefyuan/mangopi-r/buildroot-mangopi-r-master/output/build/genimage.tmp/root"" (stderr):INFO: cmd: "find '/home/liefyuan/Liefyuan/mangopi-r/buildroot-mangopi-r-master/output/build/genimage.tmp/root' -depth -type d -printf '%P\0' | xargs -0 -I {} touch -r '/tmp/tmp.cjWlxAkEjg/{}' '/home/liefyuan/Liefyuan/mangopi-r/buildroot-mangopi-r-master/output/build/genimage.tmp/root/{}'" (stderr):INFO: cmd: "mkdir -p "/home/liefyuan/Liefyuan/mangopi-r/buildroot-mangopi-r-master/output/images"" (stderr):INFO: flash(sysimage-nand.img): writing image partition 'u-boot' (0x80000@0x0)INFO: flash(sysimage-nand.img): writing image partition 'splash' (0x80000@0x80000)INFO: flash(sysimage-nand.img): writing image partition 'kernel' (0x500000@0x100000)INFO: flash(sysimage-nand.img): writing image partition 'rom' (0x7700000@0x600000)real20m23.669suser93m8.759ssys31m2.006s
编译出来的文件:buildroot-mangopi-r-master/output/images
一步到位,所有版本都编译出来了(牛逼!):
bootfs.vfat rootfs.ext4 sysimage-sdcard.imgdevicetree.dtb rootfs.squashfs u-boot.binkernel.itb rootfs.tar u-boot-sunxi-with-nand-spl.binrootfs.cpio splash.bmp u-boot-sunxi-with-spl.binrootfs.cpio.gz sysimage-nand.img zImagerootfs.ext2 sysimage-nor.img
刷固件
指导说明文档:https://github.com/mangopi-sbc/buildroot-mangopi-r/blob/master/flashutils/README.md
Windows下失败了,转战Linux下烧录
Linux下烧录
使用sunxi-tools
sunxi-tools 是全志 SoC(全志科技开发的智能应用处理器 SoC)ARM 设备的命令行工具集合。
设置和安装 sunxi-tools
安装依赖包
sudo apt install pkg-config zlib1g-dev libusb-dev libusb-1.0-0-dev
下载代码
git clone https://github.com/Icenowy/sunxi-tools.git -b f1c100s-spiflash
编译安装
cd sunxi-toolsmake sudo make install
什么是dfu? 设备固件升级(DFU)是一种独立于分销商和设备的机制,用于通过其制造商提供的改进版本来升级USB设备的固件,从而提供(例如)一种部署固件错误的方法修复。在固件升级操作过程中,USB 设备将有效地改变其工作模式,从而成为 PROM 编程器。按照官方 DFU 规范,任何类型的 USB 设备都可以实现此功能。DFU 还允许用户自由使用备份固件来刷新 USB 设备。结果之一是刷新的 USB 设备可以充当多种设备类型。
什么是 dfu-util? dfu-util 是一个实现 USB DFU(通用串行总线设备固件升级)协议的主机 (PC) 程序。DFU 会将固件下载到通过 USB 连接的设备,或从设备下载固件。其应用范围从微控制器板等小型设备到手机设备。使用 dfu-util,您可以从支持 DFU 的设备下载/上传固件。
通过 apt-get 安装 dfu-util
sudo apt install dfu-util
安装putty
putty 是一个 Telnet、SSH 和串口连接软件。
安装串口工具putty
sudo apt-get install putty
打开串口调试软件putty
默认安装的情况下,putty被添加到/usr/bin目录下,所以可以直接在终端使用putty命令打开。
在ubuntu上找串口号
dmesg | grep tty
liefyuan@ubuntu:~/Liefyuan/myGit$ dmesg | grep tty[ 0.004000] console [tty0] enabled[ 1.247164] 00:05: ttyS0 at I/O 0x3f8 (irq = 4, base_baud = 115200) is a 16550A[25931.988675] usb 2-2.2: ch341-uart converter now attached to ttyUSB0
由此可知,板子的串口是ttyUSB0
一般串口的名字在dev下,如果没有外接串口卡,默认是dev。
使用命令ls /dev/ttyUSB0
查看是否存在
liefyuan@ubuntu:~/Liefyuan/myGit$ ls /dev/ttyUSB0/dev/ttyUSB0
如果结果存在,则串口地址为/dev/ttyUSB0

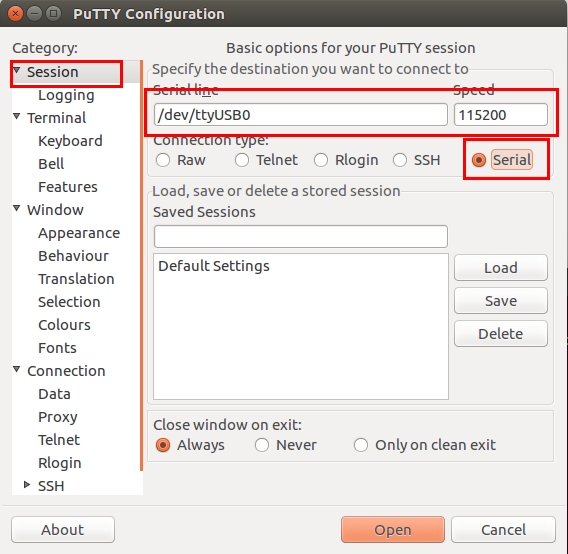

在putty中填入串口,然后打开串口格式化
序列号:填写对应的序列号
速度:填写115200
打开有问题时记得加
sudo putty
擦除
putty打开以后,就进入固件位置:
同时按下tiny200的开机键和rst键,然后松开
此时运行.\fel-uboot.sh脚本

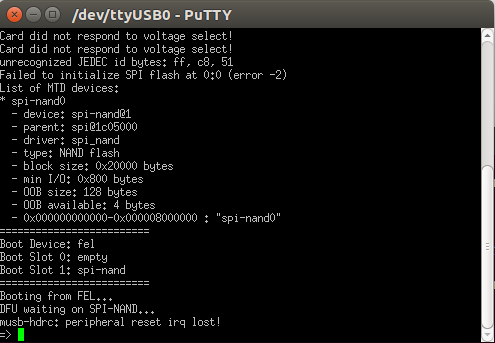

putty里面就有打印数据了
然后等待操作完成后,在putty里面输入命令:mtd erase spi-nand0,格式化。
U-Boot SPL 2020.07 (Feb 16 2022 - 01:28:19 +0000)DRAM: 64 MiBTrying to boot from FELU-Boot 2020.07 (Feb 16 2022 - 01:28:19 +0000) Allwinner TechnologyCPU: Allwinner F Series (SUNIV)Model: Allwinner F1C100s Generic DeviceDRAM: 64 MiBMMC: mmc@1c0f000: 0, mmc@1c10000: 1Setting up a 800x480 lcd console (overscan 0x0)In: serialOut: vgaErr: vgaAllwinner mUSB OTG (Peripheral)Hit any key to stop autoboot: 0Card did not respond to voltage select!Card did not respond to voltage select!unrecognized JEDEC id bytes: ff, c8, 51Failed to initialize SPI flash at 0:0 (error -2)List of MTD devices:* spi-nand0 - device: spi-nand@1 - parent: spi@1c05000 - driver: spi_nand - type: NAND flash - block size: 0x20000 bytes - min I/O: 0x800 bytes - OOB size: 128 bytes - OOB available: 4 bytes - 0x000000000000-0x000008000000 : "spi-nand0"=========================Boot Device: felBoot Slot 0: emptyBoot Slot 1: spi-nand=========================Booting from FEL...DFU waiting on SPI-NAND...musb-hdrc: peripheral reset irq lost!=> mtd erase spi-nand0Erasing 0x00000000 ... 0x07ffffff (1024 eraseblock(s))=>
添加文件权限
使用ll命令查看文件权限。
如果文件没有执行权限,则需要添加权限,通过以下命令添加权限。
chmod +x fel-uboot.shchmod +x dfu-nand-ubifs.sh
开始烧录
输入固件文件夹
按下开发板子上的 boot 按钮和 rst 按钮,然后松开rst按钮并运行以下命令。
sudo ./fel-uboot.sh && ./dfu-nand-ubifs.sh
开始烧录啦,挺壮观的!
