从零开始玩转物体检测(三): 基于Tensorflow2.x Object Detection API构建自定义物体检测器

文章目录

    • 1. 组织工程文档结构
    • 2. 标注数据集
    • 3. 创建标签分类映射文件
    • 4. 将标注数据xml文件转换为record格式文件
    • 5. 配置训练流水线
      • 5.1 下载预训练模型
      • 5.2 解压缩预训练模型
      • 5.3 配置预训练模型
    • 6. 训练模型
      • 6.1 拷贝脚本到工程目录
      • 6.2 训练模型
      • 6.3 tensorboard查看训练过程曲线
      • 6.4 评估模型
    • 7 导出模型
    • 8 模型推理

前置专栏:

  • 从零开始玩转物体检测(一): Windows部署Docker GPU深度学习开发环境
  • 从零开始玩转物体检测(二):TensorFlow 2.x Object Detection API快速安装手册
  • 从零开始玩转物体检测(三): 基于Tensorflow2.x Object Detection API构建自定义物体检测器

1. 组织工程文档结构

  • 创建父目录
    创建tensorflow文件夹,将下载的object detection api源码models目录拷贝到tensorflow目录下,结构如下:
TensorFlow/└─ models/   ├─ community/   ├─ official/   ├─ orbit/   ├─ research/   └─ ...
  • 创建工作区
cd tensorflow;mkdir training_demo ;cd training_demo;

创建完毕后的文档组织结构如下:

TensorFlow/├─ models/│  ├─ community/│  ├─ official/│  ├─ orbit/│  ├─ research/│  └─ ...└─ workspace/   └─ training_demo/
  • 项目目录
mkdir annotations exported-models images/ images/test/ images/train/ models/ pre_trained_models/;touch README.md

创建完毕后的项目结构如下

training_demo/├─ annotations/# annotations存标签映射文件和转换后的TFRecord文件├─ exported_models/# 存放训练完毕后导出的模型文件├─ images/# 存放原始图像数据文件│  ├─ test/# 存放评估图像数据集和标注文件集│  └─ train/# 存放训练图像数据集和标注文件集├─ models/# 存放训练中的pipline.config、模型数据、tensorboard事件数据├─ pre_trained_models/# 存放下载的预训练模型└─ README.md# 工程说明文档

2. 标注数据集

  • 标注工具labelImg
    • 项目地址:传送门
    • 下载地址:windows版本

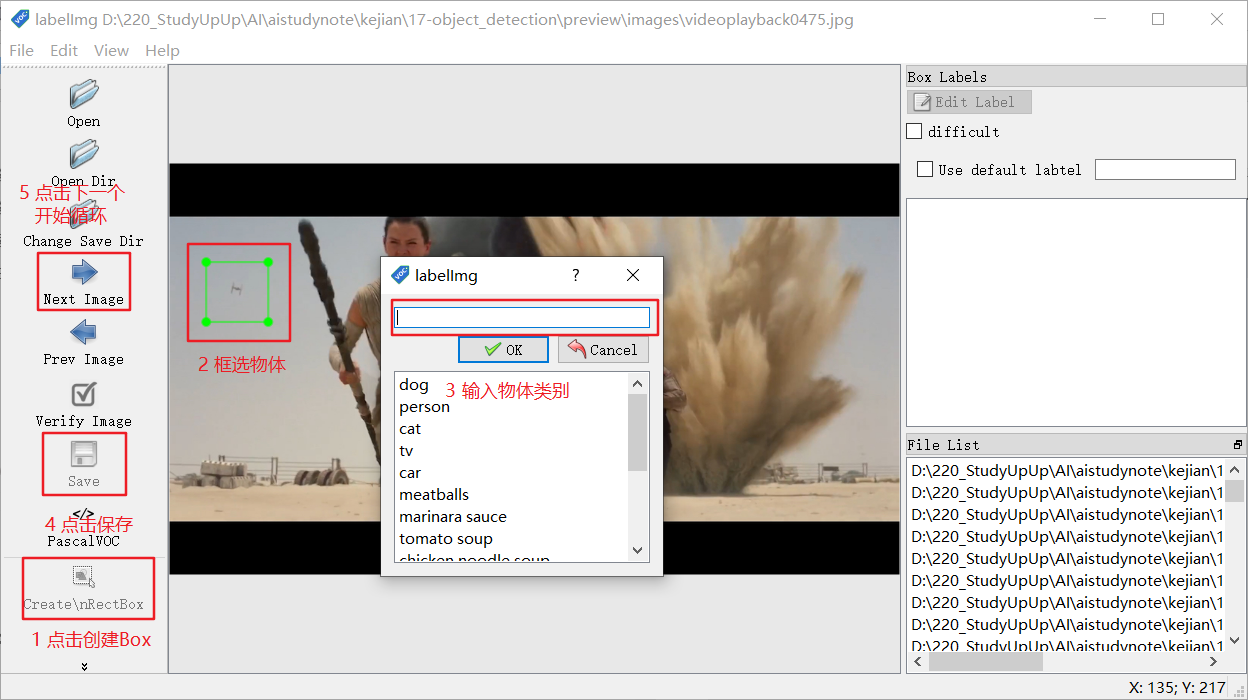

  • 标注示例
    在这里插入图片描述标注后的xml文件统一存放到training_demo/images目录下
  • 划分训练、评估数据集
    首先创建一个公共目录tensorflow/scripts/preprocessing用于存放脚本,偏于将来复用
mkdir tensorflow/scriptsmkdir tensorflow/scripts/preprocessing

创建完成后的目录结构如下:

tensorflow/├─ models/│  ├─ community/│  ├─ official/│  ├─ orbit/│  ├─ research/│  └─ ...├─ scripts/│  └─ preprocessing/└─ workspace/   └─ training_demo/

在tensorflow/scripts/preprocessing目录下添加训练集划分脚本partition_dataset.py,脚本内容如下:

""" usage: partition_dataset.py [-h] [-i IMAGEDIR] [-o OUTPUTDIR] [-r RATIO] [-x]Partition dataset of images into training and testing setsoptional arguments:  -h, --help     show this help message and exit  -i IMAGEDIR, --imageDir IMAGEDIR   Path to the folder where the image dataset is stored. If not specified, the CWD will be used.  -o OUTPUTDIR, --outputDir OUTPUTDIR   Path to the output folder where the train and test dirs should be created. Defaults to the same directory as IMAGEDIR.  -r RATIO, --ratio RATIO   The ratio of the number of test images over the total number of images. The default is 0.1.  -x, --xml      Set this flag if you want the xml annotation files to be processed and copied over."""import osimport refrom shutil import copyfileimport argparseimport mathimport randomdef iterate_dir(source, dest, ratio, copy_xml):    source = source.replace('\\', '/')    dest = dest.replace('\\', '/')    train_dir = os.path.join(dest, 'train')    test_dir = os.path.join(dest, 'test')    if not os.path.exists(train_dir): os.makedirs(train_dir)    if not os.path.exists(test_dir): os.makedirs(test_dir)    images = [f for f in os.listdir(source)if re.search(r'([a-zA-Z0-9\s_\\.\-\(\):])+(?i)(.jpg|.jpeg|.png)$', f)]    num_images = len(images)    num_test_images = math.ceil(ratio*num_images)    for i in range(num_test_images): idx = random.randint(0, len(images)-1) filename = images[idx] copyfile(os.path.join(source, filename),   os.path.join(test_dir, filename)) if copy_xml:     xml_filename = os.path.splitext(filename)[0]+'.xml'     copyfile(os.path.join(source, xml_filename),os.path.join(test_dir,xml_filename)) images.remove(images[idx])    for filename in images: copyfile(os.path.join(source, filename),   os.path.join(train_dir, filename)) if copy_xml:     xml_filename = os.path.splitext(filename)[0]+'.xml'     copyfile(os.path.join(source, xml_filename),os.path.join(train_dir, xml_filename))def main():    # Initiate argument parser    parser = argparse.ArgumentParser(description="Partition dataset of images into training and testing sets",  formatter_class=argparse.RawTextHelpFormatter)    parser.add_argument( '-i', '--imageDir', help='Path to the folder where the image dataset is stored. If not specified, the CWD will be used.', type=str, default=os.getcwd()    )    parser.add_argument( '-o', '--outputDir', help='Path to the output folder where the train and test dirs should be created. '      'Defaults to the same directory as IMAGEDIR.', type=str, default=None    )    parser.add_argument( '-r', '--ratio', help='The ratio of the number of test images over the total number of images. The default is 0.1.', default=0.1, type=float)    parser.add_argument( '-x', '--xml', help='Set this flag if you want the xml annotation files to be processed and copied over.', action='store_true'    )    args = parser.parse_args()    if args.outputDir is None: args.outputDir = args.imageDir    # Now we are ready to start the iteration    iterate_dir(args.imageDir, args.outputDir, args.ratio, args.xml)if __name__ == '__main__':    main()

执行脚本:

python partition_dataset.py -x -i [PATH_TO_IMAGES_FOLDER] -r [test_dataset ratio]

示例:

python partition_dataset.py -x -i ../../training_demo/images/ -r 0.1# -x 表明输入文件格式是xml文件# -i 指定图像文件所在目录# -r 指定训练集、评估集切分比例,0.1代表评估集占比10%

3. 创建标签分类映射文件

training_demo/annotations目录下创建label_map.pbtxt,内容为标签分类及ID, 示例如下:

item {    id: 1    name: 'cat'}item {    id: 2    name: 'dog'}

示例表明数据集一共有2个类别,分别为cat和dog,分配的分类ID分别为1和2

4. 将标注数据xml文件转换为record格式文件

  • 脚本内容如下:
""" Sample TensorFlow XML-to-TFRecord converterusage: generate_tfrecord.py [-h] [-x XML_DIR] [-l LABELS_PATH] [-o OUTPUT_PATH] [-i IMAGE_DIR] [-c CSV_PATH]optional arguments:  -h, --help     show this help message and exit  -x XML_DIR, --xml_dir XML_DIR   Path to the folder where the input .xml files are stored.  -l LABELS_PATH, --labels_path LABELS_PATH   Path to the labels (.pbtxt) file.  -o OUTPUT_PATH, --output_path OUTPUT_PATH   Path of output TFRecord (.record) file.  -i IMAGE_DIR, --image_dir IMAGE_DIR   Path to the folder where the input image files are stored. Defaults to the same directory as XML_DIR.  -c CSV_PATH, --csv_path CSV_PATH   Path of output .csv file. If none provided, then no file will be written."""import osimport globimport pandas as pdimport ioimport xml.etree.ElementTree as ETimport argparseos.environ['TF_CPP_MIN_LOG_LEVEL'] = '2'    # Suppress TensorFlow logging (1)import tensorflow.compat.v1 as tffrom PIL import Imagefrom object_detection.utils import dataset_util, label_map_utilfrom collections import namedtuple# Initiate argument parserparser = argparse.ArgumentParser(    description="Sample TensorFlow XML-to-TFRecord converter")parser.add_argument("-x",      "--xml_dir",      help="Path to the folder where the input .xml files are stored.",      type=str)parser.add_argument("-l",      "--labels_path",      help="Path to the labels (.pbtxt) file.", type=str)parser.add_argument("-o",      "--output_path",      help="Path of output TFRecord (.record) file.", type=str)parser.add_argument("-i",      "--image_dir",      help="Path to the folder where the input image files are stored. "    "Defaults to the same directory as XML_DIR.",      type=str, default=None)parser.add_argument("-c",      "--csv_path",      help="Path of output .csv file. If none provided, then no file will be "    "written.",      type=str, default=None)args = parser.parse_args()if args.image_dir is None:    args.image_dir = args.xml_dirlabel_map = label_map_util.load_labelmap(args.labels_path)label_map_dict = label_map_util.get_label_map_dict(label_map)def xml_to_csv(path):    """Iterates through all .xml files (generated by labelImg) in a given directory and combines    them in a single Pandas dataframe.    Parameters:    ----------    path : str The path containing the .xml files    Returns    -------    Pandas DataFrame The produced dataframe    """    xml_list = []    for xml_file in glob.glob(path + '/*.xml'): tree = ET.parse(xml_file) root = tree.getroot() filename = root.find('filename').text width = int(root.find('size').find('width').text) height = int(root.find('size').find('height').text) for member in root.findall('object'):     bndbox = member.find('bndbox')     value = (filename,width,height,member.find('name').text,int(bndbox.find('xmin').text),int(bndbox.find('ymin').text),int(bndbox.find('xmax').text),int(bndbox.find('ymax').text),)     xml_list.append(value)    column_name = ['filename', 'width', 'height',     'class', 'xmin', 'ymin', 'xmax', 'ymax']    xml_df = pd.DataFrame(xml_list, columns=column_name)    return xml_dfdef class_text_to_int(row_label):    return label_map_dict[row_label]def split(df, group):    data = namedtuple('data', ['filename', 'object'])    gb = df.groupby(group)    return [data(filename, gb.get_group(x)) for filename, x in zip(gb.groups.keys(), gb.groups)]def create_tf_example(group, path):    with tf.gfile.GFile(os.path.join(path, '{}'.format(group.filename)), 'rb') as fid: encoded_jpg = fid.read()    encoded_jpg_io = io.BytesIO(encoded_jpg)    image = Image.open(encoded_jpg_io)    width, height = image.size    filename = group.filename.encode('utf8')    image_format = b'jpg'    xmins = []    xmaxs = []    ymins = []    ymaxs = []    classes_text = []    classes = []    for index, row in group.object.iterrows(): xmins.append(row['xmin'] / width) xmaxs.append(row['xmax'] / width) ymins.append(row['ymin'] / height) ymaxs.append(row['ymax'] / height) classes_text.append(row['class'].encode('utf8')) classes.append(class_text_to_int(row['class']))    tf_example = tf.train.Example(features=tf.train.Features(feature={ 'image/height': dataset_util.int64_feature(height), 'image/width': dataset_util.int64_feature(width), 'image/filename': dataset_util.bytes_feature(filename), 'image/source_id': dataset_util.bytes_feature(filename), 'image/encoded': dataset_util.bytes_feature(encoded_jpg), 'image/format': dataset_util.bytes_feature(image_format), 'image/object/bbox/xmin': dataset_util.float_list_feature(xmins), 'image/object/bbox/xmax': dataset_util.float_list_feature(xmaxs), 'image/object/bbox/ymin': dataset_util.float_list_feature(ymins), 'image/object/bbox/ymax': dataset_util.float_list_feature(ymaxs), 'image/object/class/text': dataset_util.bytes_list_feature(classes_text), 'image/object/class/label': dataset_util.int64_list_feature(classes),    }))    return tf_exampledef main(_):    writer = tf.python_io.TFRecordWriter(args.output_path)    path = os.path.join(args.image_dir)    examples = xml_to_csv(args.xml_dir)    grouped = split(examples, 'filename')    for group in grouped: tf_example = create_tf_example(group, path) writer.write(tf_example.SerializeToString())    writer.close()    print('Successfully created the TFRecord file: {}'.format(args.output_path))    if args.csv_path is not None: examples.to_csv(args.csv_path, index=None) print('Successfully created the CSV file: {}'.format(args.csv_path))if __name__ == '__main__':    tf.app.run()
  • 注意事项
    在使用脚本之前,请确认已经安装了pandas,使用脚本确认是否安装,如下命令显示版本号即为安装:
root@cc58e655b170# python -c "import pandas as pd;print(pd.__version__)"1.4.1

未安装时,可以按照当前环境安装

conda install pandas # Anaconda# orpip install pandas   # pip
  • 脚本调用格式
# Create train data:python generate_tfrecord.py -x [PATH_TO_IMAGES_FOLDER]/train -l [PATH_TO_ANNOTATIONS_FOLDER]/label_map.pbtxt -o [PATH_TO_ANNOTATIONS_FOLDER]/train.record# Create test data:python generate_tfrecord.py -x [PATH_TO_IMAGES_FOLDER]/test -l [PATH_TO_ANNOTATIONS_FOLDER]/label_map.pbtxt -o [PATH_TO_ANNOTATIONS_FOLDER]/test.record
  • 使用脚本转换train、test数据集
# For exampleroot@cc58e655b170:/home/zhou/tensorflow/workspace/scripts/preprocessing# python generate_tfrecord.py -x ../../training_demo/images/train/ -l ../../training_demo/annotations/label_map.pbtxt -o ../../training_demo/annotations/train.recordSuccessfully created the TFRecord file: ../../training_demo/annotations/train.recordroot@cc58e655b170:/home/zhou/tensorflow/workspace/scripts/preprocessing# python generate_tfrecord.py -x ../../training_demo/images/test/ -l ../../training_demo/annotations/label_map.pbtxt -o ../../training_demo/annotations/test.recordSuccessfully created the TFRecord file: ../../training_demo/annotations/test.record

脚本执行完毕后,在training_demo/annotations目录下会生成train.record和test.record文件

root@cc58e655b170:/home/zhou/tensorflow/workspace/scripts/preprocessing# ls ../../training_demo/annotations/label_map.pbtxt  test.record  train.record

5. 配置训练流水线

5.1 下载预训练模型

使用wget命令行下载预训练detection模型

wget -c http://download.tensorflow.org/models/object_detection/tf2/20200711/ssd_resnet50_v1_fpn_640x640_coco17_tpu-8.tar.gz

如果提示找不到wget命令,使用apt工具安装

apt install wget

特别注意:此处下载的模型为detection模型,pipline.config中的fine_tune_checkpoint_type:配置为"detection"才有效,否则会报错

  • TF2 Detection zoo:传送门
  • TF2 Classification Zoo:传送门

5.2 解压缩预训练模型

使用tar命令tar zxvf ssd_resnet50_v1_fpn_640x640_coco17_tpu-8.tar.gz解压预训练模型

root@cc58e655b170:/home/zhou/tensorflow/workspace/training_demo/pre_trained_models# tar zxvf ssd_resnet50_v1_fpn_640x640_coco17_tpu-8.tar.gz ssd_resnet50_v1_fpn_640x640_coco17_tpu-8/ssd_resnet50_v1_fpn_640x640_coco17_tpu-8/checkpoint/ssd_resnet50_v1_fpn_640x640_coco17_tpu-8/checkpoint/ckpt-0.data-00000-of-00001ssd_resnet50_v1_fpn_640x640_coco17_tpu-8/checkpoint/checkpointssd_resnet50_v1_fpn_640x640_coco17_tpu-8/checkpoint/ckpt-0.indexssd_resnet50_v1_fpn_640x640_coco17_tpu-8/pipeline.configssd_resnet50_v1_fpn_640x640_coco17_tpu-8/saved_model/ssd_resnet50_v1_fpn_640x640_coco17_tpu-8/saved_model/saved_model.pbssd_resnet50_v1_fpn_640x640_coco17_tpu-8/saved_model/assets/ssd_resnet50_v1_fpn_640x640_coco17_tpu-8/saved_model/variables/ssd_resnet50_v1_fpn_640x640_coco17_tpu-8/saved_model/variables/variables.data-00000-of-00001ssd_resnet50_v1_fpn_640x640_coco17_tpu-8/saved_model/variables/variables.index

解压后预训练模型在training_demo/pre_trained_models目录下:

root@cc58e655b170:/home/zhou/tensorflow/workspace/training_demo/pre_trained_models# lsssd_resnet50_v1_fpn_640x640_coco17_tpu-8

预训练模型的目录结构如下

training_demo/├─ ...├─ pre_trained_models/│  └─ ssd_resnet50_v1_fpn_640x640_coco17_tpu-8/│     ├─ checkpoint/│     ├─ saved_model/│     └─ pipeline.config└─ ...

5.3 配置预训练模型

  • 拷贝流水线文件到指定目录
    training_demo/models目录下创建my_ssd_resnet50_v1_fpn目录,将流水线配置文件training_demo/pre_trained_models/ssd_resnet50_v1_fpn_640x640_coco17_tpu-8/pipeline.config拷贝到该目录下,拷贝后的目录结构如下
training_demo/├─ ...├─ models/│  └─ my_ssd_resnet50_v1_fpn/│     └─ pipeline.config└─ ...
  • 配置pipline.config
    相关的配置项及描述如下代码所示:
model {  ssd {    num_classes: 2     # num_classes为自定义对象检测器所检测的物体分类总数,此处为2    image_resizer {      fixed_shape_resizer { height: 640 width: 640      }    }......train_config {  batch_size: 8      # batch_size依赖可用的内存,可根据需要添加或减少,且至少保证大于样本数  data_augmentation_options {    random_horizontal_flip {    }  }  ......   # fine_tune_checkpoint为预训练模型的文件路径配置  fine_tune_checkpoint: "pre_trained_models/ssd_resnet50_v1_fpn_640x640_coco17_tpu-8/checkpoint/ckpt-0"  num_steps: 20  # num_steps为训练的epochs的数量  startup_delay_steps: 0.0  replicas_to_aggregate: 8  max_number_of_boxes: 100  unpad_groundtruth_tensors: false  fine_tune_checkpoint_type: "detection"    # 因为要训练完整的检测模型,这里填写detection,而不是classification  use_bfloat16: false  # 使用TPU训练时置为true  fine_tune_checkpoint_version: V2}train_input_reader {  label_map_path: "annotations/label_map.pbtxt" # 配置标签映射文件  tf_record_input_reader {    input_path: "annotations/train.record"      # 配置待训练的训练集TFRecord 文件  }}......eval_input_reader {  label_map_path: "annotations/label_map.pbtxt" # 配置标签映射文件  shuffle: false  num_epochs: 1  tf_record_input_reader {    input_path: "annotations/test.record" # 配置待训练的测试集TFRecord 文件     }}

6. 训练模型

6.1 拷贝脚本到工程目录

拷贝models/research/object_detection/model_main_tf2.pytraining_demo目录

root@cc58e655b170:/home/zhou/tensorflow/workspace/training_demo# cp ../../models/research/object_detection/model_main_tf2.py .root@cc58e655b170:/home/zhou/tensorflow/workspace/training_demo# lsREADME.md  annotations  exported-models  images  model_main_tf2.py  models  pre_trained_models

6.2 训练模型

python model_main_tf2.py --model_dir=models/my_ssd_resnet50_v1_fpn --pipeline_config_path=models/my_ssd_resnet50_v1_fpn/pipeline.config

训练输出如下所示:

2022-03-18 16:31:18.185503: W tensorflow/core/common_runtime/bfc_allocator.cc:275] Allocator (GPU_0_bfc) ran out of memory trying to allocate 2.05GiB with freed_by_count=0. The caller indicates that this is not a failure, but may mean that there could be performance gains if more memory were available.INFO:tensorflow:Step 100 per-step time 0.690sI0318 16:31:54.968108 140508069689152 model_lib_v2.py:705] Step 100 per-step time 0.690sINFO:tensorflow:{'Loss/classification_loss': 0.5467333, 'Loss/localization_loss': 0.62460774, 'Loss/regularization_loss': 0.37178832, 'Loss/total_loss': 1.5431294, 'learning_rate': 0.014666351}I0318 16:31:54.968450 140508069689152 model_lib_v2.py:708] {'Loss/classification_loss': 0.5467333, 'Loss/localization_loss': 0.62460774, 'Loss/regularization_loss': 0.37178832, 'Loss/total_loss': 1.5431294, 'learning_rate': 0.014666351}

训练模型过程中遇到的问题:

  • ValueError: numpy.ndarray size changed, may indicate binary incompatibility. Expected 96 from C header, got 88 from PyObject
    • 解决办法:
      • 查看numpy、pycocotools版本

        root@cc58e655b170:/home/zhou/tensorflow/workspace/training_demo# python -c "import numpy as np;print(np.__version__)"1.21.5root@cc58e655b170:/home/zhou/tensorflow/workspace/training_demo# python -m pip show pycocotools Name: pycocotoolsVersion: 2.0.5Summary: Official APIs for the MS-COCO datasetHome-page: NoneAuthor: NoneAuthor-email: NoneLicense: UNKNOWNLocation: /usr/local/lib/python3.8/dist-packagesRequires: cython, matplotlib, setuptoolsRequired-by: tf-models-official, object-detection

        numpy的版本为1.21.5,pycocotools 的版本为2.0.5。

      • 将pycocotools 的版本降为2.0.1可以解决问题

        pip install --upgrade pycocotools==2.0.1
    • 模型输入输出访问错误: Input/output error [Op:SaveV2]
      I0320 12:47:20.331673 139707635332928 model_lib_v2.py:705] Step 1000 per-step time 0.433sINFO:tensorflow:{'Loss/classification_loss': 0.26997942, 'Loss/localization_loss': 0.30341092, 'Loss/regularization_loss': 2.2776012, 'Loss/total_loss': 2.8509917, 'learning_rate': 0.0266665}I0320 12:47:20.331962 139707635332928 model_lib_v2.py:708] {'Loss/classification_loss': 0.26997942, 'Loss/localization_loss': 0.30341092, 'Loss/regularization_loss': 2.2776012, 'Loss/total_loss': 2.8509917, 'learning_rate': 0.0266665}2022-03-20 12:47:23.322429: W tensorflow/core/framework/op_kernel.cc:1745] OP_REQUIRES failed at save_restore_v2_ops.cc:138 : UNKNOWN: models/my_ssd_resnet50_v1_fpn/ckpt-3_temp/part-00000-of-00001.data-00000-of-00001.tempstate1791880307736640246; Input/output errorTraceback (most recent call last):  File "model_main_tf2.py", line 115, in     tf.compat.v1.app.run()  File "/usr/local/lib/python3.8/dist-packages/tensorflow/python/platform/app.py", line 36, in run    _run(main=main, argv=argv, flags_parser=_parse_flags_tolerate_undef)  File "/usr/local/lib/python3.8/dist-packages/absl/app.py", line 312, in run    _run_main(main, args)  File "/usr/local/lib/python3.8/dist-packages/absl/app.py", line 258, in _run_main    sys.exit(main(argv))  File "model_main_tf2.py", line 106, in main    model_lib_v2.train_loop(  File "/usr/local/lib/python3.8/dist-packages/object_detection/model_lib_v2.py", line 713, in train_loop    manager.save()  File "/usr/local/lib/python3.8/dist-packages/tensorflow/python/training/checkpoint_management.py", line 813, in save    save_path = self._checkpoint.write(prefix)  File "/usr/local/lib/python3.8/dist-packages/tensorflow/python/training/tracking/util.py", line 2105, in write    output = self._saver.save(file_prefix=file_prefix, options=options)  File "/usr/local/lib/python3.8/dist-packages/tensorflow/python/training/tracking/util.py", line 1262, in save    save_path, new_feed_additions = self._save_cached_when_graph_building(  File "/usr/local/lib/python3.8/dist-packages/tensorflow/python/training/tracking/util.py", line 1206, in _save_cached_when_graph_building    save_op = saver.save(file_prefix, options=options)  File "/usr/local/lib/python3.8/dist-packages/tensorflow/python/training/saving/functional_saver.py", line 371, in save    return save_fn()  File "/usr/local/lib/python3.8/dist-packages/tensorflow/python/training/saving/functional_saver.py", line 345, in save_fn    sharded_saves.append(saver.save(shard_prefix, options))  File "/usr/local/lib/python3.8/dist-packages/tensorflow/python/training/saving/functional_saver.py", line 80, in save    return io_ops.save_v2(file_prefix, tensor_names, tensor_slices, tensors)  File "/usr/local/lib/python3.8/dist-packages/tensorflow/python/ops/gen_io_ops.py", line 1707, in save_v2    return save_v2_eager_fallback(  File "/usr/local/lib/python3.8/dist-packages/tensorflow/python/ops/gen_io_ops.py", line 1728, in save_v2_eager_fallback    _result = _execute.execute(b"SaveV2", 0, inputs=_inputs_flat, attrs=_attrs,  File "/usr/local/lib/python3.8/dist-packages/tensorflow/python/eager/execute.py", line 54, in quick_execute    tensors = pywrap_tfe.TFE_Py_Execute(ctx._handle, device_name, op_name,tensorflow.python.framework.errors_impl.UnknownError: models/my_ssd_resnet50_v1_fpn/ckpt-3_temp/part-00000-of-00001.data-00000-of-00001.tempstate1791880307736640246; Input/output error [Op:SaveV2]
      • 解决办法:
        • 重启电脑后解决。

6.3 tensorboard查看训练过程曲线

执行命令tensorboard --logdir=training_demo/models/my_ssd_resnet50_v1_fpn/train查看tensorboard面板

root@cc58e655b170:/home/zhou/tensorflow/workspace# tensorboard --logdir=training_demo/models/my_ssd_resnet50_v1_fpn/train2022-03-18 16:38:07.080715: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:922] could not open file to read NUMA node: /sys/bus/pci/devices/0000:01:00.0/numa_nodeYour kernel may have been built without NUMA support.2022-03-18 16:38:07.100073: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:922] could not open file to read NUMA node: /sys/bus/pci/devices/0000:01:00.0/numa_nodeYour kernel may have been built without NUMA support.2022-03-18 16:38:07.101614: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:922] could not open file to read NUMA node: /sys/bus/pci/devices/0000:01:00.0/numa_nodeYour kernel may have been built without NUMA support.NOTE: Using experimental fast data loading logic. To disable, pass    "--load_fast=false" and report issues on GitHub. More details:    https://github.com/tensorflow/tensorboard/issues/4784Serving TensorBoard on localhost; to expose to the network, use a proxy or pass --bind_allTensorBoard 2.8.0 at http://localhost:6006/ (Press CTRL+C to quit)

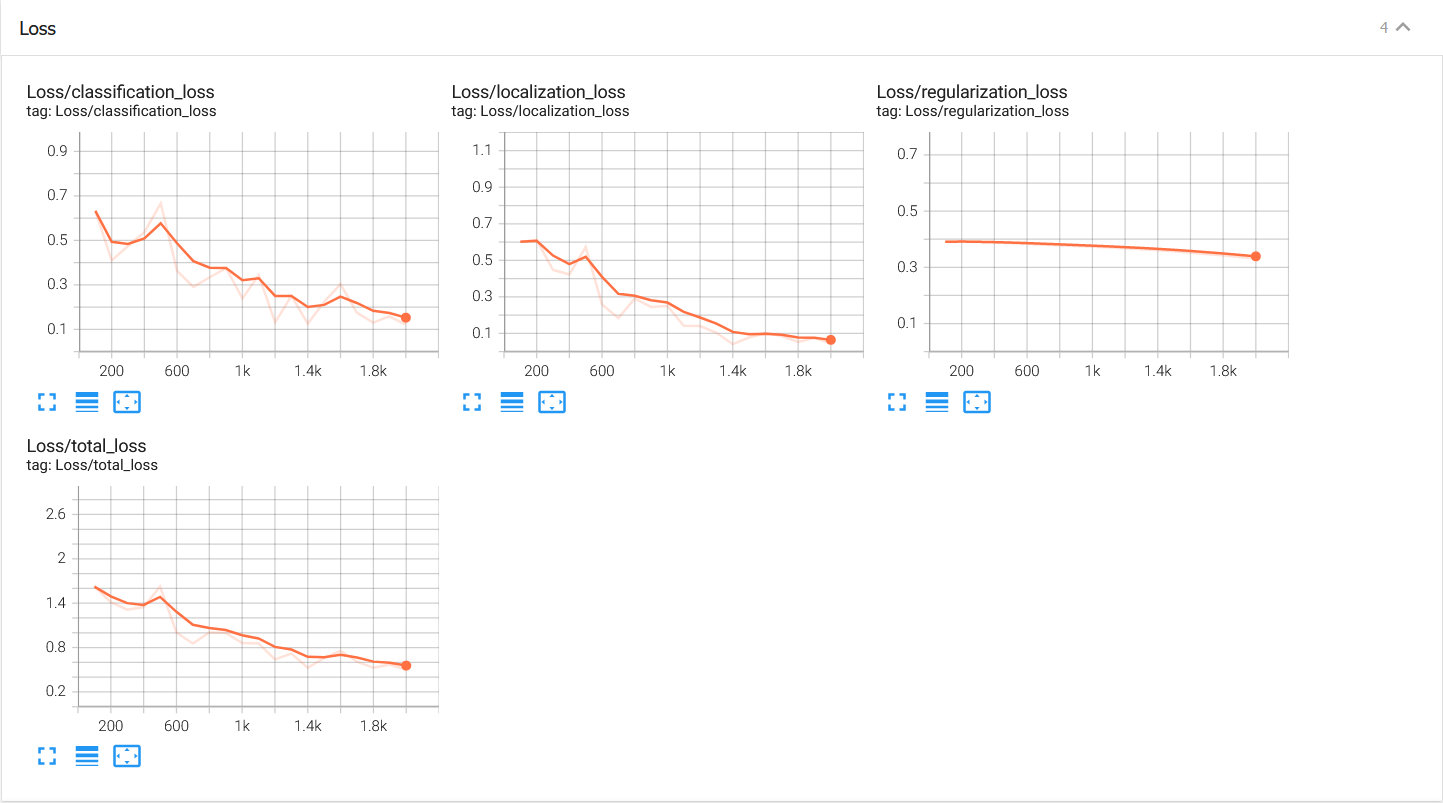

  • 打开浏览器,输入http://127.0.0.1:6006/#scalars,浏览器效果如图
    在这里插入图片描述

注意事项:

  • tensorboard: error: invalid choice: ‘Recognizer\logs’ (choose from ‘serve’, ‘dev’)
    • 命令的logdir的=号两侧不可以有空格 tensorboard --logdir=[train_path]

6.4 评估模型

root@cc58e655b170:/home/zhou/tensorflow/workspace/training_demo# python model_main_tf2.py --model_dir=models/my_ssd_resnet50_v1_fpn --pipeline_config_path=models/my_ssd_resnet50_v1_fpn/pipeline.config --checkpoint_dir=models/my_ssd_resnet50_v1_fpn......2022-03-18 17:10:21.973191: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1525] Created device /job:localhost/replica:0/task:0/device:GPU:0 with 3951 MB memory:  -> device: 0, name: NVIDIA GeForce GTX 1660 Ti, pci bus id: 0000:01:00.0, compute capability: 7.5INFO:tensorflow:Reading unweighted datasets: ['annotations/test.record']I0318 17:10:22.271144 140242454390592 dataset_builder.py:163] Reading unweighted datasets: ['annotations/test.record']INFO:tensorflow:Reading record datasets for input file: ['annotations/test.record']I0318 17:10:22.272839 140242454390592 dataset_builder.py:80] Reading record datasets for input file: ['annotations/test.record']INFO:tensorflow:Number of filenames to read: 1I0318 17:10:22.273008 140242454390592 dataset_builder.py:81] Number of filenames to read: 1WARNING:tensorflow:num_readers has been reduced to 1 to match input file shards.W0318 17:10:22.273125 140242454390592 dataset_builder.py:87] num_readers has been reduced to 1 to match input file shards.......INFO:tensorflow:Waiting for new checkpoint at models/my_ssd_resnet50_v1_fpnI0318 17:10:32.268154 140242454390592 checkpoint_utils.py:136] Waiting for new checkpoint at models/my_ssd_resnet50_v1_fpnINFO:tensorflow:Found new checkpoint at models/my_ssd_resnet50_v1_fpn/ckpt-6I0318 17:10:32.275528 140242454390592 checkpoint_utils.py:145] Found new checkpoint at models/my_ssd_resnet50_v1_fpn/ckpt-6/usr/local/lib/python3.8/dist-packages/keras/backend.py:450: UserWarning: `tf.keras.backend.set_learning_phase` is deprecated and will be removed after 2020-10-11. To update it, simply pass a True/False value to the `training` argument of the `__call__` method of your layer or model. ......INFO:tensorflow:Performing evaluation on 2 images.I0318 17:11:09.182368 140242454390592 coco_evaluation.py:293] Performing evaluation on 2 images.creating index...index created!INFO:tensorflow:Loading and preparing annotation results...I0318 17:11:09.182641 140242454390592 coco_tools.py:116] Loading and preparing annotation results...INFO:tensorflow:DONE (t=0.00s)I0318 17:11:09.182915 140242454390592 coco_tools.py:138] DONE (t=0.00s)creating index...index created!Running per image evaluation...Evaluate annotation type *bbox*DONE (t=0.02s).Accumulating evaluation results...DONE (t=0.01s). Average Precision  (AP) @[ IoU=0.50:0.95 | area=   all | maxDets=100 ] = 0.275 Average Precision  (AP) @[ IoU=0.50      | area=   all | maxDets=100 ] = 0.538 Average Precision  (AP) @[ IoU=0.75      | area=   all | maxDets=100 ] = 0.167 Average Precision  (AP) @[ IoU=0.50:0.95 | area= small | maxDets=100 ] = -1.000 Average Precision  (AP) @[ IoU=0.50:0.95 | area=medium | maxDets=100 ] = -1.000 Average Precision  (AP) @[ IoU=0.50:0.95 | area= large | maxDets=100 ] = 0.276 Average Recall     (AR) @[ IoU=0.50:0.95 | area=   all | maxDets=  1 ] = 0.250 Average Recall     (AR) @[ IoU=0.50:0.95 | area=   all | maxDets= 10 ] = 0.350 Average Recall     (AR) @[ IoU=0.50:0.95 | area=   all | maxDets=100 ] = 0.550 Average Recall     (AR) @[ IoU=0.50:0.95 | area= small | maxDets=100 ] = -1.000 Average Recall     (AR) @[ IoU=0.50:0.95 | area=medium | maxDets=100 ] = -1.000 Average Recall     (AR) @[ IoU=0.50:0.95 | area= large | maxDets=100 ] = 0.550INFO:tensorflow:Eval metrics at step 1000I0318 17:11:09.223372 140242454390592 model_lib_v2.py:1015] Eval metrics at step 1000INFO:tensorflow: + DetectionBoxes_Precision/mAP: 0.275370I0318 17:11:09.227210 140242454390592 model_lib_v2.py:1018]     + DetectionBoxes_Precision/mAP: 0.275370INFO:tensorflow: + DetectionBoxes_Precision/mAP@.50IOU: 0.538462I0318 17:11:09.231014 140242454390592 model_lib_v2.py:1018]     + DetectionBoxes_Precision/mAP@.50IOU: 0.538462INFO:tensorflow: + DetectionBoxes_Precision/mAP@.75IOU: 0.166667I0318 17:11:09.233924 140242454390592 model_lib_v2.py:1018]     + DetectionBoxes_Precision/mAP@.75IOU: 0.166667INFO:tensorflow: + DetectionBoxes_Precision/mAP (small): -1.000000I0318 17:11:09.238049 140242454390592 model_lib_v2.py:1018]     + DetectionBoxes_Precision/mAP (small): -1.000000INFO:tensorflow: + DetectionBoxes_Precision/mAP (medium): -1.000000I0318 17:11:09.241585 140242454390592 model_lib_v2.py:1018]     + DetectionBoxes_Precision/mAP (medium): -1.000000INFO:tensorflow: + DetectionBoxes_Precision/mAP (large): 0.275628I0318 17:11:09.245546 140242454390592 model_lib_v2.py:1018]     + DetectionBoxes_Precision/mAP (large): 0.275628INFO:tensorflow: + DetectionBoxes_Recall/AR@1: 0.250000I0318 17:11:09.250303 140242454390592 model_lib_v2.py:1018]     + DetectionBoxes_Recall/AR@1: 0.250000INFO:tensorflow: + DetectionBoxes_Recall/AR@10: 0.350000I0318 17:11:09.255020 140242454390592 model_lib_v2.py:1018]     + DetectionBoxes_Recall/AR@10: 0.350000INFO:tensorflow: + DetectionBoxes_Recall/AR@100: 0.550000I0318 17:11:09.266462 140242454390592 model_lib_v2.py:1018]     + DetectionBoxes_Recall/AR@100: 0.550000INFO:tensorflow: + DetectionBoxes_Recall/AR@100 (small): -1.000000I0318 17:11:09.269966 140242454390592 model_lib_v2.py:1018]     + DetectionBoxes_Recall/AR@100 (small): -1.000000INFO:tensorflow: + DetectionBoxes_Recall/AR@100 (medium): -1.000000I0318 17:11:09.272413 140242454390592 model_lib_v2.py:1018]     + DetectionBoxes_Recall/AR@100 (medium): -1.000000INFO:tensorflow: + DetectionBoxes_Recall/AR@100 (large): 0.550000I0318 17:11:09.275286 140242454390592 model_lib_v2.py:1018]     + DetectionBoxes_Recall/AR@100 (large): 0.550000INFO:tensorflow: + Loss/localization_loss: 0.467712I0318 17:11:09.278475 140242454390592 model_lib_v2.py:1018]     + Loss/localization_loss: 0.467712INFO:tensorflow: + Loss/classification_loss: 0.517050I0318 17:11:09.281271 140242454390592 model_lib_v2.py:1018]     + Loss/classification_loss: 0.517050INFO:tensorflow: + Loss/regularization_loss: 0.373590I0318 17:11:09.284374 140242454390592 model_lib_v2.py:1018]     + Loss/regularization_loss: 0.373590INFO:tensorflow: + Loss/total_loss: 1.358352I0318 17:11:09.287869 140242454390592 model_lib_v2.py:1018]     + Loss/total_loss: 1.358352

7 导出模型

  • 拷贝models/research/object_detection/exporter_main_v2.py脚本到training_demo目录下
root@cc58e655b170:/home/zhou/tensorflow/workspace/training_demo# cp ../../models/research/object_detection/exporter_main_v2.py .
  • 执行导出
python exporter_main_v2.py \--input_type image_tensor \--pipeline_config_path models/my_ssd_resnet50_v1_fpn/pipeline.config \--trained_checkpoint_dir models/my_ssd_resnet50_v1_fpn \--output_directory "exported_models/my_model"

输出如下:

2022-03-18 17:31:40.560733: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1525] Created device /job:localhost/replica:0/task:0/device:GPU:0 with 3951 MB memory:  -> device: 0, name: NVIDIA GeForce GTX 1660 Ti, pci bus id: 0000:01:00.0, compute capability: 7.5WARNING:tensorflow:From /usr/local/lib/python3.8/dist-packages/tensorflow/python/autograph/impl/api.py:458: calling map_fn_v2 (from tensorflow.python.ops.map_fn) with back_prop=False is deprecated and will be removed in a future version.Instructions for updating:back_prop=False is deprecated. Consider using tf.stop_gradient instead.Instead of:results = tf.map_fn(fn, elems, back_prop=False)Use:results = tf.nest.map_structure(tf.stop_gradient, tf.map_fn(fn, elems))W0318 17:31:40.987179 139643789973312 deprecation.py:610] From /usr/local/lib/python3.8/dist-packages/tensorflow/python/autograph/impl/api.py:458: calling map_fn_v2 (from tensorflow.python.ops.map_fn) with back_prop=False is deprecated and will be removed in a future version.Instructions for updating:back_prop=False is deprecated. Consider using tf.stop_gradient instead.Instead of:results = tf.map_fn(fn, elems, back_prop=False)Use:results = tf.nest.map_structure(tf.stop_gradient, tf.map_fn(fn, elems))2022-03-18 17:32:03.258760: W tensorflow/python/util/util.cc:368] Sets are not currently considered sequences, but this may change in the future, so consider avoiding using them.WARNING:tensorflow:Skipping full serialization of Keras layer , because it is not built.W0318 17:32:06.718129 139643789973312 save_impl.py:71] Skipping full serialization of Keras layer , because it is not built.W0318 17:32:25.107337 139643789973312 save.py:260] Found untraced functions such as WeightSharedConvolutionalBoxPredictor_layer_call_fn, WeightSharedConvolutionalBoxPredictor_layer_call_and_return_conditional_losses, WeightSharedConvolutionalBoxHead_layer_call_fn, WeightSharedConvolutionalBoxHead_layer_call_and_return_conditional_losses, WeightSharedConvolutionalClassHead_layer_call_fn while saving (showing 5 of 208). These functions will not be directly callable after loading.INFO:tensorflow:Assets written to: exported-models/my_model/saved_model/assetsI0318 17:32:32.900944 139643789973312 builder_impl.py:779] Assets written to: exported-models/my_model/saved_model/assetsINFO:tensorflow:Writing pipeline config file to exported-models/my_model/pipeline.configI0318 17:32:33.612621 139643789973312 config_util.py:253] Writing pipeline config file to exported-models/my_model/pipeline.config

结构如下:

root@cc58e655b170:/home/zhou/tensorflow/workspace/training_demo# tree exported-models/my_model/exported-models/my_model/├── checkpoint│   ├── checkpoint│   ├── ckpt-0.data-00000-of-00001│   └── ckpt-0.index├── pipeline.config└── saved_model    ├── assets    ├── saved_model.pb    └── variables ├── variables.data-00000-of-00001 └── variables.index4 directories, 7 files

注意事项:

  • 路径不能使用反斜杠,必须使用’/’
  • 路径不可以有‘-’符号,有的话,需要使用双引号将路径引用起来,否则会报错
FATAL Flags parsing error: flag --output_directory=None: Flag --output_directory must have a value other than None.

8 模型推理

python inference_main_v2.py -m "exported_models/my_model/saved_model" -l "annotations/label_map.pbtxt" -i "images/test" -o "inference_result/"

脚本内容如下:

#!/usr/bin/env python# coding: utf-8"""Object Detection From TF2 Saved Model====================================="""# %%# This demo will take you through the steps of running an "out-of-the-box" TensorFlow 2 compatible# detection model on a collection of images. More specifically, in this example we will be using# the `Saved Model Format `__ to load the model.# %%# Download the test images# ~~~~~~~~~~~~~~~~~~~~~~~~# First we will download the images that we will use throughout this tutorial. The code snippet# shown bellow will download the test images from the `TensorFlow Model Garden `_# and save them inside the ``data/images`` folder.import osos.environ['TF_CPP_MIN_LOG_LEVEL'] = '2'    # Suppress TensorFlow logging (1)import pathlibimport tensorflow as tfimport argparsetf.get_logger().setLevel('ERROR')    # Suppress TensorFlow logging (2)# Enable GPU dynamic memory allocationgpus = tf.config.experimental.list_physical_devices('GPU')for gpu in gpus:    tf.config.experimental.set_memory_growth(gpu, True)# Initiate argument parserparser = argparse.ArgumentParser(    description="model inference sample")parser.add_argument("-m",      "--saved_model_dir",      help="Path to saved model directory.",      type=str, default="exported_models/my_model/saved_model")parser.add_argument("-l",      "--labels_path",      help="Path to the labels (.pbtxt) file.", type=str, default="annotations/label_map.pbtxt")parser.add_argument("-i",      "--images_dir",      help="Path of input images file.", type=str, default="images/test")parser.add_argument("-o",      "--output_inference_result",      help="Path of output inference result file.", type=str, default='inference_result/')args = parser.parse_args()# %%# Load the model# ~~~~~~~~~~~~~~# Next we load the downloaded modelimport timefrom object_detection.utils import label_map_utilfrom object_detection.utils import visualization_utils as viz_utils# PATH_TO_SAVED_MODEL      = "exported_models/my_model/saved_model"# PATH_TO_LABELS    = "annotations/label_map.pbtxt"# PATH_TO_IMAGES    = "images/test"# PATH_TO_INFERENCE_RESULT = 'inference_result/'PATH_TO_SAVED_MODEL      = args.saved_model_dirPATH_TO_LABELS    = args.labels_pathPATH_TO_IMAGES    = args.images_dirPATH_TO_INFERENCE_RESULT = args.output_inference_resultprint('Loading model...', end='')start_time = time.time()# Load saved model and build the detection functiondetect_fn = tf.saved_model.load(PATH_TO_SAVED_MODEL)end_time = time.time()elapsed_time = end_time - start_timeprint('Done! Took {} seconds'.format(elapsed_time))# %%# Load label map data (for plotting)# ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~# Label maps correspond index numbers to category names, so that when our convolution network# predicts `5`, we know that this corresponds to `airplane`.  Here we use internal utility# functions, but anything that returns a dictionary mapping integers to appropriate string labels# would be fine.category_index = label_map_util.create_category_index_from_labelmap(PATH_TO_LABELS,     use_display_name=True)# %%# Putting everything together# ~~~~~~~~~~~~~~~~~~~~~~~~~~~# The code shown below loads an image, runs it through the detection model and visualizes the# detection results, including the keypoints.## Note that this will take a long time (several minutes) the first time you run this code due to# tf.function's trace-compilation --- on subsequent runs (e.g. on new images), things will be# faster.## Here are some simple things to try out if you are curious:## * Modify some of the input images and see if detection still works. Some simple things to try out here (just uncomment the relevant portions of code) include flipping the image horizontally, or converting to grayscale (note that we still expect the input image to have 3 channels).# * Print out `detections['detection_boxes']` and try to match the box locations to the boxes in the image.  Notice that coordinates are given in normalized form (i.e., in the interval [0, 1]).# * Set ``min_score_thresh`` to other values (between 0 and 1) to allow more detections in or to filter out more detections.import numpy as npfrom PIL import Imageimport matplotlib.pyplot as pltimport warningsimport oswarnings.filterwarnings('ignore')   # Suppress Matplotlib warningsdef load_image_into_numpy_array(path):    """Load an image from file into a numpy array.    Puts image into numpy array to feed into tensorflow graph.    Note that by convention we put it into a numpy array with shape    (height, width, channels), where channels=3 for RGB.    Args:      path: the file path to the image    Returns:      uint8 numpy array with shape (img_height, img_width, 3)    """    return np.array(Image.open(path))def load_images_path(images_dir):    images_path_list = []    images_filename_list =  os.listdir(images_dir)    for img_path in images_filename_list: if img_path.endswith(".jpg") == True:     img_path = os.path.join('%s/%s' % (images_dir, img_path))     images_path_list.append(img_path)    return images_path_listIMAGE_PATHS = load_images_path(PATH_TO_IMAGES)for image_path in IMAGE_PATHS:    print('Running inference for {}... '.format(image_path), end='')    image_np = load_image_into_numpy_array(image_path)    # Things to try:    # Flip horizontally    # image_np = np.fliplr(image_np).copy()    # Convert image to grayscale    # image_np = np.tile(    #     np.mean(image_np, 2, keepdims=True), (1, 1, 3)).astype(np.uint8)    # The input needs to be a tensor, convert it using `tf.convert_to_tensor`.    input_tensor = tf.convert_to_tensor(image_np)    # The model expects a batch of images, so add an axis with `tf.newaxis`.    input_tensor = input_tensor[tf.newaxis, ...]    # input_tensor = np.expand_dims(image_np, 0)    detections = detect_fn(input_tensor)    # All outputs are batches tensors.    # Convert to numpy arrays, and take index [0] to remove the batch dimension.    # We're only interested in the first num_detections.    num_detections = int(detections.pop('num_detections'))    detections = {key: value[0, :num_detections].numpy()     for key, value in detections.items()}    detections['num_detections'] = num_detections    # detection_classes should be ints.    detections['detection_classes'] = detections['detection_classes'].astype(np.int64)    image_np_with_detections = image_np.copy()    viz_utils.visualize_boxes_and_labels_on_image_array(   image_np_with_detections,   detections['detection_boxes'],   detections['detection_classes'],   detections['detection_scores'],   category_index,   use_normalized_coordinates=True,   max_boxes_to_draw=200,   min_score_thresh=.30,   agnostic_mode=False)    plt.figure()    # plt.imshow(image_np_with_detections)    image_filename = os.path.join(PATH_TO_INFERENCE_RESULT, os.path.basename(image_path))    plt.imsave(image_filename, image_np_with_detections)    print('Done')# plt.show()# sphinx_gallery_thumbnail_number = 2

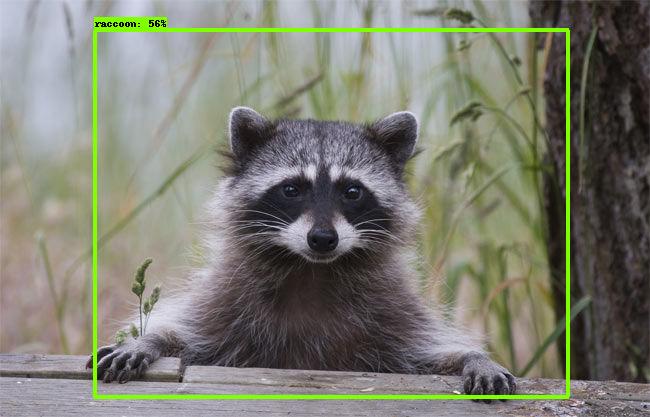

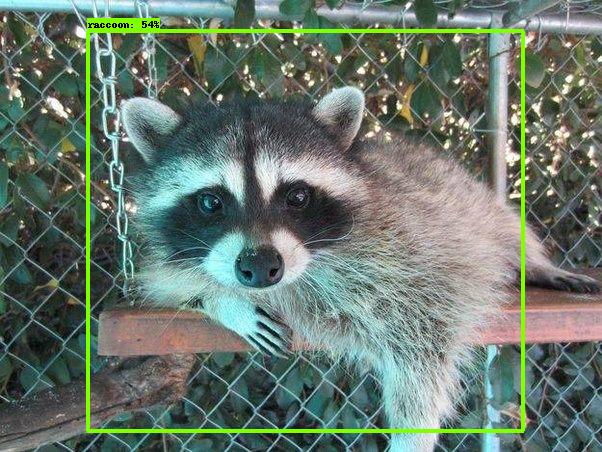

  • 结果展示
    在这里插入图片描述
    在这里插入图片描述

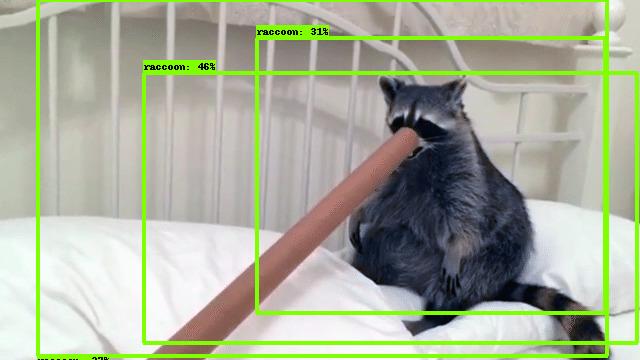

    在这里插入图片描述可以看到图片一的box框有重复的情况,需要进一步调节NVS。

以上就是一个完整的基于TF2 OD API自定义物体检测器的完整操作流程。

参考资料:

  • 异常:ValueError: numpy.ndarray size changed, may indicate binary incompatibility. Expected 96 from C header, got 88 from PyObject
  • 异常:在使用tensorboard时报错tensorboard: error: invalid choice: ‘Recognizer\logs’ (choose from ‘serve’, ‘dev’)

源码有偿下载链接:https://download.csdn.net/download/zsm180/85013744

文档中除了数据集,相关脚本和源码基本上都提供了,如果图省事,可以直接下载

  • 包含完整的工程结构
  • 包含预训练模型
  • 包含训练数据集及标注文件
  • 包含训练后导出的模型文件
  • 包含模型训练过程数据,可使用tensorboard查看
