云计算-使用Kubeadm在阿里云搭建单Master多Node的K8S
云计算-使用Kubeadm在阿里云搭建单Master多Node的K8S
阿里云的机器搭建
- 进入阿里云选择云服务器 ECS
- 单击管理控制台
- 创建我的ECS

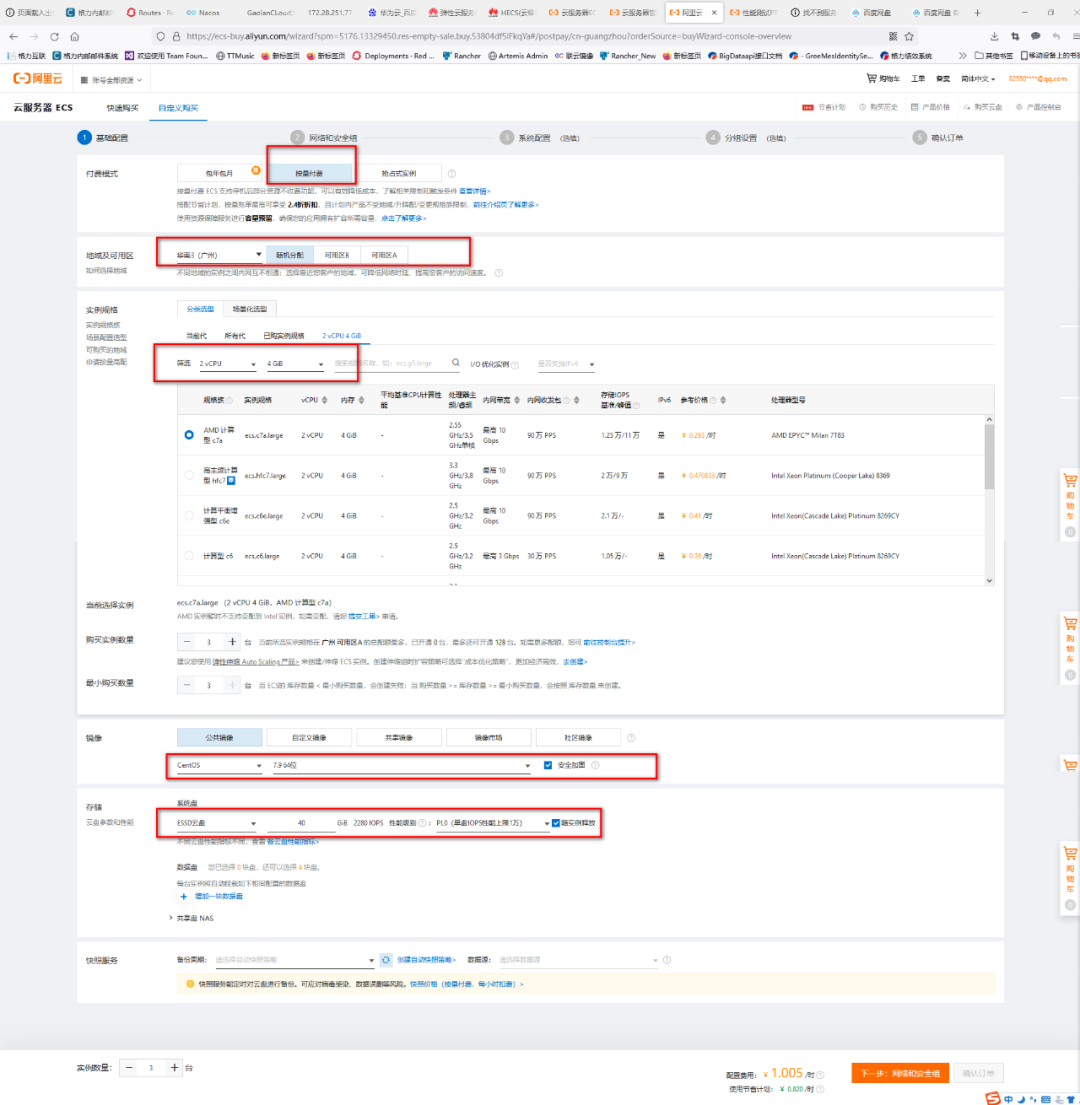

- 开始创建，然后选择按量付费，其他可以自行选择
机器环境配置
本次搭建三台机器，一台Master,两台Node,默认情况下是在三台机器上都操作，说明的是在一台master机器上操作,在阿里云上搭建的时候，ip使用阿里的私有ip,只有浏览器访问的时候使用外网IP
| ip | 节点 | hostname |
|---|---|---|
| 8.134.74.86 172.17.75.165 | master | kubeadm001 |
| 8.134.83.65 172.17.75.163 | node | kubeadm002 |
| 8.134.86.26 172.17.75.164 | node | kubeadm003 |
安装个可能用到的基础包
yum install -y openssh-clients openssh-clients ntpdate yum-utils device-mapper-persistent-data lvm2 wget net-tools nfs-utils lrzsz gcc gcc-c++ make cmake libxml2-devel openssl-devel curl curl-devel unzip sudo ntp libaio-devel wget vim ncurses-devel autoconf automake zlib-devel python-devel epel-release openssh-server socat ipvsadm conntrack ntpdate telnet ipvsadm 修改主机hosts文件

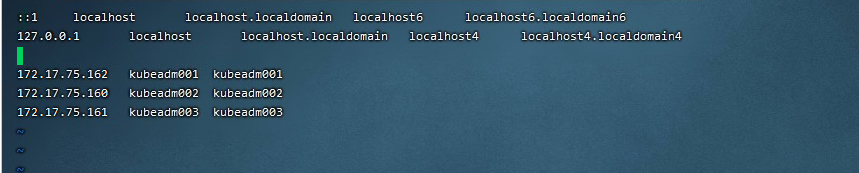

修改每台机器的/etc/hosts文件，主要添加三行
172.17.75.162 kubeadm001 kubeadm001172.17.75.160 kubeadm002 kubeadm002172.17.75.161 kubeadm003 kubeadm003
主机间免密登录
主要是kubeadm001和其他机器之间的免密登录
- 输入ssh-keygen,任何一路回车，不输入任何密码
ssk-keygen
- 把本地生成的密钥文件拷贝到远程主机kubeadm002和kubeadm003上面
ssh-copy-id kubeadm002ssh-copy-id kubeadm003
 关闭交换区，提升性能 swapoff -a
# 为什么关闭交换区？Swap是交换区，在机器内存不够的情况下，就会适应Swap，但是Swap的性能不是很好，K8S设计的时候为了提升性能，默认不允许使用Swap分区。Kubeadm初始化的时候会检测Swap是否关闭，如果没有关闭，初始化会失败。如果不想关闭交换分区，安装k8s的时候可以指定-- ignore -preflight-errors=Swap解决。 修改机器内核参数modprobe br_netfilter
echo "modprobe br_netfilter" >> /etc/profile cat > /etc/sysctl.d/k8s.conf <<EOF
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
net.ipv4.ip_forward = 1
EOF
sysctl -p /etc/sysctl.d/k8s.conf ``` 关闭防火墙```systemctl stop firewalld && systemctl disable firewalld && systemctl status firewalld```如果你不习惯使用firewalld,可以安装`iptables`，在三台机器上做如下操作 * 安装`iptables`基础包 ```yum install iptables-services -y```* 关闭`iptables` ```service iptables stop && systemctl disable iptabl```* 清空防火墙规则 ```iptables -F``` 关闭selinux使用`getenforce` 查看selinux是否关闭```[root@kubeadm003 ~]# getenforce ```如果结果不是Disabled,使用以下命令关闭selinux```sed -i 's/SELINUX=enforcing/SELINUX=disabled/g' /etc/selinux/config```注：修改selinux需要重启机器。 时间同步把三台机器上的时间同网络时间进行同步* 将机器时间同网络时间进行同步 ```ntpdate cn.pool.ntp.org```* 做一个定时任务将机器时间每小时和网络时间同步一次 ```crontab -e```* 添加定时任务 ```* */1 * * * /usr/sbin/ntpdate cn.pool.ntp.org```* 重启定时任务 ```systemctl start crond``` 开启ipvs* 在`/etc/sysconfig/modules`目录下添加ipvs.modules文件内容如下 ```vi /etc/sysconfig/modules/ipvs.modules#!/bin/bash
ipvs_modules=“ip_vs ip_vs_lc ip_vs_wlc ip_vs_rr ip_vs_wrr ip_vs_lblc ip_vs_lblcr ip_vs_dh ip_vs_sh ip_vs_nq ip_vs_sed ip_vs_ftp nf_conntrack”
for kernel_module in ${ipvs_modules}; do
/sbin/modinfo -F filename ${kernel_module} > /dev/null 2>&1
if [ 0 -eq 0 ]; then
/sbin/modprobe ${kernel_module}
fi
done

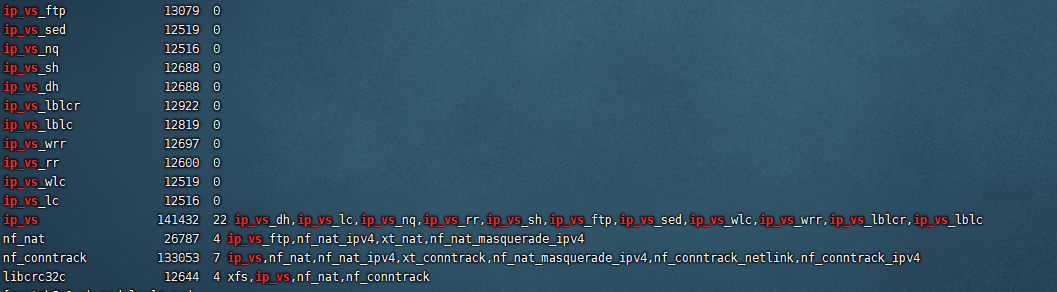

* 将`ipvs.modules`添加为可执行文件，并执行文件和查看执行情况 chmod +x /etc/sysconfig/modules/ipvs.modules && bash /etc/sysconfig/modules/ipvs.modules && lsmod | grep ip_vs
# 什么是ipvs ipvs(IP Virtual Server)实现的是传输层负载均衡，是Linux内核的一部分。ipvs运行在宿主机上，充当负载均衡器。 配置K8S组件需要的repo源* 使用vi 添加/etc/yum.repos.d/kubernetes.repo vi /etc/yum.repos.d/kubernetes.repo
文件内容如下[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/
enabled=1
gpgcheck=0
安装 docker 服务# 旧版本的卸载在安装新的docker的时候，机器可能在以前安装过docker旧版本，我们需要将其进行卸载：yum remove docker
docker-client
docker-client-latest
docker-common
docker-latest
docker-latest-logrotate
docker-logrotate
docker-engine
# 镜像仓的设置一般我们在国内的话使用国内的镜像仓，我一般使用阿里的镜像仓使用阿里国内源安装docker
yum-config-manager
–add-repo
http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
sudo sed -i ‘s+download.docker.com+mirrors.aliyun.com/docker-ce+’ /etc/yum.repos.d/docker-ce.repo
# 更新并安装Docker-cedocker-ce 社区版 , docker-ee企业版， 一般安装社区版，企业版需要授权#更新并安装Docker-CE
sudo yum makecache fast
yum install -y docker-ce docker-ce-cli containerd.io
# 启动安装并查看Docker状态systemctl start docker && systemctl enable docker && systemctl status docker
# 配置 docker 镜像加速器和驱动vi /etc/docker/daemon.json
* 本文添加了多个镜像加速器，包含阿里镜像加速器、163镜像加速器等加速器 {
“registry-mirrors”:[“https://b5b7g6yt.mirror.aliyuncs.com”,“https://registry.docker-cn.com”,“https://docker.mirrors.ustc.edu.cn”,“https://dockerhub.azk8s.cn”,“http://hub-mirror.c.163.com”,“http://qtid6917.mirror.aliyuncs.com”,“https://rncxm540.mirror.aliyuncs.com”],
“exec-opts”: [“native.cgroupdriver=systemd”]
}
* 阿里云加速器每一个人的都不一样,添加如下 * 添加以后重启`docker`和`daemon-reload` systemctl daemon-reload && systemctl restart docker && systemctl status docker
k8s安装----- 安装初始化 k8s 需要的软件包* 安装`kubelet`、`kubeadm`、`kubectl` yum install -y kubelet-1.20.6 kubeadm-1.20.6 kubectl-1.20.6
* 将`kubelet`设置为开启自启动以及查看`kubelet`状态 systemctl enable kubelet && systemctl status kubelet
现在看起来`kubelet`还不是`running`状态，现在这个状态是正常的，k8s正常启动启动以后，状态就正常了 注：* `kubeadm`:`kubeadm`是一个工具,用于初始化k8s集群 * `kubelet`：`kubelet`需要安装在集群的所有结点，作用是启动Pod * `kubectl`: `kubectl`可以部署和管理应用的工具 使用kubeadm初始化k8s集群这个操作只需要在master节点上操作就可以了，本次搭建k8s的master内网节点是172.17.75.165* \--kubernetes-version=1.20.6 表示版本 * \--apiserver-advertise-address=172.17.75.165 表示master节点在阿里云的内网IP * \--image-repository registry.aliyuncs.com/google\_containers 指定镜像仓的地址 kubeadm init --kubernetes-version=1.20.6 --apiserver-advertise-address=172.17.75.165 --image-repository registry.aliyuncs.com/google_containers --pod-network-cidr=10.244.0.0/16 --ignore-preflight-errors=SystemVerification
kubeadm默认拉取镜像的地址是k8s.grc.io，但是在国内访问效果差，所以设置为国内的镜像仓效果会更好。* 如下说明在master上安装成功 * 配置kubectl的配置文件config就是上图标出的文件 mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown ( i d − u ) : (id -u): (id−u):(id -g) $HOME/.kube/config
* 配置好以后查看nodes kubectl get nodes
* 使用`kubeadm token create`命令生成添加节点的指令 kubeadm token create --print-join-command
生成的指令如下，每次生成可能都会不同kubeadm join 172.17.75.165:6443 --token vsnwiz.9tdg2hklcmx26gbb --discovery-token-ca-cert-hash sha256:03e79bdddf8a15be78cfefb717275fda128de570bec60a1a332719c94bedc5c6
我们需要将上面的`kubeadm join`指令在kubeadm002和kubeadm003两台机器上运行* 再次查看nodes节点 kubectl get nodes
我们发现新添加的node节点的ROLES是空的，也表示它是工作节点，但是我们可以将变成work kubectl label node kubeadm002 node-role.kubernetes.io/worker=worker
kubectl label node kubeadm003 node-role.kubernetes.io/worker=worker
然后再次查看结果变为[root@kubeadm001 ~]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
kubeadm001 NotReady control-plane,master 14m v1.20.6
kubeadm002 NotReady worker 5m48s v1.20.6
kubeadm003 NotReady worker 5m44s v1.20.6
上面的STSTUS中的NotReady表示没有安装网卡插件 安装k8s网络组件-Calico链接：https://pan.baidu.com/s/1QMAAh6iL-jbke\_lM0dZxBg 提取码：1234 编写一个`calico.yaml`，我将它上传到百度云盘，可以自行下载，也可以到https://docs.projectcalico.org/manifests/calico.yaml进行下载kubectl apply -f calico.yaml
kubectl apply -f https://docs.projectcalico.org/manifests/calico.yaml
需要等待一会* 查看kube-system环境下的集群状态 kubectl get pod -n kube-system
* 再次查看k8s的集群状态 kubectl get nodes
我们发现现在集群的STATUS的状态变成了Ready,说明集群已经正常运行 # 测试k8s创建pod是否可以正常访问网络创建一个busybox容器,并进入到容器内部kubectl run busybox --image busybox:1.28 --restart=Never --rm -it busybox – sh
然后在里面输入`ping www.baidu.com`通过ping我们发现网络可以访问，说明Calico安装正常 # 测试coredns是否正常还是上面的busybos容器,输入以下命令nslookup kubernetes.default.svc.cluster.local
结果为以下，10.96.0.10就是我们coreDNS的clusterIP，说明coredns正常Server: 10.96.0.10
Address 1: 10.96.0.10 kube-dns.kube-system.svc.cluster.local
Name: kubernetes.default.svc.cluster.local
Address 1: 10.96.0.1 kubernetes.default.svc.cluster.local
k8s集群中安装tomcat服务* 创建一个`tomcat.yaml` vi tomcat.yaml
apiVersion: v1 #pod属于k8s核心组v1kind: Pod #创建的是一个Pod资源metadata: #元数据 name: tomcat-pod #pod名字 namespace: default #pod所属的名称空间 labels: app: myapp #pod具有的标签 env: dev #pod具有的标签spec: containers: #定义一个容器，容器是对象列表，下面可以有多个name - name: tomcat-pod-test #容器的名字 ports: - containerPort: 8080 image: tomcat:8.5-jre8-alpine #容器使用的镜像 imagePullPolicy: IfNotPresent```* 使用kubect部署tomcat ```kubectl apply -f tomcat.yaml```* 查看pods ```[root@kubeadm001 ~]# kubectl get podsNAME READY STATUS RESTARTS AGEtomcat-pod 1/1 Running 0 58s```* 创建tomcat的Service， `tomcat-service.yaml` ```vi tomcat-service.yaml```内容如下```apiVersion: v1kind: Servicemetadata: name: tomcatspec: type: NodePort ports: - port: 8080 nodePort: 30080 selector: app: myapp env: dev```* 运行tomcat的`service` ```kubectl apply -f tomcat-service.yaml```* 查看service的状态 ```kubectl get svc```在浏览器中http://8.134.58.124:30080/ （8.134.58.124表示master节点） 安装k8s可视化UI界面dashboard ------------------------* 创建kubernetes-dashboard.yaml文件 ```# Copyright 2017 The Kubernetes Authors.## Licensed under the Apache License, Version 2.0 (the "License");# you may not use this file except in compliance with the License.# You may obtain a copy of the License at## http://www.apache.org/licenses/LICENSE-2.0## Unless required by applicable law or agreed to in writing, software# distributed under the License is distributed on an "AS IS" BASIS,# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.# See the License for the specific language governing permissions and# limitations under the License.apiVersion: v1kind: Namespacemetadata: name: kubernetes-dashboard---apiVersion: v1kind: ServiceAccountmetadata: labels: k8s-app: kubernetes-dashboard name: kubernetes-dashboard namespace: kubernetes-dashboard---kind: ServiceapiVersion: v1metadata: labels: k8s-app: kubernetes-dashboard name: kubernetes-dashboard namespace: kubernetes-dashboardspec: ports: - port: 443 targetPort: 8443 selector: k8s-app: kubernetes-dashboard---apiVersion: v1kind: Secretmetadata: labels: k8s-app: kubernetes-dashboard name: kubernetes-dashboard-certs namespace: kubernetes-dashboardtype: Opaque---apiVersion: v1kind: Secretmetadata: labels: k8s-app: kubernetes-dashboard name: kubernetes-dashboard-csrf namespace: kubernetes-dashboardtype: Opaquedata: csrf: ""---apiVersion: v1kind: Secretmetadata: labels: k8s-app: kubernetes-dashboard name: kubernetes-dashboard-key-holder namespace: kubernetes-dashboardtype: Opaque---kind: ConfigMapapiVersion: v1metadata: labels: k8s-app: kubernetes-dashboard name: kubernetes-dashboard-settings namespace: kubernetes-dashboard---kind: RoleapiVersion: rbac.authorization.k8s.io/v1metadata: labels: k8s-app: kubernetes-dashboard name: kubernetes-dashboard namespace: kubernetes-dashboardrules: # Allow Dashboard to get, update and delete Dashboard exclusive secrets. - apiGroups: [""] resources: ["secrets"] resourceNames: ["kubernetes-dashboard-key-holder", "kubernetes-dashboard-certs", "kubernetes-dashboard-csrf"] verbs: ["get", "update", "delete"] # Allow Dashboard to get and update 'kubernetes-dashboard-settings' config map. - apiGroups: [""] resources: ["configmaps"] resourceNames: ["kubernetes-dashboard-settings"] verbs: ["get", "update"] # Allow Dashboard to get metrics. - apiGroups: [""] resources: ["services"] resourceNames: ["heapster", "dashboard-metrics-scraper"] verbs: ["proxy"] - apiGroups: [""] resources: ["services/proxy"] resourceNames: ["heapster", "http:heapster:", "https:heapster:", "dashboard-metrics-scraper", "http:dashboard-metrics-scraper"] verbs: ["get"]---kind: ClusterRoleapiVersion: rbac.authorization.k8s.io/v1metadata: labels: k8s-app: kubernetes-dashboard name: kubernetes-dashboardrules: # Allow Metrics Scraper to get metrics from the Metrics server - apiGroups: ["metrics.k8s.io"] resources: ["pods", "nodes"] verbs: ["get", "list", "watch"]---apiVersion: rbac.authorization.k8s.io/v1kind: RoleBindingmetadata: labels: k8s-app: kubernetes-dashboard name: kubernetes-dashboard namespace: kubernetes-dashboardroleRef: apiGroup: rbac.authorization.k8s.io kind: Role name: kubernetes-dashboardsubjects: - kind: ServiceAccount name: kubernetes-dashboard namespace: kubernetes-dashboard---apiVersion: rbac.authorization.k8s.io/v1kind: ClusterRoleBindingmetadata: name: kubernetes-dashboardroleRef: apiGroup: rbac.authorization.k8s.io kind: ClusterRole name: kubernetes-dashboardsubjects: - kind: ServiceAccount name: kubernetes-dashboard namespace: kubernetes-dashboard---kind: DeploymentapiVersion: apps/v1metadata: labels: k8s-app: kubernetes-dashboard name: kubernetes-dashboard namespace: kubernetes-dashboardspec: replicas: 1 revisionHistoryLimit: 10 selector: matchLabels: k8s-app: kubernetes-dashboard template: metadata: labels: k8s-app: kubernetes-dashboard spec: containers: - name: kubernetes-dashboard image: kubernetesui/dashboard:v2.0.0-beta8 imagePullPolicy: IfNotPresent ports: - containerPort: 8443protocol: TCP args: - --auto-generate-certificates - --namespace=kubernetes-dashboard # Uncomment the following line to manually specify Kubernetes API server Host # If not specified, Dashboard will attempt to auto discover the API server and connect # to it. Uncomment only if the default does not work. # - --apiserver-host=http://my-address:port volumeMounts: - name: kubernetes-dashboard-certsmountPath: /certs# Create on-disk volume to store exec logs - mountPath: /tmpname: tmp-volume livenessProbe: httpGet:scheme: HTTPSpath: /port: 8443 initialDelaySeconds: 30 timeoutSeconds: 30 securityContext: allowPrivilegeEscalation: false readOnlyRootFilesystem: true runAsUser: 1001 runAsGroup: 2001 volumes: - name: kubernetes-dashboard-certs secret: secretName: kubernetes-dashboard-certs - name: tmp-volume emptyDir: {} serviceAccountName: kubernetes-dashboard nodeSelector: "beta.kubernetes.io/os": linux # Comment the following tolerations if Dashboard must not be deployed on master tolerations: - key: node-role.kubernetes.io/master effect: NoSchedule---kind: ServiceapiVersion: v1metadata: labels: k8s-app: dashboard-metrics-scraper name: dashboard-metrics-scraper namespace: kubernetes-dashboardspec: ports: - port: 8000 targetPort: 8000 selector: k8s-app: dashboard-metrics-scraper---kind: DeploymentapiVersion: apps/v1metadata: labels: k8s-app: dashboard-metrics-scraper name: dashboard-metrics-scraper namespace: kubernetes-dashboardspec: replicas: 1 revisionHistoryLimit: 10 selector: matchLabels: k8s-app: dashboard-metrics-scraper template: metadata: labels: k8s-app: dashboard-metrics-scraper annotations: seccomp.security.alpha.kubernetes.io/pod: 'runtime/default' spec: containers: - name: dashboard-metrics-scraper image: kubernetesui/metrics-scraper:v1.0.1 imagePullPolicy: IfNotPresent ports: - containerPort: 8000protocol: TCP livenessProbe: httpGet:scheme: HTTPpath: /port: 8000 initialDelaySeconds: 30 timeoutSeconds: 30 volumeMounts: - mountPath: /tmp name: tmp-volume securityContext: allowPrivilegeEscalation: false readOnlyRootFilesystem: true runAsUser: 1001 runAsGroup: 2001 serviceAccountName: kubernetes-dashboard nodeSelector: "beta.kubernetes.io/os": linux # Comment the following tolerations if Dashboard must not be deployed on master tolerations: - key: node-role.kubernetes.io/master effect: NoSchedule volumes: - name: tmp-volume emptyDir: {}```* 安装 kubernetes-dashboard ```kubectl apply -f kubernetes-dashboard.yaml```* 查看dashboard的pod状态(需要等待一点时间) ```kubectl get pods -n kubernetes-dashboard```查看结果为如下，说明安装成功```NAME READY STATUS RESTARTS AGEdashboard-metrics-scraper-778b77d469-r6cwm 1/1 Running 0 2mkubernetes-dashboard-648b6964bf-gnbw4 1/1 Running 0 2m```* 查看dashboard的前端service ```kubectl get svc -n kubernetes-dashboard```结果为```NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGEdashboard-metrics-scraper ClusterIP 10.97.73.249 8000/TCP 2m57skubernetes-dashboard ClusterIP 10.106.69.73 443/TCP 2m57s```我们发现kubernetes-dashboard的TYPE状态ClusterIP,我们需要将其修改为NodePort状态,```kubectl edit svc kubernetes-dashboard -n kubernetes-dashboard```* 再次查看 kubernetes-dashboard的svc ```[root@kubeadm001 ~]# kubectl get svc -n kubernetes-dashboardNAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGEdashboard-metrics-scraper ClusterIP 10.97.73.249 8000/TCP 7m31skubernetes-dashboard NodePort 10.106.69.73 443:31284/TCP 7m31s```查看到端口是31284,然后使用任何一个node:31284进行查看可看到出现了dashboard界面 # 通过token令牌访问dashboard * 创建管理员token，具有查看任何空间的权限，可以管理所有资源对象 ```kubectl create clusterrolebinding dashboard-cluster-admin --clusterrole=cluster-admin --serviceaccount=kubernetes-dashboard:kubernetes-dashboard```* 查看kubernetes-dashboard名称空间下的secret ```kubectl get secret -n kubernetes-dashboard```找到对应的带有oken的kubernetes-dashboard-token-66r22 ，每次kubernetes-dashboard-token的name不同 ```kubectl describe secret kubernetes-dashboard-token-9mwrn -n kubernetes-dashboard```# 通过 kubernetes-dashboard 创建容器 打开 kubernetes 的 dashboard 界面点开右上角红色箭头标注的 “+”，如下图所示：选择Create from form 在dashboard的左侧选择Services 上图可看到刚才创建的nginx的service在宿主机映射的端口是32545，在浏览器访问：http://8.134.74.86:32545/ 错误解决：可能会出现dashboard打不开的情况，在谷歌浏览器，点击属性，在尾部添加\--disable-infobars --ignore-certificate-errors
