解决IIS EXPRESS文件上传限制的问题
文章目录
- 前言
- 一、页面调试的出错信息
- 二、网上资料查阅
-
- 1.关键词选择
- 2.根据文章描述应该是服务器IIS7对上传有requestLimits 项
- 三、案例实践
-
- 1.上传页面设计界面
- 2.上传页面:源
- 3.后台代码
- 4.web.config文件配置
- 5.小技巧:生成固定大小测试文件
- 总结
前言
ASP.NET开发中使用到FileUpload控件来进行上传文件时,上传文件大小受到来自三个方面控制。①页面自定义程序逻辑②应用程序Web.config③IIS服务器配置文件applicationhost.config。
提示:以下是本篇文章正文内容,下面案例可供参考
一、页面调试的出错信息
请求筛选模块被配置为拒绝超过请求内容长度的请求。
可尝试的操作:
- 确认 applicationhost.config 或 web.config 文件中的 configuration/system.webServer/security/requestFiltering/requestLimits@maxAllowedContentLength 设置。
二、网上资料查阅
1.关键词选择
requestLimits maxAllowedContentLength

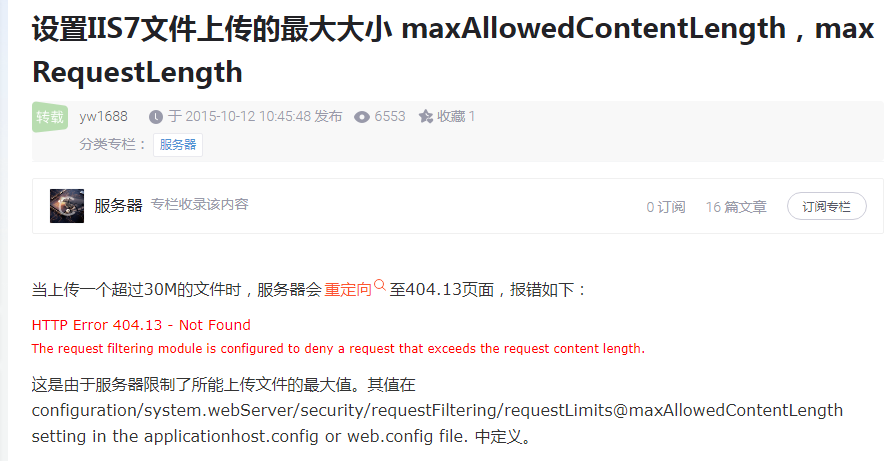

查阅到的比较贴近的例子链接
https://blog.csdn.net/yw1688/article/details/49070633
2.根据文章描述应该是服务器IIS7对上传有requestLimits 项
文件位置:C:\Windows\System32\inetsrv\config\applicationhost.config
配置节内容:(注意单位是:字节)
<system.webServer> <security><requestFiltering><requestLimits maxAllowedContentLength="40000000" /></requestFiltering> </security><system.webServer>
本实例在VS2015环境里测试,使用的是IIS EXPRESS,与IIS7有区别。
IIS EXPRESS配置文件位置:
C:\Program Files (x86)\IIS Express\AppServer\applicationhost.config
三、案例实践
根据文章内容进行反复实践,发现因为IIS和IIS EXPRESS的不同,并不能得到正确的结果,需要进行调整才能最终完成,后面附能正常处理完整案例代码。
1.上传页面设计界面
2.上传页面:源
<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="Demo09_UpLoad.aspx.cs" Inherits="WebApp.Demo09_UpLoad" %><!DOCTYPE html><html xmlns="http://www.w3.org/1999/xhtml"><head runat="server"><meta http-equiv="Content-Type" content="text/html; charset=utf-8"/> <title></title></head><body> <form id="form1" runat="server"> <div> 请选择要上传的文件:<asp:FileUpload ID="ful" runat="server" /> <asp:Button ID="btnUpload" runat="server" Text="开始上传" OnClick="btnUpload_Click" /> <br /> <br /> <asp:Literal ID="ltaMsg" runat="server"></asp:Literal> </div> </form></body></html>
3.后台代码
using System;using System.Collections.Generic;using System.IO;using System.Linq;using System.Web;using System.Web.UI;using System.Web.UI.WebControls;namespace WebApp{ public partial class Demo09_UpLoad : System.Web.UI.Page { protected void Page_Load(object sender, EventArgs e) { } protected void btnUpload_Click(object sender, EventArgs e) { //【1】判断文件是否存在 if (!this.ful.HasFile) return; //【2】获取文件大小,判断是否符合设置要求(变成MB) double fileLength = this.ful.FileContent.Length / (1024.0 * 1024.0); //获取配置文件中上传文件大小的限制 double limitedLength = Convert.ToDouble(System.Configuration.ConfigurationManager.AppSettings["PhysicsObjectLength"]); limitedLength = limitedLength / 1024.0;//转换成MB单位 //判断实际文件大小是否符合要求 if (fileLength > limitedLength) { // this.ltaMsg.Text = "上传文件大小不能超过" + limitedLength + "MB"; this.ltaMsg.Text = "alert('上传文件最大不能超过" + limitedLength + "M')"; return; } //【3】获取文件名,判断文件扩展是否符合要求 string fileName = this.ful.FileName; //判断文件名是否是exe文件 if (fileName.Substring(fileName.LastIndexOf(".") + 1).ToLower() == "exe") { this.ltaMsg.Text = "alert('上传文件不能是exe文件')"; return; } //修改文件名 fileName = DateTime.Now.ToString("yyyyMMddHHmmssfff") + "_" + fileName; //fileName = DateTime.Now.ToString("yyyyMMddhhssms") + "_" + fileName; // (yyyyMMddHHmmssfff //【4】获取服务器文件夹路径 string path = Server.MapPath("~/UploadFiles"); //【5】上传文件 try { this.ful.SaveAs(path + "/" + fileName); this.ltaMsg.Text = "alert('文件上传成功!')"; } catch (Exception ex) { this.ltaMsg.Text = "alert('文件上传失败!" + ex.Message + "')"; } } }}
4.web.config文件配置
<?xml version="1.0" encoding="utf-8"?><!-- 有关如何配置 ASP.NET 应用程序的详细信息,请访问 http://go.microsoft.com/fwlink/?LinkId=169433 --><configuration> <appSettings> <!--配置上传文件最大字节数:单位KB--> <add key="PhysicsObjectLength" value="30720"/> </appSettings> <system.web> <!--设置请求的最大字节数(默认是4096,单位:KB)--> <httpRuntime maxRequestLength="40960"></httpRuntime> <compilation debug="true" targetFramework="4.0" /> </system.web> <system.webServer> <security> <requestFiltering> <requestLimits maxAllowedContentLength="60000000" /> </requestFiltering> </security> </system.webServer>

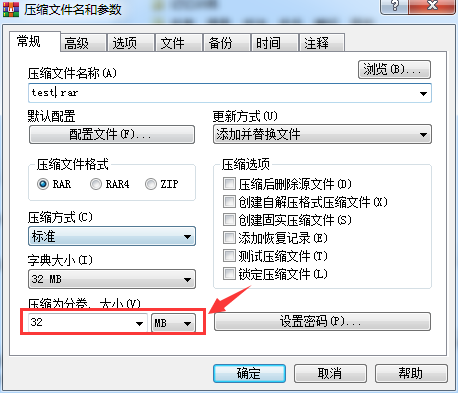

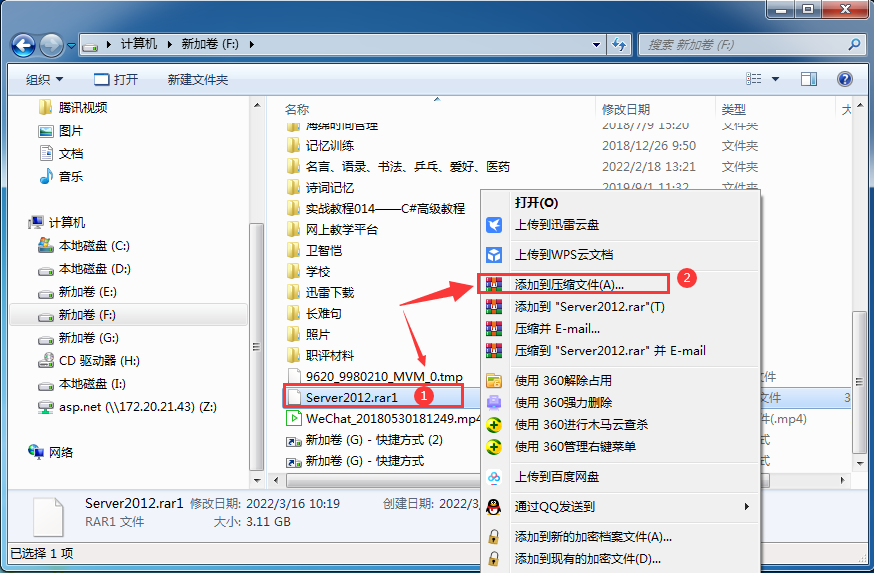

5.小技巧:生成固定大小测试文件
使用WinRAR可以轻松得到固定大小的压缩包文件,注意没必要等到全部生成就可以取消掉这个操作。因为这个操作将生成一系列固定大小的文件。而用于测试,1个文件就够了。
总结
读者应该能够发现笔者的配置configuration/system.webServer/security/requestFiltering/requestLimits由applicationhost.config转放到了web.config文件。这需要applicationhost.config文件的配置节作相应的设置configuration/configSections/sectionGroup/section
<section name="requestFiltering" overrideModeDefault="Allow" />
这项设置在IIS7中是Deny,但在IIS EXPRESS中默认为Allow,其实应该能想明白,为了减少调试的不确定性,VS2015用这项设置,把文件上传限制的权限放到了web.config文件里。
另外,在作配置时应该有一个梯度:
①页面自定义文件限制≤②应用程序文件限制≤③IIS服务器文件限制
