前序-中序-后续遍历查找
二叉树-查找指定节点
要求
- 请编写前序查找,中序查找和后序查找的方法。
- 并分别使用三种查找方式,查找 heroNO = 5 的节点
- 并分析各种查找方式,分别比较了多少次

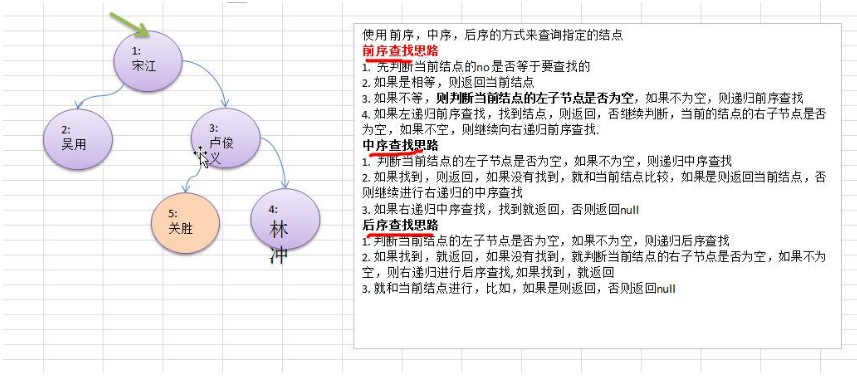

- 思路分析图解
前序-中序-后续遍历查找
package com.iflytek.tree;//先创建HeroNode 结点class HeroNode { private int no; private String name; private HeroNode left;//默认 null private HeroNode right;//默认 null public HeroNode(int no, String name) { this.no = no; this.name = name; } public int getNo() { return no; } public void setNo(int no) { this.no = no; } public String getName() { return name; } public void setName(String name) { this.name = name; } public HeroNode getLeft() { return left; } public void setLeft(HeroNode left) { this.left = left; } public HeroNode getRight() { return right; } public void setRight(HeroNode right) { this.right = right; } @Override public String toString() { return "HeroNode{" + "no=" + no + ", name='" + name + '\'' + '}'; } //编写前序遍历的方法 public void preOrder() { System.out.println(this);//先输出父结点 //递归向左子树前序遍历 if (this.left != null) { this.left.preOrder(); } //递归向右子树前序遍历 if (this.right != null) { this.right.preOrder(); } } //中序遍历 public void infixOrder() { //递归向左子树中序遍历 if (this.left != null) { this.left.infixOrder(); } //输出父结点 System.out.println(this); //递归向右子树中序遍历 if (this.right != null) { this.right.infixOrder(); } } //后序遍历 public void postOrder() { //递归向左子树中序遍历 if (this.left != null) { this.left.postOrder(); } //递归向右子树中序遍历 if (this.right != null) { this.right.postOrder(); } //输出父结点 System.out.println(this); } /** * 前序遍历查找 * * @param no 查找 no * @return 如果找到就返回该Node ,如果没有找到返回 null */ public HeroNode preOrderSearch(int no) { System.out.println("进入前序遍历"); //比较当前结点是不是 if (this.no == no) { return this; } //1.则判断当前结点的左子节点是否为空,如果不为空,则递归前序查找 //2.如果左递归前序查找,找到结点,则返回 HeroNode resNode = null; if (this.left != null) { resNode = this.left.preOrderSearch(no); } if (resNode != null) {//说明我们左子树找到 return resNode; } //1.左递归前序查找,找到结点,则返回,否继续判断, //2.当前的结点的右子节点是否为空,如果不空,则继续向右递归前序查找 if (this.right != null) { resNode = this.right.preOrderSearch(no);//不需要在判断的,直接返回 } return resNode; } /** * 中序遍历查找 * * @param no 查找 no * @return 如果找到就返回该Node ,如果没有找到返回 null */ public HeroNode infixOrderSearch(int no) { //判断当前结点的左子节点是否为空,如果不为空,则递归中序查找 HeroNode resNode = null; if (this.left != null) { resNode = this.left.infixOrderSearch(no); } if (resNode != null) { return resNode; } System.out.println("进入中序查找"); //如果找到,则返回,如果没有找到,就和当前结点比较,如果是则返回当前结点 if (this.no == no) { return this; } //否则继续进行右递归的中序查找 if (this.right != null) { resNode = this.right.infixOrderSearch(no); } return resNode; } /** * 后序遍历查找 * * @param no 查找 no * @return 如果找到就返回该Node ,如果没有找到返回 null */ public HeroNode postOrderSearch(int no) { //判断当前结点的左子节点是否为空,如果不为空,则递归后序查找 HeroNode resNode = null; if (this.left != null) { resNode = this.left.postOrderSearch(no); } if (resNode != null) {//说明在左子树找到 return resNode; } //如果左子树没有找到,则向右子树递归进行后序遍历查找 if (this.right != null) { resNode = this.right.postOrderSearch(no); } if (resNode != null) { return resNode; } System.out.println("进入后序查找"); //如果左右子树都没有找到,就比较当前结点是不是 if (this.no == no) { return this; } return resNode; }}class BinaryTree { private HeroNode root; public void setRoot(HeroNode root) { this.root = root; } //前序遍历 public void preOrder() { if (this.root != null) { this.root.preOrder(); } else { System.out.println("二叉树为空,无法遍历"); } } //中序遍历 public void infixOrder() { if (this.root != null) { this.root.infixOrder(); } else { System.out.println("二叉树为空,无法遍历"); } } //后序遍历 public void postOrder() { if (this.root != null) { this.root.postOrder(); } else { System.out.println("二叉树为空,无法遍历"); } } //前序查找 public HeroNode preOrderSearch(int no){ if (this.root!=null){ return this.root.preOrderSearch(no); }else { return null; } } //中序查找 public HeroNode infixOrderSearch(int no){ if (this.root!=null){ return this.root.infixOrderSearch(no); }else { return null; } } //后序查找 public HeroNode postOrderSearch(int no){ if (this.root!=null){ return this.root.postOrderSearch(no); }else { return null; } }}public class BinaryTreeDemo { public static void main(String[] args) { //先需要创建一颗二叉树 BinaryTree binaryTree = new BinaryTree(); //创建需要的结点 HeroNode root = new HeroNode(1, "宋江"); HeroNode node2 = new HeroNode(2, "吴用"); HeroNode node3 = new HeroNode(3, "卢俊义"); HeroNode node4 = new HeroNode(4, "林冲"); HeroNode node5 = new HeroNode(5, "关胜"); //说明,我们先手动创建该二叉树,后面我们学习递归的方式创建二叉树 root.setLeft(node2); root.setRight(node3); node3.setRight(node4); node3.setLeft(node5); binaryTree.setRoot(root);/* //测试 System.out.println("前序遍历"); // 1,2,3,5,4 binaryTree.preOrder(); //测试 System.out.println("中序遍历"); binaryTree.infixOrder(); // 2,1,5,3,4 //测试 System.out.println("后序遍历"); binaryTree.postOrder(); // 2,5,4,3,1*/ HeroNode resNode=null; //前序遍历查找 //前序遍历的次数 :4 System.out.println("前序遍历方式~~~"); resNode = binaryTree.preOrderSearch(5); if (resNode!=null){ System.out.printf("找到了,信息为 no=%d name=%s\n", resNode.getNo(), resNode.getName()); }else { System.out.printf("没有找到 no = %d 的英雄",5); } //中序遍历查找 //中序遍历 3 次 System.out.println("中序遍历方式~~~"); resNode = binaryTree.infixOrderSearch(5); if (resNode!=null){ System.out.printf("找到了,信息为 no=%d name=%s\n", resNode.getNo(), resNode.getName()); }else { System.out.printf("没有找到 no = %d 的英雄", 5); } //后序遍历查找 //后序遍历查找的次数 2 次 System.out.println("后序遍历方式~~~"); resNode = binaryTree.postOrderSearch(5); if (resNode!=null){ System.out.printf("找到了,信息为 no=%d name=%s\n", resNode.getNo(), resNode.getName()); }else { System.out.printf("没有找到 no = %d 的英雄", 5); } }}
