IP Camera视频流接入EdgeX Foundry操作实例

最近华乔老师贡献了一个edgex-device-rtsp的device service，用来管理IPC设备，这个帖子展示了使用这个微服务连接摄像头的整个流程。
步骤一：拉取对应的docker启动edgex-device-rtsp

为了方便操作，这里我直接修改了docker-compose文件中，在device service段添加如下code：

  device-rtsp:    image: badboyqiao/edgex-device-rtsp:0.1.0-dev    ports:    - "49983:49983"    - "1935:1935"    - "8089:8089"    container_name: edgex-device-rtsp    hostname: edgex-device-rtsp    networks:      edgex-network: aliases: - edgex-device-rtsp    volumes:    - db-data:/data/db    - log-data:/edgex/logs    - consul-config:/consul/config    - consul-data:/consul/data    depends_on:    - data    - command

改写完成之后，通过docker-compose文件正常启动edgex-foundry。
步骤二：打开UI，上传profile文件，填写Device信息
2.1 上传profile文件

首先需要填写edgexfoundry解析设备所需要的profile文件，将下面的内容保存为“test-rtsp-profile.yml”文件，保存在本地。

name: "test-rtsp-profile"manufacturer: "VMware huaqiaoz"model: "rtsp"labels:- "test"description: "Test rtsp profile"deviceResources:-  name: turnon  description: "turnon actively"  attributes:    { name: "turnon" }  properties:    value:      { type: "Bool", size: "1", readWrite: "RW", defaultValue: "false"  }    units:      { type: "String", readWrite: "RW", defaultValue: "ON" }-  name: turnoff  description: "turnoff actively"  attributes:    { name: "turnoff" }  properties:    value:      { type: "Bool", size: "1", readWrite: "RW", defaultValue: "false"  }    units:      { type: "String", readWrite: "RW", defaultValue: "OFF" }deviceCommands:-  name: turnon  set:  - { index: "1", operation: "set", object: "turnon", parameter: "turnon", property: "value" }-  name: turnoff  set:  - { index: "1", operation: "set", object: "turnoff", parameter: "turnoff", property: "value" }coreCommands:-  name: turnon  put:    path: "/api/v1/device/{deviceId}/turnon"    parameterNames: ["turnon"]    responses:    -      code: "204"      description: "set the message."      expectedValues: []    -      code: "503"      description: "service unavailable"      expectedValues: []-  name: turnoff  put:    path: "/api/v1/device/{deviceId}/turnoff"    parameterNames: ["turnoff"]    responses:    -      code: "204"      description: "set the message."      expectedValues: []    -      code: "503"      description: "service unavailable"      expectedValues: []

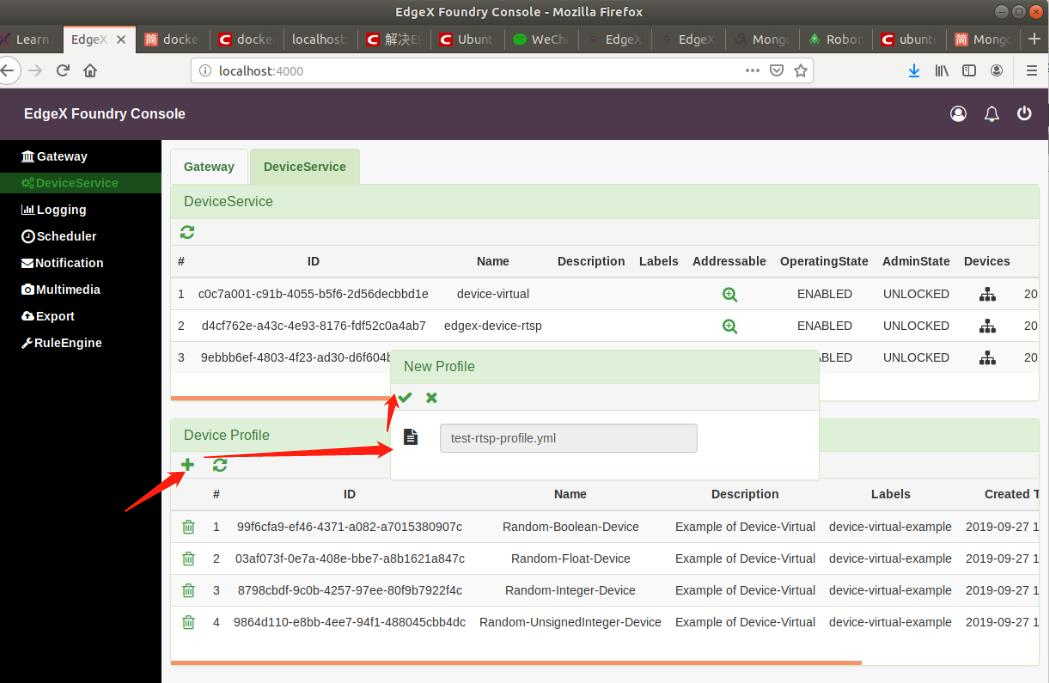

打开UI界面(http://localhost:4000)之后，首先添加网关，选择添加的网关，在左侧栏中选中“Deviceservice”,在右侧栏中可以看到Device Profile这一区域，选择添加profile，选择ipc对应的profile文件，上传，如下图箭头所示：

2.2填写device信息

在上面的Device-service区域，可以看到有edgex-device-service，然后点击下图箭头所指的位置，出现填写device信息的窗口。
例如，rtsp的流为：rtsp://admin:admin@10.5.5.11:554/h264/ch1/main/av_stream
注册设备所需填写的内容为(应该根据具体的rtsp流填写内容)：

{    "name":"ipc1_device_name",    "adminState":"UNLOCKED",    "operatingState":"ENABLED",    "protocols":{ "rtsp":{     "Schema":"rtsp",     "Host":"10.5.5.11",     "Port":"554",     "Password":"admin",     "User":"admin",     "Path":"/h264/ch1/main/av_stream",     "DumpPath":"jianing" }    },    "service":{ "name":"edgex-device-rtsp"      },    "profile":{ "name":"test-rtsp-profile"    }}

dumppath目前没有用，可以随便填写

填写之后的界面如图：

2.3 发送命令

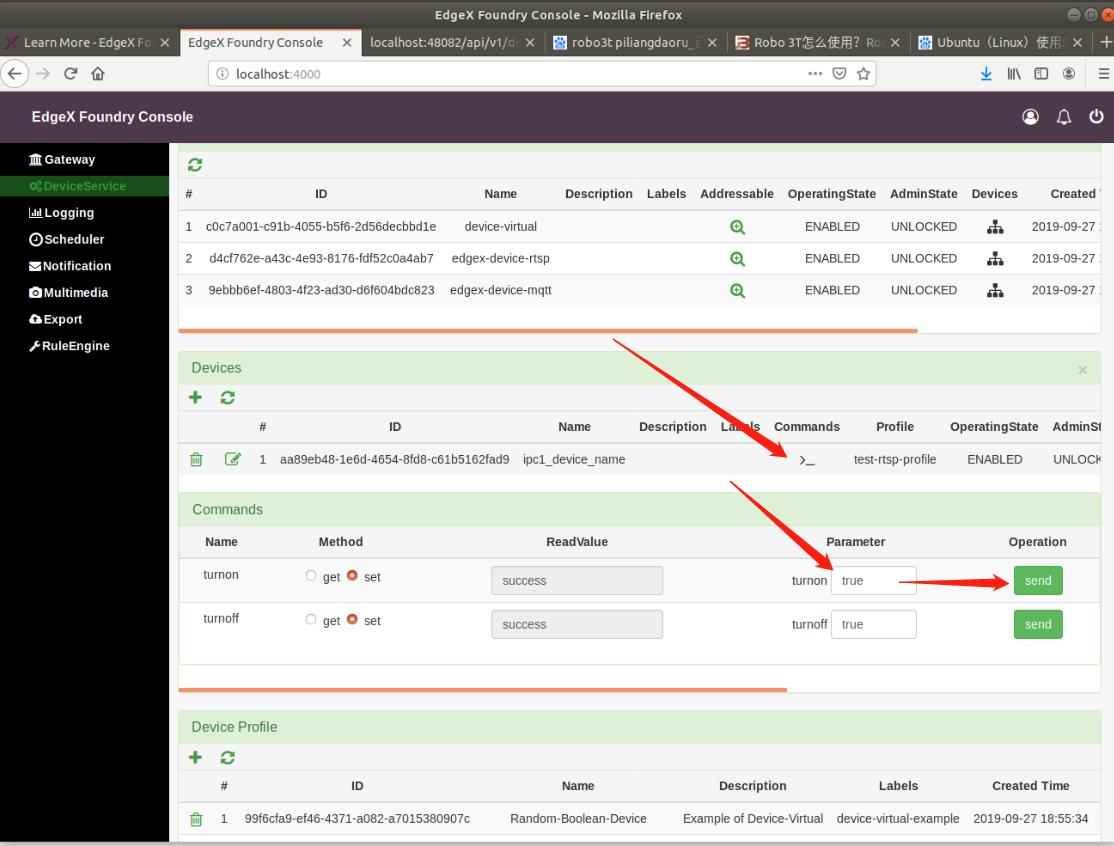

根据下图箭头的顺序，首先调出来Command选项卡，”Method”选择”set”选项，”Parameter”填写”true”,发送命令，看到返回“Success”,说明操作成功。

原作者：lulililu
原文链接：https://www.edgexfoundry.club/user/lulililu/article/5d8d93356598210001292c9b
