告警元素(Alarm)

TWaver中定义了告警，每个告警有告警级别，用以反映告警的紧急程度，告警使用AlarmBox进行管理，将告警与拓扑网元相关联。网元本身不存储具体的告警，而只存储当前告警状态信息。

告警(Alarm)

用来表示网管系统中设备故障或者网络异常的数据模型，与Element关联以反映网元的告警信息，Alarm中预定义了告警级别、告警是否已清除，告警是否已确认以及发出告警的网元id，用户也可以通过setClient()方法添加自己的属性。

告警中定义的属性如下：

/* id:告警的Id* elementId:告警网元的Id* alarmSeverity:告警级别* isAcked:告警是否确认* isCleared:告警是否清除*/twaver.Alarm: function(id, elementId, alarmSeverity, isAcked, isCleared)getElementId:function()isAcked:function()setAcked:function(value)isCleared:function()setCleared:function(value)getAlarmSeverity:function()setAlarmSeverity:function(value)

告警级别(AlarmSeverity)

告警级别用以反映告警的紧急程度，TWaver
HTML5中预定义了六中告警级别，告警级别的value属性表示告警的严重程度，默认值越大告警越严重。

/* value:* name:* nickName:* color:* displayName:*/twaver.AlarmSeverity:function(value,name,nickName,color,displayName)//TWaver内部预定义六中告警级别twaver.AlarmSeverity.CRITICAL = twaver.AlarmSeverity.add(500,'Critical','C',"#FF0000");twaver.AlarmSeverity.MAJOR = twaver.AlarmSeverity.add(400,'Major','M',"#FFA000");twaver.AlarmSeverity.MINOR = twaver.AlarmSeverity.add(300,'Minor','m',"#FFFF00");twaver.AlarmSeverity.WARNING = twaver.AlarmSeverity.add(200,'Warning','W',"#00FFFF");twaver.AlarmSeverity.INDETERMINATE = twaver.AlarmSeverity.add(100,'Indeterminate','N',"#C800FF");twaver.AlarmSeverity.CLEARED = twaver.AlarmSeverity.add(0,'Cleared','R',"#00FF00");

使用的时候我们直接使用这样的形式即可：

const { CRITICAL, MAJOR, WARNING, MINOR, INDETERMINATE, CLEARED } = twaver.AlarmSeverityexport const ALARM1 = CLEAREDexport const ALARM2 = INDETERMINATEexport const ALARM3 = MINORexport const ALARM4 = MAJORexport const ALARM5 = CRITICAL

AlarmSeverity中的级别都是静态变量，用户也可以全局注册或者卸载自己的告警级别，此外还提供清除所有告警级别的方法。

设置告警状态
//添加告警级别twaver.AlarmSeverity.add:function(value,name,nickName,colour,displayName)//删除告警级别twaver.AlarmSeverity.remove:function(name)//清空告警级别twaver.AlarmSeverity.clear:function()

因为告警级别是全局变量，删除告警级别会对整个程序产生影响，所以请谨慎操作。

告警状态(AlarmState)

实际应用中，告警的出现可能成千上万，面对告警风暴，直接与告警关联是沉重的,所以TWaver采用网元与告警分离，由告警容器去管理所有告警，网元本身只存储告警状态信息，如当前有多少条告警，最高级别是什么，而对于每条告警具体的信息存放在告警容器(AlarmBox)中。

网元告警状态用twaver.AlarmState来定义，用来反映新发告警的级别和数量。
告警状态属性包括:
确认告警的最高级别、
新发告警的最高级别、
该网元所有告警的最高级别、
新发告警次高级别、
资深告警最高级别，传递告警级别以及各级告警的数量。

getHighestAcknowledgedAlarmSeverity:function()getHighestNewAlarmSeverity:function()getHighestOverallAlarmSeverity:function()hasLessSevereNewAlarms:function()getAcknowledgedAlarmCount:function(severity)getAlarmCount:function(severity)getNewAlarmCount:function(severity)setNewAlarmCount:function(severity,count)getPropagateSeverity:function()setPropagateSeverity:function(propagateSeverity)isEmpty:function()isEnablePropagation:function()setEnablePropagation:function(enablePropagation)
修改告警状态的相关方法：确认告警，清除告警，增加/减少确认告警，删除告警…

对告警进行修改的APIFun

acknowledgeAlarm:function(severity)acknowledgeAllAlarms:function(severity)increaseAcknowledgesAlarm:function(severity,increment)increaseNewAlarm:function(severity,increment)decreaseAcknowledgedAlarm:function(severity,decrement)decreaseNewAlarm；function(severity,decrement)removeAllNewAlarms:function(severity)setAcknowledgedAlarmCount:function(severity,count)removeAllAcknowledgedAlarms:function(severity)clear:function()

告警的使用

在使用告警时需要注意一点，告警增删都要通过alarmBox来操作，这点与网元需要在elementBox中增删是一致的。

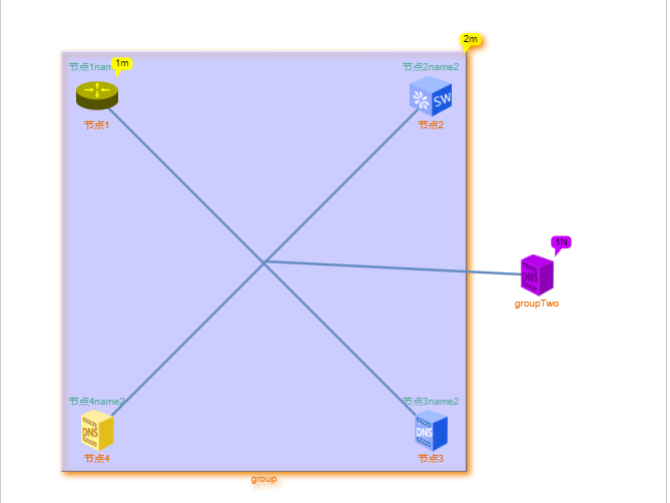

在这里插入图片描述

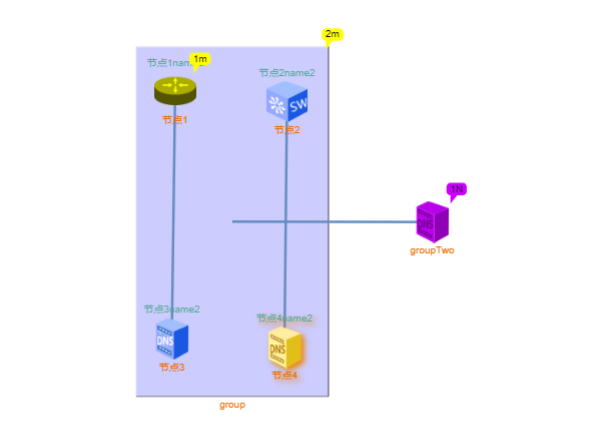

在这里插入图片描述

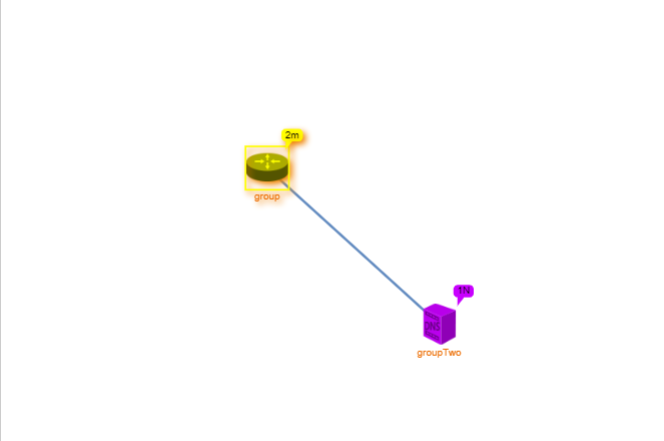

在这里插入图片描述

封装的方法js:
const twaver = require('twaver');// 设置每个图元name的颜色twaver.Styles.setStyle('label.color', '#ec6c00');// 设置每个图元name2的颜色twaver.Styles.setStyle('label2.color', '#57ab9a');twaver.Styles.setStyle('select.color', '#ef8200');//TWaver内部预定义六中告警级别twaver.AlarmSeverity.CRITICAL = twaver.AlarmSeverity.add(500, 'Critical', 'C', "#FF0000");twaver.AlarmSeverity.MAJOR = twaver.AlarmSeverity.add(400, 'Major', 'M', "#FFA000");twaver.AlarmSeverity.MINOR = twaver.AlarmSeverity.add(300, 'Minor', 'm', "#FFFF00");twaver.AlarmSeverity.WARNING = twaver.AlarmSeverity.add(200, 'Warning', 'W', "#00FFFF");twaver.AlarmSeverity.INDETERMINATE = twaver.AlarmSeverity.add(100, 'Indeterminate', 'N', "#C800FF");twaver.AlarmSeverity.CLEARED = twaver.AlarmSeverity.add(0, 'Cleared', 'R', "#00FF00");const { CRITICAL, MAJOR, WARNING, MINOR, INDETERMINATE, CLEARED } = twaver.AlarmSeverityexport const ALARM1 = CLEAREDexport const ALARM2 = INDETERMINATEexport const ALARM3 = MINORexport const ALARM4 = MAJORexport const ALARM5 = CRITICAL    /     * 创建一个dataBox容器     * 容器中可以add图元     */    export const returnElementBoxFun = () => new twaver.ElementBox()/ * 创建一个画布 network对象 * @param {ElementBox} box  创建一个画布 network对象 */export const returnNetworkFun = (box) => new twaver.vector.Network(box)/ * 创建一个Group * 用于包裹图元 */export const returnGroupFun = (box, obj = {}) => {    let group = new twaver.Group(obj)    box.add(group)    return group}/ * 创建一个容器dataBox和一个画布 * 并将容器实例化画布 * @returns [box,network] box network */export const returnElementBoxAndNetworkFun = () => {    let box = returnElementBoxFun();    let network = returnNetworkFun(box);    return [box, network]}/ * 用于创建一个节点 * @param {ElementBox} box dataBox  * @param {String} name 当前节点的name * @param {Number} x   当前节点的x坐标 * @param {Number} y 当前节点的y坐标 * @returns {Node} Node */export const returnNodeFun = (box, Obj = {}) => {    let node = new twaver.Node(Obj);    // node.setName(name);    // node.setLocation(x, y);    box.add(node);    return node}/ *  * @param {Node} node1 节点1 * @param {Node} node2 节点2 */export const returnLineFun = (node1, node2) => new twaver.Link(node1, node2)/ * 注册图片 用于设置图元的img setImage * @param {String} url 图片 url * @param {NetWork} svg  NetWork对象 */export function returnRegisterImage(url, svg) {    var image = new Image();    image.src = url;    var views = arguments;    image.onload = function () { // getImageName 获取到的图片name用做 node节点的显示img twaver.Util.registerImage(getImageName(url), image, image.width, image.height, svg === true); image.onload = null; for (var i = 1; i < views.length; i++) {     var view = views[i];     if (view.invalidateElementUIs) {  view.invalidateElementUIs();     }     if (view.invalidateDisplay) {  view.invalidateDisplay();     } }    };    // getImageName 获取到的图片name用做 node节点的显示img    const getImageName = (url) => { var index = url.lastIndexOf('/'); var name = url; if (index >= 0) {     name = url.substring(index + 1); } index = name.lastIndexOf('.'); if (index >= 0) {     name = name.substring(0, index); } return name;    }}/* * @param {*} 告警的Id  * @param {*} 告警网元的Id   * @param {*} 告警级别  * @param {*} alarmBox 网元容器.getAlarmBox() */export const returnAlarmFun = (alarmID, elementID, alarmSeverity, alarmBox) => {    var alarm = new twaver.Alarm(alarmID, elementID, alarmSeverity);    alarmBox.add(alarm);}
react代码：
import React, { useEffect, useState } from 'react'import {    // returnElementBoxFun,    // returnNetworkFun,    returnGroupFun,    returnElementBoxAndNetworkFun,    returnNodeFun,    returnLineFun,    returnRegisterImage,    returnAlarmFun, ALARM1, ALARM2, ALARM3, ALARM4, ALARM5} from './utils'// const demo = require('demo');const Demo = () => {    const [network, setnetwork] = useState({})    const init = () => { const [box, network] = returnElementBoxAndNetworkFun() setnetwork(_ => network) document.getElementById("testID").appendChild(network.getView()); // 设置最初的大小 network.adjustBounds({ x: 0, y: 0, width: 800, height: 800 }); let node1 = returnNodeFun(box, { id: "六卿", name: '节点1', name2: "节点1name2", location: { x: 100, y: 100 }, image: "dev1" }) let node2 = returnNodeFun(box, { name: '节点2', name2: "节点2name2", location: { x: 500, y: 100 }, image: "dev2" }) let node3 = returnNodeFun(box, { name: '节点3', name2: "节点3name2", location: { x: 500, y: 500 }, image: "dev3" }) let node4 = returnNodeFun(box, { name: '节点4', name2: "节点4name2", location: { x: 100, y: 500 }, image: "dev31" }) // 设置 returnRegisterImage("/static/topoimages/dev1.png", network); returnRegisterImage("../../static/topoimages/dev31.png", network); returnRegisterImage("../../static/topoimages/dev2.png", network); returnRegisterImage("../../static/topoimages/dev3.png", network); returnRegisterImage("../../static/topoimages/dev32.png", network); // 创建组 let group = returnGroupFun(box, { name: "group", location: { x: 200, y: 200 }, image: "dev1" }) group.addChild(node1) group.addChild(node2) group.addChild(node3) group.addChild(node4) let groupTwo = returnGroupFun(box, { name: "groupTwo", location: { x: 500, y: 500 }, image: "dev31" }) // groupTwo.setLocation(450, 205); // 将图元添加到组中 returnAlarmFun('alarm0', node1.getId(), ALARM3, box.getAlarmBox()) returnAlarmFun('alarm1', group.getId(), ALARM3, box.getAlarmBox()) returnAlarmFun('alarm11', group.getId(), ALARM3, box.getAlarmBox()) returnAlarmFun('alarm2', groupTwo.getId(), ALARM2, box.getAlarmBox()) box.add(returnLineFun(node1, node3)) box.add(returnLineFun(node2, node4)) box.add(returnLineFun(group, groupTwo))    }    useEffect(init, [])    return ( <>     <p style={{ fontSize: "20px", paddingLeft: "50px", poaddingTop: "50px" }}>tips: </p>     <ul style={{ fontSize: "20px", paddingLeft: "50px" }}>  <li>twaver.Data的其他功能函数 </li>  <li>     //获取所有子网元      getChildren:function()<br />      getChildSize:function()<br />      //获取符合macthFunction的所有childs组成的List      toChildren:function(macthFunction,scope)<br />      addChild:function(child,index)<br />      removeChild:function(child)<br />      getChildAt:function(index)<br />      clearChildren:function()<br />      getParent:function()<br />      setParent:function(parent)<br />      hasChildren:function()<br />      isRelatedTo:function(data)<br />      isParentOf:function(data)<br />      isDescendantOf:function(data)</li>  <li>如果需要设置其他属性，可以通过setClient() / getClient()方法设置自定义的属性(包括对象)。</li>  <li> </li>     </ul>     {/* 画布元素需要开启定位 不然生成的图元坐标点会偏移 */}     <div id="testID" style={{ width: "800px", height: "800px", border: "1px solid #ccc", position: "relative" }}></div> </>    )}export default Demo

一个图元可以增加多个告警状态，相同等级的数量会+1；
alarmBox = box.getAlarmBox();
alarmBox.add(new twaver.Alarm(alarmID, elementID, alarmSeverity));
告警容器其实也是从Element容器上得到的；
两个group产生Line，将其中一个Group展开，会链接组中心点位；
