SAAS云平台搭建札记: (三) AntDesign + .Net Core WebAPI权限控制、动态菜单的生成
我们知道，当下最火的前端框架，非蚂蚁金服的 AntDesign 莫属，这个框架不仅在国内非常有名，在国外GitHub上React前端框架也排名第一。而且这个框架涵盖了React、Vue、Angular等多种语言，甚至有人结合.net Core 5的新特性WebAssembly 做了Ant Design Blazor，在此为国人点赞！
公司的新平台，用户前端界面当仁不让地使用了AntDesign for React，可以使用最新版本的特性（目前版本为4.10.1）；至于为什么不使用Ant Design Pro，是因为Pro封装的控件太多，不利于我们自定义页面。

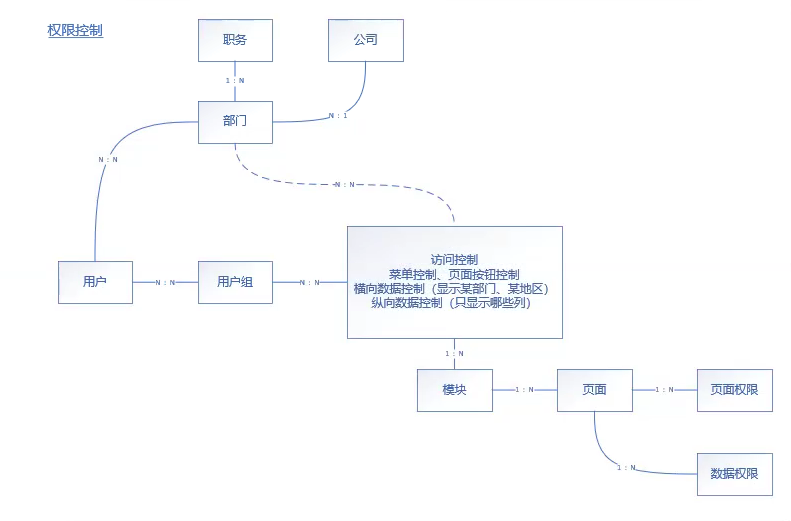

SAAS系统，页面上首先就是权限，我们后台采用中等复杂度的RBAC控制，如图所示：

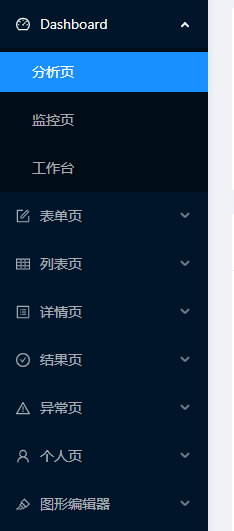

在界面上表示，就是程序左侧的树状菜单，参照AntdPro的官方文档，路由和菜单，需要在菜单的ts文档中写清楚各种权限组和相应菜单，显然不符合我们前后端分离使用动态菜单的方法。
因此，我研究一段时间，终于找到完全在后端生成动态菜单并且在前端的使用方法，特此分享给大家。
传递到前端的菜单实体类：
1 public class 菜单实体类2 {3 public string key { get; set; }4 public string icon { get; set; }5 public string title { get; set; }6 public string link { get; set; }7 public IEnumerable children { get; set; }8 }
实际上是一个递归结构的json字符串：
1 { 2 "returnCode": 0, 3 "errorMsg": null, 4 "data": { 5 "portalMenus": [{ 6 "key": "R0HGQWqTzE9gzg", 7 "icon": "DashboardOutlined", 8 "title": "查询", 9 "link": "/Wuire", 10 "children": [] 11 }, { 12 "key": "g9asSJsw9yx6w", 13 "icon": "HomeOutlined", 14 "title": "管理", 15 "children": [{ 16 "key": "GBvD0rfpsYa6w", 17 "title": "设定", 18 "link": "/Willage", 19 "children": [] 20 }, { 21 "key": "L3LD2SrK84g", 22 "title": "管理", 23 "link": "/Wuse", 24 "children": [] 25 }, { 26 "key": "Wdvue6w", 27 "title": "管理", 28 "link": "/Wner", 29 "children": [] 30 }] 31 }, { 32 "key": "R3JvXJWQk6d6A", 33 "icon": "ContactsOutlined", 34 "title": "", 35 "children": [{ 36 "key": "IIJCXkQfPyzg", 37 "title": "群发", 38 "children": [{ 39"key": "hnhrfYWq29w", 40"title": "邮件", 41"link": "/Wend", 42"children": [] 43 }, { 44"key": "gF7a1XnHQ", 45"title": "群板", 46"link": "/Wdule", 47"children": [] 48 }, { 49"key": "a8yaA-u6PNQ", 50"title": "历史", 51"link": "/Wtory", 52"children": [] 53 }] 54 }, { 55 "key": "CI03foxpw", 56 "title": "群发", 57 "children": [{ 58"key": "giaPpeiEoY1Rg", 59"title": "短信", 60"link": "/Wend", 61"children": [] 62 }, { 63"key": "ewpJBHTcZLjutGQ", 64"title": "模板", 65"link": "/Wuodule", 66"children": [] 67 }, { 68"key": "0B3qVuvVXpA", 69"title": "历史", 70"link": "/Wtory", 71"children": [] 72 }] 73 }, { 74 "key": "7foEYA", 75 "title": "信印", 76 "link": "/Wurint", 77 "children": [] 78 }] 79 }, { 80 "key": "f3l981rYVQ", 81 "icon": "PayCircleOutlined", 82 "title": "费", 83 "children": [{ 84 "key": "DIw69fx0d3Q", 85 "title": "每", 86 "link": "/Wufei", 87 "children": [] 88 }, { 89 "key": "PBLCWp73mUV8kA", 90 "title": "收定", 91 "link": "/WMonth", 92 "children": [] 93 }, { 94 "key": "jT8bbGMc5EVIw", 95 "title": "定", 96 "link": "/Wting/ShowfeiXiangmu", 97 "children": [] 98 }, { 99 "key": "eUsfeeeOzbw",100 "title": "表",101 "link": "/Wufei/Daily",102 "children": []103 }]104 }, {105 "key": "RsLTvHziej3eeg",106 "icon": "ToolOutlined",107 "title": "理",108 "children": [{109 "key": "jTqs3ne_FJSxqg",110 "title": "报",111 "link": "/WuAdd",112 "children": []113 }, {114 "key": "GTJetl8mFEQ",115 "title": "馈",116 "link": "/Wudback",117 "children": []118 }, {119 "key": "MFtdebYGvg",120 "title": "询",121 "link": "/Wuyu/Inquire",122 "children": []123 }]124 }, {125 "key": "OTzJmw",126 "icon": "MailOutlined",127 "title": "理",128 "children": [{129 "key": "5x9__uzbmQ",130 "title": "发息",131 "link": "/Managend",132 "children": []133 }, {134 "key": "D6dGz0J-u98iGXw",135 "title": "盒",136 "link": "/Manage/Inbox",137 "children": []138 }, {139 "key": "xNE-jOp4khOHQ",140 "title": "群发",141 "link": "/ManagpSend",142 "children": []143 }, {144 "key": "DbIxzw6Q",145 "title": "群发",146 "link": "/ManaSend",147 "children": []148 }, {149 "key": "JRO7RUL54zaQ",150 "title": "群发",151 "link": "/ManaoupSend",152 "children": []153 }]154 }, {155 "key": "rKYgJZdxqQ",156 "icon": "TeamOutlined",157 "title": "用理",158 "children": [{159 "key": "VpTCpsvOsFyUZQ",160 "icon": "UserOutlined",161 "title": "管理",162 "link": "/Mar/List",163 "children": []164 }, {165 "key": "YVaswUMx3g",166 "icon": "ClusterOutlined",167 "title": "部管理",168 "link": "/Manist",169 "children": []170 }, {171 "key": "nYIdFQ9K0fiNiw",172 "icon": "TeamOutlined",173 "title": "用管理",174 "link": "/MapList",175 "children": []176 }, {177 "key": "5cFzOGcLIQ",178 "icon": "KeyOutlined",179 "title": "用管理",180 "link": "/Manage/UsAuthority",181 "children": []182 }]183 }, {184 "key": "ab6MCJ9hNUOIfC5ofROgOw",185 "icon": "SettingOutlined",186 "title": "系统设置",187 "children": [{188 "key": "PUGYrEbEZ6Q",189 "title": "基本设置",190 "link": "/Manaasic",191 "children": []192 }, {193 "key": "ueve6vGuOGKD8w",194 "title": "域名设置",195 "link": "/Manas/Domain",196 "children": []197 }]198 }, {199 "key": "46lZGOCDyk6saVYzZwdsJA",200 "icon": "FileTextOutlined",201 "title": "日志管理",202 "children": [{203 "key": "ZPi2io3l_EGATyr-9KFk2A",204 "title": "系统日志",205 "link": "/Manage/Log/Sys",206 "children": []207 }, {208 "key": "Ze8mGMsbmkKTXtPQ",209 "title": "操作日志",210 "link": "/Manage/Log/Operate",211 "children": []212 }]213 }],214 "defaultMenuId": "RTzE9gzg"215 }216 }
前端页面接收后，处理下一二三级菜单，加上图标，就可以渲染出来了：
1 ...... 2 3 state = { 4 collapsed: false, 5 openKeys: [], 6 menus: null, 7 defaultMenuId: null, 8 }; 9 10 async componentDidMount() {11 var menus = await getUserMenus();12 var allMenus = await this.getSubMenus(menus.portalMenus);13 this.setState({ menus: allMenus, defaultMenuId: menus.defaultMenuId });14 }15 16 getSubMenus = (children) =>{17 let menuInfo = [];18 children.forEach(ele=>{19if (ele.children && ele.children.length > 0) {20 menuInfo.push({this.getSubMenus(ele.children)});21} else {22 menuInfo.push();23}24 });25 return menuInfo;26 };27 28 render() {29 return (3031 32 33 34 .35 36 42 43 ......
至此，左边的菜单就按照每个人的不同权限渲染出来了。
附：前端的getUserMenus和Comm方法：
1 //用户取菜单 2 async function getUserMenus() { 3 var result = await Comm(....); 4 return result.data; 5 } 6 7 async function Comm(code, ...){ 8 var body = {}; 9 body.Code = code;10 body.data = ...;11 12 var cookie = getCookie(global.......);13 var headers = {};14 headers["Content-Type"] = 'application/json';15 if(cookie){16 headers.token = cookie;17 }18 19 const response = await fetch(global.webApiUrl,{20method: 'POST', 21body: JSON.stringify(body), 22headers: new Headers(headers)23 });24 const rep = await response.json();25 return rep;26 }
