JavaScript星星连线技巧
效果图
一个星星的实现
对视口进行处理:
// 获取视口的宽var width = document.documentElement.clientWidth;// 获取视口的高var height = document.documentElement.clientHeight;
对canvas处理:
// 获取canvasvar canvas = document.getElementById("myCanvas");// 获取画笔var ctx = canvas.getContext("2d");// 赋值canvas的宽canvas.width = width;// 赋值canvas的高canvas.height = height;// 改变填充色ctx.fillStyle = "white";
处理星星:
// 定义星星x值var x = parseInt(Math.random() * width);// 定义星星y值var y = parseInt(Math.random() * height);// 星星移动速度的x方向var x_speed = .6; // 星星移动速度的y方向var y_speed = .7; // 星星的半径var r = 2;// 绘制星星// 开启路径ctx.beginPath();// 绘制圆ctx.arc(x, y, r, 0, Math.PI * 2);// 闭合路径ctx.closePath();// 填充ctx.fill();
最后一步设置定时器
// 开启定时器var timer = setInterval(function() { // 清屏 ctx.clearRect(0, 0, width, height); // 移动 x -= x_speed; y -= y_speed; // 渲染 // 开启路径 ctx.beginPath(); // 绘制圆 ctx.arc(x, y, r, 0, Math.PI * 2); // 闭合路径 ctx.closePath(); // 填充 ctx.fill();}, 20)
优化为面向对象形式
第一步与上面不变,改变的是我们定义了start类
// 定义Star类function Star(ctx, x, y, r) { this.ctx = ctx; this.x = x; this.y = y; this.r = r; this.x_speed = (parseInt(Math.random() * 3) + 1) * Math.pow(-1, parseInt(Math.random() * 10) + 1); this.y_speed = (parseInt(Math.random() * 3) + 1) * Math.pow(-1, parseInt(Math.random() * 10) + 1);}
然后讲方法写到类上
// 方法要写在原型上// 移动方法Star.prototype.move = function() { this.x -= this.x_speed; this.y -= this.y_speed;}// 转向X方法Star.prototype.changeX = function() { this.x_speed = - this.x_speed;}// 转向Y方法Star.prototype.changeY = function() { this.y_speed = - this.y_speed;}
然后进行渲染方法和初始化
// 渲染方法Star.prototype.render = function() { // 开启路径 this.ctx.beginPath(); // 绘制圆 this.ctx.arc(this.x, this.y, this.r, 0, Math.PI * 2); // 闭合路径 this.ctx.closePath(); // 填充 this.ctx.fill();}// 初始化星星对象var star = new Star(ctx, Math.random() * width, Math.random() * height, 2);star.render();
最后修改定时器
// 开启定时器var timer = setInterval(function() { // 清屏 ctx.clearRect(0, 0, width, height); // 移动 star.move(); // 判断边界 if (star.x < 0 || star.x > width) { star.changeX(); } if (star.y < 0 || star.y > height) { star.changeY(); } // 渲染 star.render();}, 20)

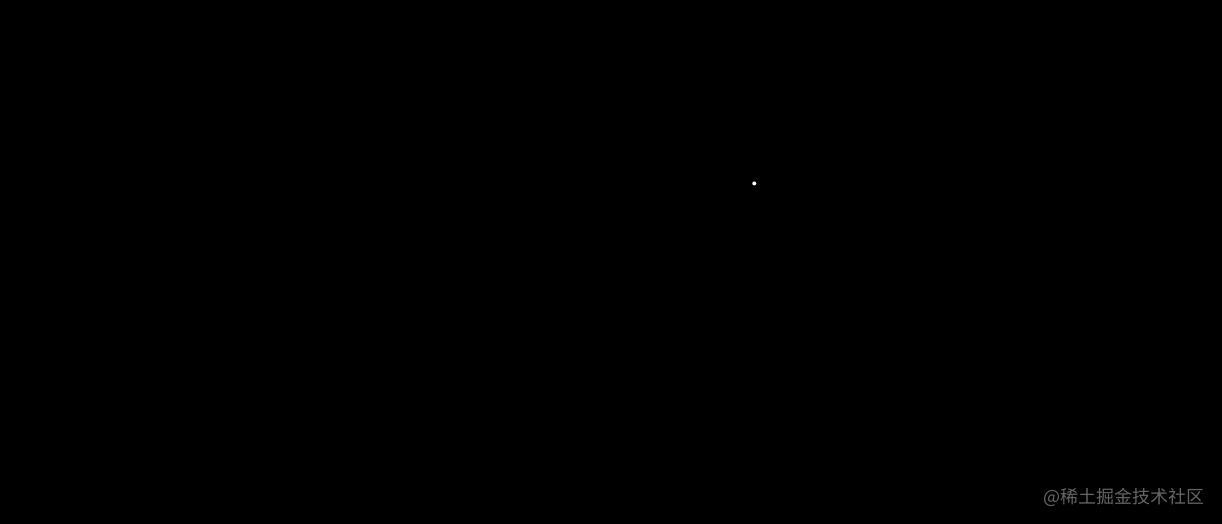

浏览器显示结果
多个星星处理
我们在面向对象的基础上修改start类的定义
// 定义Star类function Star(ctx, x, y, r) { this.ctx = ctx; this.x = x; this.y = y; this.r = r; this.x_speed = (parseInt(Math.random() * 3) + 1) * Math.pow(-1, parseInt(Math.random() * 10) + 1) / 5; this.y_speed = (parseInt(Math.random() * 3) + 1) * Math.pow(-1, parseInt(Math.random() * 10) + 1) / 5;}
多个星星需要我们定义一个数组进行存储
// 定义数组 用于存放每一个星星对象var arr = [];// 初始化星星对象for (var i = 0; i < 100; i++) { arr.push(new Star(ctx, Math.random() * width, Math.random() * height, 1));}
然后定时器中使用数组循环
// 开启定时器var timer = setInterval(function() { // 清屏 ctx.clearRect(0, 0, width, height); arr.forEach(function(value, index) { // 移动 value.move(); // 判断边界 if (value.x < 0 || value.x > width) { value.changeX(); } if (value.y < 0 || value.y > height) { value.changeY(); } // 渲染 value.render(); })}, 20)
效果图如下
星星连线
定义Star类
function Star(ctx, x, y, r) { this.ctx = ctx; this.x = x; this.y = y; this.r = r; this.x_speed = (parseInt(Math.random() * 3) + 1) * Math.pow(-1, parseInt(Math.random() * 10) + 1) / 5; this.y_speed = (parseInt(Math.random() * 3) + 1) * Math.pow(-1, parseInt(Math.random() * 10) + 1) / 5;}
这次我们需要对鼠标操作进行处理
// 创建鼠标星星对象var mouse_star = new Star(ctx, 0, 0, 2);document.onmousemove = function(e) { // 获取鼠标的位置 var x = e.clientX; var y = e.clientY; // 赋值mouse_star对象中的x 和 y值 mouse_star.x = x; mouse_star.y = y;}
定时器中需要增加鼠标操作以及星星之间的关系处理
// 开启定时器var timer = setInterval(function() { // 清屏 ctx.clearRect(0, 0, width, height); // 渲染星星对象的方法 mouse_star.render(); arr.forEach(function(value, index) { // 移动 value.move(); // 判断边界 if (value.x < 0 || value.x > width) { value.changeX(); } if (value.y < 0 || value.y > height) { value.changeY(); } // 渲染 value.render(); }); // 循环判断 arr.forEach(function(value, index) { // value表示每一个星星,我们应该拿着这个星星与其它所有星星作比较 for (var i = index + 1; i < arr.length; i++) { if (Math.abs(value.x - arr[i].x) < 50 && Math.abs(value.y - arr[i].y) < 50) { // 连线 line(value.x, value.y, arr[i].x, arr[i].y); } } // 判断星星与其它所有星星之间的关系 if (Math.abs(value.x - mouse_star.x) < 150 && Math.abs(value.y - mouse_star.y) < 150) { // 连线 line(value.x, value.y, mouse_star.x, mouse_star.y); } })}, 20);
然后我们需要添加点击事件
// 给document添加点击事件// 当点击的时候出现多个星星document.onmousedown = function(e) { for (var i = 0; i < 5; i++) { arr.push(new Star(ctx, e.clientX, e.clientY, 1)); arr.shift(); }}
最后进行封装
// 封装函数,传递两个点,绘制两个点之间的线段function line(x1, y1, x2, y2) { // 开启路径 ctx.beginPath(); // 移动画笔到某个位置 ctx.moveTo(x1, y1); // 绘制路径 ctx.lineTo(x2, y2); // 关闭路径 ctx.closePath(); // 描边 ctx.stroke();}
完成代码,只需要新建一个html文件,复制全部代码粘贴就行,需要注意背景图片自己可以换一个
<!DOCTYPE html><html lang="en"><head> <meta charset="UTF-8"> <title>Document</title> <style type="text/css"> * { margin: 0; padding: 0; } body, html { width: 100%; height: 100%; overflow: hidden; } canvas { background-image: url(imgs/sf.jpg); } </style></head><body> <canvas id="myCanvas"></canvas> <script type="text/javascript"> // 获取视口的宽 var width = document.documentElement.clientWidth; // 获取视口的高 var height = document.documentElement.clientHeight; // 获取canvas var canvas = document.getElementById("myCanvas"); // 获取画笔 var ctx = canvas.getContext("2d"); // 赋值canvas的宽 canvas.width = width; // 赋值canvas的高 canvas.height = height; // 改变填充色 ctx.fillStyle = "white"; // 改变线条颜色 ctx.strokeStyle = "rgba(255, 255, 123, .4)"; // 改变线宽 ctx.lineWidth = ".3"; // 定义Star类 function Star(ctx, x, y, r) { this.ctx = ctx; this.x = x; this.y = y; this.r = r; this.x_speed = (parseInt(Math.random() * 3) + 1) * Math.pow(-1, parseInt(Math.random() * 10) + 1) / 5; this.y_speed = (parseInt(Math.random() * 3) + 1) * Math.pow(-1, parseInt(Math.random() * 10) + 1) / 5; } // 方法要写在原型上 // 移动方法 Star.prototype.move = function() { this.x -= this.x_speed; this.y -= this.y_speed; } // 转向X方法 Star.prototype.changeX = function() { this.x_speed = - this.x_speed; } // 转向Y方法 Star.prototype.changeY = function() { this.y_speed = - this.y_speed; } // 渲染方法 Star.prototype.render = function() { // 开启路径 this.ctx.beginPath(); // 绘制圆 this.ctx.arc(this.x, this.y, this.r, 0, Math.PI * 2); // 闭合路径 this.ctx.closePath(); // 填充 this.ctx.fill(); } // 定义数组 用于存放每一个星星对象 var arr = []; for (var i = 0; i < 100; i++) { arr.push(new Star(ctx, Math.random() * width, Math.random() * height, 1)); } // 创建鼠标星星对象 var mouse_star = new Star(ctx, 0, 0, 2); document.onmousemove = function(e) { // 获取鼠标的位置 var x = e.clientX; var y = e.clientY; // 赋值mouse_star对象中的x 和 y值 mouse_star.x = x; mouse_star.y = y; }// 开启定时器var timer = setInterval(function() { // 清屏 ctx.clearRect(0, 0, width, height); // 渲染星星对象的方法 mouse_star.render(); arr.forEach(function(value, index) { // 移动 value.move(); // 判断边界 if (value.x < 0 || value.x > width) { value.changeX(); } if (value.y < 0 || value.y > height) { value.changeY(); } // 渲染 value.render(); }); // 循环判断 arr.forEach(function(value, index) { // value表示每一个星星,我们应该拿着这个星星与其它所有星星作比较 for (var i = index + 1; i < arr.length; i++) { if (Math.abs(value.x - arr[i].x) < 50 && Math.abs(value.y - arr[i].y) < 50) { // 连线 line(value.x, value.y, arr[i].x, arr[i].y); } } // 判断星星与其它所有星星之间的关系 if (Math.abs(value.x - mouse_star.x) < 150 && Math.abs(value.y - mouse_star.y) < 150) { // 连线 line(value.x, value.y, mouse_star.x, mouse_star.y); } })}, 20); // 给document添加点击事件 // 当点击的时候出现多个星星 document.onmousedown = function(e) { for (var i = 0; i < 5; i++) { arr.push(new Star(ctx, e.clientX, e.clientY, 1)); arr.shift(); } } // 封装函数,传递两个点,绘制两个点之间的线段 function line(x1, y1, x2, y2) { // 开启路径 ctx.beginPath(); // 移动画笔到某个位置 ctx.moveTo(x1, y1); // 绘制路径 ctx.lineTo(x2, y2); // 关闭路径 ctx.closePath(); // 描边 ctx.stroke(); } </script></body></html>
源码仓库和效果
每步的案例源代码已上传,需要的可以下载自己看看,可以用于网站背景效果。点击源码下载
在线效果图,点击体验星星连线
进入页面后,鼠标连接多个线或者多次点击,体验效果。
