ActiveMQ 设置远程监控JMX

1.需求：每次都要远程登录127.0.0.1:8161去查看Queues、Topics、Subscribers等一些数据信息 比较麻烦 因此想通过监听ActiveMQ去获取到这些信息发布在自己的平台上面 更加方便

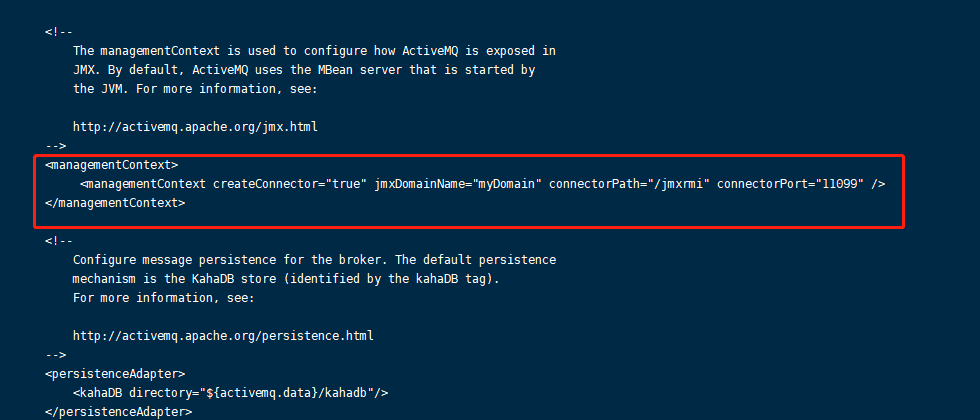

2.修改配置  /activemq/conf/activemq.xml  （具体配置路径已自己实际安装的为准）  找到 标签 修改如下：

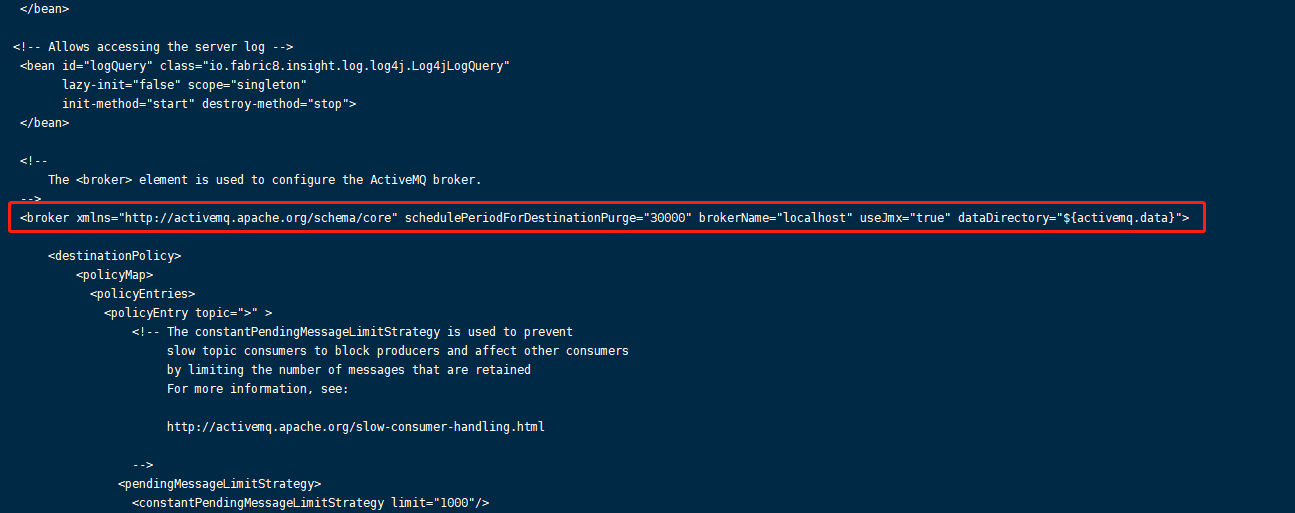

3. 找到   标签修改如下

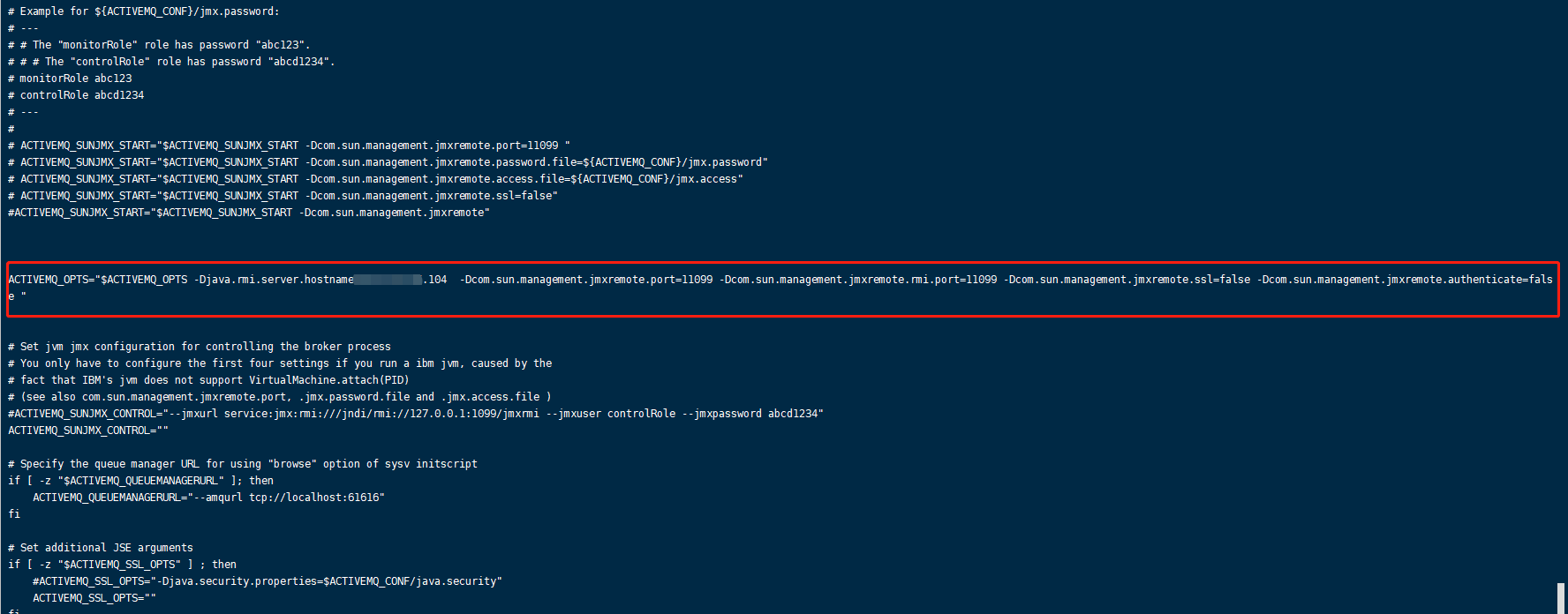

4.修改/bin/env文件  添加行：

ACTIVEMQ_OPTS="$ACTIVEMQ_OPTS -Djava.rmi.server.hostname=1.1.1.1（对外暴露ip）  -Dcom.sun.management.jmxremote.port=11099 -Dcom.sun.management.jmxremote.rmi.port=11099 -Dcom.sun.management.jmxremote.ssl=false -Dcom.sun.management.jmxremote.authenticate=false "


5.重启ActiveMq

6.监听JMX的代码如下：

package com.example;import com.alibaba.fastjson.JSON;import org.apache.activemq.broker.jmx.BrokerViewMBean;import org.apache.activemq.broker.jmx.QueueViewMBean;import org.apache.activemq.broker.jmx.SubscriptionViewMBean;import org.apache.activemq.broker.jmx.TopicViewMBean;import javax.management.MBeanServerConnection;import javax.management.MBeanServerInvocationHandler;import javax.management.ObjectName;import javax.management.openmbean.TabularData;import javax.management.remote.JMXConnector;import javax.management.remote.JMXConnectorFactory;import javax.management.remote.JMXServiceURL;public class Test3{    public static void main(String[] args) throws Exception { String url = "service:jmx:rmi:///jndi/rmi://127.0.0.1:11099/jmxrmi"; JMXServiceURL urls = new JMXServiceURL(url); JMXConnector connector = JMXConnectorFactory.connect(urls, null); connector.connect(); MBeanServerConnection conn = connector.getMBeanServerConnection(); //队列（这里brokerName的b要小些，大写会报错） ObjectName name = new ObjectName("myDomain:brokerName=localhost,type=Broker"); BrokerViewMBean mBean = (BrokerViewMBean) MBeanServerInvocationHandler.newProxyInstance  (conn, name, BrokerViewMBean.class, true); for (ObjectName na : mBean.getQueues()) {     QueueViewMBean queueBean = (QueueViewMBean)      MBeanServerInvocationHandler.newProxyInstance(conn, na, QueueViewMBean.class, true);     TabularData tabularData = queueBean.browseAsTable(queueBean.getName());     System.err.println(JSON.toJSONString(tabularData));     System.out.println("******************************");     System.out.println("队列的名称：" + queueBean.getName());     System.out.println("队列中剩余的消息数：" + queueBean.getQueueSize());     System.out.println("消费者数：" + queueBean.getConsumerCount());     System.out.println("消息入队的数量：" + queueBean.getEnqueueCount());     System.out.println("消息出队的数量：" + queueBean.getDequeueCount()); } //话题 ObjectName name2 = new ObjectName("myDomain:brokerName=localhost,type=Broker"); BrokerViewMBean mBean2 = (BrokerViewMBean) MBeanServerInvocationHandler.newProxyInstance  (conn, name2, BrokerViewMBean.class, true); mBean2.getTemporaryQueueSubscribers(); for (ObjectName na : mBean2.getTopics()) {     TopicViewMBean queueBean = (TopicViewMBean)      MBeanServerInvocationHandler.newProxyInstance(conn, na, TopicViewMBean.class, true);     System.out.println("******************************");     System.out.println("Topic队列的名称：" + queueBean.getName());     System.out.println("Topic消费者数量：" + queueBean.getConsumerCount());     System.out.println("Topic消息入队的数量：" + queueBean.getEnqueueCount());     System.out.println("Topic消息出队的数量：" + queueBean.getDequeueCount()); } //离线持久话题订阅者 ObjectName name5 = new ObjectName("myDomain:brokerName=localhost,type=Broker"); BrokerViewMBean mBean5 = (BrokerViewMBean) MBeanServerInvocationHandler.newProxyInstance  (conn, name5, BrokerViewMBean.class, true); for (ObjectName na : mBean5.getInactiveDurableTopicSubscribers()) {     SubscriptionViewMBean queueBean = (SubscriptionViewMBean)      MBeanServerInvocationHandler.newProxyInstance(conn, na, SubscriptionViewMBean.class, true);     System.out.println("离线持久话题订阅者******************************");     System.out.println("客户编号 ：" + queueBean.getClientId());     System.out.println("订阅名称 ：" + queueBean.getSubscriptionName());     System.out.println("连接 ID  ：" + queueBean.getConnectionId());     System.out.println("目的地 ：" + queueBean.getDestinationName());     System.out.println("选择器：" + queueBean.getSelector());     System.out.println("待处理队列大小  ：" + queueBean.getPendingQueueSize());     System.out.println("调度队列大小：" + queueBean.getDispatchedQueueSize());     System.out.println("调度柜台 ：" + queueBean.getDispatchedCounter());     System.out.println("排队计数器：" + queueBean.getEnqueueCounter());     System.out.println("出队计数器 ：" + queueBean.getDequeueCounter()); } //活跃持久话题订阅者 ObjectName name4 = new ObjectName("myDomain:brokerName=localhost,type=Broker"); BrokerViewMBean mBean4 = (BrokerViewMBean) MBeanServerInvocationHandler.newProxyInstance  (conn, name4, BrokerViewMBean.class, true); for (ObjectName na : mBean4.getDurableTopicSubscribers()) {     SubscriptionViewMBean queueBean = (SubscriptionViewMBean)      MBeanServerInvocationHandler.newProxyInstance(conn, na, SubscriptionViewMBean.class, true);     System.out.println("活跃持久话题订阅者******************************");     System.out.println("客户编号 ：" + queueBean.getClientId());     System.out.println("订阅名称 ：" + queueBean.getSubscriptionName());     System.out.println("连接 ID  ：" + queueBean.getConnectionId());     System.out.println("目的地 ：" + queueBean.getDestinationName());     System.out.println("选择器：" + queueBean.getSelector());     System.out.println("待处理队列大小  ：" + queueBean.getPendingQueueSize());     System.out.println("调度队列大小：" + queueBean.getDispatchedQueueSize());     System.out.println("调度柜台 ：" + queueBean.getDispatchedCounter());     System.out.println("排队计数器：" + queueBean.getEnqueueCounter());     System.out.println("出队计数器 ：" + queueBean.getDequeueCounter()); } //活跃的非持久主题订阅者 ObjectName name3 = new ObjectName("myDomain:brokerName=localhost,type=Broker"); BrokerViewMBean mBean3 = (BrokerViewMBean) MBeanServerInvocationHandler.newProxyInstance  (conn, name3, BrokerViewMBean.class, true); for (ObjectName na : mBean3.getTopicSubscribers()) {     SubscriptionViewMBean queueBean = (SubscriptionViewMBean)      MBeanServerInvocationHandler.newProxyInstance(conn, na, SubscriptionViewMBean.class, true);     System.out.println("活跃的非持久主题订阅者******************************");     System.out.println("客户编号 ：" + queueBean.getClientId());     System.out.println("订阅名称 ：" + queueBean.getSubscriptionName());     System.out.println("连接 ID  ：" + queueBean.getConnectionId());     System.out.println("目的地 ：" + queueBean.getDestinationName());     System.out.println("选择器：" + queueBean.getSelector());     System.out.println("待处理队列大小  ：" + queueBean.getPendingQueueSize());     System.out.println("调度队列大小：" + queueBean.getDispatchedQueueSize());     System.out.println("调度柜台 ：" + queueBean.getDispatchedCounter());     System.out.println("排队计数器：" + queueBean.getEnqueueCounter());     System.out.println("出队计数器 ：" + queueBean.getDequeueCounter()); }    }}

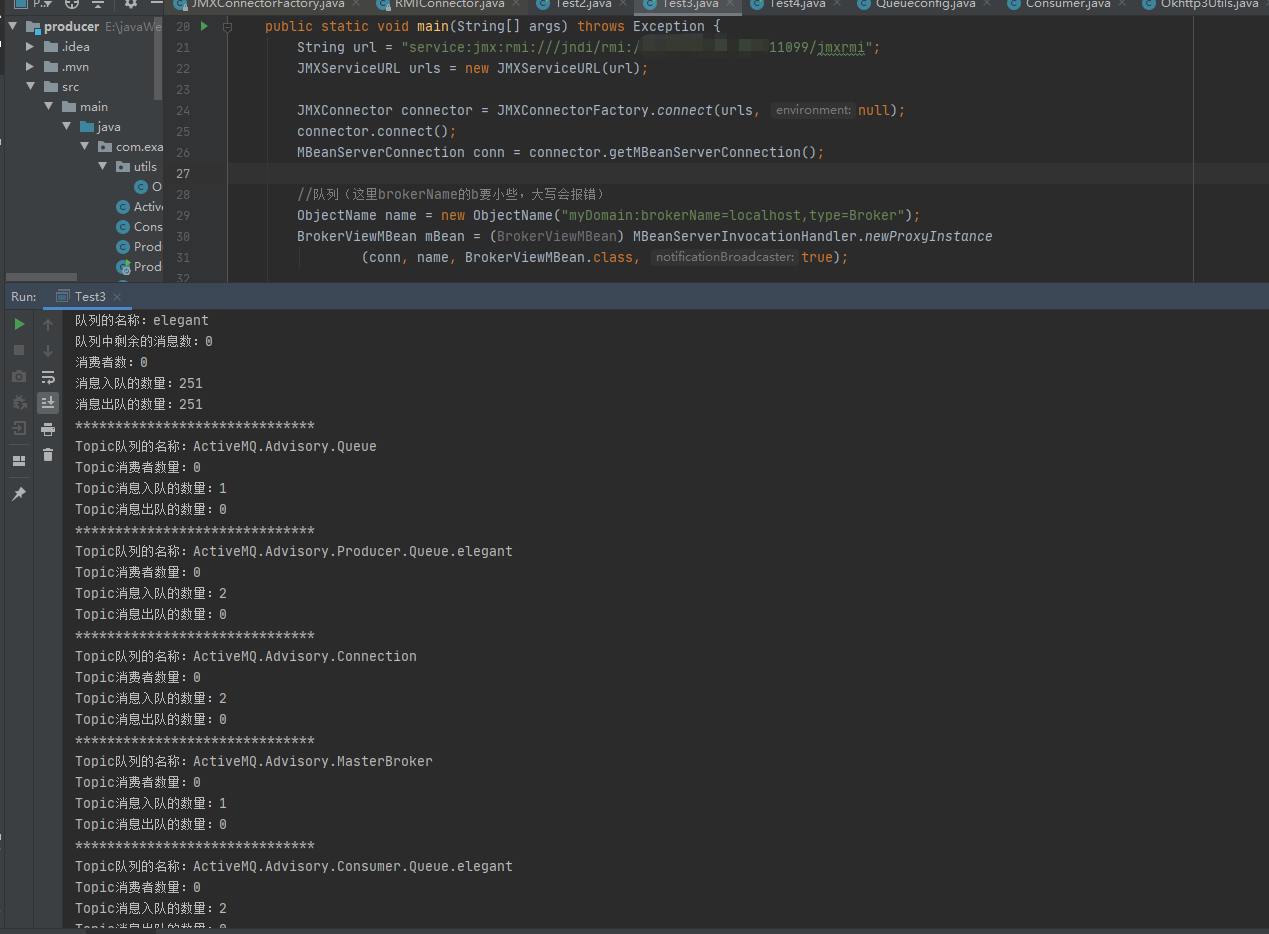

7.监听结果如下：
