Docker部署EdgeX相关基本操作

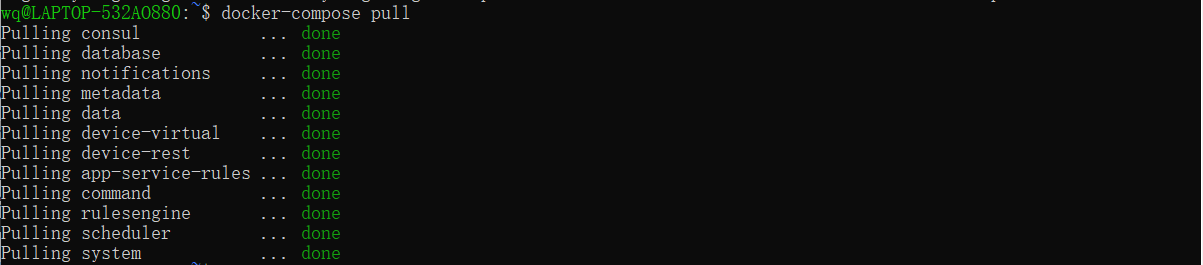

1. 拉取EdgeX Docker镜像

docker-compose pull

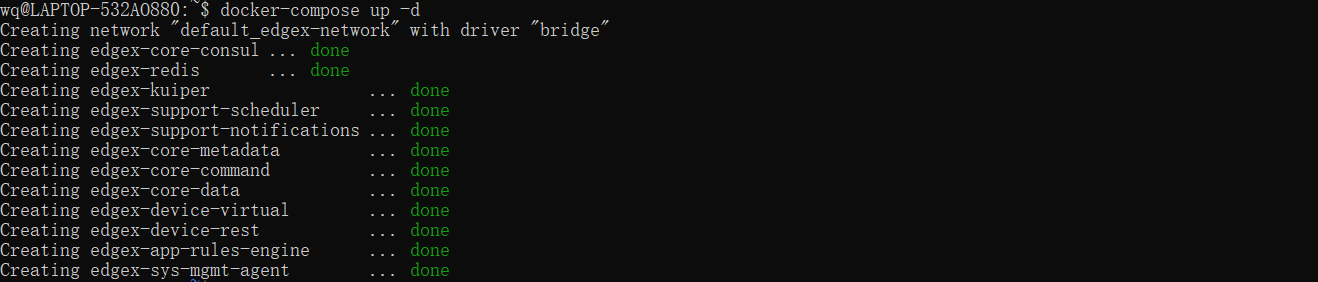

2. 启动EdgeX

docker-compose up -d

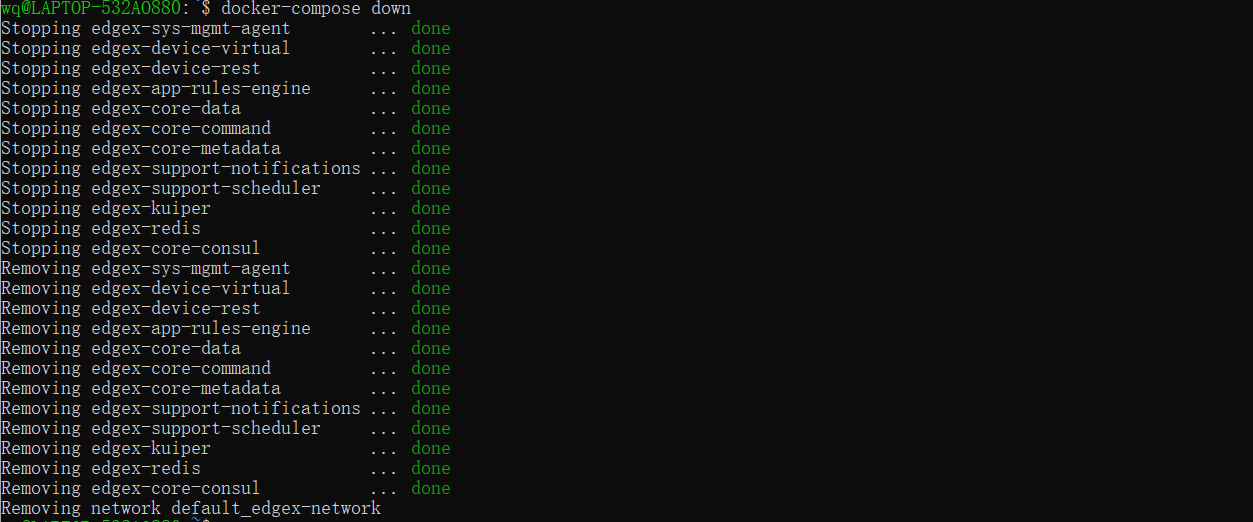

3. 停止并删除EdgeX容器(删除容器镜像)

docker-compose down

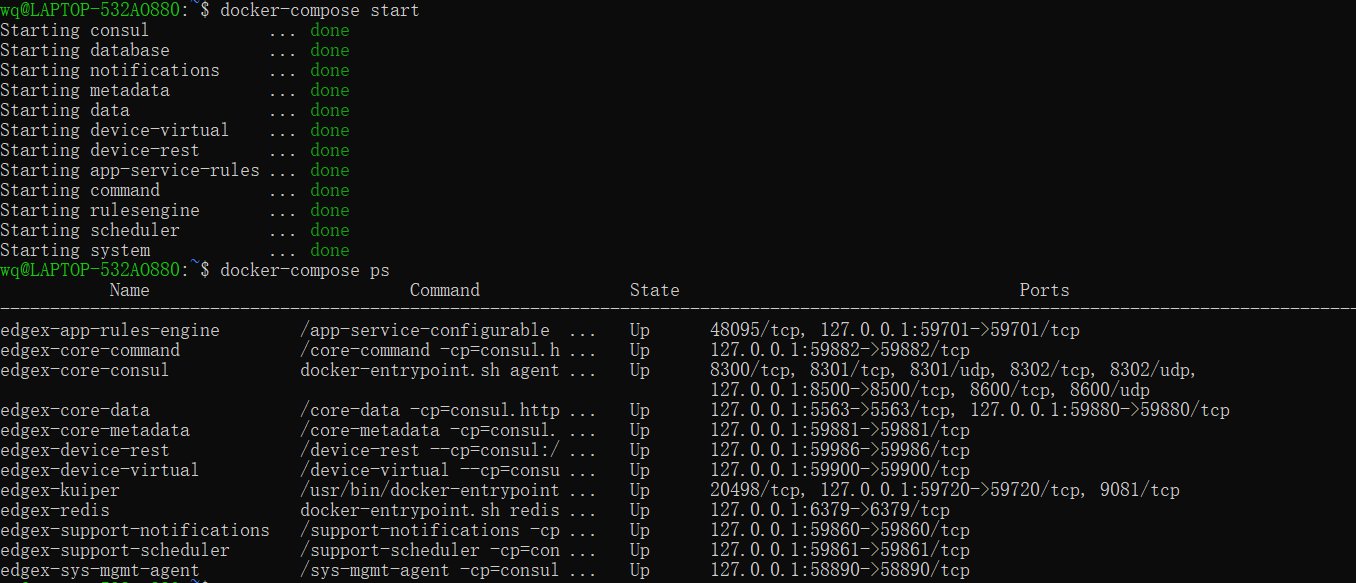

4. 检查容器是否启动

docker-compose ps

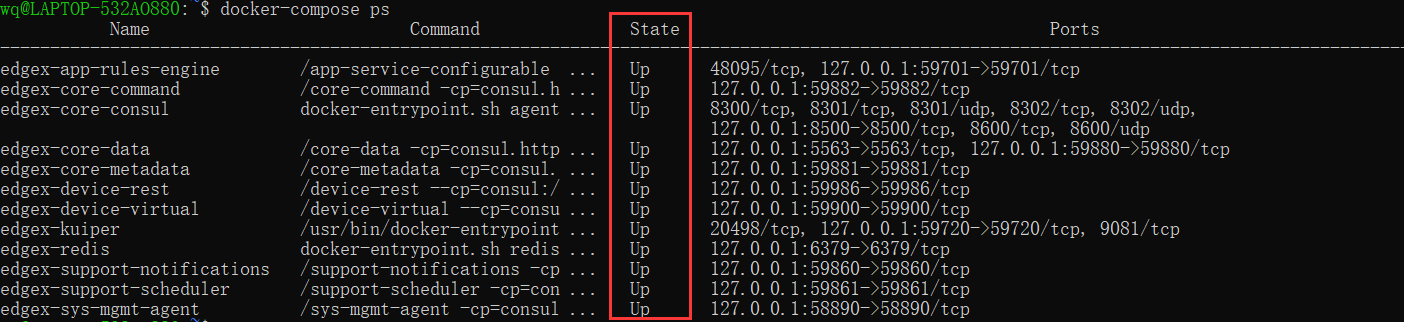

启动状态

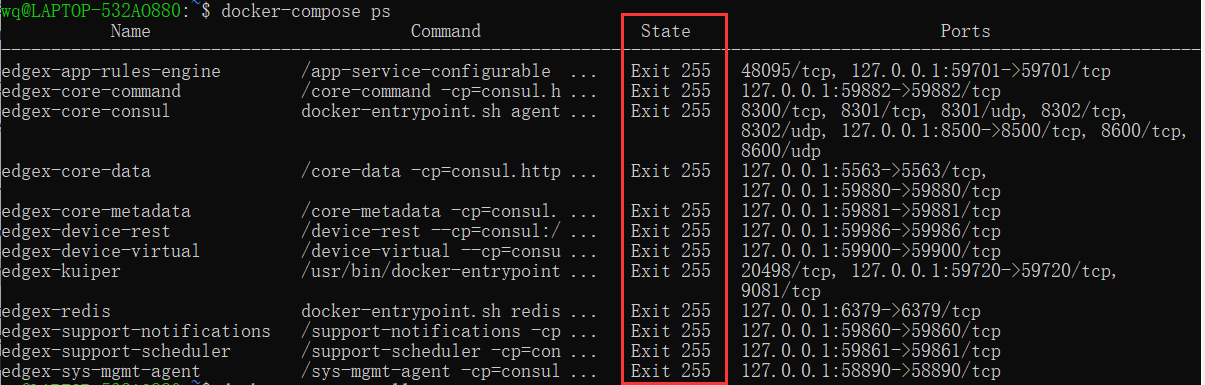

未启动状态

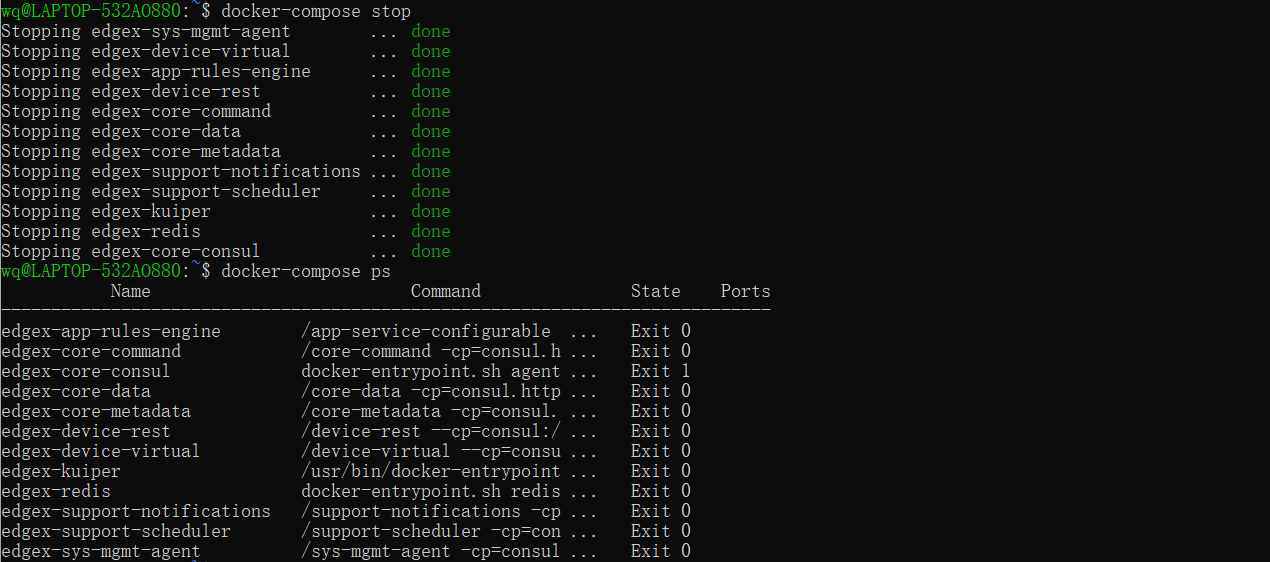

5. 停止与重启EdgeX(不删除容器镜像)

docker-compose stopdocker-compose stop rulesengine

docker-compose startdocker-compose start rulesengine

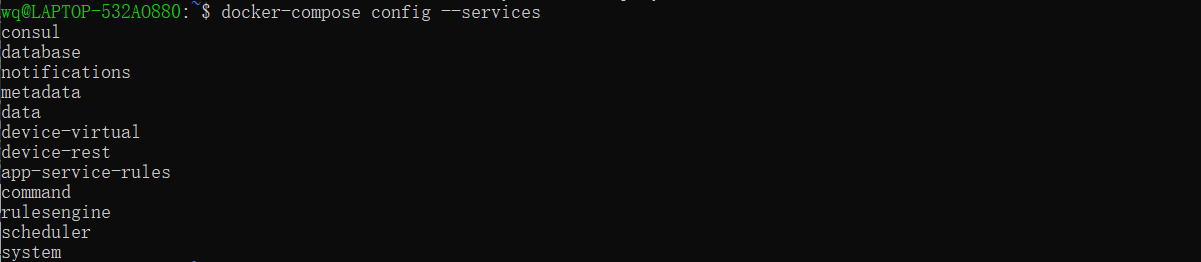

6. 获取容器名列表

docker-compose config --services

7. Docker容器状态检查

docker ps -a

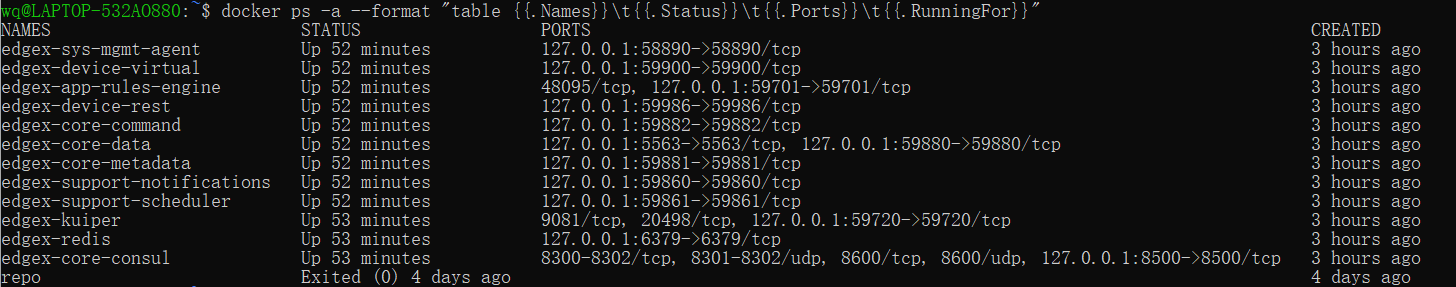

格式化输出

docker ps -a --format “table {{.Names}}\t{{.Status}}\t{{.Ports}}\t{{.RunningFor}}”

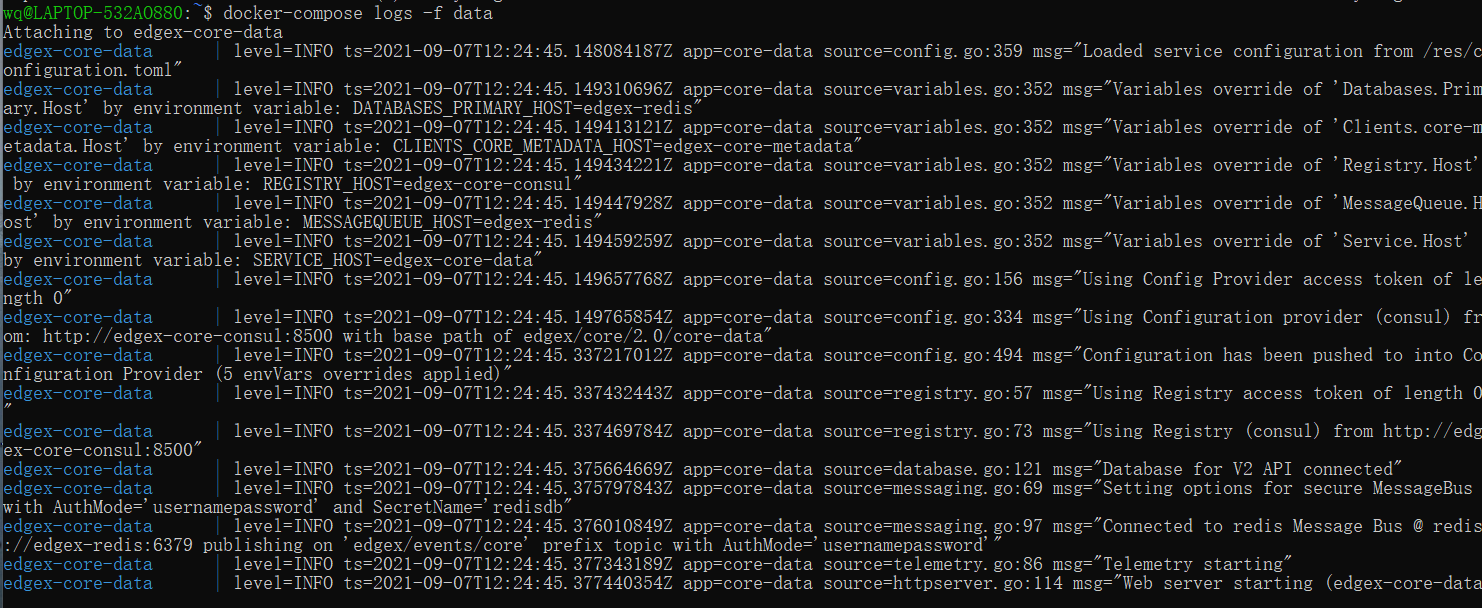

8. 打印EdgeX容器日志

docker-compose logs -f [compose-contatainer-name]

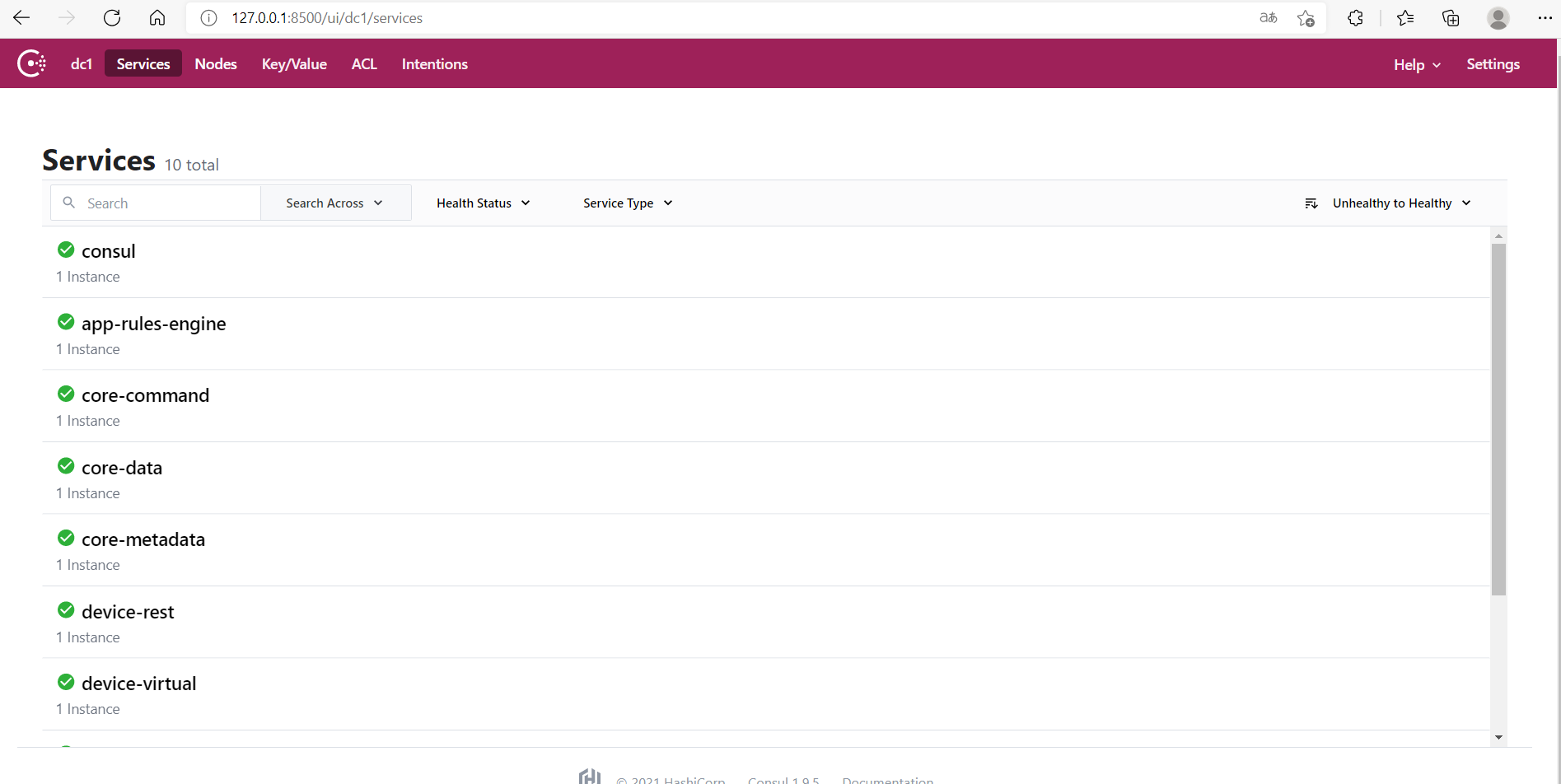

9. 微服务UI界面

http://localhost:8500/ui

​​​10. 获取虚拟设备数据

​curl http://localhost:59880/api/v2/event/device/name/Random-Integer-Device

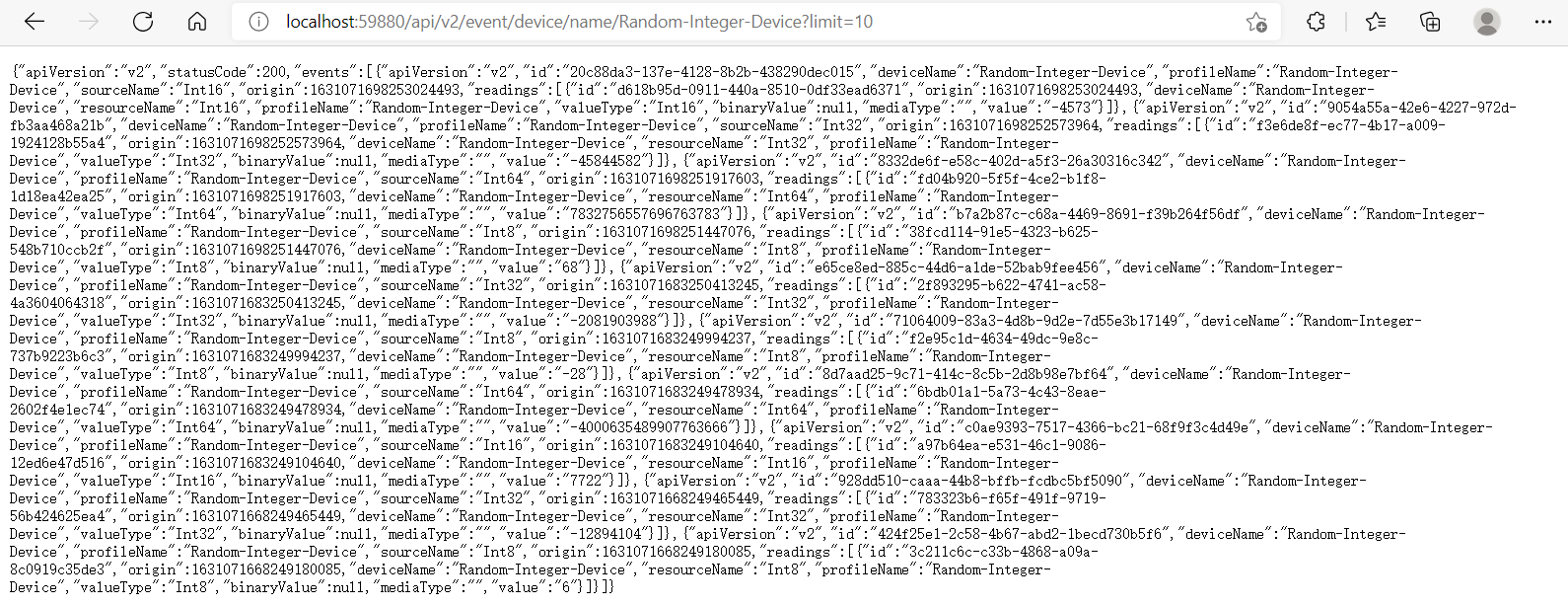

 添加limit参数,指定输出50条数据

​curl http://localhost:59880/api/v2/event/device/name/Random-Integer-Device?limit=50

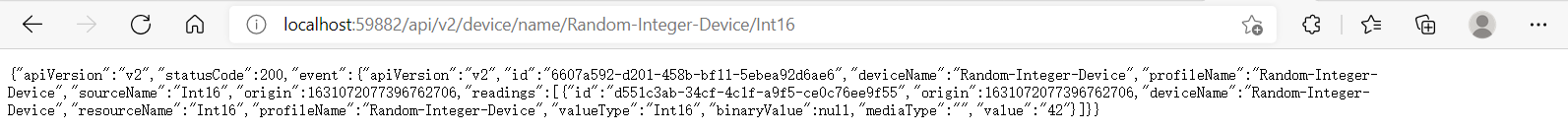

11. 控制设备

curl -X PUT -d '{"Int16":"42", "EnableRandomization_Int16":"false"}' http://localhost:59882/api/v2/device/name/Random-Integer-Device/WriteInt16Value

12. Edgex Foundry API文档

Introduction - EdgeX Foundry Documentation

13. 规则引擎使用教程

Command Devices with eKuiper Rules Engine - EdgeX Foundry Documentation
