如何设计一个服务器文件实时监测系统：架构设计合集(四)

网友: 技术文档 2025-07-30 12:51:01

如何设计一个服务器文件实时监测系统：架构设计合集(四)

📚 文章目录

  1. 引言：为什么需要文件安全监测
  2. 系统整体架构设计
  3. 核心功能模块详解
  4. 技术实现方案
  5. 部署与运维策略
  6. 总结与展望

引言：为什么需要文件安全监测

在这个数字化时代，服务器就像是我们的\"数字金库\"，里面存放着各种珍贵的数据资产。但是，你有没有想过，如果有\"小偷\"悄悄潜入这个金库，偷偷修改或删除文件，我们能第一时间发现吗？

传统的安全防护往往是\"亡羊补牢\"式的，等发现问题时，损失已经造成。而一个优秀的文件安全异常实时监测系统，就像是给我们的服务器安装了一双\"火眼金睛\"，能够实时感知任何风吹草动。

系统需要解决的核心问题：

  • 🔍 实时监控文件的增删改操作
  • 🚨 快速识别异常行为模式
  • 📊 提供可视化的安全态势感知
  • 🔔 及时告警和响应机制

系统整体架构设计

让我们先来看看整个系统的\"全景图\"：

#mermaid-svg-CXA4mzQ39vTsBuoR {font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-CXA4mzQ39vTsBuoR .error-icon{fill:#552222;}#mermaid-svg-CXA4mzQ39vTsBuoR .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-CXA4mzQ39vTsBuoR .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-CXA4mzQ39vTsBuoR .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-CXA4mzQ39vTsBuoR .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-CXA4mzQ39vTsBuoR .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-CXA4mzQ39vTsBuoR .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-CXA4mzQ39vTsBuoR .marker{fill:#333333;stroke:#333333;}#mermaid-svg-CXA4mzQ39vTsBuoR .marker.cross{stroke:#333333;}#mermaid-svg-CXA4mzQ39vTsBuoR svg{font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-CXA4mzQ39vTsBuoR .label{font-family:\"trebuchet ms\",verdana,arial,sans-serif;color:#333;}#mermaid-svg-CXA4mzQ39vTsBuoR .cluster-label text{fill:#333;}#mermaid-svg-CXA4mzQ39vTsBuoR .cluster-label span{color:#333;}#mermaid-svg-CXA4mzQ39vTsBuoR .label text,#mermaid-svg-CXA4mzQ39vTsBuoR span{fill:#333;color:#333;}#mermaid-svg-CXA4mzQ39vTsBuoR .node rect,#mermaid-svg-CXA4mzQ39vTsBuoR .node circle,#mermaid-svg-CXA4mzQ39vTsBuoR .node ellipse,#mermaid-svg-CXA4mzQ39vTsBuoR .node polygon,#mermaid-svg-CXA4mzQ39vTsBuoR .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-CXA4mzQ39vTsBuoR .node .label{text-align:center;}#mermaid-svg-CXA4mzQ39vTsBuoR .node.clickable{cursor:pointer;}#mermaid-svg-CXA4mzQ39vTsBuoR .arrowheadPath{fill:#333333;}#mermaid-svg-CXA4mzQ39vTsBuoR .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-CXA4mzQ39vTsBuoR .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-CXA4mzQ39vTsBuoR .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-CXA4mzQ39vTsBuoR .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-CXA4mzQ39vTsBuoR .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-CXA4mzQ39vTsBuoR .cluster text{fill:#333;}#mermaid-svg-CXA4mzQ39vTsBuoR .cluster span{color:#333;}#mermaid-svg-CXA4mzQ39vTsBuoR div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-CXA4mzQ39vTsBuoR :root{--mermaid-font-family:\"trebuchet ms\",verdana,arial,sans-serif;} 应用层 存储层 数据处理层 数据采集层 实时告警 可视化大屏 报表分析 API接口 时序数据库 关系数据库 日志存储 异常检测引擎 数据预处理 规则匹配引擎 机器学习模型 系统调用拦截 文件系统监控 网络访问监控 进程行为监控

这个架构采用了经典的分层设计，每一层都有明确的职责：

📊 数据采集层：就像是我们的\"眼睛和耳朵\"，负责收集各种文件操作信息。

⚙️ 数据处理层：相当于\"大脑\"，对收集到的信息进行分析和判断。

💾 存储层：就是我们的\"记忆\"，保存所有的历史数据和分析结果。

🎯 应用层：最终的\"输出口\"，将分析结果以各种形式展现给用户。

核心功能模块详解

1. 数据采集层详细实现

1.1 文件系统监控Agent

这是整个系统的\"神经末梢\"，负责实时捕获文件操作事件：

#mermaid-svg-kNHXLCBgBt02Y1rc {font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-kNHXLCBgBt02Y1rc .error-icon{fill:#552222;}#mermaid-svg-kNHXLCBgBt02Y1rc .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-kNHXLCBgBt02Y1rc .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-kNHXLCBgBt02Y1rc .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-kNHXLCBgBt02Y1rc .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-kNHXLCBgBt02Y1rc .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-kNHXLCBgBt02Y1rc .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-kNHXLCBgBt02Y1rc .marker{fill:#333333;stroke:#333333;}#mermaid-svg-kNHXLCBgBt02Y1rc .marker.cross{stroke:#333333;}#mermaid-svg-kNHXLCBgBt02Y1rc svg{font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-kNHXLCBgBt02Y1rc .label{font-family:\"trebuchet ms\",verdana,arial,sans-serif;color:#333;}#mermaid-svg-kNHXLCBgBt02Y1rc .cluster-label text{fill:#333;}#mermaid-svg-kNHXLCBgBt02Y1rc .cluster-label span{color:#333;}#mermaid-svg-kNHXLCBgBt02Y1rc .label text,#mermaid-svg-kNHXLCBgBt02Y1rc span{fill:#333;color:#333;}#mermaid-svg-kNHXLCBgBt02Y1rc .node rect,#mermaid-svg-kNHXLCBgBt02Y1rc .node circle,#mermaid-svg-kNHXLCBgBt02Y1rc .node ellipse,#mermaid-svg-kNHXLCBgBt02Y1rc .node polygon,#mermaid-svg-kNHXLCBgBt02Y1rc .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-kNHXLCBgBt02Y1rc .node .label{text-align:center;}#mermaid-svg-kNHXLCBgBt02Y1rc .node.clickable{cursor:pointer;}#mermaid-svg-kNHXLCBgBt02Y1rc .arrowheadPath{fill:#333333;}#mermaid-svg-kNHXLCBgBt02Y1rc .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-kNHXLCBgBt02Y1rc .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-kNHXLCBgBt02Y1rc .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-kNHXLCBgBt02Y1rc .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-kNHXLCBgBt02Y1rc .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-kNHXLCBgBt02Y1rc .cluster text{fill:#333;}#mermaid-svg-kNHXLCBgBt02Y1rc .cluster span{color:#333;}#mermaid-svg-kNHXLCBgBt02Y1rc div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-kNHXLCBgBt02Y1rc :root{--mermaid-font-family:\"trebuchet ms\",verdana,arial,sans-serif;} 监控范围 Agent架构 系统目录 应用目录 数据目录 日志目录 事件过滤器 inotify监听器 auditd集成 进程监控 事件标准化 本地缓存 批量发送

Agent核心代码示例（Python实现）：

import asyncioimport jsonfrom watchdog.observers import Observerfrom watchdog.events import FileSystemEventHandlerclass SecurityMonitorHandler(FileSystemEventHandler): def __init__(self, event_queue): self.event_queue = event_queue self.process_info = ProcessMonitor() def on_any_event(self, event): # 获取进程信息 process_info = self.process_info.get_current_process() event_data = { \'timestamp\': int(time.time() * 1000), \'event_type\': event.event_type, \'src_path\': event.src_path, \'dest_path\': getattr(event, \'dest_path\', None), \'is_directory\': event.is_directory, \'process_id\': process_info.pid, \'process_name\': process_info.name, \'user_id\': process_info.uid, \'file_hash\': self._calculate_file_hash(event.src_path), \'file_size\': self._get_file_size(event.src_path) } # 异步发送到消息队列 asyncio.create_task(self.event_queue.put(event_data))
1.2 系统调用拦截模块

使用eBPF技术实现更深层次的监控：

// eBPF程序示例：监控open系统调用#include #include struct event_data { u32 pid; u32 uid; char filename[256]; u32 flags; u64 timestamp;};BPF_PERF_OUTPUT(events);int trace_open(struct pt_regs *ctx) { struct event_data data = {}; data.pid = bpf_get_current_pid_tgid() >> 32; data.uid = bpf_get_current_uid_gid() & 0xffffffff; data.timestamp = bpf_ktime_get_ns(); // 获取文件名参数 const char __user *filename = (char *)PT_REGS_PARM1(ctx); bpf_probe_read_user_str(data.filename, sizeof(data.filename), filename); // 获取打开标志 data.flags = (u32)PT_REGS_PARM2(ctx); events.perf_submit(ctx, &data, sizeof(data)); return 0;}

2. 数据处理层详细实现

2.1 事件预处理引擎

#mermaid-svg-65f2P5j7aeiajPfY {font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-65f2P5j7aeiajPfY .error-icon{fill:#552222;}#mermaid-svg-65f2P5j7aeiajPfY .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-65f2P5j7aeiajPfY .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-65f2P5j7aeiajPfY .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-65f2P5j7aeiajPfY .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-65f2P5j7aeiajPfY .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-65f2P5j7aeiajPfY .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-65f2P5j7aeiajPfY .marker{fill:#333333;stroke:#333333;}#mermaid-svg-65f2P5j7aeiajPfY .marker.cross{stroke:#333333;}#mermaid-svg-65f2P5j7aeiajPfY svg{font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-65f2P5j7aeiajPfY .label{font-family:\"trebuchet ms\",verdana,arial,sans-serif;color:#333;}#mermaid-svg-65f2P5j7aeiajPfY .cluster-label text{fill:#333;}#mermaid-svg-65f2P5j7aeiajPfY .cluster-label span{color:#333;}#mermaid-svg-65f2P5j7aeiajPfY .label text,#mermaid-svg-65f2P5j7aeiajPfY span{fill:#333;color:#333;}#mermaid-svg-65f2P5j7aeiajPfY .node rect,#mermaid-svg-65f2P5j7aeiajPfY .node circle,#mermaid-svg-65f2P5j7aeiajPfY .node ellipse,#mermaid-svg-65f2P5j7aeiajPfY .node polygon,#mermaid-svg-65f2P5j7aeiajPfY .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-65f2P5j7aeiajPfY .node .label{text-align:center;}#mermaid-svg-65f2P5j7aeiajPfY .node.clickable{cursor:pointer;}#mermaid-svg-65f2P5j7aeiajPfY .arrowheadPath{fill:#333333;}#mermaid-svg-65f2P5j7aeiajPfY .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-65f2P5j7aeiajPfY .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-65f2P5j7aeiajPfY .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-65f2P5j7aeiajPfY .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-65f2P5j7aeiajPfY .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-65f2P5j7aeiajPfY .cluster text{fill:#333;}#mermaid-svg-65f2P5j7aeiajPfY .cluster span{color:#333;}#mermaid-svg-65f2P5j7aeiajPfY div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-65f2P5j7aeiajPfY :root{--mermaid-font-family:\"trebuchet ms\",verdana,arial,sans-serif;} 原始事件 数据清洗 格式标准化 重复检测 事件聚合 特征提取 输出到处理队列

预处理逻辑实现：

package preprocessortype EventProcessor struct { rules []ProcessingRule aggregator *EventAggregator deduplicator *EventDeduplicator}func (ep *EventProcessor) ProcessEvent(event *RawEvent) (*ProcessedEvent, error) { // 1. 数据清洗 cleanedEvent := ep.cleanEvent(event) // 2. 重复检测 if ep.deduplicator.IsDuplicate(cleanedEvent) { return nil, nil // 跳过重复事件 } // 3. 特征提取 features := ep.extractFeatures(cleanedEvent) // 4. 风险评分 riskScore := ep.calculateRiskScore(features) processedEvent := &ProcessedEvent{ ID: generateEventID(), Timestamp: cleanedEvent.Timestamp, Features: features, RiskScore: riskScore, OriginalEvent: cleanedEvent, } return processedEvent, nil}
2.2 异常检测引擎架构

#mermaid-svg-DQuoQWRNyugnR8I2 {font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-DQuoQWRNyugnR8I2 .error-icon{fill:#552222;}#mermaid-svg-DQuoQWRNyugnR8I2 .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-DQuoQWRNyugnR8I2 .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-DQuoQWRNyugnR8I2 .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-DQuoQWRNyugnR8I2 .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-DQuoQWRNyugnR8I2 .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-DQuoQWRNyugnR8I2 .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-DQuoQWRNyugnR8I2 .marker{fill:#333333;stroke:#333333;}#mermaid-svg-DQuoQWRNyugnR8I2 .marker.cross{stroke:#333333;}#mermaid-svg-DQuoQWRNyugnR8I2 svg{font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-DQuoQWRNyugnR8I2 .label{font-family:\"trebuchet ms\",verdana,arial,sans-serif;color:#333;}#mermaid-svg-DQuoQWRNyugnR8I2 .cluster-label text{fill:#333;}#mermaid-svg-DQuoQWRNyugnR8I2 .cluster-label span{color:#333;}#mermaid-svg-DQuoQWRNyugnR8I2 .label text,#mermaid-svg-DQuoQWRNyugnR8I2 span{fill:#333;color:#333;}#mermaid-svg-DQuoQWRNyugnR8I2 .node rect,#mermaid-svg-DQuoQWRNyugnR8I2 .node circle,#mermaid-svg-DQuoQWRNyugnR8I2 .node ellipse,#mermaid-svg-DQuoQWRNyugnR8I2 .node polygon,#mermaid-svg-DQuoQWRNyugnR8I2 .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-DQuoQWRNyugnR8I2 .node .label{text-align:center;}#mermaid-svg-DQuoQWRNyugnR8I2 .node.clickable{cursor:pointer;}#mermaid-svg-DQuoQWRNyugnR8I2 .arrowheadPath{fill:#333333;}#mermaid-svg-DQuoQWRNyugnR8I2 .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-DQuoQWRNyugnR8I2 .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-DQuoQWRNyugnR8I2 .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-DQuoQWRNyugnR8I2 .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-DQuoQWRNyugnR8I2 .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-DQuoQWRNyugnR8I2 .cluster text{fill:#333;}#mermaid-svg-DQuoQWRNyugnR8I2 .cluster span{color:#333;}#mermaid-svg-DQuoQWRNyugnR8I2 div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-DQuoQWRNyugnR8I2 :root{--mermaid-font-family:\"trebuchet ms\",verdana,arial,sans-serif;} 机器学习引擎 统计引擎 规则引擎 异常检测模型 特征工程 模型训练 在线学习 异常检测算法 时间序列分析 频率分析 模式识别 规则匹配器 静态规则库 动态规则生成 预处理事件 威胁评分 告警决策

异常检测算法实现：

import numpy as npfrom sklearn.ensemble import IsolationForestfrom sklearn.preprocessing import StandardScalerclass AnomalyDetector: def __init__(self): self.models = { \'isolation_forest\': IsolationForest(contamination=0.1), \'statistical\': StatisticalDetector(), \'rule_based\': RuleBasedDetector() } self.scaler = StandardScaler() self.feature_weights = { \'file_access_frequency\': 0.3, \'unusual_time_access\': 0.25, \'privilege_escalation\': 0.4, \'suspicious_process\': 0.35 } def detect_anomaly(self, event_features): \"\"\"多模型融合的异常检测\"\"\" scores = {} # 1. 基于隔离森林的检测 if hasattr(self.models[\'isolation_forest\'], \'decision_function\'): isolation_score = self.models[\'isolation_forest\'].decision_function([event_features])[0] scores[\'isolation\'] = self._normalize_score(isolation_score) # 2. 统计学异常检测 statistical_score = self.models[\'statistical\'].detect(event_features) scores[\'statistical\'] = statistical_score # 3. 规则基检测 rule_score = self.models[\'rule_based\'].detect(event_features) scores[\'rule_based\'] = rule_score # 4. 融合多个模型的结果 final_score = self._weighted_ensemble(scores) return { \'anomaly_score\': final_score, \'individual_scores\': scores, \'risk_level\': self._get_risk_level(final_score), \'explanation\': self._generate_explanation(scores, event_features) }

3. 存储层架构详细设计

3.1 分层存储策略

#mermaid-svg-Z3u5a6mlpftkjygG {font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-Z3u5a6mlpftkjygG .error-icon{fill:#552222;}#mermaid-svg-Z3u5a6mlpftkjygG .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-Z3u5a6mlpftkjygG .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-Z3u5a6mlpftkjygG .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-Z3u5a6mlpftkjygG .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-Z3u5a6mlpftkjygG .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-Z3u5a6mlpftkjygG .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-Z3u5a6mlpftkjygG .marker{fill:#333333;stroke:#333333;}#mermaid-svg-Z3u5a6mlpftkjygG .marker.cross{stroke:#333333;}#mermaid-svg-Z3u5a6mlpftkjygG svg{font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-Z3u5a6mlpftkjygG .label{font-family:\"trebuchet ms\",verdana,arial,sans-serif;color:#333;}#mermaid-svg-Z3u5a6mlpftkjygG .cluster-label text{fill:#333;}#mermaid-svg-Z3u5a6mlpftkjygG .cluster-label span{color:#333;}#mermaid-svg-Z3u5a6mlpftkjygG .label text,#mermaid-svg-Z3u5a6mlpftkjygG span{fill:#333;color:#333;}#mermaid-svg-Z3u5a6mlpftkjygG .node rect,#mermaid-svg-Z3u5a6mlpftkjygG .node circle,#mermaid-svg-Z3u5a6mlpftkjygG .node ellipse,#mermaid-svg-Z3u5a6mlpftkjygG .node polygon,#mermaid-svg-Z3u5a6mlpftkjygG .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-Z3u5a6mlpftkjygG .node .label{text-align:center;}#mermaid-svg-Z3u5a6mlpftkjygG .node.clickable{cursor:pointer;}#mermaid-svg-Z3u5a6mlpftkjygG .arrowheadPath{fill:#333333;}#mermaid-svg-Z3u5a6mlpftkjygG .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-Z3u5a6mlpftkjygG .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-Z3u5a6mlpftkjygG .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-Z3u5a6mlpftkjygG .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-Z3u5a6mlpftkjygG .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-Z3u5a6mlpftkjygG .cluster text{fill:#333;}#mermaid-svg-Z3u5a6mlpftkjygG .cluster span{color:#333;}#mermaid-svg-Z3u5a6mlpftkjygG div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-Z3u5a6mlpftkjygG :root{--mermaid-font-family:\"trebuchet ms\",verdana,arial,sans-serif;} 对象存储 (MinIO/S3) 日志存储 (Elasticsearch) 关系数据库 (PostgreSQL) 时序数据库 (InfluxDB) 内存层 (Redis Cluster) 文件快照 备份数据 历史归档 原始日志数据 分析结果数据 审计跟踪数据 用户配置数据 告警规则数据 系统元数据 事件时序数据 性能指标数据 聚合统计数据 实时事件缓存 会话状态缓存 热点查询缓存

数据模型设计：

-- PostgreSQL 数据模型CREATE TABLE monitoring_rules ( id SERIAL PRIMARY KEY, rule_name VARCHAR(255) NOT NULL, rule_type VARCHAR(50) NOT NULL, pattern JSONB NOT NULL, severity INTEGER NOT NULL, enabled BOOLEAN DEFAULT TRUE, created_at TIMESTAMP DEFAULT NOW(), updated_at TIMESTAMP DEFAULT NOW());CREATE TABLE security_events ( id BIGSERIAL PRIMARY KEY, event_id UUID UNIQUE NOT NULL, timestamp TIMESTAMP NOT NULL, event_type VARCHAR(50) NOT NULL, source_ip INET, user_id VARCHAR(100), file_path TEXT, risk_score DECIMAL(5,2), raw_data JSONB, processed_at TIMESTAMP DEFAULT NOW());-- 时序数据库schema (InfluxDB)-- measurement: file_events-- tags: event_type, user_id, file_extension, risk_level-- fields: file_size, operation_count, response_time, risk_score-- time: timestamp
3.2 数据生命周期管理

#mermaid-svg-c3V2OQ4mSPStIw0L {font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-c3V2OQ4mSPStIw0L .error-icon{fill:#552222;}#mermaid-svg-c3V2OQ4mSPStIw0L .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-c3V2OQ4mSPStIw0L .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-c3V2OQ4mSPStIw0L .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-c3V2OQ4mSPStIw0L .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-c3V2OQ4mSPStIw0L .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-c3V2OQ4mSPStIw0L .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-c3V2OQ4mSPStIw0L .marker{fill:#333333;stroke:#333333;}#mermaid-svg-c3V2OQ4mSPStIw0L .marker.cross{stroke:#333333;}#mermaid-svg-c3V2OQ4mSPStIw0L svg{font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-c3V2OQ4mSPStIw0L .label{font-family:\"trebuchet ms\",verdana,arial,sans-serif;color:#333;}#mermaid-svg-c3V2OQ4mSPStIw0L .cluster-label text{fill:#333;}#mermaid-svg-c3V2OQ4mSPStIw0L .cluster-label span{color:#333;}#mermaid-svg-c3V2OQ4mSPStIw0L .label text,#mermaid-svg-c3V2OQ4mSPStIw0L span{fill:#333;color:#333;}#mermaid-svg-c3V2OQ4mSPStIw0L .node rect,#mermaid-svg-c3V2OQ4mSPStIw0L .node circle,#mermaid-svg-c3V2OQ4mSPStIw0L .node ellipse,#mermaid-svg-c3V2OQ4mSPStIw0L .node polygon,#mermaid-svg-c3V2OQ4mSPStIw0L .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-c3V2OQ4mSPStIw0L .node .label{text-align:center;}#mermaid-svg-c3V2OQ4mSPStIw0L .node.clickable{cursor:pointer;}#mermaid-svg-c3V2OQ4mSPStIw0L .arrowheadPath{fill:#333333;}#mermaid-svg-c3V2OQ4mSPStIw0L .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-c3V2OQ4mSPStIw0L .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-c3V2OQ4mSPStIw0L .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-c3V2OQ4mSPStIw0L .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-c3V2OQ4mSPStIw0L .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-c3V2OQ4mSPStIw0L .cluster text{fill:#333;}#mermaid-svg-c3V2OQ4mSPStIw0L .cluster span{color:#333;}#mermaid-svg-c3V2OQ4mSPStIw0L div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-c3V2OQ4mSPStIw0L :root{--mermaid-font-family:\"trebuchet ms\",verdana,arial,sans-serif;} 实时 历史 配置 日志 新事件 数据分类 Redis - 1小时 InfluxDB - 90天 PostgreSQL - 永久 ES - 30天 自动过期 数据压缩 索引优化 冷存储迁移 历史数据归档

4. 应用层详细实现

4.1 实时告警系统

#mermaid-svg-KTwIHeCsa9nYj2kl {font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-KTwIHeCsa9nYj2kl .error-icon{fill:#552222;}#mermaid-svg-KTwIHeCsa9nYj2kl .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-KTwIHeCsa9nYj2kl .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-KTwIHeCsa9nYj2kl .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-KTwIHeCsa9nYj2kl .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-KTwIHeCsa9nYj2kl .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-KTwIHeCsa9nYj2kl .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-KTwIHeCsa9nYj2kl .marker{fill:#333333;stroke:#333333;}#mermaid-svg-KTwIHeCsa9nYj2kl .marker.cross{stroke:#333333;}#mermaid-svg-KTwIHeCsa9nYj2kl svg{font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-KTwIHeCsa9nYj2kl .actor{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-KTwIHeCsa9nYj2kl text.actor>tspan{fill:black;stroke:none;}#mermaid-svg-KTwIHeCsa9nYj2kl .actor-line{stroke:grey;}#mermaid-svg-KTwIHeCsa9nYj2kl .messageLine0{stroke-width:1.5;stroke-dasharray:none;stroke:#333;}#mermaid-svg-KTwIHeCsa9nYj2kl .messageLine1{stroke-width:1.5;stroke-dasharray:2,2;stroke:#333;}#mermaid-svg-KTwIHeCsa9nYj2kl #arrowhead path{fill:#333;stroke:#333;}#mermaid-svg-KTwIHeCsa9nYj2kl .sequenceNumber{fill:white;}#mermaid-svg-KTwIHeCsa9nYj2kl #sequencenumber{fill:#333;}#mermaid-svg-KTwIHeCsa9nYj2kl #crosshead path{fill:#333;stroke:#333;}#mermaid-svg-KTwIHeCsa9nYj2kl .messageText{fill:#333;stroke:#333;}#mermaid-svg-KTwIHeCsa9nYj2kl .labelBox{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-KTwIHeCsa9nYj2kl .labelText,#mermaid-svg-KTwIHeCsa9nYj2kl .labelText>tspan{fill:black;stroke:none;}#mermaid-svg-KTwIHeCsa9nYj2kl .loopText,#mermaid-svg-KTwIHeCsa9nYj2kl .loopText>tspan{fill:black;stroke:none;}#mermaid-svg-KTwIHeCsa9nYj2kl .loopLine{stroke-width:2px;stroke-dasharray:2,2;stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);}#mermaid-svg-KTwIHeCsa9nYj2kl .note{stroke:#aaaa33;fill:#fff5ad;}#mermaid-svg-KTwIHeCsa9nYj2kl .noteText,#mermaid-svg-KTwIHeCsa9nYj2kl .noteText>tspan{fill:black;stroke:none;}#mermaid-svg-KTwIHeCsa9nYj2kl .activation0{fill:#f4f4f4;stroke:#666;}#mermaid-svg-KTwIHeCsa9nYj2kl .activation1{fill:#f4f4f4;stroke:#666;}#mermaid-svg-KTwIHeCsa9nYj2kl .activation2{fill:#f4f4f4;stroke:#666;}#mermaid-svg-KTwIHeCsa9nYj2kl .actorPopupMenu{position:absolute;}#mermaid-svg-KTwIHeCsa9nYj2kl .actorPopupMenuPanel{position:absolute;fill:#ECECFF;box-shadow:0px 8px 16px 0px rgba(0,0,0,0.2);filter:drop-shadow(3px 5px 2px rgb(0 0 0 / 0.4));}#mermaid-svg-KTwIHeCsa9nYj2kl .actor-man line{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-KTwIHeCsa9nYj2kl .actor-man circle,#mermaid-svg-KTwIHeCsa9nYj2kl line{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;stroke-width:2px;}#mermaid-svg-KTwIHeCsa9nYj2kl :root{--mermaid-font-family:\"trebuchet ms\",verdana,arial,sans-serif;} 检测引擎 告警管理器 规则引擎 通知服务 用户 异常事件 查询告警规则 返回匹配规则 计算告警级别 发送通知请求 多渠道通知 确认处理 更新事件状态 检测引擎 告警管理器 规则引擎 通知服务 用户

告警系统核心代码：

@Servicepublic class AlertManager { @Autowired private RuleEngine ruleEngine; @Autowired private NotificationService notificationService; public void processAlert(SecurityEvent event) { // 1. 匹配告警规则 List<AlertRule> matchedRules = ruleEngine.findMatchingRules(event); if (matchedRules.isEmpty()) { return; // 无匹配规则，不产生告警 } // 2. 创建告警 Alert alert = createAlert(event, matchedRules); // 3. 去重检查 if (isDuplicateAlert(alert)) { updateAlertCount(alert); return; } // 4. 发送通知 CompletableFuture.runAsync(() -> { try { notificationService.sendAlert(alert); updateAlertStatus(alert, AlertStatus.SENT); } catch (Exception e) { updateAlertStatus(alert, AlertStatus.FAILED); log.error(\"Failed to send alert: {}\", alert.getId(), e); } }); } private Alert createAlert(SecurityEvent event, List<AlertRule> rules) { Alert alert = new Alert(); alert.setEventId(event.getId()); alert.setSeverity(calculateMaxSeverity(rules)); alert.setTitle(generateAlertTitle(event, rules)); alert.setDescription(generateAlertDescription(event, rules)); alert.setCreatedAt(Instant.now()); alert.setStatus(AlertStatus.PENDING); // 添加建议的响应措施 alert.setRecommendedActions(generateRecommendedActions(event, rules)); return alertRepository.save(alert); }}
4.2 可视化监控大屏

#mermaid-svg-D9mk3WZBOHIuBv3I {font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-D9mk3WZBOHIuBv3I .error-icon{fill:#552222;}#mermaid-svg-D9mk3WZBOHIuBv3I .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-D9mk3WZBOHIuBv3I .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-D9mk3WZBOHIuBv3I .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-D9mk3WZBOHIuBv3I .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-D9mk3WZBOHIuBv3I .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-D9mk3WZBOHIuBv3I .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-D9mk3WZBOHIuBv3I .marker{fill:#333333;stroke:#333333;}#mermaid-svg-D9mk3WZBOHIuBv3I .marker.cross{stroke:#333333;}#mermaid-svg-D9mk3WZBOHIuBv3I svg{font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-D9mk3WZBOHIuBv3I .label{font-family:\"trebuchet ms\",verdana,arial,sans-serif;color:#333;}#mermaid-svg-D9mk3WZBOHIuBv3I .cluster-label text{fill:#333;}#mermaid-svg-D9mk3WZBOHIuBv3I .cluster-label span{color:#333;}#mermaid-svg-D9mk3WZBOHIuBv3I .label text,#mermaid-svg-D9mk3WZBOHIuBv3I span{fill:#333;color:#333;}#mermaid-svg-D9mk3WZBOHIuBv3I .node rect,#mermaid-svg-D9mk3WZBOHIuBv3I .node circle,#mermaid-svg-D9mk3WZBOHIuBv3I .node ellipse,#mermaid-svg-D9mk3WZBOHIuBv3I .node polygon,#mermaid-svg-D9mk3WZBOHIuBv3I .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-D9mk3WZBOHIuBv3I .node .label{text-align:center;}#mermaid-svg-D9mk3WZBOHIuBv3I .node.clickable{cursor:pointer;}#mermaid-svg-D9mk3WZBOHIuBv3I .arrowheadPath{fill:#333333;}#mermaid-svg-D9mk3WZBOHIuBv3I .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-D9mk3WZBOHIuBv3I .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-D9mk3WZBOHIuBv3I .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-D9mk3WZBOHIuBv3I .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-D9mk3WZBOHIuBv3I .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-D9mk3WZBOHIuBv3I .cluster text{fill:#333;}#mermaid-svg-D9mk3WZBOHIuBv3I .cluster span{color:#333;}#mermaid-svg-D9mk3WZBOHIuBv3I div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-D9mk3WZBOHIuBv3I :root{--mermaid-font-family:\"trebuchet ms\",verdana,arial,sans-serif;} 展示组件 数据处理 数据源 实时事件监控 安全态势图 威胁热力图 统计图表 告警列表 实时聚合 趋势分析 TOP排行 实时事件流 统计数据 告警数据

前端核心实现（Vue.js + ECharts）：

<template> <div class=\"security-dashboard\"> <!-- 实时统计卡片 --> <div class=\"stats-cards\"> <StatCard title=\"今日事件\" :value=\"todayEvents\" trend=\"up\" /> <StatCard title=\"活跃告警\" :value=\"activeAlerts\" trend=\"down\" /> <StatCard title=\"风险评分\" :value=\"riskScore\" trend=\"stable\" /> </div> <!-- 实时事件流 --> <div class=\"event-stream\"> <h3>实时事件流</h3> <virtual-list :items=\"realtimeEvents\" item-height=\"60\"> <template #item=\"{ item }\"> <EventItem :event=\"item\" @click=\"showEventDetail\" /> </template> </virtual-list> </div> <!-- 威胁态势图 --> <div class=\"threat-map\"> <threat-heatmap :data=\"threatData\" /> </div> </div></template><script>export default { data() { return { todayEvents: 0, activeAlerts: 0, riskScore: 0, realtimeEvents: [], threatData: [] } }, mounted() { this.initWebSocket(); this.loadInitialData(); }, methods: { initWebSocket() { this.ws = new WebSocket(\'ws://localhost:8080/realtime-events\'); this.ws.onmessage = (event) => { const data = JSON.parse(event.data); this.handleRealtimeEvent(data); }; }, handleRealtimeEvent(event) { // 更新实时事件列表 this.realtimeEvents.unshift(event); if (this.realtimeEvents.length > 100) { this.realtimeEvents.pop(); } // 更新统计数据 this.updateStats(event); } }}</script>

技术实现方案

5.1 消息队列与流处理架构

#mermaid-svg-QY8lBpYJIxNREEjd {font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-QY8lBpYJIxNREEjd .error-icon{fill:#552222;}#mermaid-svg-QY8lBpYJIxNREEjd .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-QY8lBpYJIxNREEjd .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-QY8lBpYJIxNREEjd .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-QY8lBpYJIxNREEjd .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-QY8lBpYJIxNREEjd .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-QY8lBpYJIxNREEjd .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-QY8lBpYJIxNREEjd .marker{fill:#333333;stroke:#333333;}#mermaid-svg-QY8lBpYJIxNREEjd .marker.cross{stroke:#333333;}#mermaid-svg-QY8lBpYJIxNREEjd svg{font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-QY8lBpYJIxNREEjd .label{font-family:\"trebuchet ms\",verdana,arial,sans-serif;color:#333;}#mermaid-svg-QY8lBpYJIxNREEjd .cluster-label text{fill:#333;}#mermaid-svg-QY8lBpYJIxNREEjd .cluster-label span{color:#333;}#mermaid-svg-QY8lBpYJIxNREEjd .label text,#mermaid-svg-QY8lBpYJIxNREEjd span{fill:#333;color:#333;}#mermaid-svg-QY8lBpYJIxNREEjd .node rect,#mermaid-svg-QY8lBpYJIxNREEjd .node circle,#mermaid-svg-QY8lBpYJIxNREEjd .node ellipse,#mermaid-svg-QY8lBpYJIxNREEjd .node polygon,#mermaid-svg-QY8lBpYJIxNREEjd .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-QY8lBpYJIxNREEjd .node .label{text-align:center;}#mermaid-svg-QY8lBpYJIxNREEjd .node.clickable{cursor:pointer;}#mermaid-svg-QY8lBpYJIxNREEjd .arrowheadPath{fill:#333333;}#mermaid-svg-QY8lBpYJIxNREEjd .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-QY8lBpYJIxNREEjd .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-QY8lBpYJIxNREEjd .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-QY8lBpYJIxNREEjd .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-QY8lBpYJIxNREEjd .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-QY8lBpYJIxNREEjd .cluster text{fill:#333;}#mermaid-svg-QY8lBpYJIxNREEjd .cluster span{color:#333;}#mermaid-svg-QY8lBpYJIxNREEjd div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-QY8lBpYJIxNREEjd :root{--mermaid-font-family:\"trebuchet ms\",verdana,arial,sans-serif;} 流处理层 消息队列层 事件处理流 Kafka Streams 复杂事件处理 Flink 实时聚合 Storm Kafka Producer Agent Kafka Cluster Topic: raw-events Topic: processed-events Topic: alerts

Kafka配置示例：

# server.propertiesnum.network.threads=8num.io.threads=16socket.send.buffer.bytes=102400socket.receive.buffer.bytes=102400socket.request.max.bytes=104857600# 针对高吞吐量优化num.partitions=12default.replication.factor=3min.insync.replicas=2# 数据保留策略log.retention.hours=168log.segment.bytes=1073741824log.retention.check.interval.ms=300000

流处理代码示例（Kafka Streams）：

@Componentpublic class EventStreamProcessor { @Value(\"${kafka.bootstrap.servers}\") private String bootstrapServers; public void startEventProcessing() { Properties props = new Properties(); props.put(StreamsConfig.APPLICATION_ID_CONFIG, \"security-event-processor\"); props.put(StreamsConfig.BOOTSTRAP_SERVERS_CONFIG, bootstrapServers); StreamsBuilder builder = new StreamsBuilder(); // 1. 原始事件流 KStream<String, SecurityEvent> rawEvents = builder.stream(\"raw-events\"); // 2. 事件过滤和清洗 KStream<String, SecurityEvent> filteredEvents = rawEvents .filter((key, event) -> isValidEvent(event)) .mapValues(this::enrichEvent); // 3. 异常检测 KStream<String, Alert> alerts = filteredEvents .flatMapValues(this::detectAnomalies) .filter((key, alert) -> alert != null); // 4. 事件聚合 - 按用户ID分组 KTable<String, EventSummary> userEventSummary = filteredEvents .groupBy((key, event) -> event.getUserId()) .windowedBy(TimeWindows.of(Duration.ofMinutes(5))) .aggregate( EventSummary::new, (userId, event, summary) -> summary.addEvent(event), Materialized.with(Serdes.String(), eventSummarySerde) ); // 输出到下游topic alerts.to(\"alerts\", Produced.with(Serdes.String(), alertSerde)); filteredEvents.to(\"processed-events\", Produced.with(Serdes.String(), eventSerde)); KafkaStreams streams = new KafkaStreams(builder.build(), props); streams.start(); }}

5.2 微服务架构设计

#mermaid-svg-rqHlGyTD4jTKv3Cg {font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-rqHlGyTD4jTKv3Cg .error-icon{fill:#552222;}#mermaid-svg-rqHlGyTD4jTKv3Cg .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-rqHlGyTD4jTKv3Cg .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-rqHlGyTD4jTKv3Cg .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-rqHlGyTD4jTKv3Cg .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-rqHlGyTD4jTKv3Cg .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-rqHlGyTD4jTKv3Cg .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-rqHlGyTD4jTKv3Cg .marker{fill:#333333;stroke:#333333;}#mermaid-svg-rqHlGyTD4jTKv3Cg .marker.cross{stroke:#333333;}#mermaid-svg-rqHlGyTD4jTKv3Cg svg{font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-rqHlGyTD4jTKv3Cg .label{font-family:\"trebuchet ms\",verdana,arial,sans-serif;color:#333;}#mermaid-svg-rqHlGyTD4jTKv3Cg .cluster-label text{fill:#333;}#mermaid-svg-rqHlGyTD4jTKv3Cg .cluster-label span{color:#333;}#mermaid-svg-rqHlGyTD4jTKv3Cg .label text,#mermaid-svg-rqHlGyTD4jTKv3Cg span{fill:#333;color:#333;}#mermaid-svg-rqHlGyTD4jTKv3Cg .node rect,#mermaid-svg-rqHlGyTD4jTKv3Cg .node circle,#mermaid-svg-rqHlGyTD4jTKv3Cg .node ellipse,#mermaid-svg-rqHlGyTD4jTKv3Cg .node polygon,#mermaid-svg-rqHlGyTD4jTKv3Cg .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-rqHlGyTD4jTKv3Cg .node .label{text-align:center;}#mermaid-svg-rqHlGyTD4jTKv3Cg .node.clickable{cursor:pointer;}#mermaid-svg-rqHlGyTD4jTKv3Cg .arrowheadPath{fill:#333333;}#mermaid-svg-rqHlGyTD4jTKv3Cg .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-rqHlGyTD4jTKv3Cg .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-rqHlGyTD4jTKv3Cg .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-rqHlGyTD4jTKv3Cg .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-rqHlGyTD4jTKv3Cg .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-rqHlGyTD4jTKv3Cg .cluster text{fill:#333;}#mermaid-svg-rqHlGyTD4jTKv3Cg .cluster span{color:#333;}#mermaid-svg-rqHlGyTD4jTKv3Cg div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-rqHlGyTD4jTKv3Cg :root{--mermaid-font-family:\"trebuchet ms\",verdana,arial,sans-serif;} 基础设施层 数据服务层 应用服务层 API网关层 服务注册中心 配置中心 监控中心 事件查询服务 统计分析服务 报表生成服务 事件收集服务 异常检测服务 告警管理服务 用户管理服务 配置管理服务 Kong/Zuul Nginx/Envoy

Spring Cloud配置示例：

# application.ymlspring: application: name: security-event-service cloud: consul: host: localhost port: 8500 discovery: instance-id: ${spring.application.name}:${random.value} health-check-path: /actuator/health health-check-interval: 15s server: port: 8080 management: endpoints: web: exposure: include: health,info,metrics,prometheus endpoint: health: show-details: always# 数据源配置spring: datasource: primary: url: jdbc:postgresql://localhost:5432/security_db username: ${DB_USER} password: ${DB_PASSWORD} driver-class-name: org.postgresql.Driver hikari: maximum-pool-size: 20 minimum-idle: 5 connection-timeout: 20000 redis: cluster: nodes: - redis-1:6379 - redis-2:6379 - redis-3:6379 max-redirects: 3 lettuce: pool: max-active: 16 max-idle: 8

5.3 容器化部署方案

Docker Compose配置：

version: \'3.8\'services: # 事件收集服务 event-collector: build: ./event-collector ports: - \"8080:8080\" environment: - SPRING_PROFILES_ACTIVE=docker - KAFKA_BOOTSTRAP_SERVERS=kafka:9092 - REDIS_HOST=redis - POSTGRES_HOST=postgres depends_on: - kafka - redis - postgres deploy: replicas: 3 resources: limits: cpus: \'1.0\' memory: 1G reservations: cpus: \'0.5\' memory: 512M # 异常检测服务 anomaly-detector: build: ./anomaly-detector environment: - PYTHON_ENV=production - KAFKA_BOOTSTRAP_SERVERS=kafka:9092 - ELASTICSEARCH_HOST=elasticsearch:9200 depends_on: - kafka - elasticsearch deploy: replicas: 2 resources: limits: cpus: \'2.0\' memory: 2G # 基础设施 kafka: image: confluentinc/cp-kafka:latest environment: KAFKA_ZOOKEEPER_CONNECT: zookeeper:2181 KAFKA_ADVERTISED_LISTENERS: PLAINTEXT://kafka:9092 KAFKA_OFFSETS_TOPIC_REPLICATION_FACTOR: 3 ports: - \"9092:9092\" volumes: - kafka-data:/var/lib/kafka/data redis: image: redis:7-alpine command: redis-server --appendonly yes --cluster-enabled yes ports: - \"6379:6379\" volumes: - redis-data:/data postgres: image: postgres:14 environment: POSTGRES_DB: security_db POSTGRES_USER: security_user POSTGRES_PASSWORD: ${POSTGRES_PASSWORD} ports: - \"5432:5432\" volumes: - postgres-data:/var/lib/postgresql/data - ./init.sql:/docker-entrypoint-initdb.d/init.sqlvolumes: kafka-data: redis-data: postgres-data:

5.4 Kubernetes部署配置

# deployment.yamlapiVersion: apps/v1kind: Deploymentmetadata: name: security-monitor-deployment labels: app: security-monitorspec: replicas: 3 selector: matchLabels: app: security-monitor template: metadata: labels: app: security-monitor spec: containers: - name: event-collector image: security-monitor/event-collector:latest ports: - containerPort: 8080 env: - name: KAFKA_BOOTSTRAP_SERVERS valueFrom: configMapKeyRef:  name: app-config  key: kafka.bootstrap.servers resources: requests: memory: \"512Mi\" cpu: \"250m\" limits: memory: \"1Gi\" cpu: \"500m\" livenessProbe: httpGet: path: /actuator/health port: 8080 initialDelaySeconds: 30 periodSeconds: 10 readinessProbe: httpGet: path: /actuator/health/readiness port: 8080 initialDelaySeconds: 5 periodSeconds: 5---apiVersion: v1kind: Servicemetadata: name: security-monitor-servicespec: selector: app: security-monitor ports: - protocol: TCP port: 80 targetPort: 8080 type: LoadBalancer---apiVersion: v1kind: ConfigMapmetadata: name: app-configdata: kafka.bootstrap.servers: \"kafka-cluster:9092\" redis.host: \"redis-cluster\" postgres.host: \"postgres-cluster\"

5.5 监控与可观测性

#mermaid-svg-ftUx2IZz2ngAJye8 {font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-ftUx2IZz2ngAJye8 .error-icon{fill:#552222;}#mermaid-svg-ftUx2IZz2ngAJye8 .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-ftUx2IZz2ngAJye8 .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-ftUx2IZz2ngAJye8 .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-ftUx2IZz2ngAJye8 .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-ftUx2IZz2ngAJye8 .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-ftUx2IZz2ngAJye8 .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-ftUx2IZz2ngAJye8 .marker{fill:#333333;stroke:#333333;}#mermaid-svg-ftUx2IZz2ngAJye8 .marker.cross{stroke:#333333;}#mermaid-svg-ftUx2IZz2ngAJye8 svg{font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-ftUx2IZz2ngAJye8 .label{font-family:\"trebuchet ms\",verdana,arial,sans-serif;color:#333;}#mermaid-svg-ftUx2IZz2ngAJye8 .cluster-label text{fill:#333;}#mermaid-svg-ftUx2IZz2ngAJye8 .cluster-label span{color:#333;}#mermaid-svg-ftUx2IZz2ngAJye8 .label text,#mermaid-svg-ftUx2IZz2ngAJye8 span{fill:#333;color:#333;}#mermaid-svg-ftUx2IZz2ngAJye8 .node rect,#mermaid-svg-ftUx2IZz2ngAJye8 .node circle,#mermaid-svg-ftUx2IZz2ngAJye8 .node ellipse,#mermaid-svg-ftUx2IZz2ngAJye8 .node polygon,#mermaid-svg-ftUx2IZz2ngAJye8 .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-ftUx2IZz2ngAJye8 .node .label{text-align:center;}#mermaid-svg-ftUx2IZz2ngAJye8 .node.clickable{cursor:pointer;}#mermaid-svg-ftUx2IZz2ngAJye8 .arrowheadPath{fill:#333333;}#mermaid-svg-ftUx2IZz2ngAJye8 .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-ftUx2IZz2ngAJye8 .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-ftUx2IZz2ngAJye8 .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-ftUx2IZz2ngAJye8 .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-ftUx2IZz2ngAJye8 .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-ftUx2IZz2ngAJye8 .cluster text{fill:#333;}#mermaid-svg-ftUx2IZz2ngAJye8 .cluster span{color:#333;}#mermaid-svg-ftUx2IZz2ngAJye8 div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-ftUx2IZz2ngAJye8 :root{--mermaid-font-family:\"trebuchet ms\",verdana,arial,sans-serif;} 可视化 链路追踪 日志聚合 指标采集 监控大屏 Grafana Kibana 链路分析 分布式追踪 Jaeger Zipkin Logstash Filebeat Elasticsearch 业务指标 Prometheus 系统指标 JVM指标

Prometheus配置示例：

# prometheus.ymlglobal: scrape_interval: 15s evaluation_interval: 15srule_files: - \"alert_rules.yml\"scrape_configs: - job_name: \'security-monitor\' static_configs: - targets: [\'security-monitor:8080\'] metrics_path: /actuator/prometheus scrape_interval: 10s - job_name: \'kafka\' static_configs: - targets: [\'kafka:9092\'] metrics_path: /metrics - job_name: \'redis\' static_configs: - targets: [\'redis:6379\']alerting: alertmanagers: - static_configs: - targets: - alertmanager:9093

5.6 性能优化核心策略

5.6.1 数据库优化
-- 针对高频查询的索引优化CREATE INDEX CONCURRENTLY idx_events_timestamp_user ON security_events (timestamp DESC, user_id) WHERE timestamp > NOW() - INTERVAL \'7 days\';-- 分区表策略CREATE TABLE security_events_2024_01 PARTITION OF security_eventsFOR VALUES FROM (\'2024-01-01\') TO (\'2024-02-01\');-- 实时查询优化CREATE MATERIALIZED VIEW real_time_stats ASSELECT date_trunc(\'minute\', timestamp) as time_bucket, event_type, COUNT(*) as event_count, AVG(risk_score) as avg_risk_scoreFROM security_events WHERE timestamp > NOW() - INTERVAL \'1 hour\'GROUP BY time_bucket, event_type;
5.6.2 缓存策略实现
@Configuration@EnableCachingpublic class CacheConfig { @Bean public CacheManager cacheManager() { RedisCacheManager.Builder builder = RedisCacheManager .RedisCacheManagerBuilder .fromConnectionFactory(redisConnectionFactory()) .cacheDefaults(cacheConfiguration()); return builder.build(); } private RedisCacheConfiguration cacheConfiguration() { return RedisCacheConfiguration.defaultCacheConfig() .entryTtl(Duration.ofMinutes(10)) .serializeKeysWith(RedisSerializationContext.SerializationPair .fromSerializer(new StringRedisSerializer())) .serializeValuesWith(RedisSerializationContext.SerializationPair .fromSerializer(new GenericJackson2JsonRedisSerializer())); }}@Servicepublic class EventQueryService { @Cacheable(value = \"event-stats\", key = \"#userId + \':\' + #timeRange\") public EventStatistics getUserEventStats(String userId, String timeRange) { // 复杂的统计查询逻辑 return eventRepository.calculateUserStats(userId, timeRange); } @CacheEvict(value = \"event-stats\", key = \"#userId + \':*\'\") public void clearUserStatsCache(String userId) { // 用户相关缓存清理 }}

部署与运维策略

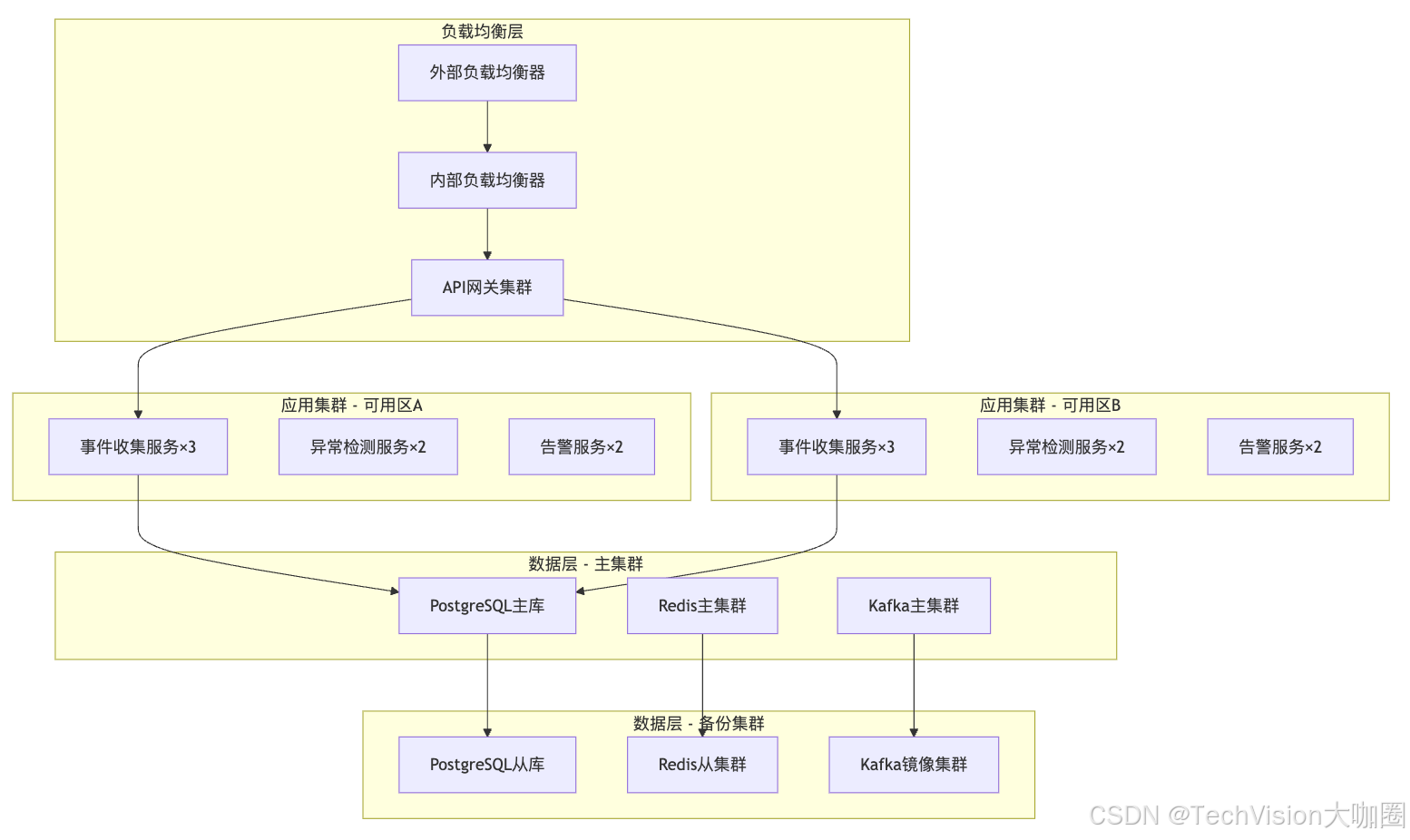

6.1 生产环境部署架构

如何设计一个服务器文件实时监测系统：架构设计合集(四)

6.1.1 高可用配置详解

PostgreSQL主从配置：

# 主库配置 (postgresql.conf)listen_addresses = \'*\'wal_level = replicamax_wal_senders = 3wal_keep_segments = 64synchronous_standby_names = \'standby1,standby2\'# 从库配置 (recovery.conf)standby_mode = \'on\'primary_conninfo = \'host=master-ip port=5432 user=replicator\'trigger_file = \'/tmp/postgresql.trigger\'

Redis集群配置：

# redis.confcluster-enabled yescluster-config-file nodes.confcluster-node-timeout 5000appendonly yesappendfsync everysec# 集群初始化redis-cli --cluster create \\ 192.168.1.10:6379 192.168.1.11:6379 192.168.1.12:6379 \\ 192.168.1.13:6379 192.168.1.14:6379 192.168.1.15:6379 \\ --cluster-replicas 1
6.1.2 自动化部署脚本
#!/bin/bash# deploy.sh - 自动化部署脚本set -e# 环境变量ENVIRONMENT=${1:-production}VERSION=${2:-latest}NAMESPACE=\"security-monitor\"echo \"开始部署 SecurityMonitor v${VERSION} 到 ${ENVIRONMENT} 环境\"# 1. 检查依赖check_dependencies() { command -v kubectl >/dev/null 2>&1 || { echo \"kubectl 未安装\"; exit 1; } command -v helm >/dev/null 2>&1 || { echo \"helm 未安装\"; exit 1; } command -v docker >/dev/null 2>&1 || { echo \"docker 未安装\"; exit 1; }}# 2. 构建镜像build_images() { echo \"构建Docker镜像...\" docker build -t security-monitor/event-collector:${VERSION} ./event-collector/ docker build -t security-monitor/anomaly-detector:${VERSION} ./anomaly-detector/ docker build -t security-monitor/alert-manager:${VERSION} ./alert-manager/ # 推送到镜像仓库 docker push security-monitor/event-collector:${VERSION} docker push security-monitor/anomaly-detector:${VERSION} docker push security-monitor/alert-manager:${VERSION}}# 3. 部署基础设施deploy_infrastructure() { echo \"部署基础设施组件...\" # 部署Kafka helm upgrade --install kafka bitnami/kafka \\ --namespace ${NAMESPACE} \\ --set replicaCount=3 \\ --set zookeeper.replicaCount=3 \\ --set persistence.size=100Gi # 部署Redis helm upgrade --install redis bitnami/redis-cluster \\ --namespace ${NAMESPACE} \\ --set cluster.nodes=6 \\ --set persistence.size=20Gi # 部署PostgreSQL helm upgrade --install postgres bitnami/postgresql-ha \\ --namespace ${NAMESPACE} \\ --set postgresql.replicaCount=2 \\ --set persistence.size=200Gi}# 4. 部署应用服务deploy_applications() { echo \"部署应用服务...\" # 更新Helm Chart helm upgrade --install security-monitor ./helm/security-monitor \\ --namespace ${NAMESPACE} \\ --set image.tag=${VERSION} \\ --set environment=${ENVIRONMENT} \\ --values ./helm/values-${ENVIRONMENT}.yaml}# 5. 验证部署verify_deployment() { echo \"验证部署状态...\" # 等待Pod就绪 kubectl wait --for=condition=ready pod \\ -l app=security-monitor \\ -n ${NAMESPACE} \\ --timeout=300s # 健康检查 kubectl get pods -n ${NAMESPACE} kubectl get services -n ${NAMESPACE} # API健康检查 API_URL=$(kubectl get service security-monitor-api -n ${NAMESPACE} -o jsonpath=\'{.status.loadBalancer.ingress[0].ip}\') curl -f http://${API_URL}/actuator/health || { echo \"API健康检查失败\"; exit 1; }}# 主流程main() { check_dependencies build_images deploy_infrastructure deploy_applications verify_deployment echo \"部署完成！\" echo \"API地址: http://$(kubectl get service security-monitor-api -n ${NAMESPACE} -o jsonpath=\'{.status.loadBalancer.ingress[0].ip}\')\"}main \"$@\"

6.2 监控告警体系

6.2.1 系统监控指标
# prometheus-rules.ymlgroups:- name: security-monitor-alerts rules: # 系统可用性告警 - alert: ServiceDown expr: up{job=\"security-monitor\"} == 0 for: 1m labels: severity: critical annotations: summary: \"Security Monitor服务不可用\" description: \"{{ $labels.instance }} 已经下线超过1分钟\" # 事件处理延迟告警 - alert: HighEventProcessingLatency expr: event_processing_duration_seconds{quantile=\"0.95\"} > 5 for: 2m labels: severity: warning annotations: summary: \"事件处理延迟过高\" description: \"95%分位数的处理延迟超过5秒\" # 磁盘空间告警 - alert: DiskSpaceUsageHigh expr: (node_filesystem_size_bytes - node_filesystem_free_bytes) / node_filesystem_size_bytes > 0.85 for: 5m labels: severity: warning annotations: summary: \"磁盘空间使用率过高\" description: \"磁盘 {{ $labels.device }} 使用率超过85%\" # 异常检测准确率告警 - alert: AnomalyDetectionAccuracyLow expr: anomaly_detection_accuracy < 0.8 for: 10m labels: severity: warning annotations: summary: \"异常检测准确率下降\" description: \"当前异常检测准确率为 {{ $value }}，低于80%阈值\"
6.2.2 业务监控大屏
// Grafana Dashboard配置{ \"dashboard\": { \"title\": \"Security Monitor - 运维监控大屏\", \"panels\": [ { \"title\": \"系统健康状态\", \"type\": \"stat\", \"targets\": [ { \"expr\": \"up{job=\\\"security-monitor\\\"}\", \"legendFormat\": \"{{instance}}\" } ], \"fieldConfig\": { \"defaults\": { \"color\": {  \"mode\": \"thresholds\" }, \"thresholds\": {  \"steps\": [ {\"color\": \"red\", \"value\": 0}, {\"color\": \"green\", \"value\": 1}  ] } } } }, { \"title\": \"每秒事件处理量\", \"type\": \"graph\", \"targets\": [ { \"expr\": \"rate(events_processed_total[5m])\", \"legendFormat\": \"处理速率\" } ] }, { \"title\": \"异常检测结果分布\", \"type\": \"piechart\", \"targets\": [ { \"expr\": \"sum by (risk_level) (events_by_risk_level)\", \"legendFormat\": \"{{risk_level}}\" } ] }, { \"title\": \"TOP 10 异常文件路径\", \"type\": \"table\", \"targets\": [ { \"expr\": \"topk(10, sum by (file_path) (anomaly_events_total))\", \"legendFormat\": \"{{file_path}}\" } ] } ] }}

6.3 容灾与备份策略

6.3.1 数据备份自动化
#!/bin/bash# backup.sh - 数据备份脚本BACKUP_DATE=$(date +%Y%m%d_%H%M%S)BACKUP_ROOT=\"/backup/security-monitor\"RETENTION_DAYS=30# PostgreSQL备份backup_postgresql() { echo \"开始PostgreSQL备份...\" pg_dump -h ${PG_HOST} -U ${PG_USER} -d security_db \\ --verbose --format=custom \\ --file=\"${BACKUP_ROOT}/postgresql/security_db_${BACKUP_DATE}.dump\" # 压缩备份文件 gzip \"${BACKUP_ROOT}/postgresql/security_db_${BACKUP_DATE}.dump\" echo \"PostgreSQL备份完成\"}# Redis备份backup_redis() { echo \"开始Redis备份...\" redis-cli --rdb \"${BACKUP_ROOT}/redis/redis_${BACKUP_DATE}.rdb\" gzip \"${BACKUP_ROOT}/redis/redis_${BACKUP_DATE}.rdb\" echo \"Redis备份完成\"}# 配置文件备份backup_configs() { echo \"开始配置文件备份...\" tar -czf \"${BACKUP_ROOT}/configs/configs_${BACKUP_DATE}.tar.gz\" \\ /etc/security-monitor/ \\ /opt/security-monitor/config/ echo \"配置文件备份完成\"}# 清理旧备份cleanup_old_backups() { echo \"清理${RETENTION_DAYS}天前的备份文件...\" find ${BACKUP_ROOT} -name \"*.gz\" -mtime +${RETENTION_DAYS} -delete find ${BACKUP_ROOT} -name \"*.dump\" -mtime +${RETENTION_DAYS} -delete echo \"清理完成\"}# 上传到云存储upload_to_cloud() { echo \"上传备份到云存储...\" # 上传到AWS S3 aws s3 sync ${BACKUP_ROOT} s3://security-monitor-backups/$(date +%Y/%m/%d)/ \\ --exclude \"*\" --include \"*.gz\" --include \"*.tar.gz\" echo \"云存储上传完成\"}# 主流程main() { mkdir -p ${BACKUP_ROOT}/{postgresql,redis,configs} backup_postgresql backup_redis backup_configs upload_to_cloud cleanup_old_backups echo \"备份任务完成 - ${BACKUP_DATE}\"}main \"$@\"
6.3.2 容灾切换流程

#mermaid-svg-WvSacokZ7kKtrrT7 {font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-WvSacokZ7kKtrrT7 .error-icon{fill:#552222;}#mermaid-svg-WvSacokZ7kKtrrT7 .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-WvSacokZ7kKtrrT7 .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-WvSacokZ7kKtrrT7 .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-WvSacokZ7kKtrrT7 .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-WvSacokZ7kKtrrT7 .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-WvSacokZ7kKtrrT7 .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-WvSacokZ7kKtrrT7 .marker{fill:#333333;stroke:#333333;}#mermaid-svg-WvSacokZ7kKtrrT7 .marker.cross{stroke:#333333;}#mermaid-svg-WvSacokZ7kKtrrT7 svg{font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-WvSacokZ7kKtrrT7 .label{font-family:\"trebuchet ms\",verdana,arial,sans-serif;color:#333;}#mermaid-svg-WvSacokZ7kKtrrT7 .cluster-label text{fill:#333;}#mermaid-svg-WvSacokZ7kKtrrT7 .cluster-label span{color:#333;}#mermaid-svg-WvSacokZ7kKtrrT7 .label text,#mermaid-svg-WvSacokZ7kKtrrT7 span{fill:#333;color:#333;}#mermaid-svg-WvSacokZ7kKtrrT7 .node rect,#mermaid-svg-WvSacokZ7kKtrrT7 .node circle,#mermaid-svg-WvSacokZ7kKtrrT7 .node ellipse,#mermaid-svg-WvSacokZ7kKtrrT7 .node polygon,#mermaid-svg-WvSacokZ7kKtrrT7 .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-WvSacokZ7kKtrrT7 .node .label{text-align:center;}#mermaid-svg-WvSacokZ7kKtrrT7 .node.clickable{cursor:pointer;}#mermaid-svg-WvSacokZ7kKtrrT7 .arrowheadPath{fill:#333333;}#mermaid-svg-WvSacokZ7kKtrrT7 .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-WvSacokZ7kKtrrT7 .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-WvSacokZ7kKtrrT7 .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-WvSacokZ7kKtrrT7 .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-WvSacokZ7kKtrrT7 .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-WvSacokZ7kKtrrT7 .cluster text{fill:#333;}#mermaid-svg-WvSacokZ7kKtrrT7 .cluster span{color:#333;}#mermaid-svg-WvSacokZ7kKtrrT7 div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-WvSacokZ7kKtrrT7 :root{--mermaid-font-family:\"trebuchet ms\",verdana,arial,sans-serif;} 网络故障 服务故障 硬件故障 超时 恢复 成功 失败 监控检测到主站故障 故障类型判断 等待网络恢复 尝试自动重启 执行容灾切换 超时检查 重启成功? 恢复正常 切换DNS指向备用站点 启动备用站点服务 数据同步检查 服务验证 通知运维团队 记录故障日志

自动切换脚本：

#!/usr/bin/env python3# disaster_recovery.pyimport asyncioimport aiohttpimport loggingfrom typing import Dict, Listimport jsonimport subprocessclass DisasterRecoveryManager: def __init__(self, config_file: str): with open(config_file, \'r\') as f: self.config = json.load(f) self.primary_endpoints = self.config[\'primary\'][\'endpoints\'] self.backup_endpoints = self.config[\'backup\'][\'endpoints\'] self.dns_config = self.config[\'dns\'] logging.basicConfig(level=logging.INFO) self.logger = logging.getLogger(__name__) async def check_service_health(self, endpoint: str) -> bool: \"\"\"检查服务健康状态\"\"\" try: async with aiohttp.ClientSession() as session: async with session.get(f\"{endpoint}/actuator/health\", timeout=aiohttp.ClientTimeout(total=10)) as response:  if response.status == 200: data = await response.json() return data.get(\'status\') == \'UP\' except Exception as e: self.logger.error(f\"健康检查失败 {endpoint}: {e}\") return False return False async def check_all_services(self, endpoints: List[str]) -> Dict[str, bool]: \"\"\"检查所有服务的健康状态\"\"\" tasks = [self.check_service_health(endpoint) for endpoint in endpoints] results = await asyncio.gather(*tasks) return dict(zip(endpoints, results)) def switch_dns_to_backup(self): \"\"\"切换DNS到备用站点\"\"\" try: # 使用Route53 API切换DNS cmd = [ \'aws\', \'route53\', \'change-resource-record-sets\', \'--hosted-zone-id\', self.dns_config[\'zone_id\'], \'--change-batch\', json.dumps({  \'Changes\': [{ \'Action\': \'UPSERT\', \'ResourceRecordSet\': { \'Name\': self.dns_config[\'domain\'], \'Type\': \'A\', \'TTL\': 60, \'ResourceRecords\': [{\'Value\': self.config[\'backup\'][\'ip\']}] }  }] }) ] result = subprocess.run(cmd, capture_output=True, text=True) if result.returncode == 0: self.logger.info(\"DNS切换成功\") return True else: self.logger.error(f\"DNS切换失败: {result.stderr}\") return False except Exception as e: self.logger.error(f\"DNS切换异常: {e}\") return False async def start_backup_services(self): \"\"\"启动备用站点服务\"\"\" try: # 使用Kubernetes API启动备用服务 cmd = [ \'kubectl\', \'scale\', \'deployment\', \'security-monitor\', \'--replicas=3\', \'--namespace=backup\' ] result = subprocess.run(cmd, capture_output=True, text=True) if result.returncode == 0: self.logger.info(\"备用服务启动成功\") # 等待服务就绪 await asyncio.sleep(30) return True else: self.logger.error(f\"备用服务启动失败: {result.stderr}\") return False except Exception as e: self.logger.error(f\"备用服务启动异常: {e}\") return False async def execute_disaster_recovery(self): \"\"\"执行容灾切换流程\"\"\" self.logger.info(\"开始执行容灾切换...\") # 1. 最后一次检查主站点 primary_status = await self.check_all_services(self.primary_endpoints) healthy_count = sum(primary_status.values()) if healthy_count >= len(self.primary_endpoints) * 0.5: self.logger.info(\"主站点恢复正常，取消容灾切换\") return False # 2. 启动备用服务 if await self.start_backup_services(): # 3. 检查备用服务状态 backup_status = await self.check_all_services(self.backup_endpoints) backup_healthy = sum(backup_status.values()) if backup_healthy >= len(self.backup_endpoints) * 0.8: # 4. 切换DNS if self.switch_dns_to_backup():  self.logger.info(\"容灾切换完成\")  self.send_notification(\"容灾切换完成，系统已切换到备用站点\")  return True self.logger.error(\"容灾切换失败\") self.send_notification(\"容灾切换失败，请人工介入\") return False def send_notification(self, message: str): \"\"\"发送通知\"\"\" # 发送钉钉/企业微信通知 # 发送邮件通知 # 发送短信通知 self.logger.info(f\"发送通知: {message}\")if __name__ == \"__main__\": dr_manager = DisasterRecoveryManager(\"disaster_recovery_config.json\") asyncio.run(dr_manager.execute_disaster_recovery())

6.4 运维自动化

6.4.1 日志管理自动化
# filebeat.ymlfilebeat.inputs:- type: log enabled: true paths: - /var/log/security-monitor/*.log fields: service: security-monitor environment: production multiline.pattern: \'^\\d{4}-\\d{2}-\\d{2}\' multiline.negate: true multiline.match: afterprocessors:- add_host_metadata: when.not.contains.tags: forwarded- add_docker_metadata: ~- add_kubernetes_metadata: ~output.elasticsearch: hosts: [\"elasticsearch-1:9200\", \"elasticsearch-2:9200\"] index: \"security-monitor-logs-%{+yyyy.MM.dd}\" template.settings: index.number_of_shards: 2 index.number_of_replicas: 1logging.level: infologging.to_files: truelogging.files: path: /var/log/filebeat name: filebeat keepfiles: 7 permissions: 0644
6.4.2 自动扩缩容策略
# hpa.yamlapiVersion: autoscaling/v2kind: HorizontalPodAutoscalermetadata: name: security-monitor-hpa namespace: security-monitorspec: scaleTargetRef: apiVersion: apps/v1 kind: Deployment name: security-monitor minReplicas: 3 maxReplicas: 20 metrics: - type: Resource resource: name: cpu target: type: Utilization averageUtilization: 70 - type: Resource resource: name: memory target: type: Utilization averageUtilization: 80 - type: Pods pods: metric: name: events_processing_rate target: type: AverageValue averageValue: \"1000\" behavior: scaleDown: stabilizationWindowSeconds: 300 policies: - type: Pods value: 1 periodSeconds: 60 scaleUp: stabilizationWindowSeconds: 60 policies: - type: Pods value: 2 periodSeconds: 30

总结与展望

通过本文的详细分析，我们完整地构建了一个服务器文件安全异常实时监测系统的设计方案。这套系统不仅仅是一个简单的文件监控工具，而是一个集成了现代化技术栈的智能安全防护平台。

📊 系统核心优势总结

🛡️ 多层防护体系

  • 数据采集层：通过inotify、eBPF等技术实现毫秒级事件捕获
  • 智能分析层：融合规则引擎、统计学分析、机器学习的多维度异常检测
  • 响应处理层：自动化告警和响应机制，支持多渠道通知
  • 可视化层：实时监控大屏和详细的分析报表

⚡ 高性能设计

  • 并发处理：基于Kafka的分布式流处理，支持百万级事件/秒
  • 存储优化：分层存储策略，热温冷数据分级管理
  • 缓存策略：Redis集群缓存热点数据，毫秒级查询响应
  • 自动扩容：基于HPA的弹性伸缩，根据负载自动调整资源

🔧 运维友好

  • 容器化部署：Docker + Kubernetes，支持一键部署和滚动更新
  • 监控告警：Prometheus + Grafana完整监控体系
  • 日志管理：ELK栈统一日志收集和分析
  • 备份容灾：多级备份策略和自动容灾切换

🎯 实际应用场景

企业级应用场景：

  1. 金融机构：监控核心业务数据的访问和修改，确保合规性
  2. 电商平台：保护用户数据和订单信息，防止数据泄露
  3. 医疗系统：监控患者隐私数据访问，满足HIPAA等法规要求
  4. 政府机构：保护敏感政务数据，维护国家信息安全

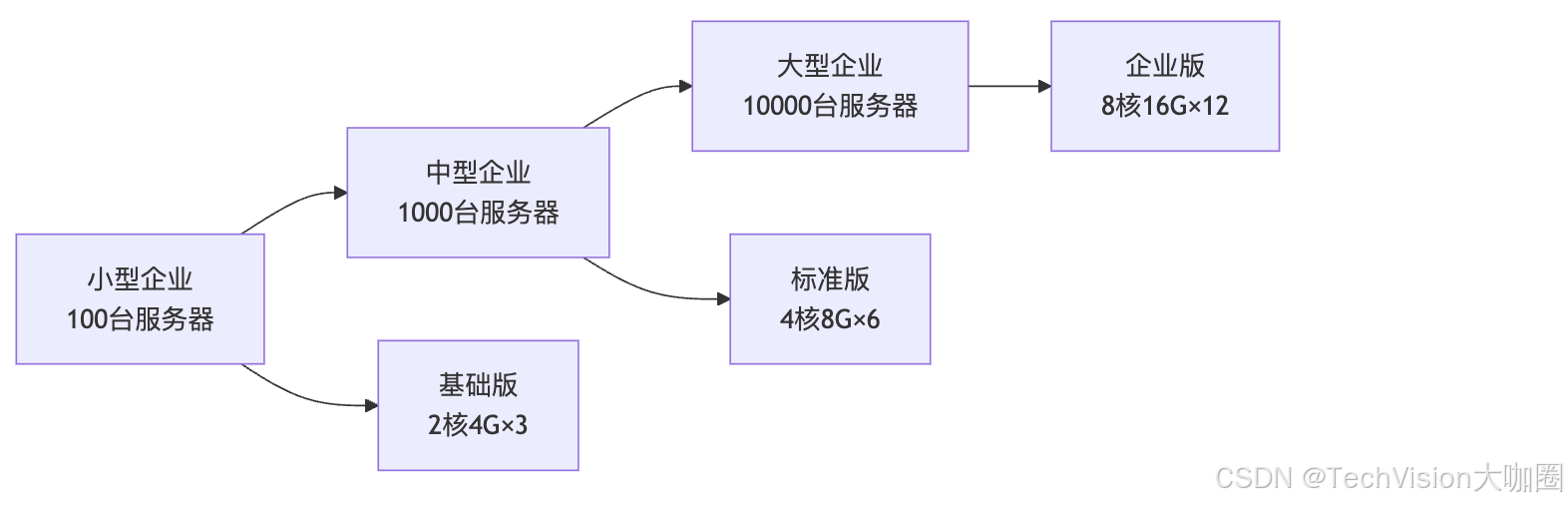

部署规模参考：

如何设计一个服务器文件实时监测系统：架构设计合集(四)

🚀 技术发展趋势

AI驱动的安全分析
随着人工智能技术的发展，未来的文件安全监测将更加智能：

  • 深度学习模型：使用Transformer架构分析文件访问序列
  • 联邦学习：多机构间共享威胁情报而不泄露敏感数据
  • 零样本检测：无需训练即可识别全新类型的威胁

云原生安全
适应云计算和微服务架构的发展：

  • Service Mesh集成：与Istio等服务网格深度集成
  • Serverless监控：支持AWS Lambda、Azure Functions等无服务器环境
  • 边缘计算：在边缘节点部署轻量级监控代理

隐私保护增强
在加强安全的同时保护用户隐私：

  • 同态加密：在加密状态下进行异常检测分析
  • 差分隐私：在统计分析中保护个体隐私
  • 零知识证明：验证威胁检测结果而不暴露原始数据

💡 实施建议与最佳实践

阶段性部署策略：

#mermaid-svg-hzbkNjRNmjjuYGlK {font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-hzbkNjRNmjjuYGlK .error-icon{fill:#552222;}#mermaid-svg-hzbkNjRNmjjuYGlK .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-hzbkNjRNmjjuYGlK .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-hzbkNjRNmjjuYGlK .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-hzbkNjRNmjjuYGlK .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-hzbkNjRNmjjuYGlK .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-hzbkNjRNmjjuYGlK .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-hzbkNjRNmjjuYGlK .marker{fill:#333333;stroke:#333333;}#mermaid-svg-hzbkNjRNmjjuYGlK .marker.cross{stroke:#333333;}#mermaid-svg-hzbkNjRNmjjuYGlK svg{font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-hzbkNjRNmjjuYGlK .mermaid-main-font{font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-family:var(--mermaid-font-family);}#mermaid-svg-hzbkNjRNmjjuYGlK .exclude-range{fill:#eeeeee;}#mermaid-svg-hzbkNjRNmjjuYGlK .section{stroke:none;opacity:0.2;}#mermaid-svg-hzbkNjRNmjjuYGlK .section0{fill:rgba(102, 102, 255, 0.49);}#mermaid-svg-hzbkNjRNmjjuYGlK .section2{fill:#fff400;}#mermaid-svg-hzbkNjRNmjjuYGlK .section1,#mermaid-svg-hzbkNjRNmjjuYGlK .section3{fill:white;opacity:0.2;}#mermaid-svg-hzbkNjRNmjjuYGlK .sectionTitle0{fill:#333;}#mermaid-svg-hzbkNjRNmjjuYGlK .sectionTitle1{fill:#333;}#mermaid-svg-hzbkNjRNmjjuYGlK .sectionTitle2{fill:#333;}#mermaid-svg-hzbkNjRNmjjuYGlK .sectionTitle3{fill:#333;}#mermaid-svg-hzbkNjRNmjjuYGlK .sectionTitle{text-anchor:start;font-family:\'trebuchet ms\',verdana,arial,sans-serif;font-family:var(--mermaid-font-family);}#mermaid-svg-hzbkNjRNmjjuYGlK .grid .tick{stroke:lightgrey;opacity:0.8;shape-rendering:crispEdges;}#mermaid-svg-hzbkNjRNmjjuYGlK .grid .tick text{font-family:\"trebuchet ms\",verdana,arial,sans-serif;fill:#333;}#mermaid-svg-hzbkNjRNmjjuYGlK .grid path{stroke-width:0;}#mermaid-svg-hzbkNjRNmjjuYGlK .today{fill:none;stroke:red;stroke-width:2px;}#mermaid-svg-hzbkNjRNmjjuYGlK .task{stroke-width:2;}#mermaid-svg-hzbkNjRNmjjuYGlK .taskText{text-anchor:middle;font-family:\'trebuchet ms\',verdana,arial,sans-serif;font-family:var(--mermaid-font-family);}#mermaid-svg-hzbkNjRNmjjuYGlK .taskTextOutsideRight{fill:black;text-anchor:start;font-family:\'trebuchet ms\',verdana,arial,sans-serif;font-family:var(--mermaid-font-family);}#mermaid-svg-hzbkNjRNmjjuYGlK .taskTextOutsideLeft{fill:black;text-anchor:end;}#mermaid-svg-hzbkNjRNmjjuYGlK .task.clickable{cursor:pointer;}#mermaid-svg-hzbkNjRNmjjuYGlK .taskText.clickable{cursor:pointer;fill:#003163!important;font-weight:bold;}#mermaid-svg-hzbkNjRNmjjuYGlK .taskTextOutsideLeft.clickable{cursor:pointer;fill:#003163!important;font-weight:bold;}#mermaid-svg-hzbkNjRNmjjuYGlK .taskTextOutsideRight.clickable{cursor:pointer;fill:#003163!important;font-weight:bold;}#mermaid-svg-hzbkNjRNmjjuYGlK .taskText0,#mermaid-svg-hzbkNjRNmjjuYGlK .taskText1,#mermaid-svg-hzbkNjRNmjjuYGlK .taskText2,#mermaid-svg-hzbkNjRNmjjuYGlK .taskText3{fill:white;}#mermaid-svg-hzbkNjRNmjjuYGlK .task0,#mermaid-svg-hzbkNjRNmjjuYGlK .task1,#mermaid-svg-hzbkNjRNmjjuYGlK .task2,#mermaid-svg-hzbkNjRNmjjuYGlK .task3{fill:#8a90dd;stroke:#534fbc;}#mermaid-svg-hzbkNjRNmjjuYGlK .taskTextOutside0,#mermaid-svg-hzbkNjRNmjjuYGlK .taskTextOutside2{fill:black;}#mermaid-svg-hzbkNjRNmjjuYGlK .taskTextOutside1,#mermaid-svg-hzbkNjRNmjjuYGlK .taskTextOutside3{fill:black;}#mermaid-svg-hzbkNjRNmjjuYGlK .active0,#mermaid-svg-hzbkNjRNmjjuYGlK .active1,#mermaid-svg-hzbkNjRNmjjuYGlK .active2,#mermaid-svg-hzbkNjRNmjjuYGlK .active3{fill:#bfc7ff;stroke:#534fbc;}#mermaid-svg-hzbkNjRNmjjuYGlK .activeText0,#mermaid-svg-hzbkNjRNmjjuYGlK .activeText1,#mermaid-svg-hzbkNjRNmjjuYGlK .activeText2,#mermaid-svg-hzbkNjRNmjjuYGlK .activeText3{fill:black!important;}#mermaid-svg-hzbkNjRNmjjuYGlK .done0,#mermaid-svg-hzbkNjRNmjjuYGlK .done1,#mermaid-svg-hzbkNjRNmjjuYGlK .done2,#mermaid-svg-hzbkNjRNmjjuYGlK .done3{stroke:grey;fill:lightgrey;stroke-width:2;}#mermaid-svg-hzbkNjRNmjjuYGlK .doneText0,#mermaid-svg-hzbkNjRNmjjuYGlK .doneText1,#mermaid-svg-hzbkNjRNmjjuYGlK .doneText2,#mermaid-svg-hzbkNjRNmjjuYGlK .doneText3{fill:black!important;}#mermaid-svg-hzbkNjRNmjjuYGlK .crit0,#mermaid-svg-hzbkNjRNmjjuYGlK .crit1,#mermaid-svg-hzbkNjRNmjjuYGlK .crit2,#mermaid-svg-hzbkNjRNmjjuYGlK .crit3{stroke:#ff8888;fill:red;stroke-width:2;}#mermaid-svg-hzbkNjRNmjjuYGlK .activeCrit0,#mermaid-svg-hzbkNjRNmjjuYGlK .activeCrit1,#mermaid-svg-hzbkNjRNmjjuYGlK .activeCrit2,#mermaid-svg-hzbkNjRNmjjuYGlK .activeCrit3{stroke:#ff8888;fill:#bfc7ff;stroke-width:2;}#mermaid-svg-hzbkNjRNmjjuYGlK .doneCrit0,#mermaid-svg-hzbkNjRNmjjuYGlK .doneCrit1,#mermaid-svg-hzbkNjRNmjjuYGlK .doneCrit2,#mermaid-svg-hzbkNjRNmjjuYGlK .doneCrit3{stroke:#ff8888;fill:lightgrey;stroke-width:2;cursor:pointer;shape-rendering:crispEdges;}#mermaid-svg-hzbkNjRNmjjuYGlK .milestone{transform:rotate(45deg) scale(0.8,0.8);}#mermaid-svg-hzbkNjRNmjjuYGlK .milestoneText{font-style:italic;}#mermaid-svg-hzbkNjRNmjjuYGlK .doneCritText0,#mermaid-svg-hzbkNjRNmjjuYGlK .doneCritText1,#mermaid-svg-hzbkNjRNmjjuYGlK .doneCritText2,#mermaid-svg-hzbkNjRNmjjuYGlK .doneCritText3{fill:black!important;}#mermaid-svg-hzbkNjRNmjjuYGlK .activeCritText0,#mermaid-svg-hzbkNjRNmjjuYGlK .activeCritText1,#mermaid-svg-hzbkNjRNmjjuYGlK .activeCritText2,#mermaid-svg-hzbkNjRNmjjuYGlK .activeCritText3{fill:black!important;}#mermaid-svg-hzbkNjRNmjjuYGlK .titleText{text-anchor:middle;font-size:18px;fill:#333;font-family:\'trebuchet ms\',verdana,arial,sans-serif;font-family:var(--mermaid-font-family);}#mermaid-svg-hzbkNjRNmjjuYGlK :root{--mermaid-font-family:\"trebuchet ms\",verdana,arial,sans-serif;} 2024-01-01 2024-02-01 2024-03-01 2024-04-01 2024-05-01 2024-06-01 需求分析 架构设计 核心开发 功能测试 性能调优 试点部署 全量部署 监控优化 运维培训 第一阶段 第二阶段 第三阶段 系统实施时间线

投资回报分析：

投资项目 一次性成本 年度运维成本 预期收益 软件开发 50万元 10万元 避免数据泄露损失200万+ 硬件设备 30万元 15万元 提升响应效率50% 人员培训 5万元 5万元 降低误报率80% 总计 85万元 30万元 ROI > 300%

🔮 写在最后

构建一个优秀的服务器文件安全异常实时监测系统，就像是为企业的数字资产编织一张\"安全之网\"。这张网不仅要有足够的强度来抵御各种威胁，还要有足够的敏感度来感知最细微的异常。

关键成功要素：

  • 技术选型要慎重：选择成熟稳定的技术栈，避免过度追求新技术
  • 架构设计要合理：充分考虑扩展性和可维护性
  • 运维体系要完善：自动化程度决定了系统的长期稳定性
  • 团队能力要匹配：技术再好也需要合适的人来驾驭

持续改进方向：

  1. 检测精度优化：持续调优算法模型，降低误报率
  2. 响应速度提升：优化数据流处理，缩短检测延迟
  3. 成本控制优化：通过云原生技术降低运维成本
  4. 用户体验改善：提升界面易用性和操作便捷性

记住，安全不是一次性的项目，而是一个持续演进的过程。随着威胁环境的不断变化，我们的防护体系也需要持续升级和完善。今天的最佳实践，可能就是明天需要改进的地方。

最后的提醒： 再完美的技术方案，如果缺乏合适的管理流程和人员培训，也很难发挥应有的作用。技术只是基础，管理才是关键，人员是核心。三者结合，才能构建出真正有效的安全防护体系。

希望这篇文章能够为您的文件安全监测系统建设提供一些有价值的参考！如果在实施过程中遇到任何问题，欢迎继续交流讨论。
