一、kkFileView介绍

1.kkFileView简介

kkFileView是一个开源在线文档工具，使用spring boot打造文件文档在线预览项目解决方案，支持doc、docx、ppt、pptx、xls、xlsx、zip、rar、mp4、mp3以及众多类文本如txt、html、xml、java、properties、sql、js、md、json、conf、ini、vue、php、py、bat、gitignore等文件在线预览。


2.kkFileView特点

• 支持 office, pdf, cad 等办公文档。
• 支持 txt, xml(渲染), md(渲染), java, php, py, js, css 等所有纯文本。
• 支持 zip, rar, jar, tar, gzip 等压缩包。
• 支持 jpg, jpeg, png, gif, tif, tiff 等图片预览（翻转，缩放，镜像）。
• 使用 spring-boot 开发，预览服务搭建部署非常简便。
• rest 接口提供服务，跨语言、跨平台特性(java,php,python,go,php，....)都支持，应用接入简单方便。
• 抽象预览服务接口，方便二次开发，非常方便添加其他类型文件预览支持。
• 支持Apache 协议开源

二、检查本地系统环境

1.检查系统版本

[root@docker ~]# cat /etc/centos-releaseCentOS Linux release 7.6.1810 (Core)

2.检查docker状态

[root@node ~]# systemctl status docker● docker.service - Docker Application Container Engine Loaded: loaded (/usr/lib/systemd/system/docker.service; enabled; vendor preset: disabled) Active: active (running) since Mon 2022-10-31 03:28:51 CST; 2 days ago Docs: https://docs.docker.com Main PID: 11884 (dockerd) Tasks: 69 Memory: 2.7G CGroup: /system.slice/docker.service  ├─ 2674 /usr/bin/docker-proxy -proto tcp -host-ip 0.0.0.0 -host-port 8015 -container-ip 172.28.0.2 -container-port 8080  ├─ 2681 /usr/bin/docker-proxy -proto tcp -host-ip :: -host-port 8015 -container-ip 172.28.0.2 -container-port 8080  ├─ 11884 /usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock  ├─ 34936 /usr/bin/docker-proxy -proto tcp -host-ip 0.0.0.0 -host-port 8080 -container-ip 172.27.0.3 -container-port 80  ├─ 34950 /usr/bin/docker-proxy -proto tcp -host-ip :: -host-port 8080 -container-ip 172.27.0.3 -container-port 80  ├─114721 /usr/bin/docker-proxy -proto tcp -host-ip 0.0.0.0 -host-port 9000 -container-ip 172.17.0.2 -container-port 9000  ├─114726 /usr/bin/docker-proxy -proto tcp -host-ip :: -host-port 9000 -container-ip 172.17.0.2 -container-port 9000  ├─125344 /usr/bin/docker-proxy -proto tcp -host-ip 0.0.0.0 -host-port 5000 -container-ip 172.17.0.3 -container-port 5000  └─125350 /usr/bin/docker-proxy -proto tcp -host-ip :: -host-port 5000 -container-ip 172.17.0.3 -container-port 5000Nov 02 01:04:02 node dockerd[11884]: time=\"2022-11-02T01:04:02.488311529+08:00\" level=warning msg=\"Health check for container b5103772dd...xceeded\"Nov 02 01:04:15 node dockerd[11884]: time=\"2022-11-02T01:04:15.531265106+08:00\" level=error msg=\"stream copy error: reading from a closed fifo\"Nov 02 01:04:15 node dockerd[11884]: time=\"2022-11-02T01:04:15.534176422+08:00\" level=error msg=\"stream copy error: reading from a closed fifo\"Nov 02 01:04:15 node dockerd[11884]: time=\"2022-11-02T01:04:15.545274180+08:00\" level=warning msg=\"Health check for container b5103772dd...xceeded\"Nov 02 01:04:18 node dockerd[11884]: time=\"2022-11-02T01:04:18.585842485+08:00\" level=info msg=\"ignoring event\" container=b5103772dd9c15...kDelete\"Nov 02 01:04:32 node dockerd[11884]: time=\"2022-11-02T01:04:32.907844353+08:00\" level=error msg=\"stream copy error: reading from a closed fifo\"Nov 02 01:04:32 node dockerd[11884]: time=\"2022-11-02T01:04:32.911808176+08:00\" level=error msg=\"stream copy error: reading from a closed fifo\"Nov 02 01:04:33 node dockerd[11884]: time=\"2022-11-02T01:04:33.524510151+08:00\" level=warning msg=\"Health check for container b5103772dd...unknown\"Nov 02 01:04:55 node dockerd[11884]: time=\"2022-11-02T01:04:55.780507781+08:00\" level=info msg=\"ignoring event\" container=5a9f357c0d2ba6...kDelete\"Nov 02 01:07:02 node dockerd[11884]: time=\"2022-11-02T01:07:02.501623848+08:00\" level=info msg=\"ignoring event\" container=346ef9741bfb9a...kDelete\"Hint: Some lines were ellipsized, use -l to show in full.

3.检查docker版本

[root@docker ~]# docker versionClient: Docker Engine - Community Version:  20.10.18 API version: 1.41 Go version: go1.18.6 Git commit: b40c2f6 Built: Thu Sep 8 23:14:08 2022 OS/Arch:  linux/amd64 Context:  default Experimental: trueServer: Docker Engine - Community Engine: Version: 20.10.18 API version: 1.41 (minimum version 1.12) Go version: go1.18.6 Git commit: e42327a Built: Thu Sep 8 23:12:21 2022 OS/Arch: linux/amd64 Experimental: false containerd: Version: 1.6.8 GitCommit: 9cd3357b7fd7218e4aec3eae239db1f68a5a6ec6 runc: Version: 1.1.4 GitCommit: v1.1.4-0-g5fd4c4d docker-init: Version: 0.19.0 GitCommit: de40ad0

三、安装docker-compose

1.下载docker-compose二进制包

curl -L https://get.daocloud.io/docker/compose/releases/download/1.25.0/docker-compose-`uname -s`-`uname -m` > /usr/local/bin/docker-compose[root@docker docker-compose]# curl -L https://get.daocloud.io/docker/compose/releases/download/1.25.0/docker-compose-`uname -s`-`uname -m` > /usr/local/bin/docker-compose % Total % Received % Xferd Average Speed Time Time Time Current  Dload Upload Total Spent Left Speed100 423 100 423 0 0 362 0 0:00:01 0:00:01 --:--:-- 362100 16.2M 100 16.2M 0 0 8568k 0 0:00:01 0:00:01 --:--:-- 8568k

2.给文件增加执行权限

chmod +x /usr/local/bin/docker-compose

3.检查docker-compose版本

[root@docker ~]# docker-compose versiondocker-compose version 1.25.0, build 0a186604docker-py version: 4.1.0CPython version: 3.7.4OpenSSL version: OpenSSL 1.1.0l 10 Sep 2019

四、下载kkFileView镜像

[root@node fileview]# docker pull keking/kkfileview:4.1.0[root@node fileview]# docker pull keking/kkfileviewUsing default tag: latestlatest: Pulling from keking/kkfileview7b1a6ab2e44d: Already exists b9d750c8748d: Pull complete 57d39c371cd2: Pull complete 816e525228e0: Pull complete Digest: sha256:d87d106e51c78afb41c4e39d1b043d4b1bf24c7a931874e945149e2bd7e62f4fStatus: Downloaded newer image for keking/kkfileview:latestdocker.io/keking/kkfileview:latest

五、部署kkFileView

1.创建数据目录

mkdir -p /data/fileview

2.创建kkFileView容器

docker run -d --name nervous_swartz --restart always -p 8012:8012 keking/kkfileview

3.查看容器状态

[root@node fileview]# docker psCONTAINER ID IMAGE COMMAND  CREATED STATUS  PORTS NAMESfa8894458ec0 keking/kkfileview\"java -Dfile.encodin…\" 12 minutes ago Up 12 minutes  0.0.0.0:8012->8012/tcp, :::8012->8012/tcp nervous_swartz

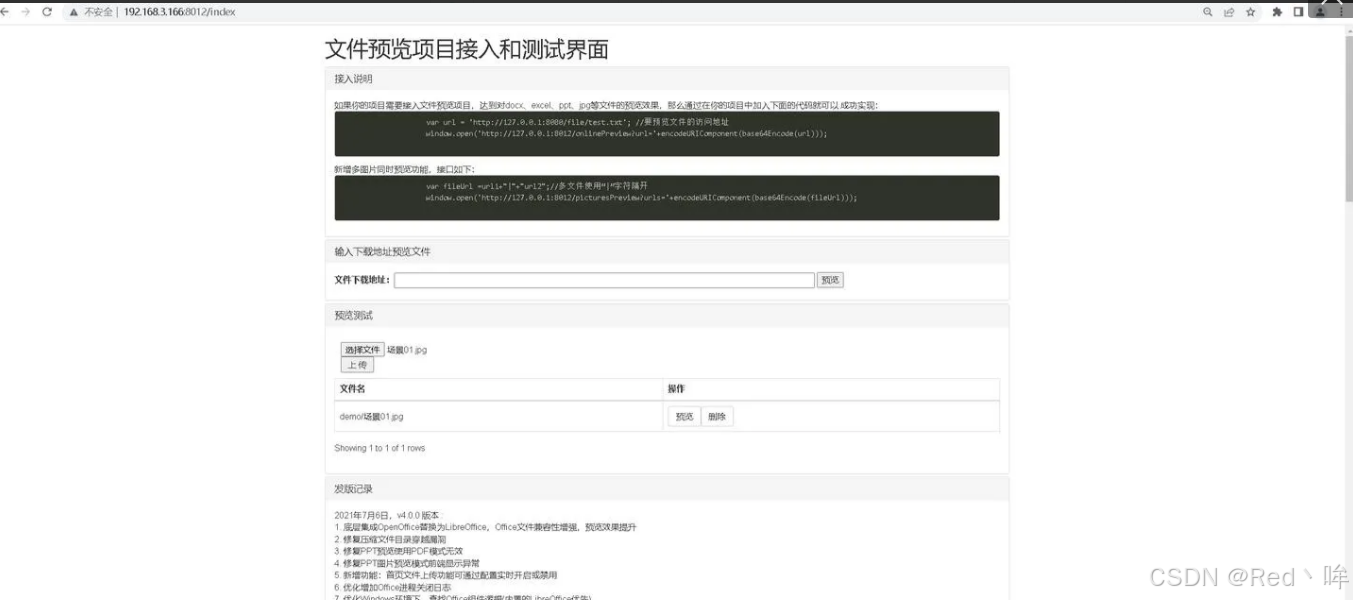

六、访问kkFileView的web

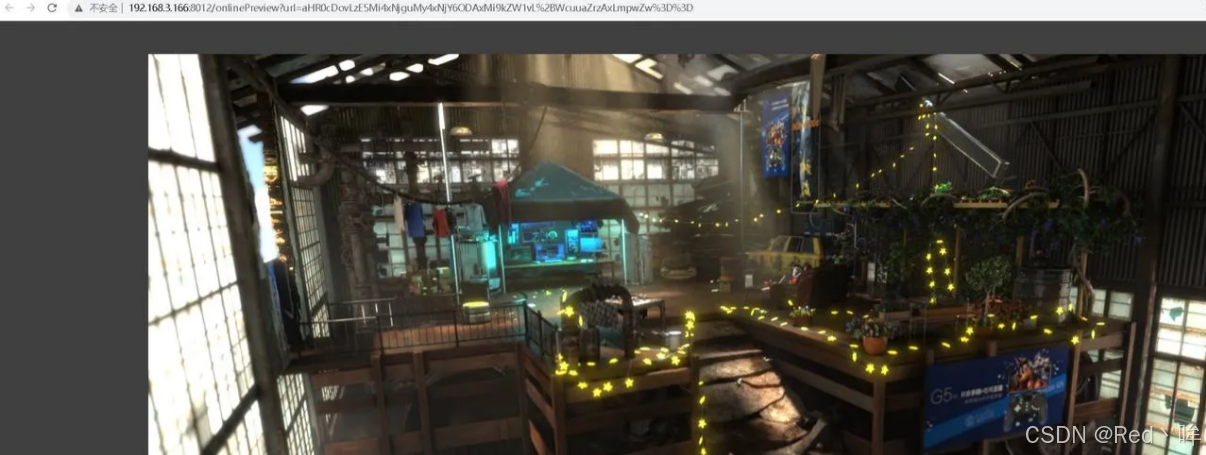

七、测试预览上传图片
