DataX Web介绍及安装（DataX可视化界面）

  • datax GitHub地址：https://github.com/alibaba/DataX.git
  • datax web Git地址：https://github.com/WeiYe-Jing/datax-web
  • datax 下载地址：http://datax-opensource.oss-cn-hangzhou.aliyuncs.com/datax.tar.gz

DataX web界面预览

DataX Web介绍及安装_datax-web

DataX web架构图

DataX Web介绍及安装_datax-web

DataX Web用户手册

一、Github下载

DataX Web下载地址

二、安装DataX

  • 方法一、直接下载DataX工具包：DataX下载地址

    下载后解压至本地某个目录，进入bin目录，即可运行同步作业：

    $ cd {YOUR_DATAX_HOME}/bin$ python datax.py {YOUR_JOB.json}

    自检脚本： python {YOUR_DATAX_HOME}/bin/datax.py {YOUR_DATAX_HOME}/job/job.json

  • 方法二、下载DataX源码，自己编译：DataX源码

    (1)、下载DataX源码：

    $ git clone git@github.com:alibaba/DataX.git

    (2)、通过maven打包：

    $ cd {DataX_source_code_home}$ mvn -U clean package assembly:assembly -Dmaven.test.skip=true

    打包成功，日志显示如下：

    [INFO] BUILD SUCCESS[INFO] -----------------------------------------------------------------[INFO] Total time: 08:12 min[INFO] Finished at: 2015-12-13T16:26:48+08:00[INFO] Final Memory: 133M/960M[INFO] -----------------------------------------------------------------

    打包成功后的DataX包位于 {DataX_source_code_home}/target/datax/datax/ ，结构如下：

    $ cd {DataX_source_code_home}$ ls ./target/datax/datax/binconfjoblibloglog_perfpluginscripttmp

  • 配置示例：从stream读取数据并打印到控制台

    • 第一步、创建创业的配置文件（json格式）

      可以通过命令查看配置模板： python datax.py -r {YOUR_READER} -w {YOUR_WRITER}

      $ cd {YOUR_DATAX_HOME}/bin$ python datax.py -r streamreader -w streamwriterDataX (UNKNOWN_DATAX_VERSION), From Alibaba !Copyright (C) 2010-2015, Alibaba Group. All Rights Reserved.Please refer to the streamreader document: https://github.com/alibaba/DataX/blob/master/streamreader/doc/streamreader.md Please refer to the streamwriter document: https://github.com/alibaba/DataX/blob/master/streamwriter/doc/streamwriter.md Please save the following configuration as a json file and use python {DATAX_HOME}/bin/datax.py {JSON_FILE_NAME}.json to run the job.{ \"job\": { \"content\": [ { \"reader\": {  \"name\": \"streamreader\",  \"parameter\": { \"column\": [], \"sliceRecordCount\": \"\"  } },  \"writer\": {  \"name\": \"streamwriter\",  \"parameter\": { \"encoding\": \"\", \"print\": true  } } } ], \"setting\": { \"speed\": { \"channel\": \"\" } } }}

      根据模板配置json如下：

      #stream2stream.json{ \"job\": { \"content\": [ { \"reader\": { \"name\": \"streamreader\", \"parameter\": { \"sliceRecordCount\": 10, \"column\": [  { \"type\": \"long\", \"value\": \"10\"  },  { \"type\": \"string\", \"value\": \"hello，你好，世界-DataX\"  } ] } }, \"writer\": { \"name\": \"streamwriter\", \"parameter\": { \"encoding\": \"UTF-8\", \"print\": true } } } ], \"setting\": { \"speed\": { \"channel\": 5 } } }}

    • 第二步：启动DataX

      $ cd {YOUR_DATAX_DIR_BIN}$ python datax.py ./stream2stream.json

      同步结束，显示日志如下：

      ...2015-12-17 11:20:25.263 [job-0] INFO JobContainer - 任务启动时刻  : 2015-12-17 11:20:15任务结束时刻  : 2015-12-17 11:20:25任务总计耗时  :  10s任务平均流量  :  205B/s记录写入速度  :  5rec/s读出记录总数  :  50读写失败总数  :  0

三、Web部署

1.linux环境部署

linux环境部署

2.开发环境部署（或参考文档 Debug）
2.1 创建数据库

执行bin/db下面的datax_web.sql文件(注意老版本更新语句有指定库名)

2.2 修改项目配置

1.修改datax_admin下resources/application.yml文件

#数据源 datasource: username: root password: root url: jdbc:mysql://localhost:3306/datax_web?serverTimezone=Asia/Shanghai&useLegacyDatetimeCode=false&useSSL=false&nullNamePatternMatchesAll=true&useUnicode=true&characterEncoding=UTF-8 driver-class-name: com.mysql.jdbc.Driver

修改数据源配置，目前仅支持mysql

# 配置mybatis-plus打印sql日志logging: level: com.wugui.datax.admin.mapper: error path: ./data/applogs/admin

修改日志路径path

 # datax-web email mail: host: smtp.qq.com port: 25 username: xxx@qq.com password: xxx properties: mail: smtp: auth: true starttls: enable: true required: true socketFactory: class: javax.net.ssl.SSLSocketFactory

修改邮件发送配置(不需要可以不修改)

2.修改datax_executor下resources/application.yml文件

# log configlogging: config: classpath:logback.xml path: ./data/applogs/executor/jobhandler

修改日志路径path

datax: job: admin: ### datax-web admin address addresses: http://127.0.0.1:8080 executor: appname: datax-executor ip: port: 9999 ### job log path logpath: ./data/applogs/executor/jobhandler ### job log retention days logretentiondays: 30 executor: jsonpath: /Users/mac/data/applogs pypath: /Users/mac/tools/datax/bin/datax.py

修改datax.job配置

  • admin.addresses datax_admin部署地址，如调度中心集群部署存在多个地址则用逗号分隔，执行器将会使用该地址进行\"执行器心跳注册\"和\"任务结果回调\"；
  • executor.appname 执行器AppName，每个执行器机器集群的唯一标示,执行器心跳注册分组依据；
  • executor.ip 默认为空表示自动获取IP，多网卡时可手动设置指定IP，该IP不会绑定Host仅作为通讯实用；地址信息用于 “执行器注册” 和 “调度中心请求并触发任务”；
  • executor.port 执行器Server端口号，默认端口为9999，单机部署多个执行器时，注意要配置不同执行器端口；
  • executor.logpath 执行器运行日志文件存储磁盘路径,需要对该路径拥有读写权限;
  • executor.logretentiondays 执行器日志文件保存天数,过期日志自动清理, 限制值大于等于3时生效; 否则, 如-1, 关闭自动清理功能；
  • executor.jsonpath datax json临时文件保存路径
  • pypath DataX启动脚本地址，例如：xxx/datax/bin/datax.py 如果系统配置DataX环境变量（DATAX_HOME），logpath、jsonpath、pypath可不配，log文件和临时json存放在环境变量路径下。

四、启动项目

1.本地idea开发环境
  • 1.运行datax_admin下 DataXAdminApplication
  • 2.运行datax_executor下 DataXExecutorApplication

DataX Web介绍及安装_datax-web

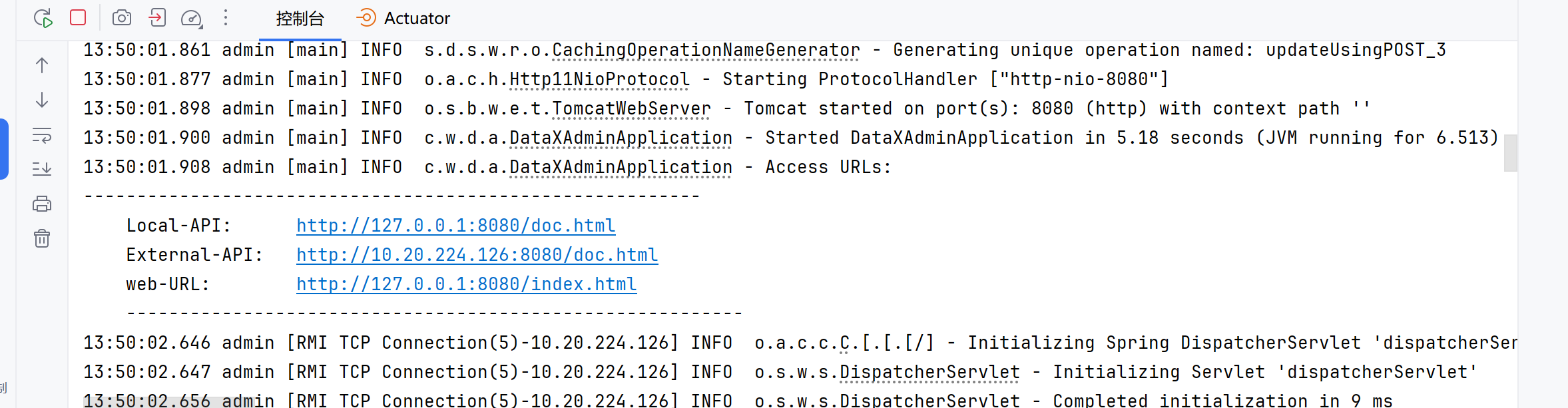

admin启动成功后日志会输出三个地址，两个接口文档地址，一个前端页面地址

五、启动成功

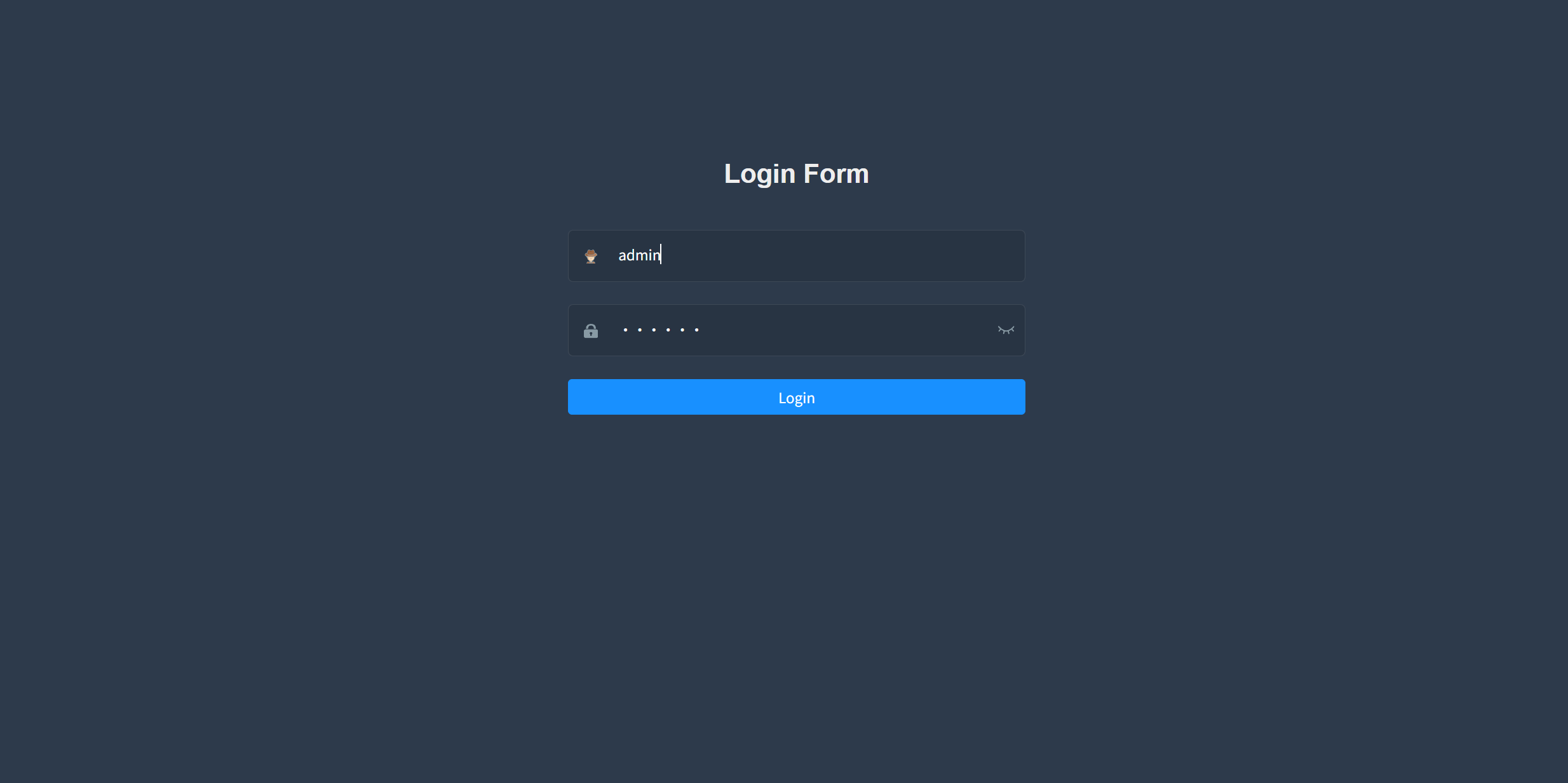

启动成功后打开页面（默认管理员用户名：admin 密码：123456）

DataX Web介绍及安装_datax-web

六、集群部署

  • 调度中心、执行器支持集群部署，提升调度系统容灾和可用性。

  • 1.调度中心集群：

    DB配置保持一致；
    集群机器时钟保持一致（单机集群忽视）；

  • 2.执行器集群:

    执行器回调地址(admin.addresses）需要保持一致；执行器根据该配置进行执行器自动注册等操作。

    同一个执行器集群内AppName（executor.appname）需要保持一致；调度中心根据该配置动态发现不同集群的在线执行器列表。

七、Datax遇到的问题

1、配置文件不存在

[main] WARN ConfigParser - 插件[streamreader,streamwriter]加载失败，1s后重试... Exception:Code:[Common-00], Describe:[您提供的配置文件存在错误信息，请检查您的作业配置 .] - 配置信息错误，您提供的配置文件[/usr/local/datax/plugin/reader/._drdsreader/plugin.json]不存在. 请检查您的配置文件.[main] ERROR Engine - 经DataX智能分析,该任务最可能的错误原因是:com.alibaba.datax.common.exception.DataXException: Code:[Common-00], Describe:[您提供的配置文件存在错误信息，请检查您的作业配置 .] - 配置信息错误，您提供的配置文件[/usr/local/datax/plugin/reader/._drdsreader/plugin.json]不存在. 请检查您的配置文件.at com.alibaba.datax.common.exception.DataXException.asDataXException(DataXException.java:26)at com.alibaba.datax.common.util.Configuration.from(Configuration.java:95)at com.alibaba.datax.core.util.ConfigParser.parseOnePluginConfig(ConfigParser.java:153)at com.alibaba.datax.core.util.ConfigParser.parsePluginConfig(ConfigParser.java:125)at com.alibaba.datax.core.util.ConfigParser.parse(ConfigParser.java:63)at com.alibaba.datax.core.Engine.entry(Engine.java:137)at com.alibaba.datax.core.Engine.main(Engine.java:204)

解决方案：将 plugin 目录下的所有的以 _ 开头的文件都删除即可

2、Python版本问题
DataX 这个项目本身是用 Python2 进行开发的，因此需要使用 Python2 的版本进行执行。但是我们安装的 Python 版本是 3，而且 3 和 2 的语法差异还是比较大的。因此直接使用 python3 去执行的话，会出现问题。

3、[datax]报错 File “datax.py”, line 114 print readerRef

解决方案：更换安装目录下bin的对应文件：datax.py, dxprof.y, perftrace.py

datax.py

#!/usr/bin/env python# -*- coding:utf-8 -*-\"\"\" Life\'s short, Python more.\"\"\"import sysimport osimport signalimport subprocessimport timeimport reimport socketimport jsonfrom optparse import OptionParserfrom optparse import OptionGroupfrom string import Templateimport codecsimport platformdef isWindows(): return platform.system() == \'Windows\'DATAX_HOME = os.path.dirname(os.path.dirname(os.path.abspath(__file__)))DATAX_VERSION = \'DATAX-OPENSOURCE-3.0\'if isWindows(): codecs.register(lambda name: name == \'cp65001\' and codecs.lookup(\'utf-8\') or None) CLASS_PATH = (\"%s/lib/*\") % (DATAX_HOME)else: CLASS_PATH = (\"%s/lib/*:.\") % (DATAX_HOME)LOGBACK_FILE = (\"%s/conf/logback.xml\") % (DATAX_HOME)DEFAULT_JVM = \"-Xms1g -Xmx1g -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=%s/log\" % (DATAX_HOME)DEFAULT_PROPERTY_CONF = \"-Dfile.encoding=UTF-8 -Dlogback.statusListenerClass=ch.qos.logback.core.status.NopStatusListener -Djava.security.egd=file:///dev/urandom -Ddatax.home=%s -Dlogback.configurationFile=%s\" % ( DATAX_HOME, LOGBACK_FILE)ENGINE_COMMAND = \"java -server ${jvm} %s -classpath %s ${params} com.alibaba.datax.core.Engine -mode ${mode} -jobid ${jobid} -job ${job}\" % ( DEFAULT_PROPERTY_CONF, CLASS_PATH)REMOTE_DEBUG_CONFIG = \"-Xdebug -Xrunjdwp:transport=dt_socket,server=y,address=9999\"RET_STATE = { \"KILL\": 143, \"FAIL\": -1, \"OK\": 0, \"RUN\": 1, \"RETRY\": 2}def getLocalIp(): try: return socket.gethostbyname(socket.getfqdn(socket.gethostname())) except: return \"Unknown\"def suicide(signum, e): global child_process print >> sys.stderr, \"[Error] DataX receive unexpected signal %d, starts to suicide.\" % (signum) if child_process: child_process.send_signal(signal.SIGQUIT) time.sleep(1) child_process.kill() print >> sys.stderr, \"DataX Process was killed ! you did ?\" sys.exit(RET_STATE[\"KILL\"])def register_signal(): if not isWindows(): global child_process signal.signal(2, suicide) signal.signal(3, suicide) signal.signal(15, suicide)def getOptionParser(): usage = \"usage: %prog [options] job-url-or-path\" parser = OptionParser(usage=usage) prodEnvOptionGroup = OptionGroup(parser, \"Product Env Options\",  \"Normal user use these options to set jvm parameters, job runtime mode etc. \"  \"Make sure these options can be used in Product Env.\") prodEnvOptionGroup.add_option(\"-j\", \"--jvm\", metavar=\"\", dest=\"jvmParameters\", action=\"store\", default=DEFAULT_JVM, help=\"Set jvm parameters if necessary.\") prodEnvOptionGroup.add_option(\"--jobid\", metavar=\"\", dest=\"jobid\", action=\"store\", default=\"-1\", help=\"Set job unique id when running by Distribute/Local Mode.\") prodEnvOptionGroup.add_option(\"-m\", \"--mode\", metavar=\"\", action=\"store\", default=\"standalone\", help=\"Set job runtime mode such as: standalone, local, distribute. \"  \"Default mode is standalone.\") prodEnvOptionGroup.add_option(\"-p\", \"--params\", metavar=\"\", action=\"store\", dest=\"params\", help=\'Set job parameter, eg: the source tableName you want to set it by command, \'  \'then you can use like this: -p\"-DtableName=your-table-name\", \'  \'if you have mutiple parameters: -p\"-DtableName=your-table-name -DcolumnName=your-column-name\".\'  \'Note: you should config in you job tableName with ${tableName}.\') prodEnvOptionGroup.add_option(\"-r\", \"--reader\", metavar=\"\", action=\"store\", dest=\"reader\",type=\"string\", help=\'View job config[reader] template, eg: mysqlreader,streamreader\') prodEnvOptionGroup.add_option(\"-w\", \"--writer\", metavar=\"\", action=\"store\", dest=\"writer\",type=\"string\", help=\'View job config[writer] template, eg: mysqlwriter,streamwriter\') parser.add_option_group(prodEnvOptionGroup) devEnvOptionGroup = OptionGroup(parser, \"Develop/Debug Options\",  \"Developer use these options to trace more details of DataX.\") devEnvOptionGroup.add_option(\"-d\", \"--debug\", dest=\"remoteDebug\", action=\"store_true\",  help=\"Set to remote debug mode.\") devEnvOptionGroup.add_option(\"--loglevel\", metavar=\"\", dest=\"loglevel\", action=\"store\",  default=\"info\", help=\"Set log level such as: debug, info, all etc.\") parser.add_option_group(devEnvOptionGroup) return parserdef generateJobConfigTemplate(reader, writer): readerRef = \"Please refer to the %s document:\\n https://github.com/alibaba/DataX/blob/master/%s/doc/%s.md \\n\" % (reader,reader,reader) writerRef = \"Please refer to the %s document:\\n https://github.com/alibaba/DataX/blob/master/%s/doc/%s.md \\n \" % (writer,writer,writer) print(readerRef) print(writerRef) jobGuid = \'Please save the following configuration as a json file and use\\n python {DATAX_HOME}/bin/datax.py {JSON_FILE_NAME}.json \\nto run the job.\\n\' print(jobGuid) jobTemplate={ \"job\": { \"setting\": { \"speed\": { \"channel\": \"\" } }, \"content\": [ { \"reader\": {}, \"writer\": {} } ] } } readerTemplatePath = \"%s/plugin/reader/%s/plugin_job_template.json\" % (DATAX_HOME,reader) writerTemplatePath = \"%s/plugin/writer/%s/plugin_job_template.json\" % (DATAX_HOME,writer) try: readerPar = readPluginTemplate(readerTemplatePath); except Exception as e: print(\"Read reader[%s] template error: can\\\'t find file %s\" % (reader,readerTemplatePath)) try: writerPar = readPluginTemplate(writerTemplatePath); except Exception as e: print(\"Read writer[%s] template error: : can\\\'t find file %s\" % (writer,writerTemplatePath)) jobTemplate[\'job\'][\'content\'][0][\'reader\'] = readerPar; jobTemplate[\'job\'][\'content\'][0][\'writer\'] = writerPar; print(json.dumps(jobTemplate, indent=4, sort_keys=True))def readPluginTemplate(plugin): with open(plugin, \'r\') as f: return json.load(f)def isUrl(path): if not path: return False assert (isinstance(path, str)) m = re.match(r\"^http[s]?://\\S+\\w*\", path.lower()) if m: return True else: return Falsedef buildStartCommand(options, args): commandMap = {} tempJVMCommand = DEFAULT_JVM if options.jvmParameters: tempJVMCommand = tempJVMCommand + \" \" + options.jvmParameters if options.remoteDebug: tempJVMCommand = tempJVMCommand + \" \" + REMOTE_DEBUG_CONFIG print(\'local ip: \', getLocalIp()) if options.loglevel: tempJVMCommand = tempJVMCommand + \" \" + (\"-Dloglevel=%s\" % (options.loglevel)) if options.mode: commandMap[\"mode\"] = options.mode # jobResource 可能是 URL，也可能是本地文件路径（相对,绝对） jobResource = args[0] if not isUrl(jobResource): jobResource = os.path.abspath(jobResource) if jobResource.lower().startswith(\"file://\"): jobResource = jobResource[len(\"file://\"):] jobParams = (\"-Dlog.file.name=%s\") % (jobResource[-20:].replace(\'/\', \'_\').replace(\'.\', \'_\')) if options.params: jobParams = jobParams + \" \" + options.params if options.jobid: commandMap[\"jobid\"] = options.jobid commandMap[\"jvm\"] = tempJVMCommand commandMap[\"params\"] = jobParams commandMap[\"job\"] = jobResource return Template(ENGINE_COMMAND).substitute(**commandMap)def printCopyright(): print(\'\'\'DataX (%s), From Alibaba !Copyright (C) 2010-2017, Alibaba Group. All Rights Reserved.\'\'\' % DATAX_VERSION) sys.stdout.flush()if __name__ == \"__main__\": printCopyright() parser = getOptionParser() options, args = parser.parse_args(sys.argv[1:]) if options.reader is not None and options.writer is not None: generateJobConfigTemplate(options.reader,options.writer) sys.exit(RET_STATE[\'OK\']) if len(args) != 1: parser.print_help() sys.exit(RET_STATE[\'FAIL\']) startCommand = buildStartCommand(options, args) # print startCommand child_process = subprocess.Popen(startCommand, shell=True) register_signal() (stdout, stderr) = child_process.communicate() sys.exit(child_process.returncode)

dxprof.y

#! /usr/bin/env python# vim: set expandtab tabstop=4 shiftwidth=4 foldmethod=marker nu:import reimport sysimport timeREG_SQL_WAKE = re.compile(r\'Begin\\s+to\\s+read\\s+record\\s+by\\s+Sql\', re.IGNORECASE)REG_SQL_DONE = re.compile(r\'Finished\\s+read\\s+record\\s+by\\s+Sql\', re.IGNORECASE)REG_SQL_PATH = re.compile(r\'from\\s+(\\w+)(\\s+where|\\s*$)\', re.IGNORECASE)REG_SQL_JDBC = re.compile(r\'jdbcUrl:\\s*\\[(.+?)\\]\', re.IGNORECASE)REG_SQL_UUID = re.compile(r\'(\\d+\\-)+reader\')REG_COMMIT_UUID = re.compile(r\'(\\d+\\-)+writer\')REG_COMMIT_WAKE = re.compile(r\'begin\\s+to\\s+commit\\s+blocks\', re.IGNORECASE)REG_COMMIT_DONE = re.compile(r\'commit\\s+blocks\\s+ok\', re.IGNORECASE)# {{{ function parse_timestamp() #def parse_timestamp(line): try: ts = int(time.mktime(time.strptime(line[0:19], \'%Y-%m-%d %H:%M:%S\'))) except: ts = 0 return ts# }}} ## {{{ function parse_query_host() #def parse_query_host(line): ori = REG_SQL_JDBC.search(line) if (not ori): return \'\' ori = ori.group(1).split(\'?\')[0] off = ori.find(\'@\') if (off > -1): ori = ori[off+1:len(ori)] else: off = ori.find(\'//\') if (off > -1): ori = ori[off+2:len(ori)] return ori.lower()# }}} ## {{{ function parse_query_table() #def parse_query_table(line): ori = REG_SQL_PATH.search(line) return (ori and ori.group(1).lower()) or \'\'# }}} ## {{{ function parse_reader_task() #def parse_task(fname): global LAST_SQL_UUID global LAST_COMMIT_UUID global DATAX_JOBDICT global DATAX_JOBDICT_COMMIT global UNIXTIME LAST_SQL_UUID = \'\' DATAX_JOBDICT = {} LAST_COMMIT_UUID = \'\' DATAX_JOBDICT_COMMIT = {} UNIXTIME = int(time.time()) with open(fname, \'r\') as f: for line in f.readlines(): line = line.strip() if (LAST_SQL_UUID and (LAST_SQL_UUID in DATAX_JOBDICT)): DATAX_JOBDICT[LAST_SQL_UUID][\'host\'] = parse_query_host(line) LAST_SQL_UUID = \'\' if line.find(\'CommonRdbmsReader$Task\') > 0: parse_read_task(line) elif line.find(\'commit blocks\') > 0: parse_write_task(line) else: continue# }}} ## {{{ function parse_read_task() #def parse_read_task(line): ser = REG_SQL_UUID.search(line) if not ser: return LAST_SQL_UUID = ser.group() if REG_SQL_WAKE.search(line): DATAX_JOBDICT[LAST_SQL_UUID] = { \'stat\' : \'R\', \'wake\' : parse_timestamp(line), \'done\' : UNIXTIME, \'host\' : parse_query_host(line), \'path\' : parse_query_table(line) } elif ((LAST_SQL_UUID in DATAX_JOBDICT) and REG_SQL_DONE.search(line)): DATAX_JOBDICT[LAST_SQL_UUID][\'stat\'] = \'D\' DATAX_JOBDICT[LAST_SQL_UUID][\'done\'] = parse_timestamp(line)# }}} ## {{{ function parse_write_task() #def parse_write_task(line): ser = REG_COMMIT_UUID.search(line) if not ser: return LAST_COMMIT_UUID = ser.group() if REG_COMMIT_WAKE.search(line): DATAX_JOBDICT_COMMIT[LAST_COMMIT_UUID] = { \'stat\' : \'R\', \'wake\' : parse_timestamp(line), \'done\' : UNIXTIME, } elif ((LAST_COMMIT_UUID in DATAX_JOBDICT_COMMIT) and REG_COMMIT_DONE.search(line)): DATAX_JOBDICT_COMMIT[LAST_COMMIT_UUID][\'stat\'] = \'D\' DATAX_JOBDICT_COMMIT[LAST_COMMIT_UUID][\'done\'] = parse_timestamp(line)# }}} ## {{{ function result_analyse() #def result_analyse(): def compare(a, b): return b[\'cost\'] - a[\'cost\'] tasklist = [] hostsmap = {} statvars = {\'sum\' : 0, \'cnt\' : 0, \'svr\' : 0, \'max\' : 0, \'min\' : int(time.time())} tasklist_commit = [] statvars_commit = {\'sum\' : 0, \'cnt\' : 0} for idx in DATAX_JOBDICT: item = DATAX_JOBDICT[idx] item[\'uuid\'] = idx; item[\'cost\'] = item[\'done\'] - item[\'wake\'] tasklist.append(item); if (not (item[\'host\'] in hostsmap)): hostsmap[item[\'host\']] = 1 statvars[\'svr\'] += 1 if (item[\'cost\'] > -1 and item[\'cost\'] < 864000): statvars[\'sum\'] += item[\'cost\'] statvars[\'cnt\'] += 1 statvars[\'max\'] = max(statvars[\'max\'], item[\'done\']) statvars[\'min\'] = min(statvars[\'min\'], item[\'wake\']) for idx in DATAX_JOBDICT_COMMIT: itemc = DATAX_JOBDICT_COMMIT[idx] itemc[\'uuid\'] = idx itemc[\'cost\'] = itemc[\'done\'] - itemc[\'wake\'] tasklist_commit.append(itemc) if (itemc[\'cost\'] > -1 and itemc[\'cost\'] < 864000): statvars_commit[\'sum\'] += itemc[\'cost\'] statvars_commit[\'cnt\'] += 1 ttl = (statvars[\'max\'] - statvars[\'min\']) or 1 idx = float(statvars[\'cnt\']) / (statvars[\'sum\'] or ttl) tasklist.sort(compare) for item in tasklist: print(\'%s\\t%s.%s\\t%s\\t%s\\t% 4d\\t% 2.1f%%\\t% .2f\' %(item[\'stat\'], item[\'host\'], item[\'path\'],  time.strftime(\'%H:%M:%S\', time.localtime(item[\'wake\'])),  ((\'D\' == item[\'stat\']) and time.strftime(\'%H:%M:%S\', time.localtime(item[\'done\']))) or \'--\',  item[\'cost\'], 100 * item[\'cost\'] / ttl, idx * item[\'cost\'])) if (not len(tasklist) or not statvars[\'cnt\']): return print(\'\\n--- DataX Profiling Statistics ---\') print(\'%d task(s) on %d server(s), Total elapsed %d second(s), %.2f second(s) per task in average\' %(statvars[\'cnt\'],  statvars[\'svr\'], statvars[\'sum\'], float(statvars[\'sum\']) / statvars[\'cnt\'])) print(\'Actually cost %d second(s) (%s - %s), task concurrency: %.2f, tilt index: %.2f\' %(ttl, time.strftime(\'%H:%M:%S\', time.localtime(statvars[\'min\'])), time.strftime(\'%H:%M:%S\', time.localtime(statvars[\'max\'])), float(statvars[\'sum\']) / ttl, idx * tasklist[0][\'cost\'])) idx_commit = float(statvars_commit[\'cnt\']) / (statvars_commit[\'sum\'] or ttl) tasklist_commit.sort(compare) print(\'%d task(s) done odps comit, Total elapsed %d second(s), %.2f second(s) per task in average, tilt index: %.2f\' % ( statvars_commit[\'cnt\'], statvars_commit[\'sum\'], float(statvars_commit[\'sum\']) / statvars_commit[\'cnt\'], idx_commit * tasklist_commit[0][\'cost\']))# }}} #if (len(sys.argv) < 2): print(\"Usage: %s filename\" %(sys.argv[0])) quit(1)else: parse_task(sys.argv[1]) result_analyse()

perftrace.py

#!/usr/bin/env python# -*- coding:utf-8 -*-\"\"\" Life\'s short, Python more.\"\"\"import reimport osimport sysimport jsonimport uuidimport signalimport timeimport subprocessfrom optparse import OptionParserreload(sys)sys.setdefaultencoding(\'utf8\')##begin cli & help logicdef getOptionParser(): usage = getUsage() parser = OptionParser(usage = usage) #rdbms reader and writer parser.add_option(\'-r\', \'--reader\', action=\'store\', dest=\'reader\', help=\'trace datasource read performance with specified !json! string\') parser.add_option(\'-w\', \'--writer\', action=\'store\', dest=\'writer\', help=\'trace datasource write performance with specified !json! string\') parser.add_option(\'-c\', \'--channel\', action=\'store\', dest=\'channel\', default=\'1\', help=\'the number of concurrent sync thread, the default is 1\') parser.add_option(\'-f\', \'--file\', action=\'store\', help=\'existing datax configuration file, include reader and writer params\') parser.add_option(\'-t\', \'--type\', action=\'store\', default=\'reader\', help=\'trace which side\\\'s performance, cooperate with -f --file params, need to be reader or writer\') parser.add_option(\'-d\', \'--delete\', action=\'store\', default=\'true\', help=\'delete temporary files, the default value is true\') #parser.add_option(\'-h\', \'--help\', action=\'store\', default=\'true\', help=\'print usage information\') return parserdef getUsage(): return \'\'\'The following params are available for -r --reader: [these params is for rdbms reader, used to trace rdbms read performance, it\'s like datax\'s key] *datasourceType: datasource type, may be mysql|drds|oracle|ads|sqlserver|postgresql|db2 etc... *jdbcUrl: datasource jdbc connection string, mysql as a example: jdbc:mysql://ip:port/database *username: username for datasource *password: password for datasource *table: table name for read data column: column to be read, the default value is [\'*\'] splitPk: the splitPk column of rdbms table where:  limit the scope of the performance data set fetchSize: how many rows to be fetched at each communicate [these params is for stream reader, used to trace rdbms write performance] reader-sliceRecordCount: how man test data to mock(each channel), the default value is 10000 reader-column : stream reader while generate test data(type supports: string|long|date|double|bool|bytes; support constant value and random function)，demo: [{\"type\":\"string\",\"value\":\"abc\"},{\"type\":\"string\",\"random\":\"10,20\"}]The following params are available for -w --writer: [these params is for rdbms writer, used to trace rdbms write performance, it\'s like datax\'s key] datasourceType: datasource type, may be mysql|drds|oracle|ads|sqlserver|postgresql|db2|ads etc... *jdbcUrl: datasource jdbc connection string, mysql as a example: jdbc:mysql://ip:port/database *username: username for datasource *password: password for datasource *table: table name for write data column: column to be writed, the default value is [\'*\'] batchSize: how many rows to be storeed at each communicate, the default value is 512 preSql: prepare sql to be executed before write data, the default value is \'\' postSql: post sql to be executed end of write data, the default value is \'\' url: required for ads, pattern is ip:port schme:  required for ads, ads database name [these params is for stream writer, used to trace rdbms read performance] writer-print:  true means print data read from source datasource, the default value is falseThe following params are available global control: -c --channel: the number of concurrent tasks, the default value is 1 -f --file: existing completely dataX configuration file path -t --type: test read or write performance for a datasource, couble be reader or writer, in collaboration with -f --file -h --help: print help messagesome demo:perftrace.py --channel=10 --reader=\'{\"jdbcUrl\":\"jdbc:mysql://127.0.0.1:3306/database\", \"username\":\"\", \"password\":\"\", \"table\": \"\", \"where\":\"\", \"splitPk\":\"\", \"writer-print\":\"false\"}\'perftrace.py --channel=10 --writer=\'{\"jdbcUrl\":\"jdbc:mysql://127.0.0.1:3306/database\", \"username\":\"\", \"password\":\"\", \"table\": \"\", \"reader-sliceRecordCount\": \"10000\", \"reader-column\": [{\"type\":\"string\",\"value\":\"abc\"},{\"type\":\"string\",\"random\":\"10,20\"}]}\'perftrace.py --file=/tmp/datax.job.json --type=reader --reader=\'{\"writer-print\": \"false\"}\'perftrace.py --file=/tmp/datax.job.json --type=writer --writer=\'{\"reader-sliceRecordCount\": \"10000\", \"reader-column\": [{\"type\":\"string\",\"value\":\"abc\"},{\"type\":\"string\",\"random\":\"10,20\"}]}\'some example jdbc url pattern, may help:jdbc:oracle:thin:@ip:port:databasejdbc:mysql://ip:port/databasejdbc:sqlserver://ip:port;DatabaseName=databasejdbc:postgresql://ip:port/databasewarn: ads url pattern is ip:portwarn: test write performance will write data into your table, you can use a temporary table just for test.\'\'\'def printCopyright(): DATAX_VERSION = \'UNKNOWN_DATAX_VERSION\' print(\'\'\'DataX Util Tools (%s), From Alibaba !Copyright (C) 2010-2016, Alibaba Group. All Rights Reserved.\'\'\' % DATAX_VERSION) sys.stdout.flush()def yesNoChoice(): yes = set([\'yes\',\'y\', \'ye\', \'\']) no = set([\'no\',\'n\']) choice = raw_input().lower() if choice in yes: return True elif choice in no: return False else: sys.stdout.write(\"Please respond with \'yes\' or \'no\'\")##end cli & help logic##begin process logicdef suicide(signum, e): global childProcess print >> sys.stderr, \"[Error] Receive unexpected signal %d, starts to suicide.\" % (signum) if childProcess: childProcess.send_signal(signal.SIGQUIT) time.sleep(1) childProcess.kill() print >> sys.stderr, \"DataX Process was killed ! you did ?\" sys.exit(-1)def registerSignal(): global childProcess signal.signal(2, suicide) signal.signal(3, suicide) signal.signal(15, suicide)def fork(command, isShell=False): global childProcess childProcess = subprocess.Popen(command, shell = isShell) registerSignal() (stdout, stderr) = childProcess.communicate() #阻塞直到子进程结束 childProcess.wait() return childProcess.returncode##end process logic##begin datax json generate logic#warn: if not \'\': -> true; if not None: -> truedef notNone(obj, context): if not obj: raise Exception(\"Configuration property [%s] could not be blank!\" % (context))def attributeNotNone(obj, attributes): for key in attributes: notNone(obj.get(key), key)def isBlank(value): if value is None or len(value.strip()) == 0: return True return Falsedef parsePluginName(jdbcUrl, pluginType): import re #warn: drds name = \'pluginName\' mysqlRegex = re.compile(\'jdbc:(mysql)://.*\') if (mysqlRegex.match(jdbcUrl)): name = \'mysql\' postgresqlRegex = re.compile(\'jdbc:(postgresql)://.*\') if (postgresqlRegex.match(jdbcUrl)): name = \'postgresql\' oracleRegex = re.compile(\'jdbc:(oracle):.*\') if (oracleRegex.match(jdbcUrl)): name = \'oracle\' sqlserverRegex = re.compile(\'jdbc:(sqlserver)://.*\') if (sqlserverRegex.match(jdbcUrl)): name = \'sqlserver\' db2Regex = re.compile(\'jdbc:(db2)://.*\') if (db2Regex.match(jdbcUrl)): name = \'db2\' return \"%s%s\" % (name, pluginType)def renderDataXJson(paramsDict, readerOrWriter = \'reader\', channel = 1): dataxTemplate = { \"job\": { \"setting\": { \"speed\": {  \"channel\": 1 } }, \"content\": [ {  \"reader\": { \"name\": \"\", \"parameter\": { \"username\": \"\", \"password\": \"\", \"sliceRecordCount\": \"10000\", \"column\": [ \"*\" ], \"connection\": [ {  \"table\": [],  \"jdbcUrl\": [] } ] }  },  \"writer\": { \"name\": \"\", \"parameter\": { \"print\": \"false\", \"connection\": [ {  \"table\": [],  \"jdbcUrl\": \'\' } ] }  } } ] } } dataxTemplate[\'job\'][\'setting\'][\'speed\'][\'channel\'] = channel dataxTemplateContent = dataxTemplate[\'job\'][\'content\'][0] pluginName = \'\' if paramsDict.get(\'datasourceType\'): pluginName = \'%s%s\' % (paramsDict[\'datasourceType\'], readerOrWriter) elif paramsDict.get(\'jdbcUrl\'): pluginName = parsePluginName(paramsDict[\'jdbcUrl\'], readerOrWriter) elif paramsDict.get(\'url\'): pluginName = \'adswriter\' theOtherSide = \'writer\' if readerOrWriter == \'reader\' else \'reader\' dataxPluginParamsContent = dataxTemplateContent.get(readerOrWriter).get(\'parameter\') dataxPluginParamsContent.update(paramsDict) dataxPluginParamsContentOtherSide = dataxTemplateContent.get(theOtherSide).get(\'parameter\') if readerOrWriter == \'reader\': dataxTemplateContent.get(\'reader\')[\'name\'] = pluginName dataxTemplateContent.get(\'writer\')[\'name\'] = \'streamwriter\' if paramsDict.get(\'writer-print\'): dataxPluginParamsContentOtherSide[\'print\'] = paramsDict[\'writer-print\'] del dataxPluginParamsContent[\'writer-print\'] del dataxPluginParamsContentOtherSide[\'connection\'] if readerOrWriter == \'writer\': dataxTemplateContent.get(\'reader\')[\'name\'] = \'streamreader\' dataxTemplateContent.get(\'writer\')[\'name\'] = pluginName if paramsDict.get(\'reader-column\'): dataxPluginParamsContentOtherSide[\'column\'] = paramsDict[\'reader-column\'] del dataxPluginParamsContent[\'reader-column\'] if paramsDict.get(\'reader-sliceRecordCount\'): dataxPluginParamsContentOtherSide[\'sliceRecordCount\'] = paramsDict[\'reader-sliceRecordCount\'] del dataxPluginParamsContent[\'reader-sliceRecordCount\'] del dataxPluginParamsContentOtherSide[\'connection\'] if paramsDict.get(\'jdbcUrl\'): if readerOrWriter == \'reader\': dataxPluginParamsContent[\'connection\'][0][\'jdbcUrl\'].append(paramsDict[\'jdbcUrl\']) else: dataxPluginParamsContent[\'connection\'][0][\'jdbcUrl\'] = paramsDict[\'jdbcUrl\'] if paramsDict.get(\'table\'): dataxPluginParamsContent[\'connection\'][0][\'table\'].append(paramsDict[\'table\']) traceJobJson = json.dumps(dataxTemplate, indent = 4) return traceJobJsondef isUrl(path): if not path: return False if not isinstance(path, str): raise Exception(\'Configuration file path required for the string, you configure is:%s\' % path) m = re.match(r\"^http[s]?://\\S+\\w*\", path.lower()) if m: return True else: return Falsedef readJobJsonFromLocal(jobConfigPath): jobConfigContent = None jobConfigPath = os.path.abspath(jobConfigPath) file = open(jobConfigPath) try: jobConfigContent = file.read() finally: file.close() if not jobConfigContent: raise Exception(\"Your job configuration file read the result is empty, please check the configuration is legal, path: [%s]\\nconfiguration:\\n%s\" % (jobConfigPath, str(jobConfigContent))) return jobConfigContentdef readJobJsonFromRemote(jobConfigPath): import urllib conn = urllib.urlopen(jobConfigPath) jobJson = conn.read() return jobJsondef parseJson(strConfig, context): try: return json.loads(strConfig) except Exception as e: import traceback traceback.print_exc() sys.stdout.flush() print >> sys.stderr, \'%s %s need in line with json syntax\' % (context, strConfig) sys.exit(-1)def convert(options, args): traceJobJson = \'\' if options.file: if isUrl(options.file): traceJobJson = readJobJsonFromRemote(options.file) else: traceJobJson = readJobJsonFromLocal(options.file) traceJobDict = parseJson(traceJobJson, \'%s content\' % options.file) attributeNotNone(traceJobDict, [\'job\']) attributeNotNone(traceJobDict[\'job\'], [\'content\']) attributeNotNone(traceJobDict[\'job\'][\'content\'][0], [\'reader\', \'writer\']) attributeNotNone(traceJobDict[\'job\'][\'content\'][0][\'reader\'], [\'name\', \'parameter\']) attributeNotNone(traceJobDict[\'job\'][\'content\'][0][\'writer\'], [\'name\', \'parameter\']) if options.type == \'reader\': traceJobDict[\'job\'][\'content\'][0][\'writer\'][\'name\'] = \'streamwriter\' if options.reader: traceReaderDict = parseJson(options.reader, \'reader config\') if traceReaderDict.get(\'writer-print\') is not None:  traceJobDict[\'job\'][\'content\'][0][\'writer\'][\'parameter\'][\'print\'] = traceReaderDict.get(\'writer-print\') else:  traceJobDict[\'job\'][\'content\'][0][\'writer\'][\'parameter\'][\'print\'] = \'false\' else: traceJobDict[\'job\'][\'content\'][0][\'writer\'][\'parameter\'][\'print\'] = \'false\' elif options.type == \'writer\': traceJobDict[\'job\'][\'content\'][0][\'reader\'][\'name\'] = \'streamreader\' if options.writer: traceWriterDict = parseJson(options.writer, \'writer config\') if traceWriterDict.get(\'reader-column\'):  traceJobDict[\'job\'][\'content\'][0][\'reader\'][\'parameter\'][\'column\'] = traceWriterDict[\'reader-column\'] if traceWriterDict.get(\'reader-sliceRecordCount\'):  traceJobDict[\'job\'][\'content\'][0][\'reader\'][\'parameter\'][\'sliceRecordCount\'] = traceWriterDict[\'reader-sliceRecordCount\'] else: columnSize = len(traceJobDict[\'job\'][\'content\'][0][\'writer\'][\'parameter\'][\'column\']) streamReaderColumn = [] for i in range(columnSize):  streamReaderColumn.append({\"type\": \"long\", \"random\": \"2,10\"}) traceJobDict[\'job\'][\'content\'][0][\'reader\'][\'parameter\'][\'column\'] = streamReaderColumn traceJobDict[\'job\'][\'content\'][0][\'reader\'][\'parameter\'][\'sliceRecordCount\'] = 10000 else: pass#do nothing return json.dumps(traceJobDict, indent = 4) elif options.reader: traceReaderDict = parseJson(options.reader, \'reader config\') return renderDataXJson(traceReaderDict, \'reader\', options.channel) elif options.writer: traceWriterDict = parseJson(options.writer, \'writer config\') return renderDataXJson(traceWriterDict, \'writer\', options.channel) else: print(getUsage()) sys.exit(-1) #dataxParams = {} #for opt, value in options.__dict__.items(): # dataxParams[opt] = value##end datax json generate logicif __name__ == \"__main__\": printCopyright() parser = getOptionParser() options, args = parser.parse_args(sys.argv[1:]) #print options, args dataxTraceJobJson = convert(options, args) #由MAC地址、当前时间戳、随机数生成,可以保证全球范围内的唯一性 dataxJobPath = os.path.join(os.getcwd(), \"perftrace-\" + str(uuid.uuid1())) jobConfigOk = True if os.path.exists(dataxJobPath): print(\"file already exists, truncate and rewrite it? %s\" % dataxJobPath) if yesNoChoice(): jobConfigOk = True else: print(\"exit failed, because of file conflict\") sys.exit(-1) fileWriter = open(dataxJobPath, \'w\') fileWriter.write(dataxTraceJobJson) fileWriter.close() print(\"trace environments:\") print(\"dataxJobPath: %s\" % dataxJobPath) dataxHomePath = os.path.dirname(os.path.dirname(os.path.abspath(__file__))) print(\"dataxHomePath: %s\" % dataxHomePath) dataxCommand = \"%s %s\" % (os.path.join(dataxHomePath, \"bin\", \"datax.py\"), dataxJobPath) print(\"dataxCommand: %s\" % dataxCommand) returncode = fork(dataxCommand, True) if options.delete == \'true\': os.remove(dataxJobPath) sys.exit(returncode)

4、datax运行时报错-数据库服务的IP地址或者Port错误

解决办法：

更换MySQL驱动包

驱动包位置：从datax解压文件夹进入datax/plugin/reader/mysqlreader/libs和datax/plugin/writer/mysqlreader/libs 将高版本的MySQL驱动包上传到该文件夹下
