基于eNSP搭建的小圆区组网

网友: 技术文档 2025-08-08 11:48:00

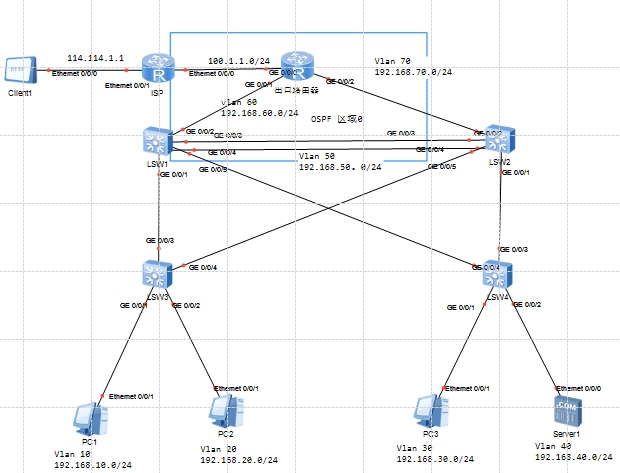

一. 拓扑图

二. 部署要求

（一）创建拓扑图

按照拓扑图连接设备，连线两端端口。

（二）基础操作

更改设备名

（三）配置STP

令SW1为根桥，SW2为备份桥

（四）配置VLAN

设备名

接口

链路类型

Vlan参数

LSW1

G0/0/2

Access

Vlan 60  192.168.60.0/24

Eth-trunk1

Trunk

Vlan 50 30 40 10 20

G0/0/1

Trunk

Vlan 10 20 30 40

G0/0/5

Trunk

Vlan 10 20 30 40

LSW2

G0/0/2

Access

Vlan 70  192.168.70.0/24

Eth-trunk1

Trunk

Vlan 50 30 40 10 20

G0/0/1

Trunk

Vlan 30 40 10 20

G0/0/5

Trunk

Vlan 10 20 30 40

LSW3

G0/0/3

Trunk

Vlan 10 20

G0/0/4

Trunk

Vlan 10 20

G0/0/1

Access

Vlan 10 192.168.10.0/24

G0/0/2

Access

Vlan 20 192.168.20.0/24

LSW4

G0/0/1

Access

Vlan 30 192.168.30.0/24

G0/0/2

Access

Vlan 40 192.168.40.0/24

G0/0/3

Trunk

Vlan 30 40

G0/0/4

Trunk

Vlan 30 40

（五）负载分担配置VRRP和链路聚合

  1. 增加网关可靠性，在LSW1,LSW2上设置VRRP，并且让LSW1作为VLAN10、Vlan20的主路由器，VLAN30、Vlan40的备用路由器。LSW2作为 VLAN30、Vlan40的主用路由器，VLAN10、Vlan20的备路由器

VLAN

VRRP组号（VRID）

VRRP虚拟IP

VLAN10

1

192.168.10.254

VLAN20

2

192.168.20.254

VLAN30

3

192.168.30.254

VLAN40

4

192.168.40.254

  1. SW1 与SW2 之间的接口链路配置链路聚合，并使用逻辑接口Eth-Trunk 1

（六）配置OSPF，默认路由

  1. SW1、SW2、R1配置OSPF，区域为0骨干区域
  2. R1配置默认路由

（七）配置DHCP与DHCP中继

  1. R1充当DHCP服务器，SW1和SW2充当DHCP中继DHCP服务器为内网分配IP地址
  2. DHCP配置地址池避免IP地址冲突

（八）NAT映射配置

  1. R1配置Easy IP实现公网转换

测试

  1. 使用内网PC ping外网114.114.1.2客户端是否被NAT转换
  2. 外网114.114.114.2是否可以访问内网的服务器192.168.40.3服务

三. 实验步骤

（一）基础操作

更改设备名称、创建Vlan、创建链路聚合及设置生成树

SW1：


#sysname SW1 //设备名称修改为SW1#vlan batch 10 20 30 40 50 60 70 //创建网络所需Vlan#stp root primary //SW1设置为根桥#interface Eth-Trunk1 //创建聚合链路eth-trunk1 port link-type trunk //将链路类型设置为trunk port trunk allow-pass vlan 10 20 30 40 50 //放行vlantrunkport g 0/0/3 to 0/0/4 //将g0/0/3和g0/0/4加入到聚合链路eth-trunk1#

SW2：

#sysname SW2#vlan batch 10 20 30 40 50 70#stp instance 0 root secondary //将SW2设置为备份桥#interface Eth-Trunk1 port link-type trunk port trunk allow-pass vlan 10 20 30 40 50#

（二）配置Vlan、接口IP及VRRP链路备份

SW1

#interface Vlanif10 //进入Vlan10if接口 ip address 192.168.10.1 255.255.255.0 //设置IP地址 vrrp vrid 1 virtual-ip 192.168.10.254 //设置VRRP，vlan10的虚拟网关为192.168.10.254 vrrp vrid 1 priority 120  //设置优先级为120#interface Vlanif20 ip address 192.168.20.1 255.255.255.0 vrrp vrid 2 virtual-ip 192.168.20.254 //设置VRRP，vlan20的虚拟网关为192.168.20.254 vrrp vrid 2 priority 120  //设置优先级为120#interface Vlanif30 ip address 192.168.30.1 255.255.255.0 vrrp vrid 3 virtual-ip 192.168.30.254 //设置VRRP，vlan30的虚拟网关为192.168.30.254,没有修改vrrp优先级默认为100#interface Vlanif40 ip address 192.168.40.1 255.255.255.0 vrrp vrid 4 virtual-ip 192.168.40.254#interface Vlanif50 ip address 192.168.50.1 255.255.255.0#interface Vlanif60 ip address 192.168.60.2 255.255.255.0#interface GigabitEthernet0/0/3 eth-trunk 1#interface GigabitEthernet0/0/4 eth-trunk 1#interface GigabitEthernet0/0/5 port link-type trunk port trunk allow-pass vlan 10 20 30 40#

SW2

#interface Vlanif10 ip address 192.168.10.2 255.255.255.0 vrrp vrid 1 virtual-ip 192.168.10.254//默认vrrp优先级就为100#interface Vlanif20 ip address 192.168.20.2 255.255.255.0 vrrp vrid 2 virtual-ip 192.168.20.254#interface Vlanif30 ip address 192.168.30.2 255.255.255.0 vrrp vrid 3 virtual-ip 192.168.30.254 vrrp vrid 3 priority 120//设置vlan30 vrrp优先级为120，在sw2中充当主vrrp#interface Vlanif40 ip address 192.168.40.2 255.255.255.0 vrrp vrid 4 virtual-ip 192.168.40.254 vrrp vrid 4 priority 120 #interface Vlanif50 ip address 192.168.50.2 255.255.255.0#interface Vlanif70 ip address 192.168.70.2 255.255.255.0#interface Eth-Trunk1 port link-type trunk port trunk allow-pass vlan 10 20 30 40 50#interface GigabitEthernet0/0/1 port link-type trunk port trunk allow-pass vlan 30 40#interface GigabitEthernet0/0/2 port link-type access port default vlan 70#interface GigabitEthernet0/0/3 eth-trunk 1#interface GigabitEthernet0/0/4 eth-trunk 1#interface GigabitEthernet0/0/5 port link-type trunk port trunk allow-pass vlan 10 20 30 40#

SW3

interface GigabitEthernet0/0/1 port link-type access port default vlan 10#interface GigabitEthernet0/0/2 port link-type access port default vlan 20#interface GigabitEthernet0/0/3 port link-type trunk port trunk allow-pass vlan 10 20#interface GigabitEthernet0/0/4 port link-type trunk port trunk allow-pass vlan 10 20#

SW4

interface GigabitEthernet0/0/1 port link-type access port default vlan 30#interface GigabitEthernet0/0/2 port link-type access port default vlan 40#interface GigabitEthernet0/0/3 port link-type trunk port trunk allow-pass vlan 30 40#interface GigabitEthernet0/0/4 port link-type trunk port trunk allow-pass vlan 10 20 30 40#

R1

interface GigabitEthernet0/0/0 ip address 100.1.1.1 255.255.255.0 #interface GigabitEthernet0/0/1 ip address 192.168.60.1 255.255.255.0 #interface GigabitEthernet0/0/2 ip address 192.168.70.1 255.255.255.0

ISP

interface Ethernet0/0/0 ip address 100.1.1.2 255.255.255.0#interface Ethernet0/0/1 ip address 114.114.1.1 255.255.255.0 //客户端的网关#

（三）配置OSPF与默认路由

SW1

ospf 1 area 0.0.0.0 network 192.168.60.0 0.0.0.255 network 192.168.50.0 0.0.0.255 network 192.168.10.0 0.0.0.255 network 192.168.20.0 0.0.0.255//宣告邻居网段

SW2

ospf 1 area 0.0.0.0 network 192.168.70.0 0.0.0.255 network 192.168.50.0 0.0.0.255 network 192.168.30.0 0.0.0.255 network 192.168.40.0 0.0.0.255

R1

ospf 1 default-route-advertise //接受外部引入路由 area 0.0.0.0 network 192.168.60.0 0.0.0.255 network 192.168.70.0 0.0.0.255 #ip route-static 0.0.0.0 0.0.0.0 100.1.1.2 //设置默认路由，下一跳为连接的ISP接口#

ISP

ip route-static 0.0.0.0 0.0.0.0 100.1.1.1

(四）DHCP中继配置

R1

dhcp enable //开启dhcp服务#ip pool vlan10-ip //创建名为vlan10-ip的地址池 gateway-list 192.168.10.254 //分配的网关为192.168.10.254 network 192.168.10.0 mask 255.255.255.0 //地址池范围为192.168.10.0 24 excluded-ip-address 192.168.10.1 192.168.10.2 //排除192.168.10.1与192.168.10.2两个地址 lease day 30 hour 0 minute 0 //租赁时间为30天#ip pool vlan20-ip gateway-list 192.168.20.254 network 192.168.20.0 mask 255.255.255.0 excluded-ip-address 192.168.20.1 192.168.20.2 lease day 30 hour 0 minute 0 #interface GigabitEthernet0/0/1 ip address 192.168.60.1 255.255.255.0 dhcp select global //为接口开启全局dhcp#interface GigabitEthernet0/0/2 ip address 192.168.70.1 255.255.255.0 dhcp select global#

 SW1

interface Vlanif10 ip address 192.168.10.1 255.255.255.0 vrrp vrid 1 virtual-ip 192.168.10.254 vrrp vrid 1 priority 120 dhcp select relay //设置dhcp中继模式 dhcp relay server-ip 192.168.60.1 //设置DHCP服务地址，为R1连接SW1的接口ip地址#interface Vlanif20 ip address 192.168.20.1 255.255.255.0 vrrp vrid 2 virtual-ip 192.168.20.254 vrrp vrid 2 priority 120 dhcp select relay dhcp relay server-ip 192.168.60.1#SW1为Vlan10和Vlan20的终端动态分配地址

 SW2

#interface Vlanif30 ip address 192.168.30.2 255.255.255.0 vrrp vrid 3 virtual-ip 192.168.30.254 vrrp vrid 3 priority 120 dhcp select relay dhcp relay server-ip 192.168.70.1#interface Vlanif40 ip address 192.168.40.2 255.255.255.0 vrrp vrid 4 virtual-ip 192.168.40.254 vrrp vrid 4 priority 120 dhcp select relay dhcp relay server-ip 192.168.70.1

（五）NAT配置

R1

acl number 2000 rule 5 permit source 192.168.0.0 0.0.255.255 rule 20 deny //创建acl 2000，允许内网192.168.0.0 16网段的设备通过int g0/0/0nat outbound acl 2000//进入连接ISP的接口，放行acl 2000，设置为easy-ip，实现内网地址转换为接口地址

四.测试

（一）PC1是否实现DHCP动态分配地址

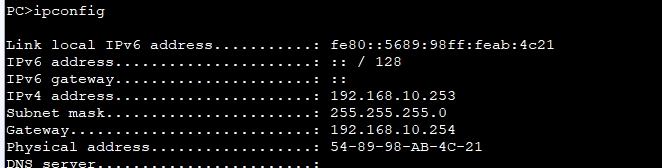

成功实现DHCP动态分配，地址为192.168.10.253

（二）PC1访问外网客户端114.114.1.2是否地址转换

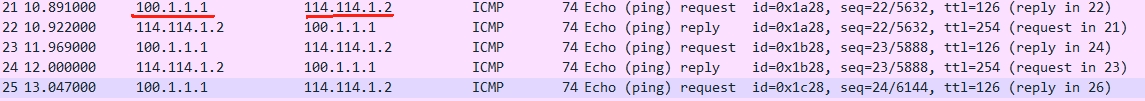

 成功将访问源地址转换为R1的接口IP

（三）外网客户端是否可以访问内部服务器（无Nat Server）

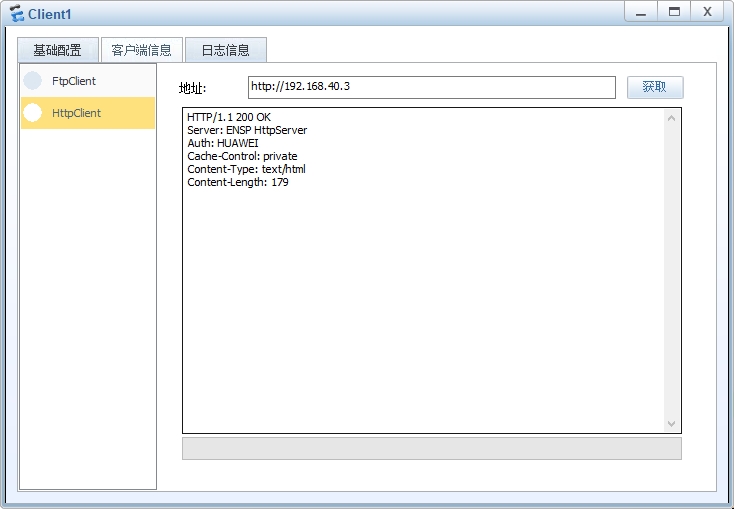

成功访问内部服务

五.配置汇总

SW1

disp curr#sysname SW1#vlan batch 10 20 30 40 50 60 70#stp instance 0 root primary#cluster enablentdp enablendp enable#drop illegal-mac alarm#dhcp enable#diffserv domain default#drop-profile default#aaa authentication-scheme default authorization-scheme default accounting-scheme default domain default domain default_admin local-user admin password simple admin local-user admin service-type http#interface Vlanif1#interface Vlanif10 ip address 192.168.10.1 255.255.255.0 vrrp vrid 1 virtual-ip 192.168.10.254 vrrp vrid 1 priority 120 dhcp select relay dhcp relay server-ip 192.168.60.1#interface Vlanif20 ip address 192.168.20.1 255.255.255.0 vrrp vrid 2 virtual-ip 192.168.20.254 vrrp vrid 2 priority 120 dhcp select relay dhcp relay server-ip 192.168.60.1#interface Vlanif30 ip address 192.168.30.1 255.255.255.0 vrrp vrid 3 virtual-ip 192.168.30.254#interface Vlanif40 ip address 192.168.40.1 255.255.255.0 vrrp vrid 4 virtual-ip 192.168.40.254#interface Vlanif50 ip address 192.168.50.1 255.255.255.0#interface Vlanif60 ip address 192.168.60.2 255.255.255.0#interface MEth0/0/1#interface Eth-Trunk1 port link-type trunk port trunk allow-pass vlan 10 20 30 40 50#interface GigabitEthernet0/0/1 port link-type trunk port trunk allow-pass vlan 10 20#interface GigabitEthernet0/0/2 port link-type access port default vlan 60#interface GigabitEthernet0/0/3 eth-trunk 1#interface GigabitEthernet0/0/4 eth-trunk 1#interface GigabitEthernet0/0/5 port link-type trunk port trunk allow-pass vlan 10 20 30 40#interface GigabitEthernet0/0/6#interface GigabitEthernet0/0/7#interface GigabitEthernet0/0/8#interface GigabitEthernet0/0/9#interface GigabitEthernet0/0/10#interface GigabitEthernet0/0/11#interface GigabitEthernet0/0/12#interface GigabitEthernet0/0/13#interface GigabitEthernet0/0/14#interface GigabitEthernet0/0/15#interface GigabitEthernet0/0/16#interface GigabitEthernet0/0/17#interface GigabitEthernet0/0/18#interface GigabitEthernet0/0/19#interface GigabitEthernet0/0/20#interface GigabitEthernet0/0/21#interface GigabitEthernet0/0/22#interface GigabitEthernet0/0/23#interface GigabitEthernet0/0/24#interface NULL0#ospf 1 silent-interface Vlanif10 silent-interface Vlanif20 area 0.0.0.0 network 192.168.60.0 0.0.0.255 network 192.168.50.0 0.0.0.255 network 192.168.10.0 0.0.0.255 network 192.168.20.0 0.0.0.255#user-interface con 0user-interface vty 0 4#return

SW2

disp curr#sysname SW2#vlan batch 10 20 30 40 50 70#stp instance 0 root secondary#cluster enablentdp enablendp enable#drop illegal-mac alarm#dhcp enable#diffserv domain default#drop-profile default#aaa authentication-scheme default authorization-scheme default accounting-scheme default domain default domain default_admin local-user admin password simple admin local-user admin service-type http#interface Vlanif1#interface Vlanif10 ip address 192.168.10.2 255.255.255.0 vrrp vrid 1 virtual-ip 192.168.10.254#interface Vlanif20 ip address 192.168.20.2 255.255.255.0 vrrp vrid 2 virtual-ip 192.168.20.254#interface Vlanif30 ip address 192.168.30.2 255.255.255.0 vrrp vrid 3 virtual-ip 192.168.30.254 vrrp vrid 3 priority 120 dhcp select relay dhcp relay server-ip 192.168.70.1#interface Vlanif40 ip address 192.168.40.2 255.255.255.0 vrrp vrid 4 virtual-ip 192.168.40.254 vrrp vrid 4 priority 120 dhcp select relay dhcp relay server-ip 192.168.70.1#interface Vlanif50 ip address 192.168.50.2 255.255.255.0#interface Vlanif70 ip address 192.168.70.2 255.255.255.0#interface MEth0/0/1#interface Eth-Trunk1 port link-type trunk port trunk allow-pass vlan 10 20 30 40 50#interface GigabitEthernet0/0/1 port link-type trunk port trunk allow-pass vlan 30 40#interface GigabitEthernet0/0/2 port link-type access port default vlan 70#interface GigabitEthernet0/0/3 eth-trunk 1#interface GigabitEthernet0/0/4 eth-trunk 1#interface GigabitEthernet0/0/5 port link-type trunk port trunk allow-pass vlan 10 20 30 40#interface GigabitEthernet0/0/6#interface GigabitEthernet0/0/7#interface GigabitEthernet0/0/8#interface GigabitEthernet0/0/9#interface GigabitEthernet0/0/10#interface GigabitEthernet0/0/11#interface GigabitEthernet0/0/12#interface GigabitEthernet0/0/13#interface GigabitEthernet0/0/14#interface GigabitEthernet0/0/15#interface GigabitEthernet0/0/16#interface GigabitEthernet0/0/17#interface GigabitEthernet0/0/18#interface GigabitEthernet0/0/19#interface GigabitEthernet0/0/20#interface GigabitEthernet0/0/21#interface GigabitEthernet0/0/22#interface GigabitEthernet0/0/23#interface GigabitEthernet0/0/24#interface NULL0#ospf 1 area 0.0.0.0 network 192.168.70.0 0.0.0.255 network 192.168.50.0 0.0.0.255 network 192.168.30.0 0.0.0.255 network 192.168.40.0 0.0.0.255#user-interface con 0user-interface vty 0 4#return

 SW3

disp curr#sysname SW3#vlan batch 10 20#cluster enablentdp enablendp enable#drop illegal-mac alarm#diffserv domain default#drop-profile default#aaa authentication-scheme default authorization-scheme default accounting-scheme default domain default domain default_admin local-user admin password simple admin local-user admin service-type http#interface Vlanif1#interface MEth0/0/1#interface GigabitEthernet0/0/1 port link-type access port default vlan 10#interface GigabitEthernet0/0/2 port link-type access port default vlan 20#interface GigabitEthernet0/0/3 port link-type trunk port trunk allow-pass vlan 10 20#interface GigabitEthernet0/0/4 port link-type trunk port trunk allow-pass vlan 10 20#interface GigabitEthernet0/0/5#interface GigabitEthernet0/0/6#interface GigabitEthernet0/0/7#interface GigabitEthernet0/0/8#interface GigabitEthernet0/0/9#interface GigabitEthernet0/0/10#interface GigabitEthernet0/0/11#interface GigabitEthernet0/0/12#interface GigabitEthernet0/0/13#interface GigabitEthernet0/0/14#interface GigabitEthernet0/0/15#interface GigabitEthernet0/0/16#interface GigabitEthernet0/0/17#interface GigabitEthernet0/0/18#interface GigabitEthernet0/0/19#interface GigabitEthernet0/0/20#interface GigabitEthernet0/0/21#interface GigabitEthernet0/0/22#interface GigabitEthernet0/0/23#interface GigabitEthernet0/0/24#interface NULL0#ospf 1 area 0.0.0.0 network 192.168.10.0 0.0.0.255 network 192.168.20.0 0.0.0.255#user-interface con 0user-interface vty 0 4#return

 SW4

disp curr#sysname SW4#vlan batch 30 40#cluster enablentdp enablendp enable#drop illegal-mac alarm#diffserv domain default#drop-profile default#aaa authentication-scheme default authorization-scheme default accounting-scheme default domain default domain default_admin local-user admin password simple admin local-user admin service-type http#interface Vlanif1#interface MEth0/0/1#interface GigabitEthernet0/0/1 port link-type access port default vlan 30#interface GigabitEthernet0/0/2 port link-type access port default vlan 40#interface GigabitEthernet0/0/3 port link-type trunk port trunk allow-pass vlan 30 40#interface GigabitEthernet0/0/4 port link-type trunk port trunk allow-pass vlan 10 20 30 40#interface GigabitEthernet0/0/5#interface GigabitEthernet0/0/6#interface GigabitEthernet0/0/7#interface GigabitEthernet0/0/8#interface GigabitEthernet0/0/9#interface GigabitEthernet0/0/10#interface GigabitEthernet0/0/11#interface GigabitEthernet0/0/12#interface GigabitEthernet0/0/13#interface GigabitEthernet0/0/14#interface GigabitEthernet0/0/15#interface GigabitEthernet0/0/16#interface GigabitEthernet0/0/17#interface GigabitEthernet0/0/18#interface GigabitEthernet0/0/19#interface GigabitEthernet0/0/20#interface GigabitEthernet0/0/21#interface GigabitEthernet0/0/22#interface GigabitEthernet0/0/23#interface GigabitEthernet0/0/24#interface NULL0#user-interface con 0user-interface vty 0 4#return

 R1

disp curr[V200R003C00]# sysname R1# snmp-agent local-engineid 800007DB03000000000000 snmp-agent # clock timezone China-Standard-Time minus 08:00:00#portal local-server load flash:/portalpage.zip# drop illegal-mac alarm# wlan ac-global carrier id other ac id 0# set cpu-usage threshold 80 restore 75#dhcp enable#acl number 2000 rule 5 permit source 192.168.0.0 0.0.255.255 rule 20 deny #ip pool vlan10-ip gateway-list 192.168.10.254 network 192.168.10.0 mask 255.255.255.0 excluded-ip-address 192.168.10.1 192.168.10.2 lease day 30 hour 0 minute 0 #ip pool vlan20-ip gateway-list 192.168.20.254 network 192.168.20.0 mask 255.255.255.0 excluded-ip-address 192.168.20.1 192.168.20.2 lease day 30 hour 0 minute 0 #aaa authentication-scheme default authorization-scheme default accounting-scheme default domain default domain default_admin local-user admin password cipher %$%$K8m.Nt84DZ}e#<0`8bmE3Uw}%$%$ local-user admin service-type http#firewall zone Local priority 15#interface GigabitEthernet0/0/0 ip address 100.1.1.1 255.255.255.0 nat outbound 2000#interface GigabitEthernet0/0/1 ip address 192.168.60.1 255.255.255.0 dhcp select global#interface GigabitEthernet0/0/2 ip address 192.168.70.1 255.255.255.0 dhcp select global#interface NULL0#ospf 1 default-route-advertise area 0.0.0.0 network 192.168.60.0 0.0.0.255 network 192.168.70.0 0.0.0.255 #ip route-static 0.0.0.0 0.0.0.0 100.1.1.2#user-interface con 0 authentication-mode passworduser-interface vty 0 4user-interface vty 16 20#wlan ac#return

 ISP

disp curr#sysname ISP#aaa authentication-scheme default authorization-scheme default accounting-scheme default domain default domain default_admin local-user admin password cipher ]pmv=Rk02~+/Y@:Y>Lw(\\<^# local-user admin service-type http#firewall zone Local priority 16#interface Ethernet0/0/0 ip address 100.1.1.2 255.255.255.0#interface Ethernet0/0/1 ip address 114.114.1.1 255.255.255.0#interface Serial0/0/0 link-protocol ppp#interface Serial0/0/1 link-protocol ppp#interface Serial0/0/2 link-protocol ppp#interface Serial0/0/3 link-protocol ppp#interface GigabitEthernet0/0/0#interface GigabitEthernet0/0/1#interface GigabitEthernet0/0/2#interface GigabitEthernet0/0/3#wlan#interface NULL0#ospf 1 area 0.0.0.0#ip route-static 0.0.0.0 0.0.0.0 100.1.1.1#user-interface con 0user-interface vty 0 4user-interface vty 16 20#return

 如有错误，欢迎私信批正
