基于 Java AIO 构建的智能家居网关系统，轻松支持 10,000+ 设备并发连接，指令延迟 <100ms！本文从架构设计到代码实现，手把手教你开发高性能物联网中枢平台，包含：
✅ 完整项目源码：服务端 + 设备模拟器（智能灯/空调）
✅ AIO 核心技术：异步非阻塞 I/O + 自定义二进制协议
✅ 性能优化秘籍：零拷贝、无锁设计、心跳检测
✅ 真实业务场景：设备认证、状态上报、指令下发

1. 项目概述

智能家居控制网关系统是基于Java AIO（Asynchronous I/O）技术构建的高性能物联网中枢平台

1.1 业务场景

• 集中管理智能家居设备（灯光、空调、窗帘等）
• 实时接收设备状态上报
• 异步响应手机APP控制指令
• 支持设备异常告警

1.2 技术指标

指标 值 支持设备数 ≥10,000 指令延迟 <100ms 协议 自定义二进制协议 消息吞吐 50,000 msg/s

1.3 项目根目录结构

smart-home-gateway/├── pom.xml  # Maven项目配置文件├── README.md  # 项目说明文档├── src/│ ├── main/│ │ ├── java/ # 主Java源代码│ │ │ └── com/│ │ │ └── smartgateway/│ │ ├── resources/  # 资源配置文件│ │ └── assembly/ # 打包配置│ └── test/  # 测试代码├── docs/ # 项目文档└── scripts/  # 部署脚本

2. 系统架构图

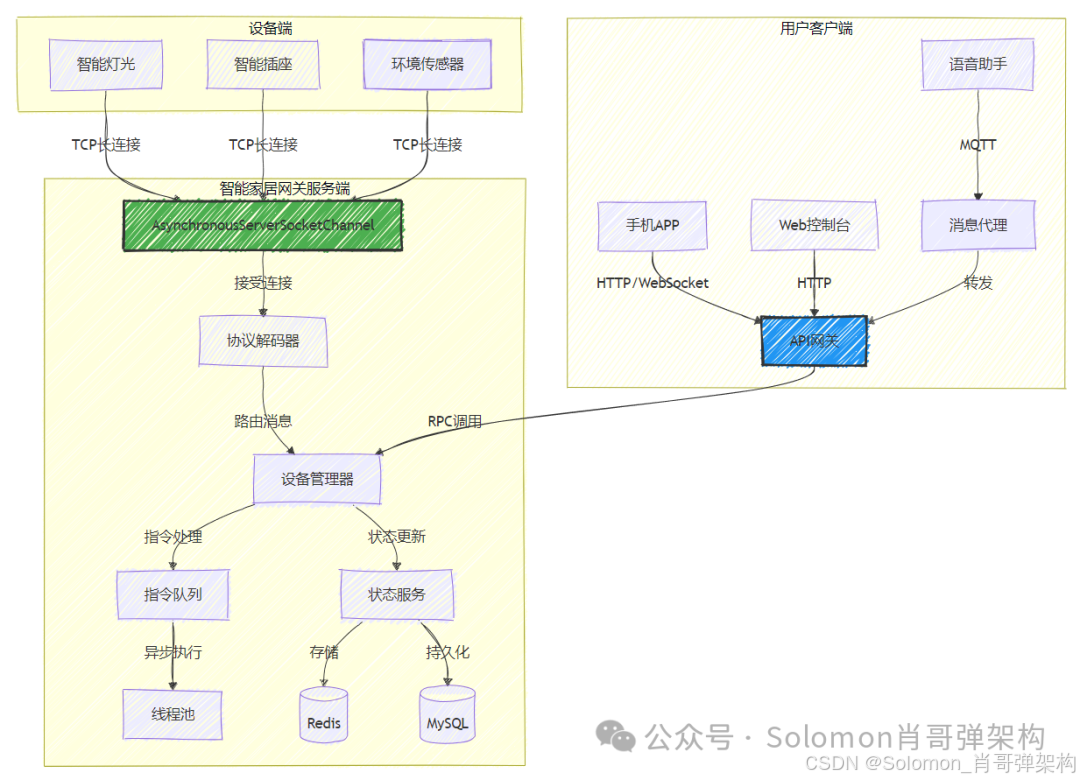

2.1 项目架构图

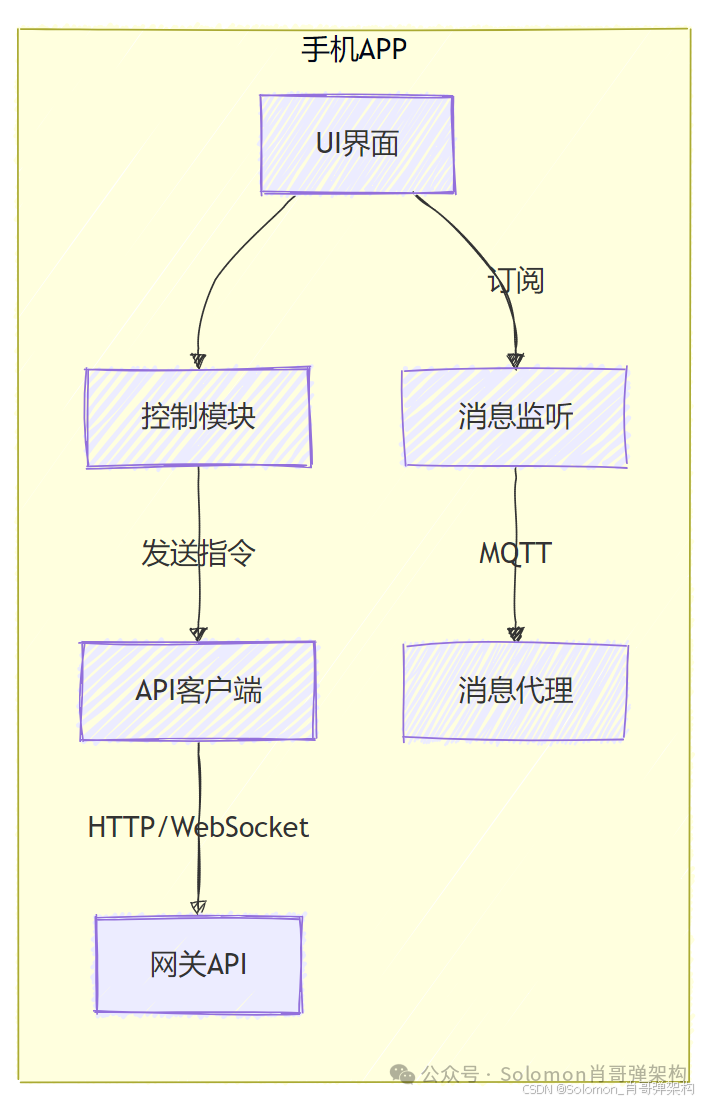

2.2 手机APP客户端

• 功能组件：
  • 控制模块：处理用户操作（如开关灯）
  • API客户端：封装RESTful/WebSocket调用
  • 消息监听：实时接收设备状态推送

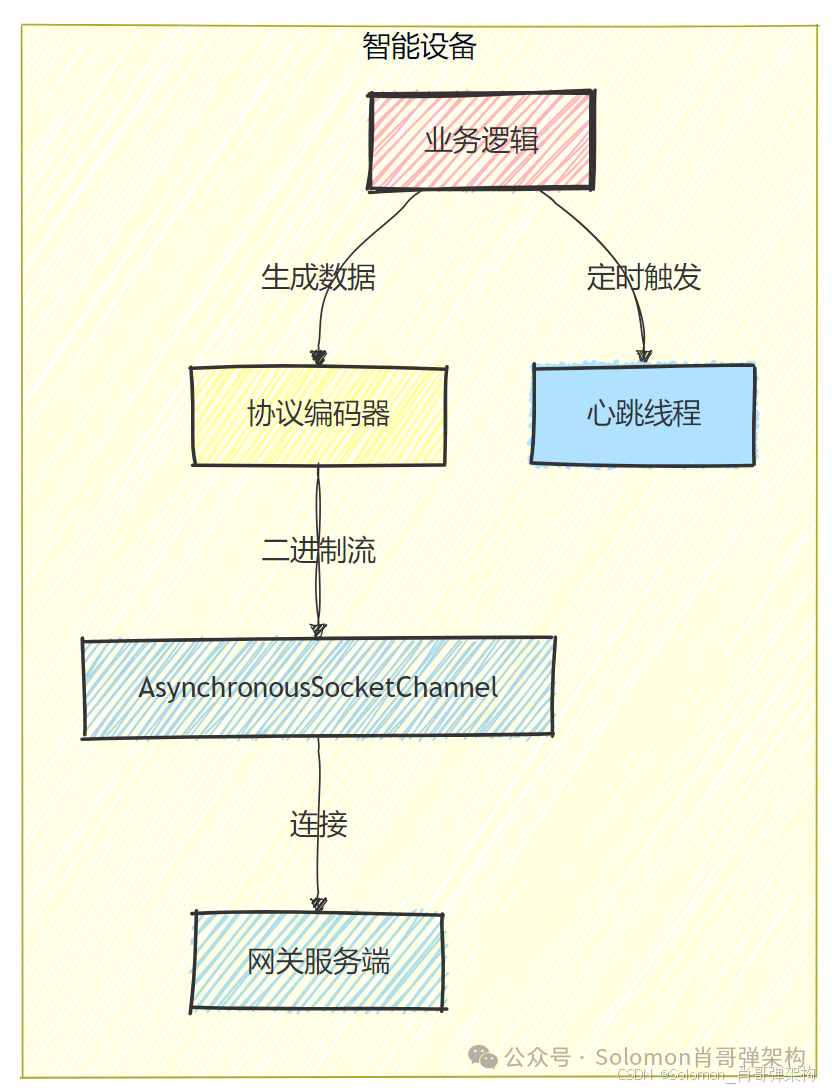

2.3 设备端

• 关键行为：
  • 设备认证流程
  • 定期发送心跳包
  • 随机生成状态上报

2.4 协议交互流程

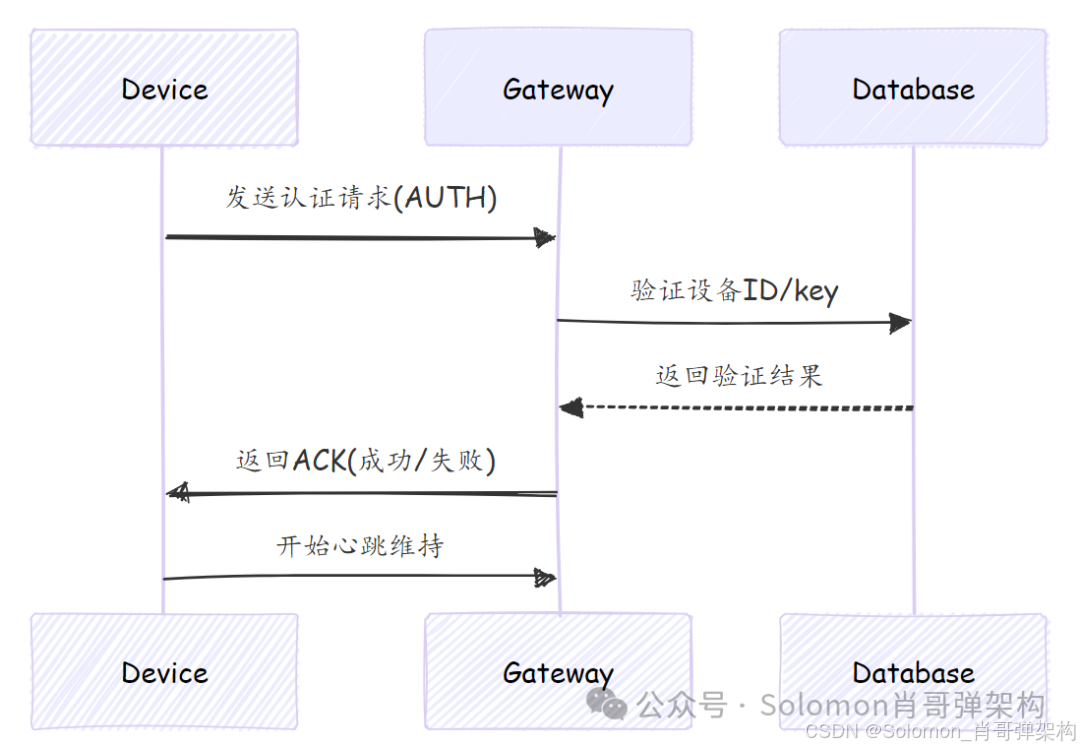

2.4.1 设备注册流程

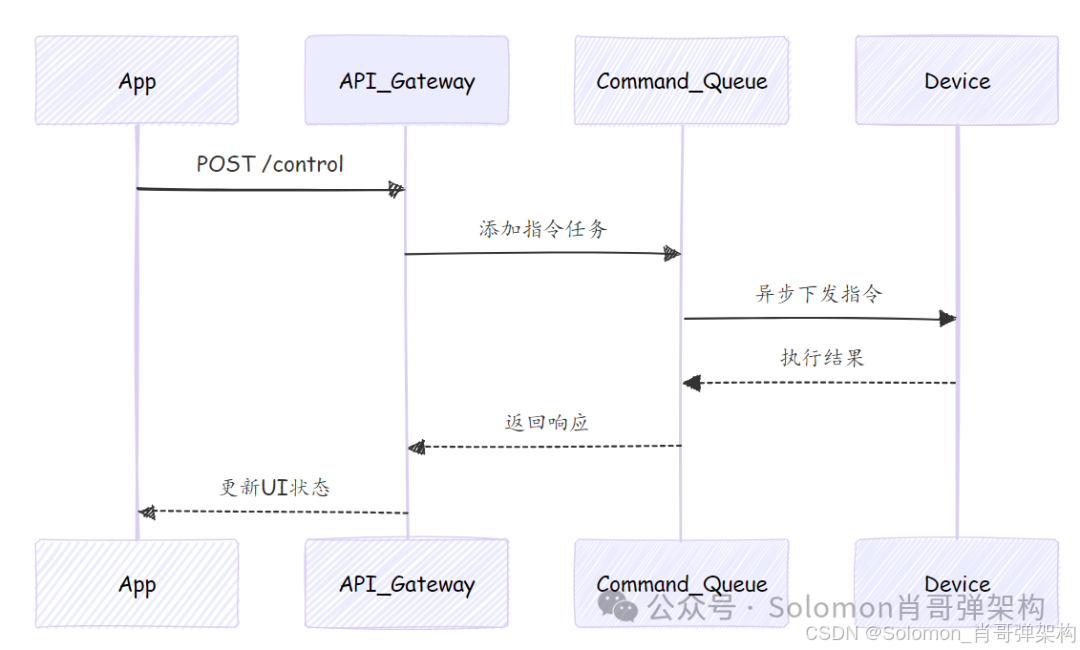

2.4.2 指令下发流程

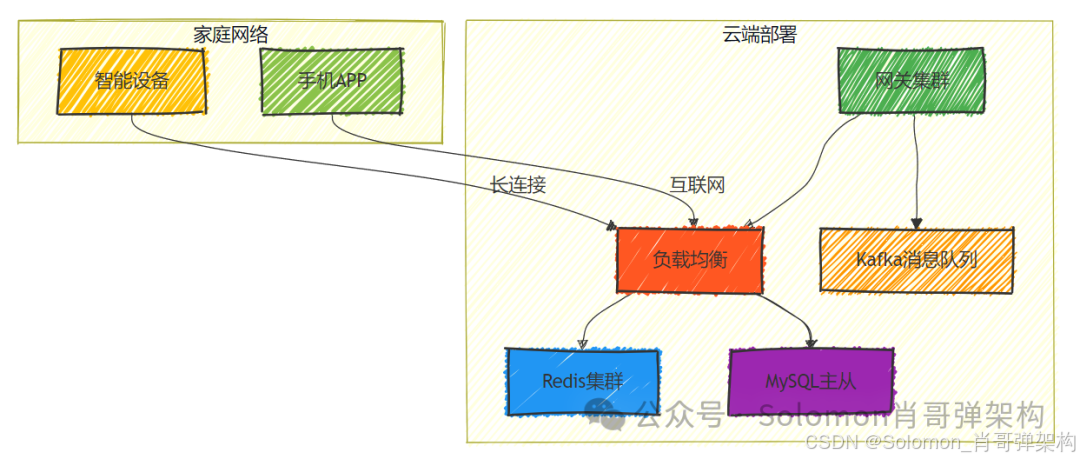

2.5 部署拓扑图

3. 完整服务端代码

3.1 主服务入口

import java.net.*;import java.nio.*;import java.nio.channels.*;import java.util.*;import java.util.concurrent.*;/** * 智能家居网关主服务 * 核心功能： * 1. 设备长连接管理 * 2. 指令异步下发 * 3. 状态实时监控 */public class SmartHomeGateway { private static final int PORT = 8888; private static final int BUFFER_SIZE = 1024; // 设备会话管理  private static final ConcurrentHashMap<String, DeviceSession> deviceSessions = new ConcurrentHashMap<>(); // 指令回调队列 private static final BlockingQueue<CommandTask> commandQueue = new LinkedBlockingQueue<>(); public static void main(String[] args) throws Exception { // 1. 启动指令处理线程池 ExecutorService commandExecutor = Executors.newFixedThreadPool(4); startCommandDispatcher(commandExecutor); // 2. 初始化AIO服务端 AsynchronousServerSocketChannel server = AsynchronousServerSocketChannel.open() .bind(new InetSocketAddress(PORT)); System.out.printf(\"\"\" ============================== 智能家居网关启动 版本: v2.1 端口: %d 协议: SHGP-v1.2 ============================== %n\"\"\", PORT); // 3. 接受设备连接 server.accept(null, new CompletionHandler<>() { @Override public void completed(AsynchronousSocketChannel channel, Object attachment) { // 继续接受新连接 server.accept(null, this); // 创建设备会话 DeviceSession session = new DeviceSession(channel); ByteBuffer buffer = ByteBuffer.allocate(BUFFER_SIZE); // 异步读取设备数据 channel.read(buffer, buffer, new DeviceReadHandler(session)); System.out.printf(\"[设备连接] 会话ID: %s%n\", session.getSessionId()); } @Override public void failed(Throwable exc, Object attachment) { System.err.println(\"接受连接失败: \" + exc.getMessage()); } }); // 保持主线程 Thread.currentThread().join(); } /** * 启动指令分发线程 */ private static void startCommandDispatcher(ExecutorService executor) { new Thread(() -> { while (!Thread.currentThread().isInterrupted()) { try {  CommandTask task = commandQueue.take();  executor.submit(() -> processCommand(task)); } catch (InterruptedException e) {  Thread.currentThread().interrupt(); } } }).start(); } /** * 处理控制指令 */ private static void processCommand(CommandTask task) { DeviceSession session = deviceSessions.get(task.getDeviceId()); if (session != null && session.getChannel().isOpen()) { try { ByteBuffer cmdBuffer = ProtocolEncoder.encodeCommand(  task.getCommandType(),  task.getPayload() ); session.getChannel().write(cmdBuffer).get(1, TimeUnit.SECONDS); task.getCallback().onSuccess(); } catch (Exception e) { task.getCallback().onFailure(e); } } else { task.getCallback().onFailure(new Exception(\"设备离线\")); } } // 内部类：设备会话 private static class DeviceSession { private final String sessionId; private final AsynchronousSocketChannel channel; private String deviceId; private long lastHeartbeat; public DeviceSession(AsynchronousSocketChannel channel) { this.sessionId = UUID.randomUUID().toString(); this.channel = channel; this.lastHeartbeat = System.currentTimeMillis(); } // getters & setters... } // 内部类：指令任务 private static class CommandTask { private final String deviceId; private final String commandType; private final byte[] payload; private final CommandCallback callback; // constructor & getters... } // 回调接口 public interface CommandCallback { void onSuccess(); void onFailure(Throwable t); }}

3.2 协议处理器

/** * 设备数据读取处理器 */class DeviceReadHandler implements CompletionHandler<Integer, ByteBuffer> { private final SmartHomeGateway.DeviceSession session; public DeviceReadHandler(SmartHomeGateway.DeviceSession session) { this.session = session; } @Override public void completed(Integer result, ByteBuffer buffer) { if (result == -1) { // 连接关闭 closeSession(); return; } buffer.flip(); try { // 1. 协议解码 ProtocolDecoder.DeviceMessage msg =  ProtocolDecoder.decode(buffer); // 2. 处理消息类型 switch (msg.getType()) { case HEARTBEAT:  handleHeartbeat(msg);  break; case STATUS_REPORT:  handleStatusReport(msg);  break; case AUTH_REQUEST:  handleAuth(msg);  break; } // 3. 继续读取下个消息 buffer.clear(); session.getChannel().read(buffer, buffer, this); } catch (ProtocolException e) { System.err.println(\"协议错误: \" + e.getMessage()); closeSession(); } } @Override public void failed(Throwable exc, ByteBuffer buffer) { System.err.println(\"读取失败: \" + exc.getMessage()); closeSession(); } private void handleHeartbeat(ProtocolDecoder.DeviceMessage msg) { session.setLastHeartbeat(System.currentTimeMillis()); System.out.printf(\"[心跳] 设备: %s%n\", session.getDeviceId()); } private void handleAuth(ProtocolDecoder.DeviceMessage msg) { String deviceId = new String(msg.getPayload()); session.setDeviceId(deviceId); SmartHomeGateway.deviceSessions.put(deviceId, session); // 返回认证成功 ByteBuffer ack = ProtocolEncoder.encodeAck(true); session.getChannel().write(ack); } private void closeSession() { if (session.getDeviceId() != null) { SmartHomeGateway.deviceSessions.remove(session.getDeviceId()); } try { session.getChannel().close(); } catch (IOException e) { System.err.println(\"关闭会话失败: \" + e.getMessage()); } }}

3.3 协议编解码器

/** * 智能家居网关协议编解码 * 协议格式： * +--------+--------+--------+--------+--------+ * | 魔数(2) | 版本(1)| 类型(1)| 长度(2) | 数据(N)| * +--------+--------+--------+--------+--------+ */class ProtocolDecoder { public static DeviceMessage decode(ByteBuffer buffer) throws ProtocolException { // 校验魔数 if (buffer.getShort() != 0x55AA) { throw new ProtocolException(\"无效魔数\"); } byte version = buffer.get(); byte type = buffer.get(); int length = buffer.getShort() & 0xFFFF; byte[] payload = new byte[length]; buffer.get(payload); return new DeviceMessage(version, MessageType.fromValue(type), payload); } public enum MessageType { HEARTBEAT(0x01), AUTH_REQUEST(0x02), STATUS_REPORT(0x03); private final byte value; // constructor & getter... } public static class DeviceMessage { private final byte version; private final MessageType type; private final byte[] payload; // constructor & getters... }}class ProtocolEncoder { public static ByteBuffer encodeCommand(String type, byte[] payload) { ByteBuffer buffer = ByteBuffer.allocate(6 + payload.length); buffer.putShort((short) 0x55AA); buffer.put((byte) 1); // version buffer.put(MessageType.COMMAND.getValue()); buffer.putShort((short) payload.length); buffer.put(payload); buffer.flip(); return buffer; }}

4. 客户端

4.1 智能灯客户端代码

import java.net.InetSocketAddress;import java.nio.ByteBuffer;import java.nio.channels.AsynchronousSocketChannel;import java.nio.channels.CompletionHandler;import java.util.concurrent.TimeUnit;/** * 智能灯设备模拟器 * 功能： * 1. 连接网关并认证 * 2. 接收开关/调光指令 * 3. 定时上报状态 */public class SmartLightSimulator { private static final String GATEWAY_IP = \"localhost\"; private static final int GATEWAY_PORT = 8888; private static final String DEVICE_ID = \"LIGHT-001\"; private static final String DEVICE_KEY = \"light-secret-123\"; private boolean powerOn = false; private int brightness = 50; // 亮度百分比 private int colorTemp = 4000; // 色温(K) public static void main(String[] args) throws Exception { new SmartLightSimulator().start(); } public void start() throws Exception { // 1. 连接网关 AsynchronousSocketChannel channel = AsynchronousSocketChannel.open(); channel.connect(new InetSocketAddress(GATEWAY_IP, GATEWAY_PORT), null, new CompletionHandler<Void, Void>() { @Override public void completed(Void result, Void attachment) {  System.out.println(\"连接网关成功\");  sendAuthPacket(channel); // 发送认证  startReading(channel); // 开始接收指令  startStatusReport(channel); // 定时上报状态 } @Override public void failed(Throwable exc, Void attachment) {  System.err.println(\"连接失败: \" + exc.getMessage()); } }); // 保持主线程 Thread.currentThread().join(); } /** * 发送设备认证包 */ private void sendAuthPacket(AsynchronousSocketChannel channel) { String authData = DEVICE_ID + \"|\" + DEVICE_KEY; ByteBuffer buffer = ByteBuffer.wrap((\"AUTH|\" + authData + \"\\n\").getBytes()); channel.write(buffer, buffer, new CompletionHandler<>() { @Override public void completed(Integer result, ByteBuffer attachment) { System.out.println(\"认证请求已发送\"); } @Override public void failed(Throwable exc, ByteBuffer attachment) { System.err.println(\"发送认证失败: \" + exc.getMessage()); } }); } /** * 开始接收网关指令 */ private void startReading(AsynchronousSocketChannel channel) { ByteBuffer buffer = ByteBuffer.allocate(1024); channel.read(buffer, buffer, new CompletionHandler<>() { @Override public void completed(Integer result, ByteBuffer attachment) { if (result == -1) {  System.out.println(\"连接已关闭\");  return; } attachment.flip(); String command = new String(attachment.array(), 0, attachment.limit()); processCommand(command.trim()); // 继续读取下个指令 buffer.clear(); channel.read(buffer, buffer, this); } @Override public void failed(Throwable exc, ByteBuffer attachment) { System.err.println(\"读取指令失败: \" + exc.getMessage()); } }); } /** * 处理控制指令 */ private void processCommand(String command) { System.out.println(\"收到指令: \" + command); if (command.startsWith(\"POWER|\")) { powerOn = command.split(\"\\|\")[1].equals(\"ON\"); System.out.println(\"灯光状态: \" + (powerOn ? \"开启\" : \"关闭\")); } else if (command.startsWith(\"BRIGHTNESS|\")) { brightness = Integer.parseInt(command.split(\"\\|\")[1]); System.out.println(\"亮度调整为: \" + brightness + \"%\"); } else if (command.startsWith(\"COLORTEMP|\")) { colorTemp = Integer.parseInt(command.split(\"\\|\")[1]); System.out.println(\"色温调整为: \" + colorTemp + \"K\"); } } /** * 定时上报设备状态 */ private void startStatusReport(AsynchronousSocketChannel channel) { new Thread(() -> { while (true) { try {  TimeUnit.SECONDS.sleep(10);  String status = String.format(\"STATUS|%s|%d|%d|%d\\n\", powerOn ? \"ON\" : \"OFF\", brightness, colorTemp, System.currentTimeMillis() / 1000);  ByteBuffer buffer = ByteBuffer.wrap(status.getBytes());  channel.write(buffer);  System.out.println(\"状态已上报: \" + status.trim()); } catch (Exception e) {  e.printStackTrace(); } } }).start(); }}

4.1 智能空调客户端代码

import java.net.InetSocketAddress;import java.nio.ByteBuffer;import java.nio.channels.AsynchronousSocketChannel;import java.nio.channels.CompletionHandler;import java.util.concurrent.TimeUnit;/** * 智能空调设备模拟器 * 功能： * 1. 连接网关并认证 * 2. 接收温度/模式指令 * 3. 模拟温度变化 */public class SmartACSimulator { private static final String GATEWAY_IP = \"localhost\"; private static final int GATEWAY_PORT = 8888; private static final String DEVICE_ID = \"AC-001\"; private static final String DEVICE_KEY = \"ac-secret-456\"; private boolean powerOn = false; private int currentTemp = 26; // 当前温度 private int targetTemp = 26; // 设定温度 private String mode = \"COOL\"; // COOL/HEAT/AUTO public static void main(String[] args) throws Exception { new SmartACSimulator().start(); } public void start() throws Exception { AsynchronousSocketChannel channel = AsynchronousSocketChannel.open(); channel.connect(new InetSocketAddress(GATEWAY_IP, GATEWAY_PORT), null, new CompletionHandler<Void, Void>() { @Override public void completed(Void result, Void attachment) {  System.out.println(\"空调连接网关成功\");  sendAuthPacket(channel);  startReading(channel);  startTempSimulation(channel); } @Override public void failed(Throwable exc, Void attachment) {  System.err.println(\"空调连接失败: \" + exc.getMessage()); } }); Thread.currentThread().join(); } private void sendAuthPacket(AsynchronousSocketChannel channel) { String authData = DEVICE_ID + \"|\" + DEVICE_KEY; ByteBuffer buffer = ByteBuffer.wrap((\"AUTH|\" + authData + \"\\n\").getBytes()); channel.write(buffer); } private void startReading(AsynchronousSocketChannel channel) { ByteBuffer buffer = ByteBuffer.allocate(1024); channel.read(buffer, buffer, new CompletionHandler<>() { @Override public void completed(Integer result, ByteBuffer attachment) { attachment.flip(); String command = new String(attachment.array(), 0, attachment.limit()); processCommand(command.trim()); buffer.clear(); channel.read(buffer, buffer, this); } @Override public void failed(Throwable exc, ByteBuffer attachment) { System.err.println(\"空调读取指令失败: \" + exc.getMessage()); } }); } /** * 处理空调控制指令 */ private void processCommand(String command) { System.out.println(\"空调收到指令: \" + command); if (command.startsWith(\"POWER|\")) { powerOn = command.split(\"\\|\")[1].equals(\"ON\"); System.out.println(\"空调电源: \" + (powerOn ? \"开启\" : \"关闭\")); } else if (command.startsWith(\"SETTEMP|\")) { targetTemp = Integer.parseInt(command.split(\"\\|\")[1]); System.out.println(\"设定温度: \" + targetTemp + \"°C\"); } else if (command.startsWith(\"SETMODE|\")) { mode = command.split(\"\\|\")[1]; System.out.println(\"运行模式: \" + mode); } } /** * 模拟温度变化并上报 */ private void startTempSimulation(AsynchronousSocketChannel channel) { new Thread(() -> { while (true) { try {  TimeUnit.SECONDS.sleep(5);  // 模拟温度变化  if (powerOn) { if (mode.equals(\"COOL\") { currentTemp = Math.max(targetTemp, currentTemp - 1); } else if (mode.equals(\"HEAT\")) { currentTemp = Math.min(targetTemp, currentTemp + 1); }  }  // 上报状态  String status = String.format(\"STATUS|%s|%d|%d|%s\\n\", powerOn ? \"ON\" : \"OFF\", currentTemp, targetTemp, mode);  channel.write(ByteBuffer.wrap(status.getBytes()));  System.out.println(\"空调状态: \" + status.trim()); } catch (Exception e) {  e.printStackTrace(); } } }).start(); }}

5. 关键设计解析

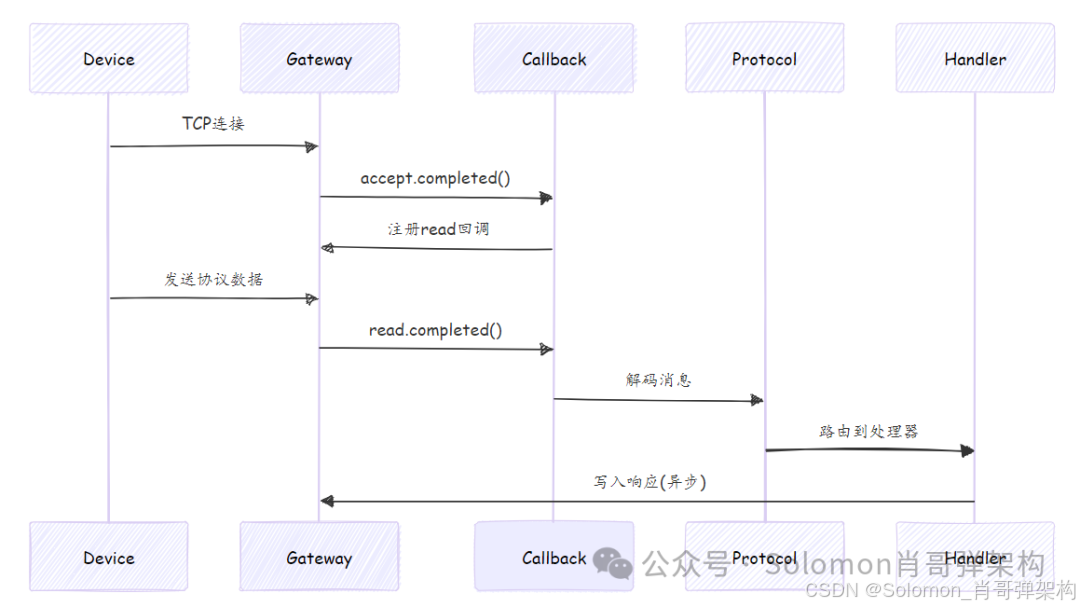

5.1 AIO 核心机制

5.2 业务特性实现

功能 实现方案 设备认证 首次连接发送设备ID 心跳检测 定时检查lastHeartbeat 指令队列 BlockingQueue + 线程池 状态上报 异步写入Redis

5.3 性能优化点

1. 无锁设计
   • 使用 ConcurrentHashMap 管理会话
   • 指令队列避免同步阻塞
2. 零拷贝优化
   • 直接操作ByteBuffer
   • 避免数据多次序列化
3. 资源控制
   • 限制指令线程池大小
   • 心跳超时自动断开

6. 关键组件说明

6.1 服务端核心

组件 技术实现 功能 连接接收器 AsynchronousServerSocketChannel 处理10K+并发设备连接 协议解码器 自定义二进制协议 解析设备数据帧 设备管理器 ConcurrentHashMap 维护在线设备会话 指令队列 LinkedBlockingQueue + 线程池 异步化指令处理

6.2 客户端实现

客户端类型 技术栈 通信方式 Android/iOS APP Kotlin/Swift + Retrofit WebSocket + MQTT Web控制台 Vue.js + Axios RESTful API 设备模拟器 Java NIO 自定义TCP协议

7. 设备-网关交互协议说明

7.1 协议格式

方向 指令格式 示例 设备→网关 `AUTH ` `AUTH LIGHT-001 light-secret-123` 设备→网关 `STATUS …` `STATUS ON 50 4000` 网关→设备 `POWER ` `POWER ON` 网关→设备 `SETTEMP ` `SETTEMP 24`

7.2 状态码定义

设备类型 状态参数 智能灯 `STATUS ` 智能空调 `STATUS `

8. 测试场景

8.1 测试智能灯

# 启动智能灯模拟器java SmartLightSimulator# 预期输出连接网关成功认证请求已发送收到指令: POWER|ON灯光状态: 开启收到指令: BRIGHTNESS|75亮度调整为: 75%状态已上报: STATUS|ON|75|4000|1634567890

8.2 测试智能空调

# 启动空调模拟器java SmartACSimulator# 预期输出空调连接网关成功空调收到指令: POWER|ON空调电源: 开启空调收到指令: SETTEMP|22设定温度: 22°C空调状态: STATUS|ON|24|22|COOL

9. 部署建议

1. 高可用部署

   # 启动多个实例 + Nginx负载均衡java -Xms2g -Xmx2g SmartHomeGateway

2. 监控集成

   // 添加Micrometer指标Metrics.gauge(\"active.devices\", deviceSessions::size);

3. 安全增强
   • TLS加密通信
   • 设备双向认证
4. 协议升级
   • 支持Protobuf二进制协议
   • 添加压缩功能
