ubuntu20.04配置VScode + OpenCV_ubuntu opencv vscode

1.前置条件

1. 安装ubuntu20.04的虚拟机

2. 安装完成后：

   sudo apt updatesudo apt upgrade

3. 安装gcc编译器

   sudo apt install build-essential gdb

4. 安装cmake

   sudo apt install cmake

5. 安装VScode(deb包)，并安装C/C++、C/C++ Extension Pack、C/C++ Themes、CMake、CMake Tools共5个拓展

2.安装opencv

mkdir opencv_build && cd opencv_build

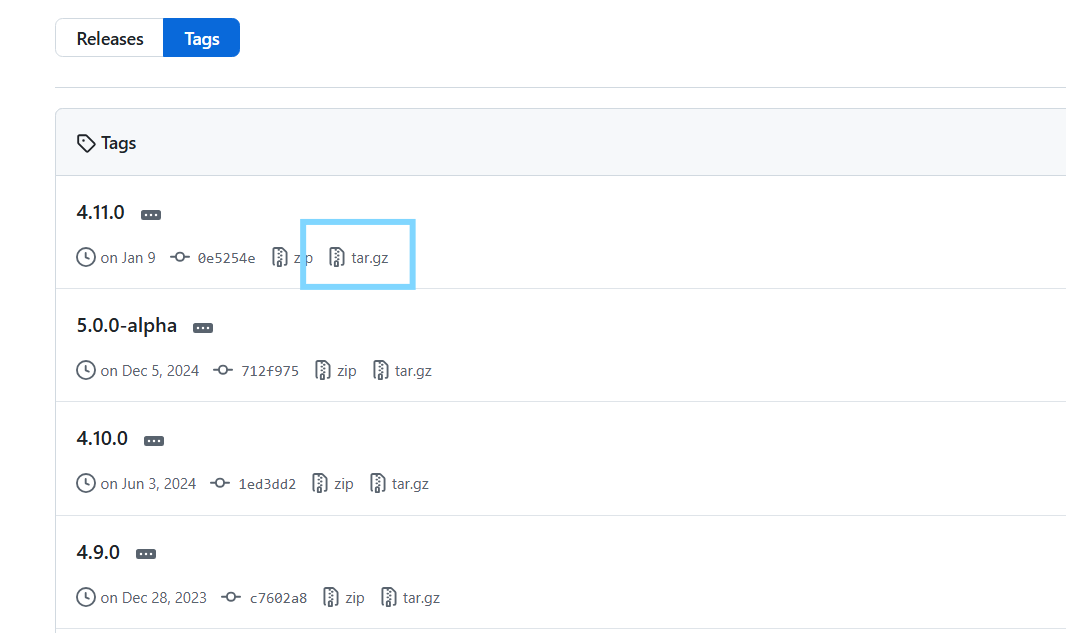

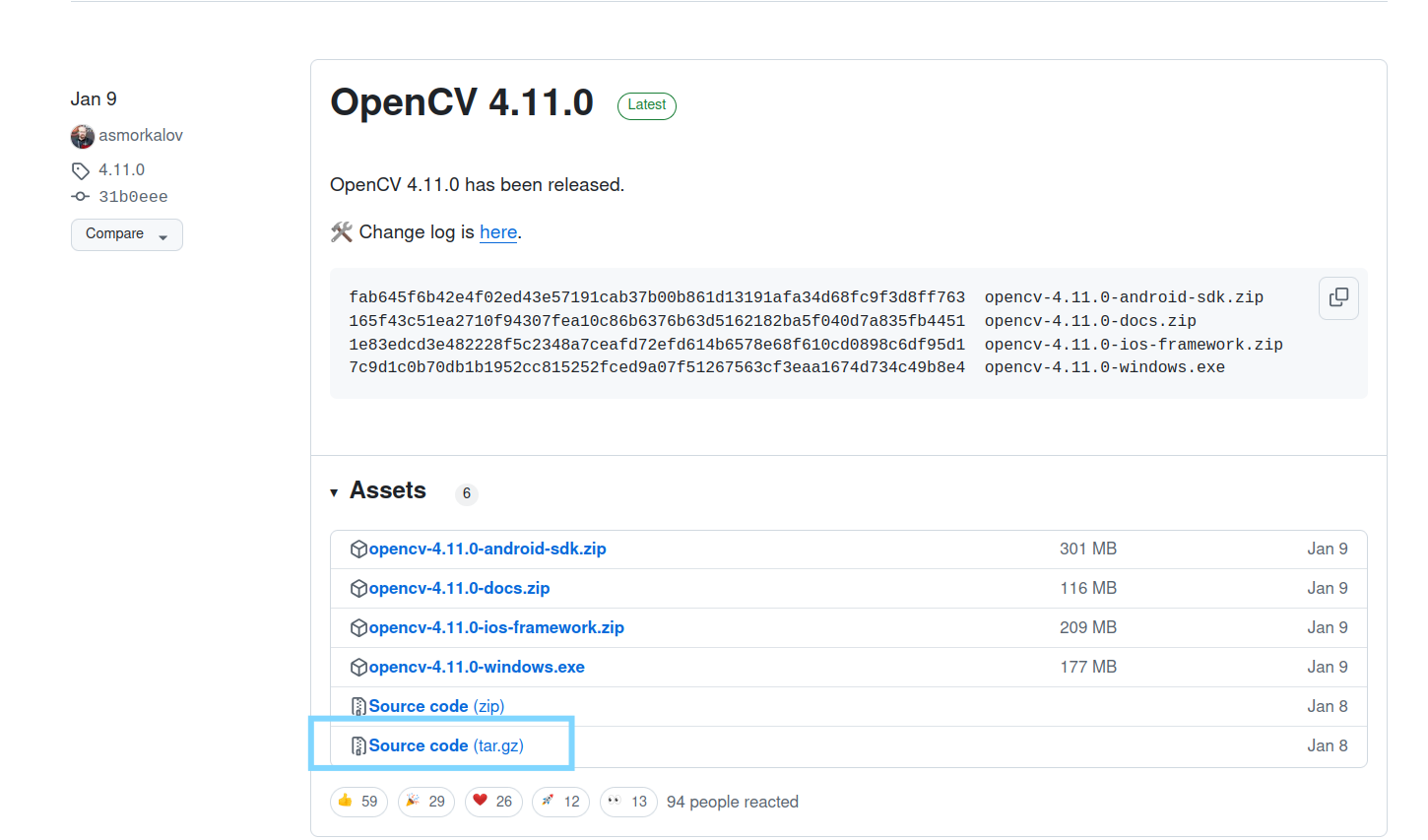

2. 下载opencv
   选择需要的版本，选择tar.gz

3. 下载opencv_contrib
   选择需要的版本，选择tar.gz

4. 将opencv-4.11.0和opencv_contrib-4.11.0拷贝到opencv_build文件夹，解压

   tar -xzvf opencv-4.11.0.tar.gztar -xzvf opencv_contrib-4.11.0.tar.gzcd opencv-4.5.4mkdir build && cd build

5. 更新一下

   sudo apt update

6. 配置编译环境

   sudo apt install libgtk2.0-dev libavcodec-dev libavformat-dev libjpeg-dev libtiff-dev libswscale-dev libpng-devsudo apt install libjasper1 libjasper-devsudo apt install freeglut3-dev libgl1-mesa-dev pkg-configsudo apt install libgstreamer1.0-dev libgstreamer-plugins-base1.0-dev libgstreamer-plugins-bad1.0-dev libgstreamer-plugins-good1.0-devsudo apt install gstreamer1.0-plugins-base gstreamer1.0-plugins-good gstreamer1.0-plugins-bad gstreamer1.0-plugins-ugly gstreamer1.0-tools gstreamer1.0-libavsudo apt install gstreamer1.0-doc gstreamer1.0-x gstreamer1.0-alsa gstreamer1.0-gl gstreamer1.0-gtk3 gstreamer1.0-qt5 gstreamer1.0-pulseaudiosudo apt install libgtk2.0-dev libgtk-3-dev

   解决无法定位 libjasper-dev 的问题：

   sudo apt install vimsudo vim /etc/apt/sources.listsudo apt update

3.编译OpenCV

1. 配置OpenCV编译选项

   cmake -D CMAKE_BUILD_TYPE=RELEASE -D CMAKE_INSTALL_PREFIX=/usr/local -D OPENCV_EXTRA_MODULES_PATH=../../opencv_contrib-4.11.0/modules -D OPENCV_GENERATE_PKGCONFIG=ON -D BUILD_EXAMPLES=OFF -D INSTALL_PYTHON_EXAMPLES=OFF -D INSTALL_C_EXAMPLES=OFF -D WITH_GSTREAMER=ON ..

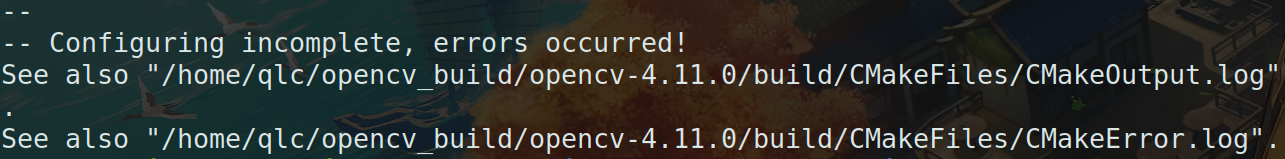

如果出现下载错误

则作地址映射，否则跳过此步
访问：https://tool.chinaz.com/dns/raw.githubusercontent.com
找到访问最快的IPV4地址

sudo vim /etc/hosts# 例如输入185.199.109.133raw.githubusercontent.com

重新编译

2. 编译

   sudo make -j$(nproc)sudo make install

3. 检查是否安装成功

   pkg-config opencv4 --modversion

安装成功

4.开始一个项目进行测试

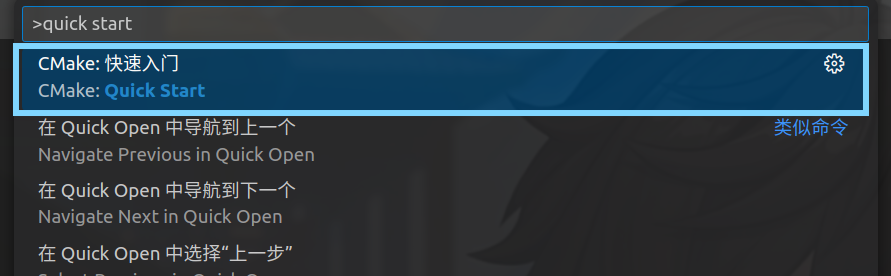

1. 打开VScode,选择一个文件夹，ctrl + shift + p,输入\"quick start\"，回车

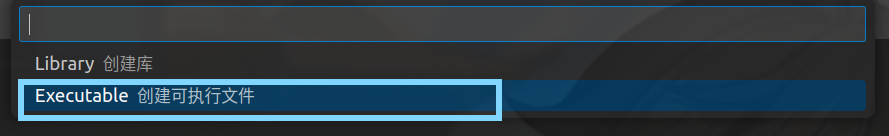

   输入项目名称，如opencvTest，再选择c或者c++,再选择创建可执行文件

   选择其他选项部分可不选，直接回车，不用添加新预设
   在CMakeLists.txt中添加如下内容，再ctrl + s保存生成

find_package(OpenCV REQUIRED)include_directories(${OpenCV_INCLUDE_DIRS})target_link_libraries(opencvTest ${OpenCV_LIBS})

opencvTest为项目名称

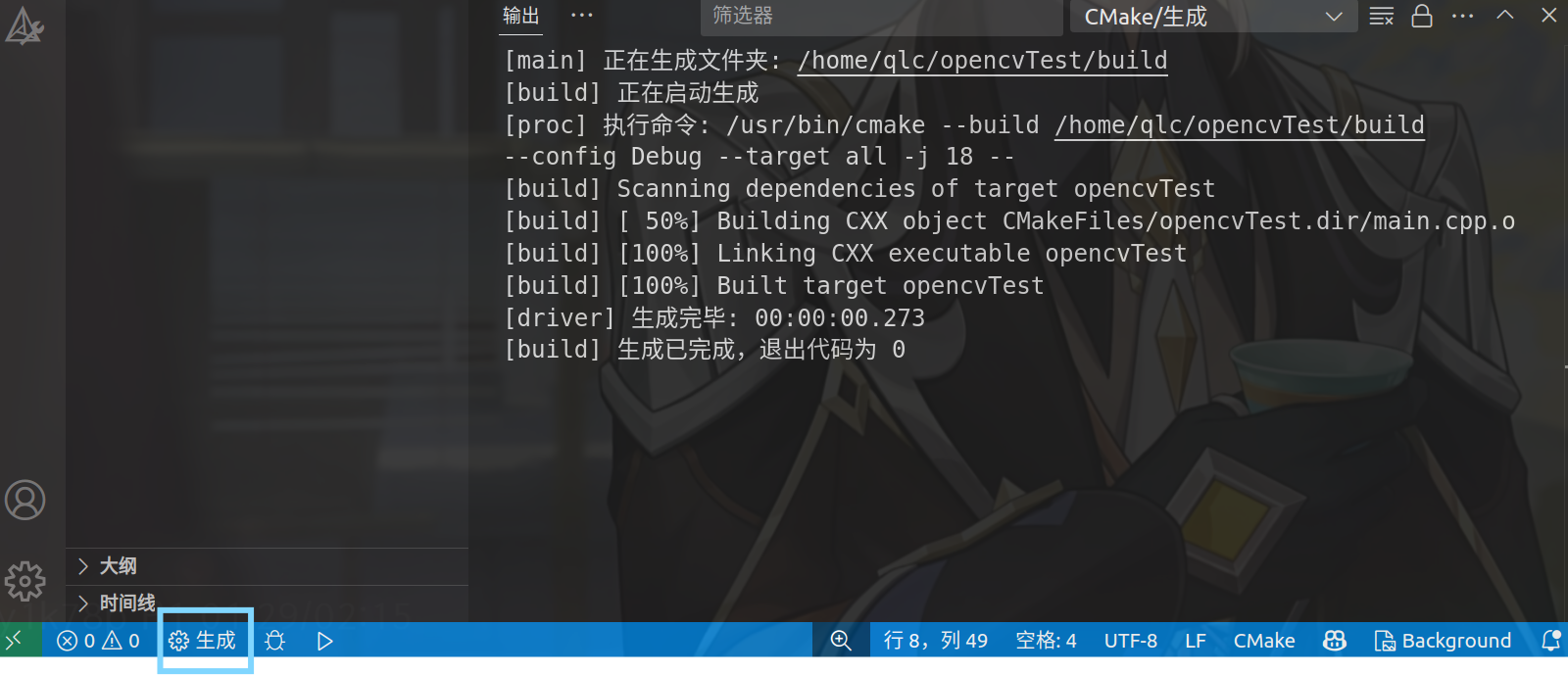

点击左下角生成

退出代码为0，配置成功
写入如下测试代码，若成功显示图像，则大功告成

#include #include int main(int, char**){ cv::Mat src = cv::imread(\"图片路径\"); cv::namedWindow(\"input\",cv::WINDOW_FREERATIO); cv::imshow(\"input\",src); cv::waitKey(0); cv::destroyAllWindows(); return 0;}

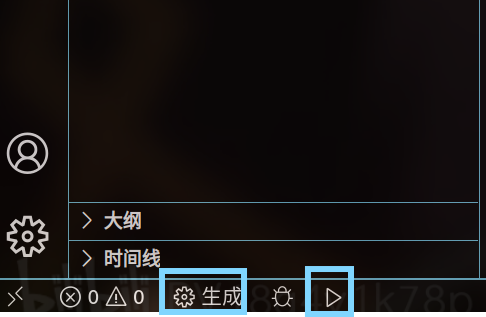

先生成，再点击左下角运行

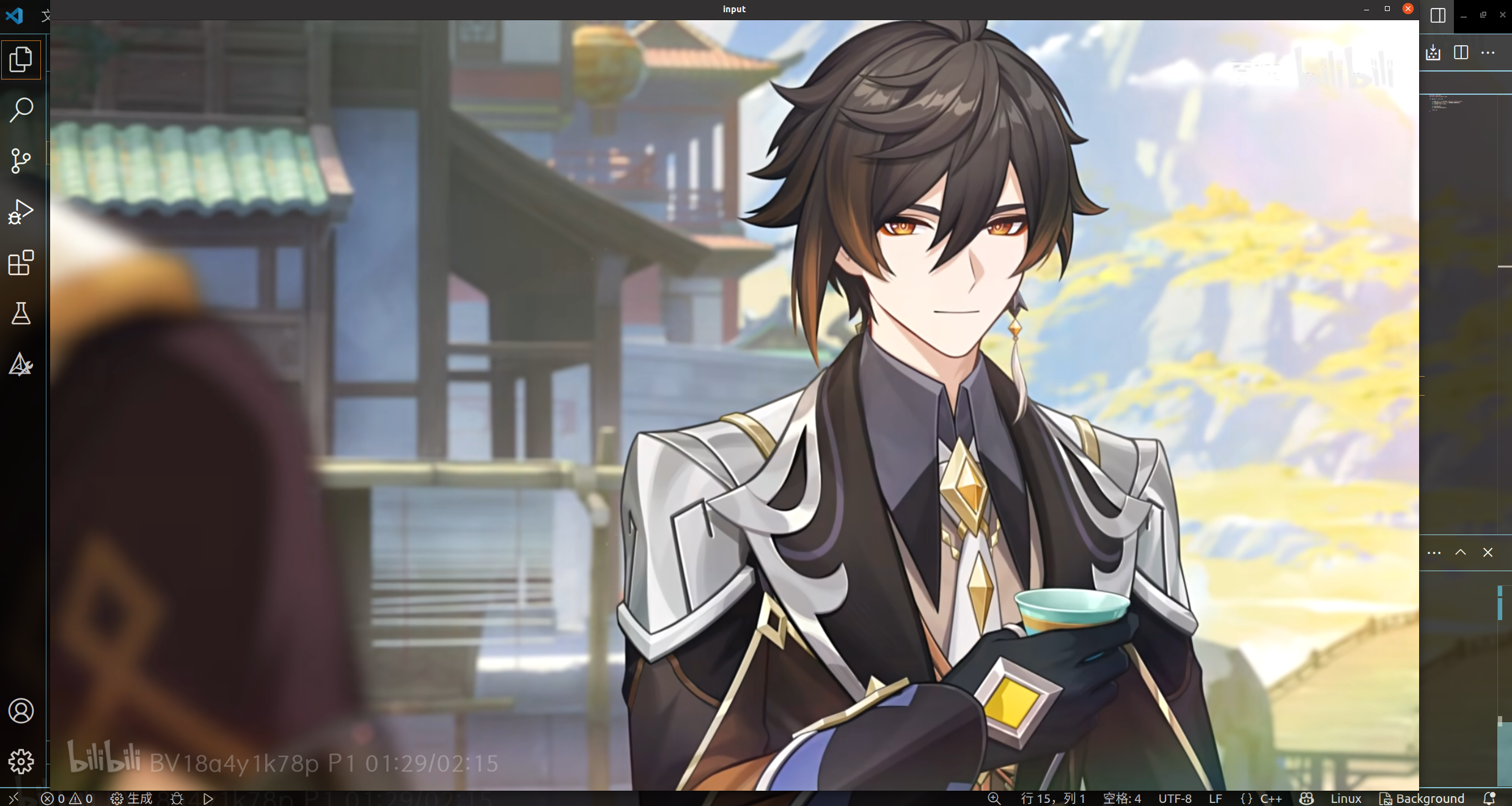

效果如下图
