Java微服务架构设计模式：构建云原生时代的分布式系统

Java微服务架构设计模式：构建云原生时代的分布式系统

在云计算与微服务盛行的时代，分布式系统已成为企业级应用的核心架构。Java凭借其强大的生态系统和成熟的并发模型，在分布式系统开发中占据主导地位。本文将深入解析Java微服务架构的设计模式、实战经验与最佳实践。

一、微服务架构基础与演进

1.1 从单体架构到微服务

传统单体架构面临的主要挑战包括：

• 技术栈僵化：难以采用新技术
• 可扩展性差：只能整体扩展，无法按需缩放
• 交付周期长：微小修改需要整体部署
• 可靠性低：单点故障导致整个系统崩溃

微服务架构通过将应用拆分为一组小型服务解决了这些问题，每个服务：

• 围绕业务能力构建
• 可独立部署和扩展
• 拥有独立的数据存储
• 通过轻量级机制通信

#mermaid-svg-ey1qyBfcRUEVSWg5 {font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-ey1qyBfcRUEVSWg5 .error-icon{fill:#552222;}#mermaid-svg-ey1qyBfcRUEVSWg5 .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-ey1qyBfcRUEVSWg5 .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-ey1qyBfcRUEVSWg5 .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-ey1qyBfcRUEVSWg5 .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-ey1qyBfcRUEVSWg5 .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-ey1qyBfcRUEVSWg5 .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-ey1qyBfcRUEVSWg5 .marker{fill:#333333;stroke:#333333;}#mermaid-svg-ey1qyBfcRUEVSWg5 .marker.cross{stroke:#333333;}#mermaid-svg-ey1qyBfcRUEVSWg5 svg{font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-ey1qyBfcRUEVSWg5 .label{font-family:\"trebuchet ms\",verdana,arial,sans-serif;color:#333;}#mermaid-svg-ey1qyBfcRUEVSWg5 .cluster-label text{fill:#333;}#mermaid-svg-ey1qyBfcRUEVSWg5 .cluster-label span{color:#333;}#mermaid-svg-ey1qyBfcRUEVSWg5 .label text,#mermaid-svg-ey1qyBfcRUEVSWg5 span{fill:#333;color:#333;}#mermaid-svg-ey1qyBfcRUEVSWg5 .node rect,#mermaid-svg-ey1qyBfcRUEVSWg5 .node circle,#mermaid-svg-ey1qyBfcRUEVSWg5 .node ellipse,#mermaid-svg-ey1qyBfcRUEVSWg5 .node polygon,#mermaid-svg-ey1qyBfcRUEVSWg5 .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-ey1qyBfcRUEVSWg5 .node .label{text-align:center;}#mermaid-svg-ey1qyBfcRUEVSWg5 .node.clickable{cursor:pointer;}#mermaid-svg-ey1qyBfcRUEVSWg5 .arrowheadPath{fill:#333333;}#mermaid-svg-ey1qyBfcRUEVSWg5 .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-ey1qyBfcRUEVSWg5 .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-ey1qyBfcRUEVSWg5 .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-ey1qyBfcRUEVSWg5 .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-ey1qyBfcRUEVSWg5 .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-ey1qyBfcRUEVSWg5 .cluster text{fill:#333;}#mermaid-svg-ey1qyBfcRUEVSWg5 .cluster span{color:#333;}#mermaid-svg-ey1qyBfcRUEVSWg5 div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-ey1qyBfcRUEVSWg5 :root{--mermaid-font-family:\"trebuchet ms\",verdana,arial,sans-serif;} 单体应用 网关服务 用户服务 订单服务 产品服务 用户数据库 订单数据库 产品数据库

图：从单体架构到微服务架构的演进

1.2 Java微服务生态体系

Java拥有最完善的微服务开发生态：

组件类型 主流框架 特点 开发框架 Spring Boot 快速开发、自动配置 服务治理 Spring Cloud Netflix 服务发现、熔断器 配置管理 Spring Cloud Config 集中化外部配置 API网关 Spring Cloud Gateway 路由、过滤、负载均衡 分布式追踪 Sleuth + Zipkin 请求链路追踪

二、核心设计模式解析

2.1 服务发现模式

在动态的微服务环境中，服务实例的网络位置是变化的，服务发现机制解决了如何定位服务实例的问题。

2.1.1 客户端发现模式

// 使用Eureka实现客户端服务发现@SpringBootApplication@EnableEurekaClientpublic class UserServiceApplication { public static void main(String[] args) { SpringApplication.run(UserServiceApplication.class, args); }}// 使用DiscoveryClient查找服务实例@Servicepublic class OrderServiceClient { @Autowired private DiscoveryClient discoveryClient; @Autowired private RestTemplate restTemplate; public User getUserById(Long userId) { List<ServiceInstance> instances = discoveryClient.getInstances(\"user-service\"); if (instances.isEmpty()) { throw new IllegalStateException(\"No available user service instances\"); } // 负载均衡策略：随机选择 ServiceInstance instance = instances.get(new Random().nextInt(instances.size())); String url = String.format(\"http://%s:%s/users/%d\", instance.getHost(), instance.getPort(), userId); return restTemplate.getForObject(url, User.class); }}

2.1.2 服务端发现模式

# Kubernetes服务配置示例apiVersion: v1kind: Servicemetadata: name: user-servicespec: selector: app: user-service ports: - protocol: TCP port: 80 targetPort: 8080 type: ClusterIP

// 使用Spring Cloud LoadBalancer实现服务端发现@Configurationpublic class LoadBalancerConfiguration { @Bean @LoadBalanced public RestTemplate restTemplate() { return new RestTemplate(); }}@Servicepublic class OrderService { @Autowired private RestTemplate restTemplate; public User getUserById(Long userId) { // 直接使用服务名，负载均衡由底层基础设施处理 return restTemplate.getForObject( \"http://user-service/users/{userId}\", User.class, userId ); }}

2.2 配置管理模式

微服务需要外部化配置管理，Spring Cloud Config提供了集中化的配置解决方案。

2.2.1 配置服务器实现

// 配置服务器应用@SpringBootApplication@EnableConfigServerpublic class ConfigServerApplication { public static void main(String[] args) { SpringApplication.run(ConfigServerApplication.class, args); }}// application.yml配置spring: cloud: config: server: git: uri: https://github.com/your-org/config-repo search-paths: \'{application}\'

2.2.2 客户端配置获取

// bootstrap.yml (优先于application.yml加载)spring: application: name: user-service cloud: config: uri: http://config-server:8888 fail-fast: true retry: initial-interval: 1000 max-attempts: 6 max-interval: 2000 multiplier: 1.1// 使用@RefreshScope实现配置热更新@Service@RefreshScopepublic class DatabaseConfig { @Value(\"${database.url}\") private String databaseUrl; @Value(\"${database.username}\") private String username; @Value(\"${database.password}\") private String password; // 配置变更时会自动刷新Bean}

2.3 熔断器模式

熔断器防止分布式系统中的级联故障，提供故障恢复能力。

2.3.1 Resilience4j熔断器实现

// 添加依赖：io.github.resilience4j:resilience4j-spring-boot2@Servicepublic class OrderService { private static final Logger logger = LoggerFactory.getLogger(OrderService.class); // 定义熔断器 @Autowired private CircuitBreakerRegistry circuitBreakerRegistry; public User getUserWithCircuitBreaker(Long userId) { CircuitBreaker circuitBreaker = circuitBreakerRegistry .circuitBreaker(\"userService\"); Supplier<User> userSupplier = CircuitBreaker .decorateSupplier(circuitBreaker, () -> getUserById(userId)); Try<User> result = Try.ofSupplier(userSupplier) .recover(throwable -> { logger.warn(\"Fallback triggered due to: {}\", throwable.getMessage()); return getFallbackUser(userId); }); return result.get(); } private User getFallbackUser(Long userId) { // 返回降级数据 return new User(userId, \"Fallback User\", \"fallback@example.com\"); }}// 熔断器配置resilience4j: circuitbreaker: instances: userService: register-health-indicator: true sliding-window-type: COUNT_BASED sliding-window-size: 10 minimum-number-of-calls: 5 wait-duration-in-open-state: 5s permitted-number-of-calls-in-half-open-state: 3 failure-rate-threshold: 50 event-consumer-buffer-size: 10

2.3.2 熔断器状态监控

@RestController@RequestMapping(\"/circuitbreaker\")public class CircuitBreakerMetricsController { @Autowired private CircuitBreakerRegistry circuitBreakerRegistry; @GetMapping(\"/metrics\") public Map<String, Object> getCircuitBreakerMetrics() { Map<String, Object> metrics = new HashMap<>(); circuitBreakerRegistry.getAllCircuitBreakers().forEach(cb -> { CircuitBreaker.Metrics cbMetrics = cb.getMetrics(); Map<String, Object> cbData = new HashMap<>(); cbData.put(\"state\", cb.getState()); cbData.put(\"failureRate\", cbMetrics.getFailureRate()); cbData.put(\"failedCalls\", cbMetrics.getNumberOfFailedCalls()); cbData.put(\"successfulCalls\", cbMetrics.getNumberOfSuccessfulCalls()); cbData.put(\"notPermittedCalls\", cbMetrics.getNumberOfNotPermittedCalls()); metrics.put(cb.getName(), cbData); }); return metrics; }}

2.4 API网关模式

API网关作为系统入口，负责请求路由、组合和协议转换。

2.4.1 Spring Cloud Gateway实现

@SpringBootApplicationpublic class ApiGatewayApplication { public static void main(String[] args) { SpringApplication.run(ApiGatewayApplication.class, args); }}// 路由配置spring: cloud: gateway: routes: - id: user_service_route uri: lb://user-service predicates: - Path=/api/users/** filters: - StripPrefix=1 - name: RequestRateLimiter  args: redis-rate-limiter.replenishRate: 10 redis-rate-limiter.burstCapacity: 20 - name: CircuitBreaker  args: name: userServiceCircuitBreaker fallbackUri: forward:/fallback/user-service - id: order_service_route uri: lb://order-service predicates: - Path=/api/orders/** filters: - StripPrefix=1

2.4.2 自定义网关过滤器

// 身份验证过滤器@Componentpublic class AuthenticationFilter implements GlobalFilter, Ordered { @Autowired private JwtTokenProvider jwtTokenProvider; @Override public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) { ServerHttpRequest request = exchange.getRequest(); // 跳过登录和公开端点 if (request.getURI().getPath().contains(\"/auth/login\") || request.getURI().getPath().contains(\"/public\")) { return chain.filter(exchange); } try { String token = getJwtFromRequest(request); if (token != null && jwtTokenProvider.validateToken(token)) { String username = jwtTokenProvider.getUsernameFromToken(token); addAuthorizationHeaders(exchange, username); return chain.filter(exchange); } } catch (Exception ex) { return onError(exchange, \"Invalid token\", HttpStatus.UNAUTHORIZED); } return onError(exchange, \"Authorization header is missing\", HttpStatus.UNAUTHORIZED); } private String getJwtFromRequest(ServerHttpRequest request) { List<String> headers = request.getHeaders().get(\"Authorization\"); if (headers != null && !headers.isEmpty()) { String bearerToken = headers.get(0); if (bearerToken.startsWith(\"Bearer \")) { return bearerToken.substring(7); } } return null; } private Mono<Void> onError(ServerWebExchange exchange, String err, HttpStatus status) { ServerHttpResponse response = exchange.getResponse(); response.setStatusCode(status); return response.setComplete(); } @Override public int getOrder() { return Ordered.HIGHEST_PRECEDENCE; }}

2.5 分布式追踪模式

分布式追踪帮助理解请求在微服务间的流转，定位性能瓶颈。

2.5.1 Sleuth + Zipkin集成

# 应用配置spring: zipkin: base-url: http://zipkin-server:9411 sender.type: web sleuth: sampler: probability: 1.0 # 生产环境可降低采样率

// 自定义追踪信息@Servicepublic class OrderService { private final Tracer tracer; @Autowired public OrderService(Tracer tracer) { this.tracer = tracer; } public Order createOrder(Order order) { // 创建自定义span Span orderSpan = tracer.nextSpan().name(\"orderProcessing\").start(); try (SpanInScope ws = tracer.withSpanInScope(orderSpan)) { orderSpan.tag(\"order.amount\", order.getAmount().toString()); orderSpan.event(\"order.validation.start\"); // 业务逻辑 validateOrder(order); orderSpan.event(\"order.validation.complete\"); processPayment(order); orderSpan.event(\"order.payment.processed\"); Order savedOrder = saveOrder(order); orderSpan.event(\"order.persisted\"); return savedOrder; } catch (Exception e) { orderSpan.error(e); throw e; } finally { orderSpan.end(); } }}

2.5.2 追踪数据可视化

@Configurationpublic class TracingConfiguration { @Bean public SpanHandler spanHandler() { return new SpanHandler() { @Override public boolean end(TraceContext context, MutableSpan span, Cause cause) { // 添加自定义标签 span.tag(\"service.version\", \"1.0.0\"); span.tag(\"environment\", System.getenv(\"ENV\")); return true; } }; } @Bean public Sampler alwaysSampler() { return Sampler.ALWAYS_SAMPLE; }}

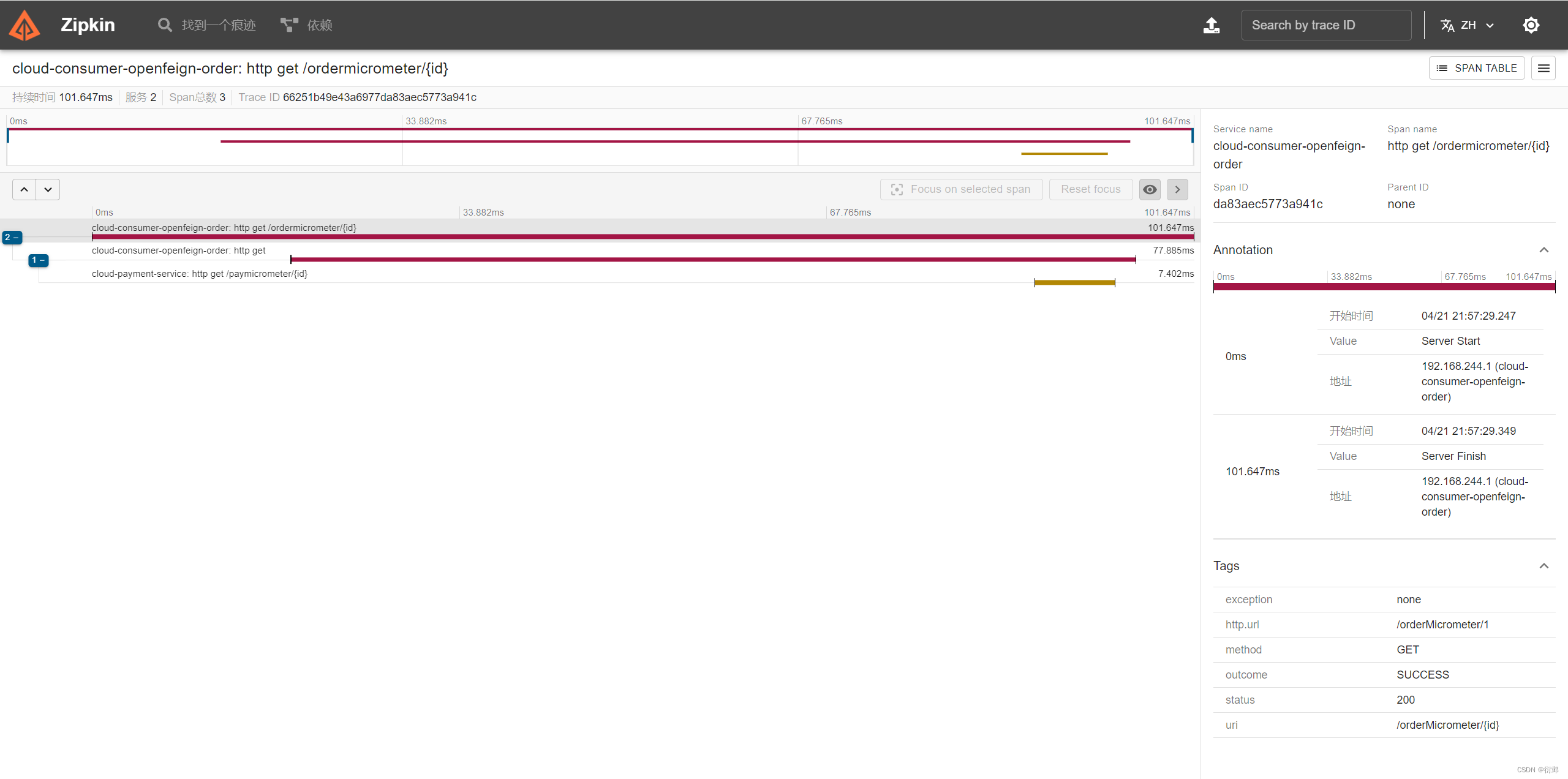

图：Zipkin分布式追踪界面展示

三、数据管理设计模式

3.1 数据库 per Service模式

每个微服务拥有自己的数据库，确保服务间的松耦合。

3.1.1 多数据源配置

// 主数据源配置@Configuration@EnableTransactionManagement@EnableJpaRepositories( basePackages = \"com.example.orderservice.repository\", entityManagerFactoryRef = \"orderEntityManagerFactory\", transactionManagerRef = \"orderTransactionManager\")public class OrderDataSourceConfig { @Bean @ConfigurationProperties(\"spring.datasource.order\") public DataSource orderDataSource() { return DataSourceBuilder.create().build(); } @Bean public LocalContainerEntityManagerFactoryBean orderEntityManagerFactory( EntityManagerFactoryBuilder builder) { return builder .dataSource(orderDataSource()) .packages(\"com.example.orderservice.model\") .persistenceUnit(\"orderPU\") .build(); } @Bean public PlatformTransactionManager orderTransactionManager( @Qualifier(\"orderEntityManagerFactory\") EntityManagerFactory entityManagerFactory) { return new JpaTransactionManager(entityManagerFactory); }}// 应用配置spring: datasource: order: url: jdbc:mysql://localhost:3306/order_db username: order_user password: order_pass driver-class-name: com.mysql.cj.jdbc.Driver user: url: jdbc:mysql://localhost:3306/user_db username: user_user password: user_pass driver-class-name: com.mysql.cj.jdbc.Driver

3.1.2 数据一致性保障

// 使用Transactional注解确保事务性@Servicepublic class OrderService { @Transactional(\"orderTransactionManager\") public Order createOrder(Order order) { // 验证用户存在 if (!userService.existsById(order.getUserId())) { throw new IllegalArgumentException(\"User does not exist\"); } // 保存订单 Order savedOrder = orderRepository.save(order); // 发布领域事件 eventPublisher.publishEvent(new OrderCreatedEvent(savedOrder)); return savedOrder; }}// 领域事件定义public class OrderCreatedEvent { private final Long orderId; private final Long userId; private final BigDecimal amount; private final Instant createdAt; // 构造函数、getter等方法}

3.2 Saga模式

Saga模式管理跨多个服务的分布式事务，确保最终一致性。

3.2.1 编排式Saga实现

// Saga编排器@Componentpublic class CreateOrderSaga { private final SagaManager<CreateOrderSagaData> sagaManager; public CreateOrderSaga(SagaManager<CreateOrderSagaData> sagaManager) { this.sagaManager = sagaManager; } public void createOrder(Order order) { CreateOrderSagaData data = new CreateOrderSagaData(order); sagaManager.create(data, CreateOrderSaga.class); }}// Saga定义public class CreateOrderSaga implements Saga<CreateOrderSagaData> { private final ServiceDiscovery serviceDiscovery; private final CommandProducer commandProducer; public CreateOrderSaga(ServiceDiscovery serviceDiscovery, CommandProducer commandProducer) { this.serviceDiscovery = serviceDiscovery; this.commandProducer = commandProducer; } @Override public SagaDefinition<CreateOrderSagaData> getSagaDefinition() { return sagaDefinition() .step() .withCompensation(this::rejectOrder) .step() .invoke(this::validateCustomer) .withCompensation(this::compensateCustomerValidation) .step() .invoke(this::reserveCredit) .withCompensation(this::compensateCreditReservation) .step() .invoke(this::approveOrder) .build(); } private void validateCustomer(CreateOrderSagaData data) { commandProducer.sendCommand( \"customerService\", \"validateCustomer\", new ValidateCustomerCommand(data.getOrder().getCustomerId()) ); } private void reserveCredit(CreateOrderSagaData data) { commandProducer.sendCommand( \"paymentService\", \"reserveCredit\", new ReserveCreditCommand(data.getOrder().getCustomerId(), data.getOrder().getOrderTotal()) ); } private void rejectOrder(CreateOrderSagaData data) { // 拒绝订单补偿逻辑 } // 其他Saga方法}

3.2.2 协同式Saga实现

// 使用Apache Camel实现协同式Saga@Beanpublic RouteBuilder orderSagaRoute() { return new RouteBuilder() { @Override public void configure() throws Exception { from(\"direct:createOrder\") .saga() .propagation(SagaPropagation.REQUIRES_NEW) .timeout(5, TimeUnit.MINUTES) .compensation(\"direct:cancelOrder\") .option(\"orderId\", header(\"orderId\")) .log(\"Creating order: ${header.orderId}\") .to(\"direct:reserveCredit\") .to(\"direct:updateInventory\") .to(\"direct:confirmOrder\") .log(\"Order created successfully: ${header.orderId}\"); from(\"direct:reserveCredit\") .saga() .propagation(SagaPropagation.MANDATORY) .compensation(\"direct:refundCredit\") .to(\"bean:paymentService?method=reserveCredit\") .log(\"Credit reserved for order: ${header.orderId}\"); from(\"direct:cancelOrder\") .log(\"Cancelling order: ${header.orderId}\") .to(\"bean:orderService?method=cancelOrder\"); from(\"direct:refundCredit\") .log(\"Refunding credit for order: ${header.orderId}\") .to(\"bean:paymentService?method=refundCredit\"); } };}

四、安全设计模式

4.1 JWT认证与授权

JSON Web Token提供无状态的身份验证机制。

4.1.1 JWT工具类实现

@Componentpublic class JwtTokenProvider { @Value(\"${security.jwt.token.secret-key:secret}\") private String secretKey; @Value(\"${security.jwt.token.expire-length:3600000}\") private long validityInMilliseconds; @PostConstruct protected void init() { secretKey = Base64.getEncoder().encodeToString(secretKey.getBytes()); } public String createToken(String username, List<String> roles) { Claims claims = Jwts.claims().setSubject(username); claims.put(\"roles\", roles); Date now = new Date(); Date validity = new Date(now.getTime() + validityInMilliseconds); return Jwts.builder() .setClaims(claims) .setIssuedAt(now) .setExpiration(validity) .signWith(SignatureAlgorithm.HS256, secretKey) .compact(); } public Authentication getAuthentication(String token) { UserDetails userDetails = getUserDetails(token); return new UsernamePasswordAuthenticationToken(userDetails, \"\", userDetails.getAuthorities()); } private UserDetails getUserDetails(String token) { String username = getUsername(token); List<String> roles = getRoles(token); List<SimpleGrantedAuthority> authorities = roles.stream() .map(SimpleGrantedAuthority::new) .collect(Collectors.toList()); return new User(username, \"\", authorities); } public boolean validateToken(String token) { try { Jws<Claims> claims = Jwts.parser().setSigningKey(secretKey).parseClaimsJws(token); return !claims.getBody().getExpiration().before(new Date()); } catch (JwtException | IllegalArgumentException e) { throw new InvalidJwtAuthenticationException(\"Expired or invalid JWT token\"); } } // 其他辅助方法...}

4.1.2 Spring Security配置

@Configuration@EnableWebSecurity@EnableGlobalMethodSecurity(prePostEnabled = true)public class SecurityConfig extends WebSecurityConfigurerAdapter { @Autowired private JwtTokenProvider jwtTokenProvider; @Override protected void configure(HttpSecurity http) throws Exception { http .csrf().disable() .sessionManagement().sessionCreationPolicy(SessionCreationPolicy.STATELESS) .and() .authorizeRequests() .antMatchers(\"/auth/login\").permitAll() .antMatchers(\"/public/**\").permitAll() .antMatchers(\"/admin/**\").hasRole(\"ADMIN\") .anyRequest().authenticated() .and() .apply(new JwtConfigurer(jwtTokenProvider)); } @Bean @Override public AuthenticationManager authenticationManagerBean() throws Exception { return super.authenticationManagerBean(); } @Bean public PasswordEncoder passwordEncoder() { return new BCryptPasswordEncoder(); }}// JWT配置器public class JwtConfigurer extends SecurityConfigurerAdapter<DefaultSecurityFilterChain, HttpSecurity> { private final JwtTokenProvider jwtTokenProvider; public JwtConfigurer(JwtTokenProvider jwtTokenProvider) { this.jwtTokenProvider = jwtTokenProvider; } @Override public void configure(HttpSecurity http) { JwtTokenFilter customFilter = new JwtTokenFilter(jwtTokenProvider); http.addFilterBefore(customFilter, UsernamePasswordAuthenticationFilter.class); }}

4.2 安全通信模式

4.2.1 HTTPS与证书管理

// 配置HTTPS@Configurationpublic class SSLConfig { @Value(\"${server.ssl.key-store:classpath:keystore.p12}\") private Resource keyStore; @Value(\"${server.ssl.key-store-password:password}\") private String keyStorePassword; @Value(\"${server.ssl.key-store-type:PKCS12}\") private String keyStoreType; @Bean public ServletWebServerFactory servletContainer() { TomcatServletWebServerFactory tomcat = new TomcatServletWebServerFactory(); tomcat.addAdditionalTomcatConnectors(createSslConnector()); return tomcat; } private Connector createSslConnector() { Connector connector = new Connector(\"org.apache.coyote.http11.Http11NioProtocol\"); Http11NioProtocol protocol = (Http11NioProtocol) connector.getProtocolHandler(); try { connector.setScheme(\"https\"); connector.setSecure(true); connector.setPort(8443); protocol.setSSLEnabled(true); protocol.setKeystoreFile(keyStore.getFile().getAbsolutePath()); protocol.setKeystorePass(keyStorePassword); protocol.setKeystoreType(keyStoreType); protocol.setKeyAlias(\"tomcat\"); return connector; } catch (IOException ex) { throw new IllegalStateException(\"Failed to set up SSL connector\", ex); } }}

4.2.2 服务间安全认证

// Feign客户端安全配置@Configurationpublic class FeignConfig { @Bean public FeignRequestInterceptor feignRequestInterceptor() { return new FeignRequestInterceptor(); }}@Componentpublic class FeignRequestInterceptor implements RequestInterceptor { @Autowired private JwtTokenProvider jwtTokenProvider; @Override public void apply(RequestTemplate template) { // 获取当前用户token并添加到请求头 Authentication authentication = SecurityContextHolder.getContext().getAuthentication(); if (authentication != null && authentication.isAuthenticated()) { String token = jwtTokenProvider.createToken(authentication.getName(),  authentication.getAuthorities().stream()  .map(GrantedAuthority::getAuthority)  .collect(Collectors.toList())); template.header(\"Authorization\", \"Bearer \" + token); } }}

五、性能优化与可观测性

5.1 缓存策略

5.1.1 多级缓存架构

@Service@CacheConfig(cacheNames = \"users\")public class UserService { @Autowired private UserRepository userRepository; @Autowired private RedisTemplate<String, User> redisTemplate; @Cacheable(key = \"#id\", unless = \"#result == null\") public User getUserById(Long id) { return userRepository.findById(id).orElse(null); } @CachePut(key = \"#user.id\") public User updateUser(User user) { return userRepository.save(user); } @CacheEvict(key = \"#id\") public void deleteUser(Long id) { userRepository.deleteById(id); } // 本地缓存 + Redis分布式缓存 @Cacheable(value = \"userProfile\", key = \"#userId\") public UserProfile getUserProfile(Long userId) { // 先尝试从Redis获取 String redisKey = \"user:profile:\" + userId; UserProfile profile = (UserProfile) redisTemplate.opsForValue().get(redisKey); if (profile == null) { // Redis中没有，从数据库获取 profile = userRepository.findProfileById(userId); if (profile != null) { // 存入Redis，设置过期时间 redisTemplate.opsForValue().set(redisKey, profile, 1, TimeUnit.HOURS); } } return profile; }}

5.1.2 缓存配置

@Configuration@EnableCachingpublic class CacheConfig { @Bean public CacheManager cacheManager(RedisConnectionFactory redisConnectionFactory) { RedisCacheConfiguration defaultConfig = RedisCacheConfiguration.defaultCacheConfig() .entryTtl(Duration.ofMinutes(30)) .disableCachingNullValues() .serializeValuesWith(SerializationPair.fromSerializer(new GenericJackson2JsonRedisSerializer())); return RedisCacheManager.builder(redisConnectionFactory) .cacheDefaults(defaultConfig) .withInitialCacheConfigurations(getCacheConfigurations()) .transactionAware() .build(); } private Map<String, RedisCacheConfiguration> getCacheConfigurations() { Map<String, RedisCacheConfiguration> configMap = new HashMap<>(); configMap.put(\"users\", RedisCacheConfiguration.defaultCacheConfig() .entryTtl(Duration.ofHours(1)) .serializeValuesWith(SerializationPair.fromSerializer(new GenericJackson2JsonRedisSerializer()))); configMap.put(\"products\", RedisCacheConfiguration.defaultCacheConfig() .entryTtl(Duration.ofMinutes(15)) .serializeValuesWith(SerializationPair.fromSerializer(new JdkSerializationRedisSerializer()))); return configMap; } @Bean public RedisTemplate<String, Object> redisTemplate(RedisConnectionFactory redisConnectionFactory) { RedisTemplate<String, Object> template = new RedisTemplate<>(); template.setConnectionFactory(redisConnectionFactory); template.setKeySerializer(new StringRedisSerializer()); template.setValueSerializer(new GenericJackson2JsonRedisSerializer()); return template; }}

5.2 性能监控与指标

5.2.1 Micrometer指标收集

@Configurationpublic class MetricsConfig { @Bean public MeterRegistryCustomizer<MeterRegistry> metricsCommonTags() { return registry -> registry.config().commonTags( \"application\", \"user-service\", \"environment\", System.getenv().getOrDefault(\"ENV\", \"dev\") ); } @Bean public TimedAspect timedAspect(MeterRegistry registry) { return new TimedAspect(registry); }}@Servicepublic class OrderService { private final Counter orderCounter; private final Timer orderProcessingTimer; private final DistributionSummary orderAmountSummary; public OrderService(MeterRegistry registry) { this.orderCounter = registry.counter(\"orders.total\"); this.orderProcessingTimer = registry.timer(\"orders.processing.time\"); this.orderAmountSummary = registry.summary(\"orders.amount.summary\"); } public Order createOrder(Order order) { return orderProcessingTimer.record(() -> { try { // 业务逻辑 Order savedOrder = orderRepository.save(order); // 记录指标 orderCounter.increment(); orderAmountSummary.record(order.getAmount().doubleValue()); return savedOrder; } catch (Exception e) { // 记录错误指标 Metrics.counter(\"orders.errors\", \"reason\", e.getClass().getSimpleName()).increment(); throw e; } }); }}

5.2.2 自定义健康检查

@Componentpublic class DatabaseHealthIndicator implements HealthIndicator { @Autowired private DataSource dataSource; @Override public Health health() { try (Connection connection = dataSource.getConnection()) { if (connection.isValid(1000)) { return Health.up()  .withDetail(\"database\", \"Available\")  .withDetail(\"validationQuery\", \"SELECT 1\")  .build(); } else { return Health.down()  .withDetail(\"database\", \"Not available\")  .withException(new SQLException(\"Connection validation failed\"))  .build(); } } catch (SQLException e) { return Health.down() .withDetail(\"database\", \"Not available\") .withException(e) .build(); } }}@Componentpublic class ServiceHealthIndicator implements HealthIndicator { @Autowired private DiscoveryClient discoveryClient; @Override public Health health() { Map<String, Object> details = new HashMap<>(); // 检查依赖服务状态 List<String> services = discoveryClient.getServices(); details.put(\"total_services\", services.size()); List<String> unhealthyServices = new ArrayList<>(); for (String service : services) { List<ServiceInstance> instances = discoveryClient.getInstances(service); if (instances.isEmpty()) { unhealthyServices.add(service); } } if (unhealthyServices.isEmpty()) { return Health.up() .withDetails(details) .build(); } else { details.put(\"unhealthy_services\", unhealthyServices); return Health.down() .withDetails(details) .build(); } }}

六、部署与运维模式

6.1 Docker容器化部署

6.1.1 Dockerfile最佳实践

# 多阶段构建减少镜像大小FROM eclipse-temurin:17-jdk-jammy as builderWORKDIR /appCOPY . .RUN ./mvnw clean package -DskipTests# 运行时镜像FROM eclipse-temurin:17-jre-jammyWORKDIR /app# 创建非root用户RUN groupadd -r spring && useradd -r -g spring springUSER spring:spring# 复制构建产物COPY --from=builder /app/target/*.jar app.jar# 设置JVM参数ENV JAVA_OPTS=\"-XX:+UseContainerSupport -XX:MaxRAMPercentage=75.0 -XX:+UseG1GC\"# 添加健康检查HEALTHCHECK --interval=30s --timeout=3s --start-period=60s --retries=3 \\ CMD curl -f http://localhost:8080/actuator/health || exit 1# 暴露端口EXPOSE 8080# 启动应用ENTRYPOINT exec java $JAVA_OPTS -jar /app/app.jar

6.1.2 Docker Compose编排

version: \'3.8\'services: # 服务发现 eureka-server: image: user-service-registry:1.0.0 ports: - \"8761:8761\" environment: - SPRING_PROFILES_ACTIVE=docker networks: - microservices-net # 配置服务 config-server: image: user-service-config:1.0.0 ports: - \"8888:8888\" environment: - SPRING_PROFILES_ACTIVE=docker depends_on: - eureka-server networks: - microservices-net # API网关 api-gateway: image: user-service-gateway:1.0.0 ports: - \"8080:8080\" environment: - SPRING_PROFILES_ACTIVE=docker - EUREKA_CLIENT_SERVICE_URL_DEFAULTZONE=http://eureka-server:8761/eureka depends_on: - config-server networks: - microservices-net # 用户服务 user-service: image: user-service:1.0.0 environment: - SPRING_PROFILES_ACTIVE=docker - EUREKA_CLIENT_SERVICE_URL_DEFAULTZONE=http://eureka-server:8761/eureka - SPRING_CLOUD_CONFIG_URI=http://config-server:8888 deploy: replicas: 3 resources: limits: memory: 512M reservations: memory: 256M depends_on: - config-server networks: - microservices-net # 监控服务 monitoring: image: prom/prometheus:latest ports: - \"9090:9090\" volumes: - ./prometheus.yml:/etc/prometheus/prometheus.yml networks: - microservices-net # 可视化 grafana: image: grafana/grafana:latest ports: - \"3000:3000\" environment: - GF_SECURITY_ADMIN_PASSWORD=admin networks: - microservices-netnetworks: microservices-net: driver: bridgevolumes: prometheus-data: grafana-data:

6.2 Kubernetes部署与管理

6.2.1 Kubernetes部署配置

# deployment.yamlapiVersion: apps/v1kind: Deploymentmetadata: name: user-service labels: app: user-servicespec: replicas: 3 selector: matchLabels: app: user-service template: metadata: labels: app: user-service annotations: prometheus.io/scrape: \"true\" prometheus.io/port: \"8080\" prometheus.io/path: \"/actuator/prometheus\" spec: containers: - name: user-service image: user-service:1.0.0 ports: - containerPort: 8080 env: - name: SPRING_PROFILES_ACTIVE value: \"kubernetes\" - name: JAVA_OPTS value: \"-XX:+UseContainerSupport -XX:MaxRAMPercentage=75.0 -Xms256m -Xmx512m\" resources: requests: memory: \"256Mi\" cpu: \"250m\" limits: memory: \"512Mi\" cpu: \"500m\" livenessProbe: httpGet: path: /actuator/health/liveness port: 8080 initialDelaySeconds: 60 periodSeconds: 10 readinessProbe: httpGet: path: /actuator/health/readiness port: 8080 initialDelaySeconds: 30 periodSeconds: 5---# service.yamlapiVersion: v1kind: Servicemetadata: name: user-servicespec: selector: app: user-service ports: - port: 8080 targetPort: 8080 type: ClusterIP---# ingress.yamlapiVersion: networking.k8s.io/v1kind: Ingressmetadata: name: user-service-ingress annotations: nginx.ingress.kubernetes.io/rewrite-target: /spec: rules: - host: user-service.example.com http: paths: - path: / pathType: Prefix backend: service: name: user-service port:  number: 8080

6.2.2 Horizontal Pod Autoscaler配置

apiVersion: autoscaling/v2kind: HorizontalPodAutoscalermetadata: name: user-service-hpaspec: scaleTargetRef: apiVersion: apps/v1 kind: Deployment name: user-service minReplicas: 2 maxReplicas: 10 metrics: - type: Resource resource: name: cpu target: type: Utilization averageUtilization: 70 - type: Resource resource: name: memory target: type: Utilization averageUtilization: 80 - type: Pods pods: metric: name: transactions_per_second target: type: AverageValue averageValue: 1k behavior: scaleUp: stabilizationWindowSeconds: 60 policies: - type: Pods value: 2 periodSeconds: 60 - type: Percent value: 10 periodSeconds: 60 scaleDown: stabilizationWindowSeconds: 300 policies: - type: Pods value: 1 periodSeconds: 60

七、未来发展趋势

7.1 服务网格(Service Mesh)

服务网格将微服务通信、安全性和可观测性抽象到基础设施层。

# Istio VirtualService示例apiVersion: networking.istio.io/v1beta1kind: VirtualServicemetadata: name: user-servicespec: hosts: - user-service http: - route: - destination: host: user-service subset: v1 weight: 90 - destination: host: user-service subset: v2 weight: 10 - fault: delay: percentage: value: 10 fixedDelay: 3s timeout: 2s

7.2 无服务器架构(Serverless)

Java函数即服务(FaaS)的发展：

// Spring Cloud Function示例@SpringBootApplicationpublic class FunctionApplication { public static void main(String[] args) { SpringApplication.run(FunctionApplication.class, args); } @Bean public Function<User, ApiResponse> createUser() { return user -> { // 业务逻辑 User savedUser = userService.save(user); return new ApiResponse(\"User created successfully\", savedUser); }; } @Bean public Consumer<Event> processEvent() { return event -> { // 处理事件 eventProcessor.process(event); }; } @Bean public Supplier<List<User>> getUsers() { return () -> userService.getAllUsers(); }}

7.3 AI驱动的运维

机器学习在微服务运维中的应用：

// 异常检测示例@Servicepublic class AnomalyDetectionService { @Autowired private MeterRegistry meterRegistry; private final Map<String, Double> baselineMetrics = new ConcurrentHashMap<>(); @Scheduled(fixedRate = 60000) public void detectAnomalies() { // 收集当前指标 Map<String, Double> currentMetrics = collectMetrics(); // 与基线比较 for (Map.Entry<String, Double> entry : currentMetrics.entrySet()) { String metricName = entry.getKey(); Double currentValue = entry.getValue(); Double baselineValue = baselineMetrics.get(metricName); if (baselineValue != null) { double deviation = Math.abs((currentValue - baselineValue) / baselineValue); if (deviation > 0.3) { // 30%偏差  alertService.sendAlert(new AnomalyAlert(metricName, currentValue, baselineValue, deviation)); } } // 更新基线（指数加权移动平均） updateBaseline(metricName, currentValue); } } private Map<String, Double> collectMetrics() { Map<String, Double> metrics = new HashMap<>(); // 收集响应时间指标 Timer responseTimeTimer = meterRegistry.find(\"http.server.requests\").timer(); if (responseTimeTimer != null) { metrics.put(\"response_time_mean\", responseTimeTimer.mean(TimeUnit.MILLISECONDS)); } // 收集错误率指标 Counter errorCounter = meterRegistry.find(\"http.server.errors\").counter(); if (errorCounter != null) { metrics.put(\"error_rate\", errorCounter.count()); } return metrics; } private void updateBaseline(String metricName, Double currentValue) { baselineMetrics.compute(metricName, (key, oldValue) -> { if (oldValue == null) { return currentValue; } // EWMA: α=0.1 return 0.9 * oldValue + 0.1 * currentValue; }); }}

结论

Java微服务架构已经成为构建现代分布式系统的标准方法。通过合理应用设计模式、充分利用Spring Cloud生态系统、实施有效的监控和运维策略，可以构建出高可用、可扩展且易于维护的微服务系统。

未来，随着服务网格、无服务器计算和AI驱动运维等技术的发展，Java微服务架构将继续演进，为企业提供更强大、更智能的分布式系统解决方案。

关键成功因素：

1. 合适的粒度：服务拆分要平衡内聚性和通信开销
2. 自动化运维：完善的CI/CD和监控体系
3. 文化转变：DevOps和持续改进的文化
4. 技术选型：选择成熟且适合团队的技术栈

---

参考资源：

1. Spring Cloud官方文档
2. Microservices.io设计模式
3. Kubernetes官方文档
4. Istio服务网格
5. Martin Fowler的微服务文章
