我的第一个开源项目-jenkins集成k8s项目

技术文档

文章目录

一、Jenkins 实现 K8S 持续集成项目架构图
- 1.gitlab项目部署
- - 1.1 gitlab的Service资源清单
  - 1.2 编写gitlab的StatefulSet资源清单
  - 1.3 创建gitlab的sc
  - 1.4 创建gitlab的pvc
  - 1.5 创建gitlab的ingress
- 2.部署sonarqube
- - 2.1 部署依赖的数据库 pgsql
  - 2.2 创建pgsql的sts
  - 2.3 创建pgsql的sc
  - 2.4 创建pgsql的pvc
  - 2.5 创建sc
  - 2.6 创建sonarqube-svc
  - 2.7 部署sonarqube
  - 2.8 创建sonarqube的ingress规则
- 3.jenkins部署
- - 3.1 (Jenkins不需要数据库，数据存在本地，StatefulSet部署)
  - 3.2 创建 Jenkins master 的 svc
  - 3.3 Jenkins 创建 statefulset
  - 3.4 创建 Jenkins 的 Ingress
- 4.dockerfile 镜像制作
- - 4.1 Jenkins 镜像模板
  - 4.2 Maven 镜像模板
  - 4.3 SonarQube Scanner 镜像模板
  - 4.4 Kubernetes Agent 镜像模板
  - 4.5 GitLab 镜像模板
  - 4.6 PostgreSQL 镜像模板
- 5. jenkins的pipeline流水线
项目总结：

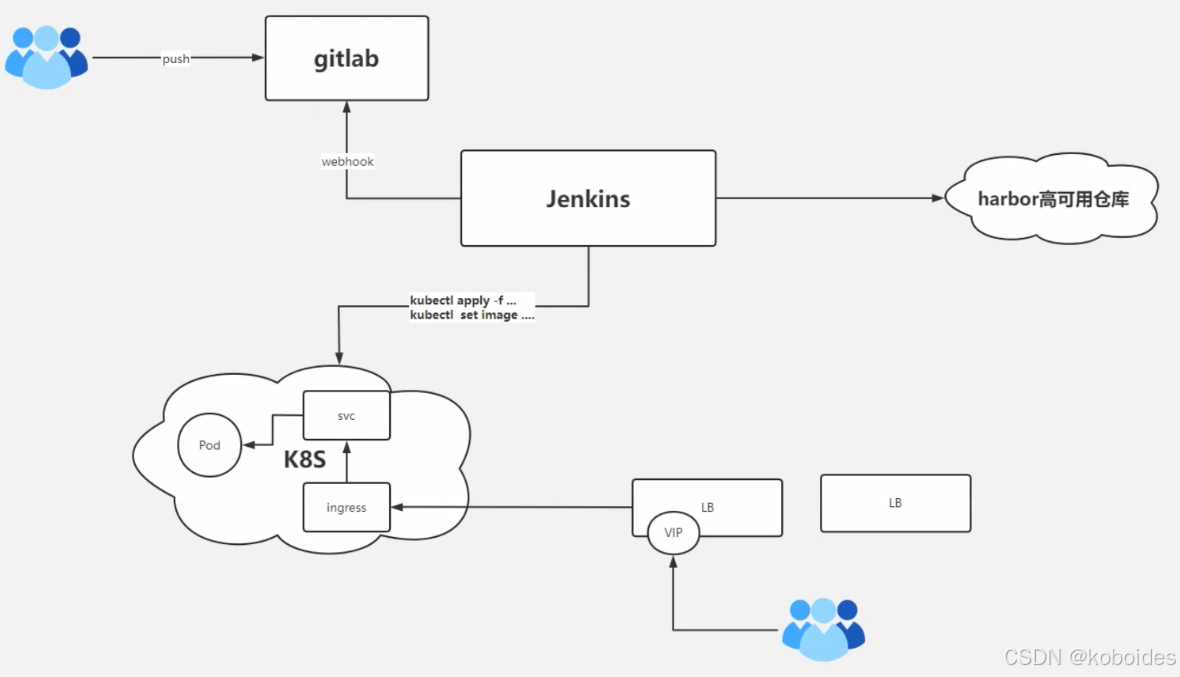

一、Jenkins 实现 K8S 持续集成项目架构图

我的第一个开源项目-jenkins集成k8s项目

1.gitlab项目部署

1.1 gitlab的Service资源清单

## 创建项目专用命名空间[root@k8s-master01 ~]# kubectl create namespace devopsnamespace/devops created## gitlab是有状态服务，需要使用StatefulSet部署`在这里插入代码片`## StatefulSet需要依赖svc无头服务[root@k8s-master01 ~]# mkdir /devops[root@k8s-master01 ~]# cd /devops/[root@k8s-master01 devops]# vim 01-gitlab-svc.yaml ## 创建无头svcapiVersion: v1kind: Servicemetadata: name: svc-gitlab namespace: devopsspec: clusterIP: None selector: app: gitlab ports: - name: http port: 80 targetPort: 80 - name: https port: 443 targetPort: 443

1.2 编写gitlab的StatefulSet资源清单

[root@k8s-master01 devops]# vim 02-gitlab-sts.yamlapiVersion: apps/v1kind: StatefulSetmetadata: name: gitlab namespace: devopsspec: serviceName: \"svc-gitlab\" selector: matchLabels: app: gitlab template: metadata: labels: app: gitlab spec: containers: - name: gitlab-ce image: 10.0.0.200/devops/gitlab-ce:14.6.0-ce.0 imagePullPolicy: IfNotPresent env: - name: GITLAB_ROOT_PASSWORD  value: \"admin123\" - name: GITLAB_OMNIBUS_CONFIG  value: | external_url \"http://www.gitlab.com\" gitlab_rails[\'time_zone\'] = \'Asia/Shanghai\' node_exporter[\'enable\'] = false redis_exporter[\'enable\'] = false postgres_exporter[\'enable\'] = false gitlab_exporter[\'enable\'] = false grafana[\'enable\'] = false grafana[\'reporting_enabled\'] = false prometheus[\'enable\'] = false prometheus[\'monitor_kubernetes\'] = false ports: - name: http  containerPort: 80 - name: https  containerPort: 443 volumeMounts: - name: data  mountPath: /etc/gitlab  subPath: config - name: data  mountPath: /var/opt/gitlab  subPath: data - name: data  mountPath: /var/log/gitlab  subPath: logs volumes: - name: data persistentVolumeClaim: claimName: pvc-gitlab

1.3 创建gitlab的sc

[root@k8s-master01 devops]# cat /manifests/csi/sc-devops.yamlapiVersion: storage.k8s.io/v1kind: StorageClassmetadata: name: sc-devopsprovisioner: rbd.csi.ceph.comparameters: clusterID: 571a3bbf-1ac1-4859-949c-2b9fc5655d3 pool: devops imageFeatures: layering csi.storage.k8s.io/provisioner-secret-name: csi-rbd-secret csi.storage.k8s.io/provisioner-secret-namespace: default csi.storage.k8s.io/controller-expand-secret-name: csi-rbd-secret csi.storage.k8s.io/controller-expand-secret-namespace: default csi.storage.k8s.io/node-stage-secret-name: csi-rbd-secret csi.storage.k8s.io/node-stage-secret-namespace: defaultreclaimPolicy: DeleteallowVolumeExpansion: truemountOptions: - discard

1.4 创建gitlab的pvc

[root@k8s-master01 devops]# vim 03-gitlab-pvc.yamlapiVersion: v1kind: PersistentVolumeClaimmetadata: name: pvc-gitlab namespace: devopsspec: accessModes: - ReadWriteOnce volumeMode: Filesystem resources: requests: storage: 30Gi storageClassName: sc-devops

1.5 创建gitlab的ingress

[root@k8s-master01 devops]# vim 04-gitlab-ingress.yamlapiVersion: networking.k8s.io/v1kind: Ingressmetadata: name: ingress-gitlab namespace: devopsspec: ingressClassName: \"nginx\" rules: - host: www.gitlab.com http: paths: - path: / pathType: Prefix backend:  service: name: svc-gitlab port:  name: http## windows hosts 域名解析10.103.236.201 www.gitlab.com

2.部署sonarqube

2.1 部署依赖的数据库 pgsql

[root@k8s-master01 devops]# mkdir sonarqube[root@k8s-master01 devops]# cd sonarqube/## pgsql的svc[root@k8s-master01 sonarqube]# vim 01-pgsql-svc.yamlapiVersion: v1kind: Servicemetadata: name: svc-pgsql namespace: devopsspec: clusterIP: None selector: app: pgsql ports: - port: 5432 targetPort: 5432

2.2 创建pgsql的sts

[root@k8s-master01 sonarqube]# vim 02-pgsql-sts.yamlapiVersion: apps/v1kind: StatefulSetmetadata: name: psetgresql namespace: devopsspec: serviceName: svc-pgsql replicas: 1 selector: matchLabels: app: pgsql template: metadata: labels: app: pgsql spec: containers: - name: postgres image: 10.0.0.200/devops/postgres:13.8 ports: - containerPort: 5432 env: - name: POSTGRES_DB  value: sonardb - name: POSTGRES_USER  value: sonar - name: POSTGRES_PASSWORD  value: \"123456\" volumeMounts: - name: db  mountPath: /var/lib/postgresql/data  subPath: data - name: db  mountPath: /var/run/secrets/kubernetes.io/serviceaccount  subPath: serviceaccount volumes: - name: db persistentVolumeClaim: claimName: pvc-pgsql

2.3 创建pgsql的sc

[root@k8s-master01 devops]# cat /manifests/csi/sc-pgsql.yamlapiVersion: storage.k8s.io/v1kind: StorageClassmetadata: name: sc-pgsqlprovisioner: rbd.csi.ceph.comparameters: clusterID: 571a3bbf-1ac1-4859-949c-2b9fc5655d3 pool: pgsql imageFeatures: layering csi.storage.k8s.io/provisioner-secret-name: csi-rbd-secret csi.storage.k8s.io/provisioner-secret-namespace: default csi.storage.k8s.io/controller-expand-secret-name: csi-rbd-secret csi.storage.k8s.io/controller-expand-secret-namespace: default csi.storage.k8s.io/node-stage-secret-name: csi-rbd-secret csi.storage.k8s.io/node-stage-secret-namespace: defaultreclaimPolicy: DeleteallowVolumeExpansion: truemountOptions: - discard

2.4 创建pgsql的pvc

[root@k8s-master01 devops]# vim 03-pgsql-pvc.yamlapiVersion: v1kind: PersistentVolumeClaimmetadata: name: pvc-pgsql namespace: devopsspec: accessModes: - ReadWriteOnce volumeMode: Filesystem resources: requests: storage: 30Gi storageClassName: sc-pgsql## ceph 创建 pool[root@node-1 ~]# ceph osd pool create pgsql 16 16pool \'pgsql\' created

2.5 创建sc

[root@k8s-master01 sonarqube]# cat sc-pgsql.yamlapiVersion: storage.k8s.io/v1kind: StorageClassmetadata: name: sc-pgsqlprovisioner: rbd.csi.ceph.comparameters: clusterID: 571a3bbf-1ac1-4859-949c-2b9fc5655d3 pool: pgsql imageFeatures: layering csi.storage.k8s.io/provisioner-secret-name: csi-rbd-secret csi.storage.k8s.io/provisioner-secret-namespace: default csi.storage.k8s.io/controller-expand-secret-name: csi-rbd-secret csi.storage.k8s.io/controller-expand-secret-namespace: default csi.storage.k8s.io/node-stage-secret-name: csi-rbd-secret csi.storage.k8s.io/node-stage-secret-namespace: defaultreclaimPolicy: DeleteallowVolumeExpansion: truemountOptions: - discard## 进入pgsql验证[root@k8s-master01 sonarqube]# kubectl exec -it -n devops postgresql-0 -- bashroot@postgresql-0:/# psql -Usonar -d sonardbsonardb=# \\l List of databases Name | Owner | Encoding | Collate | Ctype | Access privileges-----------+-------+----------+-------------+-------------+------------------- postgres | sonar | UTF8 | en_US.utf8 | en_US.utf8 | sonardb | sonar | UTF8 | en_US.utf8 | en_US.utf8 | =c/sonar +  | | | | | sonar=CTc/sonar template0 | sonar | UTF8 | en_US.utf8 | en_US.utf8 | =c/sonar +  | | | | | sonar=CTc/sonar template1 | sonar | UTF8 | en_US.utf8 | en_US.utf8 | =c/sonar +  | | | | | sonar=CTc/sonar

2.6 创建sonarqube-svc

[root@k8s-master01 sonarqube]# vim 04-sonarqube-svc.yamlapiVersion: v1kind: Servicemetadata: name: svc-sonarqube namespace: devopsspec: clusterIP: None selector: app: sonarqube ports: - name: web port: 9000 targetPort: 9000

2.7 部署sonarqube

[root@k8s-master01 sonarqube]# vim 05-sonarqube-sts.yamlapiVersion: apps/v1kind: StatefulSetmetadata: name: sonarqube namespace: devopsspec: serviceName: svc-sonarqube selector: matchLabels: app: sonarqube template: metadata: labels: app: sonarqube spec: initContainers: - name: set-kernel image: busybox command: [\"sh\", \"-c\", \"sysctl -w vm.max_map_count=524288 ; sysctl -w fs.file-max=131072 ; ulimit -n 131072 ; ulimit -u 8192\"] securityContext: privileged: true containers: - name: sonarqube image: 10.0.0.200/devops/sonarqube:9.7-community ports: - name: web  containerPort: 9000 env: - name: JAVA_OPTS  value: -Duser.timezone=Asia/Shanghai - name: SONARQUBE_JDBC_USERNAME  value: sonar ## 连接pgsql用户名 - name: SONARQUBE_JDBC_PASSWORD  value: \"123456\" ## 连接pgsql密码 - name: SONARQUBE_JDBC_URL  value: jdbc:postgresql://svc-pgsql:5432/sonardb resources: limits:  cpu: 1500m  memory: 2048Mi volumeMounts: - name: data  mountPath: /opt/sonarqube/data  subPath: data - name: data  mountPath: /opt/sonarqube/logs  subPath: logs - name: data  mountPath: /opt/sonarqube/extensions  subPath: extensions - name: data  mountPath: /var/run/secrets/kubernetes.io/serviceaccount  subPath: serviceaccount volumeClaimTemplates: - metadata:  name: data  namespace: devops spec:  accessModes: - ReadWriteOnce  storageClassName: \"sc-devops\"  resources: requests:  storage: 50Gi

2.8 创建sonarqube的ingress规则

[root@k8s-master01 sonarqube]# vim 06-sonarqube-ingress.yamlapiVersion: networking.k8s.io/v1kind: Ingressmetadata: name: ingress-sonarqube namespace: devopsspec: ingressClassName: \"nginx\" rules: - host: www.sonarqube.com http: paths: - path: / pathType: Prefix backend:  service: name: svc-sonarqube port:  number: 9000##web浏览器访问www.sonarqube.com(记得解析)账号 admin 密码 admin 登陆后密码改为 123456

3.jenkins部署

3.1 (Jenkins不需要数据库，数据存在本地，StatefulSet部署)

Jenkins 需要创建 Slave Pod 来执行流水线构建，这就需要与 apiserver 交互，所以就需要 RBAC 权限[root@k8s-master01 devops]# pwd/devops[root@k8s-master01 devops]# mkdir jenkins[root@k8s-master01 devops]# cd jenkins/[root@k8s-master01 jenkins]# vim 01-jenkins-rbac.yamlapiVersion: v1kind: ServiceAccountmetadata: name: jenkins namespace: devops ---kind: ClusterRoleapiVersion: rbac.authorization.k8s.io/v1metadata: name: jenkinsrules:- apiGroups: [\"extensions\", \"apps\"] resources: [\"deployments\", \"ingresses\"] verbs: [\"create\", \"delete\", \"get\", \"list\", \"watch\", \"patch\", \"update\"]- apiGroups: [\"\"] resources: [\"services\"] verbs: [\"create\", \"delete\", \"get\", \"list\", \"watch\", \"patch\", \"update\"]- apiGroups: [\"\"] resources: [\"pods\"] verbs: [\"create\", \"delete\", \"get\", \"list\", \"patch\", \"update\", \"watch\"]- apiGroups: [\"\"] resources: [\"pods/exec\"] verbs: [\"create\", \"delete\", \"get\", \"list\", \"patch\", \"update\", \"watch\"]- apiGroups: [\"\"] resources: [\"pods/log\", \"events\"] verbs: [\"get\", \"list\", \"watch\"]- apiGroups: [\"\"] resources: [\"secrets\"] verbs: [\"get\"]---apiVersion: rbac.authorization.k8s.io/v1kind: ClusterRoleBindingmetadata: name: jenkins namespace: devopsroleRef: apiGroup: rbac.authorization.k8s.io kind: ClusterRole name: jenkinssubjects:- kind: ServiceAccount name: jenkins namespace: devops[root@k8s-master01 jenkins]# kubectl create -f 01-jenkins-rbac.yaml

3.2 创建 Jenkins master 的 svc

[root@k8s-master01 jenkins]# vim 02-jenkins-svc.yamlapiVersion: v1kind: Servicemetadata: name: svc-jenkins namespace: devopsspec: clusterIP: None selector: app: jenkins ports: - name: http port: 8080 targetPort: 8080 - name: agent port: 50000 targetPort: 50000

3.3 Jenkins 创建 statefulset

[root@k8s-master01 jenkins]# vim 03-jenkins-sts.yamlapiVersion: apps/v1kind: StatefulSetmetadata: name: jenkins namespace: devopsspec: serviceName: svc-jenkins selector: matchLabels: app: jenkins template: metadata: labels: app: jenkins spec: serviceAccount: jenkins containers: - name: jenkins image: 10.0.0.200/devops/jenkins:2.346.3-2-lts imagePullPolicy: IfNotPresent securityContext: privileged: true runAsUser: 0 env: - name: JAVA_OPTS value: -Duser.timezone=Asia/Shanghai ports: - name: http containerPort: 8080 - name: agent containerPort: 50000 resources: limits: cpu: 1500m memory: 2048Mi readinessProbe: httpGet: path: /login port: 8080 initialDelaySeconds: 60 timeoutSeconds: 5 failureThreshold: 12 volumeMounts: - name: data mountPath: /var/jenkins_home subPath: jenkins_home volumeClaimTemplates: - metadata: name: data spec: accessModes: [\"ReadWriteOnce\"] storageClassName: \"sc-devops\" resources: requests: storage: 20Gi

3.4 创建 Jenkins 的 Ingress

apiVersion: networking.k8s.io/v1kind: Ingressmetadata: name: ingress-jenkins namespace: devopsspec: ingressClassName: \"nginx\" rules: - host: www.jenkins.com http: paths: - path: / pathType: Prefix backend: service: name: svc-jenkins port:  name: http## windows hosts 解析这个域名## 查看jenkins密码安装 Jenkins 插件：（这些又有的可能安装失败，其他安装完成后重启 jenkins 再装一遍，然后记得再已安装中降级一下，不然可能会有兼容性问题）中文插件：Localization: Chinese (Simplified) Git 插件：git, gitlab Sonar 插件：SonarQube Scanner（这是一个） Pipeline 插件：pipeline、Stage View、Blue Ocean Kubernetes 插件：Kubernetes

4.dockerfile 镜像制作

4.1 Jenkins 镜像模板

## JenkinsFROM 10.0.0.200/devops/jenkins:2.346.3-2-ltsUSER root# 设置时区RUN /bin/cp /usr/share/zoneinfo/Asia/Shanghai /etc/localtime && \\ echo \"Asia/Shanghai\" > /etc/timezone# 安装必要工具RUN apt-get update && \\ apt-get install -y fontconfig git curl unzip nfs-common && \\ rm -rf /var/lib/apt/lists/*# 配置 Jenkins 插件（可选）COPY plugins.txt /usr/share/jenkins/ref/plugins.txtRUN jenkins-plugin-cli --plugin-file /usr/share/jenkins/ref/plugins.txt# 挂载目录VOLUME [\"/var/jenkins_home\"]EXPOSE 8080 50000ENTRYPOINT [\"/usr/bin/tini\", \"--\", \"/usr/local/bin/jenkins.sh\"]

4.2 Maven 镜像模板

## MavenFROM 10.0.0.200/pipeline/maven:3.8.6-openjdk-8ADD ./settings_docker.xml /usr/share/maven/conf/settings.xmlRUN /bin/cp /usr/share/zoneinfo/Asia/Shanghai /etc/localtime && \\ apt-get update && \\ apt-get install -y nfs-utils && \\ rm -rf /var/lib/apt/lists/*# 构建命令# docker build -t 10.0.0.200/pipeline/maven:3.8.6-openjdk-8 .

4.3 SonarQube Scanner 镜像模板

## SonarQube ScannerFROM 10.0.0.200/devops/sonar-scanner:4.8# 设置时区RUN /bin/cp /usr/share/zoneinfo/Asia/Shanghai /etc/localtime && \\ apt-get update && \\ apt-get install -y nfs-common && \\ rm -rf /var/lib/apt/lists/*# 配置 SonarQube 扫描器参数COPY sonar-scanner.properties /opt/sonar-scanner/conf/sonar-scanner.propertiesENTRYPOINT [\"/opt/sonar-scanner/bin/sonar-scanner\"]

4.4 Kubernetes Agent 镜像模板

## Kubernetes Jenkins AgentFROM 10.0.0.200/devops/jenkins-agent:latestUSER rootRUN /bin/cp /usr/share/zoneinfo/Asia/Shanghai /etc/localtime && \\ apt-get update && \\ apt-get install -y nfs-common git curl && \\ rm -rf /var/lib/apt/lists/*ENTRYPOINT [\"/usr/local/bin/jenkins-agent\"]

4.5 GitLab 镜像模板

## GitLabFROM 10.0.0.200/devops/gitlab-ce:15.3.2-ce.0# 设置时区RUN ln -sf /usr/share/zoneinfo/Asia/Shanghai /etc/localtime && \\ echo \"Asia/Shanghai\" > /etc/timezone# 安装必要工具RUN apt-get update && \\ apt-get install -y curl vim nfs-common && \\ rm -rf /var/lib/apt/lists/*# 配置 GitLab（可选）# COPY gitlab.rb /etc/gitlab/gitlab.rb# RUN gitlab-ctl reconfigureEXPOSE 80 443 22VOLUME [\"/etc/gitlab\", \"/var/log/gitlab\", \"/var/opt/gitlab\"]

4.6 PostgreSQL 镜像模板

## PostgreSQLFROM 10.0.0.200/devops/postgres:13# 设置时区RUN ln -sf /usr/share/zoneinfo/Asia/Shanghai /etc/localtime && \\ echo \"Asia/Shanghai\" > /etc/timezone# 安装必要工具RUN apt-get update && \\ apt-get install -y nfs-common && \\ rm -rf /var/lib/apt/lists/*# 复制初始化 SQL（可选）# COPY init.sql /docker-entrypoint-initdb.d/ENV POSTGRES_USER=gitlabENV POSTGRES_PASSWORD=gitlab123ENV POSTGRES_DB=gitlabhq_productionEXPOSE 5432VOLUME [\"/var/lib/postgresql/data\"]

5. jenkins的pipeline流水线

pipeline { agent any environment { NAME = \"全局变量\" VERSION = \"1.0.0\" REGISTRY = \"10.0.0.200\" // 镜像仓库地址 IMAGE_NAME = \"pipeline-app\" // 项目镜像名称 KUBE_CONFIG = credentials(\'kubeconfig-cred\') // Jenkins 中配置的 kubeconfig 凭证 } options { buildDiscarder(logRotator(daysToKeepStr: \'5\', numToKeepStr: \'10\')) disableConcurrentBuilds() skipDefaultCheckout(true) timestamps() } parameters { string(name: \'Version\', defaultValue: \'1.1.1\', description: \'版本号\', trim: true) choice(name: \'EnvType\', choices: [\'dev\', \'prod\'], description: \'选择部署环境\') } stages { stage(\'Select Environment\') { steps { script {  def userInput = input( message: \'选择部署的环境\', ok: \'提交\', parameters: [ choice(name: \'EnvType\', choices: [\'dev\', \'prod\'], description: \'部署环境\') ]  )  env.EnvType = userInput } } } stage(\'Checkout Code\') { steps { checkout scm } } stage(\'Build Docker Image\') { steps { script {  sh \"\"\"  docker build -t ${REGISTRY}/${IMAGE_NAME}:${params.Version} .  \"\"\" } } } stage(\'Push Docker Image\') { steps { script {  sh \"\"\"  docker login ${REGISTRY} -u admin -p admin123  docker push ${REGISTRY}/${IMAGE_NAME}:${params.Version}  \"\"\" } } } stage(\'Deploy to Kubernetes\') { steps { script {  writeFile file: \'k8s-deploy.yaml\', text: \"\"\"apiVersion: apps/v1kind: Deploymentmetadata: name: ${IMAGE_NAME} namespace: ${params.EnvType}spec: replicas: 1 selector: matchLabels: app: ${IMAGE_NAME} template: metadata: labels: app: ${IMAGE_NAME} spec: containers: - name: ${IMAGE_NAME} image: ${REGISTRY}/${IMAGE_NAME}:${params.Version} ports: - containerPort: 8080---apiVersion: v1kind: Servicemetadata: name: ${IMAGE_NAME} namespace: ${params.EnvType}spec: selector: app: ${IMAGE_NAME} ports: - port: 80 targetPort: 8080\"\"\"  sh \"\"\"  kubectl --kubeconfig=${KUBE_CONFIG} apply -f k8s-deploy.yaml  \"\"\" } } } } post { success { echo \"部署成功: ${IMAGE_NAME}:${params.Version} -> 环境: ${params.EnvType}\" } failure { echo \"部署失败，请检查构建日志。\" } }}

我的第一个开源项目-jenkins集成k8s项目

项目总结：

本次项目构建了一套完整的 DevOps 平台，核心包含 GitLab 代码托管、Jenkins CI/CD 流水线、SonarQube 质量检测、Postgres 持久化存储，并基于 Kubernetes 实现了容器化部署和弹性伸缩。从代码提交到上线可以实现一键化自动构建、检测与部署，大幅缩短了交付周期，提升了代码质量与系统稳定性，为后续业务的快速迭代提供了坚实保障
