使用uniapp内置组件webview消息传递_uni.postmessage is not a function

web-view是uni-app的一个内置组件,可以在应用里打开指定的网页,应用和网页之间可以收发消息。

官方文档地址:官网>文档>组件>内置组件>web-view

目录:

  • 1.调用uni.postMessage被告知方法不存在(uni.postMessage is not a function)
  • 2.H5无法接收消息
  • 3.根据官方文档中的示例编写HTML页面
  • 4.VUE项目作为网页端调用uni.postMessage方法

1.调用uni.postMessage被告知方法不存在(uni.postMessage is not a function)

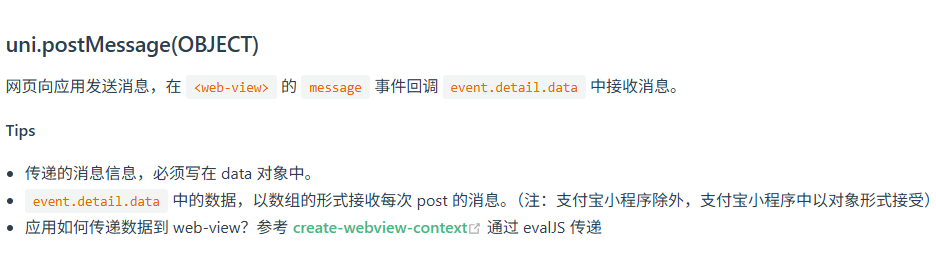

官方文档web-view有几个相关方法,**uni.postMessage(OBJECT)**的描述是:网页向应用发送消息:

使用uniapp内置组件webview消息传递_uni.postmessage is not a function

web-view是uniapp内置组件,并有自带的方法可以支持消息传递,考虑到uniapp本身可以发布成H5网页,所以就直接创建了一个新的uniapp项目,用来做跳转目标网页。

直接在新项目index页面测试:

<template><button type=\"button\" @click=\"sendMess\">发送</button></template><script setup>const sendMess = (e) => {uni.postMessage({data: {action: \'message\'}});}</script><style lang=\"scss\" scoped></style>

然后在应用里添加web-view,指向目标网页:

<web-view src=\"目标网页\" @message=\"消息接收方法\"></web-view>

在手机上测试可以正常打开网页,但是点击按钮,调用uni.postMessage方法时报错:

TypeError: uni.postMessage is not a function

这里先试用了uniapp其他几个常用的内置API,比如uni.showToast(OBJECT),来证明内置的方法有正常加载,点击按钮,结果正常运行:

uni.showToast({title: \'标题\',duration: 2000});

重新阅读文档,发现在web-view加载HTML网页的示例中,引入了一个uni.webview.js文件,因为这个示例是个传统的HTML页面,之前以为用的是内置方法就忽略了:

使用uniapp内置组件webview消息传递_uni.postmessage is not a function

把文件下载下来,下载地址文档上有提供,当前最新是1.5.6:
https://gitcode.net/dcloud/uni-app/-/raw/dev/dist/uni.webview.1.5.6.js
在网页项目的main.js文件中对文件进行引用:

import \'/static/js/uni.webview.1.5.6.js\'

重新点击按钮,问题仍然存在,但是把uni对象打印出来,前后对比发现多了一个webView,展开就看到了相关方法:

使用uniapp内置组件webview消息传递_uni.postmessage is not a function

所以发送方法改成:

<script setup>const sendMess = (e) => {uni.webView.postMessage({data: {action: \'message\'}});}</script>

消息正常发送并接收。

2.H5无法接收消息

上边用手机测试通过,但在浏览器中进行访问,就接收不到消息:

官方文档中有标示:
使用uniapp内置组件webview消息传递_uni.postmessage is not a function

根据文档需要用window.postMessage,这个方法之前使用,是在web网页中嵌套iframe,父子页面通信的时候,文档上可以看到组件会被转成iframe:

使用uniapp内置组件webview消息传递_uni.postmessage is not a function

注意:这里只要修改应用这边(变成浏览器访问之后就是父级页面这里),需要以window.addEventListener监听消息,网页端也就是子级不需要修改。

<template><view><web-view src=\"目标网页\" @message=\"listenMess\"></web-view></view></template><script setup>import {onBeforeUnmount} from \"vue\";import {onLoad} from \"@dcloudio/uni-app\";const listenMess = (e) => {console.info(e);}onLoad(() => {// #ifdef H5window.addEventListener(\'message\', listenMess, false);// #endif});onBeforeUnmount(() => {// #ifdef H5window.removeEventListener(\"message\", listenMess);// #endif});</script><style lang=\"scss\" scoped></style>

使用方法window.addEventListener监听消息,添加window.removeEventListener防止监听重复执行,需要注明只在H5情况下执行,否则手机应用会报错:

TypeError: Cannot read property \'addEventListener\' of undefined

3.根据官方文档中的示例编写HTML页面

官方文档示例是一个传统的HTML页面,写个简单的页面用nginx发布出来(web-view仅支持加载网络网页,不支持本地html),作为目标网页试一下:

<!DOCTYPE html><html> <head> <meta charset=\"utf-8\" /> <meta name=\"viewport\" content=\"width=device-width,initial-scale=1,minimum-scale=1,maximum-scale=1,user-scalable=no\" /> <title>测试</title> </head> <body> <button id=\"sendMess\">发送</button> <script type=\"text/javascript\" src=\"/uni.webview.1.5.6.js\"></script> <script type=\"text/javascript\"> document.getElementById(\'sendMess\').addEventListener(\'click\', function() { uni.postMessage({ data: { action: \'message\' } }); }); </script> </body></html>

注意:这里是uni.postMessage,和uniapp项目中调用不同。

经测试消息可以成功传递。

然后文档上还写到uniapp项目里也能加载html网页,只要把文件放在/hybrid/html中:
html文件存放路径
写个html放进去,uni.webview.1.5.6.js放到js路径里:

<!DOCTYPE html><html><head><meta charset=\"utf-8\" /><meta name=\"viewport\"content=\"width=device-width,initial-scale=1,minimum-scale=1,maximum-scale=1,user-scalable=no\" /><title>测试</title></head><body><button onclick=\"sendMess()\">发送</button><script src=\"/hybrid/html/js/uni.webview.1.5.6.js\"></script><script type=\"text/javascript\">function sendMess() {uni.postMessage({data: {action: \'message\'}});}</script></body></html>

经测试消息可以成功传递。

4.VUE项目作为网页端调用uni.postMessage方法

因为之前有个vue2的项目里有相应功能网页,就拿来用做目标,然后在依赖库里搜到了@dcloudio/uni-webview-js,就没用上边的js,直接安装引入之后,实测可以正常使用:

<template> <el-button type=\"primary\" @click=\"sendMess\">发送</el-button></template><script>import uniWebview from \'@dcloudio/uni-webview-js\'export default { components: { uniWebview }, methods: { sendMess() { uniWebview.postMessage({ data: { action: \'message\' } }); } }}</script><style></style>
