讯飞离线语音包在Unity中的应用详解PC篇_unity讯飞离线语音

网友: 技术文档 2025-07-30 11:09:45

一、讯飞开放平台账号注册

  1. 访问讯飞开放平台官网： https://www.xfyun.cn/

  2. 点击右上角的\"注册/登录\"按钮

  3. 完成账号注册并登录

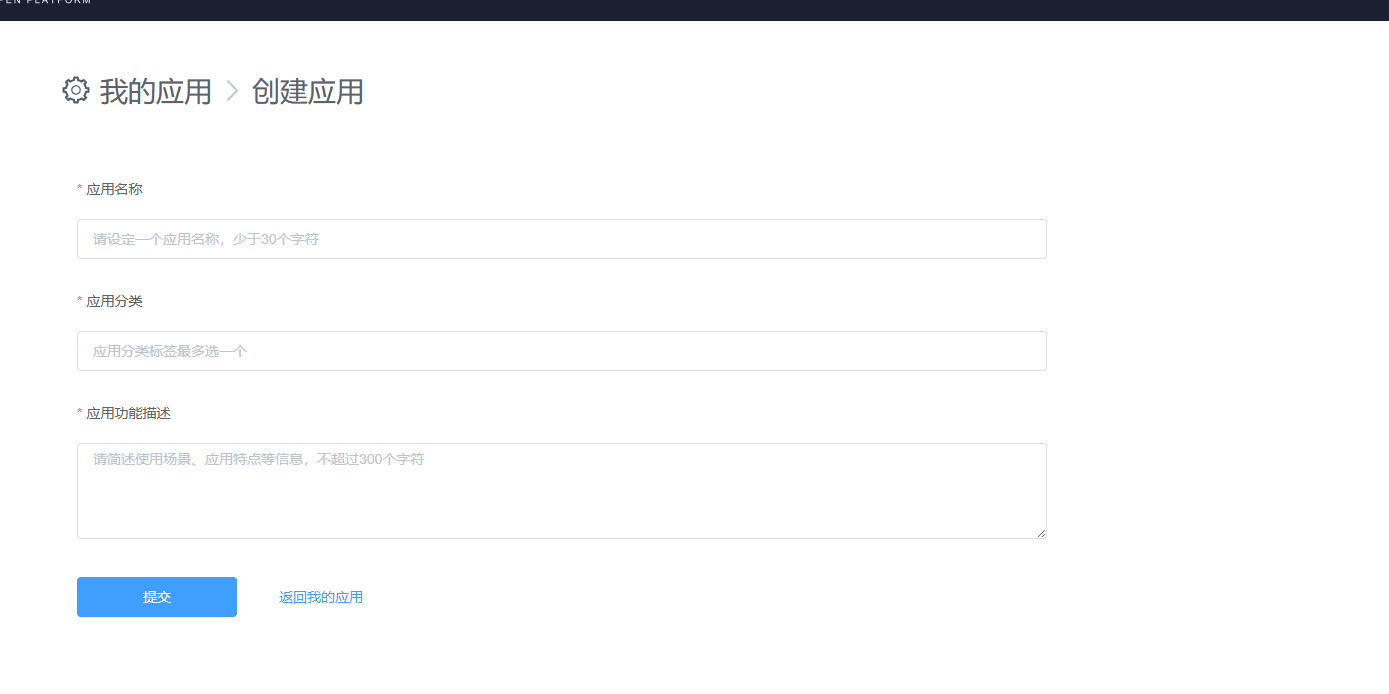

  4. 在控制台创建应用：讯飞离线语音包在Unity中的应用详解PC篇_unity讯飞离线语音

    • 进入\"控制台\">“我的应用”
    • 点击\"创建新应用\"
    • 填写应用名称和应用描述
    • 提交创建

  5. 获取应用ID和密钥：

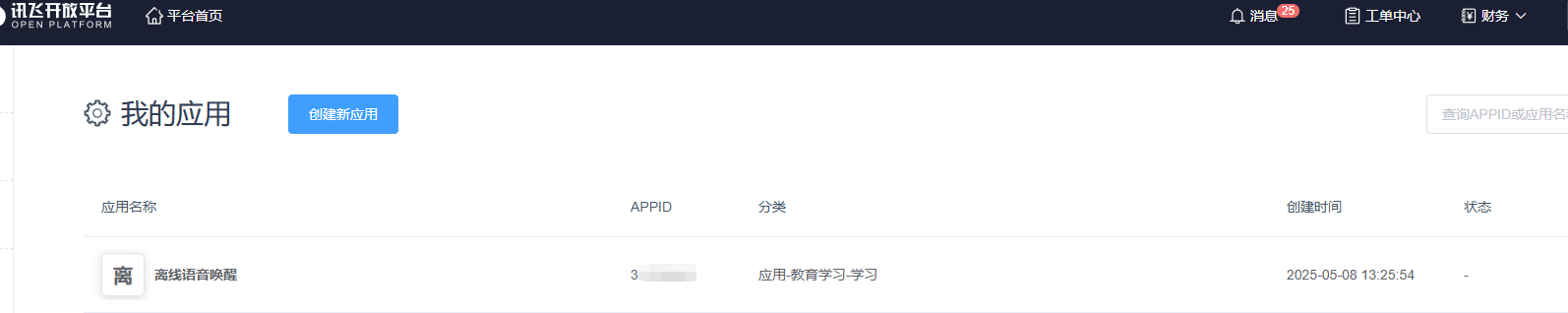

    讯飞离线语音包在Unity中的应用详解PC篇_unity讯飞离线语音

    • 在应用详情页面可以看到APPID
    • 记录下APPID、APIKey和APISecret，这些将在代码中使用（离线语音唤醒只使用了APPID ）

二、SDK下载与配置

  1. 在讯飞开放平台下载WIn SDK：

    • 进入\"语音识别\">“语音唤醒”讯飞离线语音包在Unity中的应用详解PC篇_unity讯飞离线语音

    • 选择\"唤醒词设置\">“前往SDK下载中心”讯飞离线语音包在Unity中的应用详解PC篇_unity讯飞离线语音

    • 点击\"回到旧版\">

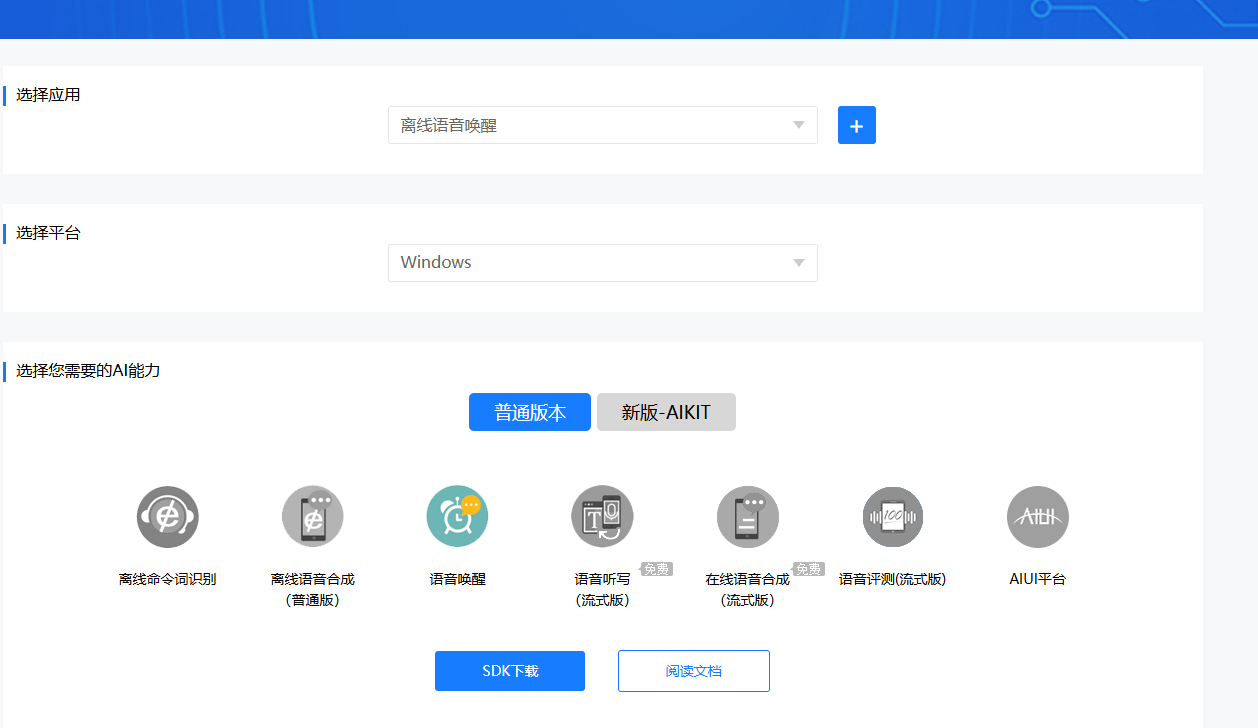

    • 选择\"选择应用（自己设置的应用名称）\">“选择平台 Windows”>“选择AI能力 语音唤醒”

    • 点击SDK下载
      讯飞离线语音包在Unity中的应用详解PC篇_unity讯飞离线语音

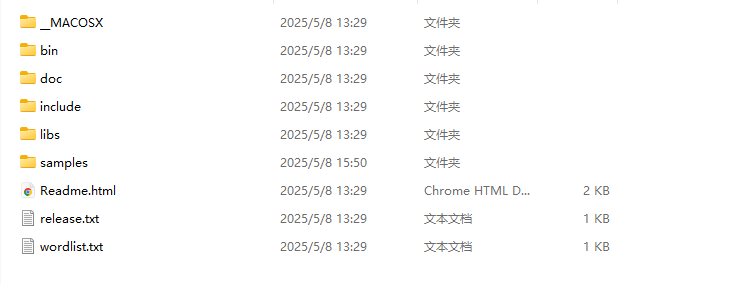

  • 解压结构讯飞离线语音包在Unity中的应用详解PC篇_unity讯飞离线语音
    讯飞离线语音包在Unity中的应用详解PC篇_unity讯飞离线语音sdk包的说明

  1. 在Unity项目中配置SDK：

    • 创建新的Unity项目或打开现有项目

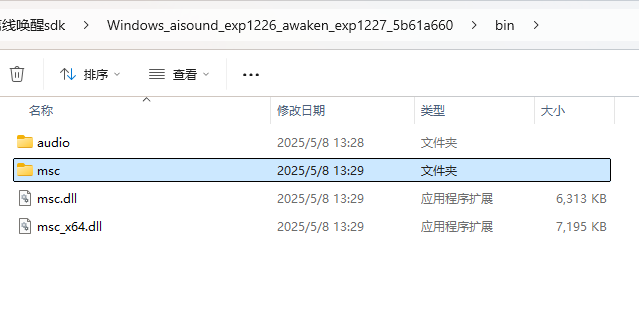

    • 找到bin文件下的资源讯飞离线语音包在Unity中的应用详解PC篇_unity讯飞离线语音

    • 将下载的SDK解压，将其中的库文件复制到项目的Plugins文件夹中

    • 将唤醒资源文件(wakeupresource.jet)放入StreamingAssets文件夹

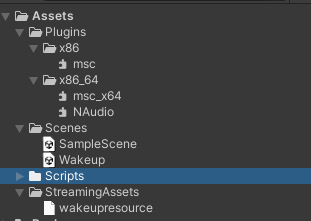

    • 在Unity中的结构讯飞离线语音包在Unity中的应用详解PC篇_unity讯飞离线语音

  2. 安装NAudio库：

    • 通过NuGet包管理器安装NAudio
    • 或者手动下载NAudio.dll并添加到项目引用中
    • NAudio是一个开源的.NET音频处理库，在您的讯飞语音唤醒项目中主要用于以下功能：
    • 音频录制 ：通过 WaveInEvent 类捕获麦克风输入的音频数据，这在您的代码中用于持续监听用户的语音输入。
    • 音频格式处理 ：使用 WaveFormat 类设置音频的采样率(16000Hz)、位深度(16位)和通道数(单通道)，确保录制的音频符合讯飞SDK的要求。
    • 音频数据回调 ：通过 DataAvailable 事件获取实时的音频数据，在您的代码中通过 RecordingStart 方法处理这些数据。
    • 音频设备管理 ：提供对录音设备的控制，包括启动录音( StartRecording )和停止录音( StopRecording )。

三、代码实现

1. 创建唤醒功能实现类

首先，我们需要创建一个Wakeup类来实现语音唤醒功能。这个类将负责：

  • 讯飞SDK的初始化和登录
  • 音频录制和处理
  • 唤醒检测逻辑
  • 唤醒词识别和解析
  • UI显示和交互
public class Wakeup : MonoBehaviour{ // 讯飞SDK账号信息配置 只用id //private const string user = \"\";//账号 // private const string pwd = \"\";//密码 private const string app_id = \"appid=自己的id,word_dir= . \";//appid aiui.dll和msc.dll要用到}

2. 创建线程分发器

为了在子线程中处理唤醒检测，同时能够在主线程更新UI，我们需要创建一个线程分发器：

using System;using System.Collections;using System.Collections.Generic;using System.Threading;using UnityEngine;/// /// 线程分发器，用于在主线程中执行来自其他线程的操作/// public class UnityMainThreadDispatcher : MonoBehaviour{ private static readonly Queue<Action> _executionQueue = new Queue<Action>(); private static UnityMainThreadDispatcher _instance; public static UnityMainThreadDispatcher Instance { get { if (_instance == null) { _instance = FindObjectOfType<UnityMainThreadDispatcher>(); if (_instance == null) {  GameObject go = new GameObject(\"UnityMainThreadDispatcher\");  _instance = go.AddComponent<UnityMainThreadDispatcher>();  DontDestroyOnLoad(go); } } return _instance; } } private void Awake() { if (_instance == null) { _instance = this; DontDestroyOnLoad(gameObject); } else if (_instance != this) { Destroy(gameObject); } } private void Update() { lock (_executionQueue) { while (_executionQueue.Count > 0) { _executionQueue.Dequeue().Invoke(); } } } ///  /// 在主线程中执行操作 ///  /// 要执行的操作 public static void RunOnMainThread(Action action) { if (Thread.CurrentThread.ManagedThreadId == 1) { action(); } else { lock (_executionQueue) { _executionQueue.Enqueue(action); } } }}

3. 讯飞语音识别sdk的封装

里边有注释

using System;using System.Runtime.InteropServices;namespace msc{public class MSCDLL{#region 登录登出[DllImport(\"msc_x64\", CallingConvention = CallingConvention.StdCall)]public static extern int MSPLogin(string usr, string pwd, string parameters);[DllImport(\"msc_x64\", CallingConvention = CallingConvention.StdCall)]public static extern int MSPLogout();#endregion#region 语音唤醒//定义回调函数[UnmanagedFunctionPointer(CallingConvention.Cdecl)]public delegate int ivw_ntf_handler(IntPtr sessionID, int msg, int param1, int param2, IntPtr info, IntPtr userData);//调用 QIVWSessionBegin(...)开始一次语音唤醒[DllImport(\"msc_x64\", CallingConvention = CallingConvention.StdCall)]public static extern IntPtr QIVWSessionBegin(string grammarList, string _params, ref int errorCode);//调用 QIVWAudioWrite(...) 分块写入音频数据[DllImport(\"msc_x64\", CallingConvention = CallingConvention.StdCall)]public static extern int QIVWAudioWrite(IntPtr sessionID, byte[] waveData, uint waveLen, AudioStatus audioStatus);[DllImport(\"msc_x64\", CallingConvention = CallingConvention.StdCall)]public static extern int QIVWGetResInfo(string resPath, string resInfo, uint infoLen, string _params);//调用 QIVWRegisterNotify(...) 注册回调函数到msc。//如果唤醒成功，msc 调用回调函数通知唤醒成功息同时给出相应唤醒数据。如果出错，msc 调用回调函数给出错误信息[DllImport(\"msc_x64\", CallingConvention = CallingConvention.StdCall)]public static extern int QIVWRegisterNotify(IntPtr sessionID, [MarshalAs(UnmanagedType.FunctionPtr)] ivw_ntf_handler msgProcCb, IntPtr userData);//调用 QIVWSessionEnd(...) 主动结束本次唤醒[DllImport(\"msc_x64\", CallingConvention = CallingConvention.StdCall)]public static extern int QIVWSessionEnd(IntPtr sessionID, string hints);#endregion}public enum Errors{MSP_SUCCESS = 0,MSP_ERROR_FAIL = -1,MSP_ERROR_EXCEPTION = -2,/* General errors 10100(0x2774) */MSP_ERROR_GENERAL = 10100, /* 0x2774 */MSP_ERROR_OUT_OF_MEMORY = 10101, /* 0x2775 */MSP_ERROR_FILE_NOT_FOUND = 10102, /* 0x2776 */MSP_ERROR_NOT_SUPPORT = 10103, /* 0x2777 */MSP_ERROR_NOT_IMPLEMENT = 10104, /* 0x2778 */MSP_ERROR_ACCESS = 10105, /* 0x2779 */MSP_ERROR_INVALID_PARA = 10106, /* 0x277A */ /* 缺少参数 */MSP_ERROR_INVALID_PARA_VALUE = 10107, /* 0x277B */ /* 无效参数值 */MSP_ERROR_INVALID_HANDLE = 10108, /* 0x277C */MSP_ERROR_INVALID_DATA = 10109, /* 0x277D */MSP_ERROR_NO_LICENSE = 10110, /* 0x277E */ /* 引擎授权不足 */MSP_ERROR_NOT_INIT = 10111, /* 0x277F */ /* 引擎未初始化,可能是引擎崩溃 */MSP_ERROR_NULL_HANDLE = 10112, /* 0x2780 */MSP_ERROR_OVERFLOW = 10113, /* 0x2781 */ /* 单用户下模型数超上限(10个), *//* 只出现在测试时对一个用户进行并发注册 */MSP_ERROR_TIME_OUT = 10114, /* 0x2782 */ /* 超时 */MSP_ERROR_OPEN_FILE = 10115, /* 0x2783 */MSP_ERROR_NOT_FOUND = 10116, /* 0x2784 */ /* 数据库中模型不存在 */MSP_ERROR_NO_ENOUGH_BUFFER = 10117, /* 0x2785 */MSP_ERROR_NO_DATA = 10118, /* 0x2786 */ /* 从客户端读音频或从引擎段获取结果时无数据 */MSP_ERROR_NO_MORE_DATA = 10119, /* 0x2787 */MSP_ERROR_NO_RESPONSE_DATA = 10120, /* 0x2788 */MSP_ERROR_ALREADY_EXIST = 10121, /* 0x2789 */ /* 数据库中模型已存在 */MSP_ERROR_LOAD_MODULE = 10122, /* 0x278A */MSP_ERROR_BUSY = 10123, /* 0x278B */MSP_ERROR_INVALID_CONFIG = 10124, /* 0x278C */MSP_ERROR_VERSION_CHECK = 10125, /* 0x278D */MSP_ERROR_CANCELED = 10126, /* 0x278E */MSP_ERROR_INVALID_MEDIA_TYPE = 10127, /* 0x278F */MSP_ERROR_CONFIG_INITIALIZE = 10128, /* 0x2790 */MSP_ERROR_CREATE_HANDLE = 10129, /* 0x2791 */MSP_ERROR_CODING_LIB_NOT_LOAD = 10130, /* 0x2792 */MSP_ERROR_USER_CANCELLED = 10131, /* 0x2793 */MSP_ERROR_INVALID_OPERATION = 10132, /* 0x2794 */MSP_ERROR_MESSAGE_NOT_COMPLETE = 10133, /* 0x2795 */ /* flash */MSP_ERROR_NO_EID = 10134, /* 0x2795 */MSP_ERROE_OVER_REQ = 10135, /* 0x2797 */ /* client Redundancy request */MSP_ERROR_USER_ACTIVE_ABORT = 10136, /* 0x2798 */ /* user abort */MSP_ERROR_BUSY_GRMBUILDING = 10137, /* 0x2799 */MSP_ERROR_BUSY_LEXUPDATING = 10138, /* 0x279A */MSP_ERROR_SESSION_RESET = 10139, /* 0x279B */ /* msc主动终止会话，准备重传 */MSP_ERROR_BOS_TIMEOUT = 10140, /* 0x279C */ /* VAD前端点超时 */MSP_ERROR_STREAM_FILTER = 10141, /* 0X279D */ /* AIUI当前Stream被过滤 */MSP_ERROR_STREAM_CLEAR = 10142, /* 0X279E */ /* AIUI当前Stream被清理 *//* Error codes of network 10200(0x27D8)*/MSP_ERROR_NET_GENERAL = 10200, /* 0x27D8 */MSP_ERROR_NET_OPENSOCK = 10201, /* 0x27D9 */ /* Open socket */MSP_ERROR_NET_CONNECTSOCK = 10202, /* 0x27DA */ /* Connect socket */MSP_ERROR_NET_ACCEPTSOCK = 10203, /* 0x27DB */ /* Accept socket */MSP_ERROR_NET_SENDSOCK = 10204, /* 0x27DC */ /* Send socket data */MSP_ERROR_NET_RECVSOCK = 10205, /* 0x27DD */ /* Recv socket data */MSP_ERROR_NET_INVALIDSOCK = 10206, /* 0x27DE */ /* Invalid socket handle */MSP_ERROR_NET_BADADDRESS = 10207, /* 0x27EF */ /* Bad network address */MSP_ERROR_NET_BINDSEQUENCE = 10208, /* 0x27E0 */ /* Bind after listen/connect */MSP_ERROR_NET_NOTOPENSOCK = 10209, /* 0x27E1 */ /* Socket is not opened */MSP_ERROR_NET_NOTBIND = 10210, /* 0x27E2 */ /* Socket is not bind to an address */MSP_ERROR_NET_NOTLISTEN = 10211, /* 0x27E3 */ /* Socket is not listening */MSP_ERROR_NET_CONNECTCLOSE = 10212, /* 0x27E4 */ /* The other side of connection is closed */MSP_ERROR_NET_NOTDGRAMSOCK = 10213, /* 0x27E5 */ /* The socket is not datagram type */MSP_ERROR_NET_DNS = 10214, /* 0x27E6 */ /* domain name is invalid or dns server does not function well */MSP_ERROR_NET_INIT = 10215, /* 0x27E7 */ /* ssl ctx create failed *//*nfl error*/MSP_ERROR_NFL_INNER_ERROR = 10216, /* NFL inner error */MSP_ERROR_MSS_TIME_OUT = 10217, /* MSS TIMEOUT */MSP_ERROT_CLIENT_TIME_OUT = 10218, /* CLIENT TIMEOUT */MSP_ERROR_CLIENT_CLOSE = 10219, /* CLIENT CLOSED CONNECTION */MSP_ERROR_CLIENT_AREA_CHANGE = 10220,MSP_ERROR_NET_SSL_HANDSHAKE = 10221,MSP_ERROR_NET_INVALID_ROOT_CERT = 10222,MSP_ERROR_NET_INVALID_CLIENT_CERT = 10223,MSP_ERROR_NET_INVALID_SERVER_CERT = 10224,MSP_ERROR_NET_INVALID_KEY = 10225,MSP_ERROR_NET_CERT_VERIFY_FAILED = 10226,MSP_ERROR_NET_WOULDBLOCK = 10227,MSP_ERROR_NET_NOTBLOCK = 10228,/* Error codes of mssp message 10300(0x283C) */MSP_ERROR_MSG_GENERAL = 10300, /* 0x283C */MSP_ERROR_MSG_PARSE_ERROR = 10301, /* 0x283D */MSP_ERROR_MSG_BUILD_ERROR = 10302, /* 0x283E */MSP_ERROR_MSG_PARAM_ERROR = 10303, /* 0x283F */MSP_ERROR_MSG_CONTENT_EMPTY = 10304, /* 0x2840 */MSP_ERROR_MSG_INVALID_CONTENT_TYPE = 10305, /* 0x2841 */MSP_ERROR_MSG_INVALID_CONTENT_LENGTH = 10306, /* 0x2842 */MSP_ERROR_MSG_INVALID_CONTENT_ENCODE = 10307, /* 0x2843 */MSP_ERROR_MSG_INVALID_KEY = 10308, /* 0x2844 */MSP_ERROR_MSG_KEY_EMPTY = 10309, /* 0x2845 */MSP_ERROR_MSG_SESSION_ID_EMPTY = 10310, /* 0x2846 */ /* 会话ID为空 */MSP_ERROR_MSG_LOGIN_ID_EMPTY = 10311, /* 0x2847 */ /* 音频序列ID为空 */MSP_ERROR_MSG_SYNC_ID_EMPTY = 10312, /* 0x2848 */MSP_ERROR_MSG_APP_ID_EMPTY = 10313, /* 0x2849 */MSP_ERROR_MSG_EXTERN_ID_EMPTY = 10314, /* 0x284A */MSP_ERROR_MSG_INVALID_CMD = 10315, /* 0x284B */MSP_ERROR_MSG_INVALID_SUBJECT = 10316, /* 0x284C */MSP_ERROR_MSG_INVALID_VERSION = 10317, /* 0x284D */MSP_ERROR_MSG_NO_CMD = 10318, /* 0x284E */MSP_ERROR_MSG_NO_SUBJECT = 10319, /* 0x284F */MSP_ERROR_MSG_NO_VERSION = 10320, /* 0x2850 */MSP_ERROR_MSG_MSSP_EMPTY = 10321, /* 0x2851 */MSP_ERROR_MSG_NEW_RESPONSE = 10322, /* 0x2852 */MSP_ERROR_MSG_NEW_CONTENT = 10323, /* 0x2853 */MSP_ERROR_MSG_INVALID_SESSION_ID = 10324, /* 0x2854 */ /* 无效的会话ID(sid) */MSP_ERROR_MSG_INVALID_CONTENT = 10325, /* 0x2855 *//* Error codes of DataBase 10400(0x28A0)*/MSP_ERROR_DB_GENERAL = 10400, /* 0x28A0 */ /* 数据库异常 */MSP_ERROR_DB_EXCEPTION = 10401, /* 0x28A1 */MSP_ERROR_DB_NO_RESULT = 10402, /* 0x28A2 */ /* redis中没有找到会话ID(sid) */MSP_ERROR_DB_INVALID_USER = 10403, /* 0x28A3 */MSP_ERROR_DB_INVALID_PWD = 10404, /* 0x28A4 */MSP_ERROR_DB_CONNECT = 10405, /* 0x28A5 */MSP_ERROR_DB_INVALID_SQL = 10406, /* 0x28A6 */MSP_ERROR_DB_INVALID_APPID = 10407, /* 0x28A7 */MSP_ERROR_DB_NO_UID = 10408,/* Error codes of Resource 10500(0x2904)*/MSP_ERROR_RES_GENERAL = 10500, /* 0x2904 */MSP_ERROR_RES_LOAD = 10501, /* 0x2905 */ /* Load resource */MSP_ERROR_RES_FREE = 10502, /* 0x2906 */ /* Free resource */MSP_ERROR_RES_MISSING = 10503, /* 0x2907 */ /* Resource File Missing */MSP_ERROR_RES_INVALID_NAME = 10504, /* 0x2908 */ /* Invalid resource file name */MSP_ERROR_RES_INVALID_ID = 10505, /* 0x2909 */ /* Invalid resource ID */MSP_ERROR_RES_INVALID_IMG = 10506, /* 0x290A */ /* Invalid resource image pointer */MSP_ERROR_RES_WRITE = 10507, /* 0x290B */ /* Write read-only resource */MSP_ERROR_RES_LEAK = 10508, /* 0x290C */ /* Resource leak out */MSP_ERROR_RES_HEAD = 10509, /* 0x290D */ /* Resource head currupt */MSP_ERROR_RES_DATA = 10510, /* 0x290E */ /* Resource data currupt */MSP_ERROR_RES_SKIP = 10511, /* 0x290F */ /* Resource file skipped *//* Error codes of TTS 10600(0x2968)*/MSP_ERROR_TTS_GENERAL = 10600, /* 0x2968 */MSP_ERROR_TTS_TEXTEND = 10601, /* 0x2969 */ /* Meet text end */MSP_ERROR_TTS_TEXT_EMPTY = 10602, /* 0x296A */ /* no synth text */MSP_ERROR_TTS_LTTS_ERROR = 10603, /* 0x296B *//* Error codes of Recognizer 10700(0x29CC) */MSP_ERROR_REC_GENERAL = 10700, /* 0x29CC */ /* 引擎异常 */MSP_ERROR_REC_INACTIVE = 10701, /* 0x29CD */MSP_ERROR_REC_GRAMMAR_ERROR = 10702, /* 0x29CE */MSP_ERROR_REC_NO_ACTIVE_GRAMMARS = 10703, /* 0x29CF */MSP_ERROR_REC_DUPLICATE_GRAMMAR = 10704, /* 0x29D0 */MSP_ERROR_REC_INVALID_MEDIA_TYPE = 10705, /* 0x29D1 */MSP_ERROR_REC_INVALID_LANGUAGE = 10706, /* 0x29D2 */MSP_ERROR_REC_URI_NOT_FOUND = 10707, /* 0x29D3 */MSP_ERROR_REC_URI_TIMEOUT = 10708, /* 0x29D4 */MSP_ERROR_REC_URI_FETCH_ERROR = 10709, /* 0x29D5 */MSP_ERROR_REC_PROC_MOD = 10710, /* 0x29D6 *//* Error codes of Speech Detector 10800(0x2A30) */MSP_ERROR_EP_GENERAL = 10800, /* 0x2A30 */MSP_ERROR_EP_NO_SESSION_NAME = 10801, /* 0x2A31 */MSP_ERROR_EP_INACTIVE = 10802, /* 0x2A32 */MSP_ERROR_EP_INITIALIZED = 10803, /* 0x2A33 *//* Error codes of TUV */MSP_ERROR_TUV_GENERAL = 10900, /* 0x2A94 */MSP_ERROR_TUV_GETHIDPARAM = 10901, /* 0x2A95 */ /* Get Busin Param huanid*/MSP_ERROR_TUV_TOKEN = 10902, /* 0x2A96 */ /* Get Token */MSP_ERROR_TUV_CFGFILE = 10903, /* 0x2A97 */ /* Open cfg file */MSP_ERROR_TUV_RECV_CONTENT = 10904, /* 0x2A98 */ /* received content is error */MSP_ERROR_TUV_VERFAIL = 10905, /* 0x2A99 */ /* Verify failure *//* Error codes of IMTV */MSP_ERROR_LOGIN_SUCCESS = 11000, /* 0x2AF8 */ /* 成功 */MSP_ERROR_LOGIN_NO_LICENSE = 11001, /* 0x2AF9 */ /* 试用次数结束，用户需要付费 */MSP_ERROR_LOGIN_SESSIONID_INVALID = 11002, /* 0x2AFA */ /* SessionId失效，需要重新登录通行证 */MSP_ERROR_LOGIN_SESSIONID_ERROR = 11003, /* 0x2AFB */ /* SessionId为空，或者非法 */MSP_ERROR_LOGIN_UNLOGIN = 11004, /* 0x2AFC */ /* 未登录通行证 */MSP_ERROR_LOGIN_INVALID_USER = 11005, /* 0x2AFD */ /* 用户ID无效 */MSP_ERROR_LOGIN_INVALID_PWD = 11006, /* 0x2AFE */ /* 用户密码无效 */MSP_ERROR_LOGIN_SYSTEM_ERROR = 11099, /* 0x2B5B */ /* 系统错误 *//* Error codes of HCR */MSP_ERROR_HCR_GENERAL = 11100,MSP_ERROR_HCR_RESOURCE_NOT_EXIST = 11101,MSP_ERROR_HCR_CREATE = 11102,MSP_ERROR_HCR_DESTROY = 11103,MSP_ERROR_HCR_START = 11104,MSP_ERROR_HCR_APPEND_STROKES = 11105,MSP_ERROR_HCR_INIT = 11106,MSP_ERROR_HCR_POINT_DECODE = 11107,MSP_ERROR_HCR_DISPATCH = 11108,MSP_ERROR_HCR_GETRESULT = 11109,MSP_ERROR_HCR_RESOURCE = 11110,/* Error Codes using in local engine */MSP_ERROR_AUTH_NO_LICENSE = 11200, /* 0x2BC0 */ /* 无授权 */MSP_ERROR_AUTH_NO_ENOUGH_LICENSE = 11201, /* 0x2BC1 */ /* 授权不足 */MSP_ERROR_AUTH_INVALID_LICENSE = 11202, /* 0x2BC2 */ /* 无效的授权 */MSP_ERROR_AUTH_LICENSE_EXPIRED = 11203, /* 0x2BC3 */ /* 授权过期 */MSP_ERROR_AUTH_NEED_MORE_DATA = 11204, /* 0x2BC4 */ /* 无设备信息 */MSP_ERROR_AUTH_LICENSE_TO_BE_EXPIRED = 11205, /* 0x2BC5 */ /* 授权即将过期，警告性错误码 */MSP_ERROR_AUTH_INVALID_MACHINE_ID = 11206, /* 0x2BC6 */ /* 无效的机器码 */MSP_ERROR_AUTH_LOCAL_ASR_FORBIDDEN = 11207, /* 0x2BC7 */ /* 禁止使用本地识别引擎 */MSP_ERROR_AUTH_LOCAL_TTS_FORBIDDEN = 11208, /* 0x2BC8 */ /* 禁止使用本地合成引擎 */MSP_ERROR_AUTH_LOCAL_IVW_FORBIDDEN = 11209, /* 0x2BC9 */ /* 禁止使用本地唤醒引擎 */MSP_ERROR_AUTH_APPID_NOT_MATCH = 11210, /* 0x2BCA */ /* 资源appid和应用appid不匹配 */MSP_ERROR_AUTH_UID_NOT_MATCH = 11211, /* 0x2BCB */ /* 资源uid和登录用户uid不匹配 */MSP_ERROR_AUTH_TRIAL_EXPIRED = 11212, /* 0x2BCC */ /* 试用资源过期 */MSP_ERROR_AUTH_LOCAL_IFD_FORBIDDEN = 11213, /* 0x2BC9 */ /* 禁止使用本地人脸引擎 */MSP_ERROR_AIUI_NO_ENOUGH_LICENSE = 11216, /* 0x2BD0 */ /* AIUI授权不足 *//*Error Codes of Authorization*/MSP_ERROR_AUTH_DVC_NO_LICENSE = 11300,MSP_ERROR_AUTH_DVC_NO_ENOUGH_LICENSE = 11301,MSP_ERROR_AUTH_DVC_INVALID_LICENSE = 11302,MSP_ERROR_AUTH_DVC_LICENSE_EXPIRED = 11303,MSP_ERROR_AUTH_DVC_NEED_MORE_DATA = 11304,MSP_ERROR_AUTH_DVC_LICENSE_TO_BE_EXPIRED = 11305,MSP_ERROR_AUTH_DVC_EXCEED_LICENSE = 11306,/* Error codes of Ise */MSP_ERROR_ASE_EXCEP_SILENCE = 11401,MSP_ERROR_ASE_EXCEP_SNRATIO = 11402,MSP_ERROR_ASE_EXCEP_PAPERDATA = 11403,MSP_ERROR_ASE_EXCEP_PAPERCONTENTS = 11404,MSP_ERROR_ASE_EXCEP_NOTMONO = 11405,MSP_ERROR_ASE_EXCEP_OTHERS = 11406,MSP_ERROR_ASE_EXCEP_PAPERFMT = 11407,MSP_ERROR_ASE_EXCEP_ULISTWORD = 11408,/* Error codes of Iot */MSP_ERROR_IOT_BASE = 11500,MSP_ERROR_IOT_PARAM_ERROR = 11501, // param errorMSP_ERROR_IOT_INVALID_SERVICE = 11502, // invalid service for iot ProTranServerMSP_ERROR_IOT_INVALID_PRODUCTID = 11503, // invalid productid for ProTranServerMSP_EEROR_IOT_INVALID_ATTR = 11504, // invalid attr value for one product in ProTranServerMSP_ERROR_IOT_INVALID_PLATFORM = 11505, // invalid platform for ProTranServerMSP_ERROR_IOT_DID_NOT_FOUND = 11506, // not found device id in semantic/* Error codes of IVP */MSP_ERROR_IVP_GENERAL = 11600, // 内核异常MSP_ERROR_IVP_EXTRA_RGN_SOPPORT = 11601, // 注册时向引擎所写音频条数超过上限(9次)MSP_ERROR_IVP_TRUNCATED = 11602, // 音频截幅(因信号波形的幅度太大，而超出系统的线性范围)，如记录尖叫声的音频MSP_ERROR_IVP_MUCH_NOISE = 11603, // 音频信噪比过低MSP_ERROR_IVP_TOO_LOW = 11604, // 音频能量过低MSP_ERROR_IVP_ZERO_AUDIO = 11605, // 无音频MSP_ERROR_IVP_UTTER_TOO_SHORT = 11606, // 音频太短MSP_ERROR_IVP_TEXT_NOT_MATCH = 11607, // 1.音频和文本不匹配，常见原因1.抢读(在按下录音键之前读) // 2.录音机的启动电流被录入表现在音频上是在音频首有冲击电流 3.确实不匹配\"MSP_ERROR_IVP_NO_ENOUGH_AUDIO = 11608, // 音频不够，注册自由说，而写入的音频又不够长时会报，告诉调用者继续传音频MSP_ERROR_IVP_MODEL_NOT_FOUND_IN_HBASE = 11610, // 模型在hbase中没找到/* Error codes of Face */MSP_ERROR_IFR_NOT_FACE_IMAGE = 11700,  //【无人脸，对应的引擎错误码是20200 】 MSP_ERROR_FACE_IMAGE_FULL_LEFT = 11701, //【人脸向左，对应的引擎错误码是20201】MSP_ERROR_FACE_IMAGE_FULL_RIGHT = 11702, //【人脸向右，对应的引擎错误码是20202】MSP_ERROR_IMAGE_CLOCKWISE_WHIRL = 11703, //【顺时针旋转，对应的引擎错误码是20203】MSP_ERROR_IMAGE_COUNTET_CLOCKWISE_WHIRL = 11704, //【逆时针旋转，对应的引擎错误码是20204】MSP_ERROR_VALID_IMAGE_SIZE = 11705, //【图片大小异常 ，对应的引擎错误码是20205】MSP_ERROR_ILLUMINATION = 11706, //【光照异常，对应的引擎错误码是20206】MSP_ERROR_FACE_OCCULTATION = 11707, //【人脸被遮挡，对应的引擎错误码是20207】MSP_ERROR_FACE_INVALID_MODEL = 11708,  //【非法模型数据，对应的引擎错误码是20208】MSP_ERROR_FUSION_INVALID_INPUT_TYPE = 11709, //【输入数据类型非法，对应的引擎错误码是20300】MSP_ERROR_FUSION_NO_ENOUGH_DATA = 11710, //【输入的数据不完整，对应的引擎错误码是20301】MSP_ERROR_FUSION_ENOUGH_DATA = 11711,  //【输入的数据过多，对应的引擎错误码是20302】/*Error Codes of AIUI*/MSP_ERROR_AIUI_CID_EXPIRED = 11800,/*Error Codes of Encoder*/MSP_ERROR_ICT_ENCODER = 11900,/* Error codes of http 12000(0x2EE0) */MSP_ERROR_HTTP_BASE = 12000, /* 0x2EE0 */MSP_ERROR_HTTP_400 = 12400,MSP_ERROR_HTTP_401 = 12401,MSP_ERROR_HTTP_402 = 12402,MSP_ERROR_HTTP_403 = 12403,MSP_ERROR_HTTP_404 = 12404,MSP_ERROR_HTTP_405 = 12405,MSP_ERROR_HTTP_406 = 12406,MSP_ERROR_HTTP_407 = 12407,MSP_ERROR_HTTP_408 = 12408,MSP_ERROR_HTTP_409 = 12409,MSP_ERROR_HTTP_410 = 12410,MSP_ERROR_HTTP_411 = 12411,MSP_ERROR_HTTP_412 = 12412,MSP_ERROR_HTTP_413 = 12413,MSP_ERROR_HTTP_414 = 12414,MSP_ERROR_HTTP_415 = 12415,MSP_ERROR_HTTP_416 = 12416,MSP_ERROR_HTTP_417 = 12417,MSP_ERROR_HTTP_500 = 12500,MSP_ERROR_HTTP_501 = 12501,MSP_ERROR_HTTP_502 = 12502,MSP_ERROR_HTTP_503 = 12503,MSP_ERROR_HTTP_504 = 12504,MSP_ERROR_HTTP_505 = 12505,/*Error codes of ISV */MSP_ERROR_ISV_NO_USER = 13000, /* 32C8 */ /* the user doesn\'t exist *//* Error codes of Lua scripts */MSP_ERROR_LUA_BASE = 14000, /* 0x36B0 */MSP_ERROR_LUA_YIELD = 14001, /* 0x36B1 */MSP_ERROR_LUA_ERRRUN = 14002, /* 0x36B2 */MSP_ERROR_LUA_ERRSYNTAX = 14003, /* 0x36B3 */MSP_ERROR_LUA_ERRMEM = 14004, /* 0x36B4 */MSP_ERROR_LUA_ERRERR = 14005, /* 0x36B5 */MSP_ERROR_LUA_INVALID_PARAM = 14006, /* 0x36B6 *//* Error codes of MMP */MSP_ERROR_MMP_BASE = 15000, /* 0x3A98 */MSP_ERROR_MMP_MYSQL_INITFAIL = 15001, /* 0x3A99 */MSP_ERROR_MMP_REDIS_INITFAIL = 15002, /* 0x3A9A */MSP_ERROR_MMP_NETDSS_INITFAIL = 15003, /* 0x3A9B */MSP_ERROR_MMP_TAIR_INITFAIL = 15004, /* 0x3A9C */MSP_ERROR_MMP_MAIL_SESSION_FAIL = 15006, /* 0x3A9E */ /* 邮件登陆服务器时，会话错误。*/MSP_ERROR_MMP_MAIL_LOGON_FAIL = 15007, /* 0x3A9F */ /* 邮件登陆服务器时，拒绝登陆。*/MSP_ERROR_MMP_MAIL_USER_ILLEGAL = 15008, /* 0x3AA0 */ /* 邮件登陆服务器时，用户名非法。*/MSP_ERROR_MMP_MAIL_PWD_ERR = 15009, /* 0x3AA1 */ /* 邮件登陆服务器时，密码错误。*/MSP_ERROR_MMP_MAIL_SOCKET_ERR = 15010, /* 0x3AA2 */ /* 邮件发送过程中套接字错误*/MSP_ERROR_MMP_MAIL_INIT_FAIL = 15011, /* 0x3AA3 */ /* 邮件初始化错误*/MSP_ERROR_MMP_STORE_MNR_NO_INIT = 15012, /* 0x3AA4 */ /* store_manager未初始化，或初始化失败*/MSP_ERROR_MMP_STORE_MNR_POOL_FULL = 15013, /* 0x3AA5 */ /* store_manager的连接池满了*/MSP_ERROR_MMP_STRATGY_PARAM_ILLEGAL = 15014, /* 0x3AA6 */ /* 报警策略表达式非法*/MSP_ERROR_MMP_STRATGY_PARAM_TOOLOOG = 15015, /* 0x3AA7 */ /* 报警策略表达式太长*/MSP_ERROR_MMP_PARAM_NULL = 15016, /* 0x3AA8 */ /* 函数参数为空*/MSP_ERROR_MMP_ERR_MORE_TOTAL = 15017, /* 0x3AA9 */ /* pms插入数据库中错误汇总表的数据，错误次数 > 总次数。*/MSP_ERROR_MMP_PROC_THRESHOLD = 15018, /* 0x3AAA */ /* 进程监控阀值设置错误*/MSP_ERROR_MMP_SERVER_THRESHOLD = 15019, /* 0x3AAB */ /* 服务器监控阀值设置错误*/MSP_ERROR_MMP_PYTHON_NO_EXIST = 15020, /* 0x3AAC */ /* python脚本文件不存在 */MSP_ERROR_MMP_PYTHON_IMPORT_FAILED = 15021, /* 0x3AAD */ /* python脚本导入出错 */MSP_ERROR_MMP_PYTHON_BAD_FUNC = 15022, /* 0x3AAE */ /* python脚本函数格式错误 */MSP_ERROR_MMP_DB_DATA_ILLEGAL = 15023, /* 0x3AAF */ /* 插入数据库中的数据格式有误 */MSP_ERROR_MMP_REDIS_NOT_CONN = 15024, /* 0x3AB0 */ /* redis没有连接到服务端 */MSP_ERROR_MMP_PMA_NOT_FOUND_STRATEGY = 15025, /* 0x3AB1 */ /* 没有找到报警策略 */MSP_ERROR_MMP_TAIR_CONNECT = 15026, /* 0x3AB2 */ /* 连接tair集群失败 */MSP_ERROR_MMP_PMC_SERVINFO_INVALID = 15027, /* Ox3AB3 */ /* 此pmc的服务器信息已经无效 */MSP_ERROR_MMP_ALARM_GROUP_NULL = 15028, /* Ox3AB4 */ /* 服务器报警的短信报警组与邮件报警组均为空 */MSP_ERROR_MMP_ALARM_CONTXT_NULL = 15029, /* Ox3AB5 */ /* 服务器报警的报警内容为空 *//* Error codes of MSC(lmod loader) */MSP_ERROR_LMOD_BASE = 16000, /* 0x3E80 */MSP_ERROR_LMOD_NOT_FOUND = 16001, /* 0x3E81 */ /* 没找到lmod文件 */MSP_ERROR_LMOD_UNEXPECTED_BIN = 16002, /* 0x3E82 */ /* 无效的lmod */MSP_ERROR_LMOD_LOADCODE = 16003, /* 0x3E83 */ /* 加载lmod指令失败 */MSP_ERROR_LMOD_PRECALL = 16004, /* 0x3E84 */ /* 初始化lmod失败 */MSP_ERROR_LMOD_RUNTIME_EXCEPTION = 16005, /* 0x3E85 */ /* lmod运行时异常 */MSP_ERROR_LMOD_ALREADY_LOADED = 16006, /* 0x3E86 */ /* lmod重复加载 */// Error code of Third BusinessMSP_ERROR_BIZ_BASE = 17000, /* 0x4268 */ /* 三方业务错误码 *///Error of Nginx errlog file increase exceptionMSP_ERROR_NGX_LOG_MORE_TOTEL_SIZE = 18000,  /*nginx错误日志大小异常*///Error of Flash client when network checkingMSP_ERROR_FLASH_NETWORK_CONNECT_FIALED = 19000,  /*flash服务端网络连接失败*/MSP_ERROR_FLASH_NETWORK_CHECK_FIALED = 19001,  /*flash服务端响应了异常消息*/MSP_ERROR_FLASH_NETWORK_CHECK_TIMEOUT = 19002,  /*flash服务端网络超时*/MSP_ERROR_FLASH_NETWORK_CLOSED_EXCEPTION = 19003,  /*flash服务端网络异常关闭*//*Error Code Of Speech plus*/SPEECH_ERROR_NO_NETWORK = 20001, /* 无有效的网络连接*/SPEECH_ERROR_NETWORK_TIMEOUT = 20002, /* 网络连接超时*/SPEECH_ERROR_NET_EXPECTION = 20003, /* 网络异常*/SPEECH_ERROR_INVALID_RESULT = 20004, /* 无有效的结果*/SPEECH_ERROR_NO_MATCH = 20005, /* 无匹配结果 */SPEECH_ERROR_AUDIO_RECORD = 20006, /* 录音失败 */SPEECH_ERROR_NO_SPPECH = 20007, /* 未检测到语音*/SPEECH_ERROR_SPEECH_TIMEOUT = 20008, /* 音频输入超时*/SPEECH_ERROR_EMPTY_UTTERANCE = 20009, /* 无效的文本输入 */SPEECH_ERROR_FILE_ACCESS = 20010, /* 文件读写失败 */SPEECH_ERROR_PLAY_MEDIA = 20011, /* 音频播放失败 */SPEECH_ERROR_INVALID_PARAM = 20012, /* 无效的参数*/SPEECH_ERROR_TEXT_OVERFLOW = 20013, /* 文本溢出 */SPEECH_ERROR_INVALID_DATA = 20014, /* 无效数据 */SPEECH_ERROR_LOGIN = 20015, /* 用户未登陆*/SPEECH_ERROR_PERMISSION_DENIED = 20016, /* 无效授权 */SPEECH_ERROR_INTERRUPT = 20017, /* 被异常打断 */SPEECH_ERROR_VERSION_LOWER = 20018, /* 版本过低 */SPEECH_CLIENT_ERROR_ISUSING = 20019, /* 录音机被占用(iOS平台) */SPEECH_ERROR_SYSTEM_PREINSTALL = 20020, /* 系统预置版本 */SPEECH_ERROR_UNSATISFIED_LINK = 20021, /* 未实现的Native函数引用 */SPEECH_ERROR_UNKNOWN = 20999, /* 未知错误 */SPEECH_ERROR_COMPONENT_NOT_INSTALLED = 21001, /* 没有安装语音组件 */SPEECH_ERROR_ENGINE_NOT_SUPPORTED = 21002, /* 引擎不支持 */SPEECH_ERROR_ENGINE_INIT_FAIL = 21003, /* 初始化失败 */SPEECH_ERROR_ENGINE_CALL_FAIL = 21004, /* 调用失败 */SPEECH_ERROR_ENGINE_BUSY = 21005, /* 引擎繁忙 */SPEECH_ERROR_LOCAL_NO_INIT = 22001, /* 本地引擎未初始化 */SPEECH_ERROR_LOCAL_RESOURCE = 22002, /* 本地引擎无资源 */SPEECH_ERROR_LOCAL_ENGINE = 22003, /* 本地引擎内部错误 */SPEECH_ERROR_IVW_INTERRUPT = 22004, /* 本地唤醒引擎被异常打断 *//*Error Code Of Local iflytek Engines*//*Error Code Of AiTalk*//*Error Code Of AiTalk Operation*/SPEECH_SUCCESS = 0, // ivErr_OK  = 0 /*成功状态*/ SPEECH_ERROR_ASR_CLIENT = 23000, /*客户端应用程序错误*///?????????SPEECH_ERROR_ASR_INVALID_PARA = 23001, /*无效的参数*/SPEECH_ERROR_ASR_INVALID_PARA_VALUE = 23002, /*无效的参数值*/SPEECH_ERROR_ASR_OUT_OF_MEMORY = 23003, /*内存耗尽*/SPEECH_ERROR_ASR_CREATE_HANDLE_FAILED = 23004, /*创建句柄失败*/SPEECH_ERROR_ASR_ENGINE_INIT_FAILED = 23005, /*引擎初始化失败*/SPEECH_ERROR_ASR_ENGINE_STARTED = 23006, /*引擎已经启动*/SPEECH_ERROR_ASR_ENGINE_UNINIT = 23007, /*引擎未初始化*/SPEECH_ERROR_ASR_SPEECH_TIMEOUT = 23008, /*识别超时（VAD没开启或没有检测到后端点）*/SPEECH_ERROR_ASR_NO_RECOGNIZED_RESULT = 23009, /*无识别结果*/SPEECH_ERROR_ASR_INVALID_HANDLE = 23010, /*无效的句柄*/SPEECH_ERROR_ASR_FILE_ACCESS = 23011, /*打开文件失败*//*Error Code Of AiTalk Engine*/SPEECH_ERROR_AITALK_FALSE = 23100, // ivErr_FALSE  = 1/* For license check */SPEECH_ERROR_AITALK_PERMISSION_DENIED = 23101, // ivErr_InvSN  = 2/* General */SPEECH_ERROR_AITALK_INVALID_PARA = 23102, // ivErr_InvArg  = 3SPEECH_ERROR_AITALK_BUFFER_OVERFLOW = 23103, // ivErr_BufferFull = 4 /*音频数据缓冲区已满*/SPEECH_ERROR_AITALK_FAILED = 23104, // ivErr_Failed  = 5SPEECH_ERROR_AITALK_NOT_SUPPORTED = 23105, // ivErr_NotSupport = 6 /*引擎不支持*/SPEECH_ERROR_AITALK_OUT_OF_MEMORY = 23106, // ivErr_OutOfMemory = 7SPEECH_ERROR_AITALK_INVALID_RESOURCE = 23107, // ivErr_InvResource = 8 /*资源无效*/SPEECH_ERROR_AITALK_NOT_FOUND = 23108, // ivErr_NotFound = 9 /*打开文件失败*/SPEECH_ERROR_AITALK_INVALID_GRAMMAR = 23109, // ivErr_InvGrmr = 10 /*识别语法错误*//* For object status */SPEECH_ERROR_AITALK_INVALID_CALL = 23110, // ivErr_InvCall = 11 /*无效调用*//* For ASR Input */SPEECH_ERROR_AITALK_SYNTAX_ERROR = 23111, // ivErr_InvCall = 12/* For Message Call Back */SPEECH_ERROR_AITALK_RESET = 23112, // ivErr_Reset  = 13 SPEECH_ERROR_AITALK_ENDED = 23113, // ivErr_Ended  = 14SPEECH_ERROR_AITALK_IDLE = 23114, // ivErr_Idle = 15 SPEECH_ERROR_AITALK_CANNOT_SAVE_FILE = 23115, // ivErr_CanNotSaveFile = 16/* For Lexicon name */SPEECH_ERROR_AITALK_INVALID_GRAMMAR_NAME = 23116, // ivErr_InvName = 17 /*文法或词典名称非法*/SPEECH_ERROR_AITALK_BUFFER_EMPTY = 23117, // ivErr_BufferEmpty = 18SPEECH_ERROR_AITALK_GET_RESULT = 23118, // ivErr_GetResult  = 19SPEECH_ERROR_AITALK_REACT_OUT_TIME = 23119, // ivErr_ReactOutTime = 20 /*反应超时*/SPEECH_ERROR_AITALK_SPEECH_OUT_TIME = 23120, // ivErr_SpeechOutTime = 21 /*语音超时*/SPEECH_ERROR_AITALK_AUDIO_CUT = 23121, // ivErr_CUT  = 22 /*录音质量过高*/SPEECH_ERROR_AITALK_AUDIO_LOWER = 23122, // ivErr_LOWER  = 23 /*录音质量过低*/SPEECH_ERROR_AITALK_INSUFFICIENT_PERMISSIONS = 23123, // ivErr_Limitted = 24 /*授权不够*/SPEECH_ERROR_AITALK_RESULT_ERROR = 23124, // ivErr_ResultError = 25 /*解码器Wfst输出后，依然有cmd输出*/SPEECH_ERROR_AITALK_SHORT_PAUSE = 23125, // ivErr_ShortPause = 26SPEECH_ERROR_AITALK_BUSY = 23126, // ivErr_Busy = 27SPEECH_ERROR_AITALK_GRM_NOT_UPDATE = 23127, // ivErr_GrmNotUpdate = 28 /*语法未更新*/SPEECH_ERROR_AITALK_STARTED = 23128, // ivErr_Started = 29SPEECH_ERROR_AITALK_STOPPED = 23129, // ivErr_Stopped = 30SPEECH_ERROR_AITALK_ALREADY_STARTED = 23130, // ivErr_AlreadyStarted = 31SPEECH_ERROR_AITALK_ALREADY_STOPPED = 23131, // ivErr_AlreadyStopped = 32SPEECH_ERROR_AITALK_TOO_MANY_COMMAND = 23132, // ivErr_TooManyCmd = 33SPEECH_ERROR_AITALK_WAIT = 23133, // ivErr_Wait = 34 /*程序可能在做一些操作，主线程需要等待*/SPEECH_ERROR_AITALK_MAE_RIGHT = 23134, // ivErr_MAERight = 35 SPEECH_ERROR_AITALK_MAE_WRONG = 23135, // ivErr_MAEWrong = 36SPEECH_ERROR_AITALK_GRM_ERR = 23300, // 语法错误/*Error Code Of AiSound*//*Error Code Of AiSound Operation*/SPEECH_ERROR_TTS_INVALID_PARA = 24000, /* 错误参数 */SPEECH_ERROR_TTS_INVALID_PARA_VALUE = 24001, /* 无效的参数值*/SPEECH_ERROR_TTS_OUT_OF_MEMORY = 24002, /* 内存不足*/SPEECH_ERROR_TTS_INVALID_HANDLE = 24003, /* 无效的句柄*/SPEECH_ERROR_TTS_CREATE_HANDLE_FAILED = 24004, /* 创建句柄失败*/SPEECH_ERROR_TTS_INVALID_RESOURCE = 24005, /* 无效资源 */SPEECH_ERROR_TTS_INVALID_VOICE_NAME = 24006, /* 无效发言人*/SPEECH_ERROR_TTS_ENGINE_UNINIT = 24007, /* 引擎未初始化 */SPEECH_ERROR_TTS_ENGINE_INIT_FAILED = 24008, /* 引擎初始化失败 */SPEECH_ERROR_TTS_ENGINE_BUSY = 24009, /* 引擎忙 *//*Error Code Of AiSound Engine*/SPEECH_ERROR_AISOUND_BASE = 24100,SPEECH_ERROR_AISOUND_UNIMPEMENTED = 24100, /* unimplemented function */SPEECH_ERROR_AISOUND_UNSUPPORTED = 24101, /* unsupported on this platform */SPEECH_ERROR_AISOUND_INVALID_HANDLE = 24102, /* invalid handle */SPEECH_ERROR_AISOUND_INVALID_PARA = 24103, /* invalid parameter(s) */SPEECH_ERROR_AISOUND_INSUFFICIENT_HEAP = 24104, /* insufficient heap size */SPEECH_ERROR_AISOUND_STATE_REFUSE = 24105, /* refuse to do in current state */SPEECH_ERROR_AISOUND_INVALID_PARA_ID = 24106, /* invalid parameter ID */SPEECH_ERROR_AISOUND_INVALID_PARA_VALUE = 24107, /* invalid parameter value */SPEECH_ERROR_AISOUND_RESOURCE = 24108, /* Resource is error */SPEECH_ERROR_AISOUND_RESOURCE_READ = 24109, /* read resource error */SPEECH_ERROR_AISOUND_LBENDIAN = 24110, /* the Endian of SDK is error */SPEECH_ERROR_AISOUND_HEADFILE = 24111, /* the HeadFile is different of the SDK */SPEECH_ERROR_AISOUND_BUFFER_OVERFLOW = 24112, /* get data size exceed the data buffer */SPEECH_ERROR_AISOUND_INVALID_ISAMPA = 24113, /* !Invalid iSampa format or input iSampa text contain invalid alphabet*/SPEECH_ERROR_AISOUND_INVALID_CSSML = 24114, /* !Invalid cssml format *//*Error Code Of ivw*//*Error Code Of ivw Operation*/SPEECH_ERROR_IVW_ENGINE_UNINI = 25000, /* 引擎未初始化 */SPEECH_ERROR_IVW_RESVER_NOMATCH = 25001, /* 资源版本不匹配 */SPEECH_ERROR_IVW_BUFFERED_AUDIOD_LITTLE = 25002, /* 唤醒加识别缓存音频过少 */SPEECH_ERROR_IVW_INVALID_RESTYPE = 25003, /* 不合法的资源类型 */SPEECH_ERROR_IVW_INVALID_RESHEADVER = 25004, /* 不合法的资源头部版本号 *//*Error Code Of ivw Engine*/SPEECH_ERROR_IVW_INVALID_CALL = 25101, // IvwErr_InvCal = 1 SPEECH_ERROR_IVW_INVALID_ARG = 25102, // IvwErr_InvArg = 2 SPEECH_ERROR_IVW_TELL_SIZE = 25103, // IvwErr_TellSize = 3SPEECH_ERROR_IVW_OUT_OF_MEMORY = 25104, // IvwErr_OutOfMemory = 4 SPEECH_ERROR_IVW_OUT_BUFFER_FULL = 25105, // IvwErr_BufferFull= 5SPEECH_ERROR_IVW_OUT_BUFFER_EMPTY = 25106, // IvwErr_BufferEmpty= 6 SPEECH_ERROR_IVW_INVALID_RESOURCE = 25107, // IvwErr_InvRes= 7 SPEECH_ERROR_IVW_REPETITIOPN_ENTER = 25108, // IvwErr_ReEnter= 8SPEECH_ERROR_IVW_NOT_SUPPORT = 25109, // IvwErr_NotSupport= 9 SPEECH_ERROR_IVW_NOT_FOUND = 25110, // IvwErr_NotFound= 10 SPEECH_ERROR_IVW_INVALID_SN = 25111, // IvwErr_InvSN= 11 SPEECH_ERROR_IVW_LIMITTED = 25112, // IvwErr_Limitted= 12 SPEECH_ERROR_IVW_TIME_OUT = 25113, // IvwErr_TimeOut= 13 SPEECH_ERROR_IVW_ENROLL1_SUCESS = 25114, // IvwErr_Enroll1_Success = 14 SPEECH_ERROR_IVW_ENROLL1_FAILED = 25115, // IvwErr_Enroll1_Failed = 15  SPEECH_ERROR_IVW_ENROLL2_SUCESS = 25116, // IvwErr_Enroll2_Success = 16  SPEECH_ERROR_IVW_ENROLL2_FAILED = 25117, // IvwErr_Enroll2_Failed = 17  SPEECH_ERROR_IVW_ENROLL3_SUCESS = 25118, // IvwErr_Enroll3_Success = 18 SPEECH_ERROR_IVW_ENROLL3_FAILED = 25119, // IvwErr_Enroll3_Failed = 19 SPEECH_ERROR_IVW_SPEECH_TOO_SHORT = 25120, // IvwErr_SpeechTooShort = 20 SPEECH_ERROR_IVW_SPEECH_STOP = 25121, // IvwErr_SpeechStop = 21 /* 非实时转写错误码：26000~26999 */SPEECH_ERROR_LFASR_BASE = 26000, /* 非实时转写错误码基码 */}/*** MSPSampleStatus indicates how the sample buffer should be handled* MSP_AUDIO_SAMPLE_FIRST- The sample buffer is the start of audio* If recognizer was already recognizing, it will discard* audio received to date and re-start the recognition* MSP_AUDIO_SAMPLE_CONTINUE- The sample buffer is continuing audio* MSP_AUDIO_SAMPLE_LAST- The sample buffer is the end of audio* The recognizer will cease processing audio and* return results* Note that sample statii can be combined; for example, for file-based input* the entire file can be written with SAMPLE_FIRST | SAMPLE_LAST as the* status.* Other flags may be added in future to indicate other special audio* conditions such as the presence of AGC*/public enum AudioStatus{MSP_AUDIO_SAMPLE_INIT = 0x00,MSP_AUDIO_SAMPLE_FIRST = 0x01,MSP_AUDIO_SAMPLE_CONTINUE = 0x02,MSP_AUDIO_SAMPLE_LAST = 0x04,}/** The enumeration MSPRecognizerStatus contains the recognition status* MSP_REC_STATUS_SUCCESS- successful recognition with partial results* MSP_REC_STATUS_NO_MATCH- recognition rejected* MSP_REC_STATUS_INCOMPLETE- recognizer needs more time to compute results* MSP_REC_STATUS_NON_SPEECH_DETECTED- discard status, no more in use* MSP_REC_STATUS_SPEECH_DETECTED- recognizer has detected audio, this is delayed status* MSP_REC_STATUS_COMPLETE- recognizer has return all result* MSP_REC_STATUS_MAX_CPU_TIME- CPU time limit exceeded* MSP_REC_STATUS_MAX_SPEECH- maximum speech length exceeded, partial results may be returned* MSP_REC_STATUS_STOPPED- recognition was stopped* MSP_REC_STATUS_REJECTED- recognizer rejected due to low confidence* MSP_REC_STATUS_NO_SPEECH_FOUND- recognizer still found no audio, this is delayed status*/public enum RecogStatus{MSP_REC_STATUS_SUCCESS = 0,MSP_REC_STATUS_NO_MATCH = 1,MSP_REC_STATUS_INCOMPLETE = 2,MSP_REC_STATUS_NON_SPEECH_DETECTED = 3,MSP_REC_STATUS_SPEECH_DETECTED = 4,MSP_REC_STATUS_COMPLETE = 5,MSP_REC_STATUS_MAX_CPU_TIME = 6,MSP_REC_STATUS_MAX_SPEECH = 7,MSP_REC_STATUS_STOPPED = 8,MSP_REC_STATUS_REJECTED = 9,MSP_REC_STATUS_NO_SPEECH_FOUND = 10,MSP_REC_STATUS_FAILURE = MSP_REC_STATUS_NO_MATCH,};/** * The enumeration MSPepState contains the current endpointer state * MSP_EP_LOOKING_FOR_SPEECH- Have not yet found the beginning of speech * MSP_EP_IN_SPEECH- Have found the beginning, but not the end of speech * MSP_EP_AFTER_SPEECH- Have found the beginning and end of speech * MSP_EP_TIMEOUT- Have not found any audio till timeout * MSP_EP_ERROR- The endpointer has encountered a serious error * MSP_EP_MAX_SPEECH- Have arrive the max size of speech */public enum EpStatus{MSP_EP_LOOKING_FOR_SPEECH = 0,MSP_EP_IN_SPEECH = 1,MSP_EP_AFTER_SPEECH = 3,MSP_EP_TIMEOUT = 4,MSP_EP_ERROR = 5,MSP_EP_MAX_SPEECH = 6,MSP_EP_IDLE = 7 // internal state after stop and before start};/* Synthesizing process flags */public enum SynthesizingStatus{MSP_TTS_FLAG_STILL_HAVE_DATA = 1,MSP_TTS_FLAG_DATA_END = 2,MSP_TTS_FLAG_CMD_CANCELED = 4,};/* Handwriting process flags */public enum HandwritingStatus{MSP_HCR_DATA_FIRST = 1,MSP_HCR_DATA_CONTINUE = 2,MSP_HCR_DATA_END = 4,};/*ivw message type */public enum IvwStatus{MSP_IVW_MSG_WAKEUP = 1,MSP_IVW_MSG_ERROR = 2,MSP_IVW_MSG_ISR_RESULT = 3,MSP_IVW_MSG_ISR_EPS = 4,MSP_IVW_MSG_VOLUME = 5,MSP_IVW_MSG_ENROLL = 6,MSP_IVW_MSG_RESET = 7};/* Upload data process flags */public enum UploadStatus{MSP_DATA_SAMPLE_INIT = 0x00,MSP_DATA_SAMPLE_FIRST = 0x01,MSP_DATA_SAMPLE_CONTINUE = 0x02,MSP_DATA_SAMPLE_LAST = 0x04,};public enum SynthStatus{MSP_TTS_FLAG_STILL_HAVE_DATA = 1,MSP_TTS_FLAG_DATA_END = 2,MSP_TTS_FLAG_CMD_CANCELED = 0}}

四、唤醒功能实现流程

1. 初始化与登录

首先，我们需要在Start方法中初始化讯飞SDK并登录：

private void Start(){ // 登录讯飞SDK MSPLogin(user, pwd, app_id); // 初始化录音设备 waveIn = new WaveInEvent(); waveIn.WaveFormat = new WaveFormat(sampleRate, bitsPerSample, channels); waveIn.DataAvailable += RecordingStart; // 注册录音数据可用事件 waveIn.RecordingStopped += RecordingStopped; // 注册录音停止事件 waveIn.StartRecording(); // 开始录音 // 创建并启动唤醒检测线程 thread = new Thread(() => { while (true) { MSC_Awaken(); // 持续进行唤醒检测 } }); thread.IsBackground = true; // 设置为后台线程 thread.Start(); // 启动线程}

2. 音频录制与处理

使用NAudio库进行音频录制，并在回调中处理音频数据：

private void RecordingStart(object sender, WaveInEventArgs e){ int start = e.BytesRecorded; // 获取开始位置 根据数据长度定义 int length = audio_byte.Length - e.BytesRecorded; // 获取长度 byte[] destination = new byte[length]; // 将旧数据向前移动，为新数据腾出空间 Array.Copy(audio_byte, start, destination, 0, length); audio_byte = destination.Concat(e.Buffer).ToArray(); // 合并新旧数据}

3. 唤醒检测

在单独的线程中持续进行唤醒检测：

private void MSC_Awaken(){ // 开始唤醒会话 session_id = MSCDLL.QIVWSessionBegin(null, qivw_session_begin_params, ref error_code); if (error_code != (int)Errors.MSP_SUCCESS) { Debug.LogError(\"初始化唤醒会话失败，错误信息：\" + error_code); return; } // 注册唤醒回调函数 message = MSCDLL.QIVWRegisterNotify(session_id, cb_ivw_msg_proc, IntPtr.Zero); // ... 写入音频数据和结束会话 ...}

4. 唤醒回调处理

当检测到唤醒词时，通过回调函数处理唤醒事件：

private void MSC_Awaken(){ // 开始唤醒会话 session_id = MSCDLL.QIVWSessionBegin(null, qivw_session_begin_params, ref error_code); if (error_code != (int)Errors.MSP_SUCCESS) { Debug.LogError(\"初始化唤醒会话失败，错误信息：\" + error_code); return; } // 注册唤醒回调函数 message = MSCDLL.QIVWRegisterNotify(session_id, cb_ivw_msg_proc, IntPtr.Zero); // ... 写入音频数据和结束会话 ...}

五、自定义唤醒词配置

讯飞离线唤醒支持自定义唤醒词，需要在讯飞开放平台上进行配置：

  1. 登录讯飞开放平台
  2. 进入\"控制台\">“我的应用”>“应用详情”
  3. 选择\"语音唤醒\"服务
  4. 在\"唤醒词管理\"中添加自定义唤醒词
  5. 训练唤醒词模型
  6. 下载更新后的唤醒资源文件(wakeupresource.jet)
  7. 替换项目中的唤醒资源文件
    在代码中，我们通过字典映射唤醒词ID和名称：
private Dictionary<int, string> wakeupWordDict = new Dictionary<int, string>(){ { 0, \"你好啊\" }, { 1, \"小爱同学\" }, { 2, \"你好小飞\" }, { 3, \"暂停对话\" } // 根据实际情况添加更多唤醒词};

六、交互逻辑实现

当检测到唤醒词后，我们可以根据不同的唤醒词执行不同的操作：

// 根据唤醒词ID执行不同操作switch (wakeupId){ case 0: Debug.Log(\"触发了第一个唤醒词: \" + wakeupWord); // 第一个唤醒词的特定操作 break; case 1: Debug.Log(\"触发了第二个唤醒词: \" + wakeupWord); // 第二个唤醒词的特定操作 break; // ... 其他唤醒词处理 ...}

同时，我们可以通过UI文本显示唤醒状态：

```csharp// 在主线程中更新UI文本UnityMainThreadDispatcher.RunOnMainThread(() => { if (text != null) { text.text = $\"唤醒成功: {wakeupWord} (ID:{wakeupId})\"; // 使用协程在一段时间后清空文本，为下次唤醒做准备 StartCoroutine(ClearTextAfterDelay(2.0f)); }});

七、资源清理

在组件销毁时，需要正确清理资源：```

```csharpprivate void OnDestroy(){ waveIn?.StopRecording(); // 停止录音 waveIn?.Dispose(); // 释放录音资源 thread?.Abort(); // 终止线程 MSPLoginOut(); // 注销讯飞SDK}

八、常见问题与解决方案

  1. 唤醒不灵敏或误唤醒

    • 调整唤醒阈值参数(ivw_threshold)
    • 在安静环境下重新训练唤醒词
    • 使用更高质量的麦克风

  2. SDK初始化失败

    • 检查APPID是否正确
    • 确认网络连接是否正常
    • 查看讯飞开放平台应用是否已审核通过

  3. 音频数据处理问题

    • 确保音频格式与SDK要求一致(16K采样率、16位深度、单通道)
    • 检查音频数据缓冲区大小是否合适

  4. 线程安全问题

    • 使用UnityMainThreadDispatcher确保UI更新在主线程进行
    • 避免在多个线程中同时访问共享资源
