WebRTC与H.265编码的兼容性现状及解决方案

WebRTC作为实时通信的开放标准，与新一代视频编码标准H.265(HEVC)的兼容性存在特定挑战和机遇。以下是专业级分析：

一、核心兼容性现状

1. 协议标准支持对比

技术要素 WebRTC默认支持 H.265要求兼容性评估视频编码 VP8/VP9/H.264 H.265/HEVC ❌ 需扩展媒体格式描述 SDP a=rtpmap H265媒体类型 ⚠️ 部分支持传输协议 RTP/RTCP 相同 ✅ 完全兼容帧打包模式 FU-A AP(聚合包) ❌ 需适配

2. 浏览器支持情况

浏览器 H.265解码支持 WebRTC发送H.265 接收H.265 Chrome 105+ ✅ (硬件加速) ❌ ✅ Edge 95+ ✅ ❌ ✅ Safari 13+ ✅ ⚠️ (实验性) ✅ Firefox ❌ ❌ ❌

二、技术实现方案

1. SDP协商扩展

H.265的SDP示例：

a=rtpmap:98 H265/90000a=fmtp:98 profile-id=1; level-id=93; sprop-vps=QAEMAf//AWAAAAMAsAAAAwAAAwB4FwJA;sprop-sps=QgEBAWAAAAMAsAAAAwAAAwB4FwJA;sprop-pps=RAHA8vA8kA==

2. 传输层适配

#mermaid-svg-rMEFew4xekcC0ctu {font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-rMEFew4xekcC0ctu .error-icon{fill:#552222;}#mermaid-svg-rMEFew4xekcC0ctu .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-rMEFew4xekcC0ctu .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-rMEFew4xekcC0ctu .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-rMEFew4xekcC0ctu .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-rMEFew4xekcC0ctu .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-rMEFew4xekcC0ctu .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-rMEFew4xekcC0ctu .marker{fill:#333333;stroke:#333333;}#mermaid-svg-rMEFew4xekcC0ctu .marker.cross{stroke:#333333;}#mermaid-svg-rMEFew4xekcC0ctu svg{font-family:\"trebuchet ms\",verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-rMEFew4xekcC0ctu .actor{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-rMEFew4xekcC0ctu text.actor>tspan{fill:black;stroke:none;}#mermaid-svg-rMEFew4xekcC0ctu .actor-line{stroke:grey;}#mermaid-svg-rMEFew4xekcC0ctu .messageLine0{stroke-width:1.5;stroke-dasharray:none;stroke:#333;}#mermaid-svg-rMEFew4xekcC0ctu .messageLine1{stroke-width:1.5;stroke-dasharray:2,2;stroke:#333;}#mermaid-svg-rMEFew4xekcC0ctu #arrowhead path{fill:#333;stroke:#333;}#mermaid-svg-rMEFew4xekcC0ctu .sequenceNumber{fill:white;}#mermaid-svg-rMEFew4xekcC0ctu #sequencenumber{fill:#333;}#mermaid-svg-rMEFew4xekcC0ctu #crosshead path{fill:#333;stroke:#333;}#mermaid-svg-rMEFew4xekcC0ctu .messageText{fill:#333;stroke:#333;}#mermaid-svg-rMEFew4xekcC0ctu .labelBox{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-rMEFew4xekcC0ctu .labelText,#mermaid-svg-rMEFew4xekcC0ctu .labelText>tspan{fill:black;stroke:none;}#mermaid-svg-rMEFew4xekcC0ctu .loopText,#mermaid-svg-rMEFew4xekcC0ctu .loopText>tspan{fill:black;stroke:none;}#mermaid-svg-rMEFew4xekcC0ctu .loopLine{stroke-width:2px;stroke-dasharray:2,2;stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);}#mermaid-svg-rMEFew4xekcC0ctu .note{stroke:#aaaa33;fill:#fff5ad;}#mermaid-svg-rMEFew4xekcC0ctu .noteText,#mermaid-svg-rMEFew4xekcC0ctu .noteText>tspan{fill:black;stroke:none;}#mermaid-svg-rMEFew4xekcC0ctu .activation0{fill:#f4f4f4;stroke:#666;}#mermaid-svg-rMEFew4xekcC0ctu .activation1{fill:#f4f4f4;stroke:#666;}#mermaid-svg-rMEFew4xekcC0ctu .activation2{fill:#f4f4f4;stroke:#666;}#mermaid-svg-rMEFew4xekcC0ctu .actorPopupMenu{position:absolute;}#mermaid-svg-rMEFew4xekcC0ctu .actorPopupMenuPanel{position:absolute;fill:#ECECFF;box-shadow:0px 8px 16px 0px rgba(0,0,0,0.2);filter:drop-shadow(3px 5px 2px rgb(0 0 0 / 0.4));}#mermaid-svg-rMEFew4xekcC0ctu .actor-man line{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-rMEFew4xekcC0ctu .actor-man circle,#mermaid-svg-rMEFew4xekcC0ctu line{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;stroke-width:2px;}#mermaid-svg-rMEFew4xekcC0ctu :root{--mermaid-font-family:\"trebuchet ms\",verdana,arial,sans-serif;}ClientServerOffer(SDP with H265)Answer(SDP with H265)RTP(H265 over UDP)RTCP反馈ClientServer

三、跨平台解决方案

1. WebAssembly软解码

// H.265解码器加载const decoder = await H265Decoder.create({ wasmPath: \'/decoders/libde265.wasm\', workerPath: \'/js/h265-worker.js\'});// WebRTC视频轨道处理pc.ontrack = (event) => { const stream = event.streams[0]; const videoTrack = stream.getVideoTracks()[0]; videoTrack.onframe = (frame) => { decoder.decode(frame.data).then(yuv => { renderToCanvas(yuv); }); };};

2. 转码网关架构

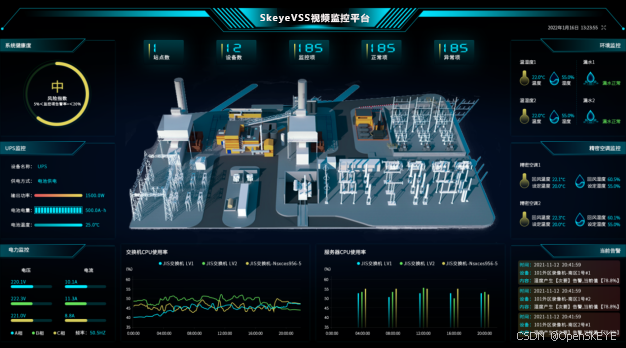

[WebRTC终端] --VP8--> [转码服务器] --H.265--> [监控系统]  ↑  [SkeyeVSS媒体网关]

在这里插入图片描述

四、关键代码实现

1. H.265 RTP封包

void packetizeH265(const uint8_t* data, size_t size) { if (size <= MAX_MTU) { sendSinglePacket(data, size); // 单包模式 } else { // AP分片模式 uint8_t header[2] = {0x60, 0x01}; // AP头 size_t offset = 0; while (offset < size) { size_t chunk = min(size - offset, MAX_MTU - 2); sendPacketWithHeader(header, data + offset, chunk); offset += chunk; } }}

2. 浏览器端检测

function checkH265Support() { const video = document.createElement(\'video\'); const mime = \'video/mp4; codecs=\"hev1.1.6.L93.B0\"\'; return { decoding: video.canPlayType(mime) === \'probably\', encoding: !!window.RTCRtpSender?.getCapabilities?.(\'video\')  .codecs.find(c => c.mimeType === \'video/H265\') };}

五、性能优化建议

1. 编码参数调优

参数推荐值适用场景 Profile Main 通用场景 Level 4.1 (1080p30) 实时通信 GOP 30-60 低延迟模式 Bitrate 动态调整基于带宽预测

2. 硬件加速配置

NVIDIA方案：

ffmpeg -c:v hevc_cuvid -i input.mp4 \\ -c:v hevc_nvenc -preset p7 \\ -rc vbr_hq -b:v 5M \\ -f rtp rtp://target

六、行业应用案例

1. 4K医疗会诊系统

架构：

[内窥镜H.265] --> [WebRTC网关] --> [浏览器VP9]

指标：
- 端到端延迟：<800ms
- 画质损失：❤️% (VMAF)

2. 超高清监控平台

技术组合：
- WebRTC DataChannel传输H.265 NAL单元
- WASM解码+WebGL渲染
优势：
- 比H.264更节省带宽
- 支持4K@30fps实时查看

七、未来演进方向

WebCodecs API整合：

const decoder = new VideoDecoder({ output: frame => render(frame), error: e => console.error(e)});decoder.configure({ codec: \'hev1.1.6.L93.B0\' });

AV1过渡方案：
- 兼容性优于H.265
- 专利风险更低
- 浏览器原生支持

WebTransport支持：

const transport = new WebTransport(\'https://example.com:4433/h265\');const writer = transport.datagrams.writable.getWriter();writer.write(encodedFrame);

当前推荐方案：

企业内网：直接使用H.265+WebRTC扩展
公网应用：VP9/H.264兼容方案+转码网关
关键任务：双编码引擎冗余设计
