🎬 全能视频播放器开发全攻略：从零构建支持HLS/FLV/MP4的Web播放器 🚀

🌈 个人主页：创客白泽 - CSDN博客
🔥 系列专栏：🐍《Python开源项目实战》
💡 热爱不止于代码，热情源自每一个灵感闪现的夜晚。愿以开源之火，点亮前行之路。
🐋 希望大家多多支持，我们一起进步！
👍 🎉如果文章对你有帮助的话，欢迎 点赞 👍🏻 评论 💬 收藏 ⭐️ 加关注+💗分享给更多人哦

一、📋 概述

在当今数字化时代，视频内容已成为互联网流量的主要载体。作为开发者，我们经常需要在自己的网站或应用中集成视频播放功能。本文将详细介绍如何从零开始构建一个全功能Web视频播放器，支持包括HLS、FLV、MP4在内的多种视频格式，并具备完善的用户交互功能。

🌟 本播放器的主要技术特点：

• 🎥 基于HTML5 Video元素的核心播放功能
• 🌊 使用HLS.js和FLV.js实现流媒体支持
• 📱 响应式设计适配各种设备
• 🎛️ 完整的播放控制功能集
• 💾 本地视频文件播放支持
• 📜 外挂字幕系统
• ⏳ 播放历史记录功能

二、🛠️ 功能详解

1. 🎯 核心播放功能

播放器支持多种视频源：

• 📂 本地文件：通过文件选择或拖放上传
• 🌐 网络URL：直接输入视频地址
• 📶 流媒体：HLS (m3u8) 和 FLV 格式

function play(url) {  // 自动检测格式并选择合适的播放方式 if (url.startsWith(\'blob:\')) {  // 本地文件 video.src = url; } else if (url.includes(\'.m3u8\')) {  // HLS流 if (Hls.isSupported()) {  hlsInstance = new Hls(); hlsInstance.loadSource(url); hlsInstance.attachMedia(video); } } else if (url.includes(\'.flv\')) {  // FLV流 if (flvjs.isSupported()) {  flvPlayer = flvjs.createPlayer({ type: \'flv\', url: url}); flvPlayer.attachMediaElement(video); flvPlayer.load(); } } else {  // 其他格式尝试原生播放 video.src = url; } video.play();}

2. 🎨 用户界面组件

播放器包含完整的UI控制元素：

• ⏯️ 播放/暂停/停止按钮
• ⏱️ 进度条与时间显示
• 🔊 音量控制
• 🏎️ 播放速度调节
• 🖥️ 全屏切换
• 🌙🌞 暗黑/明亮主题

https://img-blog.csdnimg.cn/direct/9d9d9d9d9d9d9d9d9d9d9d9d9d9d9d9d.png

三、🔧 实现步骤详解

1. 🏗️ HTML结构

播放器的HTML结构分为几个主要部分：

<div class=\"container\"> <div class=\"card\"> <header>...</header> <div class=\"video-container\"> <video id=\"videoPlayer\"></video> <div id=\"subtitleDisplay\"></div> </div> <div class=\"control-panel\">  </div> </div> <div class=\"main-content\"> <div class=\"card\"> <div class=\"upload-area\" id=\"uploadArea\">...</div> </div> <div class=\"history-section\">...</div> </div></div>

2. 🎨 CSS样式设计

采用CSS变量实现主题切换：

:root {  --primary: #4a6cf7; --primary-dark: #3a57d6; --text-primary: #1a202c; --bg-light: #f8fafc; }body.dark-mode {  --text-primary: #e2e8f0; --bg-dark: #0f172a;}

响应式布局确保在移动设备上的良好体验：

@media (max-width: 768px) {  .container {  padding: 10px; } .history-item {  flex-direction: column; }}

3. 💻 JavaScript核心逻辑

🎥 视频格式检测与播放

function play(url) {  const extension = getFileExtension(url); if (extension === \'m3u8\') {  initHlsPlayer(url); } else if (extension === \'flv\') {  initFlvPlayer(url); } else {  playNative(url); }}

📜 字幕系统实现

支持SRT和VTT格式字幕的解析与显示：

function parseSrtOrVtt(content) {  const subtitles = []; const lines = content.split(/\\r?\\n/); // 解析时间轴和字幕文本 for (let i = 0; i < lines.length; i++) {  if (lines[i].includes(\'-->\')) {  const [start, end] = parseTimeLine(lines[i]); const text = lines.slice(i+1).join(\'\\n\'); subtitles.push({ start, end, text}); } } return subtitles;}function updateSubtitleDisplay(currentTime) {  const display = document.getElementById(\'subtitleDisplay\'); let currentCaption = \'\'; for (const track of currentSubtitleTracks) {  if (currentTime >= track.start && currentTime <= track.end) {  currentCaption = track.text; break; } } display.textContent = currentCaption;}

四、🚀 高级功能实现

1. 🖼️ 视频画面调整

function applyVideoTransformations() {  const video = document.getElementById(\'videoPlayer\'); video.style.transform = ` rotate(${ currentRotation}deg) scaleX(${ currentFlipX}) scaleY(${ currentFlipY}) scale(${ currentZoom}) `;}function applyVideoFilters() {  const video = document.getElementById(\'videoPlayer\'); video.style.filter = ` brightness(${ currentBrightness}%) contrast(${ currentContrast}%) saturate(${ currentSaturation}%) `;}

2. ⏳ 播放历史管理

function addToHistory(title, url) {  // 避免重复 playbackHistory = playbackHistory.filter(item => item.url !== url); playbackHistory.unshift({  title: title, url: url, timestamp: new Date().toISOString() }); // 限制历史记录数量 if (playbackHistory.length > 10) {  playbackHistory.pop(); } localStorage.setItem(\'playbackHistory\', JSON.stringify(playbackHistory)); renderHistory();}

3. 💾 视频下载功能

async function downloadVideo() {  if (currentVideo.startsWith(\'blob:\')) {  // 本地文件处理 return; } if (currentVideo.includes(\'.m3u8\')) {  await downloadHLS(currentVideo); } else {  await downloadDirect(currentVideo); }}async function downloadHLS(m3u8Url) {  // 1. 下载m3u8清单 // 2. 解析获取所有ts片段 // 3. 下载所有片段 // 4. 合并为单个文件 // 5. 触发浏览器下载}

五、🔍 代码解析

🔑 关键函数解析

1. 播放控制函数

function startPlayback() {  const url = document.getElementById(\'videoURL\').value.trim(); if (!url) return; // 添加到历史记录 addToHistory(url, url); // 开始播放 play(url);}function stopPlayback() {  video.pause(); video.currentTime = 0; // 清理流媒体实例 if (hlsInstance) hlsInstance.destroy(); if (flvPlayer) flvPlayer.destroy();}

1. 字幕处理函数

function uploadSubtitleFile() {  const input = document.createElement(\'input\'); input.type = \'file\'; input.accept = \'.vtt,.srt\'; input.onchange = (e) => {  const file = e.target.files[0]; const reader = new FileReader(); reader.onload = (event) => {  parseAndActivateSubtitle(event.target.result); }; reader.readAsText(file); }; input.click();}

六、🖼️ 效果展示

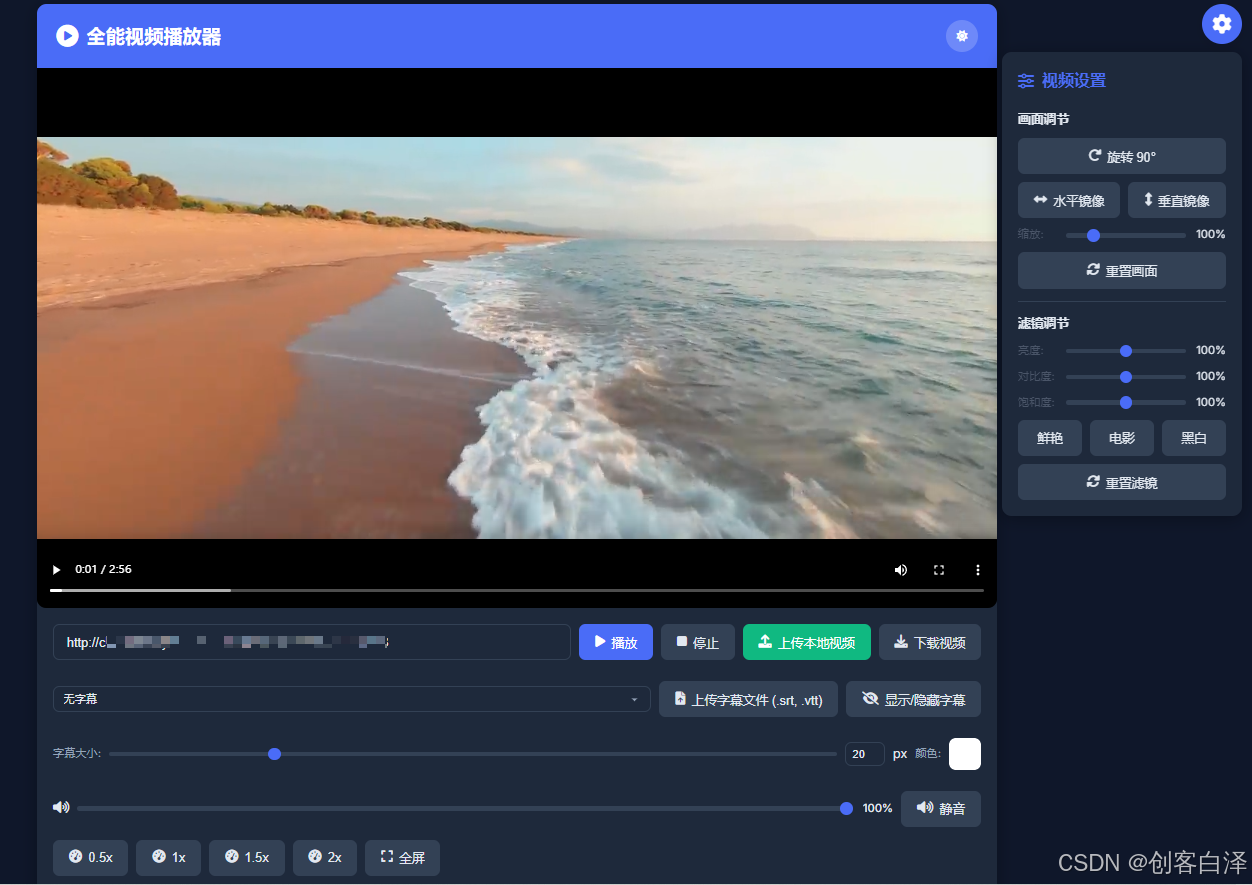

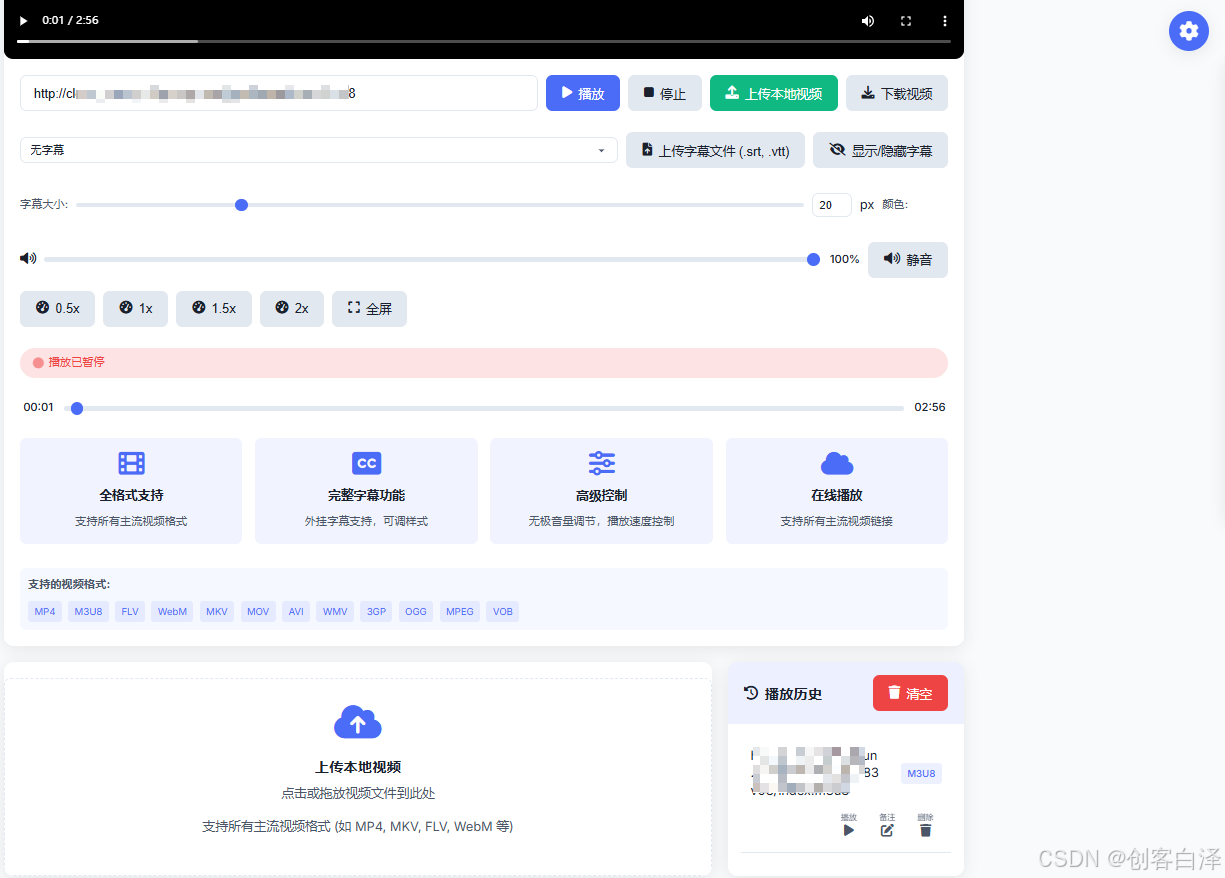

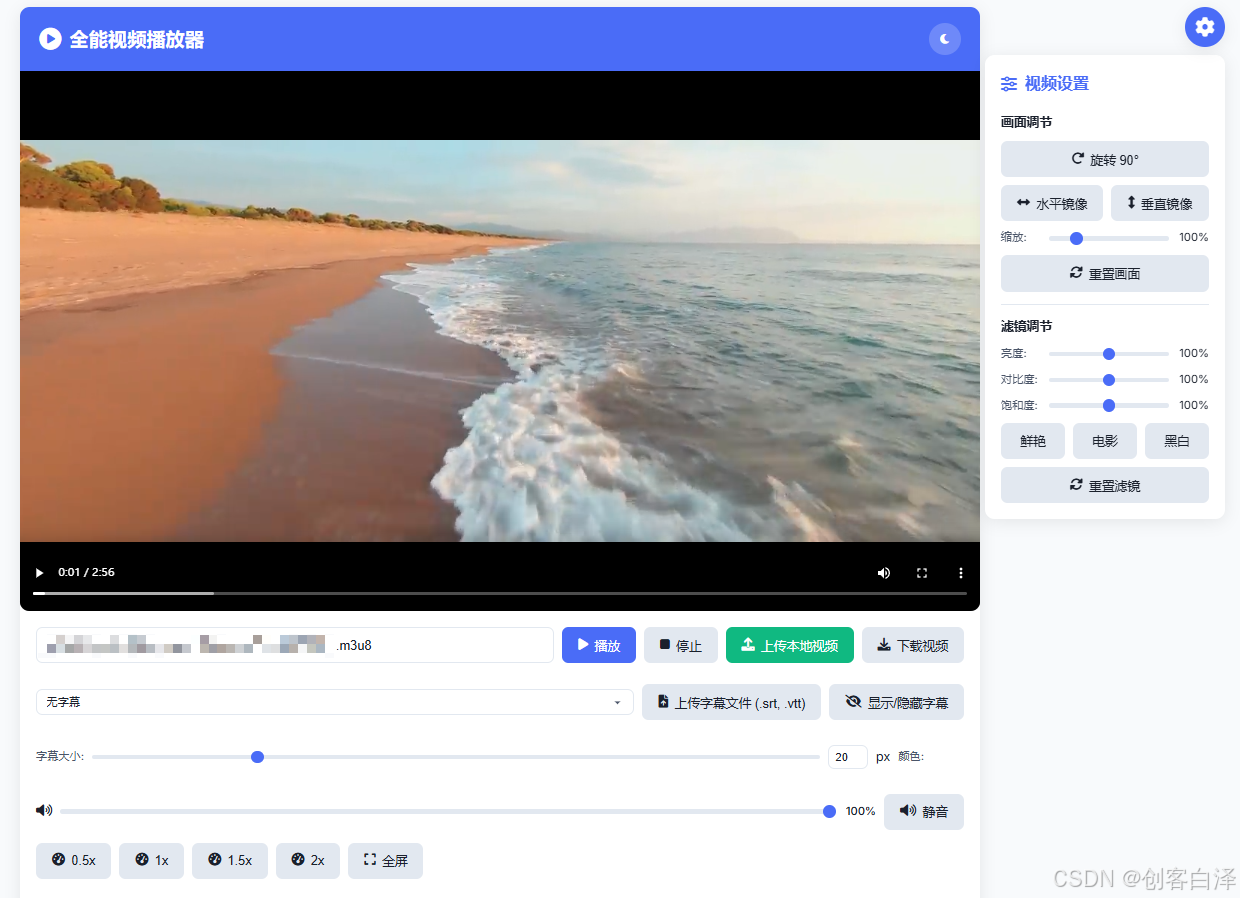

1. 主界面展示

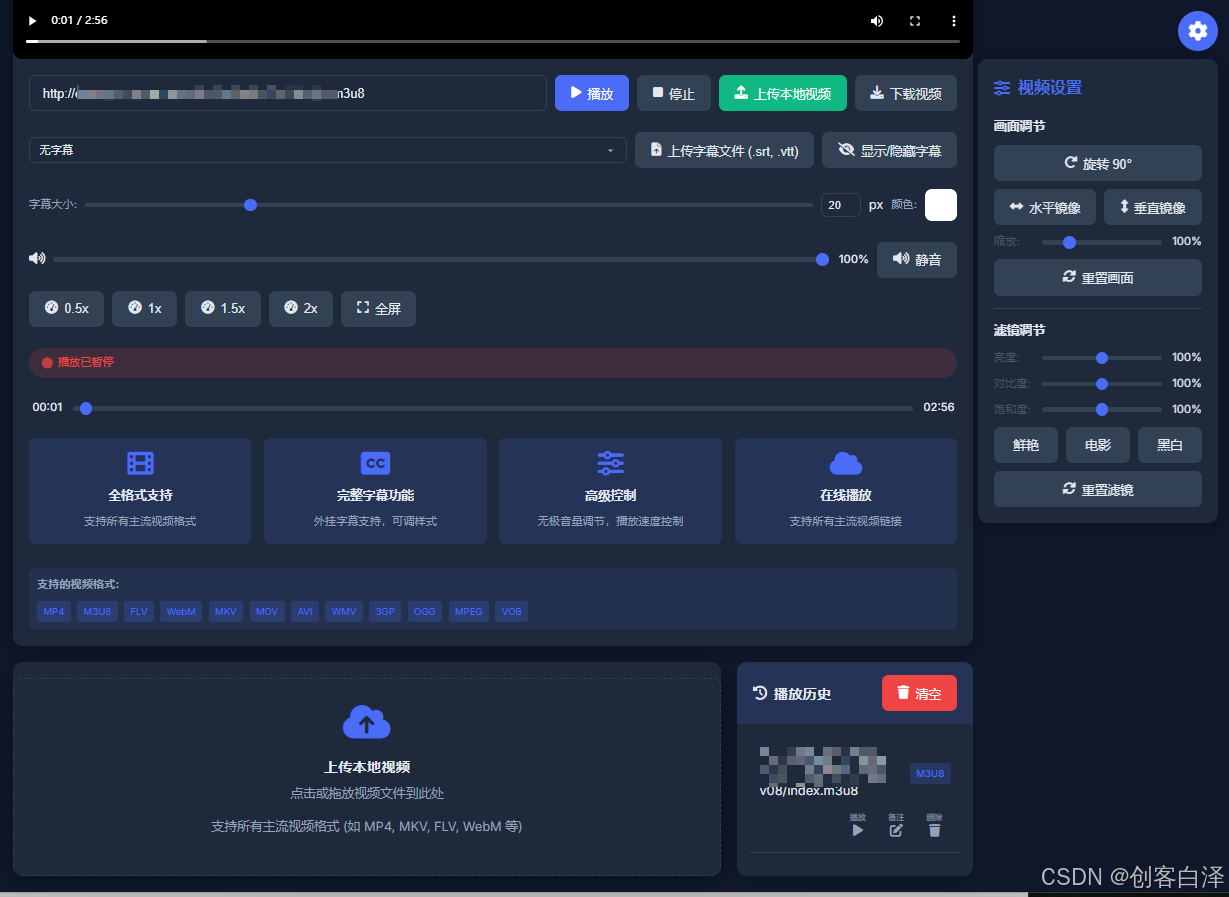

2. 暗黑模式

七、📥 源码下载

<!DOCTYPE html><html lang=\"zh-CN\"><head> <meta charset=\"UTF-8\" /> <meta name=\"viewport\" content=\"width=device-width, initial-scale=1\" /> <title>全能视频播放器</title>  <link href=\"https://lf26-cdn-tos.bytecdntp.com/cdn/expire-0-y/font-awesome/6.0.0/css/all.min.css\" rel=\"stylesheet\" /> <link href=\"https://fonts.googleapis.com/css2?family=Inter:wght@300;400;500;600;700&display=swap\" rel=\"stylesheet\" /> <script src=\"https://lf9-cdn-tos.bytecdntp.com/cdn/expire-0-y/hls.js/8.0.0-beta.3/hls.js\"></script> <script src=\"https://lf6-cdn-tos.bytecdntp.com/cdn/expire-0-y/flv.js/1.6.2/flv.js\"></script> <style> /* 全局样式 */ * {  box-sizing: border-box; margin: 0; padding: 0; } :root {  --primary: #4a6cf7; --primary-dark: #3a57d6; --text-primary: #1a202c; --text-secondary: #4a5568; --bg-light: #f8fafc; --bg-dark: #0f172a; --card-light: #ffffff; --card-dark: #1e293b; --border-light: #e2e8f0; --border-dark: #334155; --success: #10b981; --warning: #f59e0b; --danger: #ef4444; --shadow: 0 4px 20px rgba(0, 0, 0, 0.08); --transition: all 0.3s ease; } body {  font-family: \'Inter\', -apple-system, BlinkMacMacFont, \'Segoe UI\', Roboto, Oxygen, Ubuntu, Cantarell, \'Open Sans\', sans-serif; background: var(--bg-light); color: var(--text-primary); line-height: 1.6; min-height: 100vh; padding: 20px; transition: var(--transition); } body.dark-mode {  background: var(--bg-dark); color: #e2e8f0; --text-primary: #e2e8f0; } /* 布局 */ .container {  display: flex; flex-direction: column; max-width: 1200px; margin: 0 auto; gap: 20px; } .main-content {  display: grid; grid-template-columns: 1fr; gap: 20px; } @media (min-width: 992px) {  .main-content {  grid-template-columns: 3fr 1fr; } } /* 卡片样式 */ .card {  background: var(--card-light); border-radius: 12px; box-shadow: var(--shadow); overflow: hidden; transition: var(--transition); } .dark-mode .card {  background: var(--card-dark); box-shadow: 0 4px 20px rgba(0, 0, 0, 0.3); } /* 头部 */ header {  padding: 20px 24px; background: var(--primary); color: white; display: flex; justify-content: space-between; align-items: center; position: relative; } .logo {  display: flex; align-items: center; gap: 10px; } .logo i {  font-size: 28px; } .logo h1 {  font-size: 24px; font-weight: 700; } .theme-toggle {  background: rgba(255, 255, 255, 0.2); border: none; width: 40px; height: 40px; border-radius: 50%; color: white; cursor: pointer; display: flex; align-items: center; justify-content: center; transition: var(--transition); } .theme-toggle:hover {  background: rgba(255, 255, 255, 0.3); } /* 播放器区域 */ .video-container {  position: relative; padding-top: 56.25%; /* 16:9 Aspect Ratio */ background: #000; border-radius: 0 0 12px 12px; overflow: hidden; } /* Fullscreen specific styles for video container */ .video-container.fullscreen-active {  padding-top: 0 !important; /* Remove aspect ratio padding in fullscreen */ width: 100vw; /* Take full viewport width */ height: 100vh; /* Take full viewport height */ display: flex; /* Use flexbox to center the video */ align-items: center; justify-content: center; border-radius: 0; /* Remove border-radius in fullscreen */ } #videoPlayer {  position: absolute; top: 0; left: 0; width: 100%; height: 100%; outline: none; /* Add transitions for smooth transformations and filters */ transform-origin: center center; transition: transform 0.1s ease-out, filter 0.1s ease-out; object-fit: contain; /* Ensure video fits without distortion, adding black bars if necessary */ } /* When in fullscreen, the video player should also fill its container */ .video-container.fullscreen-active #videoPlayer {  position: static; /* Let flexbox handle positioning */ width: 100%; height: 100%; object-fit: contain; /* Maintain aspect ratio */ } /* 控制面板 */ .control-panel {  padding: 20px; display: flex; flex-direction: column; gap: 16px; } .input-group {  display: flex; gap: 10px; flex-wrap: wrap; } .input-group input {  flex: 1; min-width: 200px; padding: 12px 16px; border: 1px solid var(--border-light); border-radius: 8px; font-size: 16px; background: transparent; color: var(--text-primary); transition: var(--transition); } .dark-mode .input-group input {  border-color: var(--border-dark); } .input-group input:focus {  border-color: var(--primary); outline: none; } .btn-group {  display: flex; gap: 10px; flex-wrap: wrap; } .btn {  padding: 12px 20px; border: none; border-radius: 8px; font-size: 16px; font-weight: 500; cursor: pointer; display: flex; align-items: center; gap: 8px; transition: var(--transition); white-space: nowrap; /* Prevent wrapping for button text */ } .btn-primary {  background: var(--primary); color: white; } .btn-primary:hover {  background: var(--primary-dark); } .btn-secondary {  background: #e2e8f0; color: var(--text-primary); } .dark-mode .btn-secondary {  background: #334155; } .btn-secondary:hover {  background: #cbd5e0; } .dark-mode .btn-secondary:hover {  background: #475569; } .btn-danger {  background: var(--danger); color: white; } .btn-danger:hover {  background: #dc2626; } .btn-success {  background: var(--success); color: white; } .btn-success:hover {  background: #059669; } /* 功能区域 */ .features {  display: grid; grid-template-columns: repeat(auto-fit, minmax(200px, 1fr)); gap: 16px; margin-top: 10px; } .feature-card {  background: rgba(74, 108, 247, 0.08); border-radius: 8px; padding: 16px; display: flex; flex-direction: column; align-items: center; text-align: center; transition: var(--transition); } .dark-mode .feature-card {  background: rgba(74, 108, 247, 0.15); } .feature-card i {  font-size: 32px; color: var(--primary); margin-bottom: 12px; } .feature-card h3 {  font-size: 16px; margin-bottom: 8px; } .feature-card p {  font-size: 14px; color: var(--text-secondary); } .dark-mode .feature-card p {  color: #94a3b8; } /* 历史记录 */ .history-section {  background: var(--card-light); border-radius: 12px; box-shadow: var(--shadow); overflow: hidden; } .dark-mode .history-section {  background: var(--card-dark); } .section-header {  padding: 16px 20px; background: rgba(74, 108, 247, 0.1); display: flex; justify-content: space-between; align-items: center; } .dark-mode .section-header {  background: rgba(74, 108, 247, 0.15); } .section-header h2 {  font-size: 18px; font-weight: 600; display: flex; align-items: center; gap: 8px; } .history-list {  padding: 16px; max-height: 400px; overflow-y: auto; } .history-item {  padding: 12px; border-bottom: 1px solid var(--border-light); display: flex; justify-content: space-between; align-items: center; cursor: pointer; transition: var(--transition); flex-wrap: wrap; /* Allow wrapping of elements within the item */ gap: 8px; /* Space between elements */ } .dark-mode .history-item {  border-bottom: 1px solid var(--border-dark); } .history-item:hover {  background: rgba(74, 108, 247, 0.05); } .dark-mode .history-item:hover {  background: rgba(74, 108, 247, 0.1); } .history-item .title-wrapper {  flex: 1; min-width: 150px; /* Ensure it doesn\'t get too small */ margin-right: 10px; display: flex; /* Allow span and input to align */ align-items: center; } .history-item .history-title-display {  flex: 1; /* Allow it to take available space */ word-break: break-word; /* Allow long URLs/words to break */ line-height: 1.4; /* Improve readability for multi-line text */ min-width: 0; /* Important for flex items with word-break */ } .history-item .history-title-edit {  flex: 1; /* Allow it to grow */ padding: 4px 8px; /* Match display padding */ border: 1px solid var(--border-light); border-radius: 4px; font-size: 14px; /* Match display font size */ background: transparent; color: var(--text-primary); min-width: 100px; /* Ensure input is not too small */ word-break: break-word; /* Allow long URLs/words to break */ line-height: 1.4; /* Improve readability for multi-line text */ height: auto; /* Allow height to adjust based on content */ resize: vertical; /* Allow vertical resizing for user */ } .dark-mode .history-item .history-title-edit {  border-color: var(--border-dark); } .history-item .actions {  display: flex; gap: 8px; margin-left: auto; /* Push actions to the right */ } .history-item .actions button {  background: none; border: none; color: var(--text-secondary); cursor: pointer; display: flex; flex-direction: column; /* Stack label and icon */ align-items: center; justify-content: center; border-radius: 4px; transition: var(--transition); padding: 5px; /* Add some padding to the button itself to contain label and icon */ min-width: 40px; /* Ensure buttons don\'t become too small */ } .history-item .actions button i {  font-size: 16px; /* Adjust icon size if needed */ } .dark-mode .history-item .actions button {  color: #94a3b8; } .history-item .actions button:hover {  background: rgba(74, 108, 247, 0.1); /* Subtle background on hover */ color: var(--primary); /* Change icon color on hover */ } .dark-mode .history-item .actions button:hover {  background: rgba(74, 108, 247, 0.2); } .history-item .actions .button-label {  font-size: 10px; /* Smaller font for the label */ color: var(--text-secondary); /* Muted color */ background: var(--card-light); /* Background for readability */ padding: 2px 5px; border-radius: 4px; white-space: nowrap; /* Prevent label text from wrapping */ margin-bottom: 2px; /* Space between label and icon */ opacity: 0.9; /* Slightly transparent */ } .dark-mode .history-item .actions .button-label {  background: var(--card-dark); color: #94a3b8; } .empty-history {  padding: 40px 20px; text-align: center; color: var(--text-secondary); } .dark-mode .empty-history {  color: #94a3b8; } /* 上传区域 */ .upload-area {  border: 2px dashed var(--border-light); border-radius: 8px; padding: 30px; text-align: center; cursor: pointer; transition: var(--transition); margin-top: 20px; position: relative; } .dark-mode .upload-area {  border-color: var(--border-dark); } .upload-area:hover, .upload-area.drag-over {  border-color: var(--primary); background: rgba(74, 108, 247, 0.05); } .dark-mode .upload-area:hover, .dark-mode .upload-area.drag-over {  background: rgba(74, 108, 247, 0.1); } .upload-area i {  font-size: 48px; color: var(--primary); margin-bottom: 16px; } .upload-area h3 {  font-size: 18px; margin-bottom: 8px; } .upload-area p {  color: var(--text-secondary); margin-bottom: 16px; } .dark-mode .upload-area p {  color: #94a3b8; } /* 响应式调整 */ @media (max-width: 768px) {  .container {  padding: 10px; } .btn {  padding: 10px 16px; font-size: 14px; } .input-group input {  font-size: 14px; } .features {  grid-template-columns: 1fr; } .logo h1 {  font-size: 20px; } .upload-area {  padding: 20px; } .volume-controls {  flex-direction: column; align-items: flex-start; } .subtitle-controls, .subtitle-settings {  flex-direction: column; } .history-item {  flex-direction: column; /* Stack elements vertically on small screens */ align-items: flex-start; } .history-item .title-wrapper {  width: 100%; /* Take full width */ margin-right: 0; margin-bottom: 8px; /* Space below title */ } .history-item .format-tag {  margin-left: 0; /* Remove left margin */ margin-bottom: 8px; /* Space below format tag */ } .history-item .actions {  width: 100%; /* Take full width */ justify-content: flex-start; /* Align buttons to start */ margin-left: 0; } } /* 状态指示器 */ .status-indicator {  padding: 8px 16px; border-radius: 20px; font-size: 14px; font-weight: 500; display: inline-flex; align-items: center; gap: 6px; margin-top: 10px; } .status-indicator.playing {  background: rgba(16, 185, 129, 0.15); color: var(--success); } .status-indicator.stopped {  background: rgba(239, 68, 68, 0.15); color: var(--danger); } .status-indicator.loading {  background: rgba(245, 158, 11, 0.15); color: var(--warning
